JJ SUN
9406831 | VRFO6 | 9406831 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:JJ SUN
IMO Code:9406831
Call Sign:VRFO6
Line Operator:9406831
Class Name for Sister Ships:7QW
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,096
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

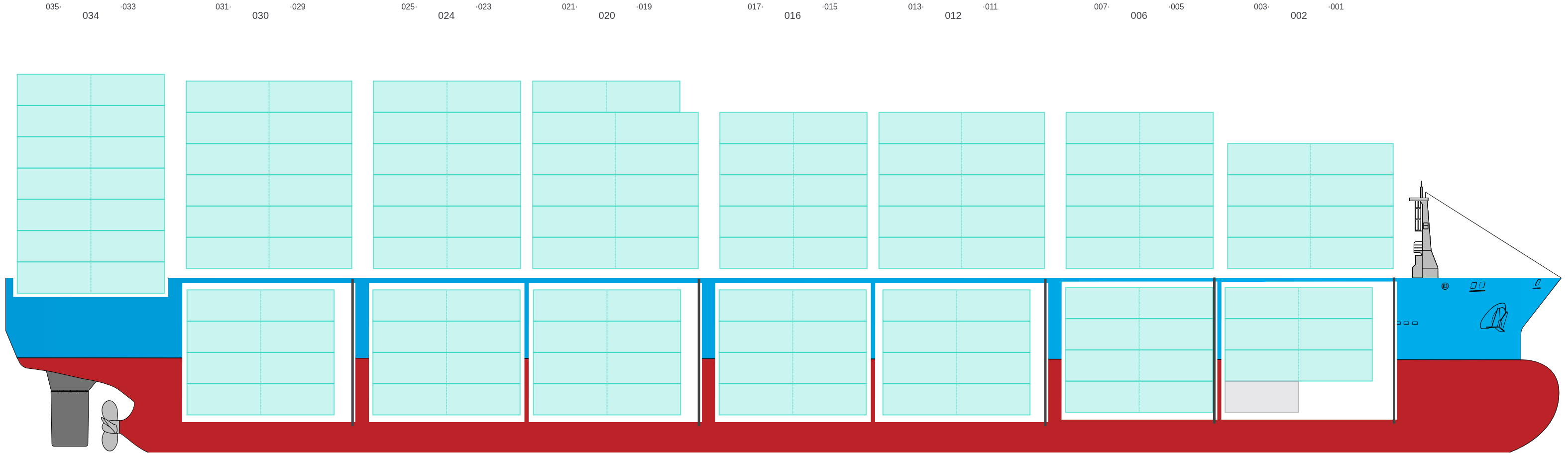

Side View
![Side view of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-sideView.png?v=1711316043733)
Hatch-Covers View
![Deck view of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-deckView.png?v=1711316043733)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
![Bay 001 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b001.png?v=1711316043733)
003
- ←
![Bay 003 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b003.png?v=1711316043733)

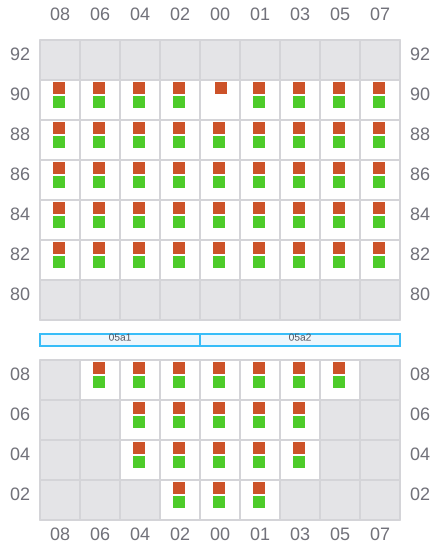

005 (006)
- →
![Bay 005 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b005.png?v=1711316043733)

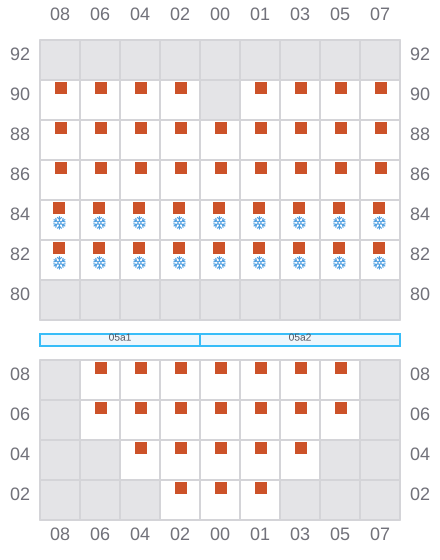

007
- ←
- → / ?
![Bay 007 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b007.png?v=1711316043733)

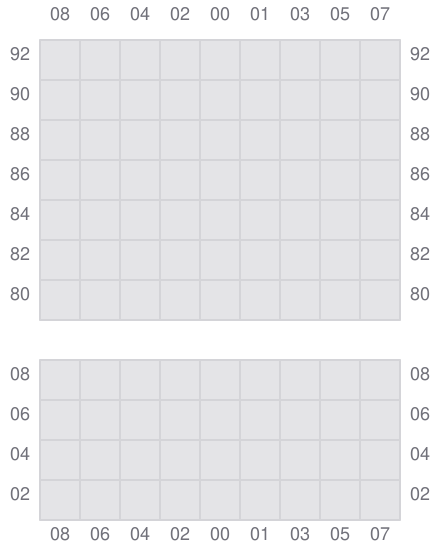

009
![Bay 009 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b009.png?v=1711316043733)

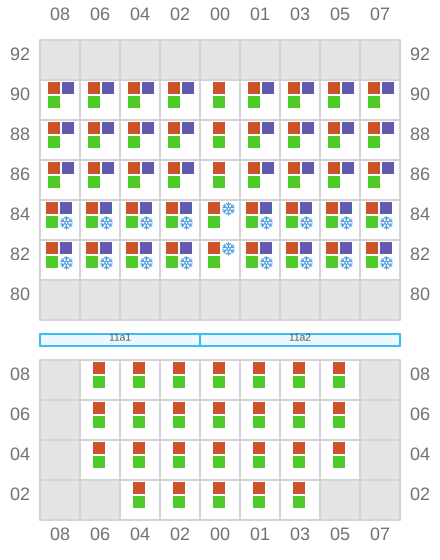

011 (012)
- →
- ← / ?
![Bay 011 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b011.png?v=1711316043733)

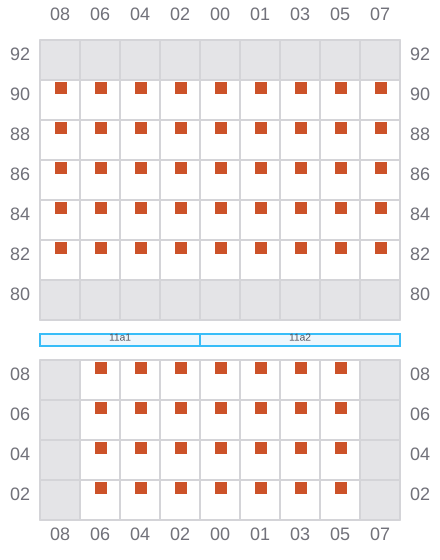

013
- ←
![Bay 013 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b013.png?v=1711316043733)

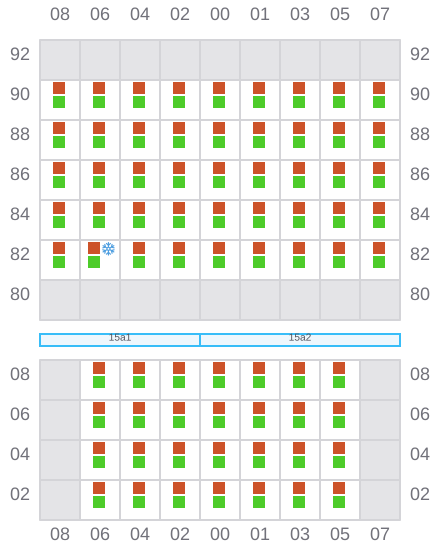

015 (016)
- →
- ← / ?
![Bay 015 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b015.png?v=1711316043733)

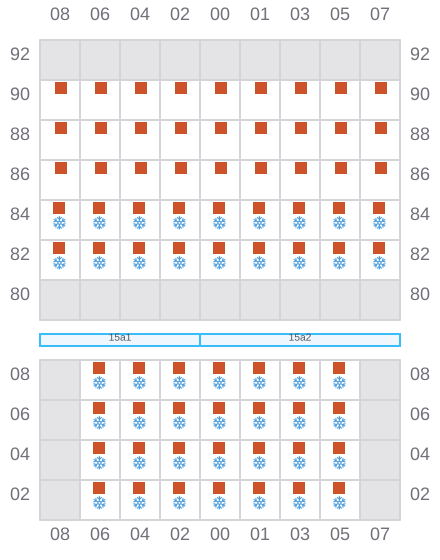

017
- ←
- →
![Bay 017 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b017.png?v=1711316043733)

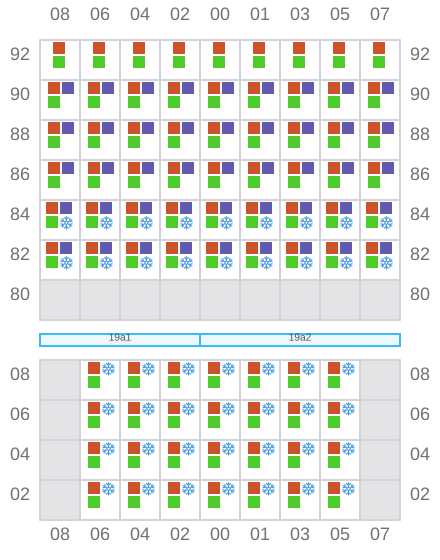

019 (020)
- →
- ←
![Bay 019 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b019.png?v=1711316043733)

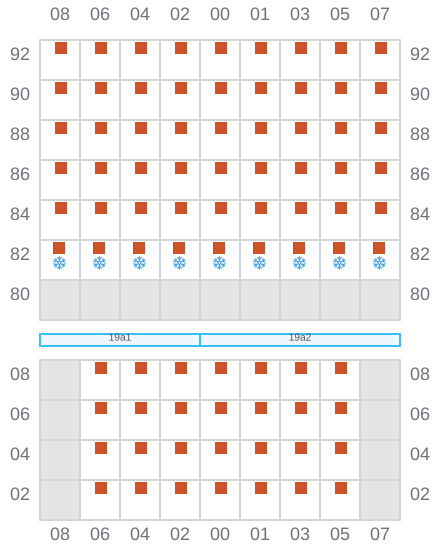

021
- ←
- → / ?
![Bay 021 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b021.png?v=1711316043733)

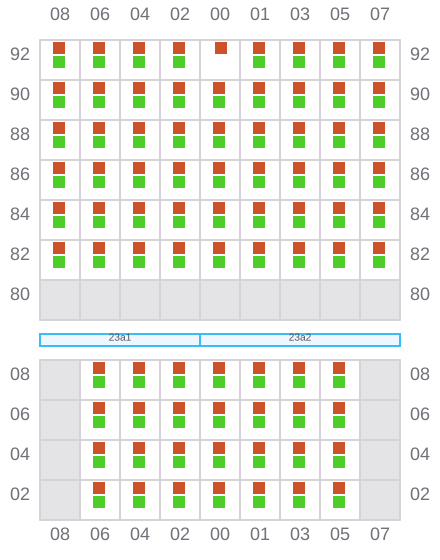

023 (024)
- →
![Bay 023 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b023.png?v=1711316043733)

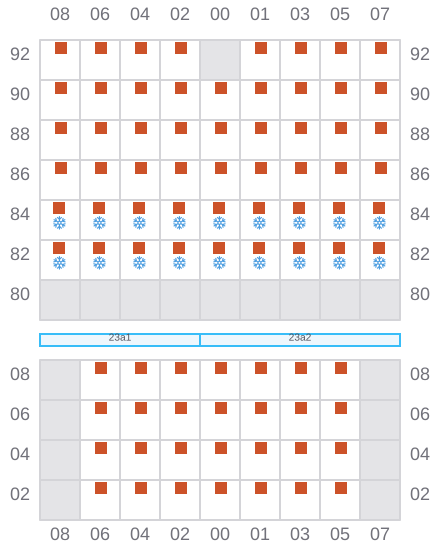

025
- ←
- → / ?
![Bay 025 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b025.png?v=1711316043733)

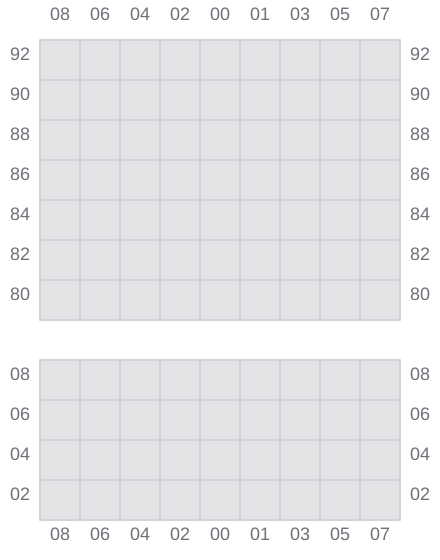

027
![Bay 027 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b027.png?v=1711316043733)

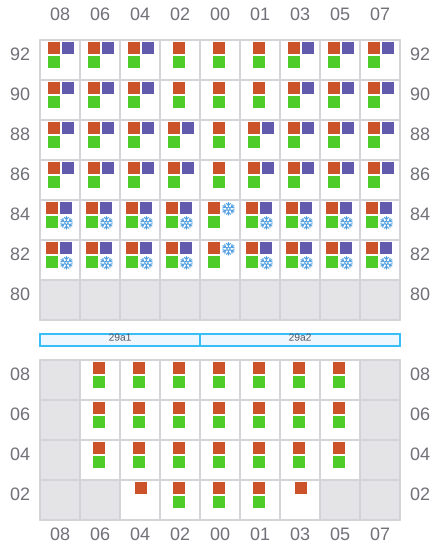

029 (030)
- →
- ← / ?
![Bay 029 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b029.png?v=1711316043733)

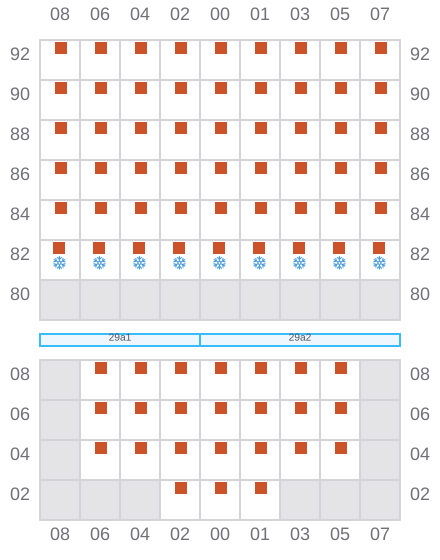

031
- ←
- → / ?
![Bay 031 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b031.png?v=1711316043733)

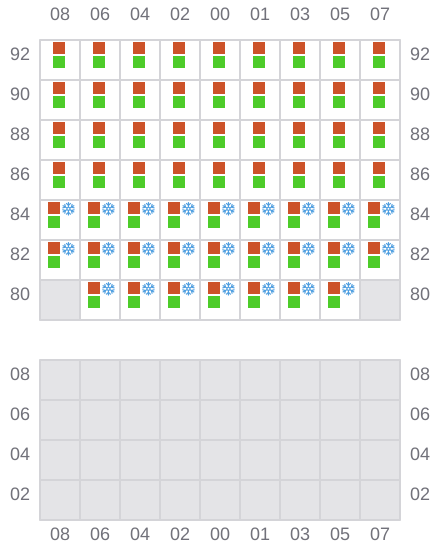

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b033.png?v=1711316043733)

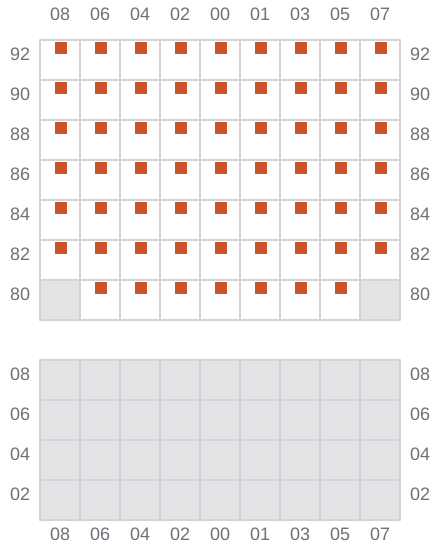

035
- ← / ?
- → / ?
![Bay 035 view and slots of JJ SUN](/vessel-images/dcb4f9ee-a8af-47dc-8774-5d716d02cbc4-b035.png?v=1711316043733)
