JONA SOPHIE
9144718 | CQHZ | 9144718 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:JONA SOPHIE
IMO Code:9144718
Call Sign:CQHZ
Line Operator:9144718
Class Name for Sister Ships:33R
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:027
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:950
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-sideView.png?v=1709926162599)

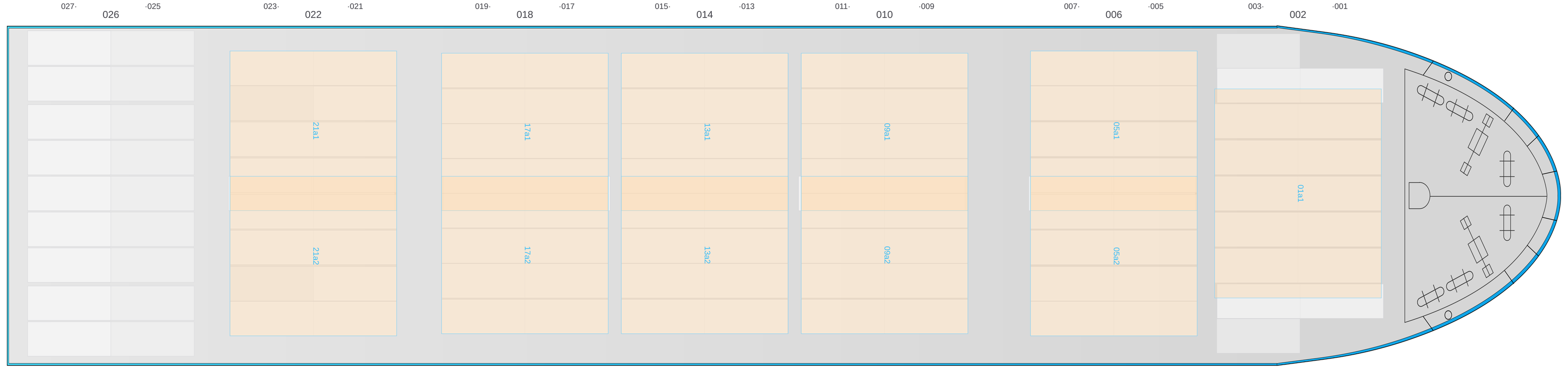

Hatch-Covers View
![Deck view of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-deckView.png?v=1709926162599)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

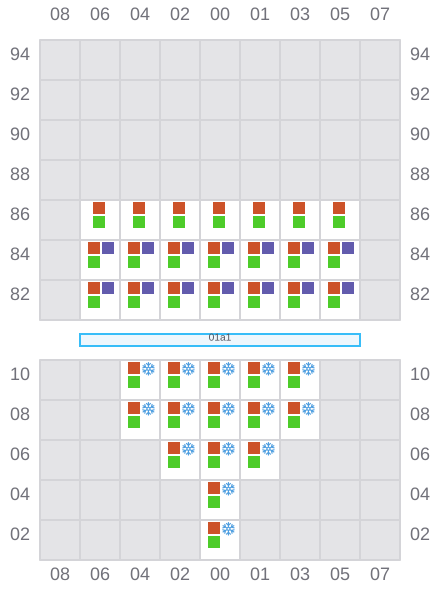

001 (002)
- →
- → / ←
- → / ?
![Bay 001 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b001.png?v=1709926162599)

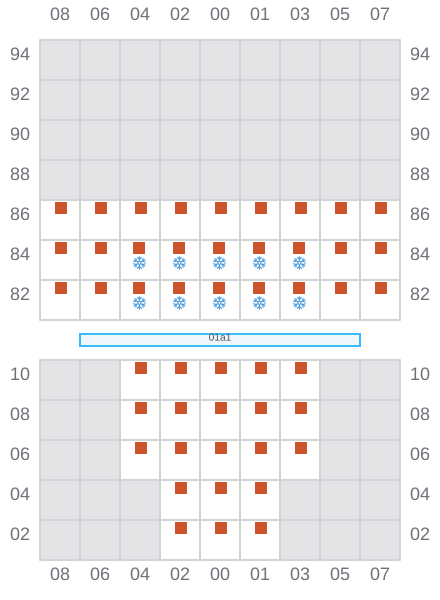

003
- ←
- → / ?
- → / ?
![Bay 003 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b003.png?v=1709926162599)

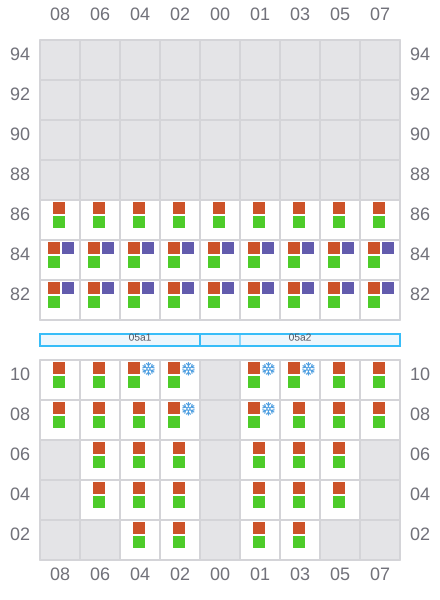

005 (006)
- →
- →
- → / ?
![Bay 005 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b005.png?v=1709926162599)

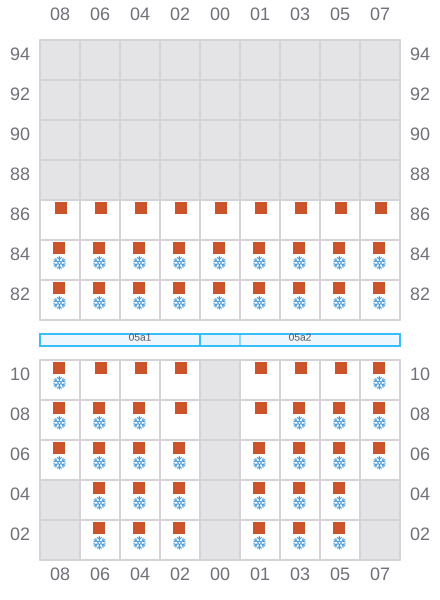

007
- ←
- →
- → / ?
![Bay 007 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b007.png?v=1709926162599)

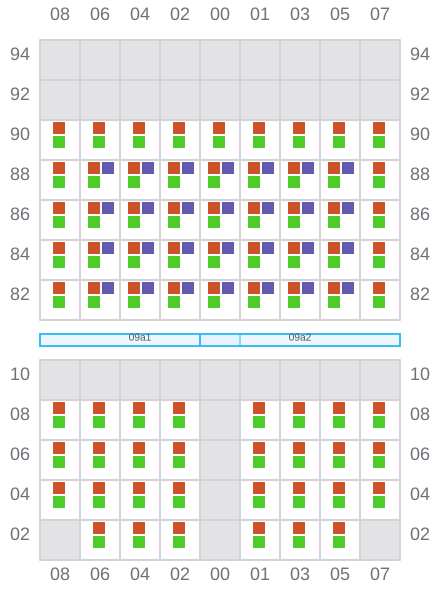

009 (010)
- →
- → / ?
- → / ?
![Bay 009 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b009.png?v=1709926162599)

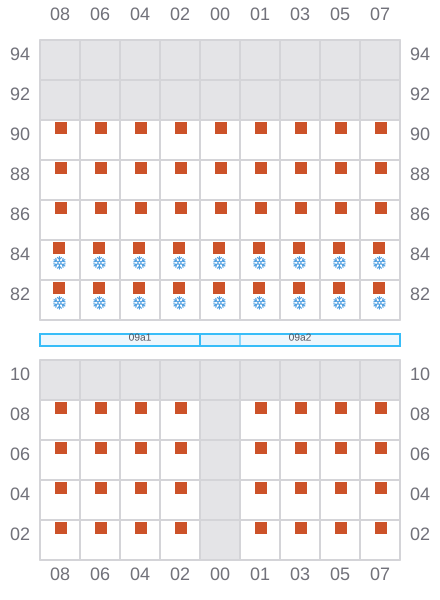

011
- ←
- → / ?
- → / ?
![Bay 011 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b011.png?v=1709926162599)
013 (014)
- →
- → / ?
![Bay 013 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b013.png?v=1709926162599)
015
- ←
- → / ?
- → / ?
![Bay 015 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b015.png?v=1709926162599)

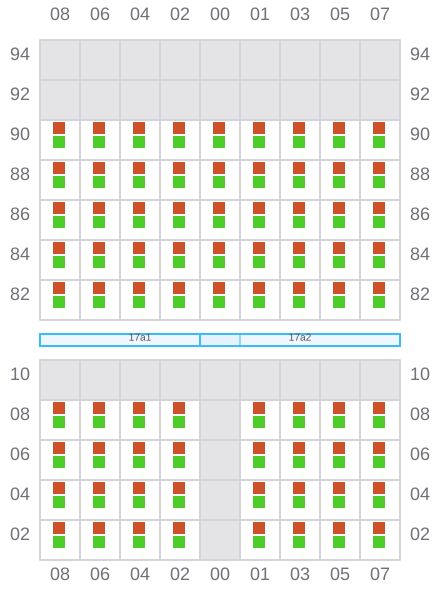

017 (018)
- →
- → / ?
![Bay 017 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b017.png?v=1709926162599)
019
- ←
- → / ?
- → / ?
![Bay 019 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b019.png?v=1709926162599)

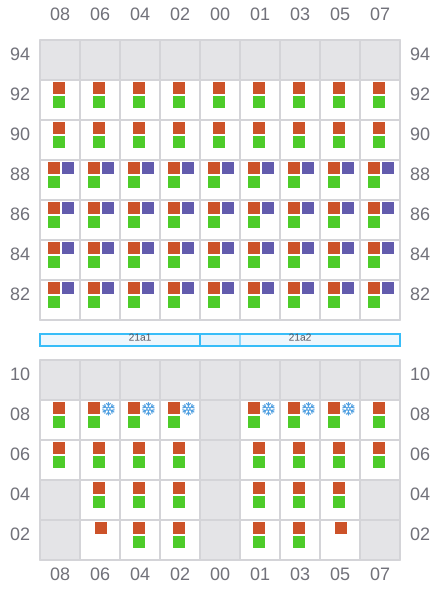

021 (022)
- →
- →
- → / ?
![Bay 021 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b021.png?v=1709926162599)
023
- ←
- →
- → / ?
![Bay 023 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b023.png?v=1709926162599)

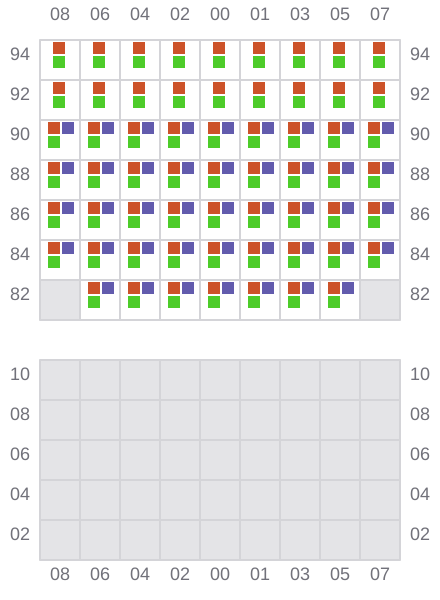

025 (026)
- → / ?
- → / ?
- → / ?
![Bay 025 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b025.png?v=1709926162599)

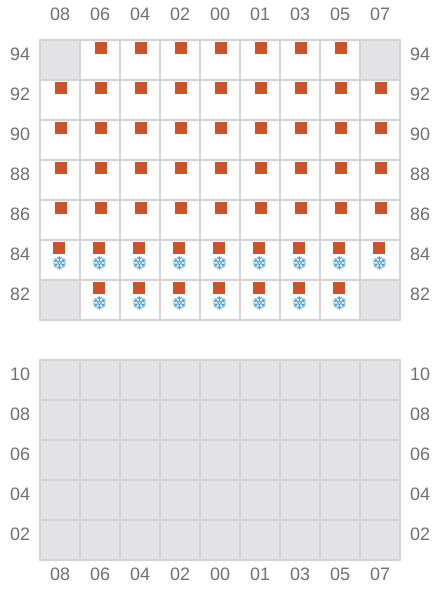

027
- ← / ?
- → / ?
- → / ?
![Bay 027 view and slots of JONA SOPHIE](/vessel-images/42539183-e4ae-4fc2-9d77-6f7d82564c05-b027.png?v=1709926162599)
