JONNI RITSCHER
9333383 | A8JT7 | 9333383 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:JONNI RITSCHER
IMO Code:9333383
Call Sign:A8JT7
Line Operator:9333383
Class Name for Sister Ships:4OX
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,849

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

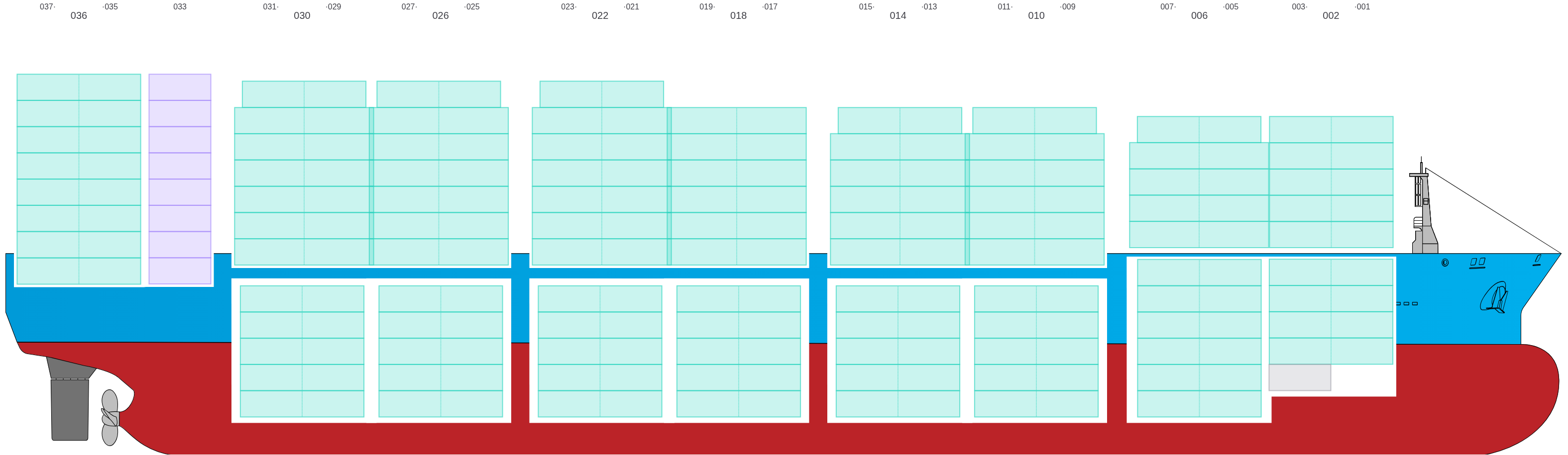

Side View

Side view of JONNI RITSCHER

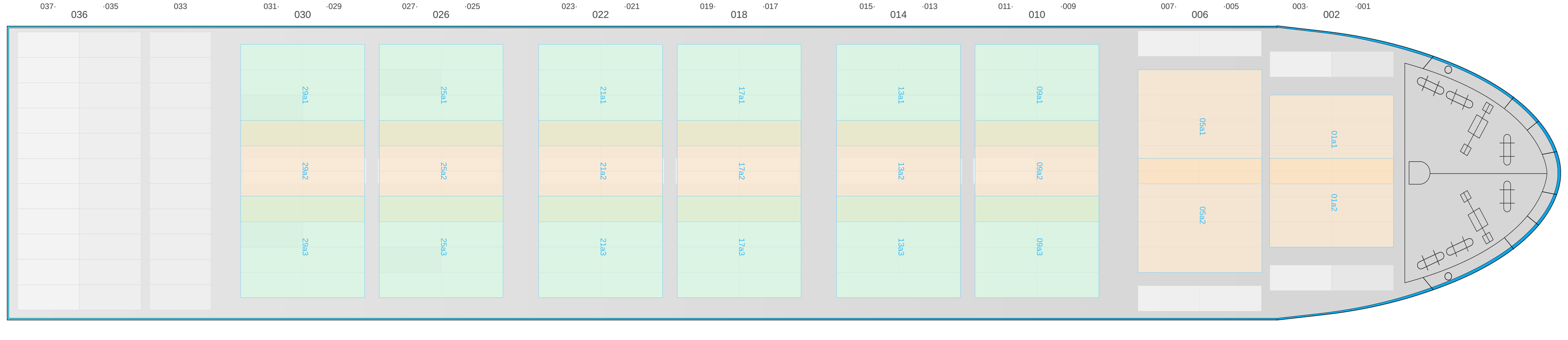

Hatch-Covers View

Deck view of JONNI RITSCHER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

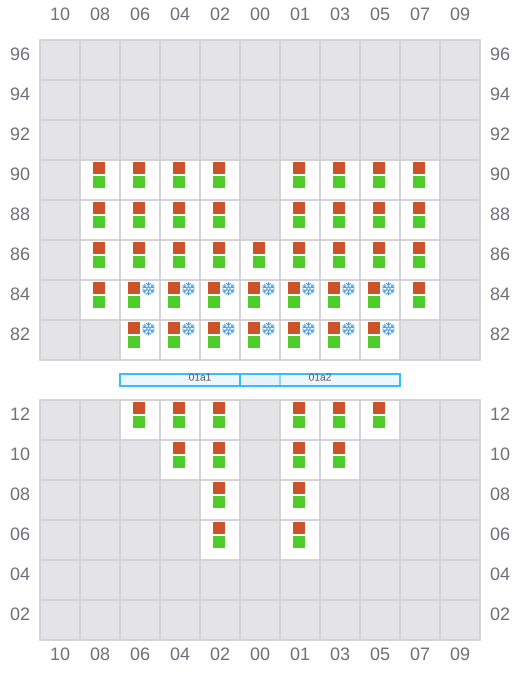

001 (002)

  • →
  • ← / ?
Bay 001 view and slots of JONNI RITSCHER

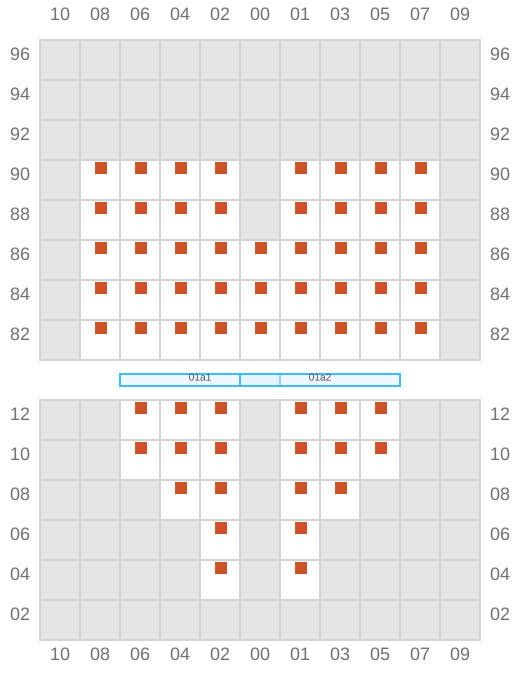

003

  • ←
Bay 003 view and slots of JONNI RITSCHER

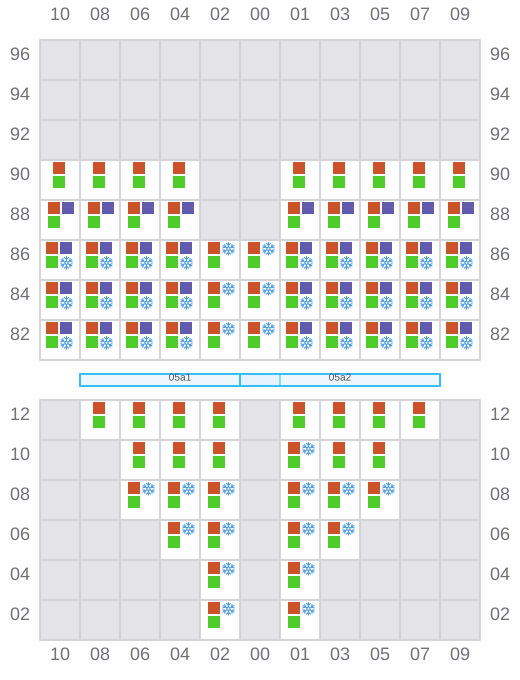

005 (006)

  • →
  • →
Bay 005 view and slots of JONNI RITSCHER

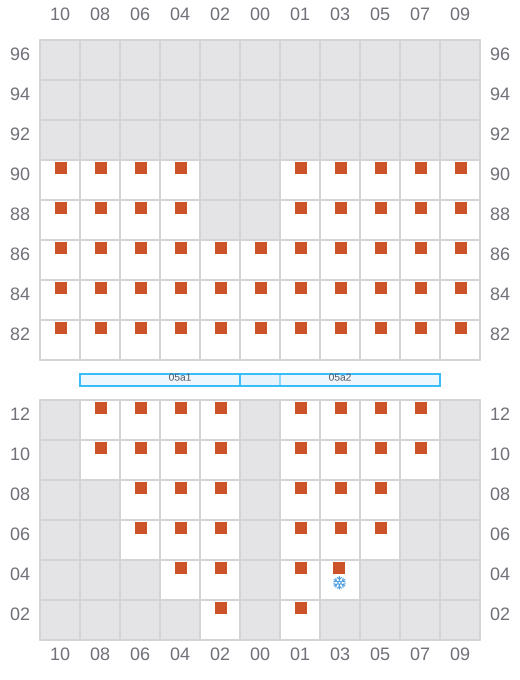

007

  • ←
  • ? / →
Bay 007 view and slots of JONNI RITSCHER

009 (010)

  • →
  • ←

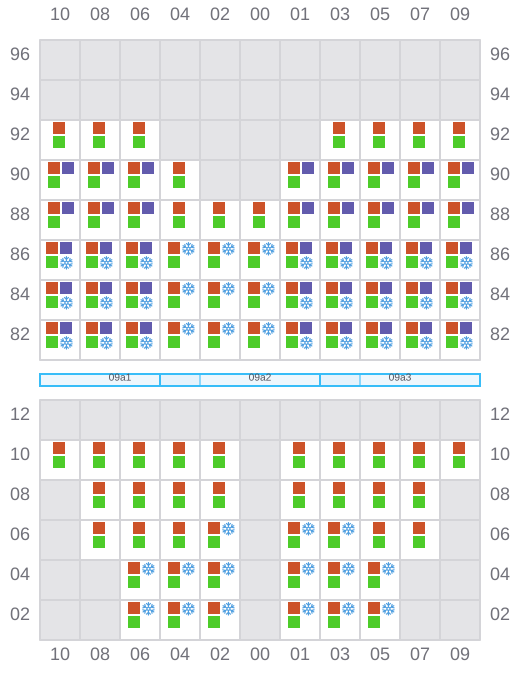

Bay 009 view and slots of JONNI RITSCHER

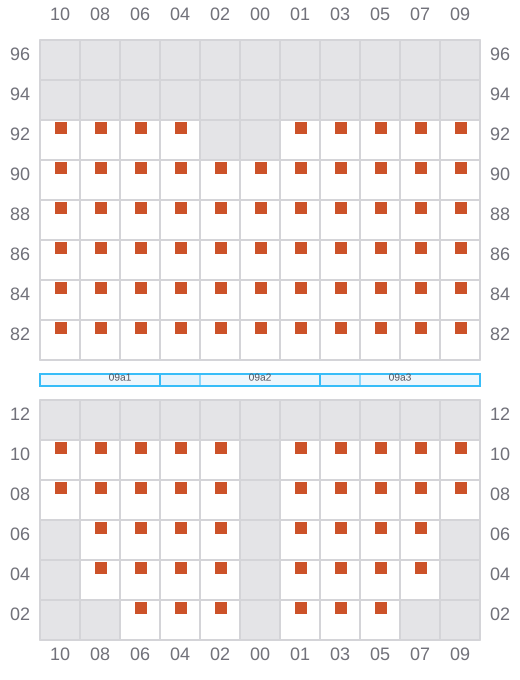

011

  • ←
  • ? / →
Bay 011 view and slots of JONNI RITSCHER

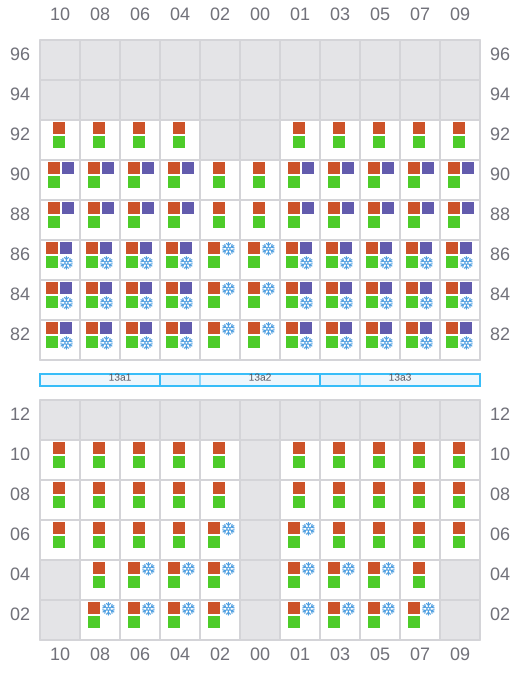

013 (014)

  • →
  • →
Bay 013 view and slots of JONNI RITSCHER

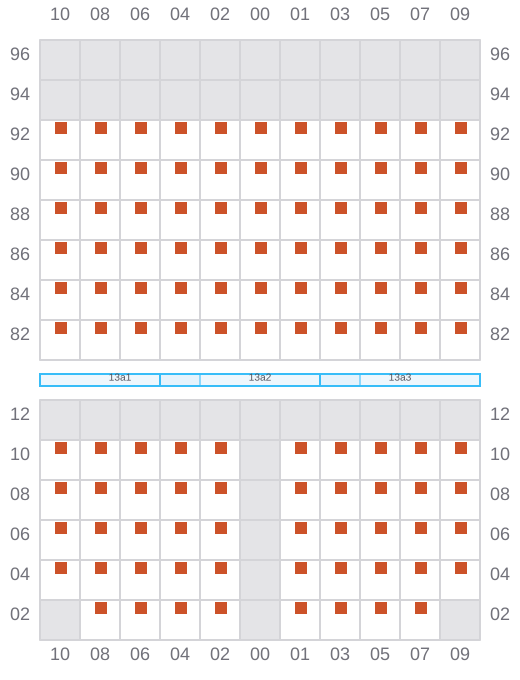

015

  • ←
  • → / ?
Bay 015 view and slots of JONNI RITSCHER

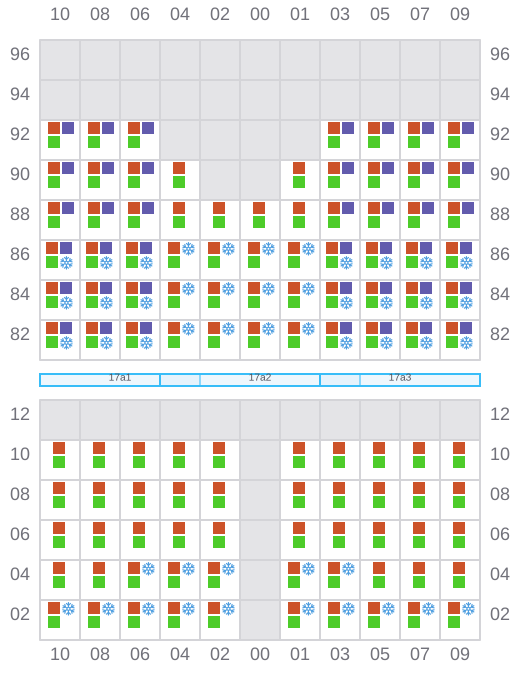

017 (018)

  • →
  • ←
Bay 017 view and slots of JONNI RITSCHER

019

  • ←
  • ? / →

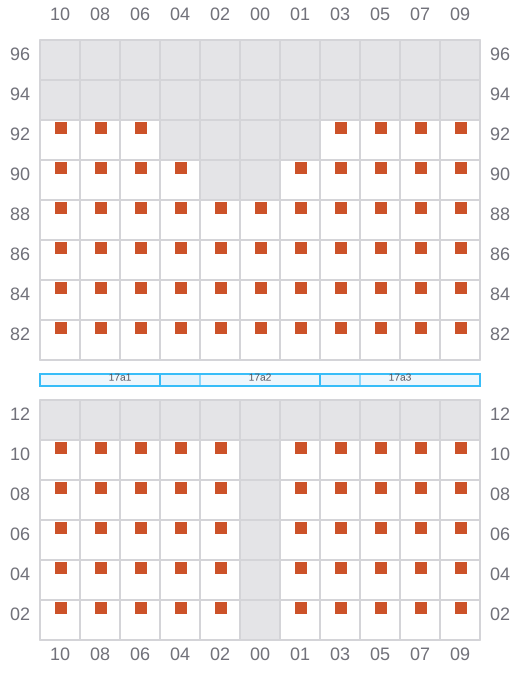

Bay 019 view and slots of JONNI RITSCHER

021 (022)

  • →
  • →

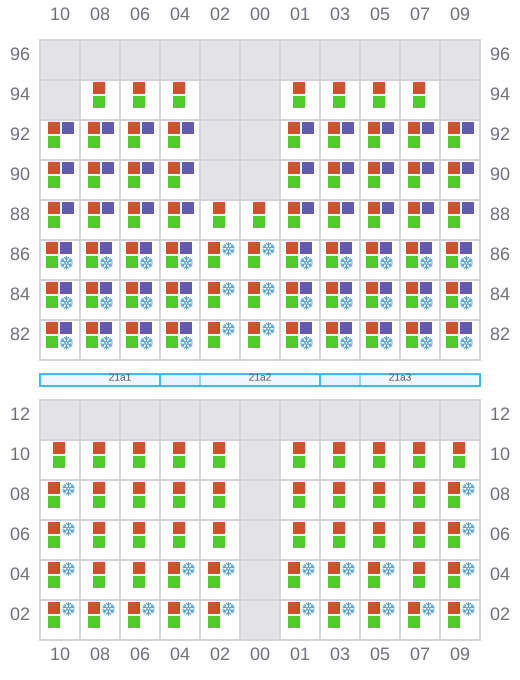

Bay 021 view and slots of JONNI RITSCHER

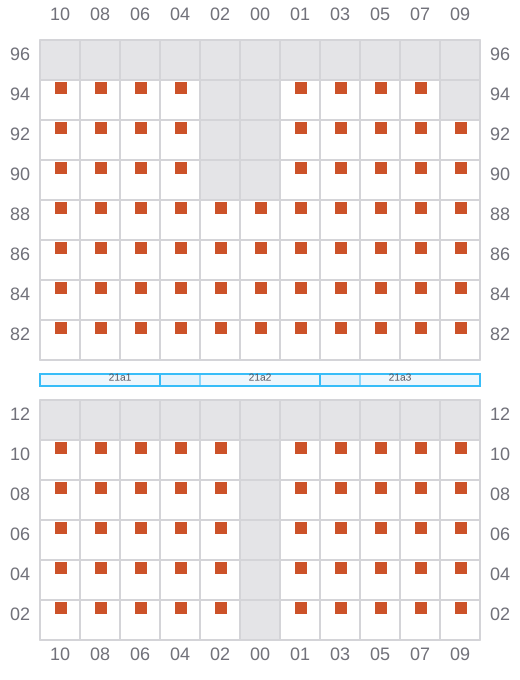

023

  • ←
  • → / ?
Bay 023 view and slots of JONNI RITSCHER

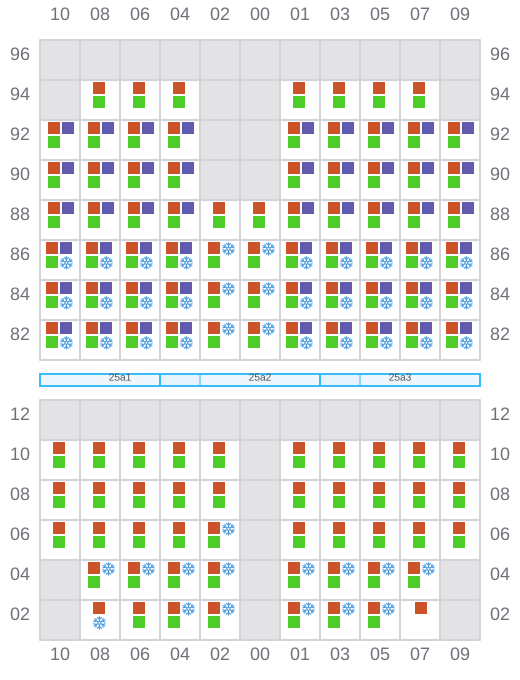

025 (026)

  • →
  • ←
Bay 025 view and slots of JONNI RITSCHER

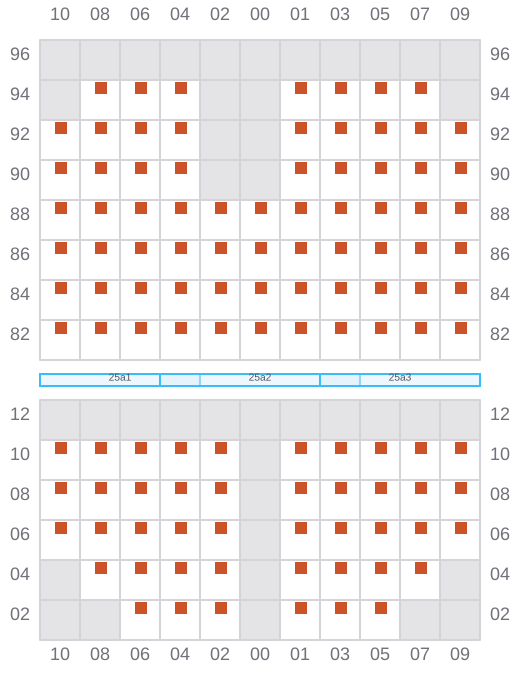

027

  • ←
  • ? / →
Bay 027 view and slots of JONNI RITSCHER

029 (030)

  • →
  • → / ←

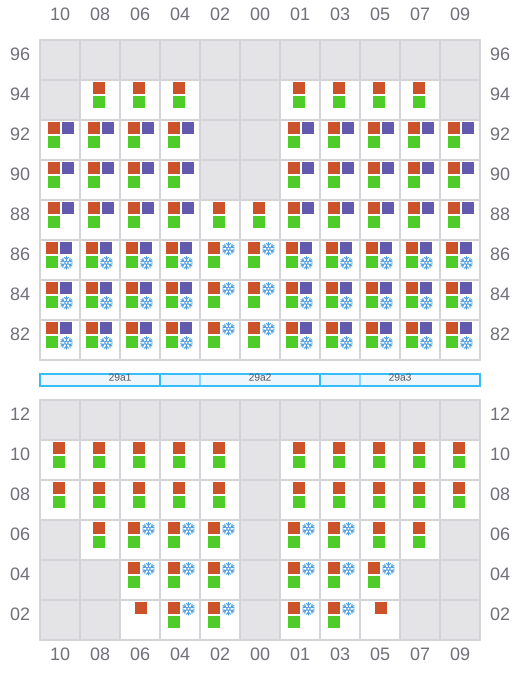

Bay 029 view and slots of JONNI RITSCHER

031

  • ←

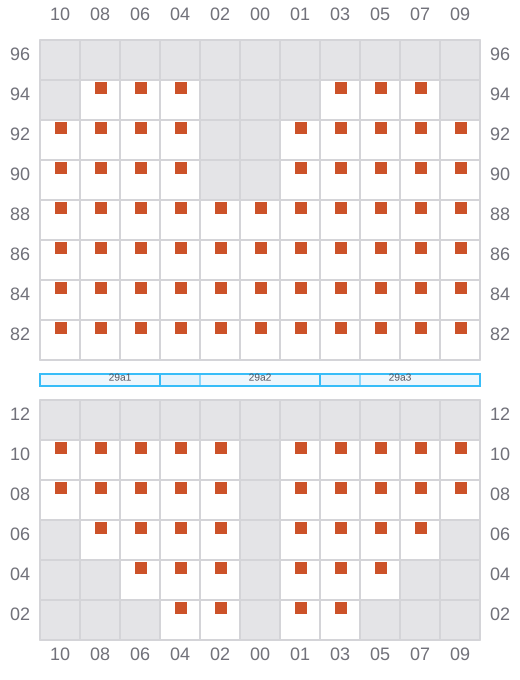

Bay 031 view and slots of JONNI RITSCHER

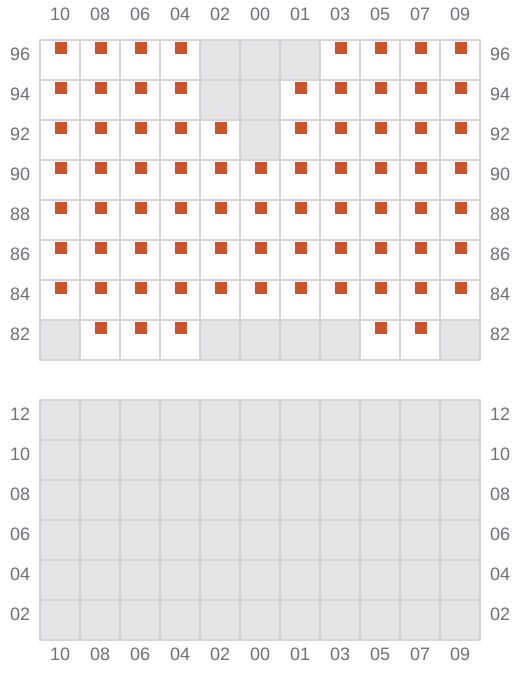

033

  • ← / ?
Bay 033 view and slots of JONNI RITSCHER

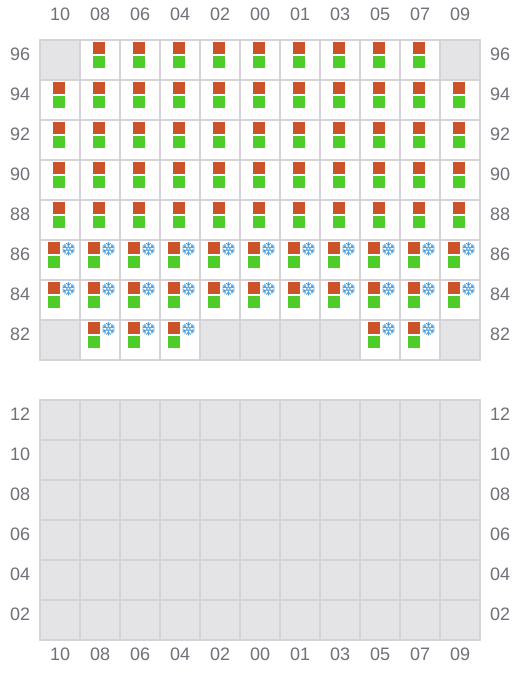

035 (036)

  • → / ?
  • → / ?
Bay 035 view and slots of JONNI RITSCHER

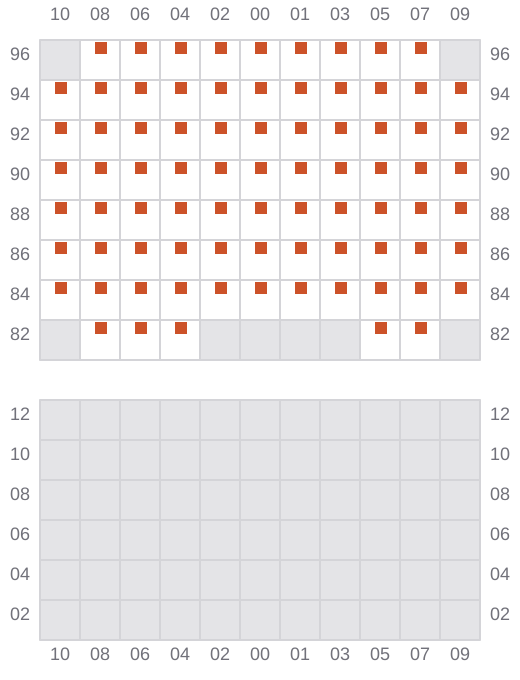

037

  • ← / ?
  • → / ?
Bay 037 view and slots of JONNI RITSCHER
