JOSEPHINE MAERSK
9215191 | OWKF2 | 9215191 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:JOSEPHINE MAERSK
IMO Code:9215191
Call Sign:OWKF2
Line Operator:9215191
Class Name for Sister Ships:643
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,073

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of JOSEPHINE MAERSK

Hatch-Covers View

Deck view of JOSEPHINE MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

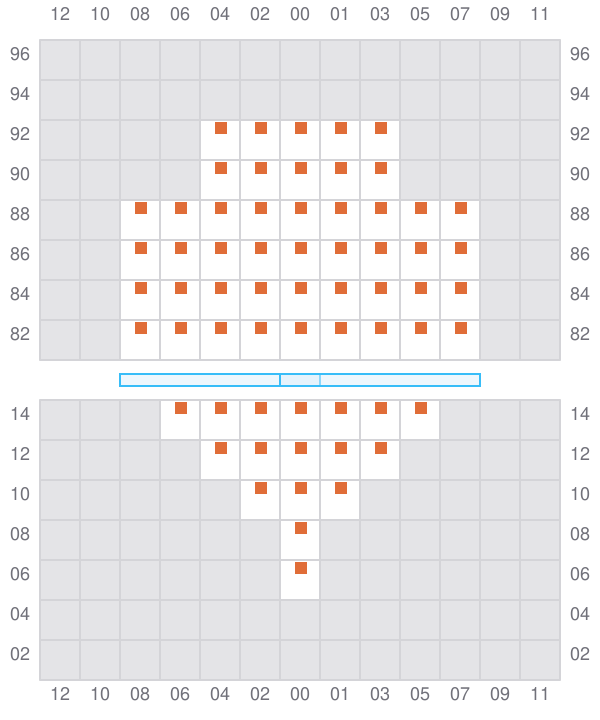

Bay 001 view and slots of JOSEPHINE MAERSK

003 (004)

  • →

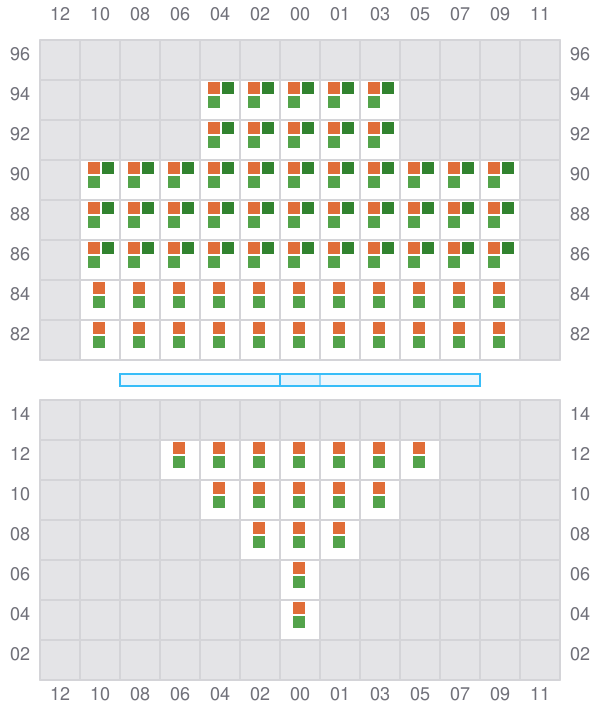

Bay 003 view and slots of JOSEPHINE MAERSK

005

  • ←
  • → / ?

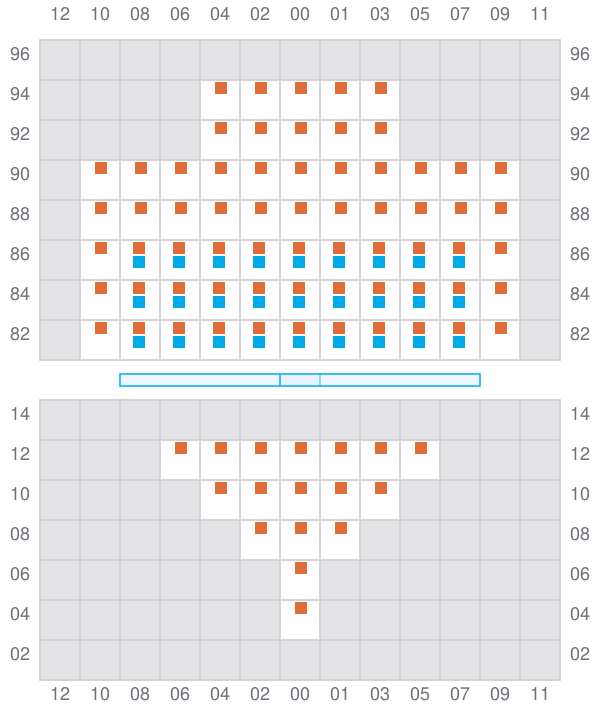

Bay 005 view and slots of JOSEPHINE MAERSK

007 (008)

  • →
  • ? / →
Bay 007 view and slots of JOSEPHINE MAERSK

009

  • ←
  • →

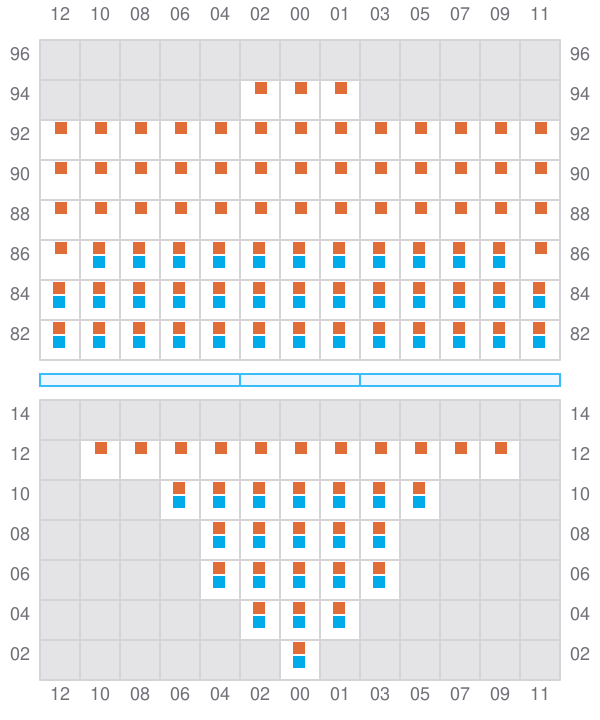

Bay 009 view and slots of JOSEPHINE MAERSK

011 (012)

  • →
  • ? / →

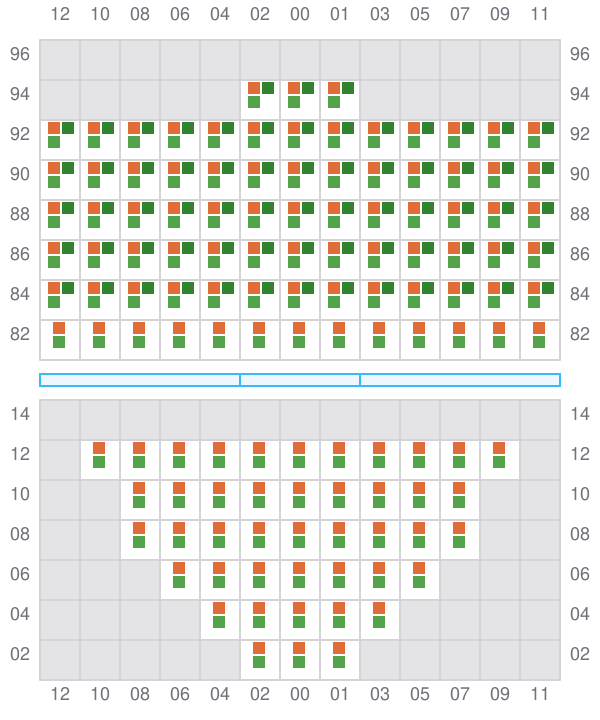

Bay 011 view and slots of JOSEPHINE MAERSK

013

  • ←
  • →

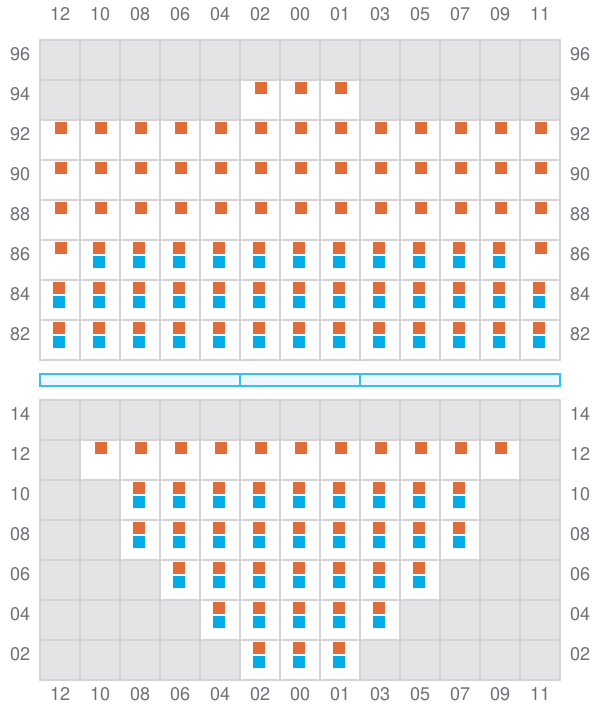

Bay 013 view and slots of JOSEPHINE MAERSK

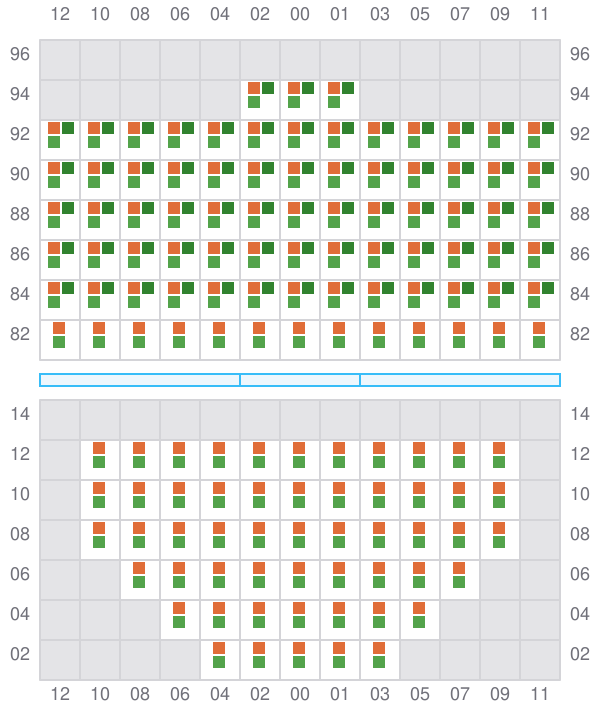

015 (016)

  • →
Bay 015 view and slots of JOSEPHINE MAERSK

017

  • ←
  • →

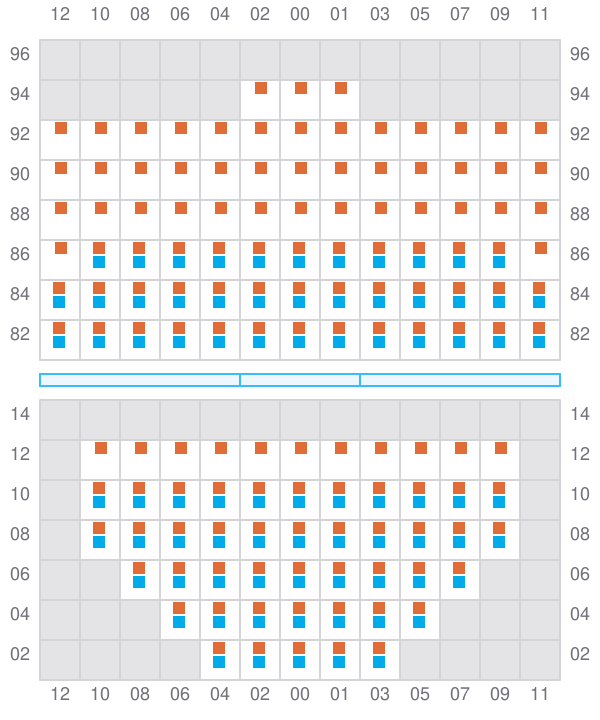

Bay 017 view and slots of JOSEPHINE MAERSK

019 (020)

  • →
  • ? / ←

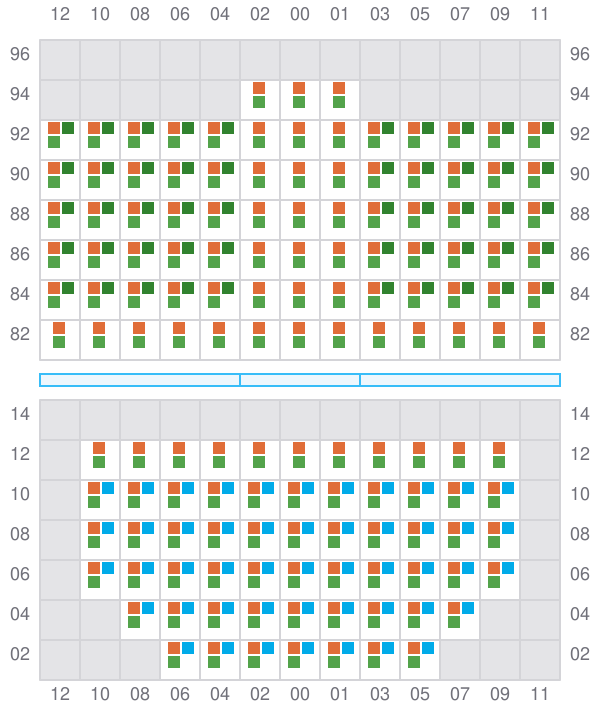

Bay 019 view and slots of JOSEPHINE MAERSK

021

  • ←
  • → / ?
Bay 021 view and slots of JOSEPHINE MAERSK

023 (024)

  • →
  • ? / →

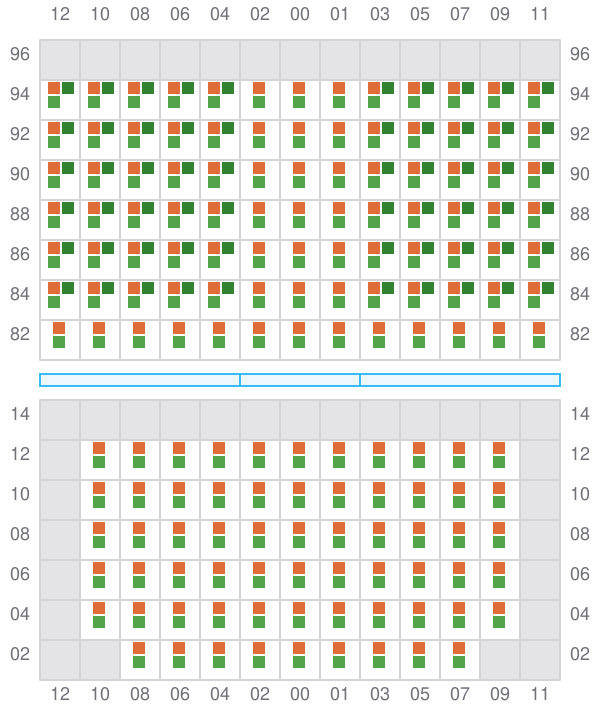

Bay 023 view and slots of JOSEPHINE MAERSK

025

  • ←
  • →
Bay 025 view and slots of JOSEPHINE MAERSK

027 (028)

  • →
  • ? / →

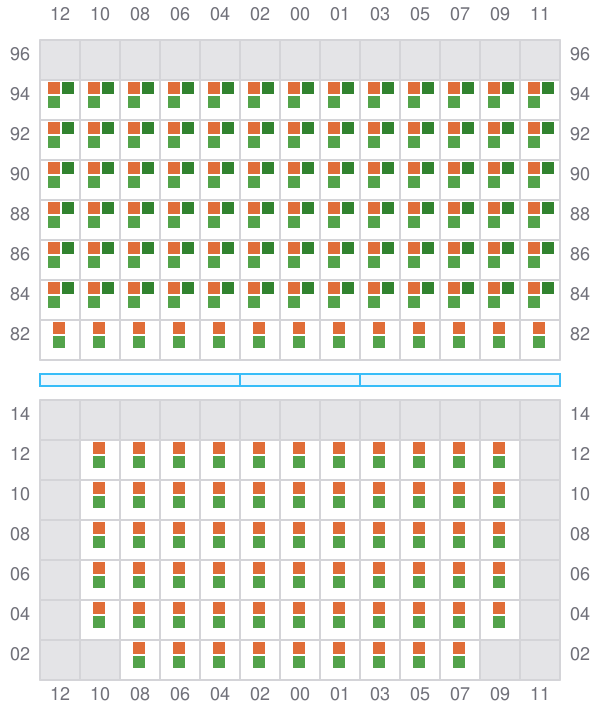

Bay 027 view and slots of JOSEPHINE MAERSK

029

  • ←
  • →
Bay 029 view and slots of JOSEPHINE MAERSK

031 (032)

  • →
  • ? / →
Bay 031 view and slots of JOSEPHINE MAERSK

033

  • ←
  • →

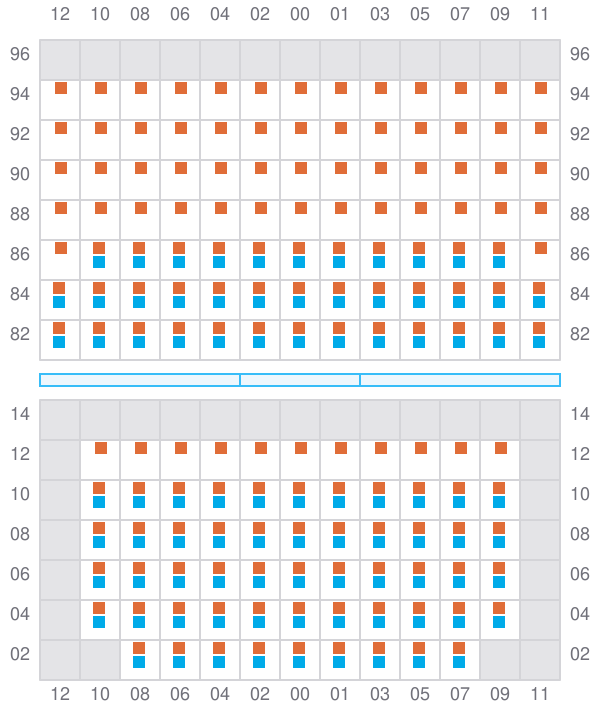

Bay 033 view and slots of JOSEPHINE MAERSK

035 (036)

  • →
  • ? / →

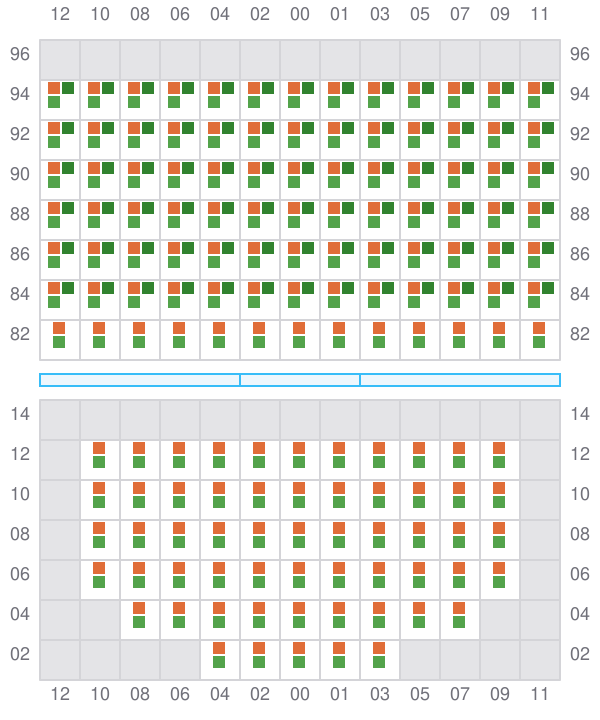

Bay 035 view and slots of JOSEPHINE MAERSK

037

  • ←
  • →
Bay 037 view and slots of JOSEPHINE MAERSK

039 (040)

  • →
  • → / ?
Bay 039 view and slots of JOSEPHINE MAERSK

041

  • ? / ←

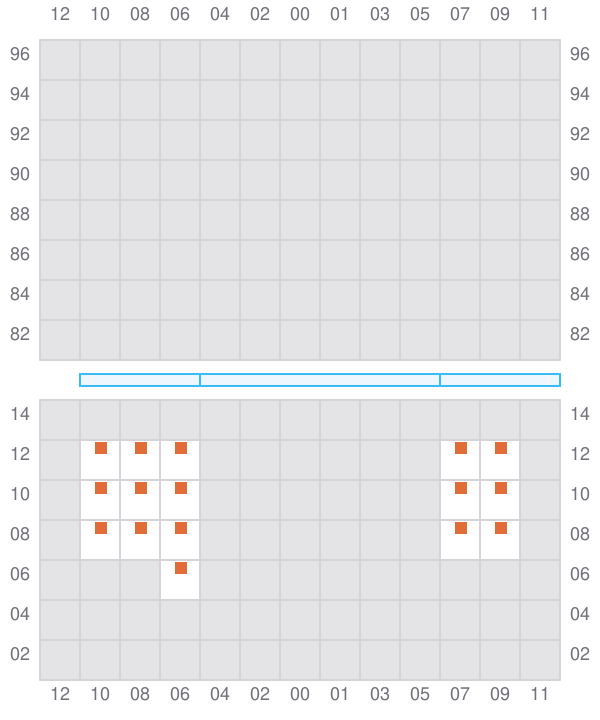

Bay 041 view and slots of JOSEPHINE MAERSK

043 (044)

  • → / ?
  • → / ?

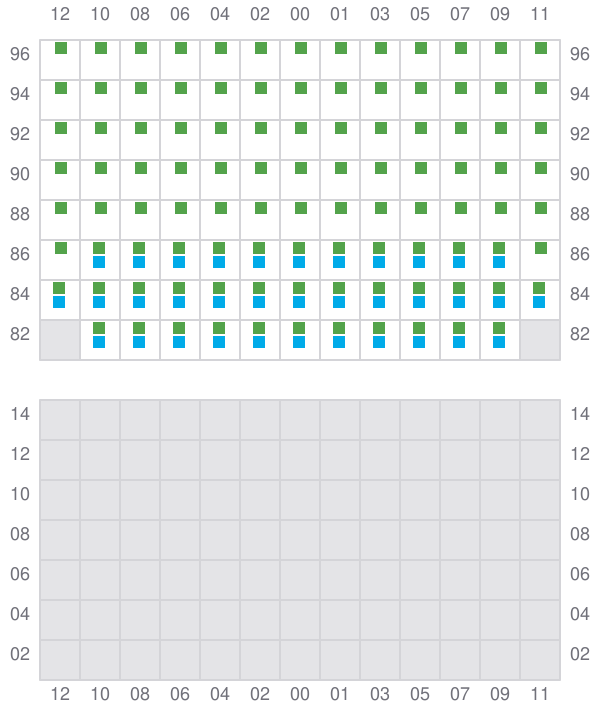

Bay 043 view and slots of JOSEPHINE MAERSK

045

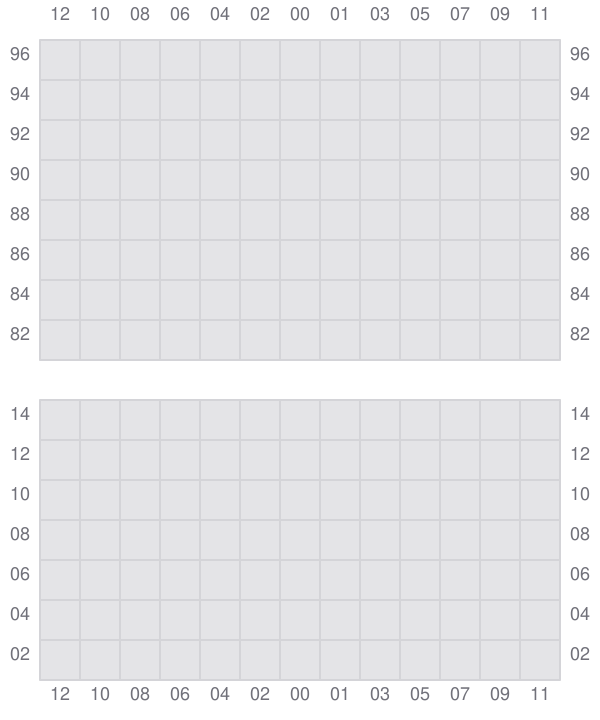

Bay 045 view and slots of JOSEPHINE MAERSK

047 (048)

  • → / ?

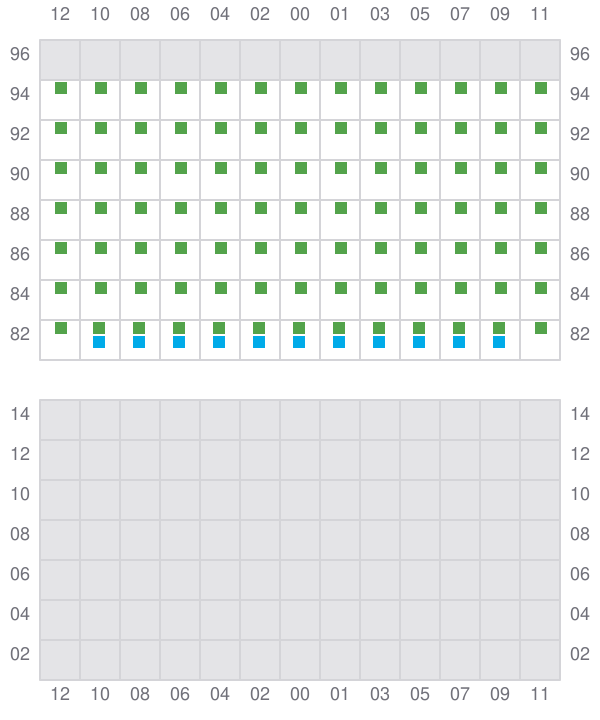

Bay 047 view and slots of JOSEPHINE MAERSK
