JOST
9477347 | CQHK | 9477347 by ********* Last update: Wed Jul 31 2024
General Info
Ship Name:JOST
IMO Code:9477347
Call Sign:CQHK
Line Operator:9477347
Class Name for Sister Ships:MCC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,404
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

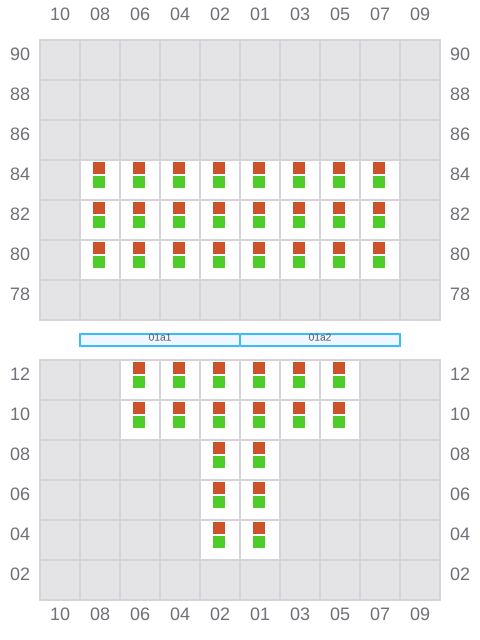

001 (002)
- →
- → / ?

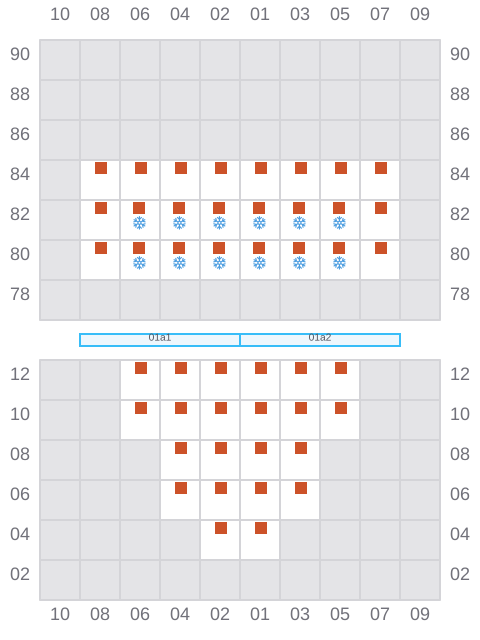

003
- ←
- → / ?
005 (006)
- →
- ← / ?

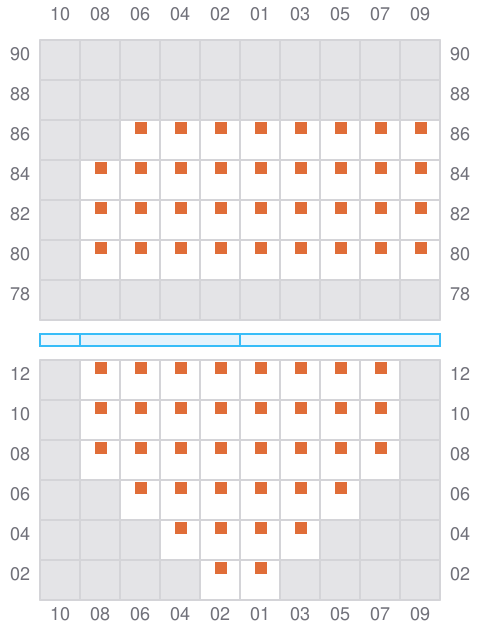

007
- ←
- ← / ?
009 (010)
- →
- → / ←

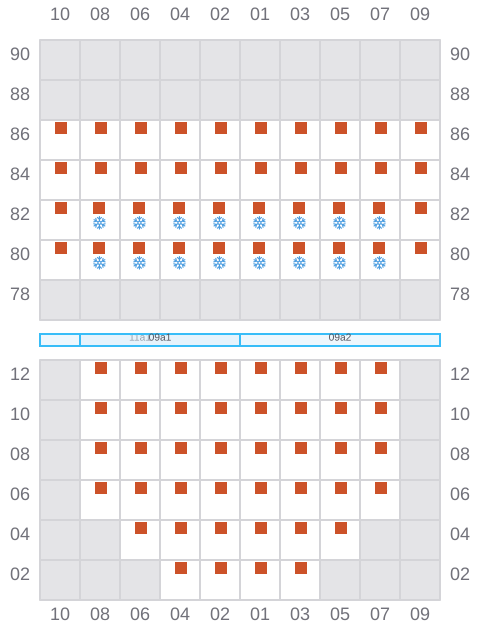

011
- ←
- → / ?

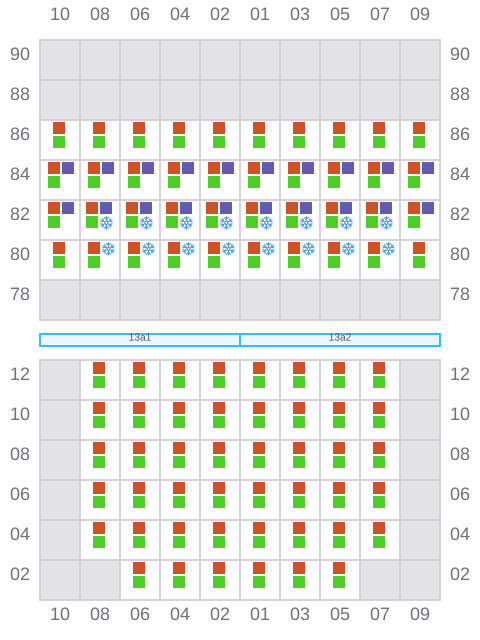

013 (014)
- →
- ← / ?
015
- ←
- ? / →

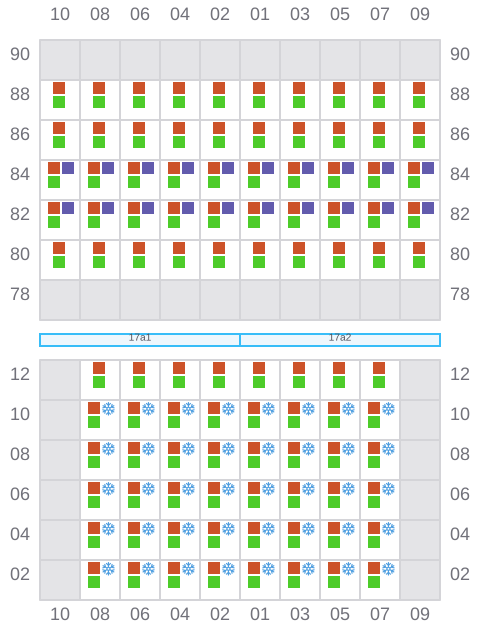

017 (018)
- →
- → / ←

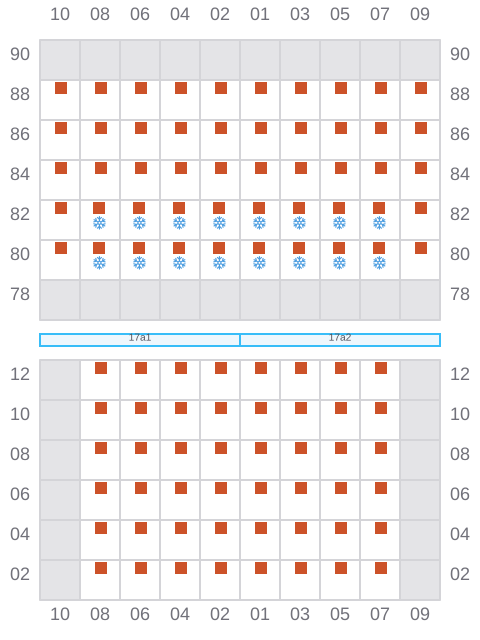

019
- ←
- → / ?

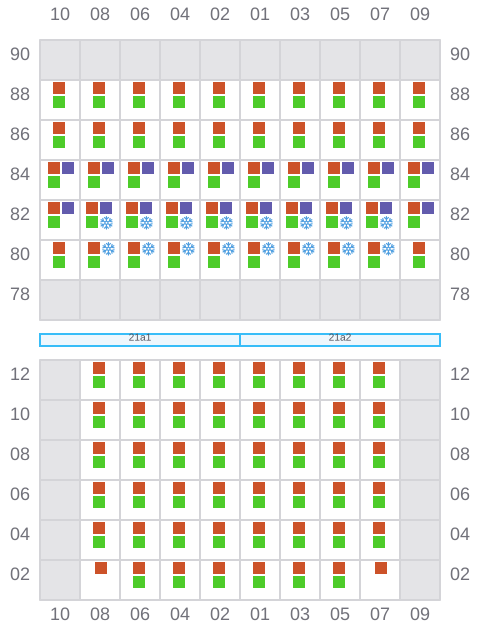

021 (022)
- →
- ← / ?

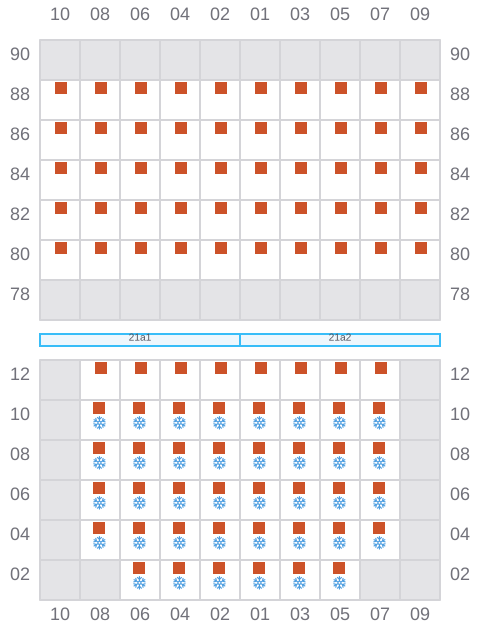

023
- ←
- ? / →

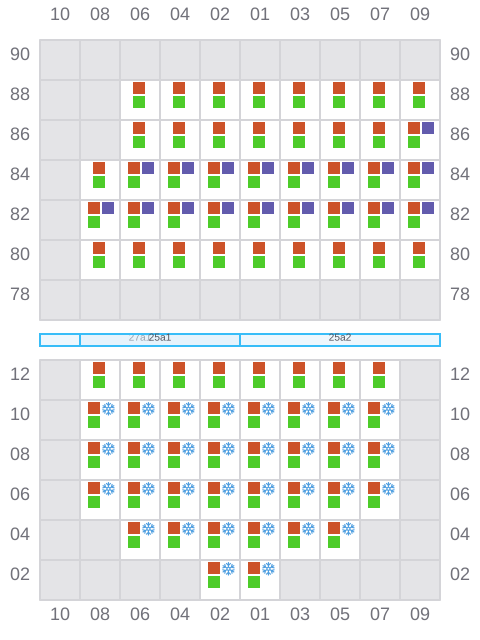

025 (026)
- →
- → / ←

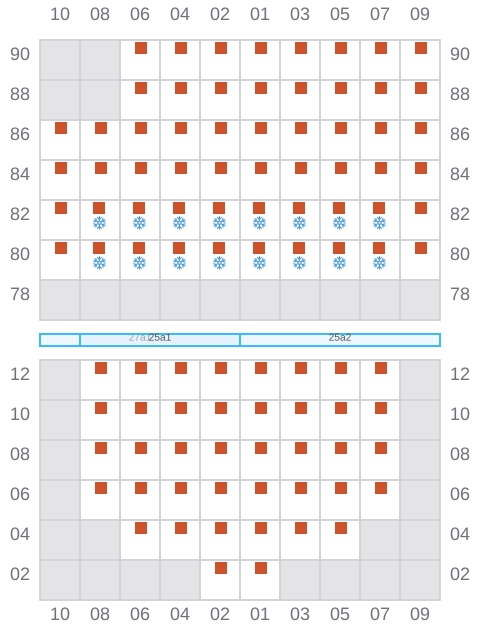

027
- ←
- → / ?

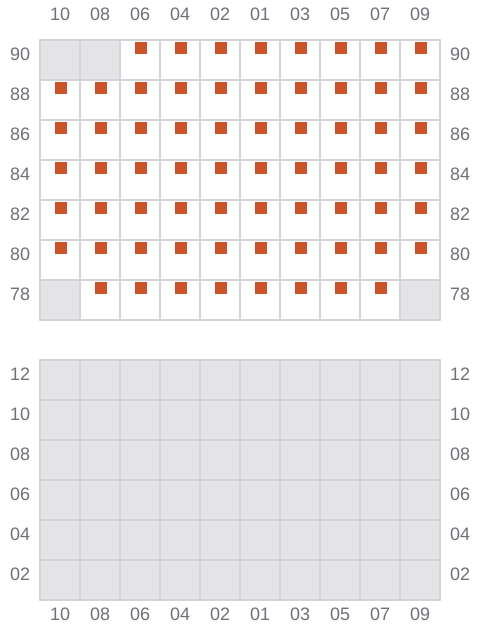

029
031 (032)
- → / ?
033
- → / ?
