JPO GEMINI
9294020 | A8VF7 | 9294020 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:JPO GEMINI
IMO Code:9294020
Call Sign:A8VF7
Line Operator:9294020
Class Name for Sister Ships:44C
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,326
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-sideView.png?v=1710696150811)
Hatch-Covers View
![Deck view of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-deckView.png?v=1710696150811)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

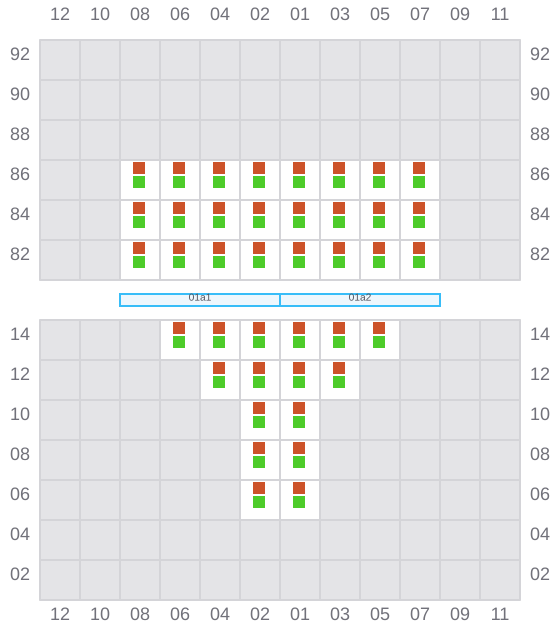

001 (002)
- →
![Bay 001 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b001.png?v=1710696150811)

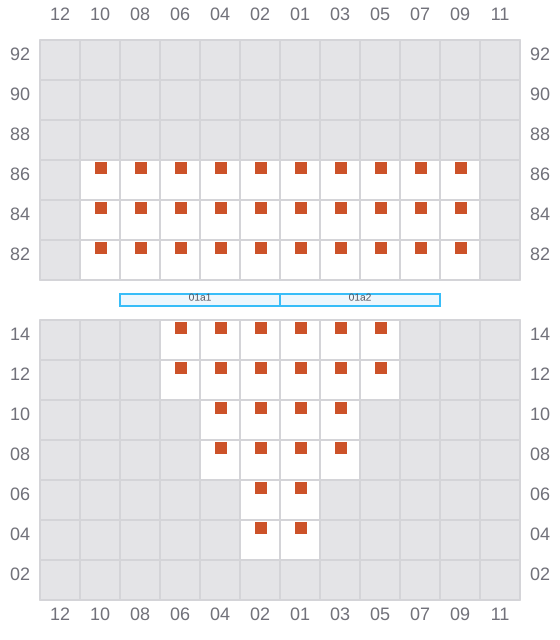

003
- ←
![Bay 003 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b003.png?v=1710696150811)

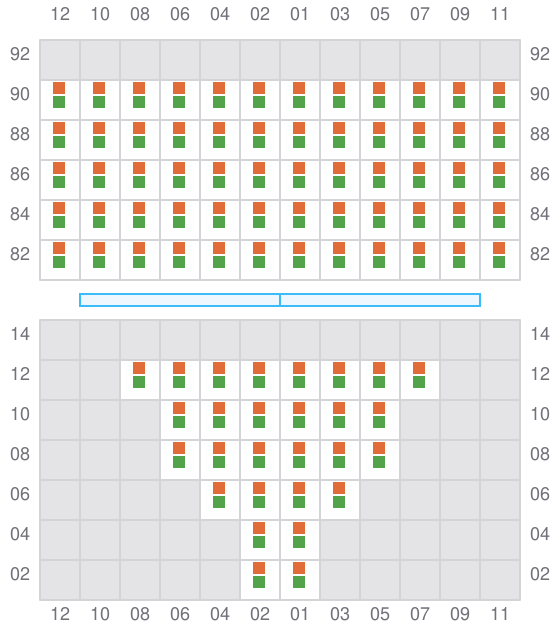

005 (006)
- →
![Bay 005 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b005.png?v=1710696150811)

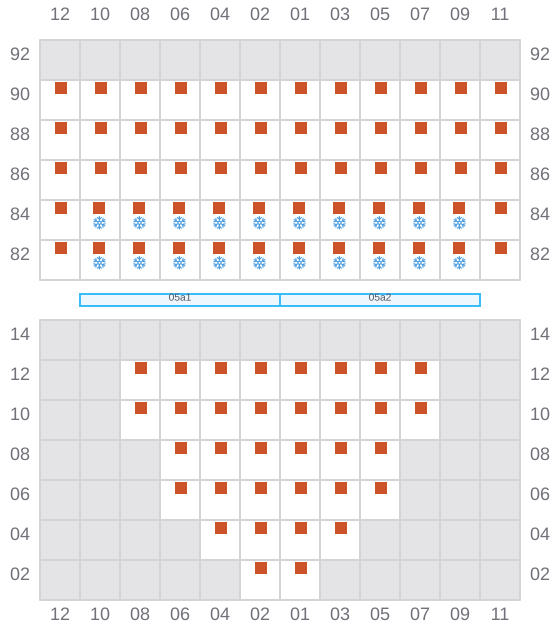

007
- ←
![Bay 007 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b007.png?v=1710696150811)

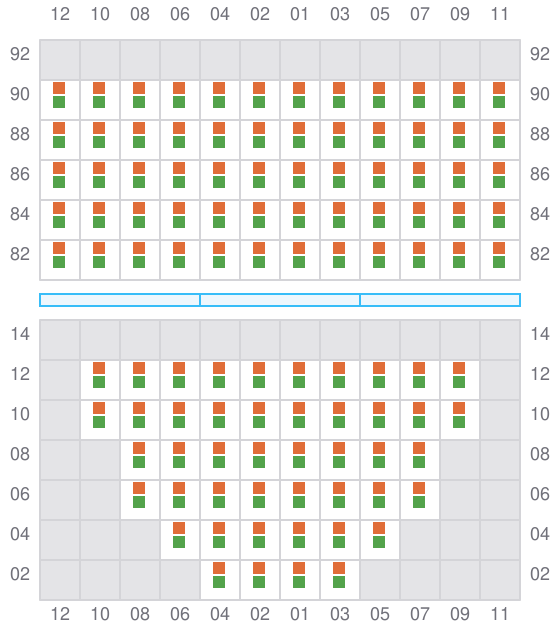

009 (010)
- →
![Bay 009 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b009.png?v=1710696150811)

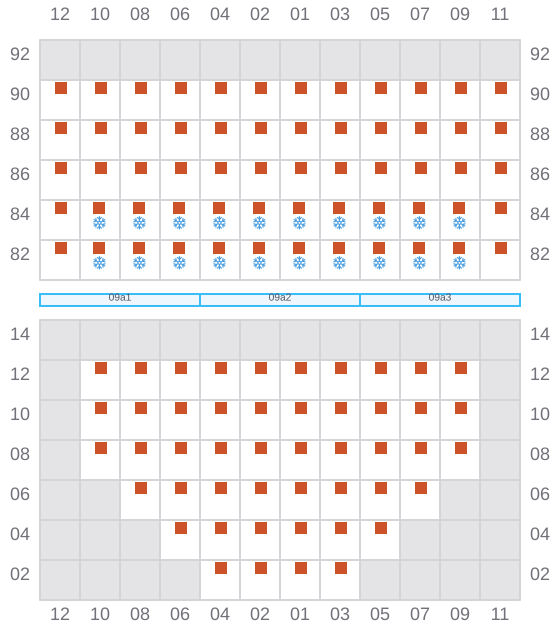

011
- ←
![Bay 011 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b011.png?v=1710696150811)

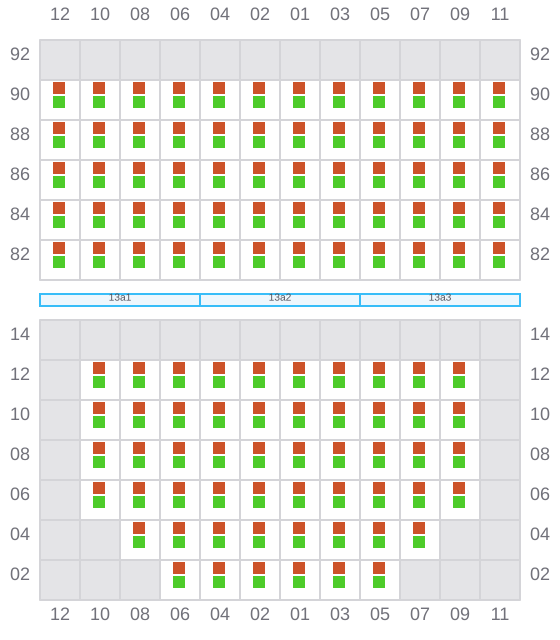

013 (014)
- →
![Bay 013 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b013.png?v=1710696150811)

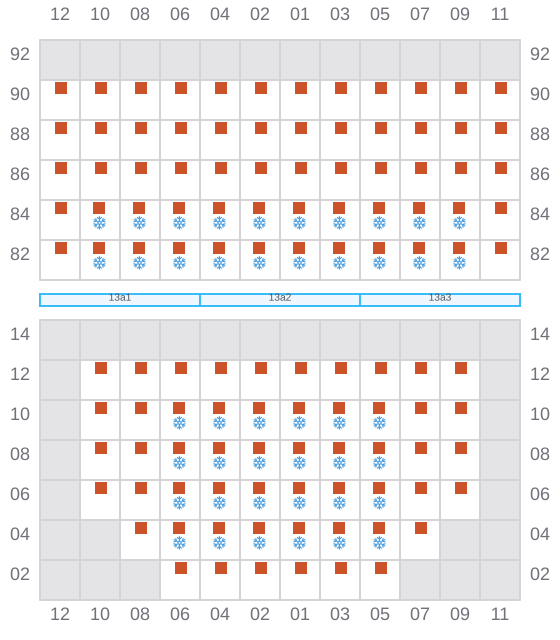

015
- ←
![Bay 015 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b015.png?v=1710696150811)

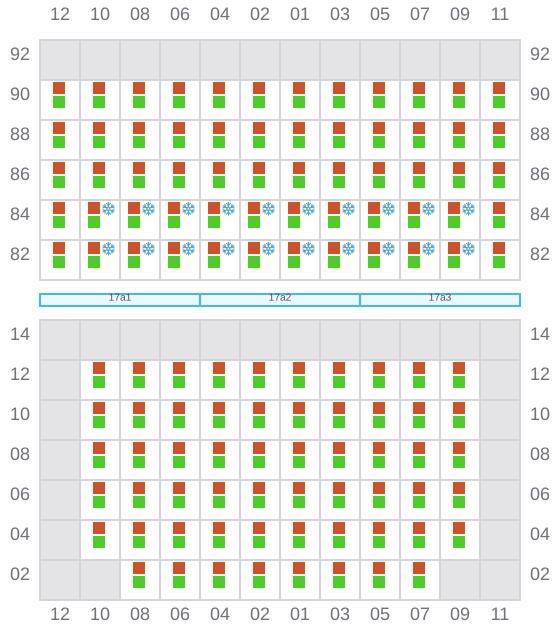

017 (018)
- →
![Bay 017 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b017.png?v=1710696150811)

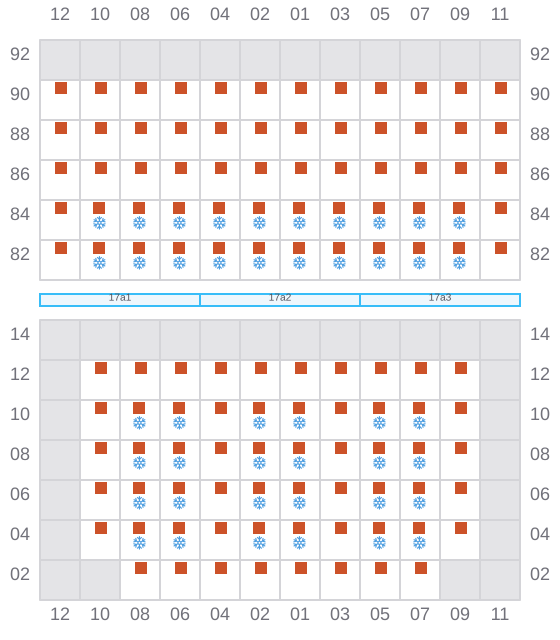

019
- ←
![Bay 019 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b019.png?v=1710696150811)

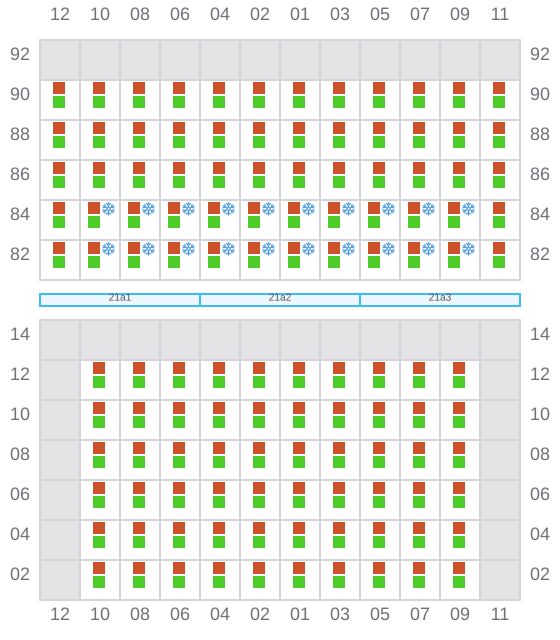

021 (022)
- →
![Bay 021 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b021.png?v=1710696150811)

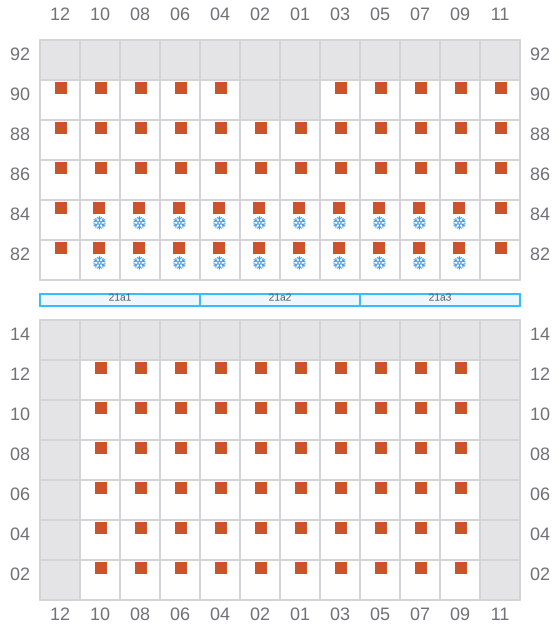

023
- ←
![Bay 023 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b023.png?v=1710696150811)
025 (026)
- →
![Bay 025 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b025.png?v=1710696150811)

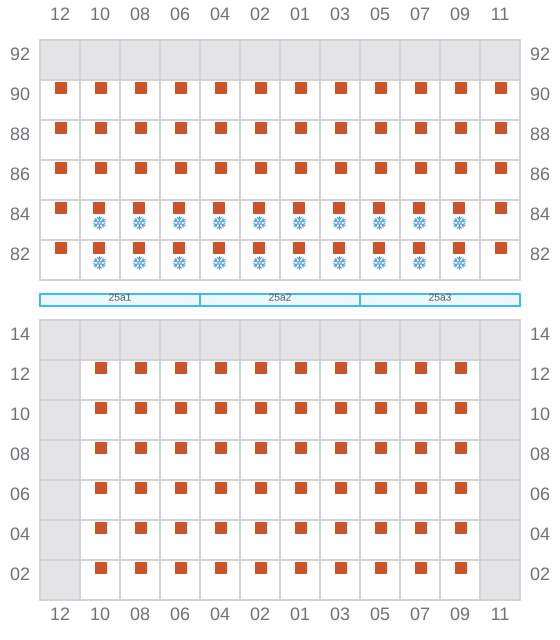

027
- ←
![Bay 027 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b027.png?v=1710696150811)

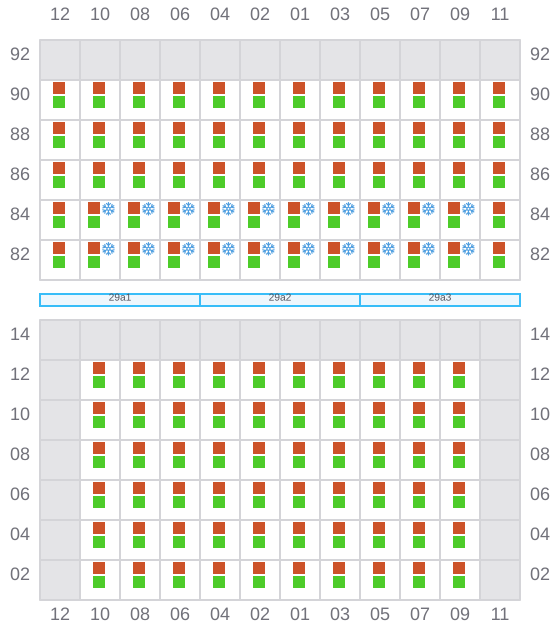

029 (030)
- →
![Bay 029 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b029.png?v=1710696150811)

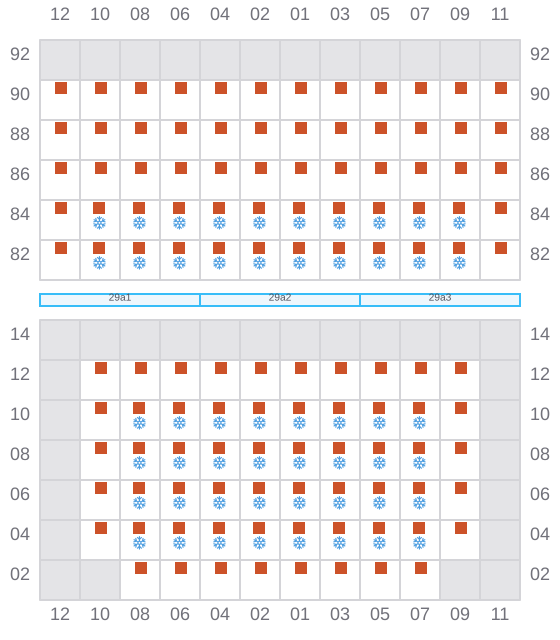

031
- ←
![Bay 031 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b031.png?v=1710696150811)

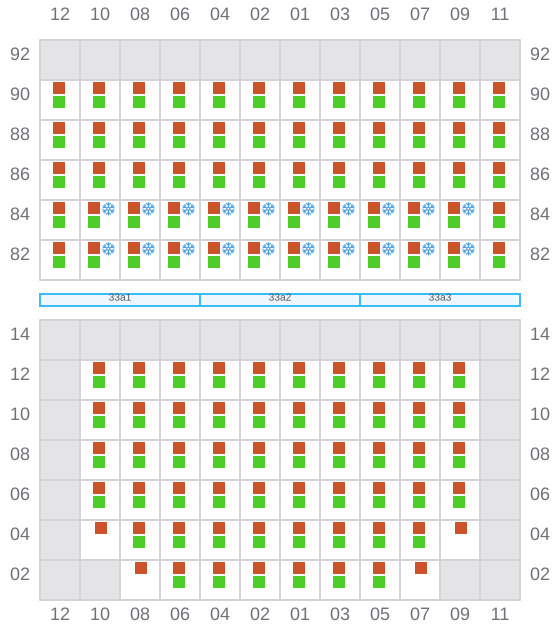

033 (034)
- →
![Bay 033 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b033.png?v=1710696150811)

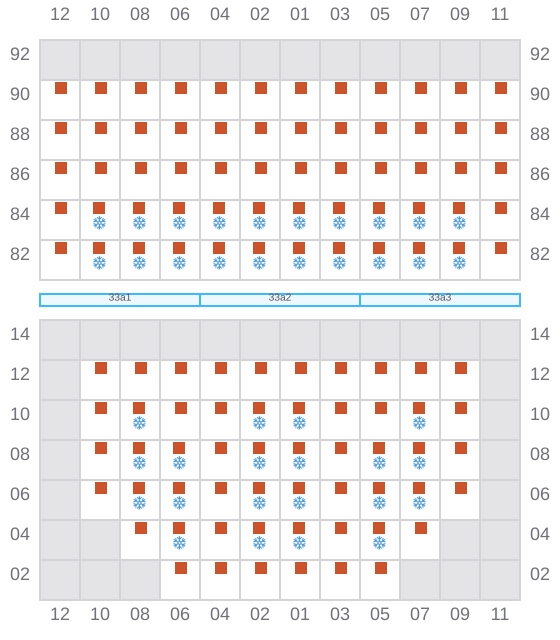

035
- ←
![Bay 035 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b035.png?v=1710696150811)

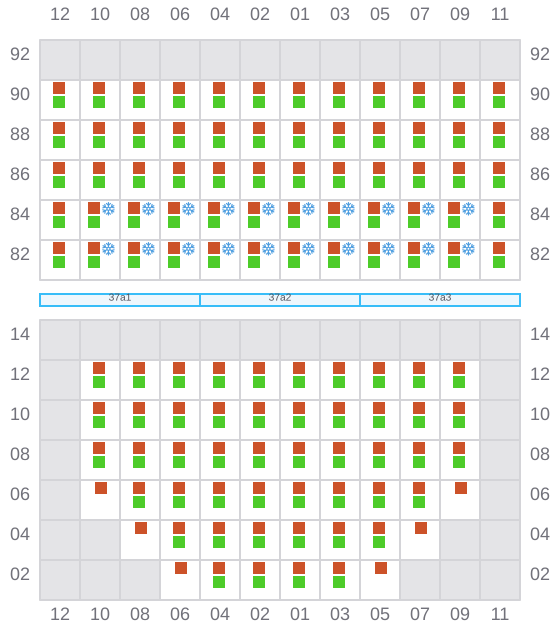

037 (038)
- →
![Bay 037 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b037.png?v=1710696150811)

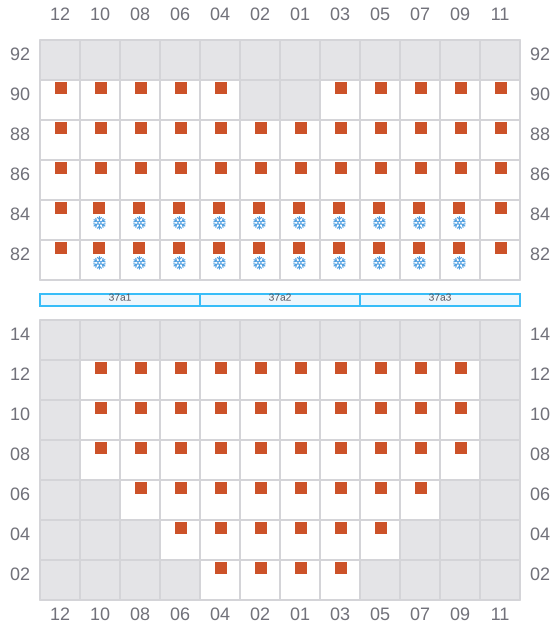

039
- ←
![Bay 039 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b039.png?v=1710696150811)

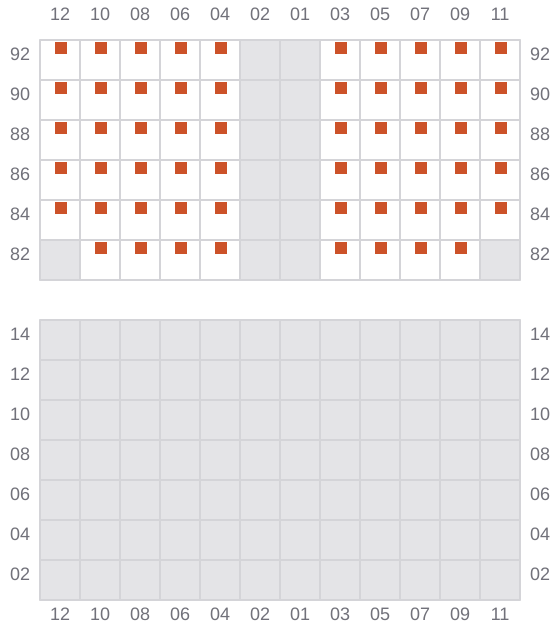

041
![Bay 041 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b041.png?v=1710696150811)

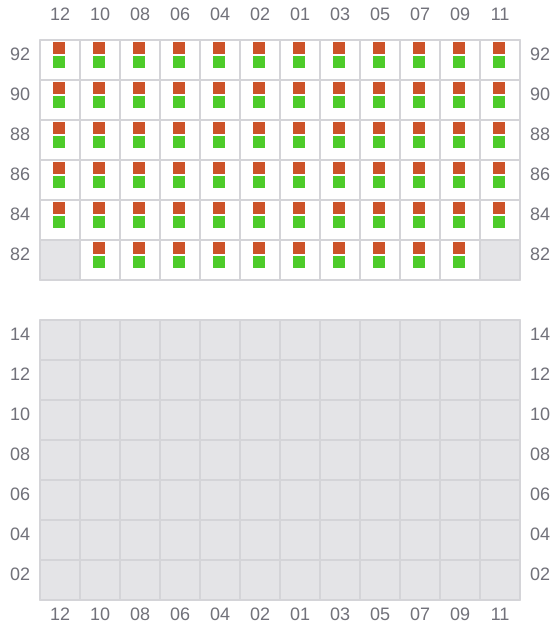

043 (044)
- → / ?
![Bay 043 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b043.png?v=1710696150811)

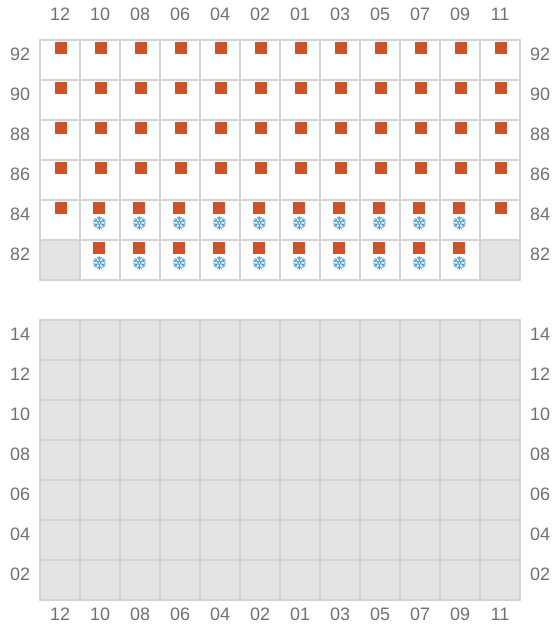

045
- ← / ?
![Bay 045 view and slots of JPO GEMINI](/vessel-images/a0e32b43-5769-4358-84c1-540f4be4a42c-b045.png?v=1710696150811)
