JPO PISCES
9297852 | A8GU8 | 9297852 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:JPO PISCES
IMO Code:9297852
Call Sign:A8GU8
Line Operator:9297852
Class Name for Sister Ships:03I
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):264.00
LOA (Length Overall):264.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,132
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

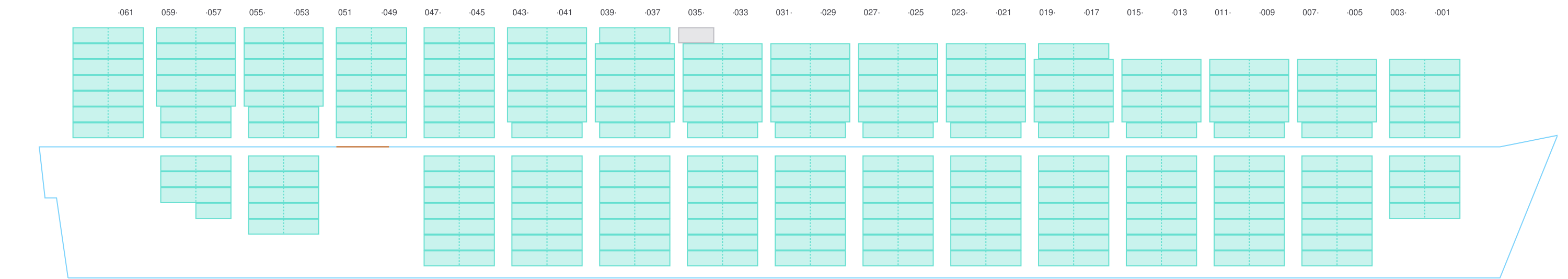

Side View
![Side view of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-sideView.png?v=1710785186406)

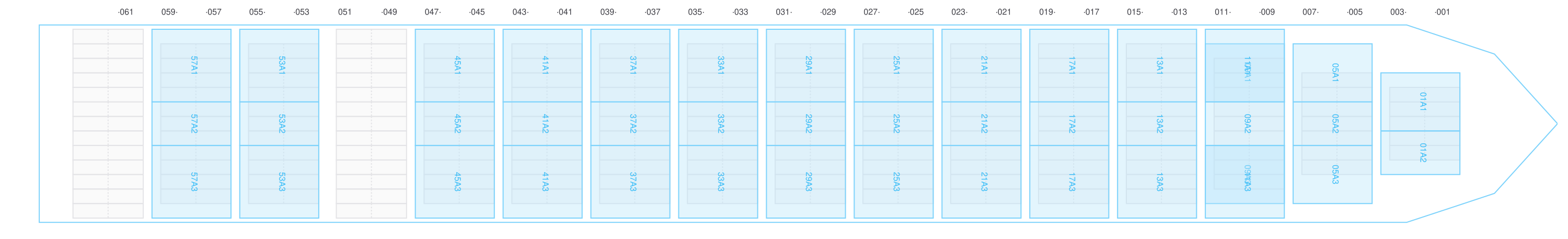

Hatch-Covers View
![Deck view of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-deckView.png?v=1710785186406)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
![Bay 001 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b001.png?v=1710785186406)

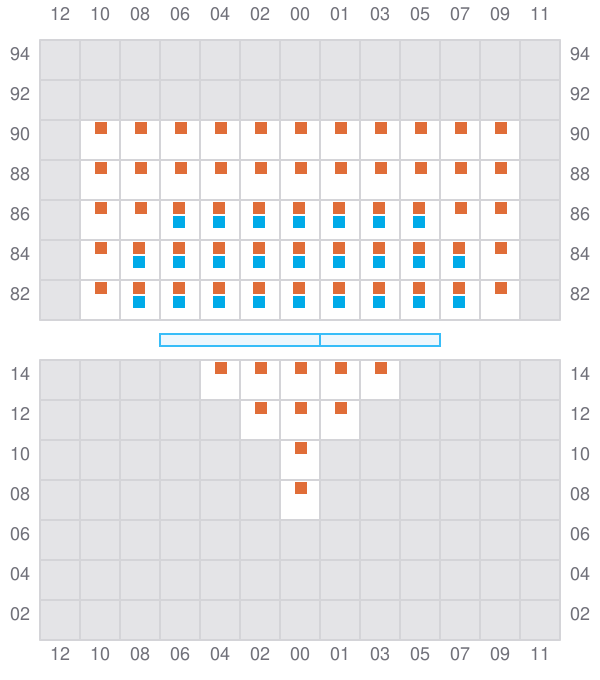

003
- ←
- → / ?
- →
![Bay 003 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b003.png?v=1710785186406)

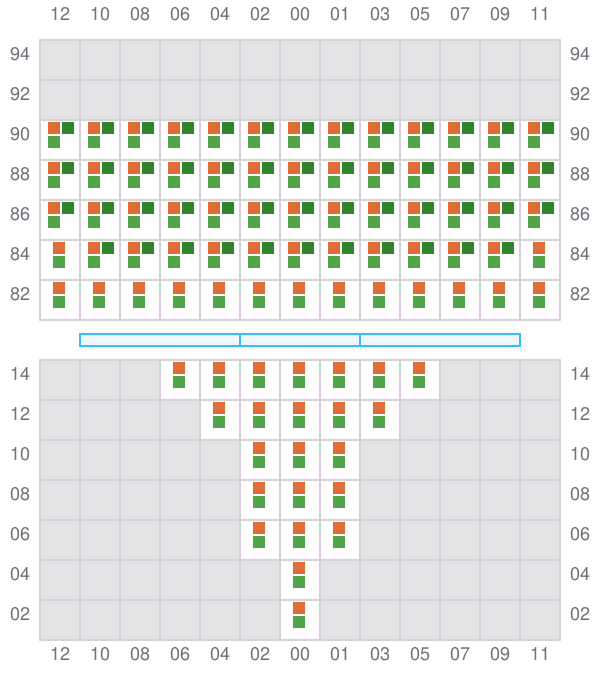

005 (006)
- →
- →
![Bay 005 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b005.png?v=1710785186406)

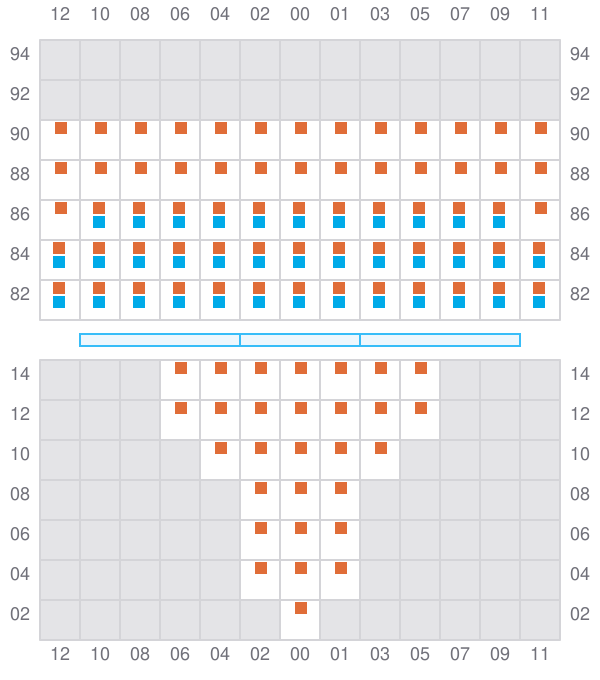

007
- ←
- → / ?
- →
![Bay 007 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b007.png?v=1710785186406)

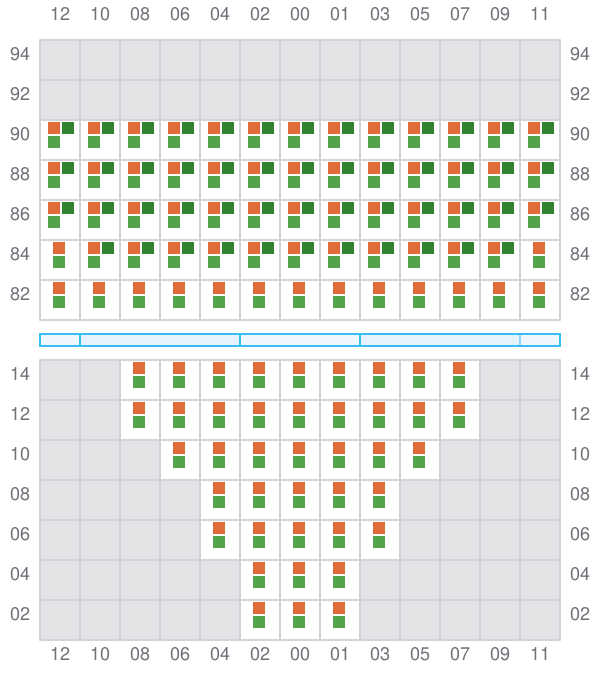

009 (010)
- →
- →
![Bay 009 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b009.png?v=1710785186406)

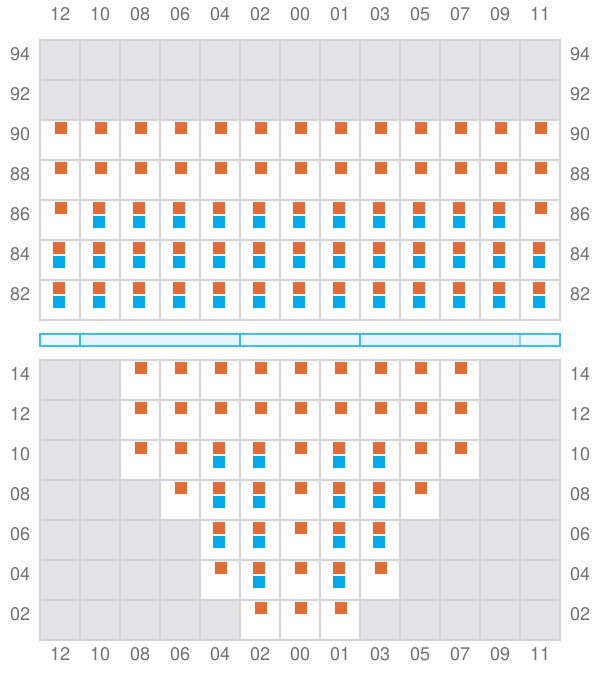

011
- ←
- →
- →
![Bay 011 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b011.png?v=1710785186406)
013 (014)
- →
- →
![Bay 013 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b013.png?v=1710785186406)

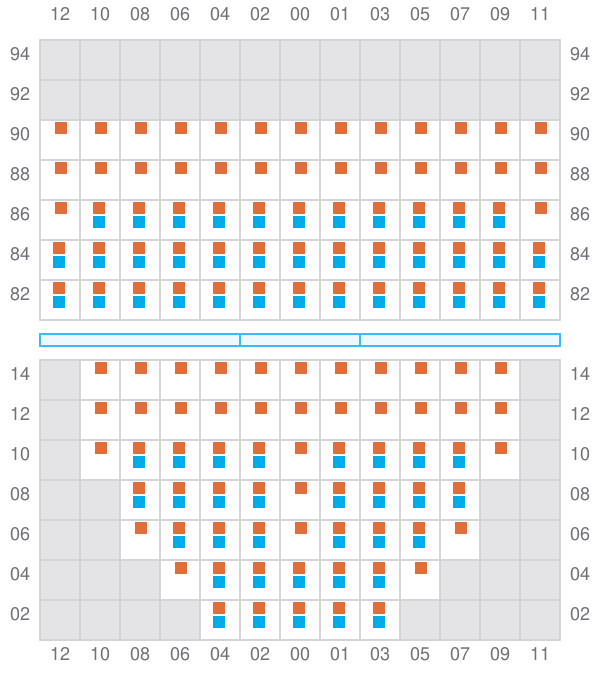

015
- ←
- →
- →
![Bay 015 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b015.png?v=1710785186406)

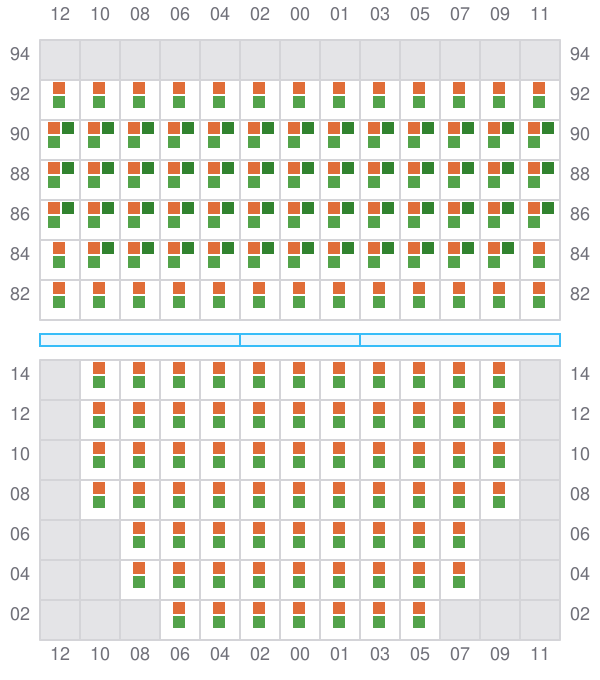

017 (018)
- →
- →
![Bay 017 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b017.png?v=1710785186406)

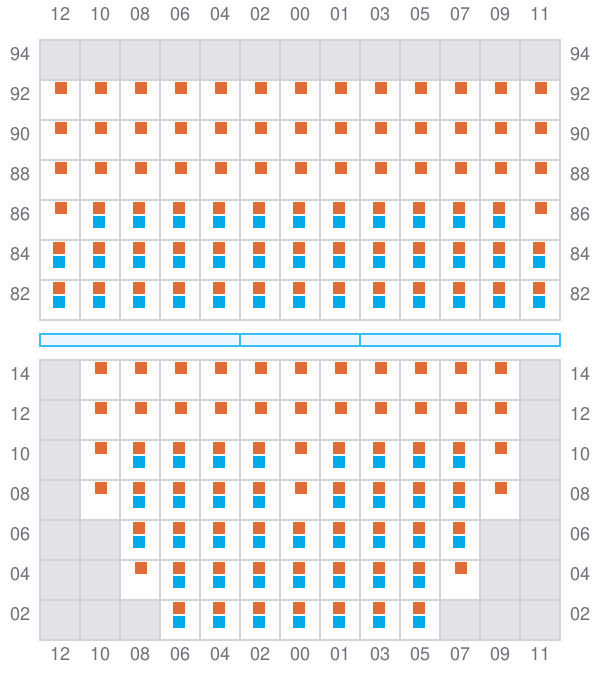

019
- ←
- →
- →
![Bay 019 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b019.png?v=1710785186406)

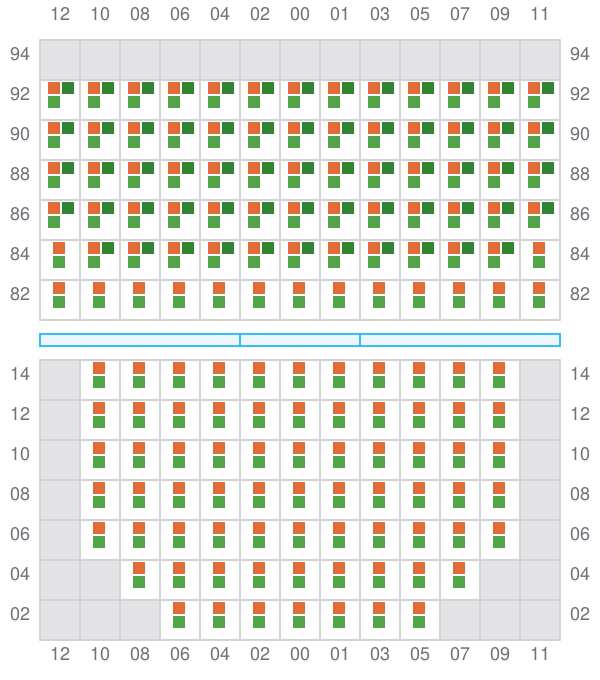

021 (022)
- →
- →
![Bay 021 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b021.png?v=1710785186406)

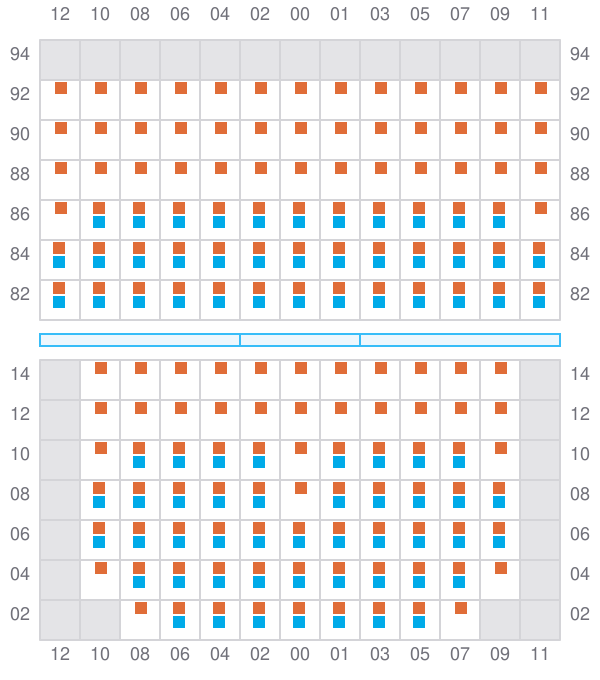

023
- ←
- →
- →
![Bay 023 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b023.png?v=1710785186406)

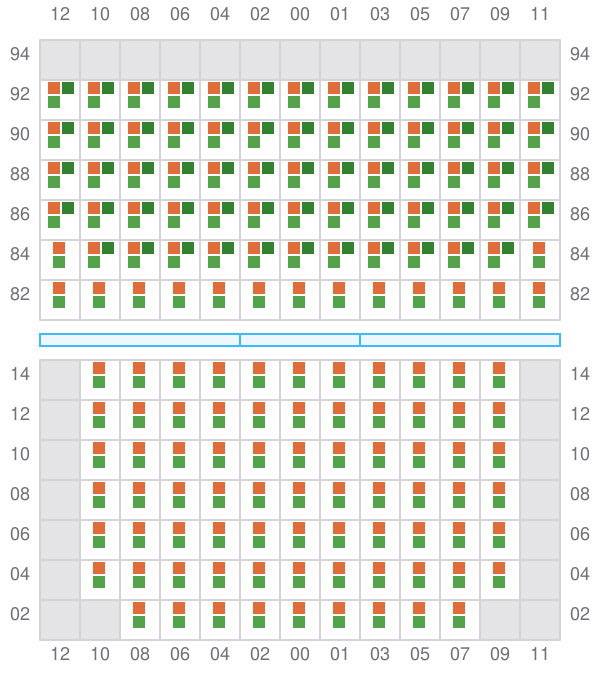

025 (026)
- →
- →
![Bay 025 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b025.png?v=1710785186406)
027
- ←
- →
- →
![Bay 027 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b027.png?v=1710785186406)
029 (030)
- →
- →
![Bay 029 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b029.png?v=1710785186406)

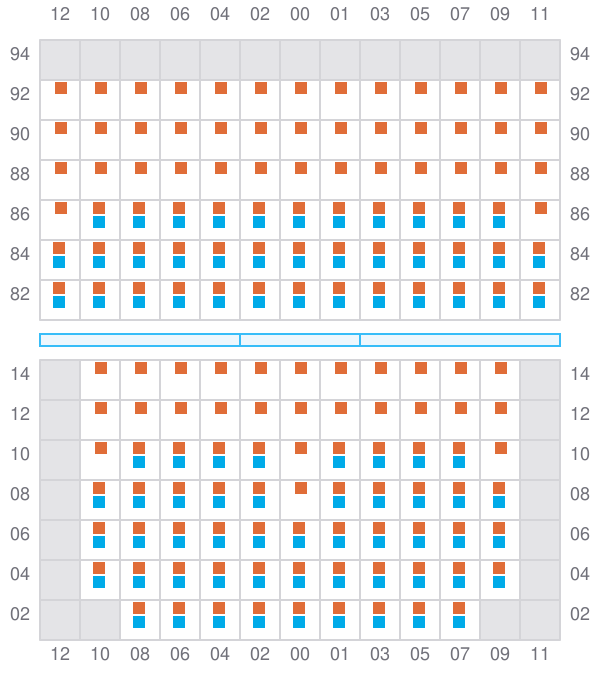

031
- ←
- →
- →
![Bay 031 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b031.png?v=1710785186406)
033 (034)
- →
- →
![Bay 033 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b033.png?v=1710785186406)

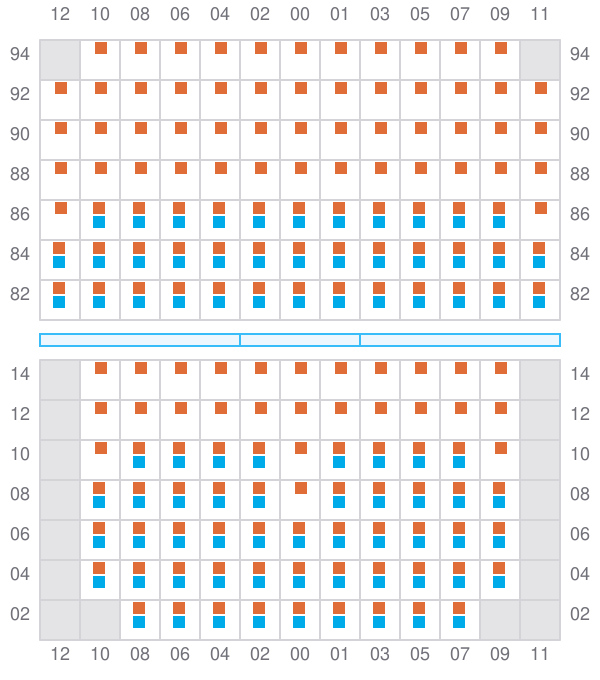

035
- ←
- →
- →
![Bay 035 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b035.png?v=1710785186406)

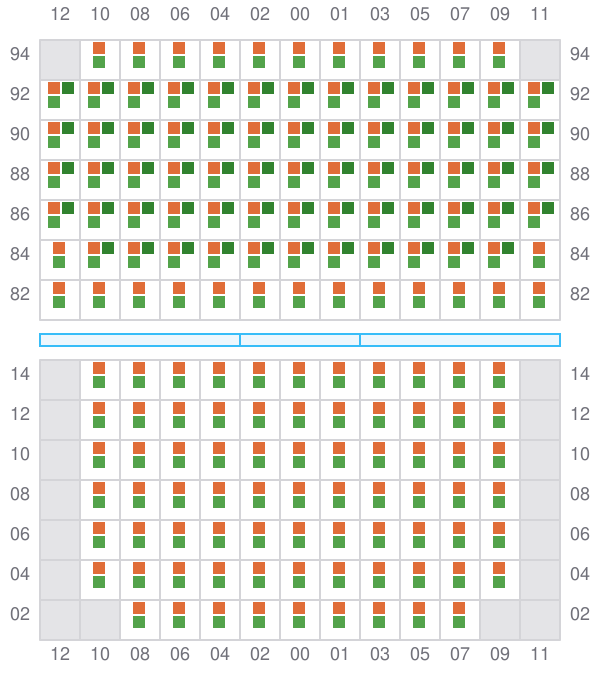

037 (038)
- →
- →
![Bay 037 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b037.png?v=1710785186406)
039
- ←
- →
- →
![Bay 039 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b039.png?v=1710785186406)

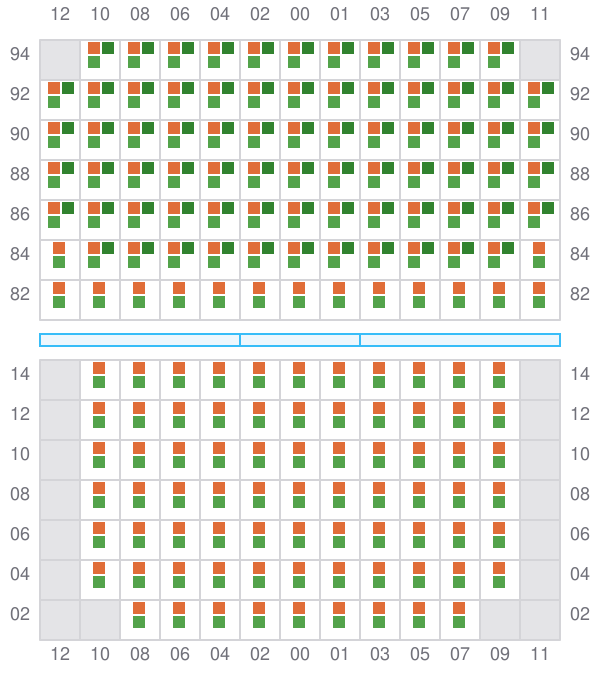

041 (042)
- →
- →
![Bay 041 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b041.png?v=1710785186406)

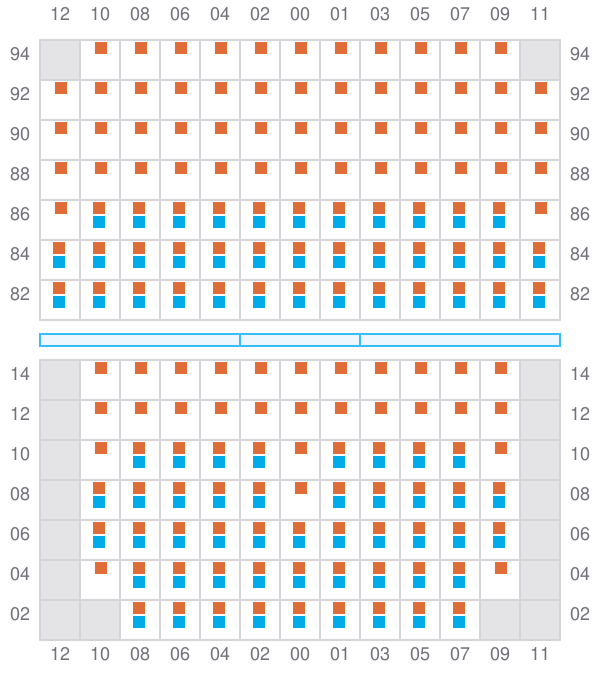

043
- ←
- →
- →
![Bay 043 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b043.png?v=1710785186406)

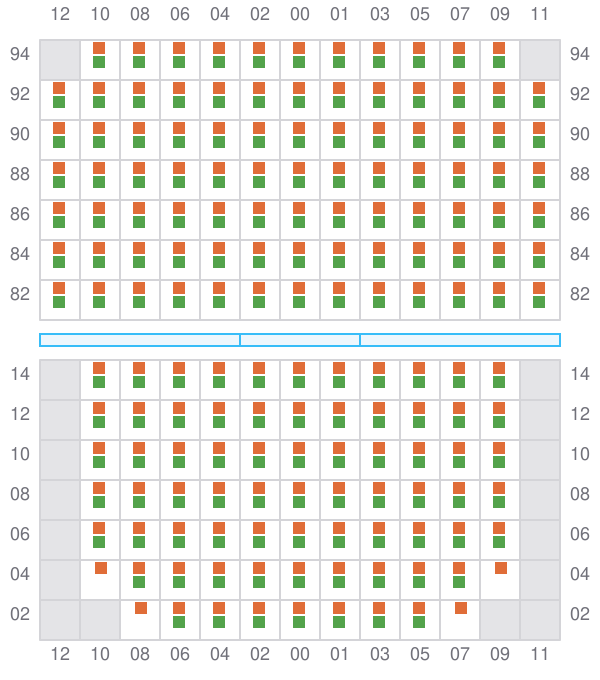

045 (046)
- →
- →
![Bay 045 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b045.png?v=1710785186406)

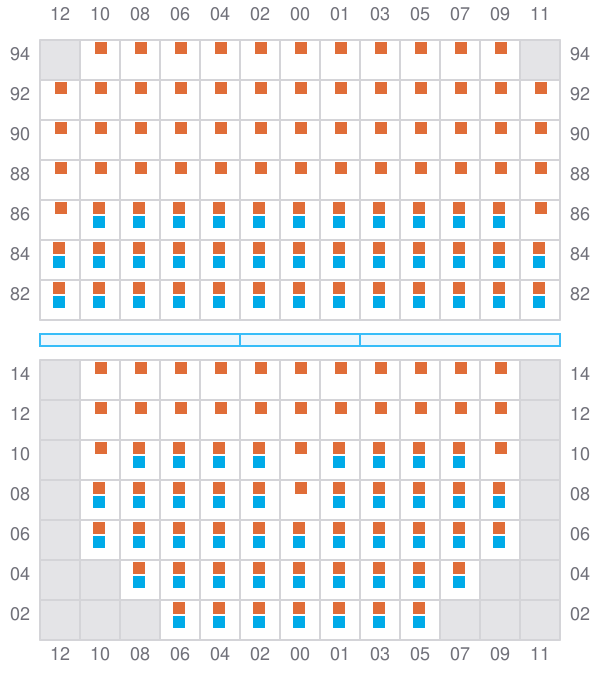

047
- ←
- →
- →
![Bay 047 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b047.png?v=1710785186406)

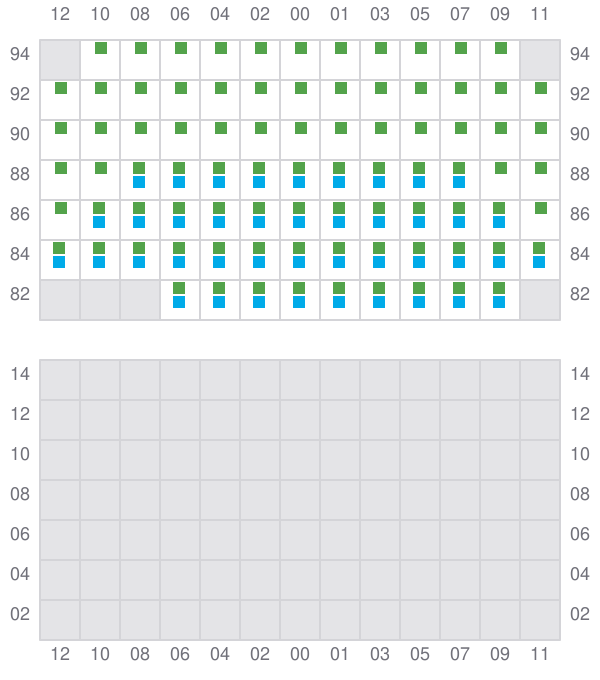

049 (050)
- → / ?
- ← / ?
- → / ?
![Bay 049 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b049.png?v=1710785186406)

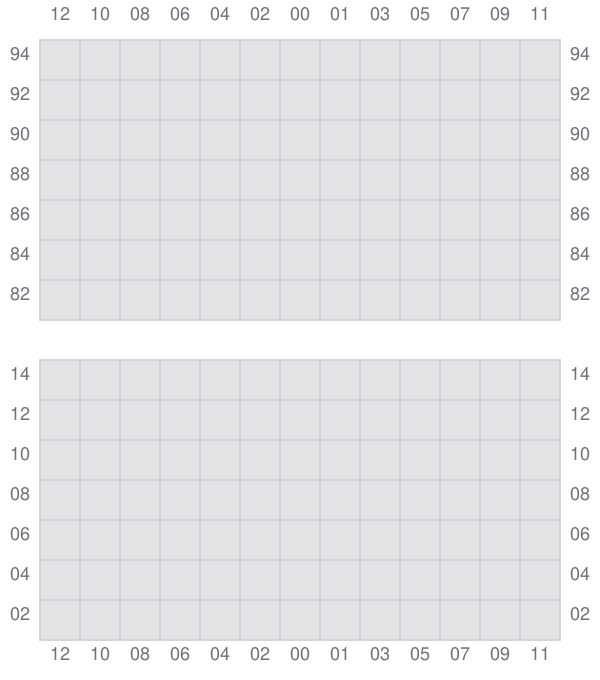

051
![Bay 051 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b051.png?v=1710785186406)

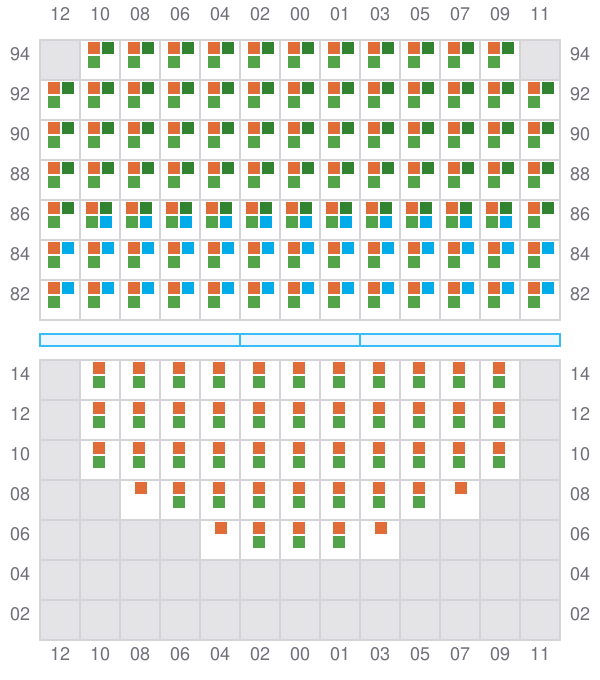

053 (054)
- →
- ← / ?
- →
![Bay 053 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b053.png?v=1710785186406)

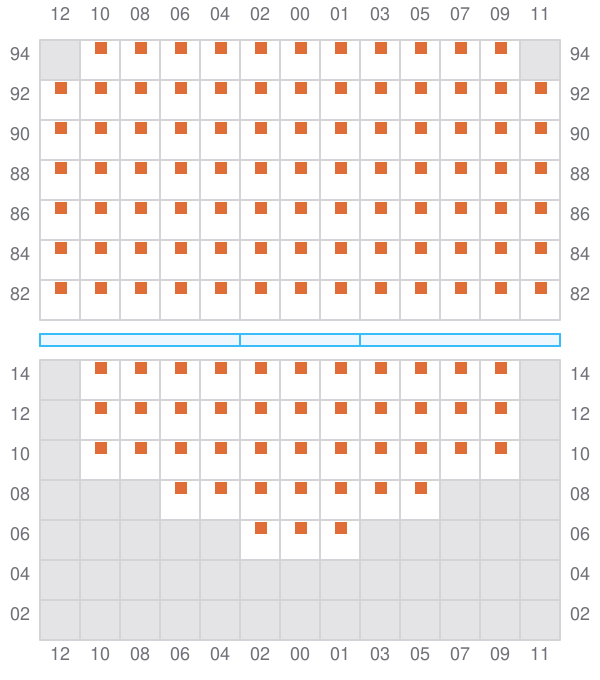

055
- ←
- →
![Bay 055 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b055.png?v=1710785186406)

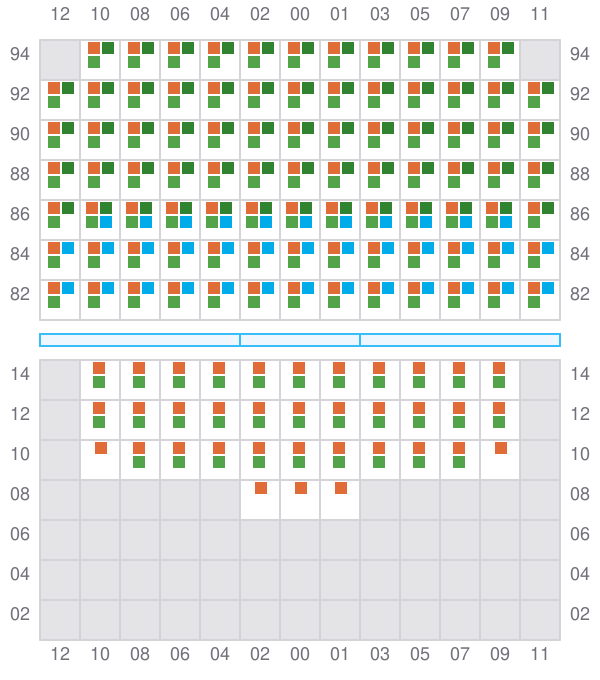

057 (058)
- →
- ← / ?
- →
![Bay 057 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b057.png?v=1710785186406)

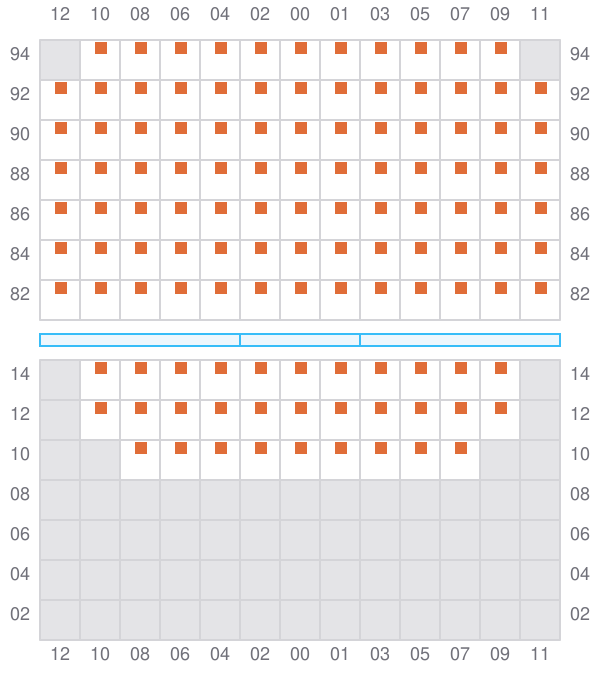

059
- ←
- →
![Bay 059 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b059.png?v=1710785186406)

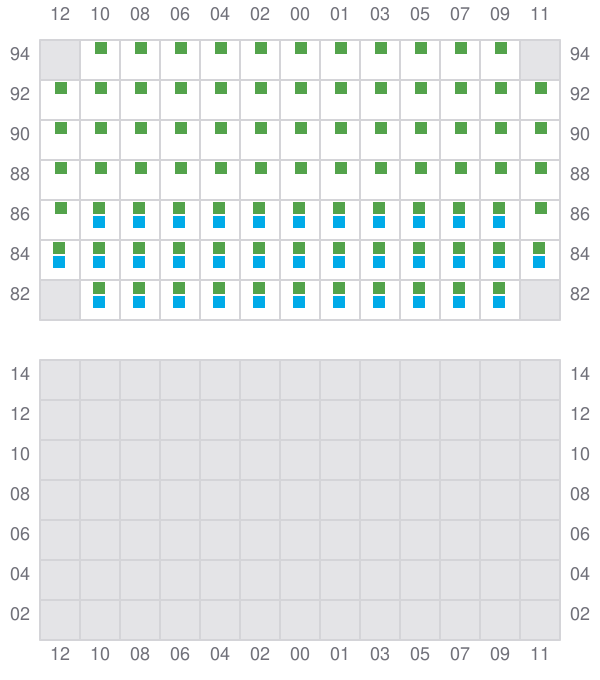

061 (062)
- → / ?
- ← / ?
- → / ?
![Bay 061 view and slots of JPO PISCES](/vessel-images/b5fe067e-2b22-4b22-a34b-0118993dacef-b061.png?v=1710785186406)
