KANTATA
9327580 | LYBD | 9327580 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:KANTATA
IMO Code:9327580
Call Sign:LYBD
Line Operator:9327580
Class Name for Sister Ships:9OZ
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,097
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-sideView.png?v=1711052905202)
Hatch-Covers View
![Deck view of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-deckView.png?v=1711052905202)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

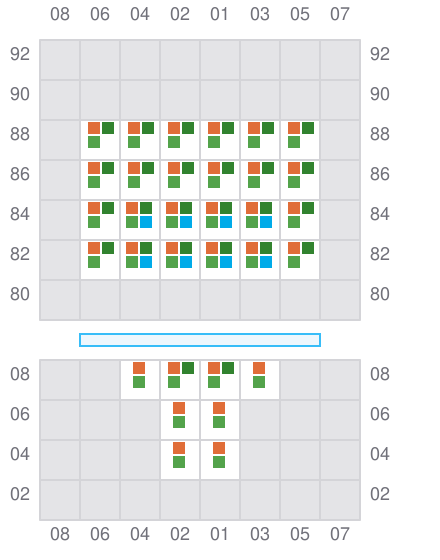

001 (002)
- →
- ← / ?
![Bay 001 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b001.png?v=1711052905202)

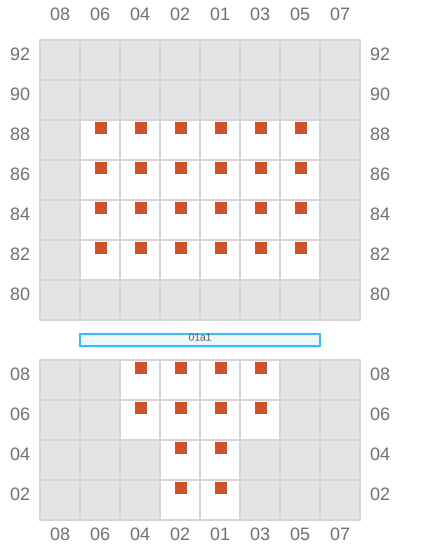

003
- ←
![Bay 003 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b003.png?v=1711052905202)

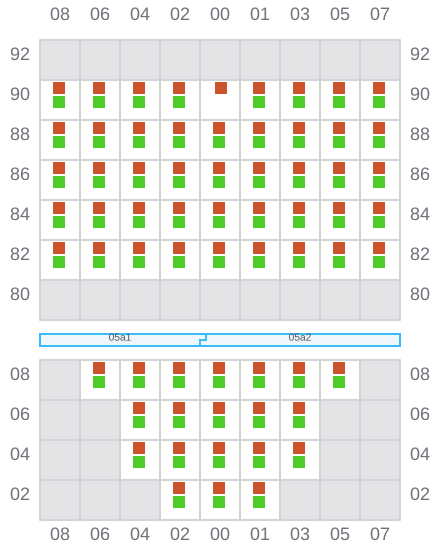

005 (006)
- →
![Bay 005 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b005.png?v=1711052905202)

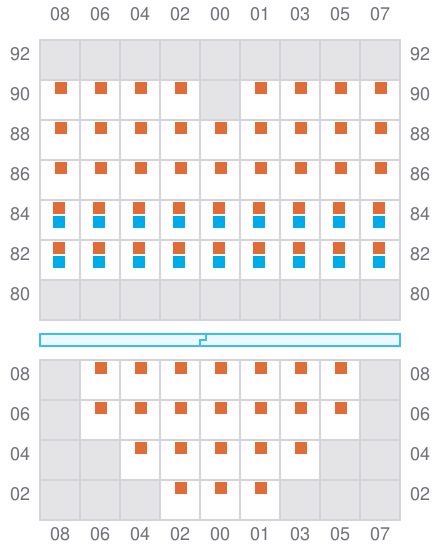

007
- ←
- → / ?
![Bay 007 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b007.png?v=1711052905202)
009
![Bay 009 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b009.png?v=1711052905202)

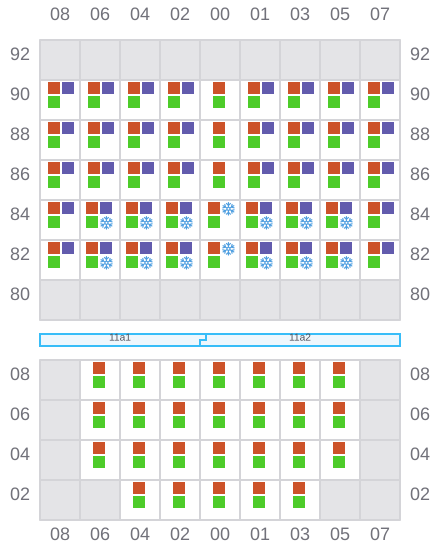

011 (012)
- →
- ← / ?
![Bay 011 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b011.png?v=1711052905202)

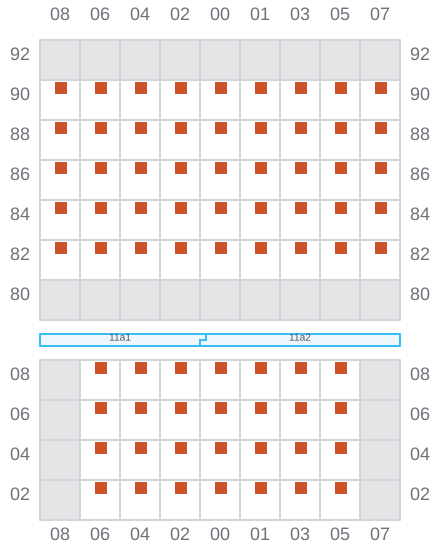

013
- ←
![Bay 013 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b013.png?v=1711052905202)

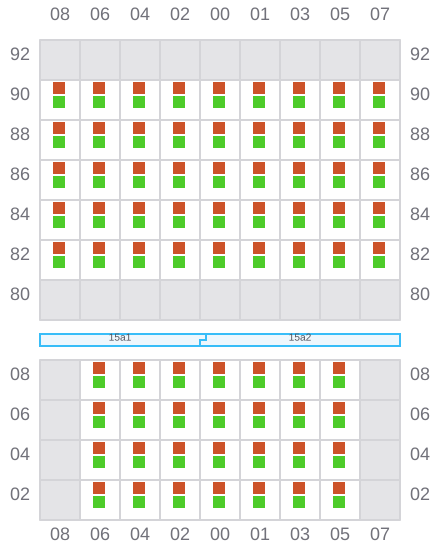

015 (016)
- →
![Bay 015 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b015.png?v=1711052905202)

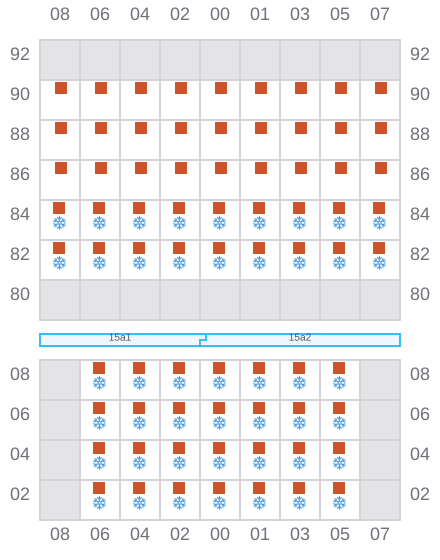

017
- ←
- →
![Bay 017 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b017.png?v=1711052905202)

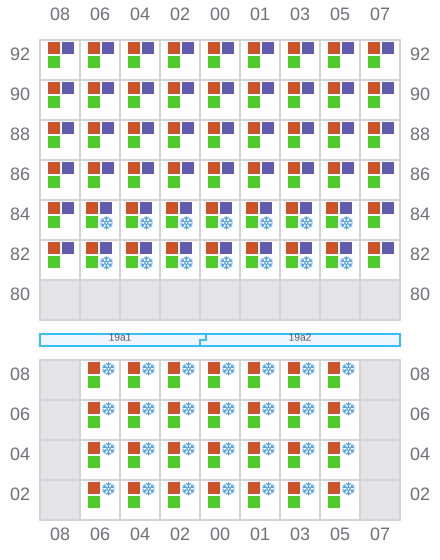

019 (020)
- →
- ←
![Bay 019 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b019.png?v=1711052905202)
021
- ←
![Bay 021 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b021.png?v=1711052905202)
023 (024)
- →
![Bay 023 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b023.png?v=1711052905202)
025
- ←
- → / ?
![Bay 025 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b025.png?v=1711052905202)
027
![Bay 027 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b027.png?v=1711052905202)
029 (030)
- →
- ← / ?
![Bay 029 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b029.png?v=1711052905202)
031
- ←
![Bay 031 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b031.png?v=1711052905202)
033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b033.png?v=1711052905202)
035
- ← / ?
![Bay 035 view and slots of KANTATA](/vessel-images/2ae733fe-e5e3-416c-9dbc-f5ac160d67fa-b035.png?v=1711052905202)
