KARLSKRONA
9085558 | D5RL4 | MSC by ************************** Last update: Fri Apr 11 2025
General Info
Ship Name:KARLSKRONA
IMO Code:9085558
Call Sign:D5RL4
Line Operator:MSC
Class Name for Sister Ships:KRO
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:MAERSK KARLSKRONA
Size Summary
ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,328
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
- → / ?
021
- →
023 (022)
- ←
- → / ?
025
- →
027 (026)
- ←
029
- →
- ? / →
031 (030)
- ←
- →
033
- →
035 (034)
- ←
037
- →
- ? / →
039 (038)
- ←
- →
041
- →
043 (042)
- ←
045
- →
- ? / →
047 (046)
- ←
- →
049
- →
- → / ?
051 (050)
- ←
053
- →
- ← / ?
055 (054)
- ←
057
- →
- ← / →
059 (058)
- ←
- ? / →
061
- →
- ← / ?
063 (062)
- ←
065
- →
- ← / ?
067 (066)
- ←
069
- →
- ← / ?
071 (070)
- ←
073
- → / ?

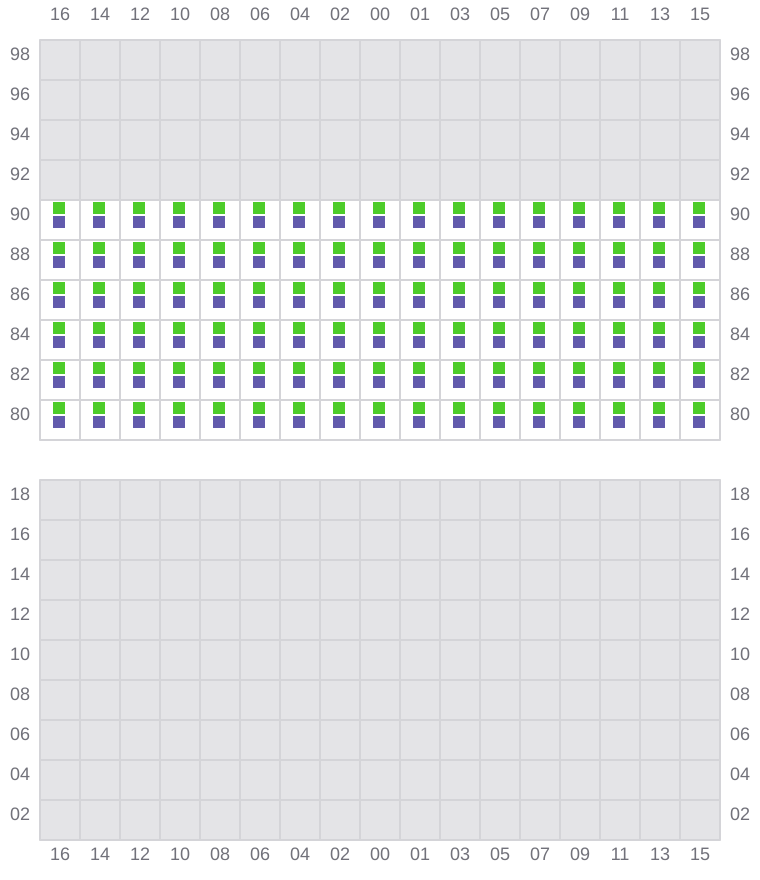

075 (074)
- ← / ?
