KETA
9225782 | D5WN2 | 9225782 by ********* Last update: Tue Jul 16 2024

General Info

Ship Name:KETA
IMO Code:9225782
Call Sign:D5WN2
Line Operator:9225782
Class Name for Sister Ships:CMA
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,204

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of KETA

Hatch-Covers View

Deck view of KETA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of KETA

003 (002)

  • ←
Bay 003 view and slots of KETA

005

  • →
Bay 005 view and slots of KETA

007 (006)

  • ←
Bay 007 view and slots of KETA

009

  • →
Bay 009 view and slots of KETA

011 (010)

  • ←
Bay 011 view and slots of KETA

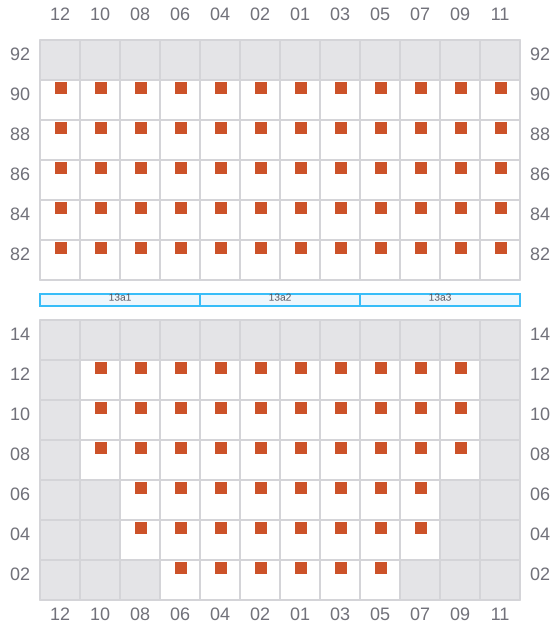

013

  • →
Bay 013 view and slots of KETA

015 (014)

  • ←
Bay 015 view and slots of KETA

017

  • →
Bay 017 view and slots of KETA

019 (018)

  • ←
Bay 019 view and slots of KETA

021

  • →
Bay 021 view and slots of KETA

023 (022)

  • ←
Bay 023 view and slots of KETA

025

  • →
Bay 025 view and slots of KETA

027 (026)

  • ←
Bay 027 view and slots of KETA

029

  • →
Bay 029 view and slots of KETA

031 (030)

  • ←
Bay 031 view and slots of KETA

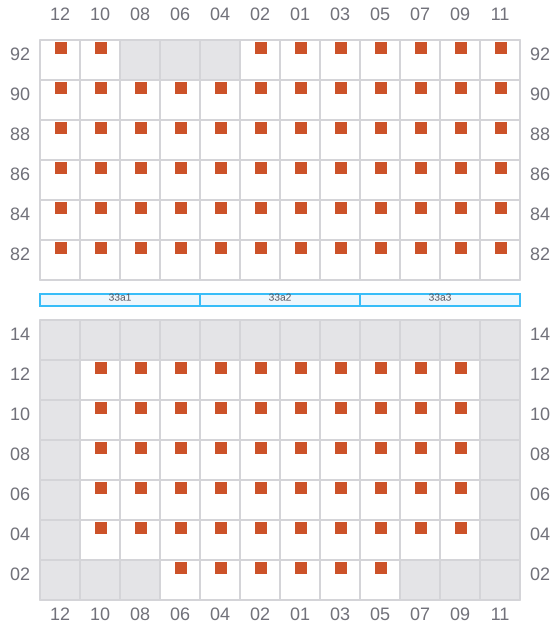

033

  • →
Bay 033 view and slots of KETA

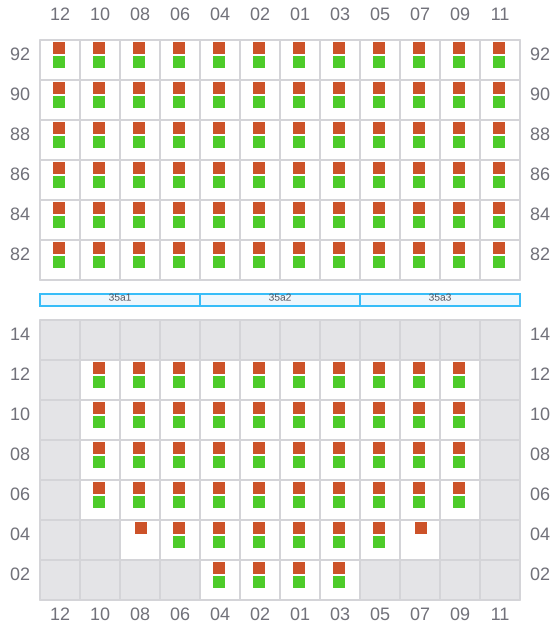

035 (034)

  • ←
Bay 035 view and slots of KETA

037

  • → / ?
Bay 037 view and slots of KETA

039 (038)

  • ← / ?
Bay 039 view and slots of KETA

041 (042)

  • → / ?
Bay 041 view and slots of KETA
