KMARIN AZUR
9632492 | H9MM | 9632492 by ********* Last update: Mon Jul 08 2024

General Info

Ship Name:KMARIN AZUR
IMO Code:9632492
Call Sign:H9MM
Line Operator:9632492
Class Name for Sister Ships:MAE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,560

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of KMARIN AZUR

Hatch-Covers View

Deck view of KMARIN AZUR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of KMARIN AZUR

003

  • ←
  • → / ?
Bay 003 view and slots of KMARIN AZUR

005 (006)

  • →

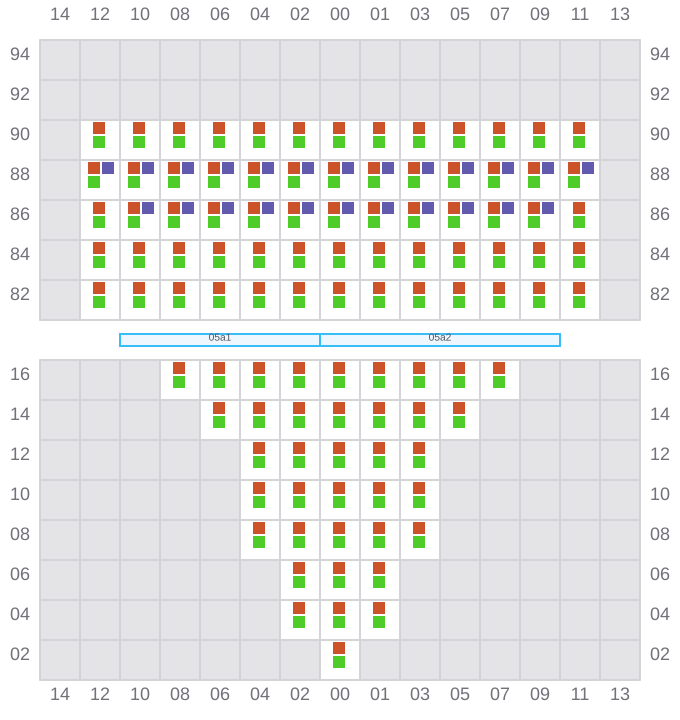

Bay 005 view and slots of KMARIN AZUR

007

  • ←
  • → / ?
Bay 007 view and slots of KMARIN AZUR

009 (010)

  • →
Bay 009 view and slots of KMARIN AZUR

011

  • ←
  • → / ?
Bay 011 view and slots of KMARIN AZUR

013 (014)

  • →
Bay 013 view and slots of KMARIN AZUR

015

  • ←
  • → / ?
Bay 015 view and slots of KMARIN AZUR

017 (018)

  • →

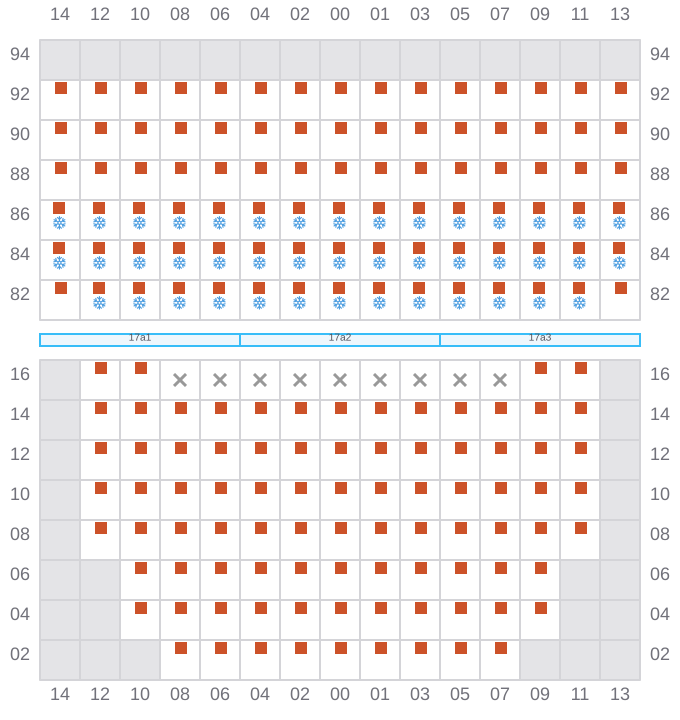

Bay 017 view and slots of KMARIN AZUR

019

  • ←
  • → / ?
Bay 019 view and slots of KMARIN AZUR

021 (022)

  • →
Bay 021 view and slots of KMARIN AZUR

023

  • ←
  • → / ?
Bay 023 view and slots of KMARIN AZUR

025 (026)

  • →

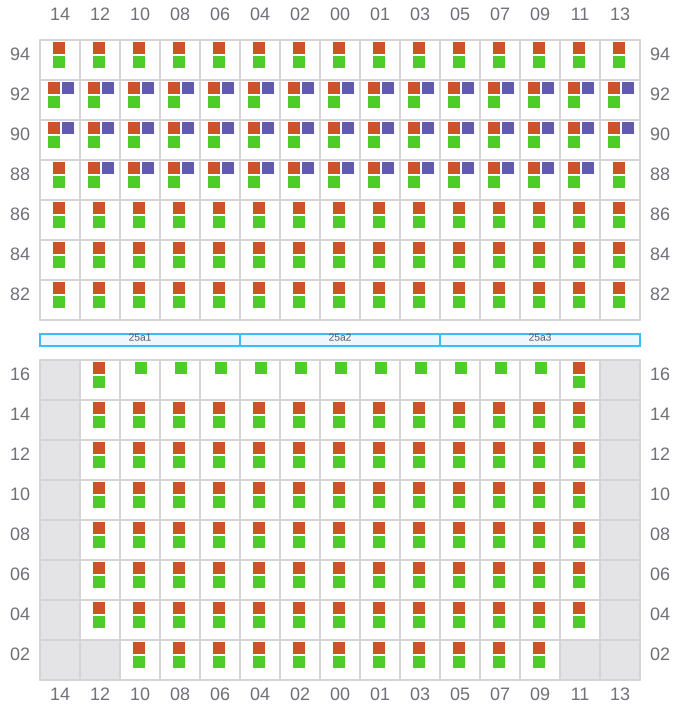

Bay 025 view and slots of KMARIN AZUR

027

  • ←
  • → / ?
Bay 027 view and slots of KMARIN AZUR

029 (030)

  • →
Bay 029 view and slots of KMARIN AZUR

031

  • ←
  • → / ?
Bay 031 view and slots of KMARIN AZUR

033 (034)

  • →
Bay 033 view and slots of KMARIN AZUR

035

  • ←
  • → / ?
Bay 035 view and slots of KMARIN AZUR

037 (038)

  • →
Bay 037 view and slots of KMARIN AZUR

039

  • ←
  • → / ?
Bay 039 view and slots of KMARIN AZUR

041 (042)

  • →

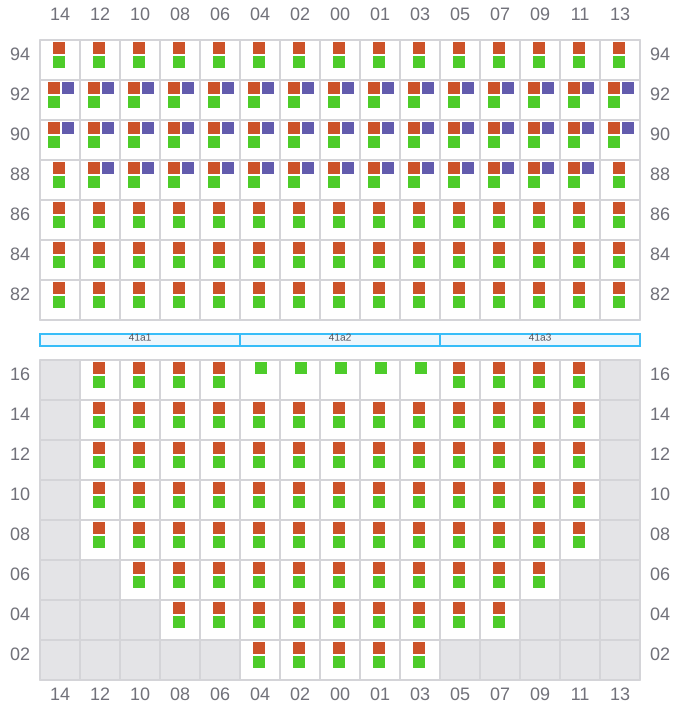

Bay 041 view and slots of KMARIN AZUR

043

  • ←
  • → / ?
Bay 043 view and slots of KMARIN AZUR

045 (046)

  • → / ?
  • → / ?
Bay 045 view and slots of KMARIN AZUR

047

Bay 047 view and slots of KMARIN AZUR

049 (050)

  • →
Bay 049 view and slots of KMARIN AZUR

051

  • ←
  • → / ?
Bay 051 view and slots of KMARIN AZUR

053 (054)

  • → / ?
  • ← / ?
Bay 053 view and slots of KMARIN AZUR
