KMTC HOCHIMINH
9314923 | D7BM | 9314923 by ********* Last update: Tue Apr 09 2024
General Info
Ship Name:KMTC HOCHIMINH
IMO Code:9314923
Call Sign:D7BM
Line Operator:9314923
Class Name for Sister Ships:CMA CGM LILAC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

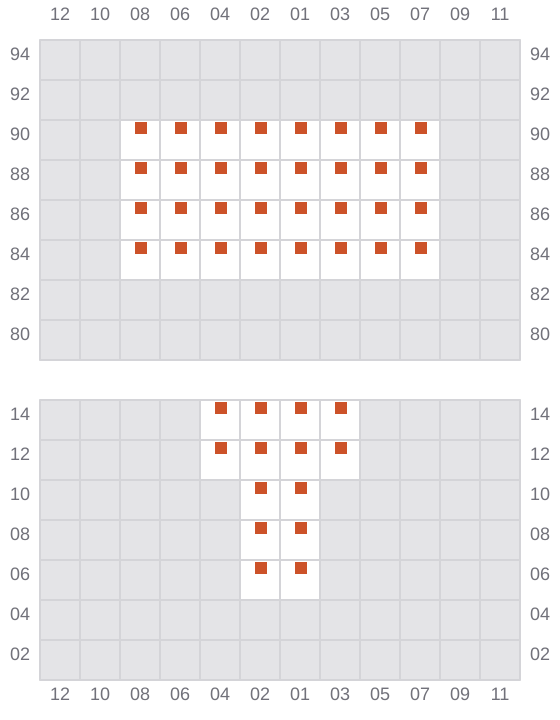

003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←

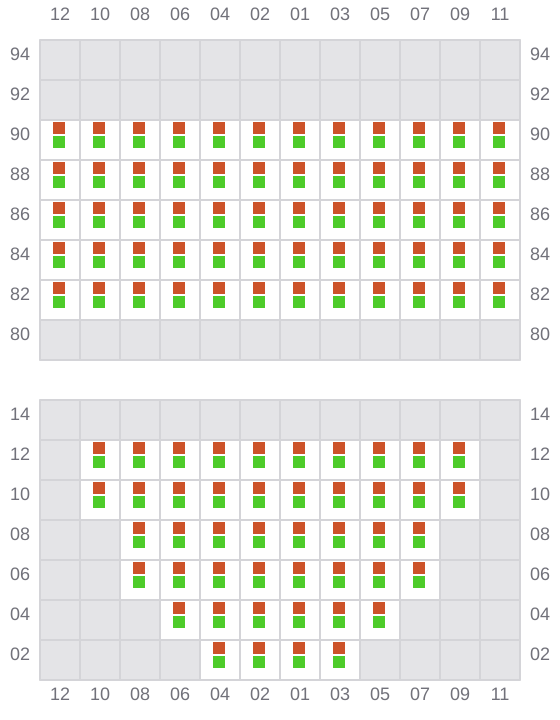

013 (014)
- →

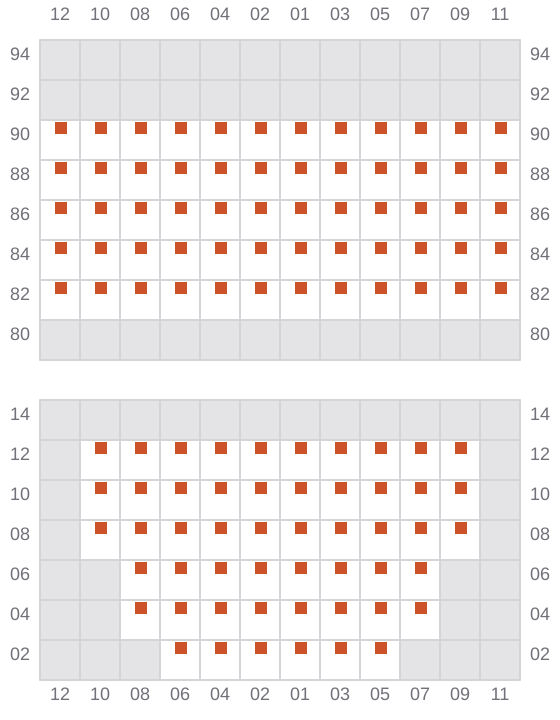

015
- ←
017 (018)
- →
019
- ←

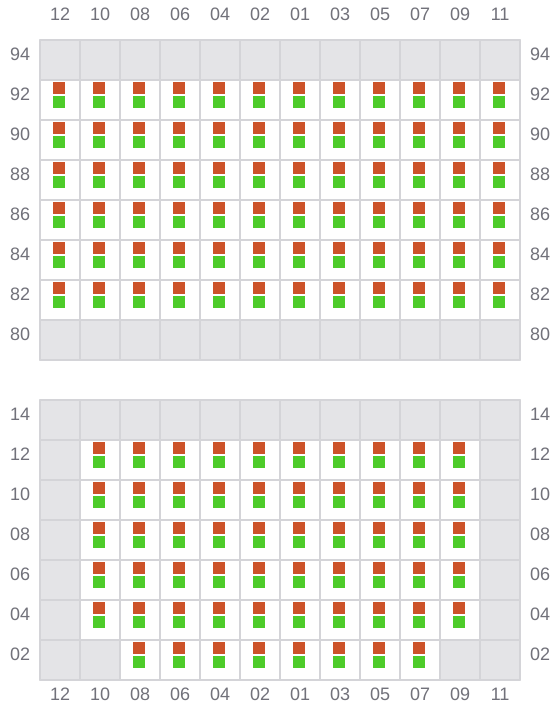

021 (022)
- →
023
- ←
025 (026)
- →

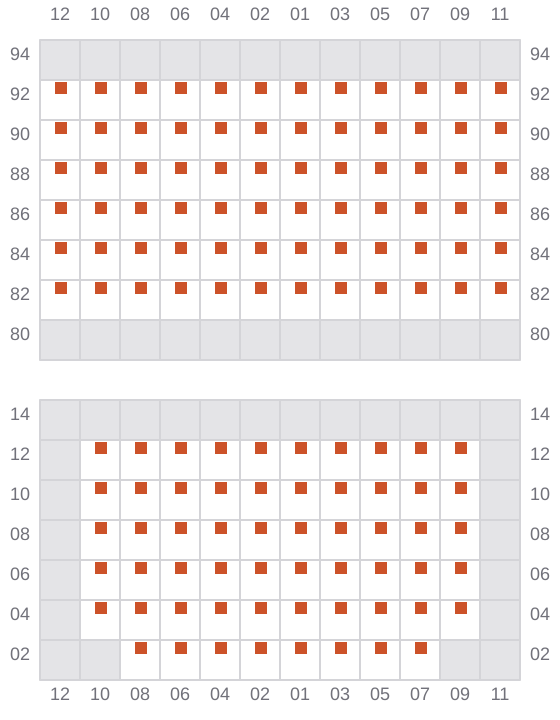

027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →

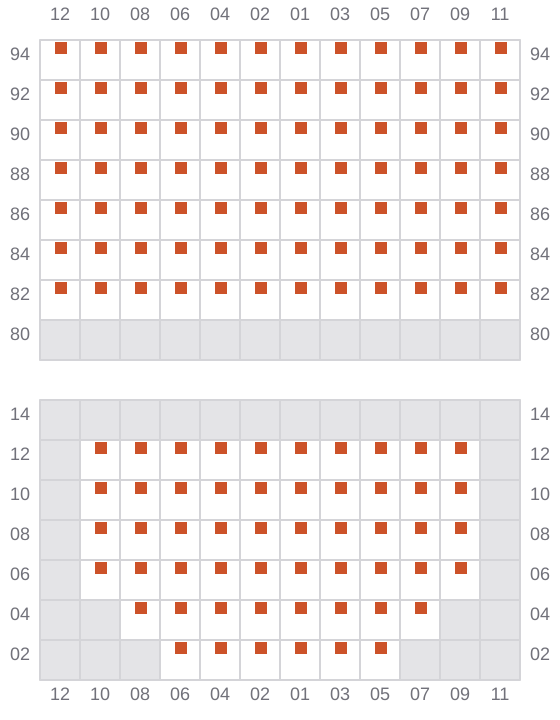

039
- ←
041 (042)
- →
043
- ←

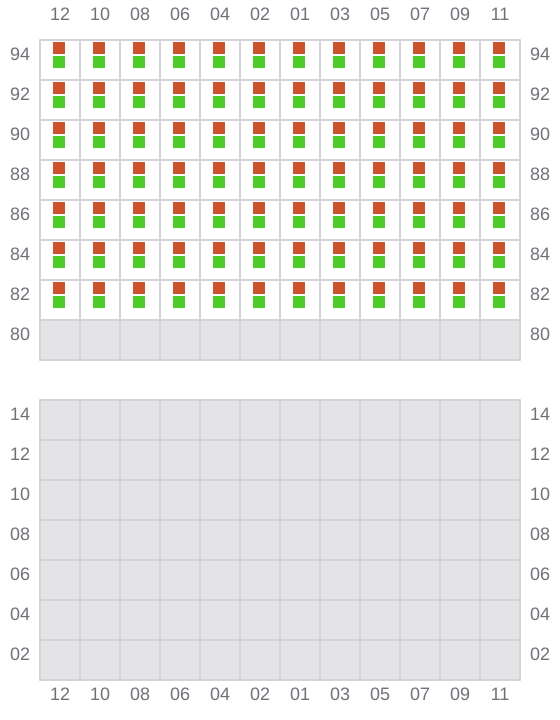

045 (046)
- → / ?
047
- ← / ?
049 (050)
- → / ?
