KMTC JEBEL ALI
9375305 | D7SH | 937530 by ********* Last update: Wed May 08 2024

General Info

Ship Name:KMTC JEBEL ALI
IMO Code:9375305
Call Sign:D7SH
Line Operator:937530
Class Name for Sister Ships:HANJIN
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,280

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of KMTC JEBEL ALI

Hatch-Covers View

Deck view of KMTC JEBEL ALI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

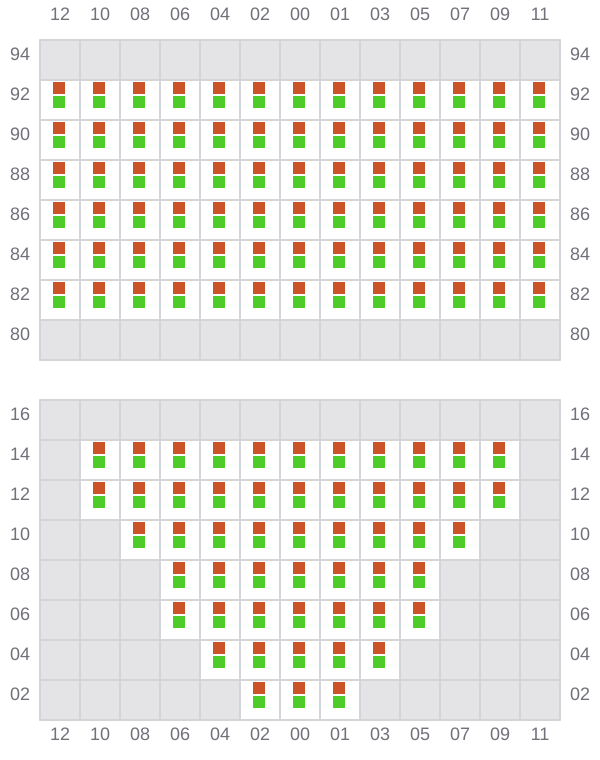

001 (002)

  • →
Bay 001 view and slots of KMTC JEBEL ALI

003

  • ←
Bay 003 view and slots of KMTC JEBEL ALI

005 (006)

  • →
Bay 005 view and slots of KMTC JEBEL ALI

007

  • ←
Bay 007 view and slots of KMTC JEBEL ALI

009 (010)

  • →
Bay 009 view and slots of KMTC JEBEL ALI

011

  • ←
Bay 011 view and slots of KMTC JEBEL ALI

013 (014)

  • →
Bay 013 view and slots of KMTC JEBEL ALI

015

  • ←
Bay 015 view and slots of KMTC JEBEL ALI

017 (018)

  • →
Bay 017 view and slots of KMTC JEBEL ALI

019

  • ←
Bay 019 view and slots of KMTC JEBEL ALI

021 (022)

  • →
Bay 021 view and slots of KMTC JEBEL ALI

023

  • ←
Bay 023 view and slots of KMTC JEBEL ALI

025 (026)

  • →
Bay 025 view and slots of KMTC JEBEL ALI

027

  • ←
Bay 027 view and slots of KMTC JEBEL ALI

029 (030)

  • →
Bay 029 view and slots of KMTC JEBEL ALI

031

  • ←
Bay 031 view and slots of KMTC JEBEL ALI

033 (034)

  • →
Bay 033 view and slots of KMTC JEBEL ALI

035

  • ←
Bay 035 view and slots of KMTC JEBEL ALI

037 (038)

  • →
Bay 037 view and slots of KMTC JEBEL ALI

039

  • ←
Bay 039 view and slots of KMTC JEBEL ALI

041 (042)

  • →
Bay 041 view and slots of KMTC JEBEL ALI

043

  • ←
Bay 043 view and slots of KMTC JEBEL ALI

045 (046)

  • →
Bay 045 view and slots of KMTC JEBEL ALI

047

  • ←
Bay 047 view and slots of KMTC JEBEL ALI

049 (050)

  • → / ?
Bay 049 view and slots of KMTC JEBEL ALI

051

Bay 051 view and slots of KMTC JEBEL ALI

053 (054)

  • →
Bay 053 view and slots of KMTC JEBEL ALI

055

  • ←
Bay 055 view and slots of KMTC JEBEL ALI

057 (058)

  • →
Bay 057 view and slots of KMTC JEBEL ALI

059

  • ←
Bay 059 view and slots of KMTC JEBEL ALI

061 (062)

  • → / ?
Bay 061 view and slots of KMTC JEBEL ALI
