The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
KMTC MUNDRA
9347449 | D7UW | 9347449 by ********* Last update: Wed May 01 2024
General Info
Ship Name:KMTC MUNDRA
IMO Code:9347449
Call Sign:D7UW
Line Operator:9347449
Class Name for Sister Ships:HANJIN CHONGQING
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):288.45
LOA (Length Overall):304.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,641
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

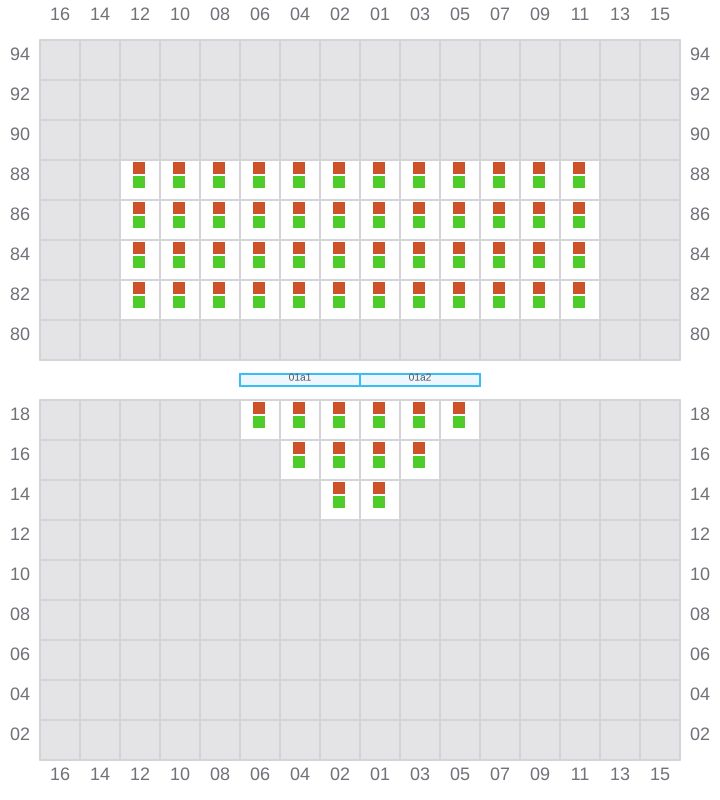

001 (002)
- →
003
- ←

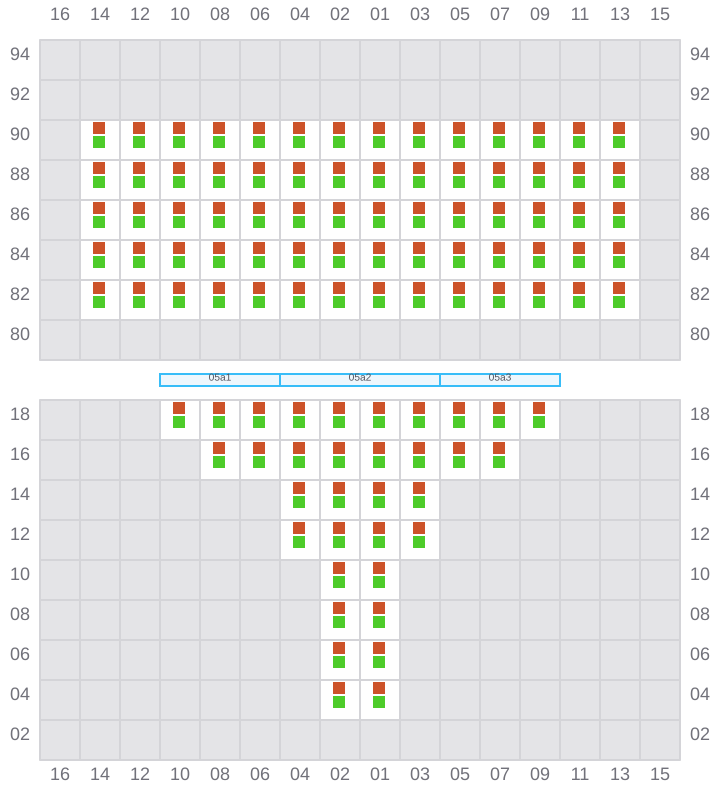

005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

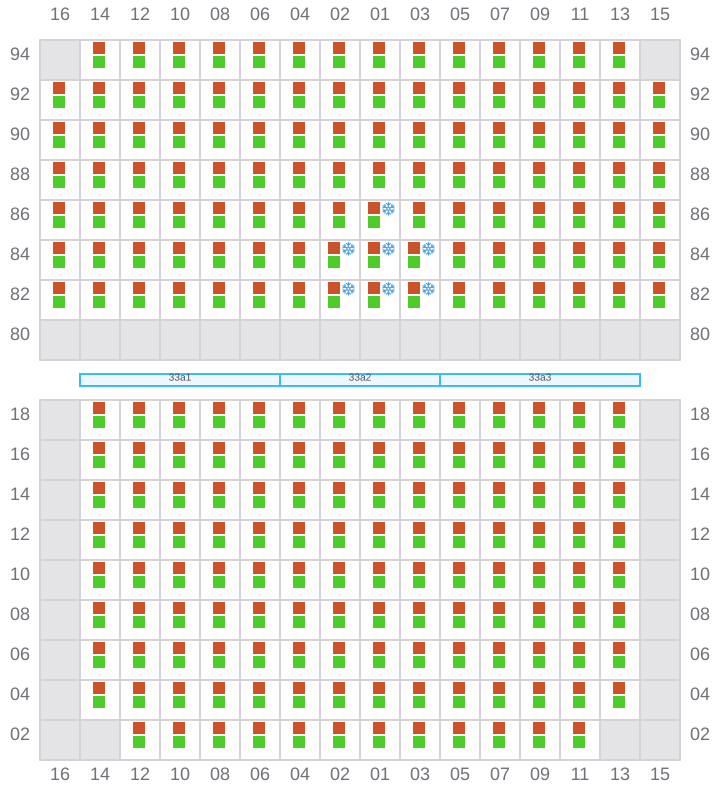

033 (034)
- →

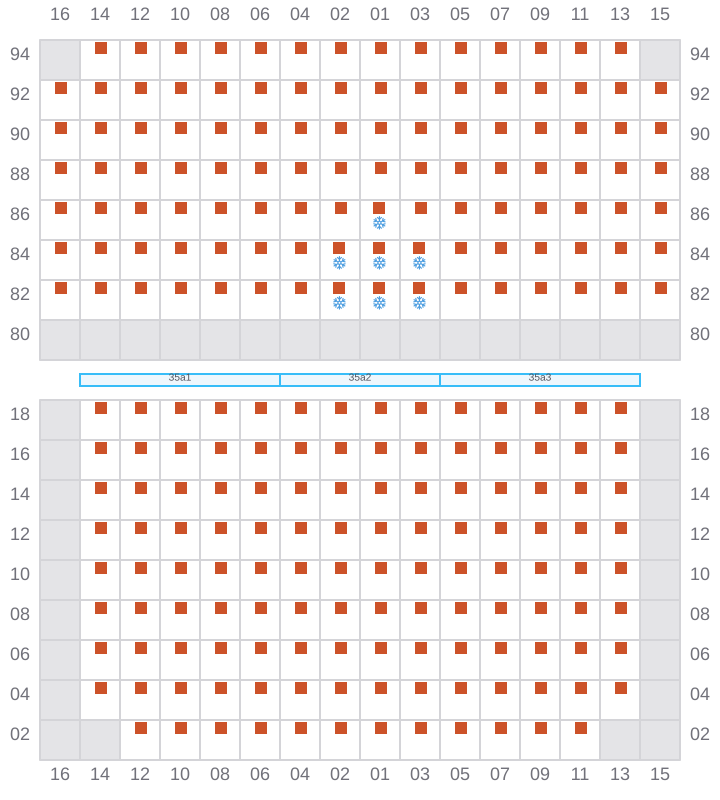

035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←
045 (046)
- →

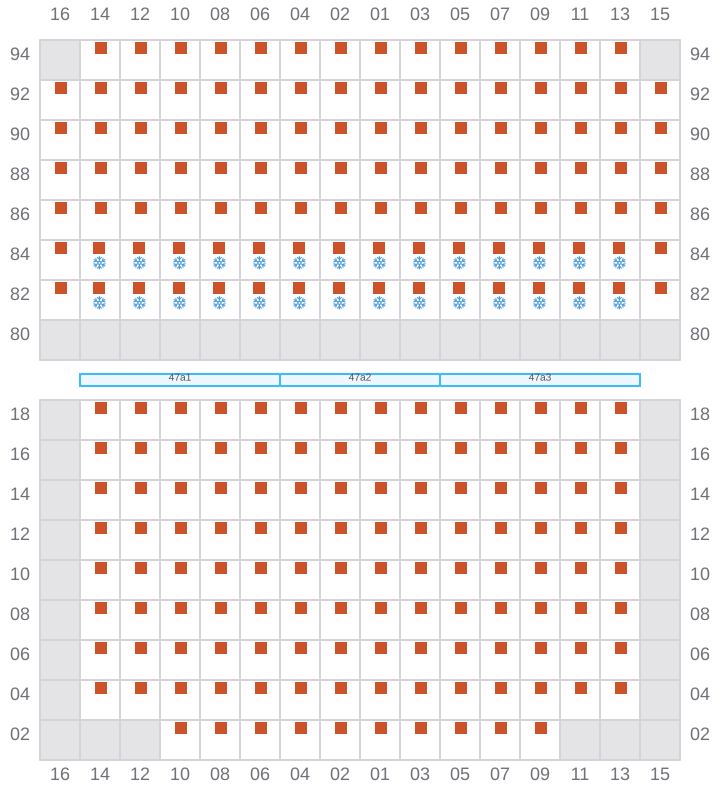

047
- ←
049 (050)
- →
051
- ←
053 (054)
- →
055
- ←
057 (058)
- →

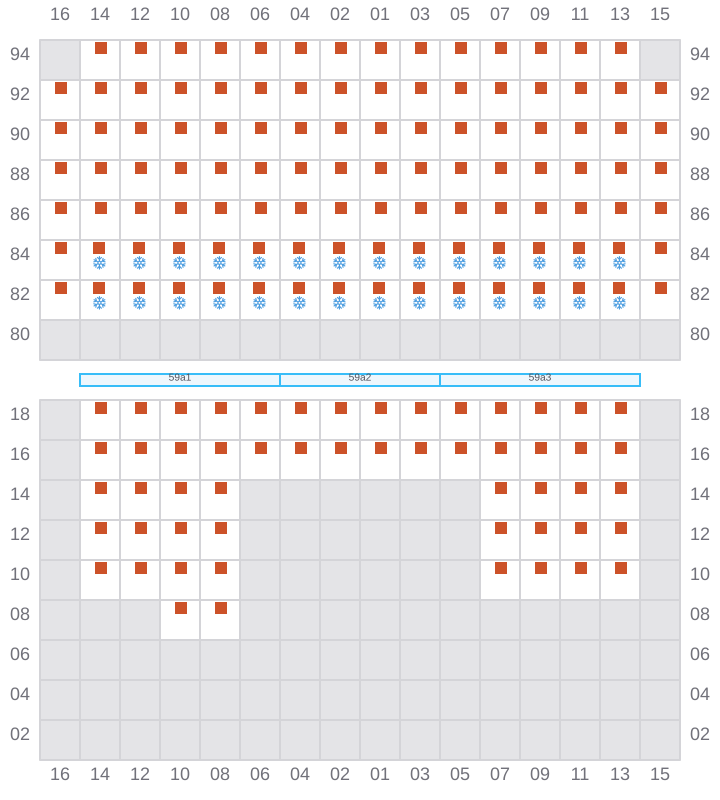

059
- ←
061 (062)
- →

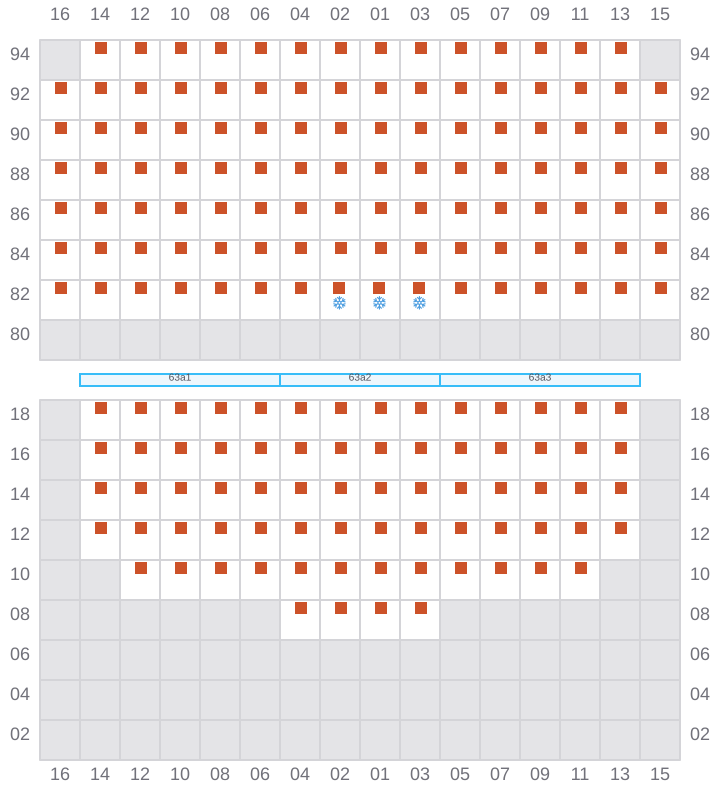

063
- ←
065 (066)
- →
067
- ←
069 (070)
- → / ?
