KMTC NHAVA SHEVA
9375501 | D7SG | 9375501 by ********* Last update: Wed May 01 2024

General Info

Ship Name:KMTC NHAVA SHEVA
IMO Code:9375501
Call Sign:D7SG
Line Operator:9375501
Class Name for Sister Ships:HANJIN PIRAEUS
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,298

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

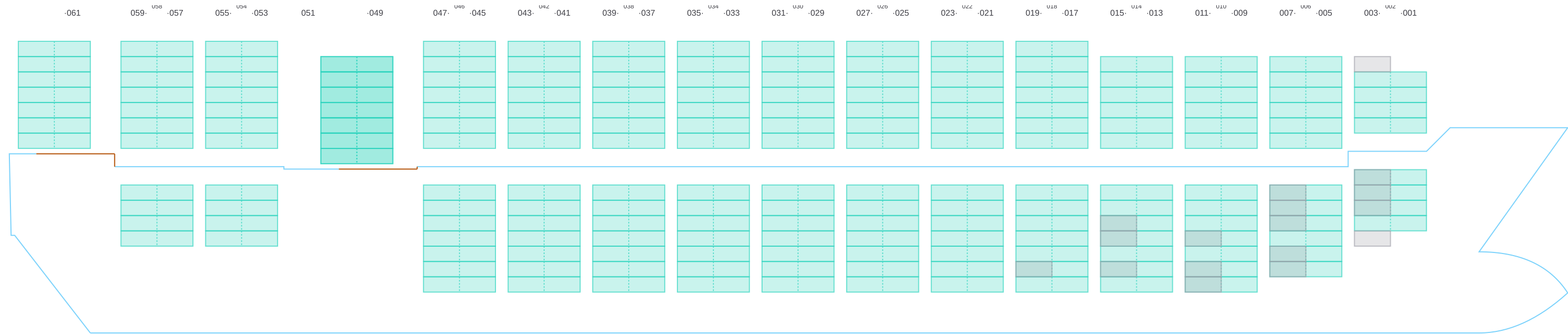

Side view of KMTC NHAVA SHEVA

Hatch-Covers View

Deck view of KMTC NHAVA SHEVA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

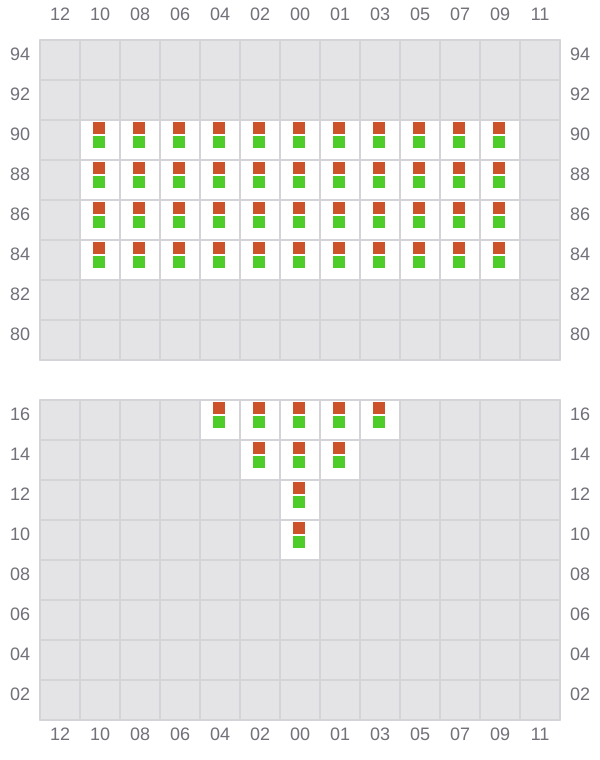

001 (002)

  • →
Bay 001 view and slots of KMTC NHAVA SHEVA

003

  • ←
Bay 003 view and slots of KMTC NHAVA SHEVA

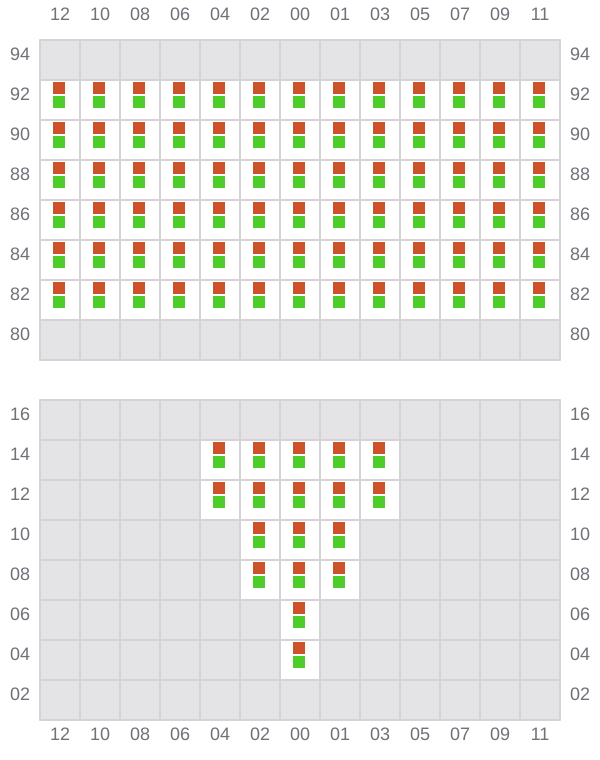

005 (006)

  • →
Bay 005 view and slots of KMTC NHAVA SHEVA

007

  • ←

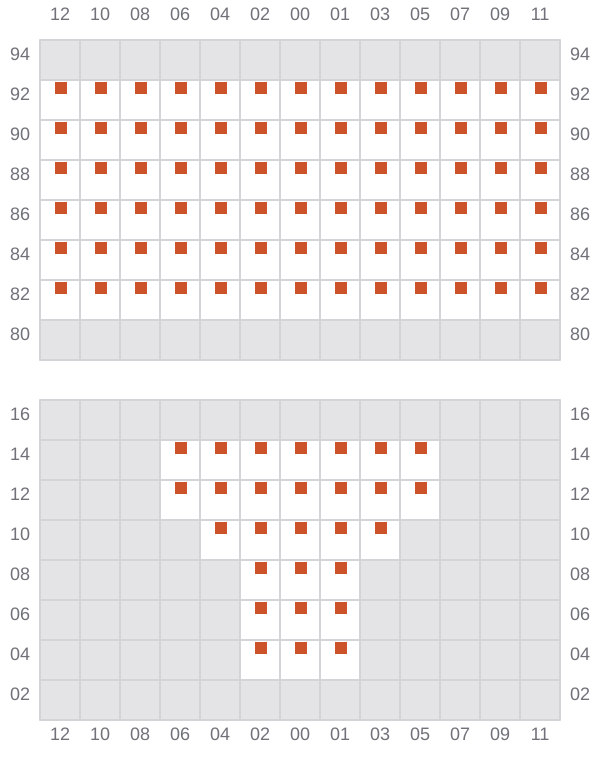

Bay 007 view and slots of KMTC NHAVA SHEVA

009 (010)

  • →

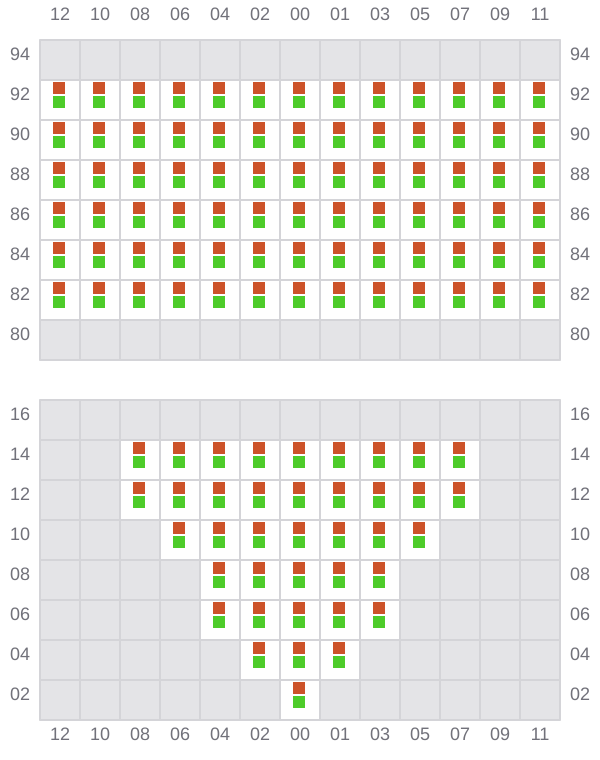

Bay 009 view and slots of KMTC NHAVA SHEVA

011

  • ←

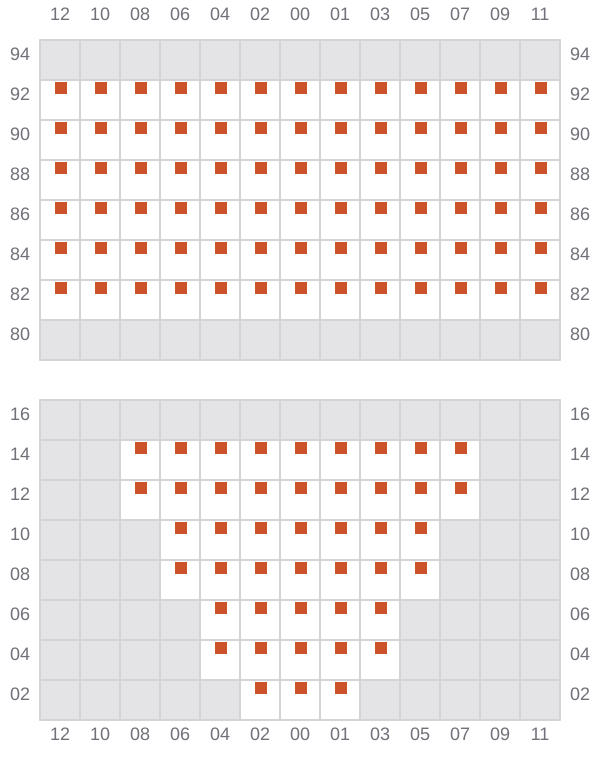

Bay 011 view and slots of KMTC NHAVA SHEVA

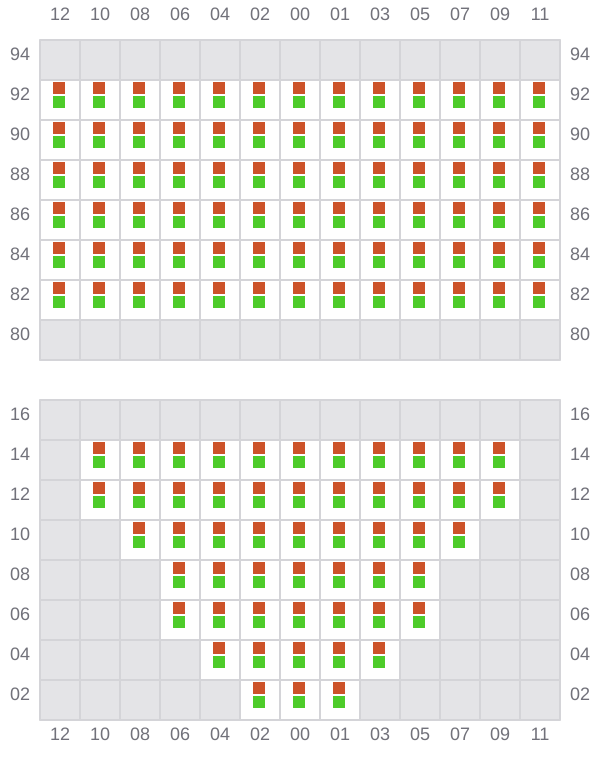

013 (014)

  • →
Bay 013 view and slots of KMTC NHAVA SHEVA

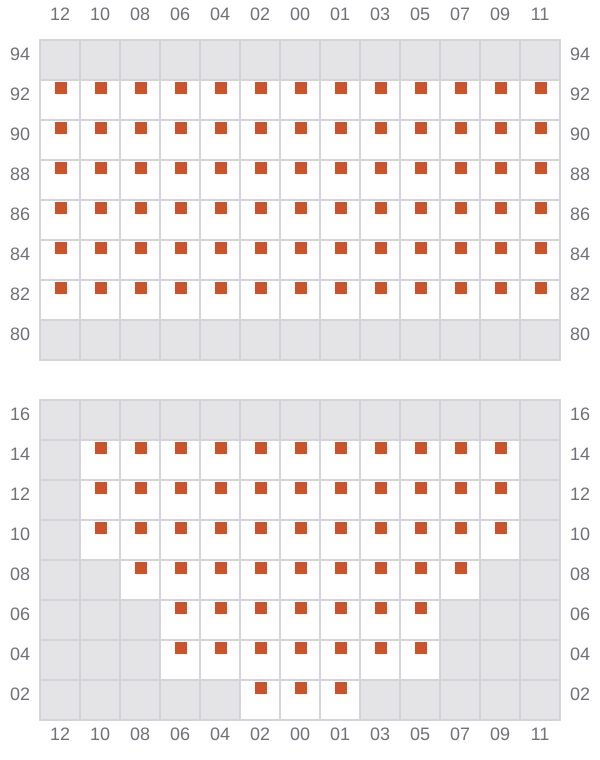

015

  • ←
Bay 015 view and slots of KMTC NHAVA SHEVA

017 (018)

  • →

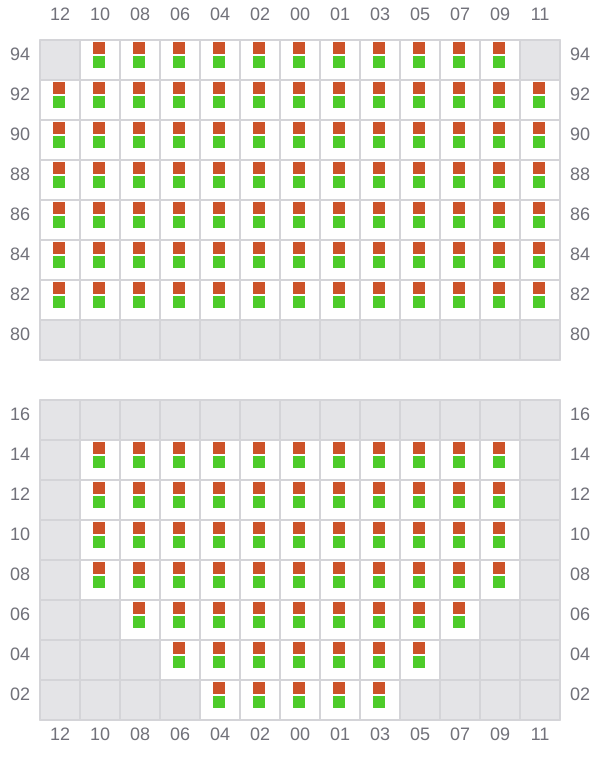

Bay 017 view and slots of KMTC NHAVA SHEVA

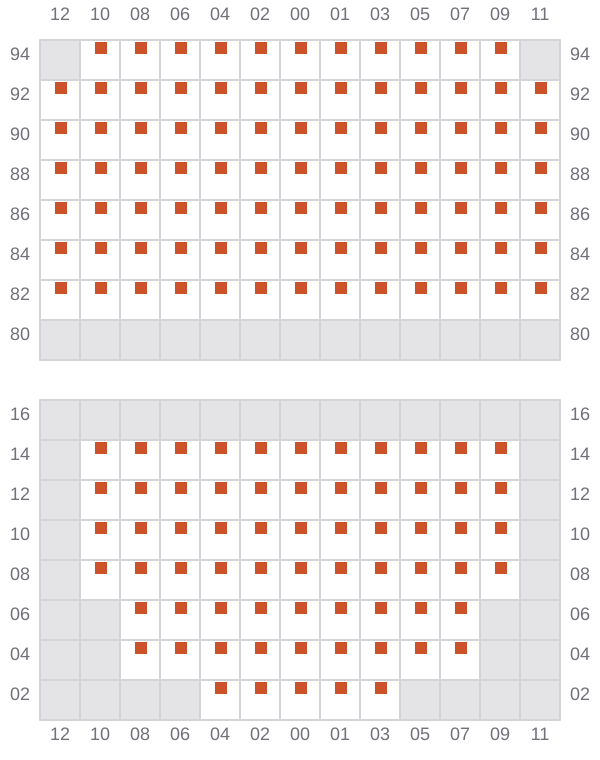

019

  • ←
Bay 019 view and slots of KMTC NHAVA SHEVA

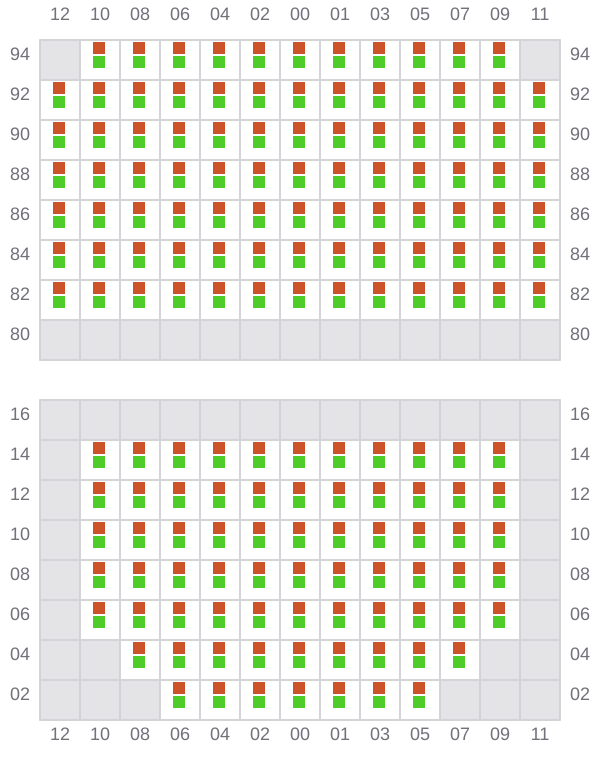

021 (022)

  • →
Bay 021 view and slots of KMTC NHAVA SHEVA

023

  • ←

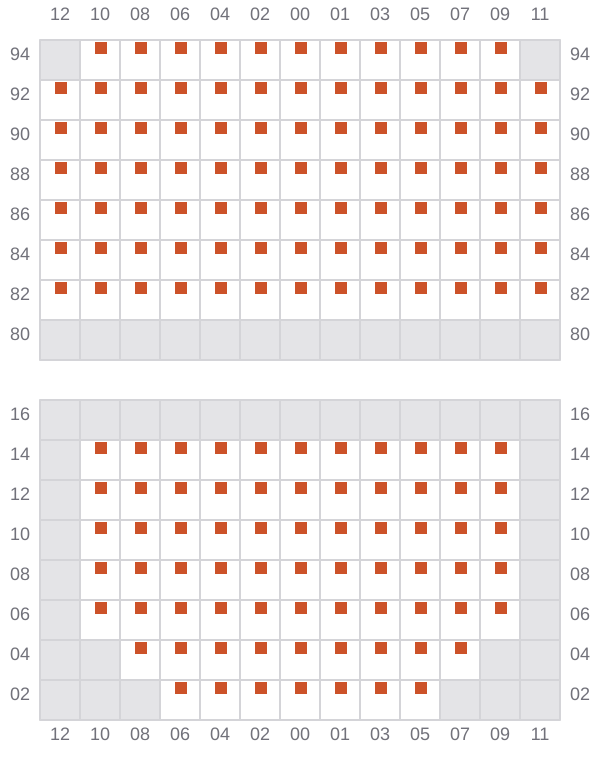

Bay 023 view and slots of KMTC NHAVA SHEVA

025 (026)

  • →

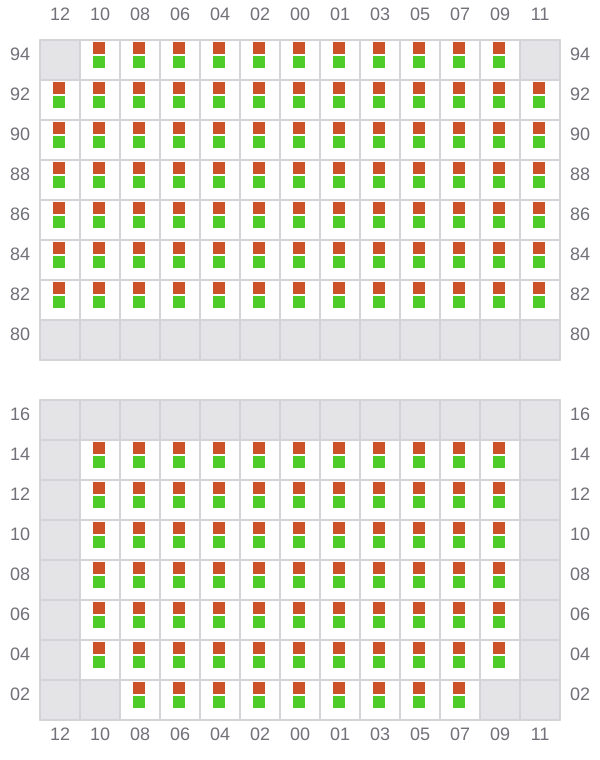

Bay 025 view and slots of KMTC NHAVA SHEVA

027

  • ←
Bay 027 view and slots of KMTC NHAVA SHEVA

029 (030)

  • →
Bay 029 view and slots of KMTC NHAVA SHEVA

031

  • ←
Bay 031 view and slots of KMTC NHAVA SHEVA

033 (034)

  • →
Bay 033 view and slots of KMTC NHAVA SHEVA

035

  • ←
Bay 035 view and slots of KMTC NHAVA SHEVA

037 (038)

  • →
Bay 037 view and slots of KMTC NHAVA SHEVA

039

  • ←

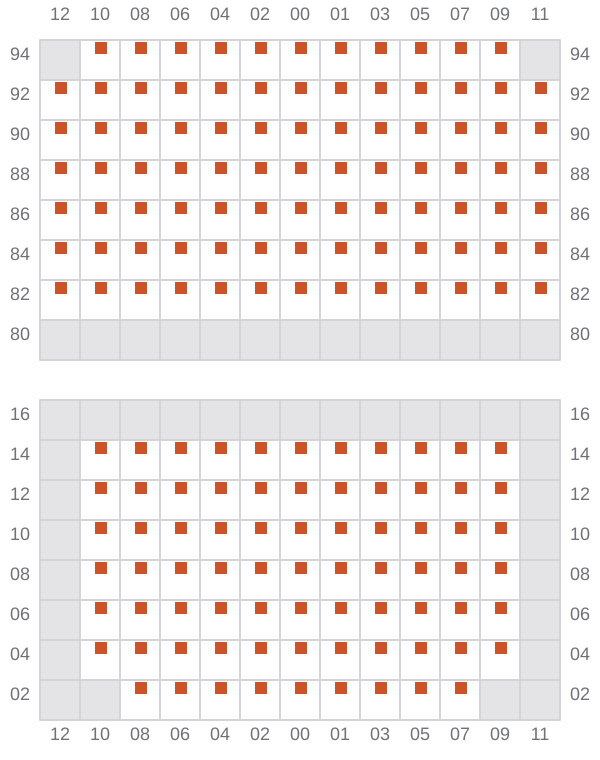

Bay 039 view and slots of KMTC NHAVA SHEVA

041 (042)

  • →
Bay 041 view and slots of KMTC NHAVA SHEVA

043

  • ←
Bay 043 view and slots of KMTC NHAVA SHEVA

045 (046)

  • →

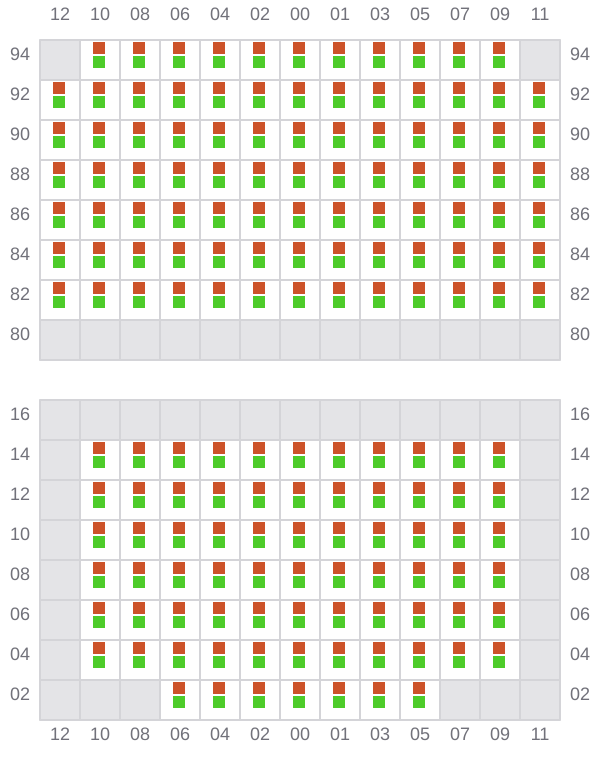

Bay 045 view and slots of KMTC NHAVA SHEVA

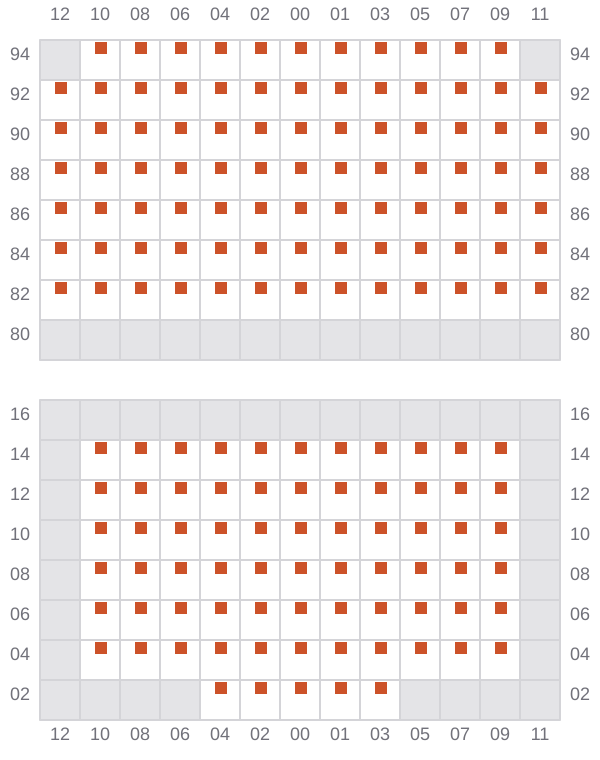

047

  • ←
Bay 047 view and slots of KMTC NHAVA SHEVA

049 (050)

  • → / ?

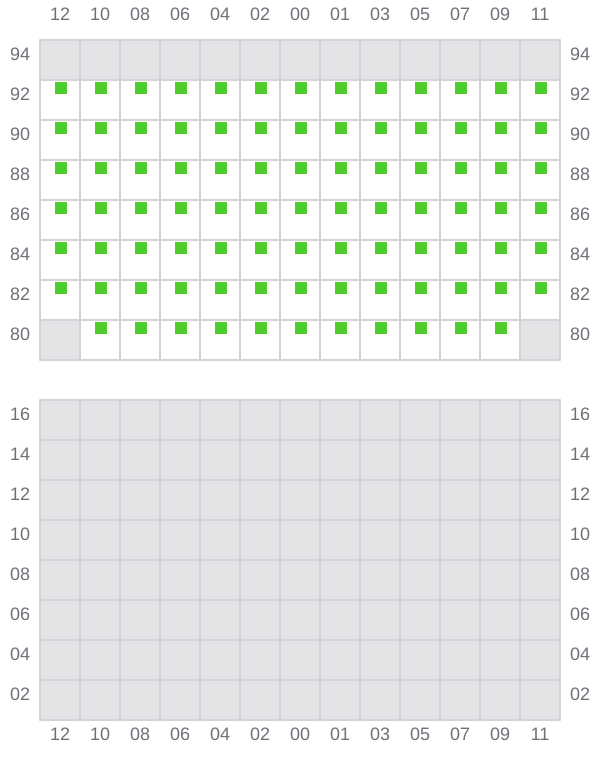

Bay 049 view and slots of KMTC NHAVA SHEVA

051

Bay 051 view and slots of KMTC NHAVA SHEVA

053 (054)

  • →

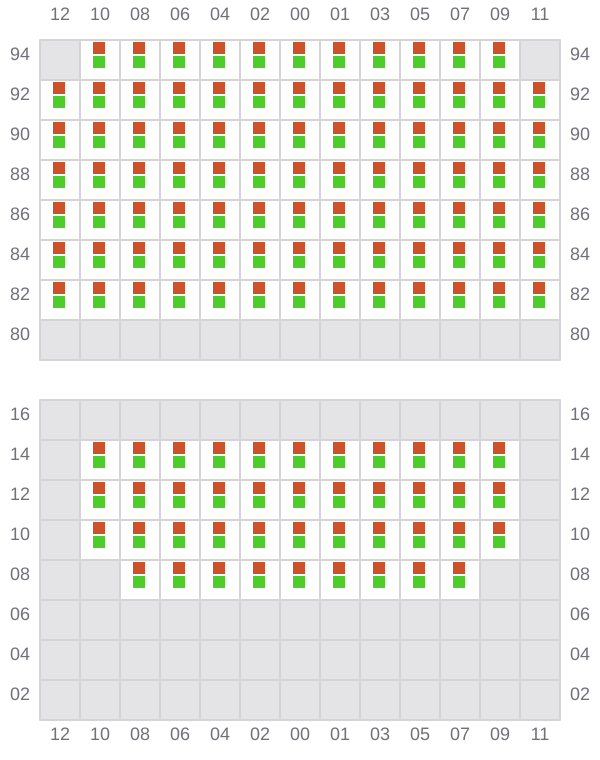

Bay 053 view and slots of KMTC NHAVA SHEVA

055

  • ←

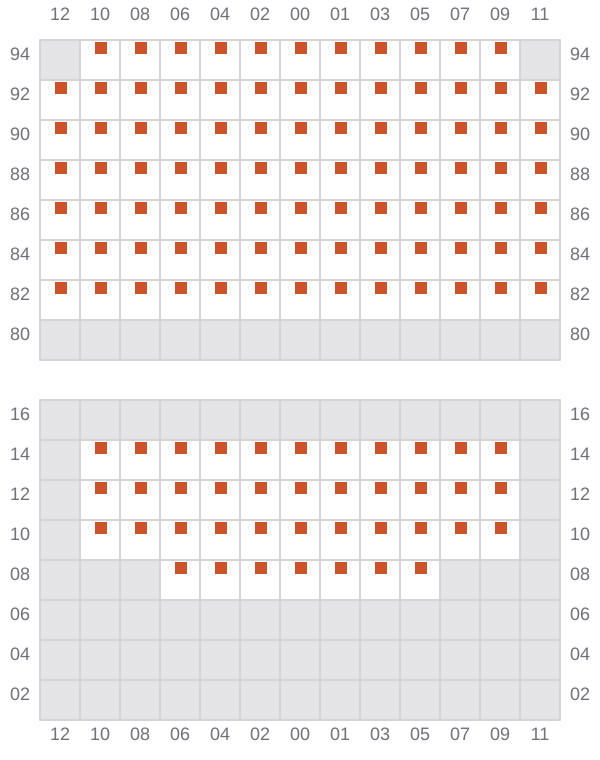

Bay 055 view and slots of KMTC NHAVA SHEVA

057 (058)

  • →

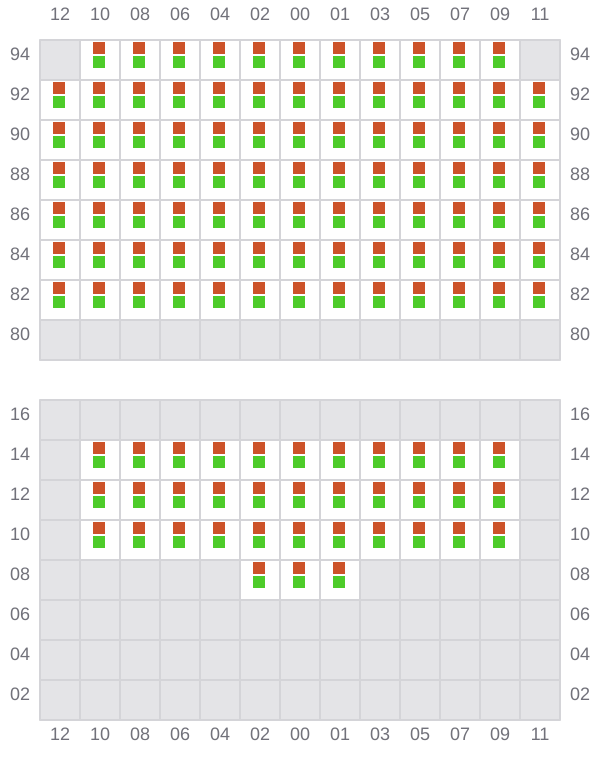

Bay 057 view and slots of KMTC NHAVA SHEVA

059

  • ←

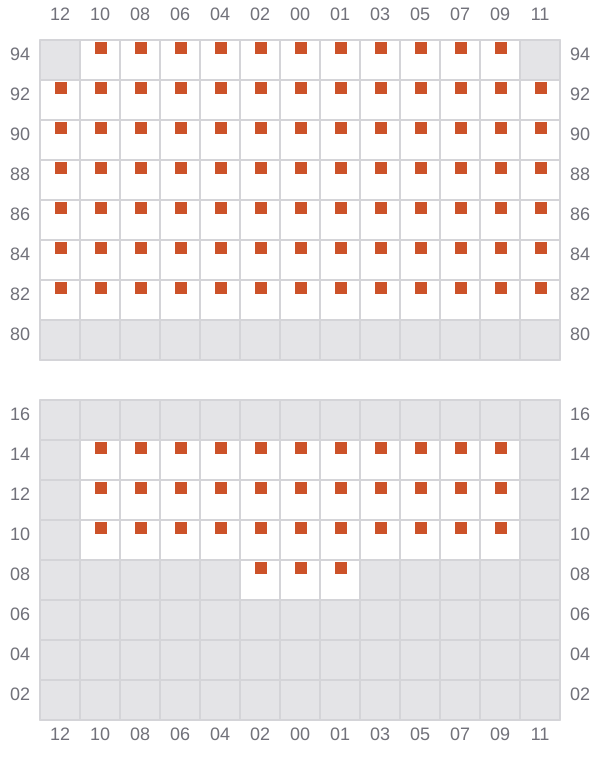

Bay 059 view and slots of KMTC NHAVA SHEVA

061 (062)

  • → / ?

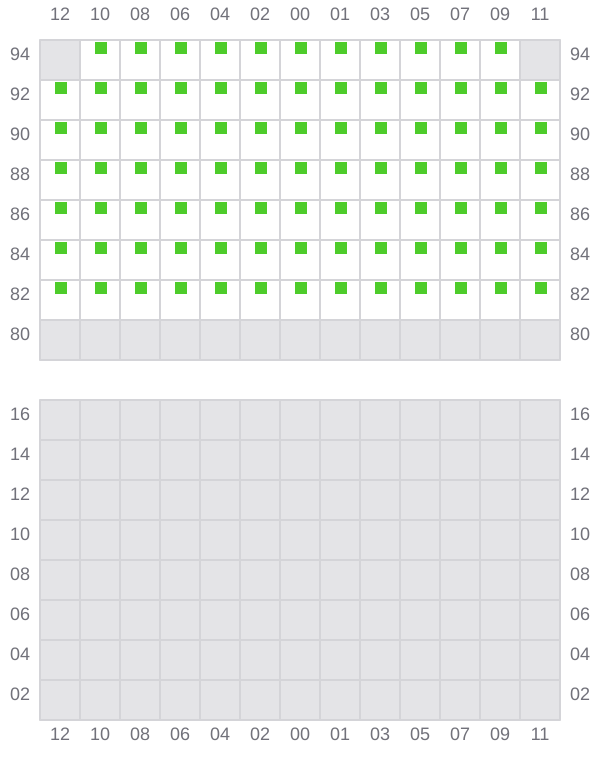

Bay 061 view and slots of KMTC NHAVA SHEVA
