KOI
9461489 | D5NZ4 | 9461489 by ********* Last update: Wed Jun 12 2024
General Info
Ship Name:KOI
IMO Code:9461489
Call Sign:D5NZ4
Line Operator:9461489
Class Name for Sister Ships:MSL
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):319.00
LOA (Length Overall):335.23
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,586
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

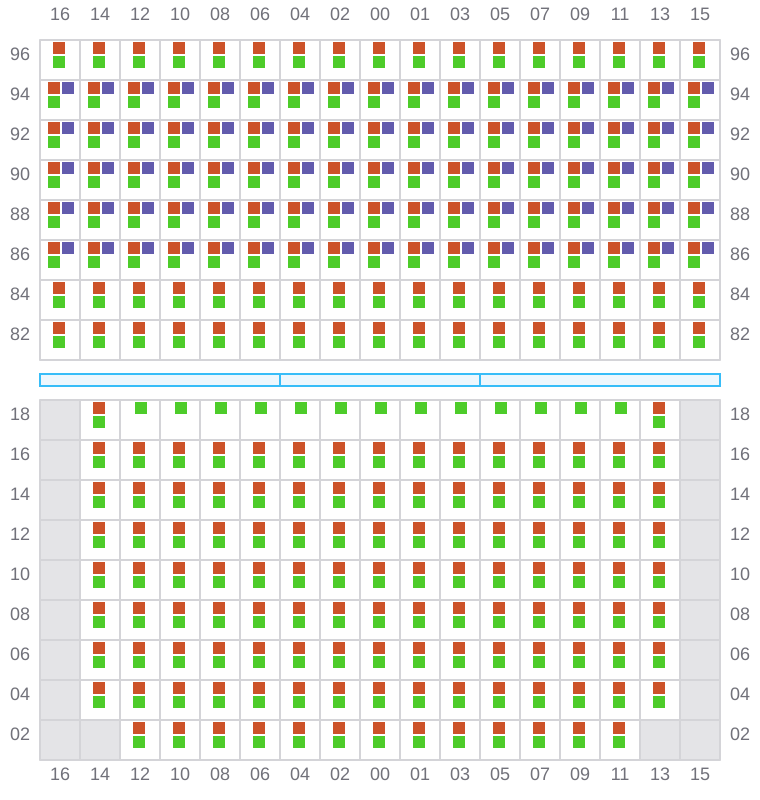

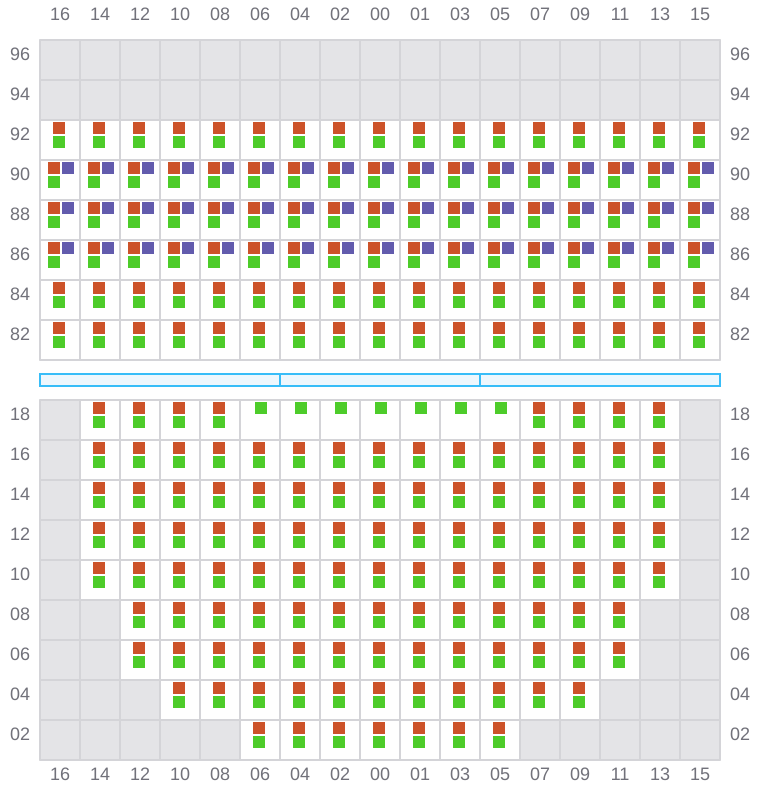

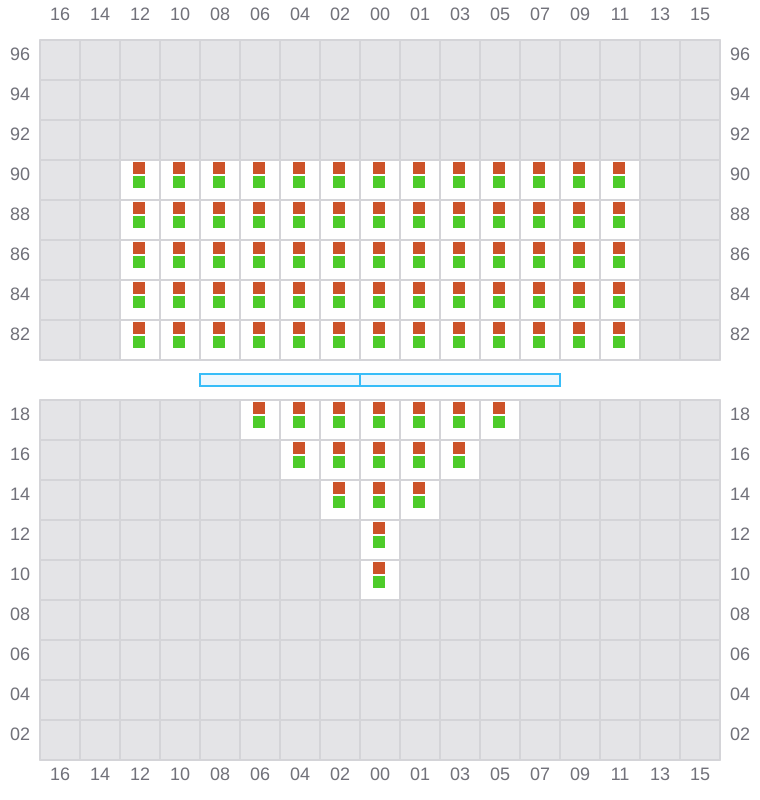

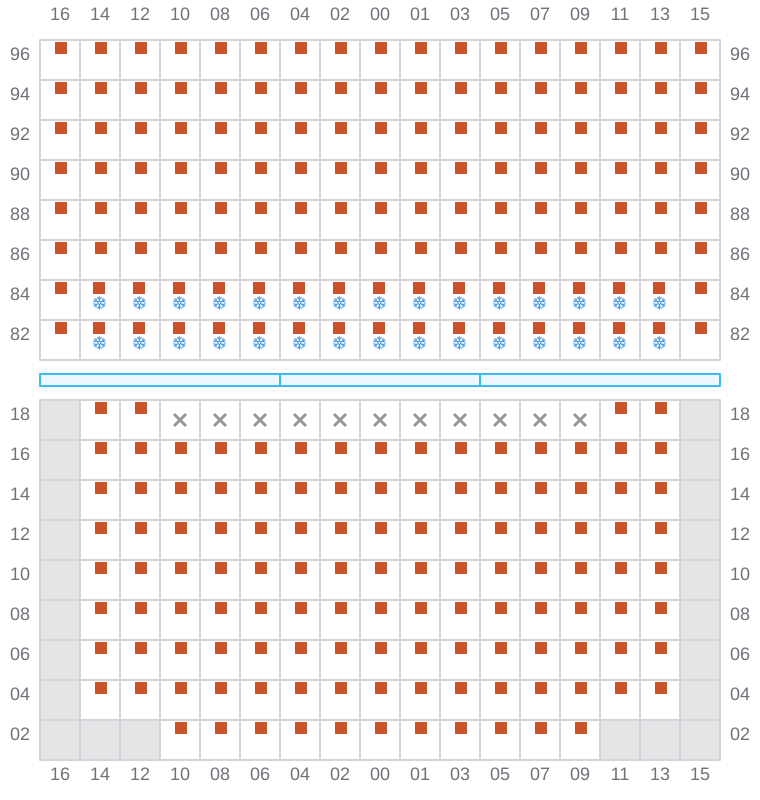

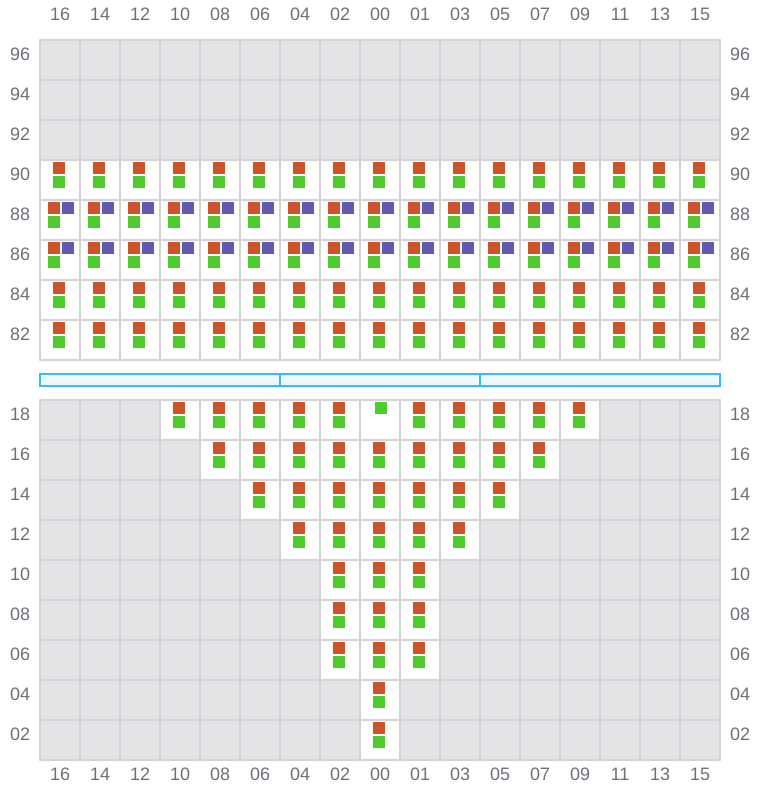

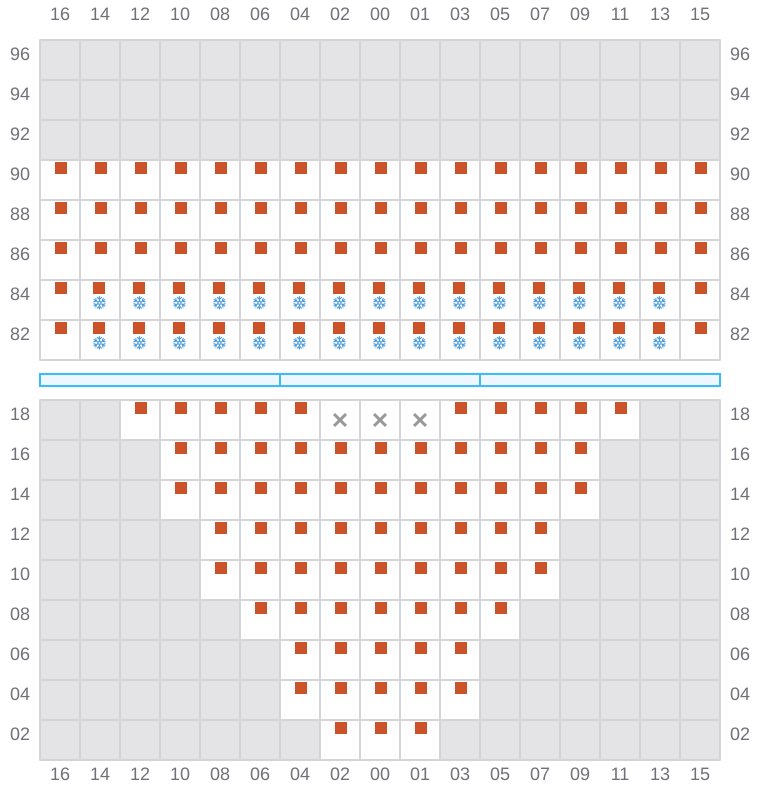

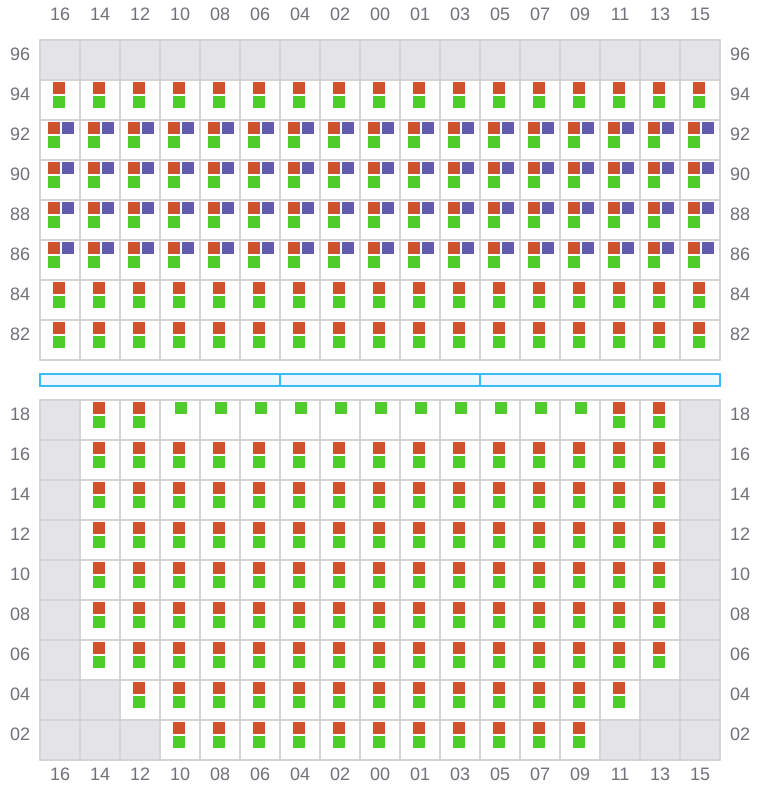

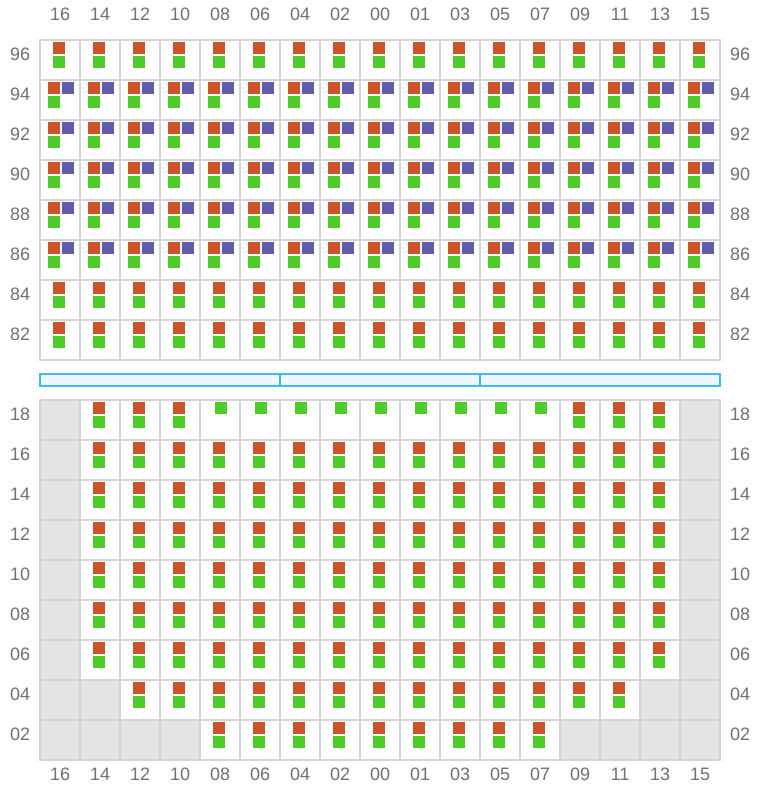

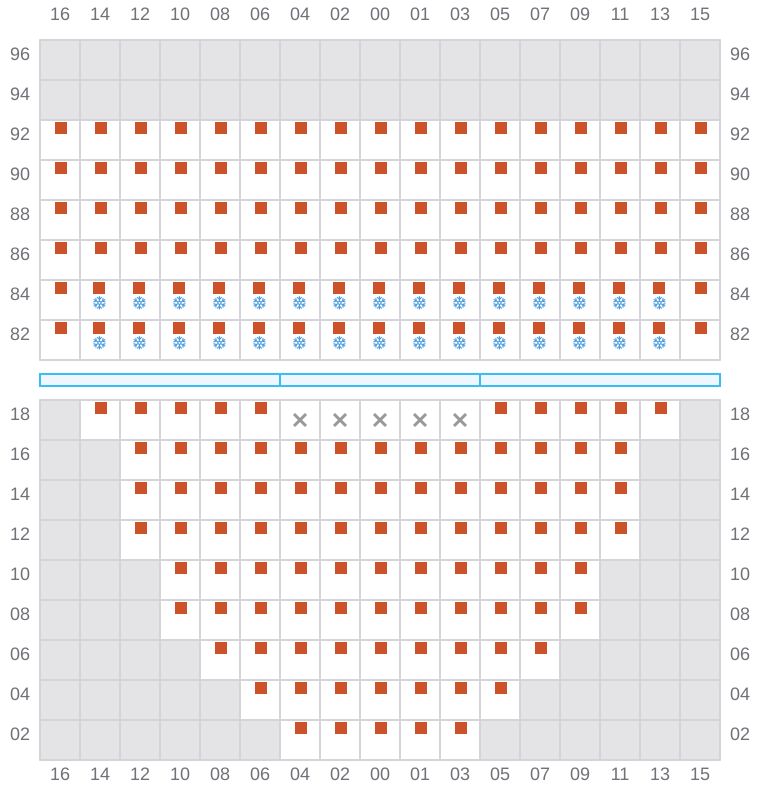

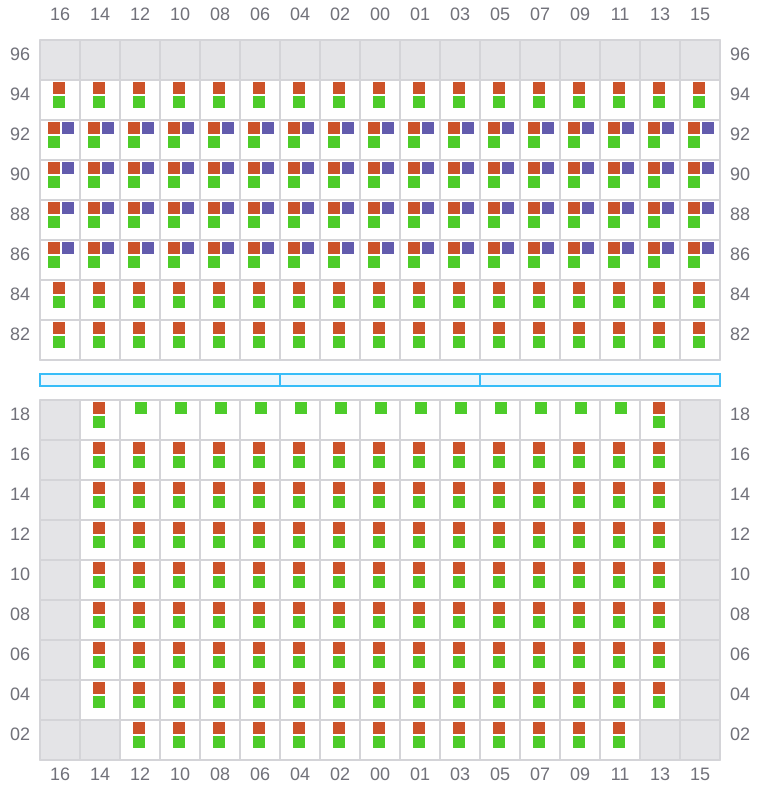

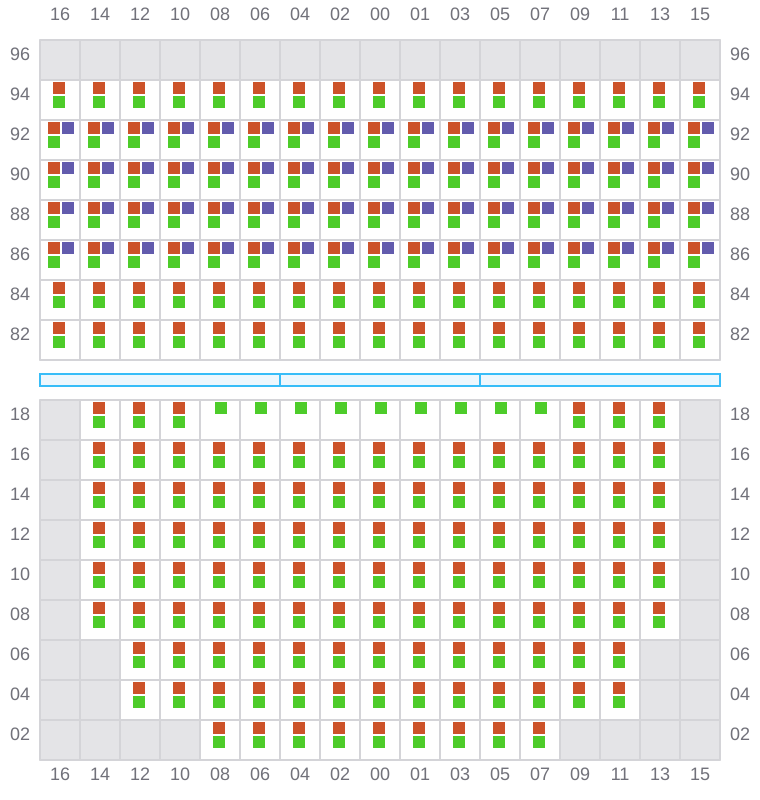

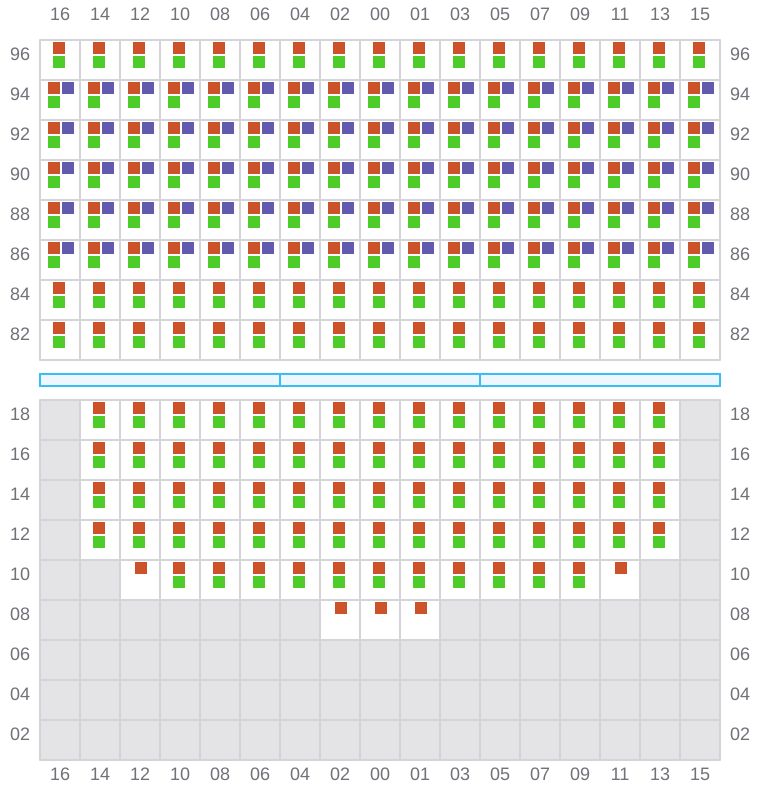

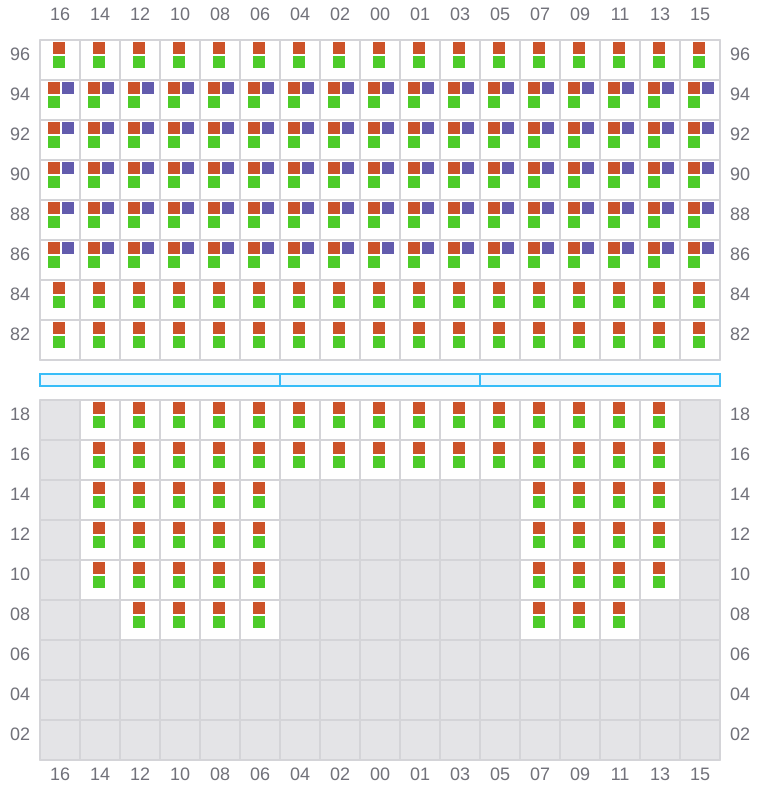

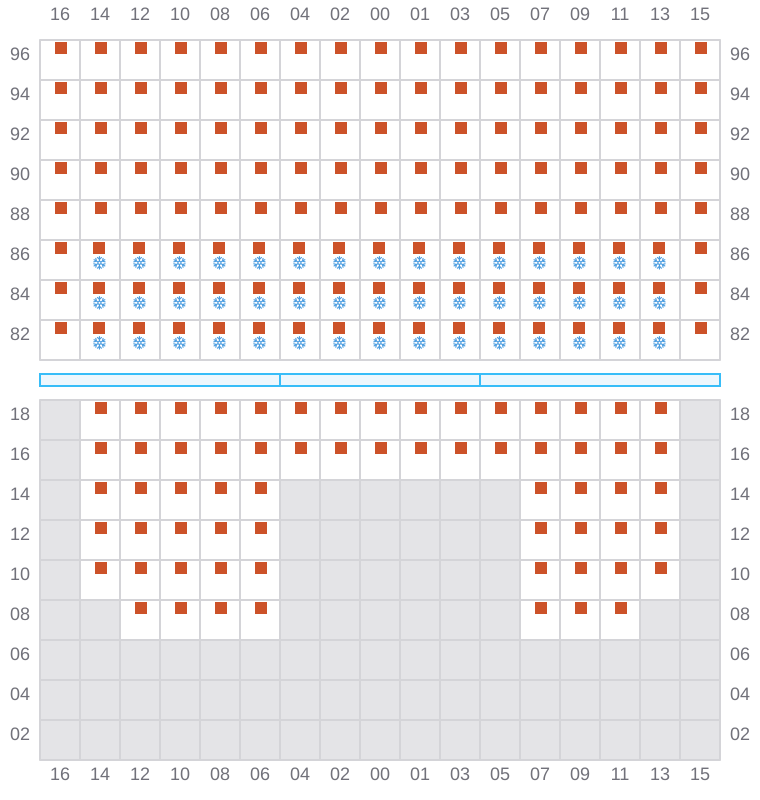

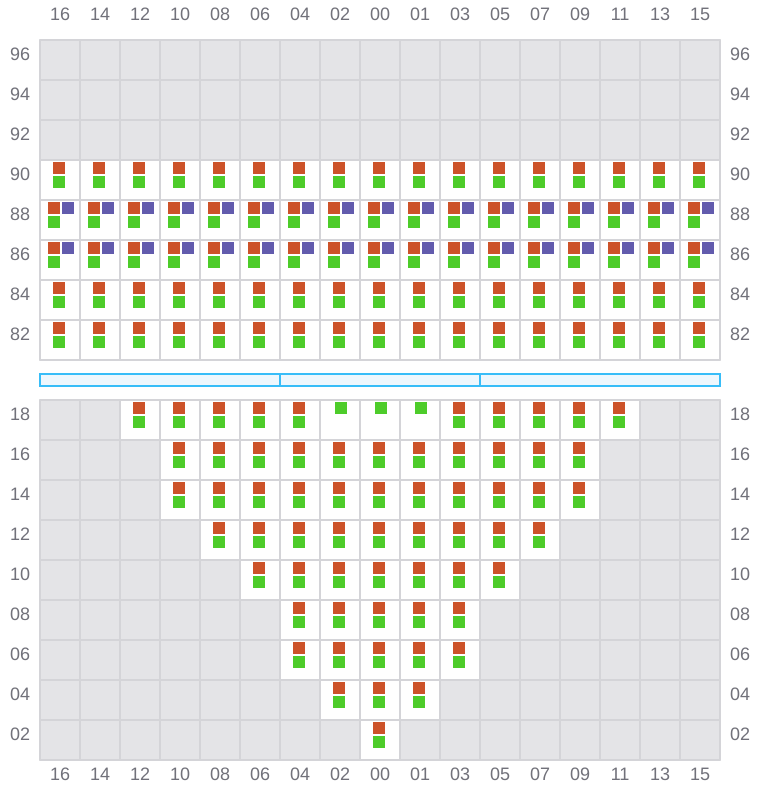

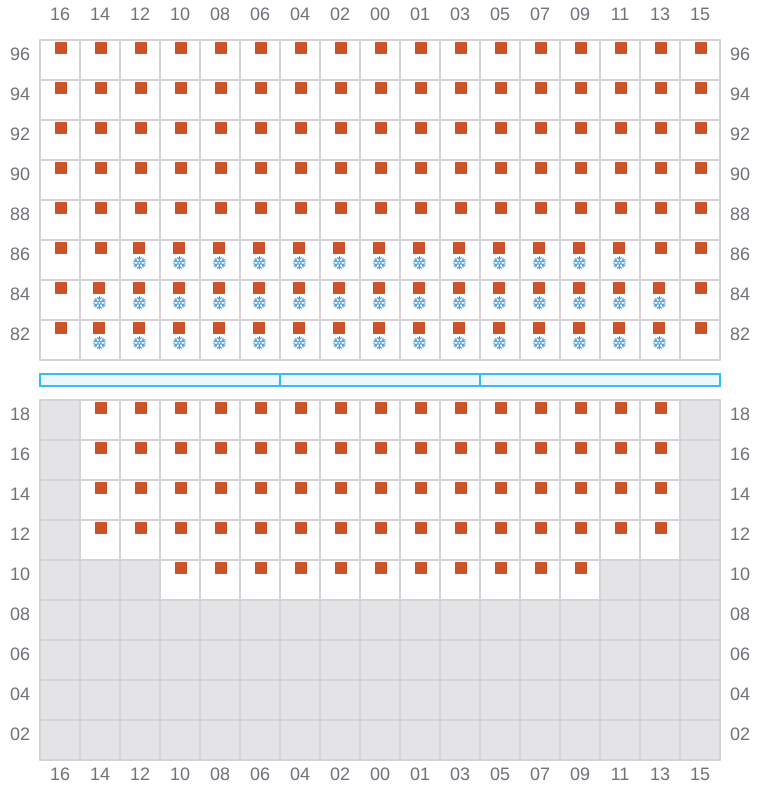

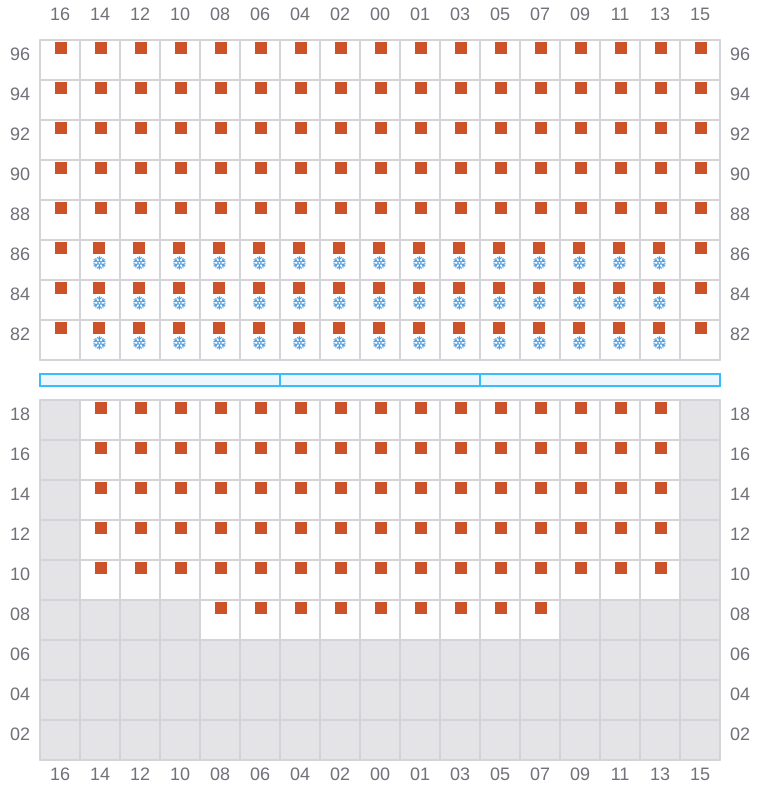

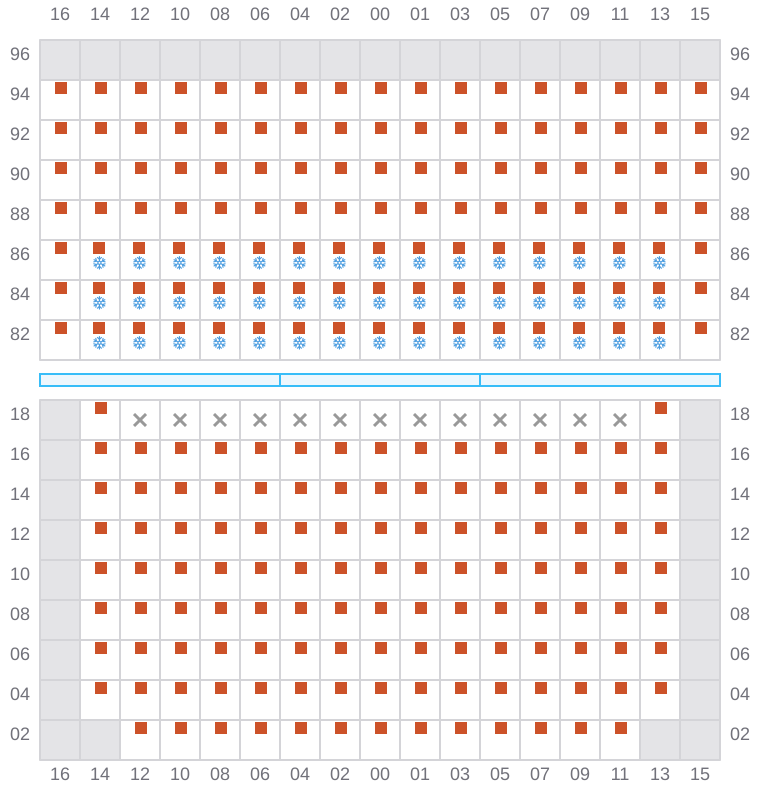

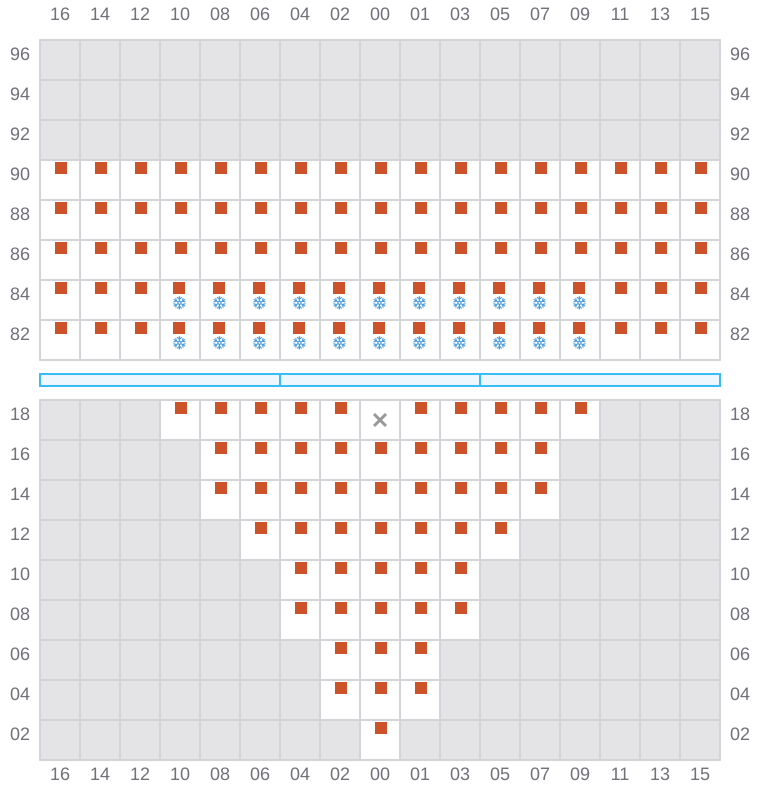

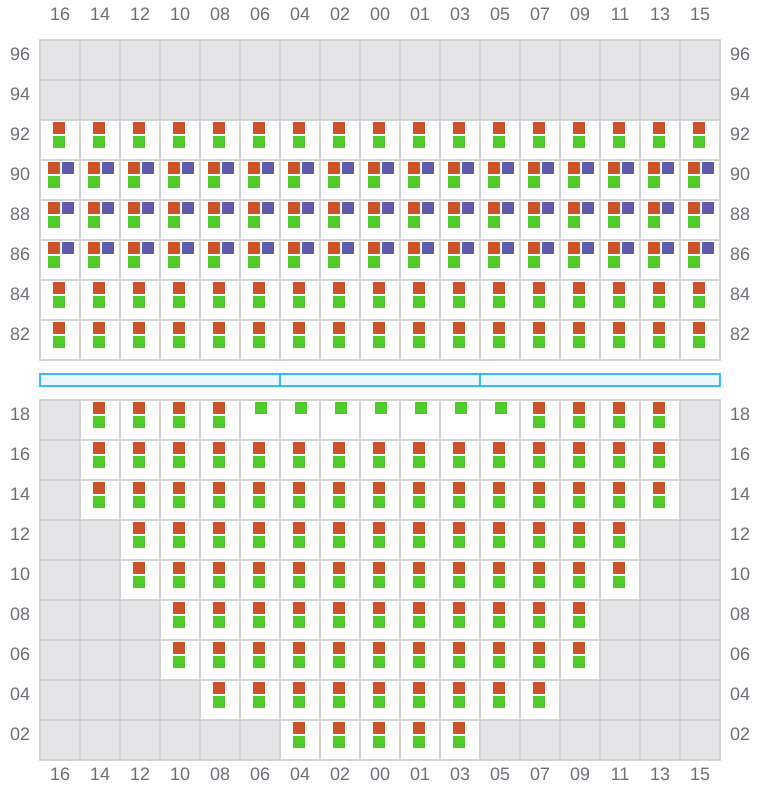

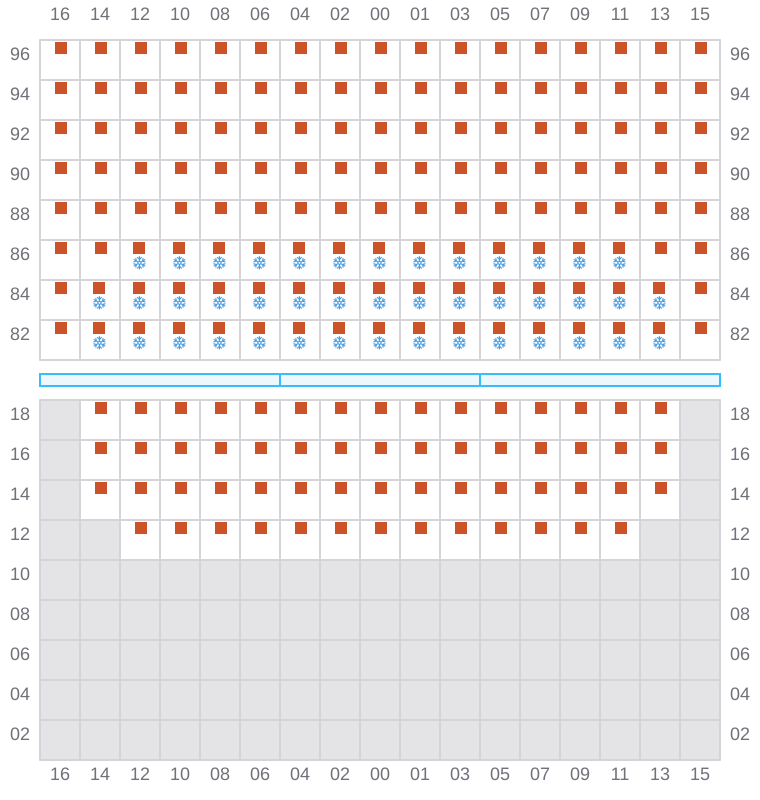

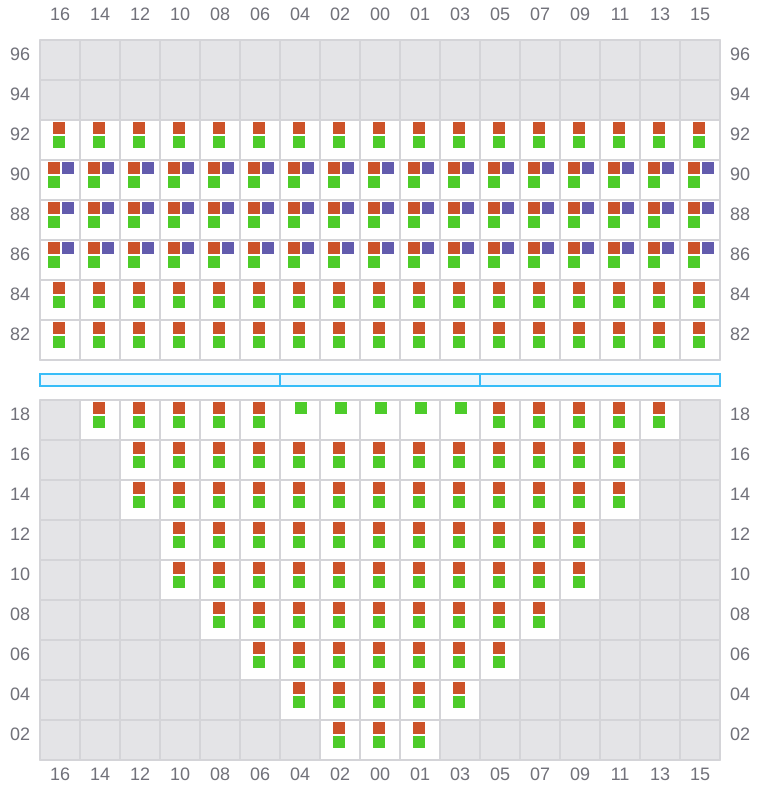

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
- → / ?
007
- ←
- → / ?
009 (010)
- →
- → / ?
011
- ←
- → / ?
013 (014)
- →
- → / ?
015
- ←
- → / ?
017 (018)
- →
- → / ?
019
- ←
- → / ?
021 (022)
- →
- → / ?
023
- ←
- → / ?
025 (026)
- →
- → / ?
027
- ←
- → / ?
029 (030)
- →
- → / ?
031
- ←
- → / ?
033 (034)
- →
- → / ?
035
- ←
- → / ?
037 (038)
- →
- → / ?
039
- ←
- → / ?
041 (042)
- →
- → / ?
043
- ←
- → / ?
045 (046)
- →
- → / ?
047
- ←
- → / ?
049 (050)
- →
- → / ?
051
- ←
- → / ?

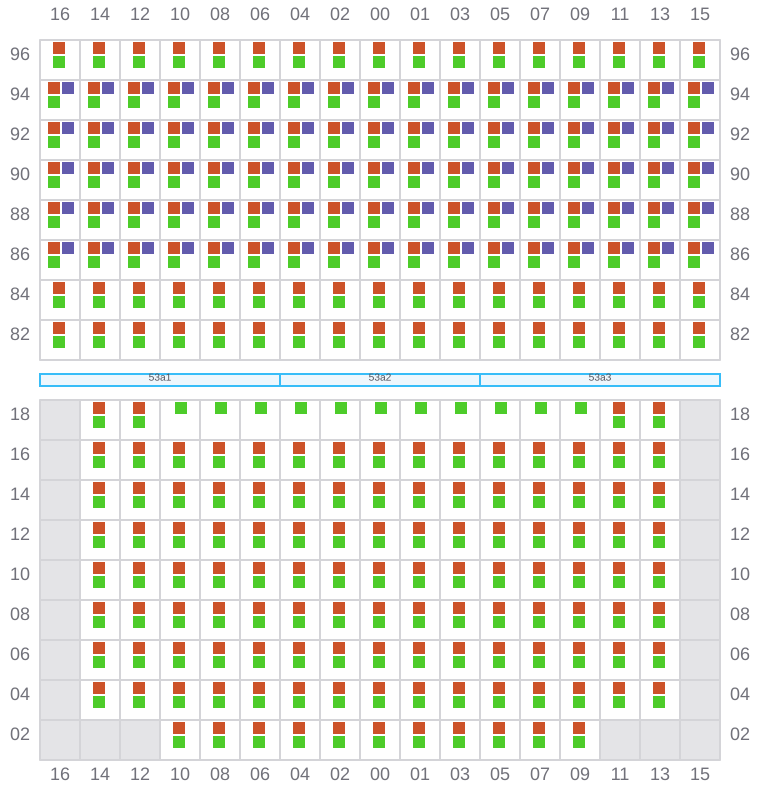

053 (054)
- →
- → / ?
055
- ←
- → / ?
057 (058)
- →
- → / ?
059
- ←
- → / ?
061 (062)
- →
- → / ?
063
- ←
- → / ?

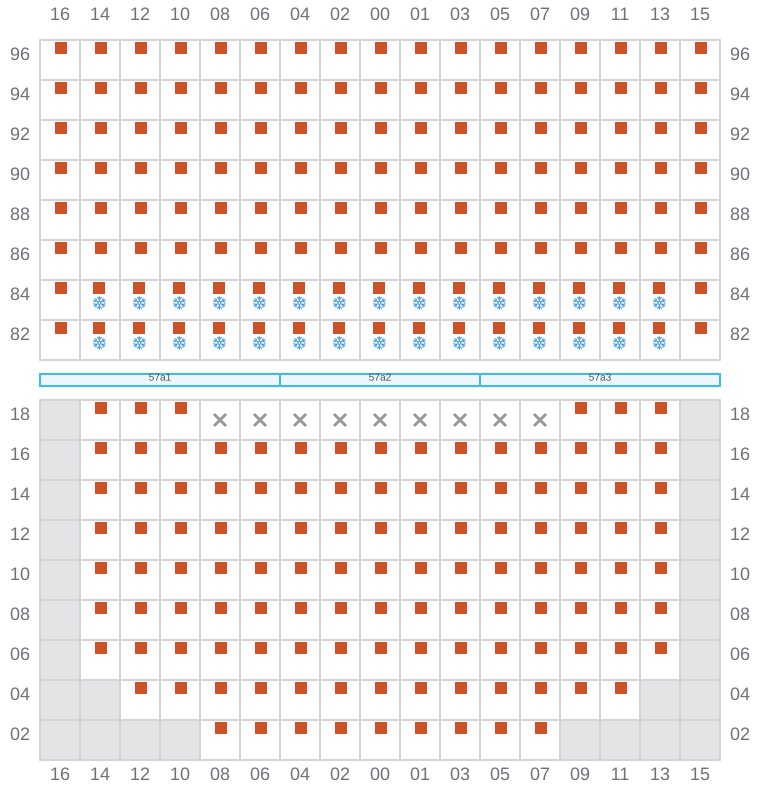

065 (066)
- →
- → / ?
067
- ←
- → / ?
069 (070)
- →
- → / ?
071
- ←
- → / ?
073 (074)
- →
- → / ?
075
- ←
- → / ?

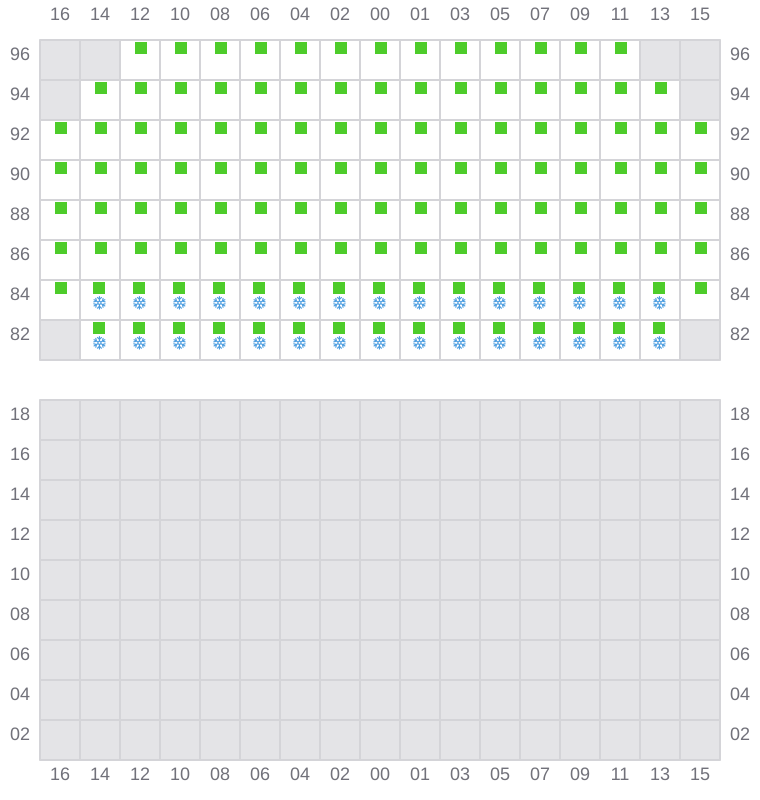

077 (078)
- → / ?
- → / ?
