The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
KOI
9461489 | D5NZ4 | CMA by *********************** Last update: Thu Jan 30 2025
General Info
Ship Name:KOI
IMO Code:9461489
Call Sign:D5NZ4
Line Operator:CMA
Class Name for Sister Ships:CGKI
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):320.90
LOA (Length Overall):335.63
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,263
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

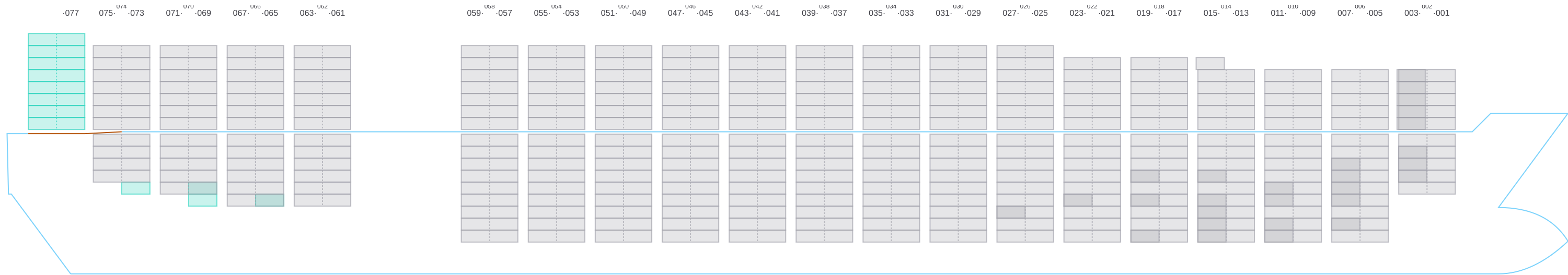

Side View

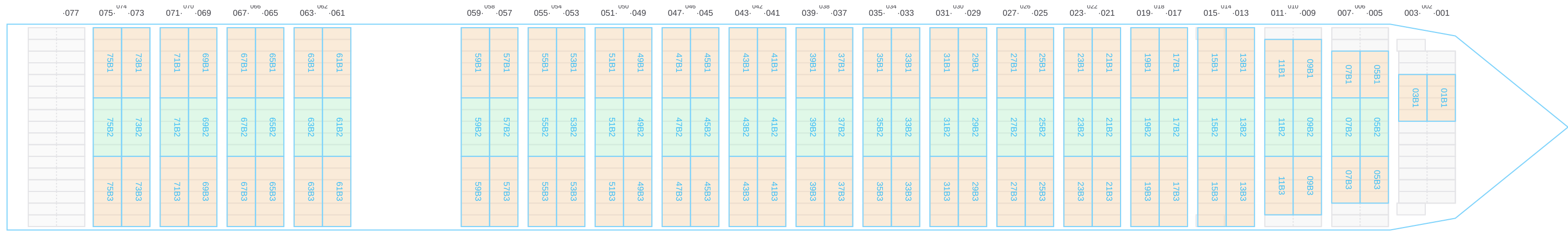

Hatch-Covers View

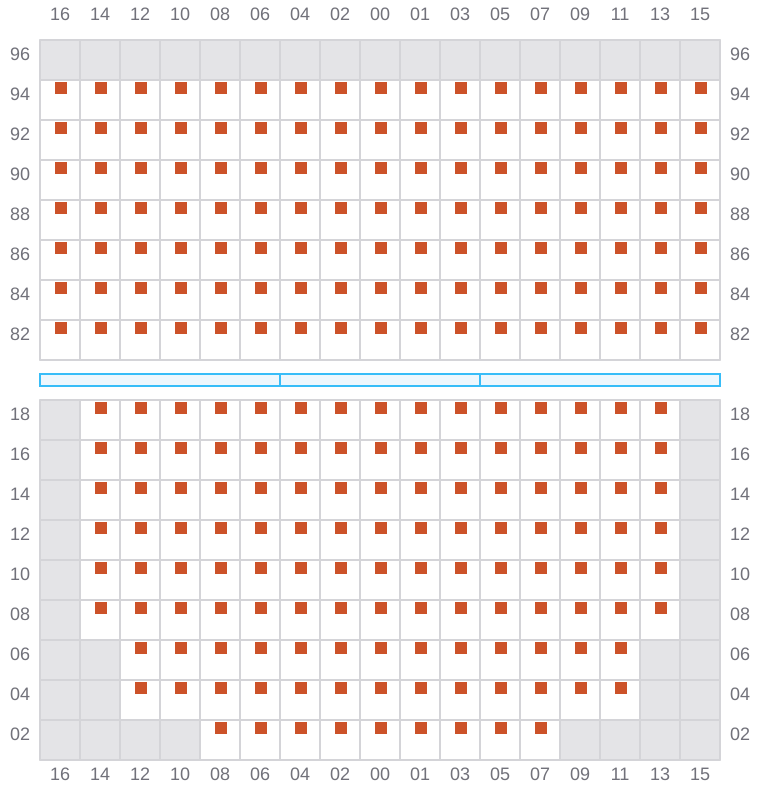

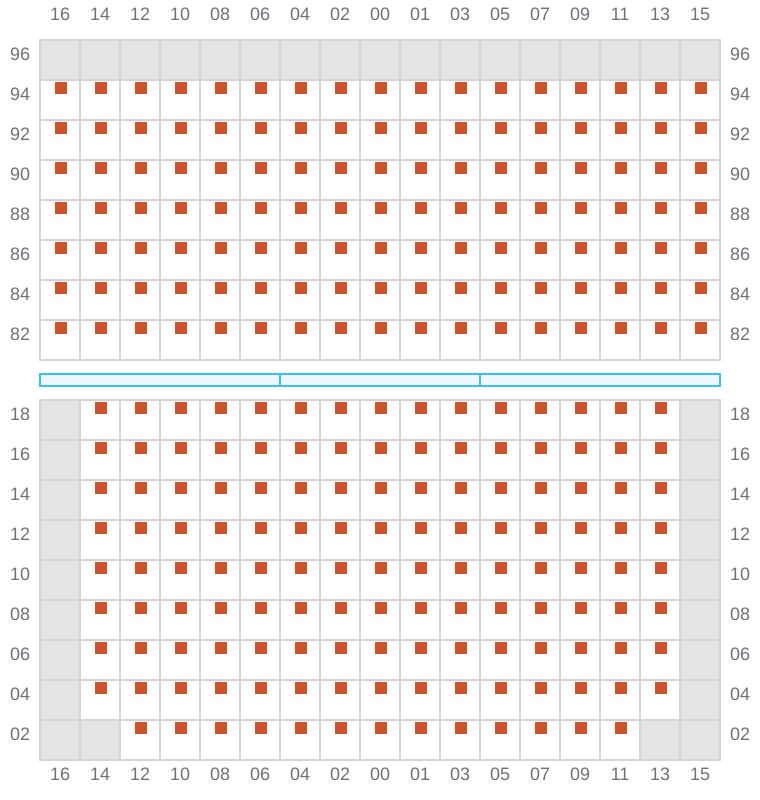

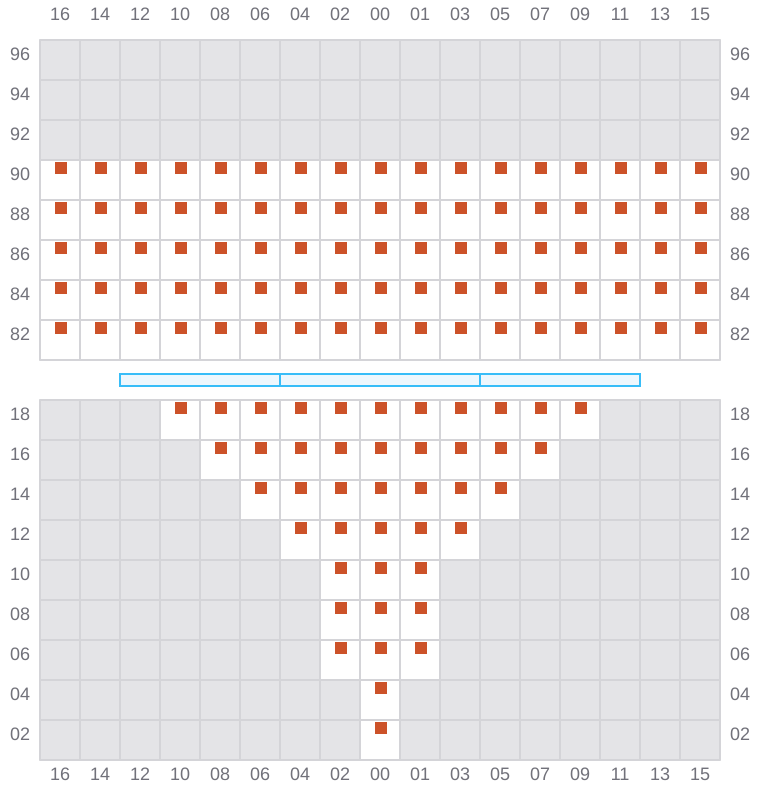

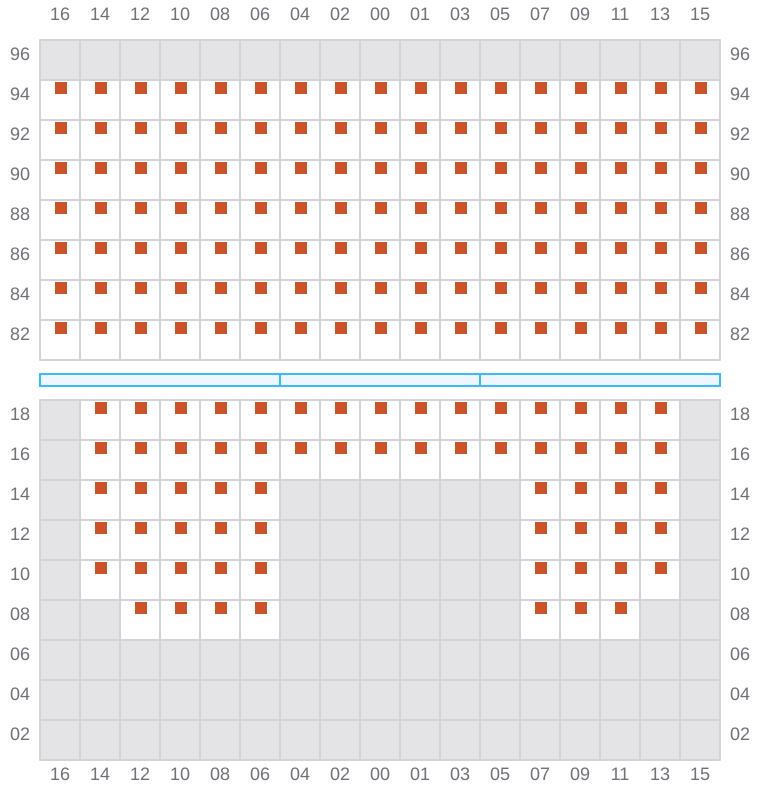

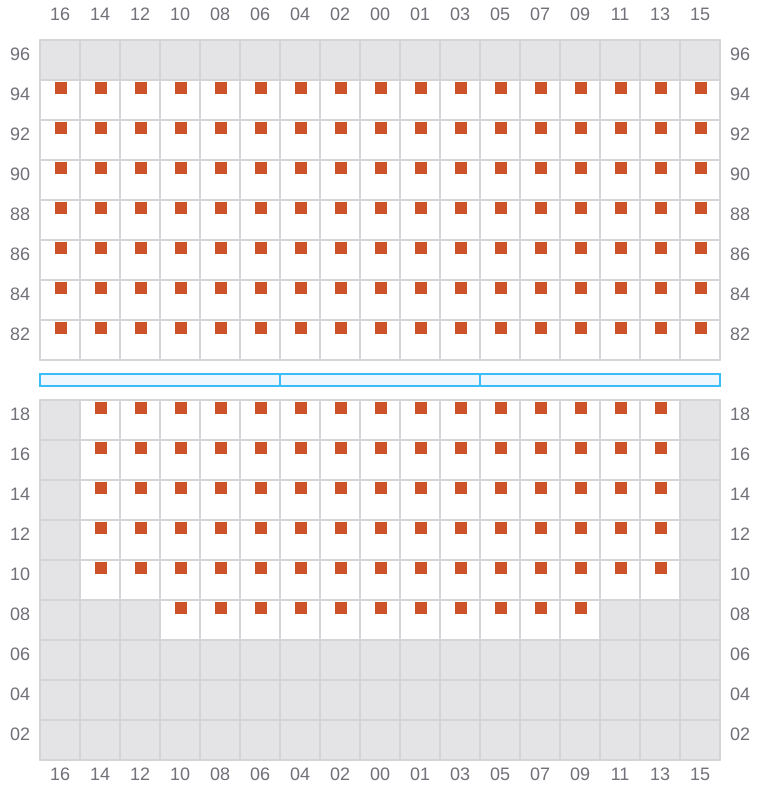

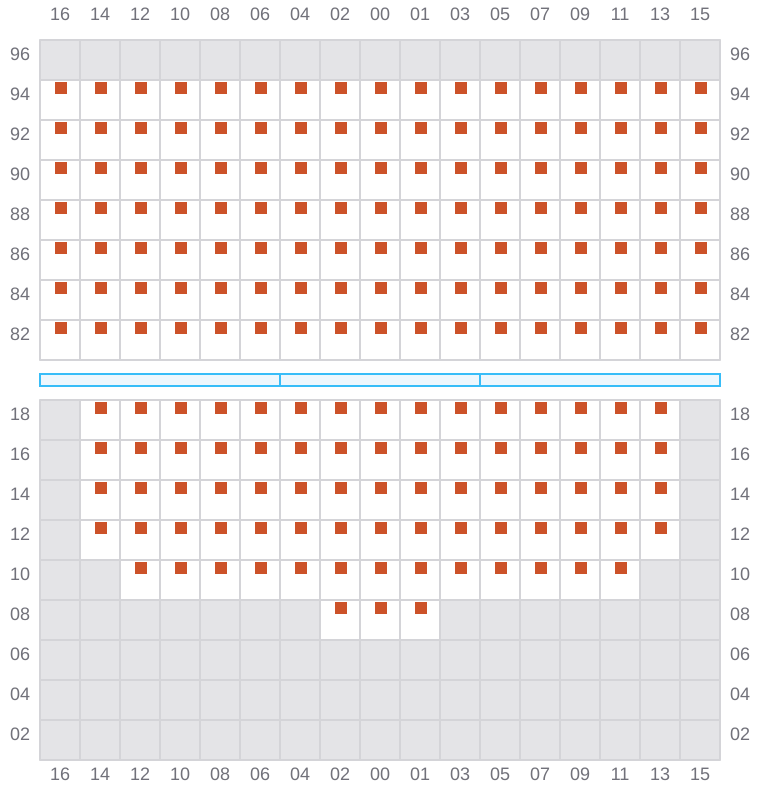

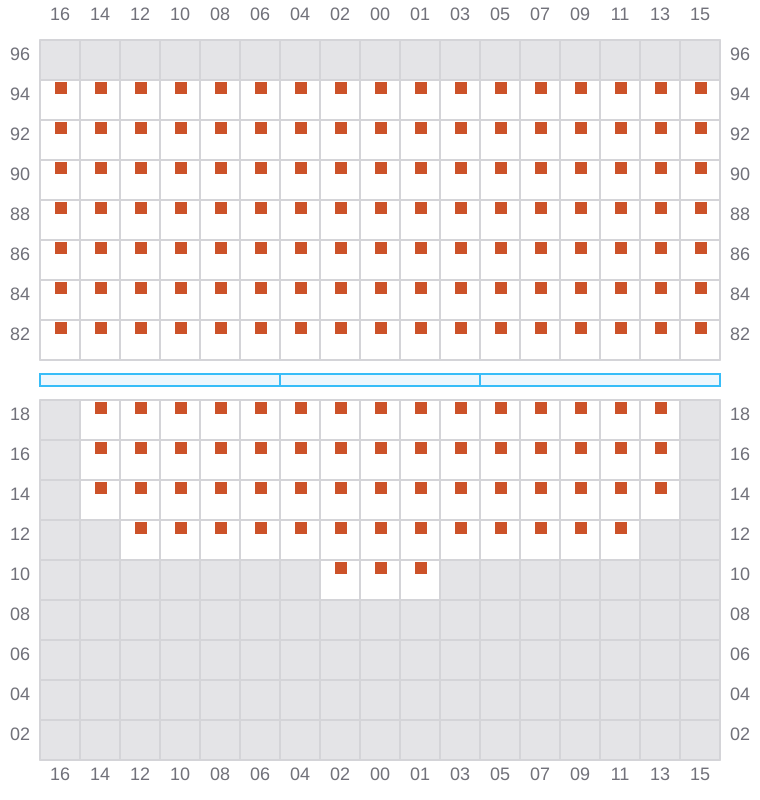

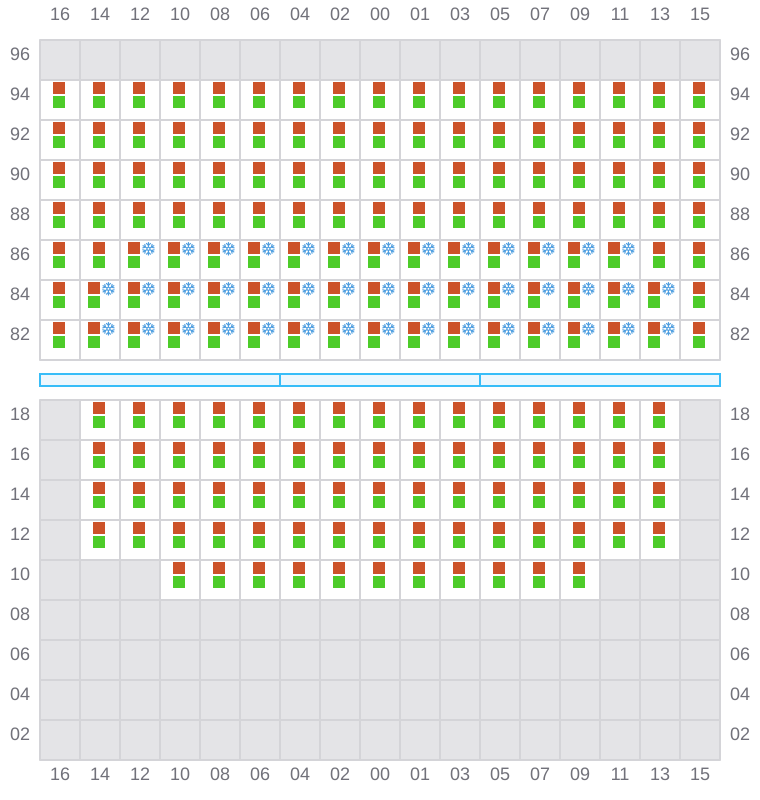

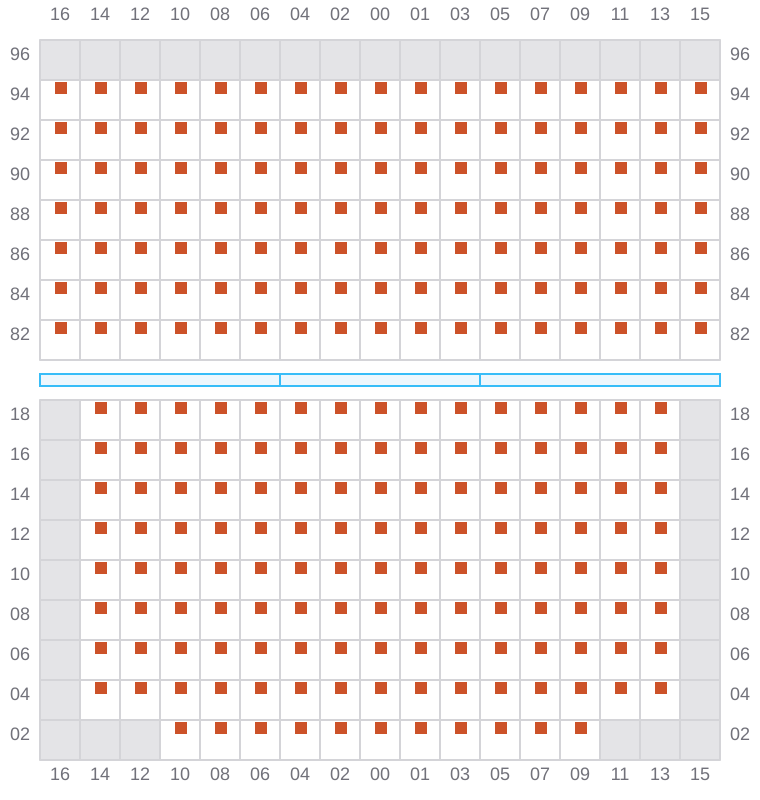

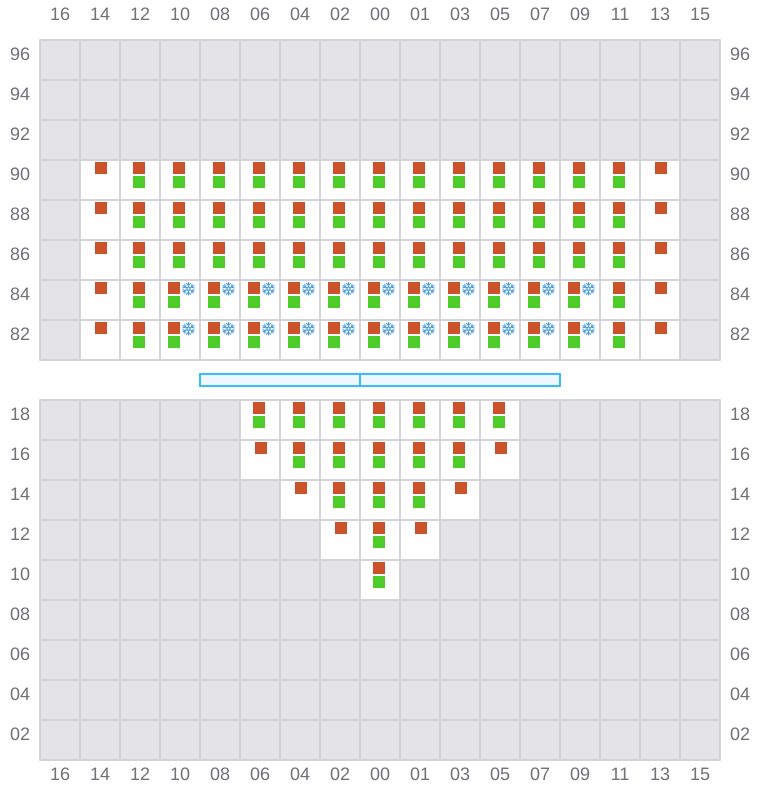

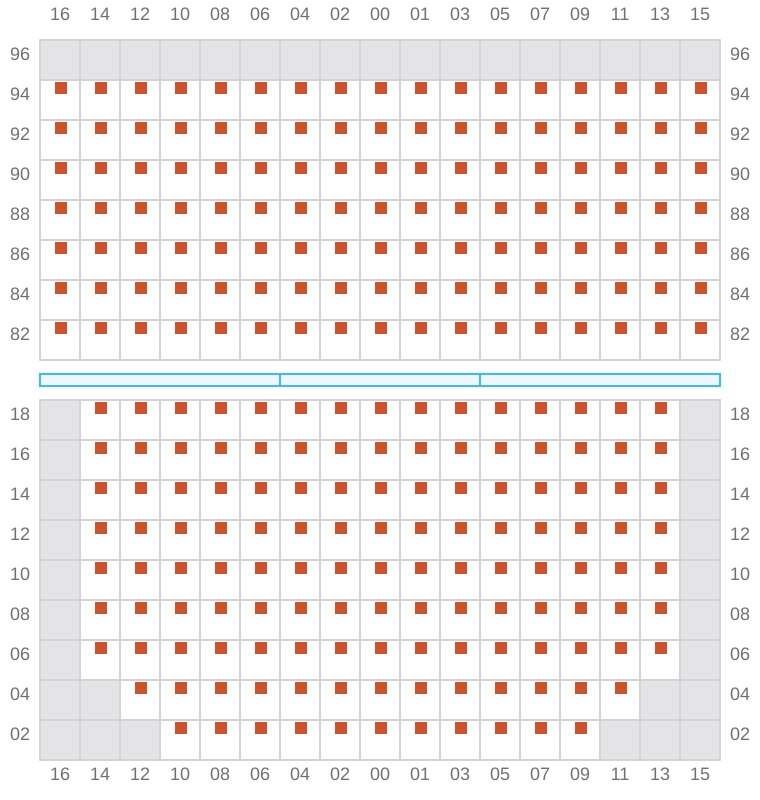

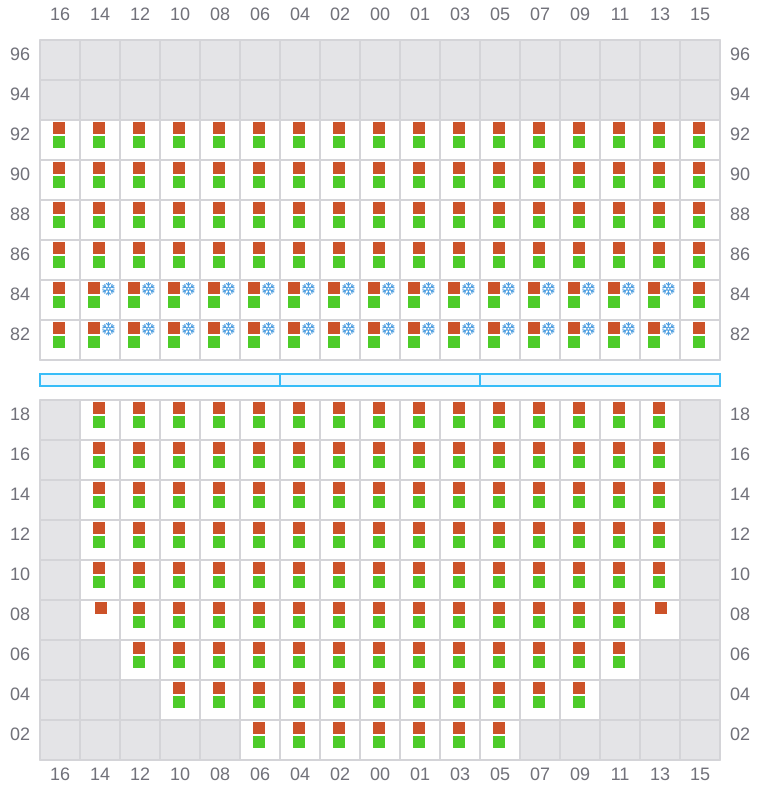

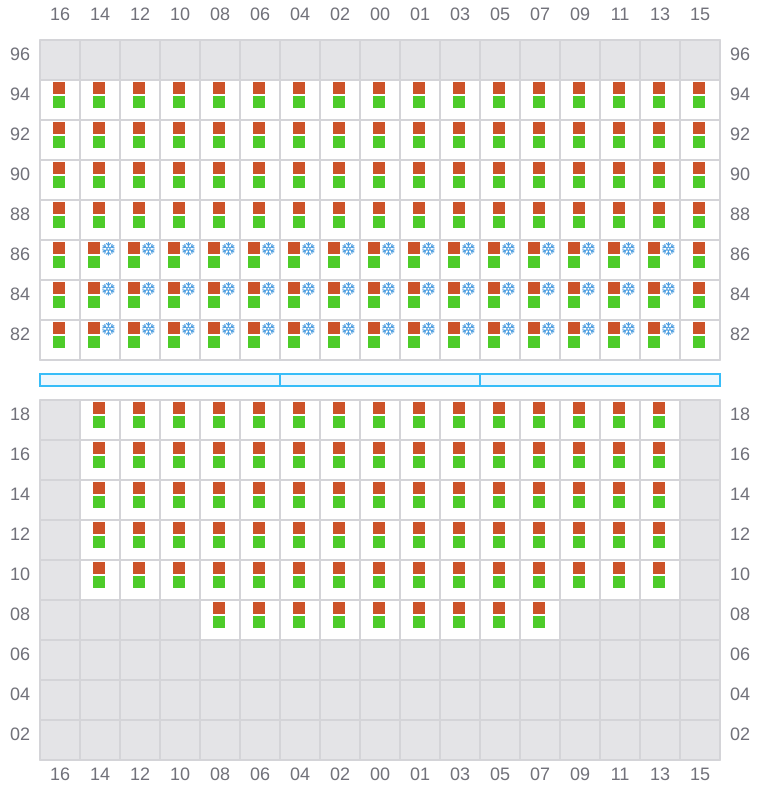

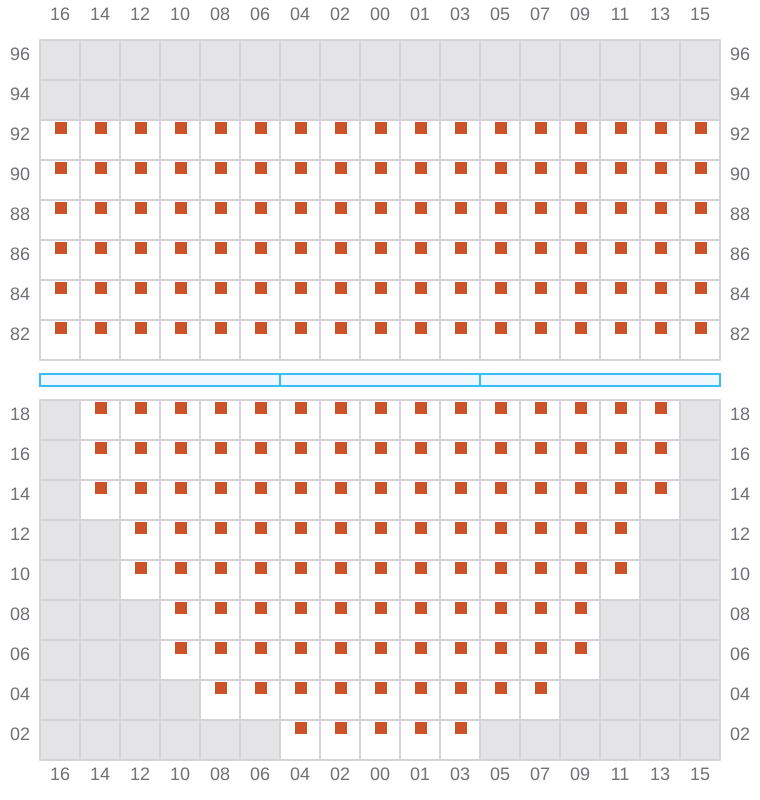

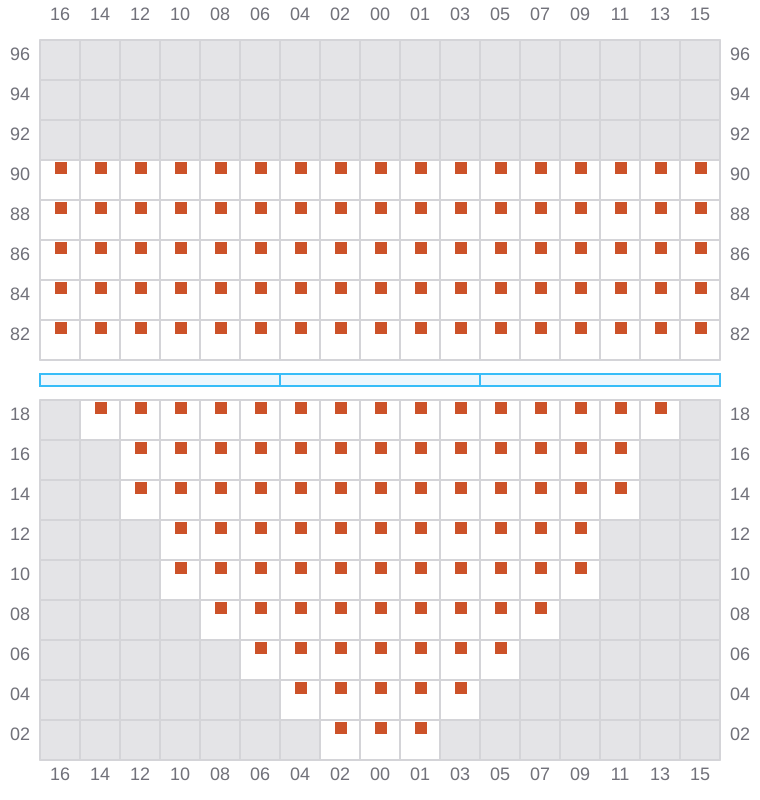

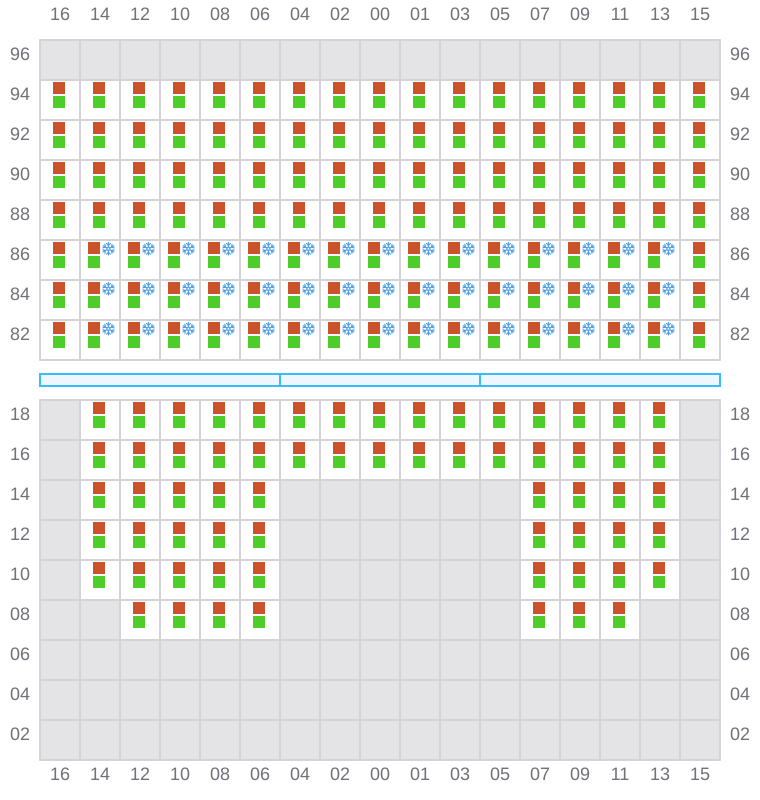

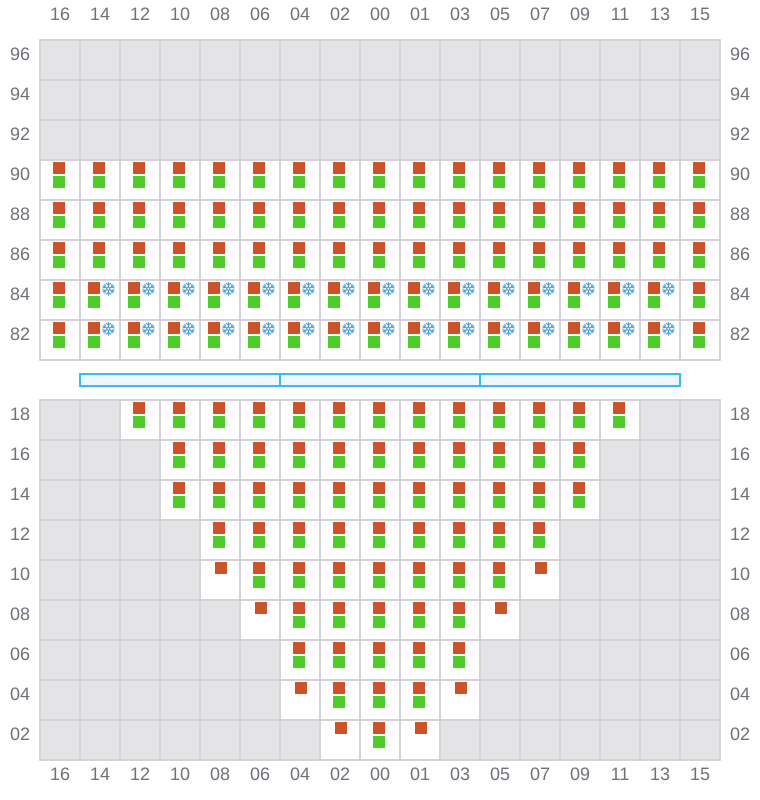

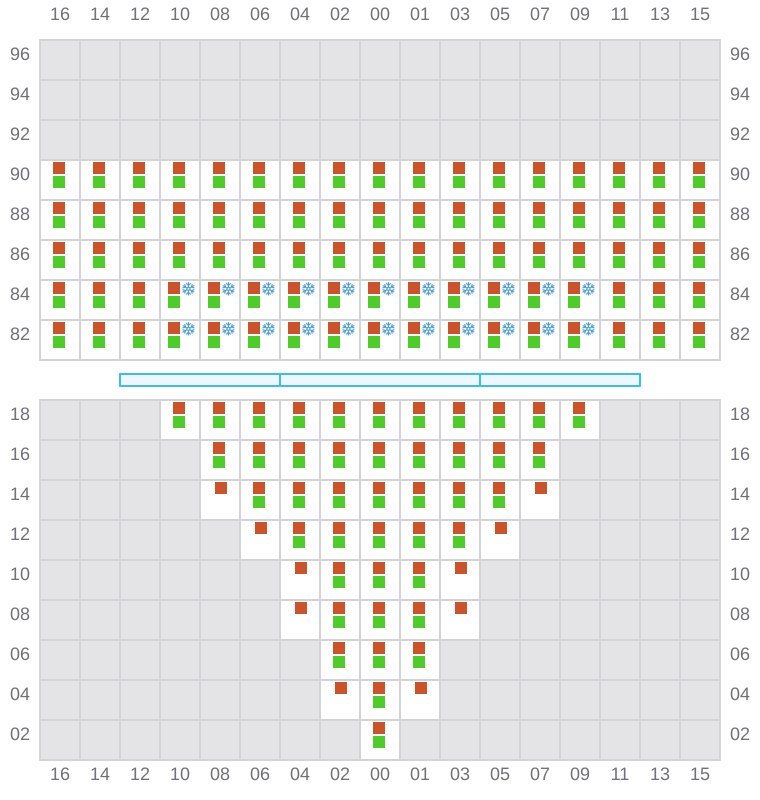

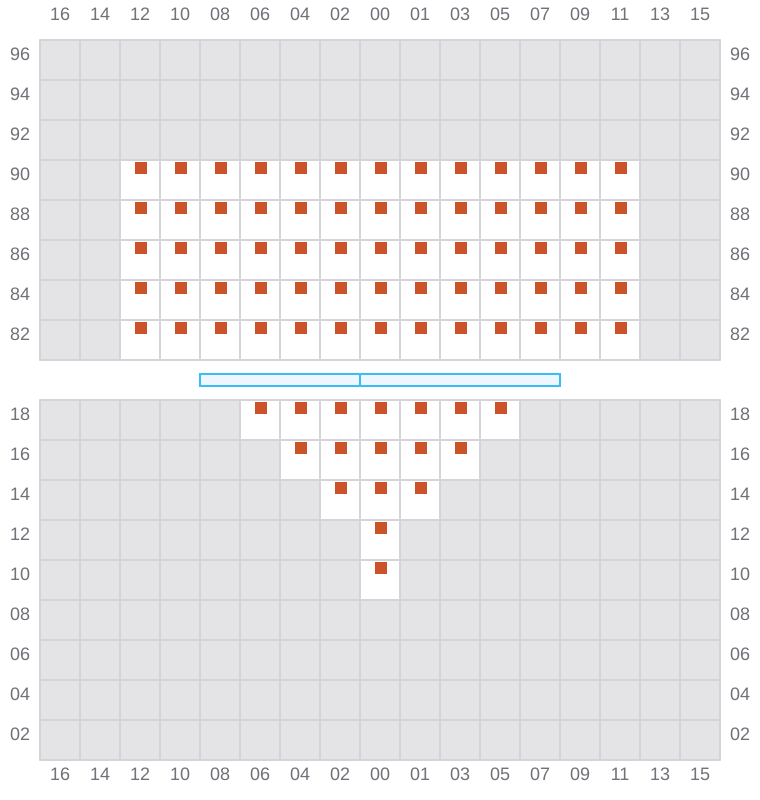

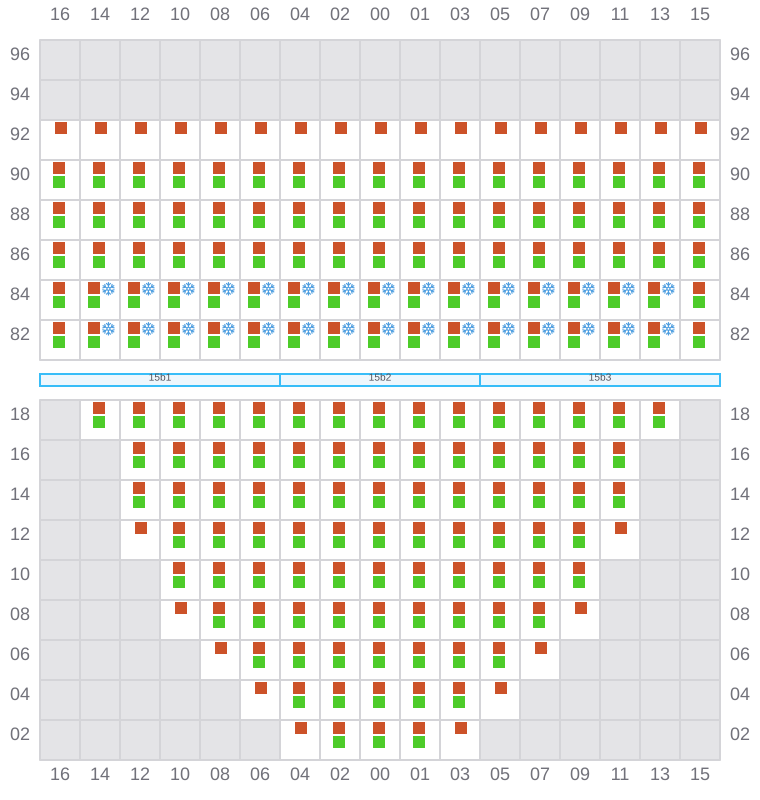

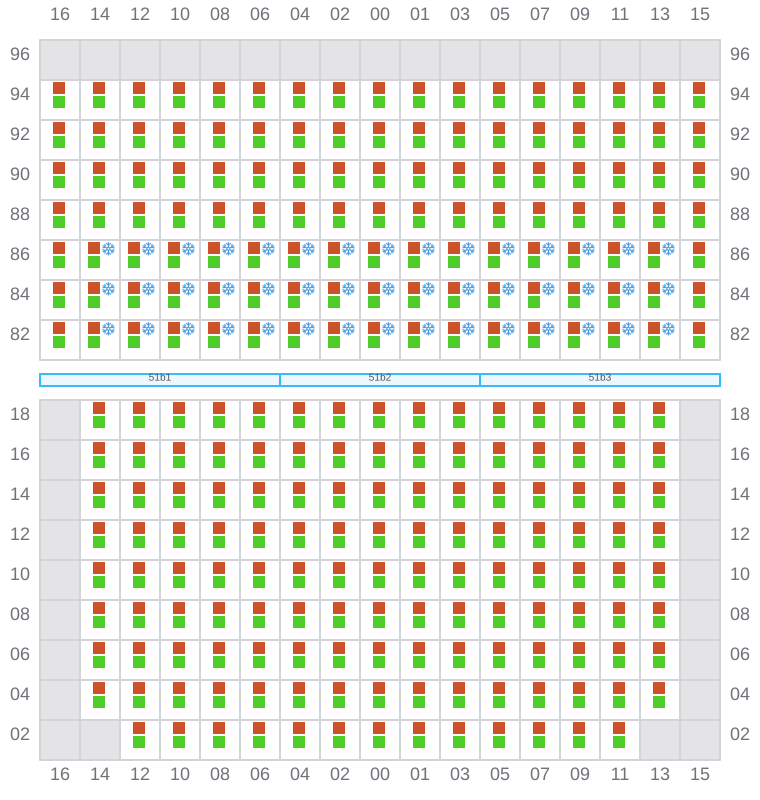

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
- →
003 (002)
- ←
- → / ?
- →
005
- →
- →
007 (006)
- ←
- → / ?
- →
009
- →
- →
011 (010)
- ←
- → / ?
- →
013
- →
- →
015 (014)
- ←
- → / ?
- →
017
- →
- →
019 (018)
- ←
- → / ?
- →
021
- →
- →
023 (022)
- ←
- → / ?
- →
025
- →
- →
027 (026)
- ←
- → / ?
- →
029
- →
- →
031 (030)
- ←
- → / ?
- →
033
- →
- →
035 (034)
- ←
- → / ?
- →
037
- →
- →
039 (038)
- ←
- → / ?
- →
041
- →
- →
043 (042)
- ←
- → / ?
- →
045
- →
- →
047 (046)
- ←
- → / ?
- →
049
- →
- →
051 (050)
- ←
- → / ?
- →
053
- →
- →
055 (054)
- ←
- → / ?
- →
057
- →
- →
059 (058)
- ←
- → / ?
- →
061
- →
- →
063 (062)
- ←
- → / ?
- →
065
- →
- →
067 (066)
- ←
- → / ?
- →
069
- →
- →
071 (070)
- ←
- → / ?
- →
073
- →
- →
075 (074)
- ←
- → / ?
- →
077 (078)
- → / ?
- → / ?
- → / ?
