KOTA ANGGUN
9175602 | 9VKL | 9175602 by ********* Last update: Wed Apr 24 2024

General Info

Ship Name:KOTA ANGGUN
IMO Code:9175602
Call Sign:9VKL
Line Operator:9175602
Class Name for Sister Ships:KOTAANGGUN
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,459

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

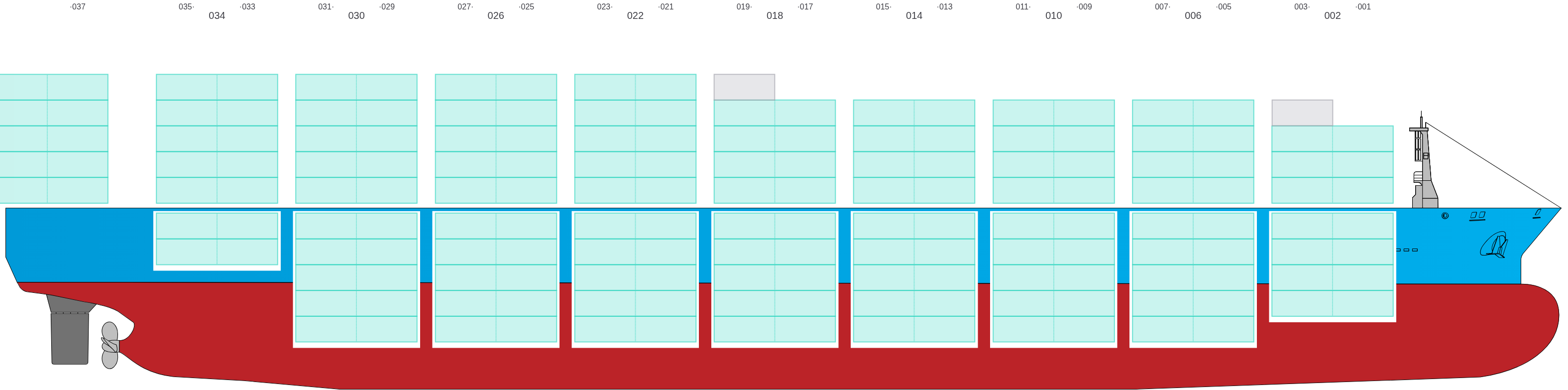

Side View

Side view of KOTA ANGGUN

Hatch-Covers View

Deck view of KOTA ANGGUN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of KOTA ANGGUN

003

  • ←
Bay 003 view and slots of KOTA ANGGUN

005 (006)

  • →
Bay 005 view and slots of KOTA ANGGUN

007

  • ←
Bay 007 view and slots of KOTA ANGGUN

009 (010)

  • →
Bay 009 view and slots of KOTA ANGGUN

011

  • ←
Bay 011 view and slots of KOTA ANGGUN

013 (014)

  • →
Bay 013 view and slots of KOTA ANGGUN

015

  • ←
Bay 015 view and slots of KOTA ANGGUN

017 (018)

  • →

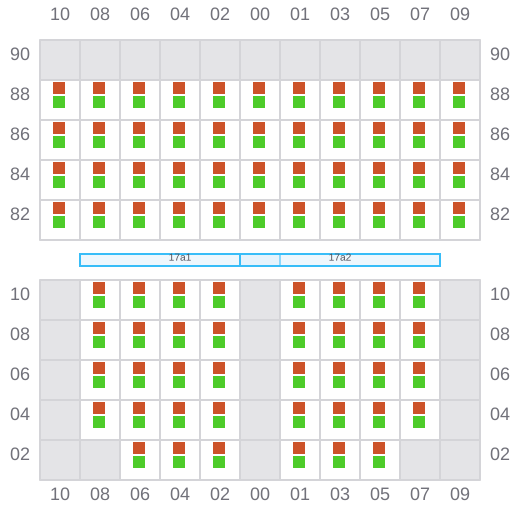

Bay 017 view and slots of KOTA ANGGUN

019

  • ←
Bay 019 view and slots of KOTA ANGGUN

021 (022)

  • →

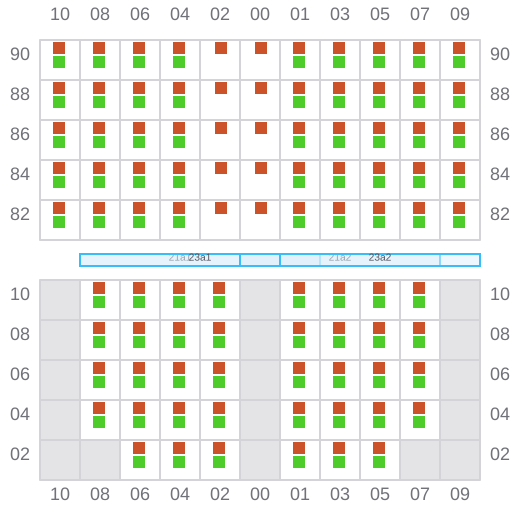

Bay 021 view and slots of KOTA ANGGUN

023

  • ←
Bay 023 view and slots of KOTA ANGGUN

025 (026)

  • →

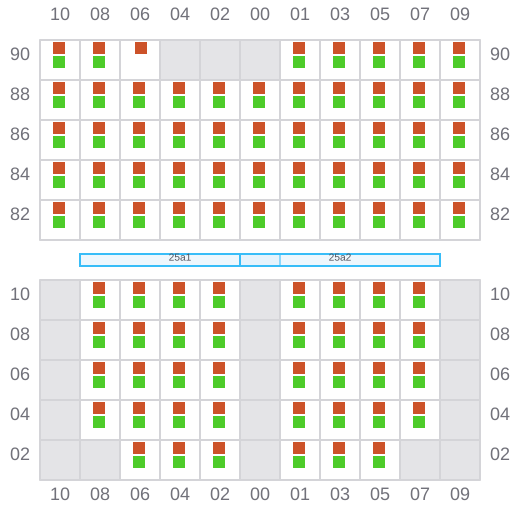

Bay 025 view and slots of KOTA ANGGUN

027

  • ←
Bay 027 view and slots of KOTA ANGGUN

029 (030)

  • →

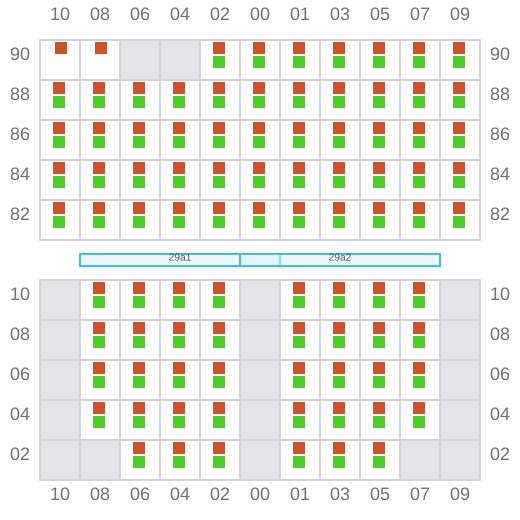

Bay 029 view and slots of KOTA ANGGUN

031

  • ←

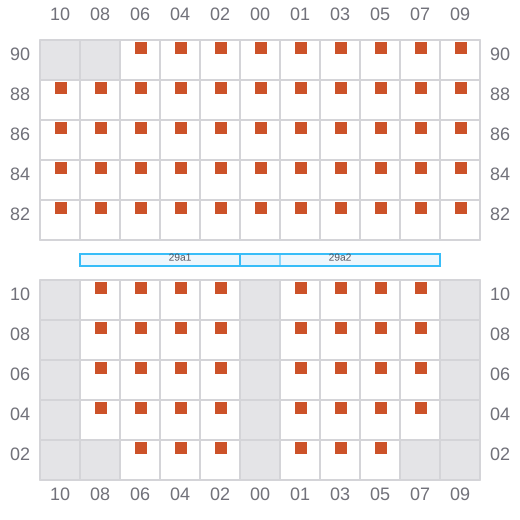

Bay 031 view and slots of KOTA ANGGUN

033 (034)

  • →
Bay 033 view and slots of KOTA ANGGUN

035

  • ←
Bay 035 view and slots of KOTA ANGGUN

037 (038)

  • → / ?

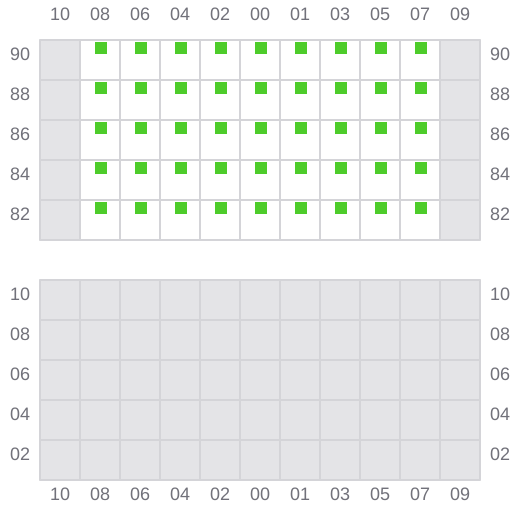

Bay 037 view and slots of KOTA ANGGUN
