KOTA CABAR
9494606 | 9V6247 | 9494606 by ********* Last update: Tue May 07 2024
General Info
Ship Name:KOTA CABAR
IMO Code:9494606
Call Sign:9V6247
Line Operator:9494606
Class Name for Sister Ships:KOTA CABAR
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,620
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

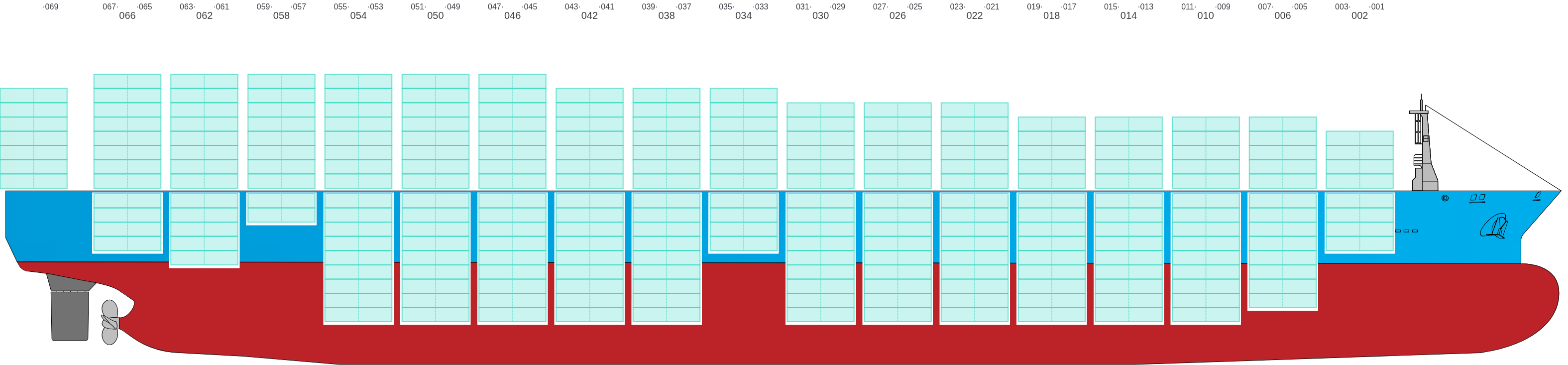

Side View
Hatch-Covers View

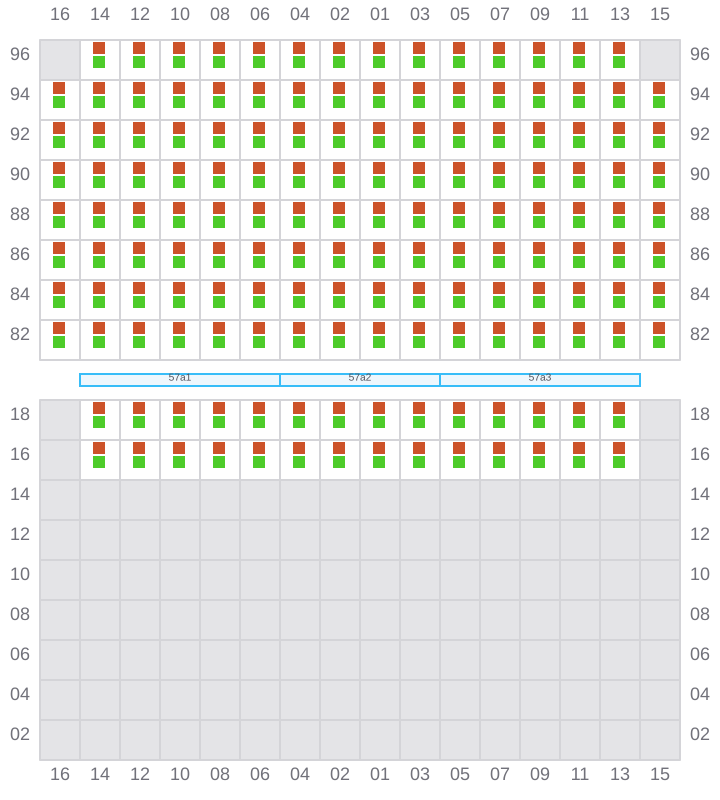

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←

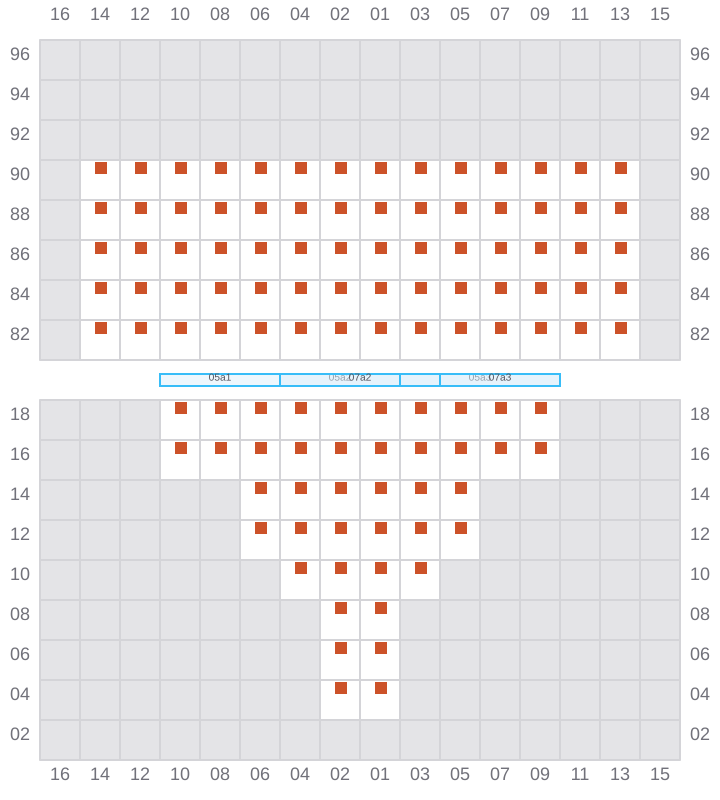

005 (006)
- →
007
- ←
009 (010)
- →
011
- ←

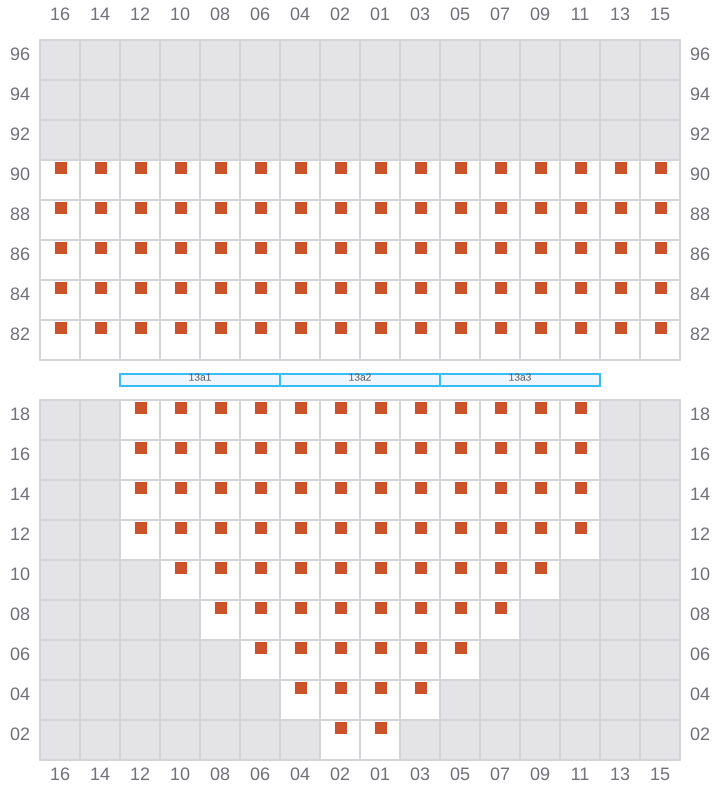

013 (014)
- →
015
- ←

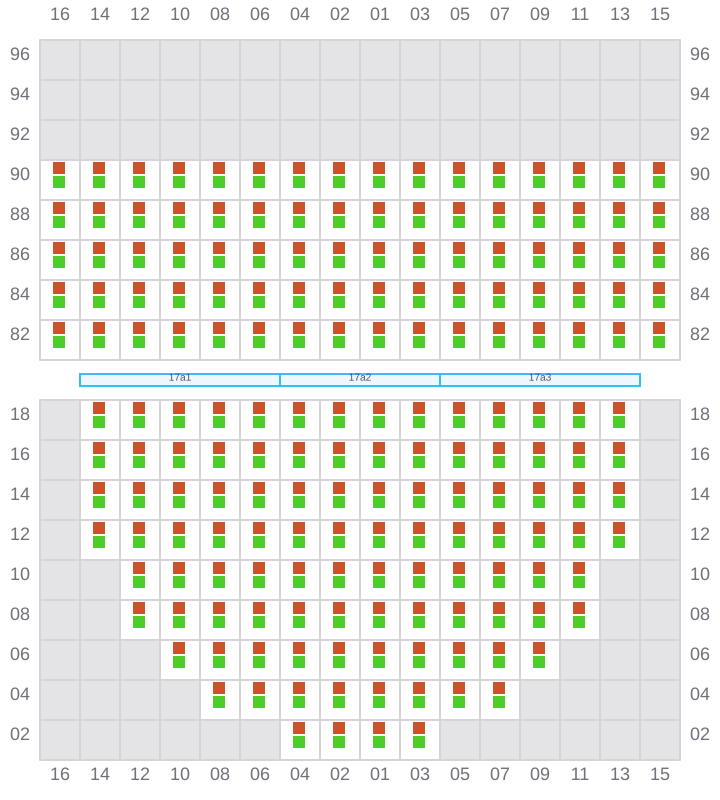

017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←

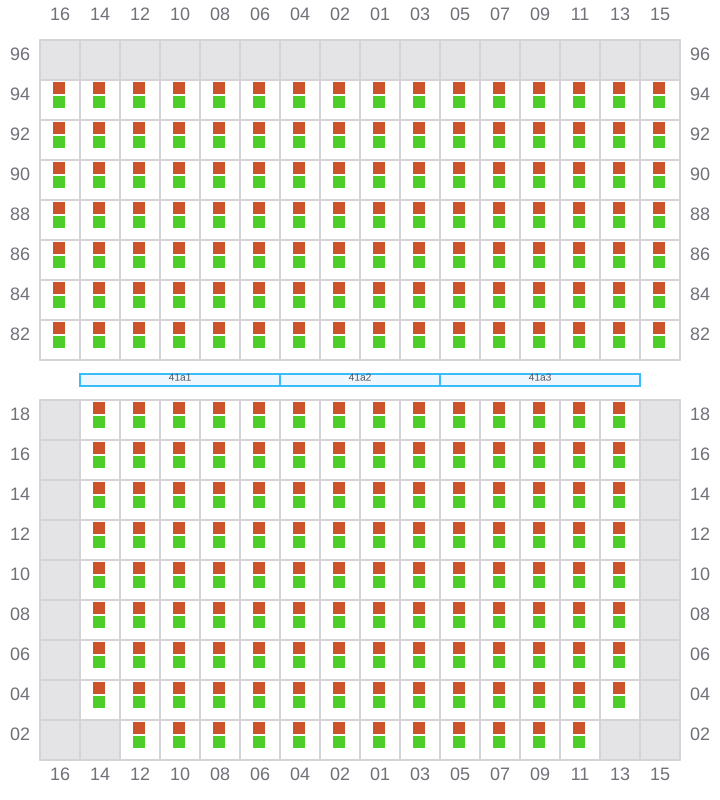

041 (042)
- →

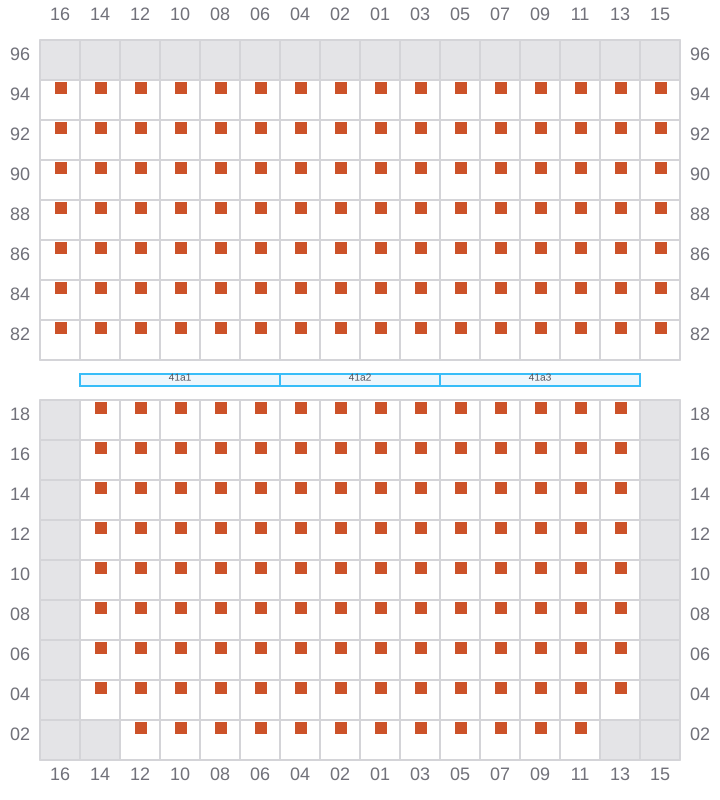

043
- ←
045 (046)
- →

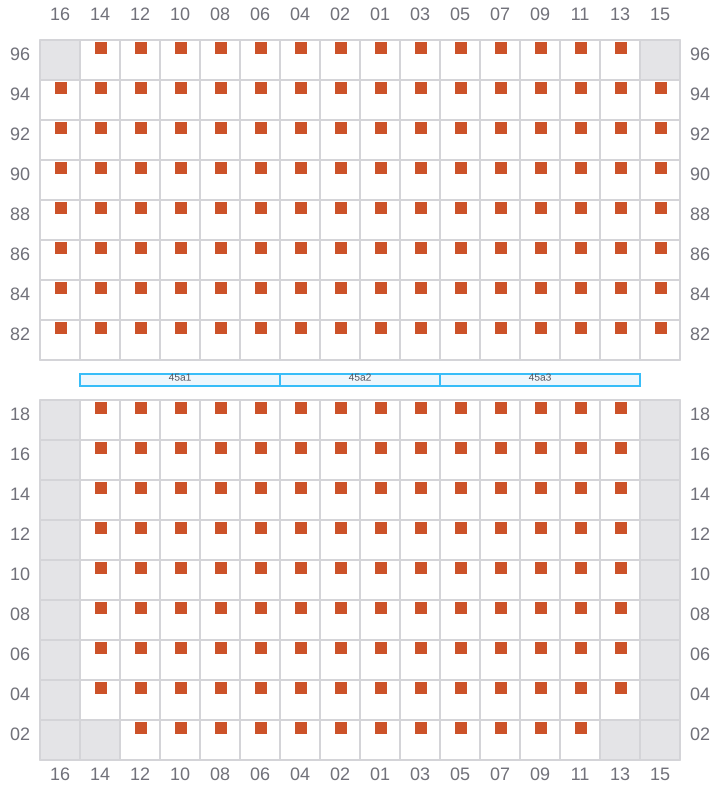

047
- ←
049 (050)
- →
051
- ←
053 (054)
- →
055
- ←

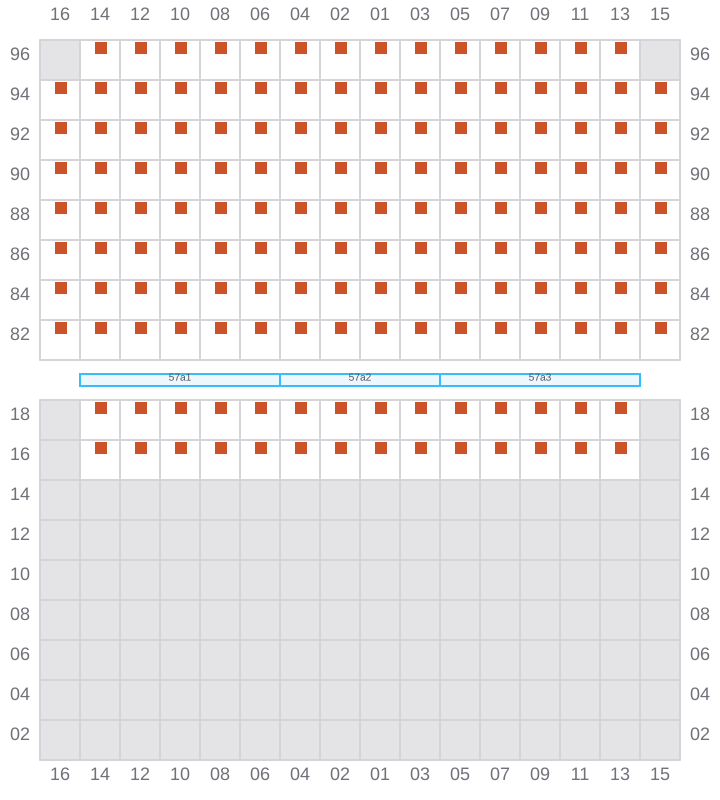

057 (058)
- →
059
- ←
061 (062)
- →
063
- ←
065 (066)
- →
067
- ←
069 (070)
- → / ?
