KOTA GADANG
9626429 | 9V7643 | 9626429 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:KOTA GADANG
IMO Code:9626429
Call Sign:9V7643
Line Operator:9626429
Class Name for Sister Ships:PIL
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,650
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

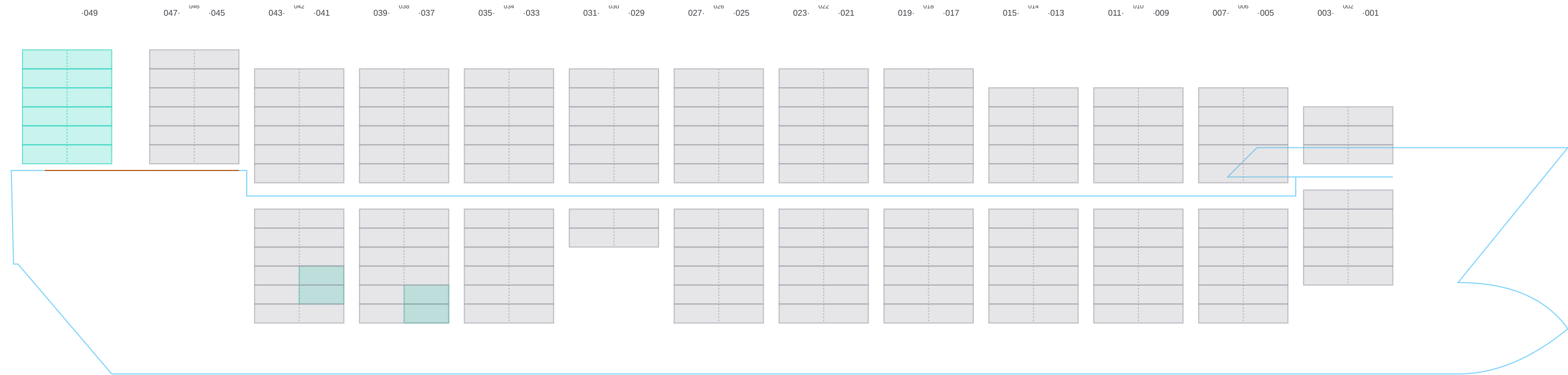

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

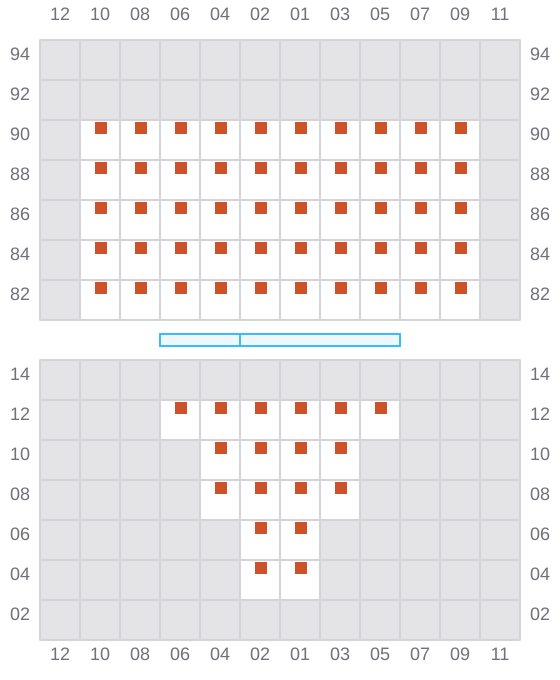

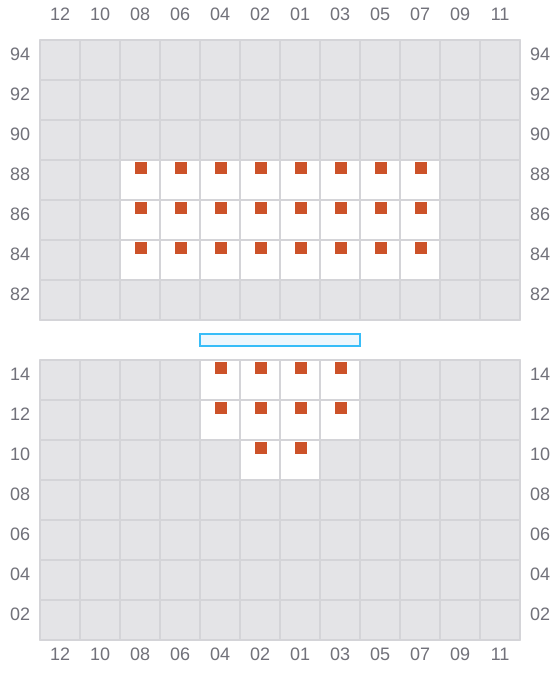

001
- →

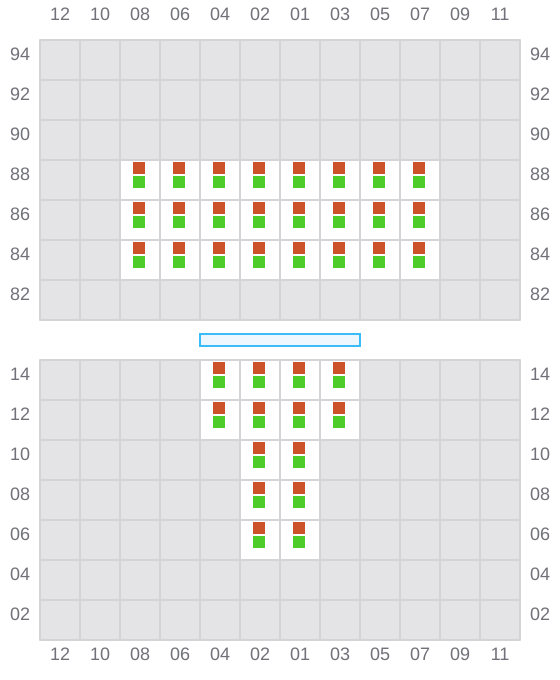

003 (002)
- ←
005
- →

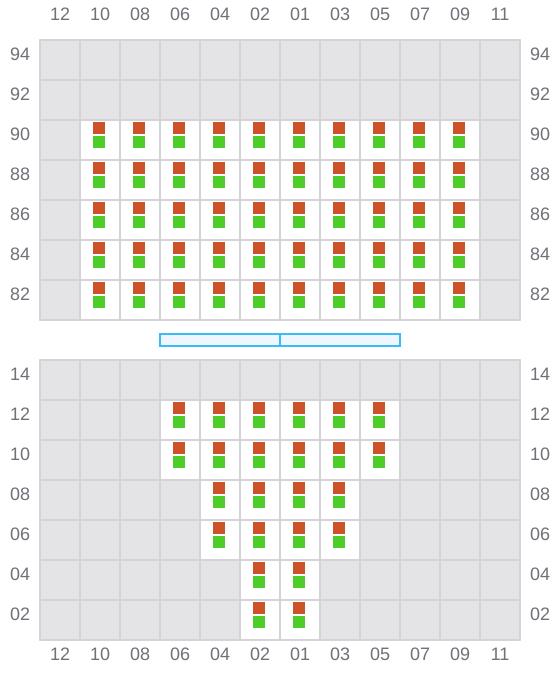

007 (006)
- ←

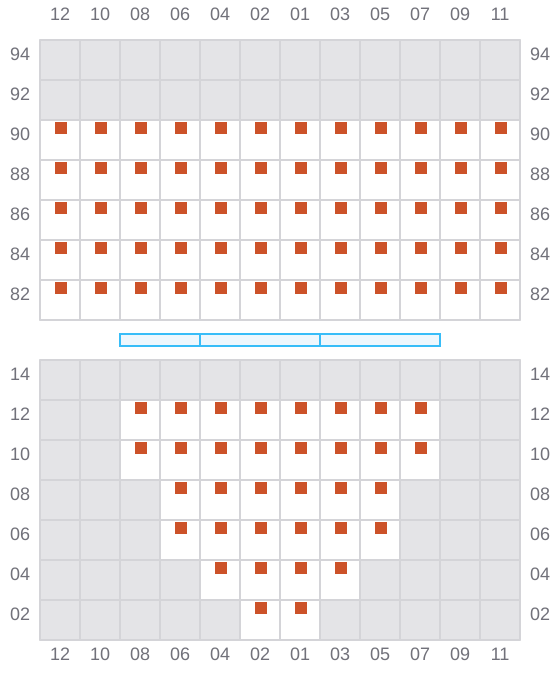

009
- →

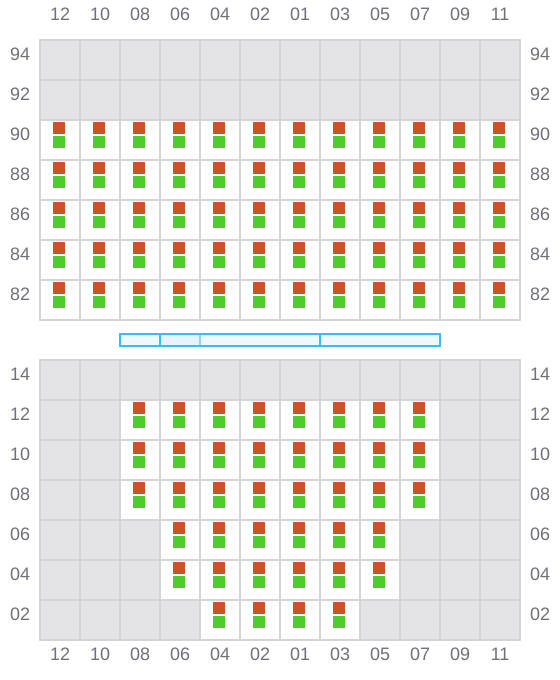

011 (010)
- ←
013
- →
015 (014)
- ←

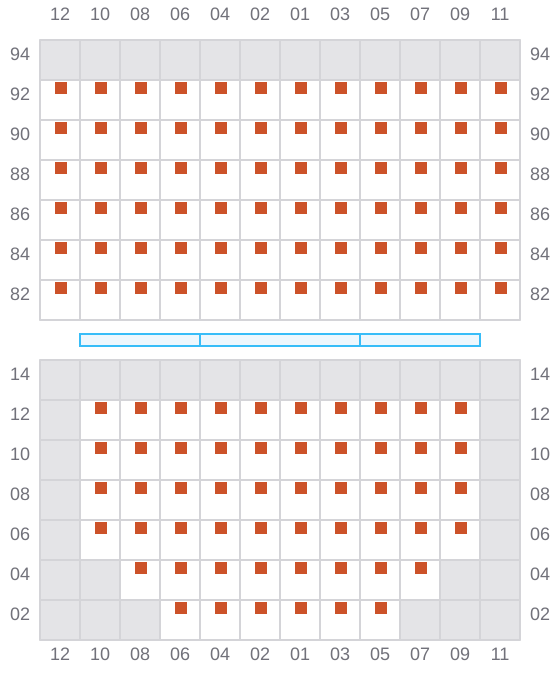

017
- →
019 (018)
- ←

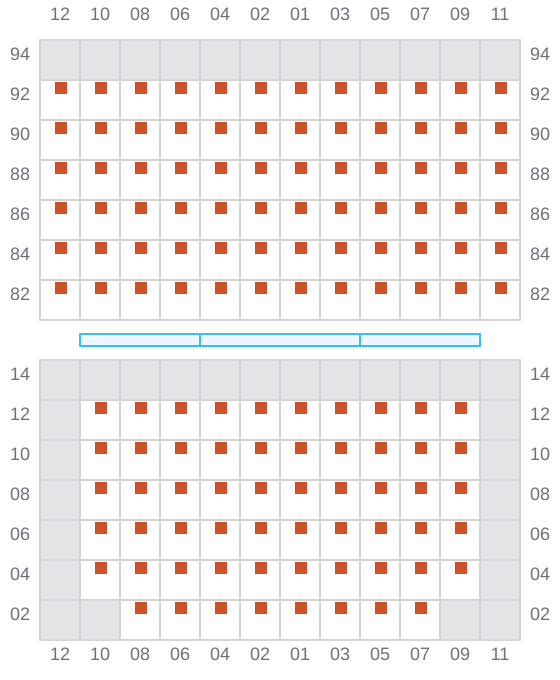

021
- →

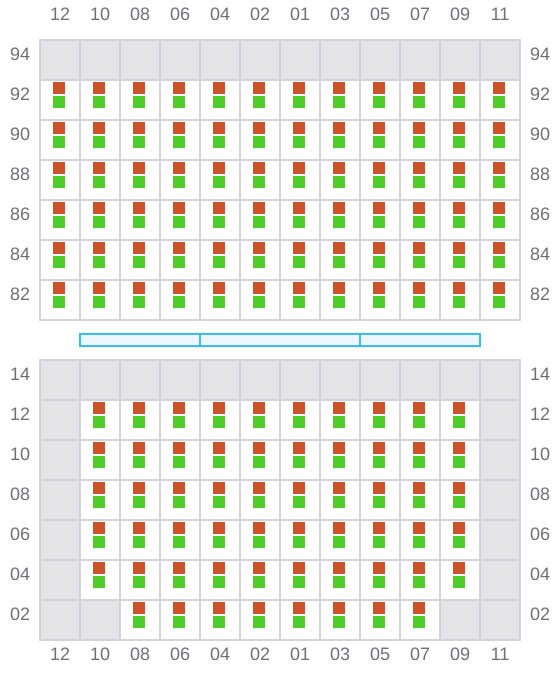

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←

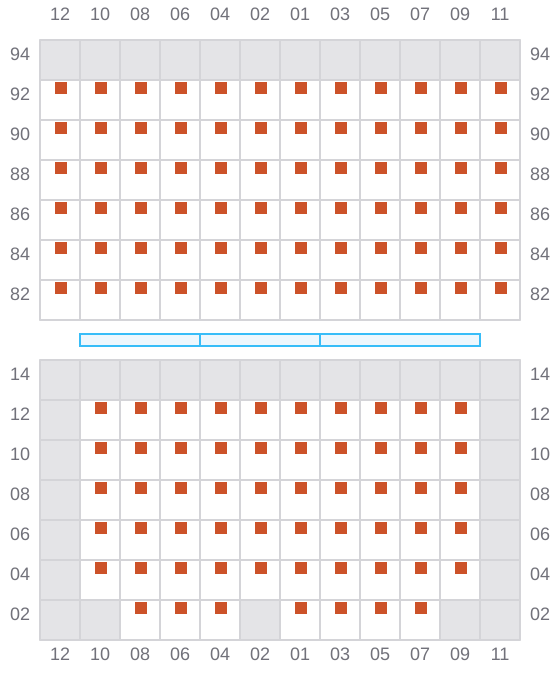

033
- →
035 (034)
- ←

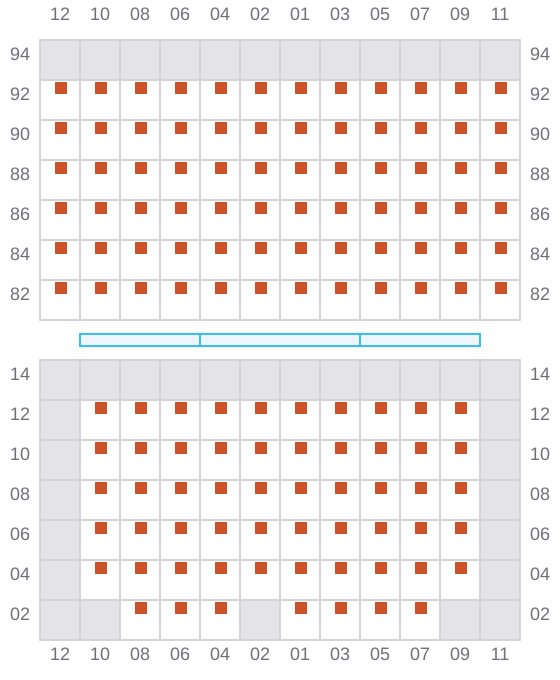

037
- →

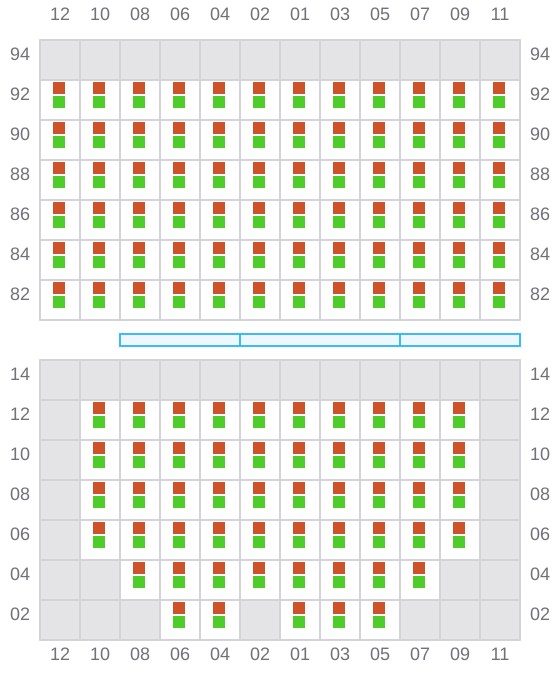

039 (038)
- ←
041
- →

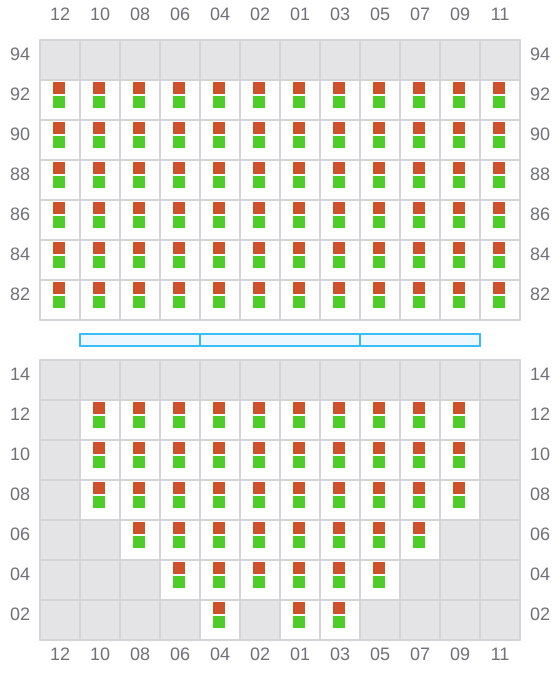

043 (042)
- ←

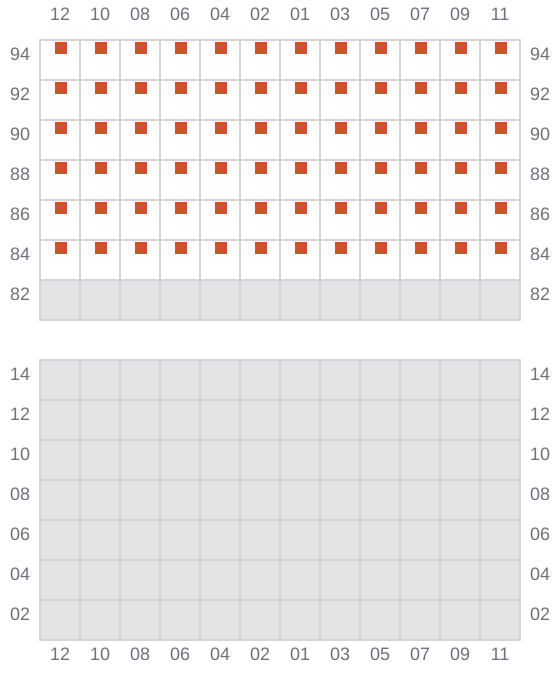

045
- → / ?
047 (046)
- ← / ?

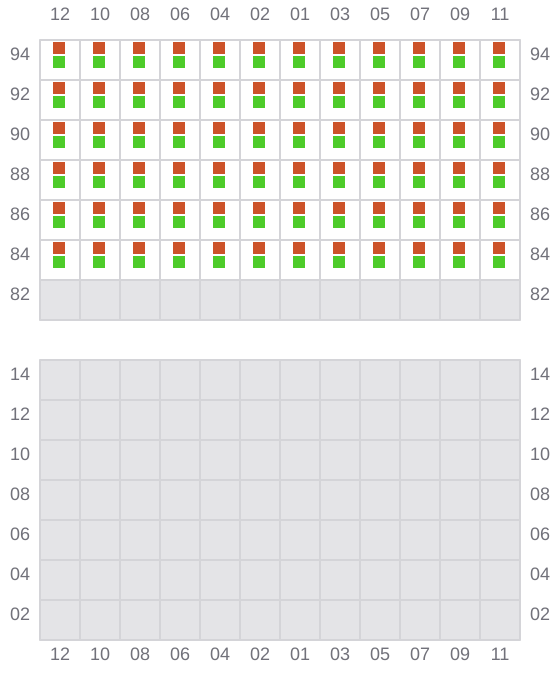

049 (050)
- → / ?
