KOTA HAPAS
9238624 | N/A | 9238624 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:KOTA HAPAS
IMO Code:9238624
Call Sign:N/A
Line Operator:9238624
Class Name for Sister Ships:PIL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,084
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

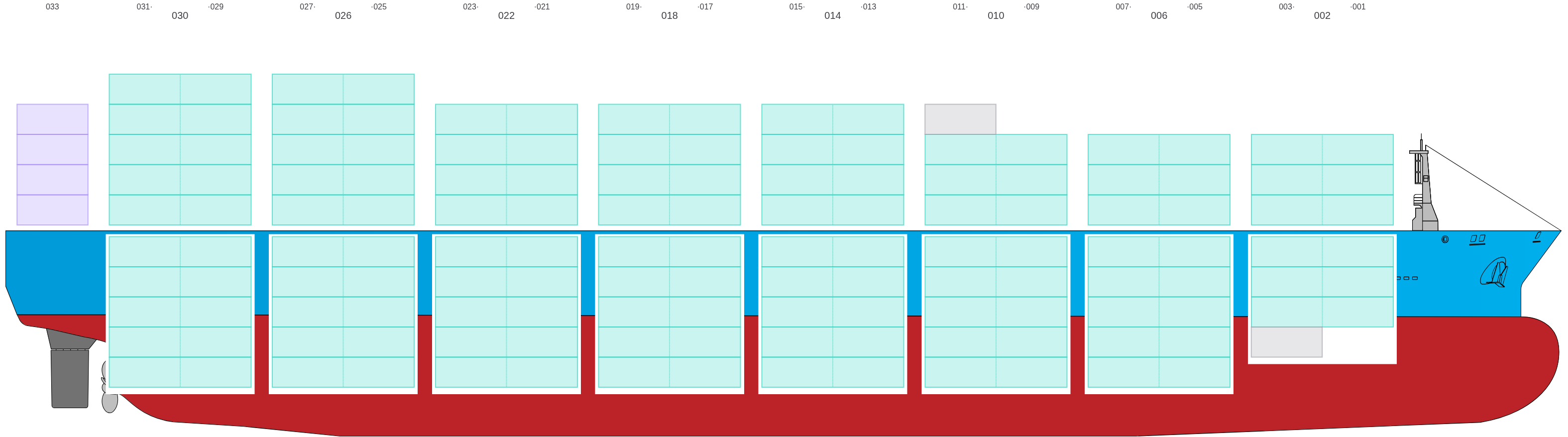

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←

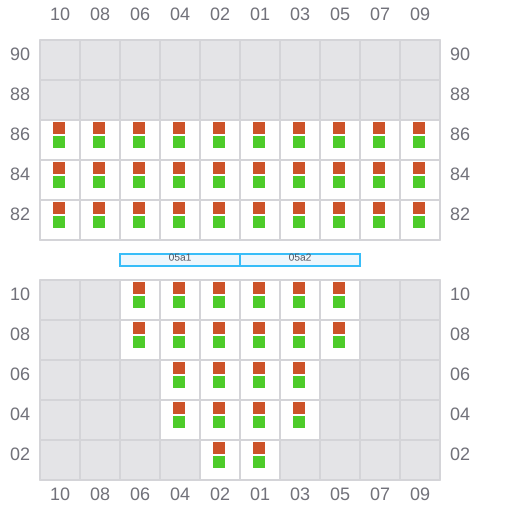

005 (006)
- →

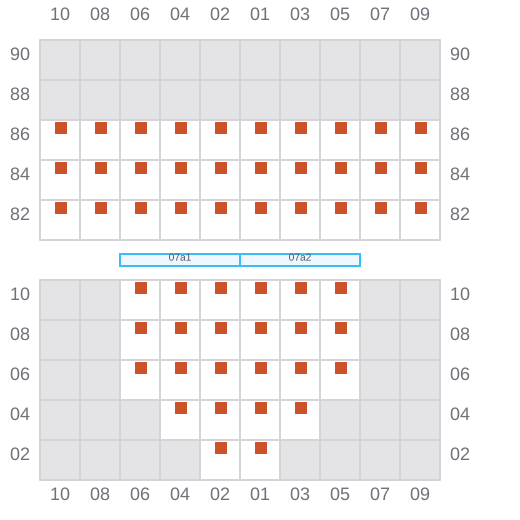

007
- ←
009 (010)
- →

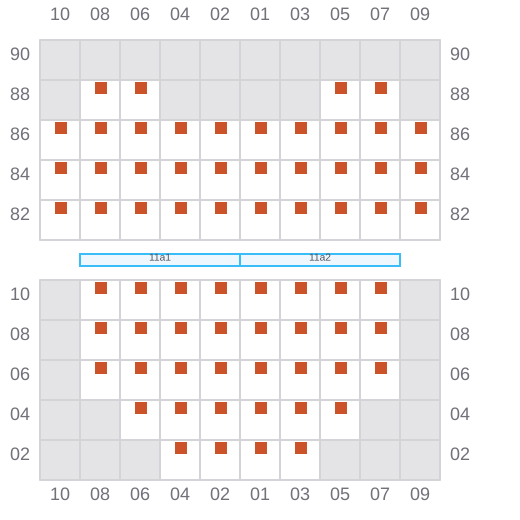

011
- ←
013 (014)
- →

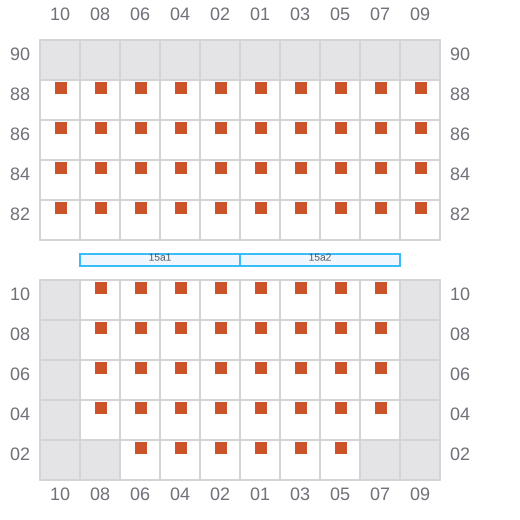

015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←

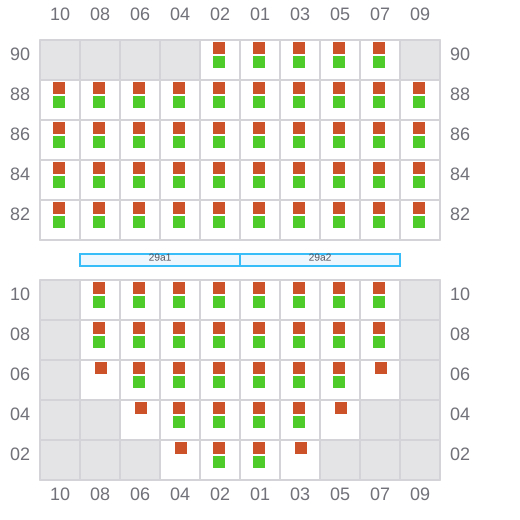

029 (030)
- →
031
- ←

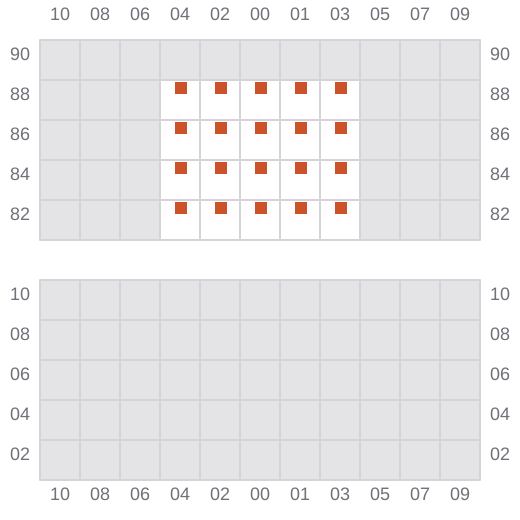

033
