KOTA HENING
9278909 | 9V7332 | 9278909 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:KOTA HENING
IMO Code:9278909
Call Sign:9V7332
Line Operator:9278909
Class Name for Sister Ships:PIL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,470
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

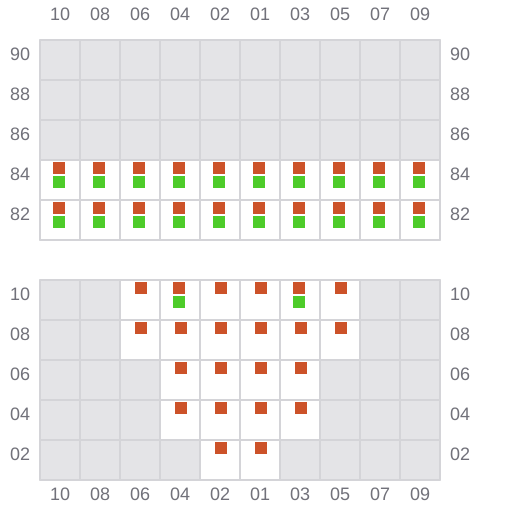

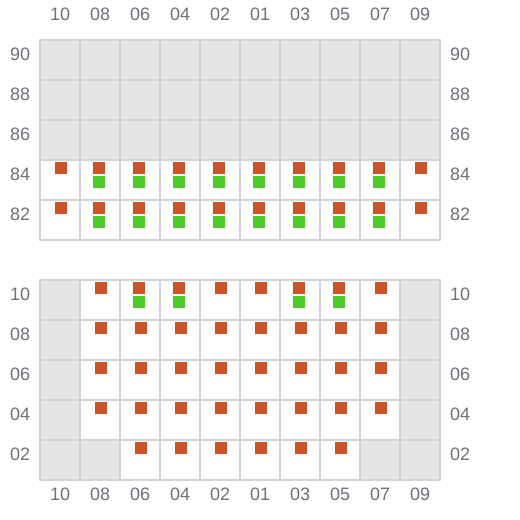

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- →
005 (006)
- →
007
- →
009 (010)
- →
011 (012)
- →
013 (014)
- →
015 (016)
- →
017 (018)
- →
019 (020)
- →
021 (022)
- →
023 (024)
- →
025 (026)
- →
027
- →
029 (030)
- →
031
- →
033
