KOTA KAYA
9307401 | 3ENH5 | 9307401 by ********* Last update: Tue Apr 30 2024
General Info
Ship Name:KOTA KAYA
IMO Code:9307401
Call Sign:3ENH5
Line Operator:9307401
Class Name for Sister Ships:KOTA KAYA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:3,181
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- → / ?
003 (004)
- →
005
- ←

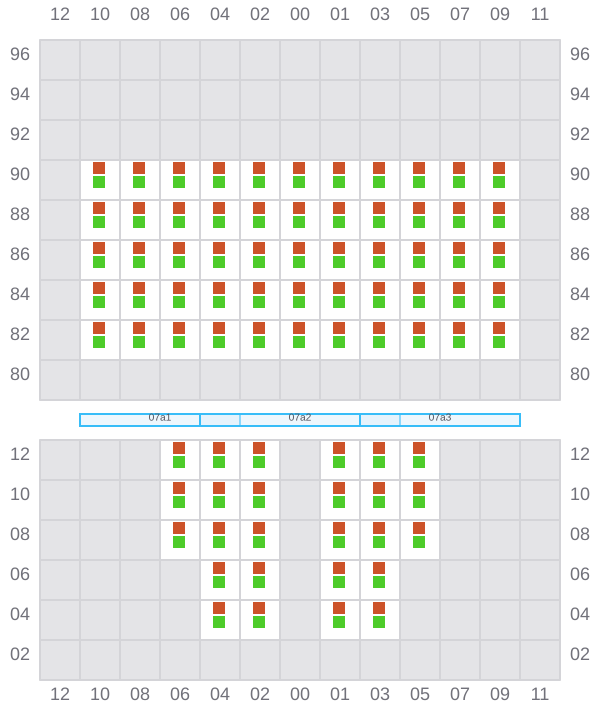

007 (008)
- →
009
- ← / ?
011 (012)
- →
013
- ←
015 (016)
- →
017
- ←

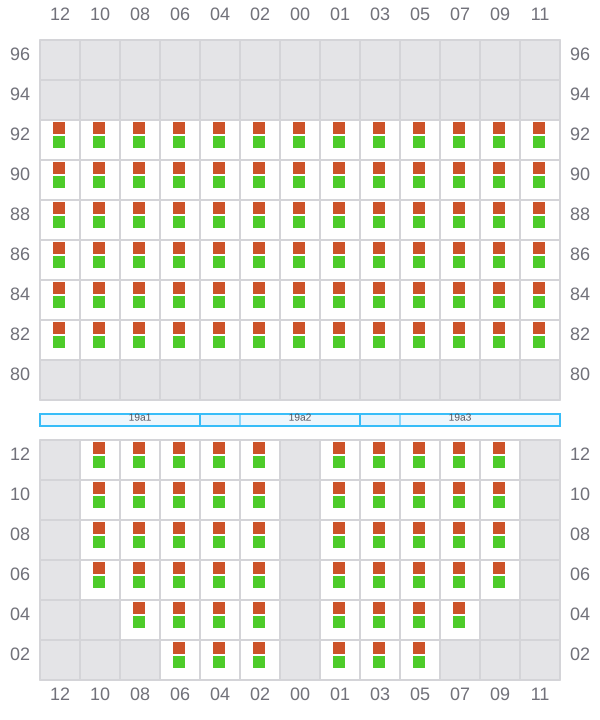

019 (020)
- →
021
- ←
023 (024)
- →
025
- ← / →

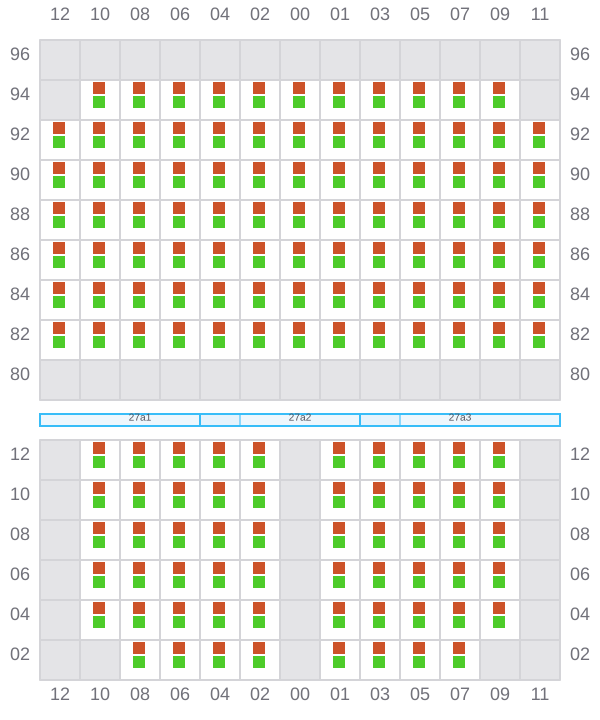

027 (028)
- →

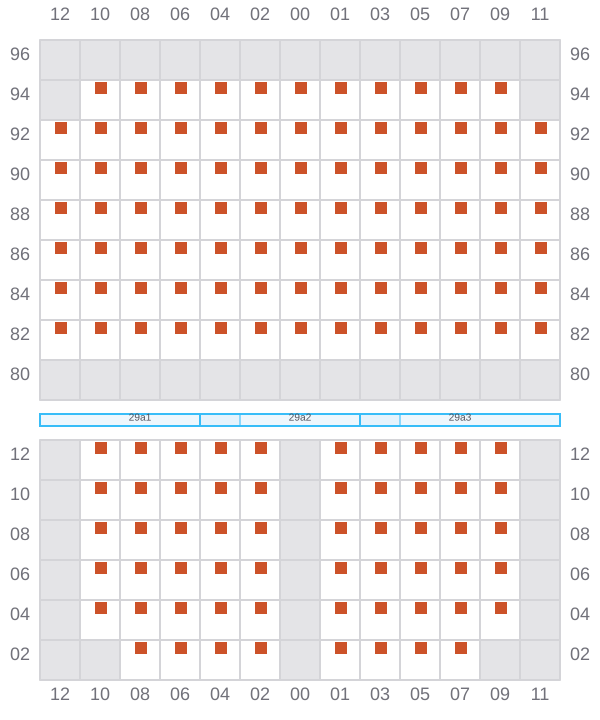

029
- ←
031 (032)
- →
033
- ←
035 (036)
- →
037
- ←
039 (040)
- →
041
- ←
043
045
047
- → / ?
049 (050)
- →
051
- ←
053 (054)
- → / ?
