KOTA LAWA
9439709 | 9V7472 | 9439709 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:KOTA LAWA
IMO Code:9439709
Call Sign:9V7472
Line Operator:9439709
Class Name for Sister Ships:PIL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,267
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

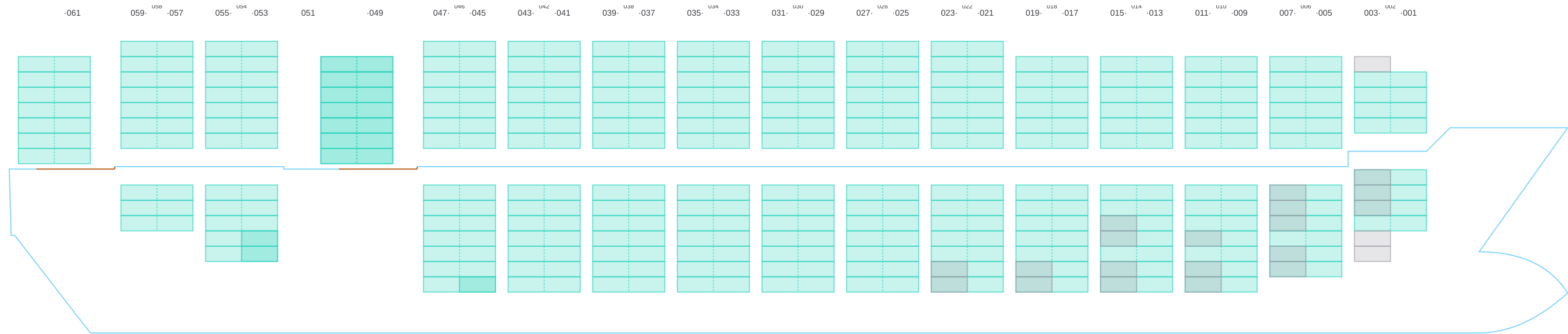

Side View
Hatch-Covers View

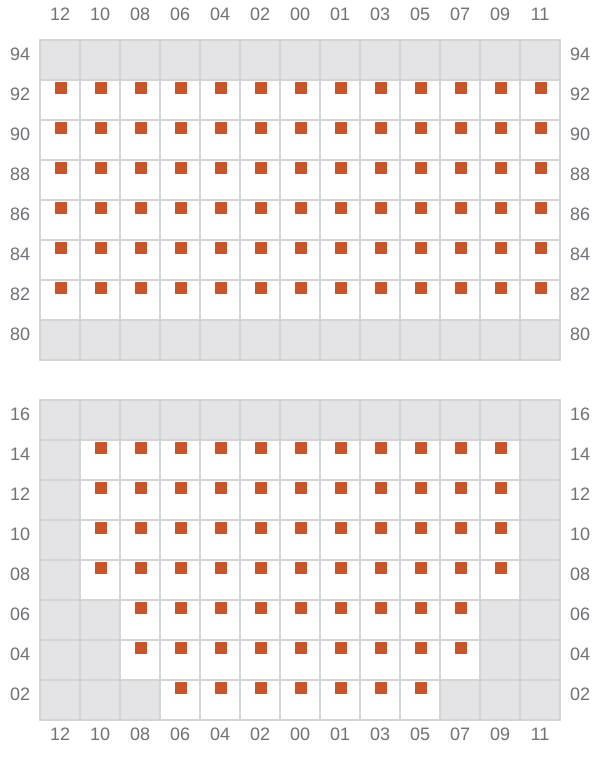

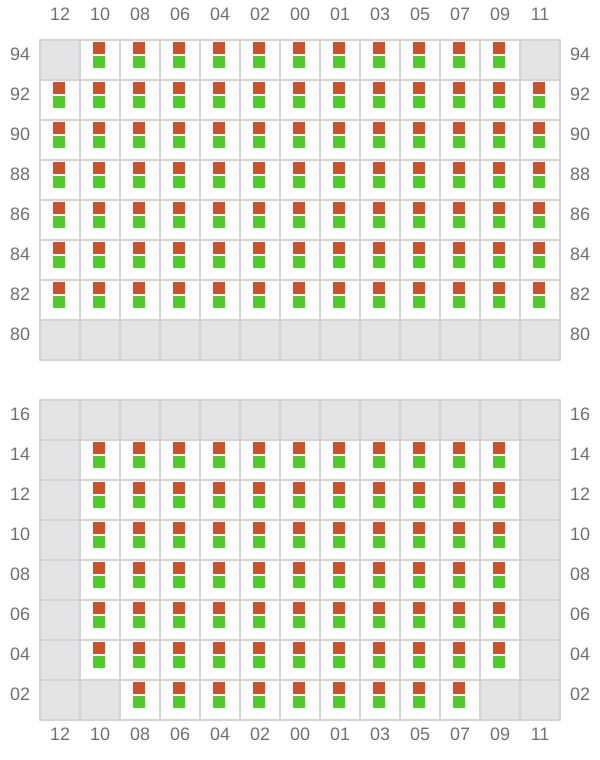

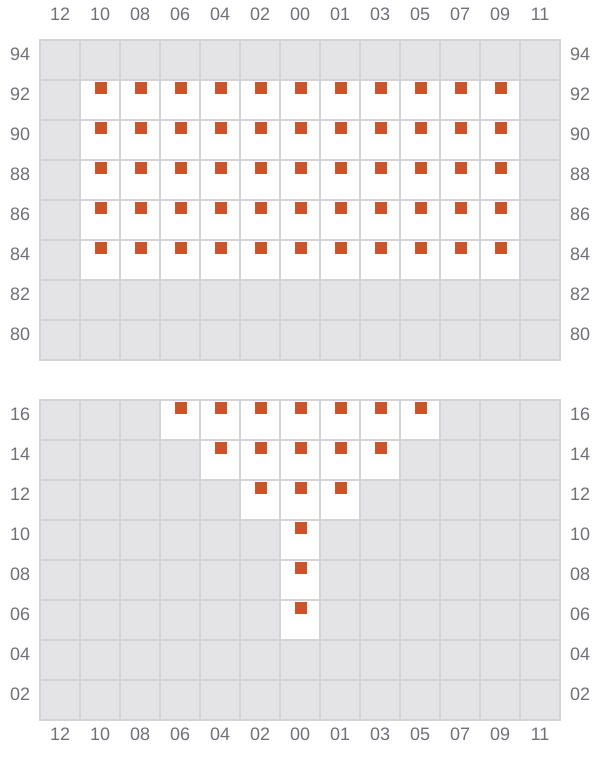

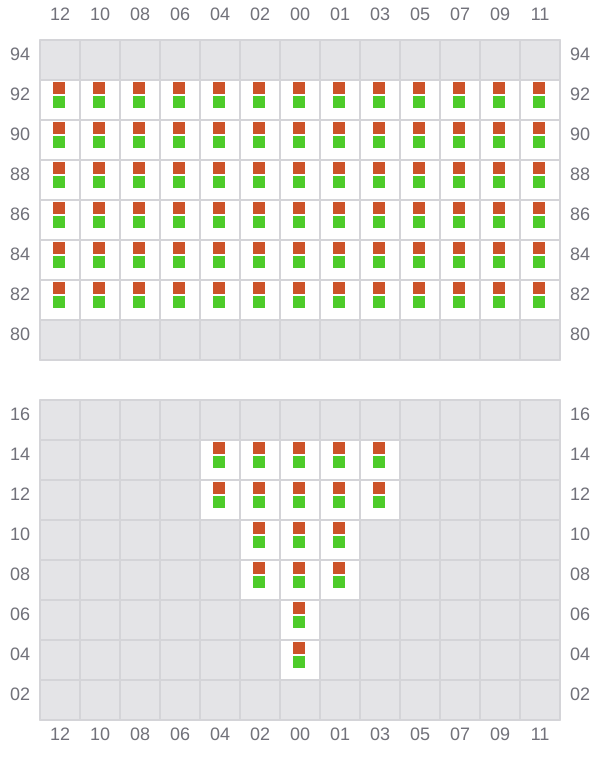

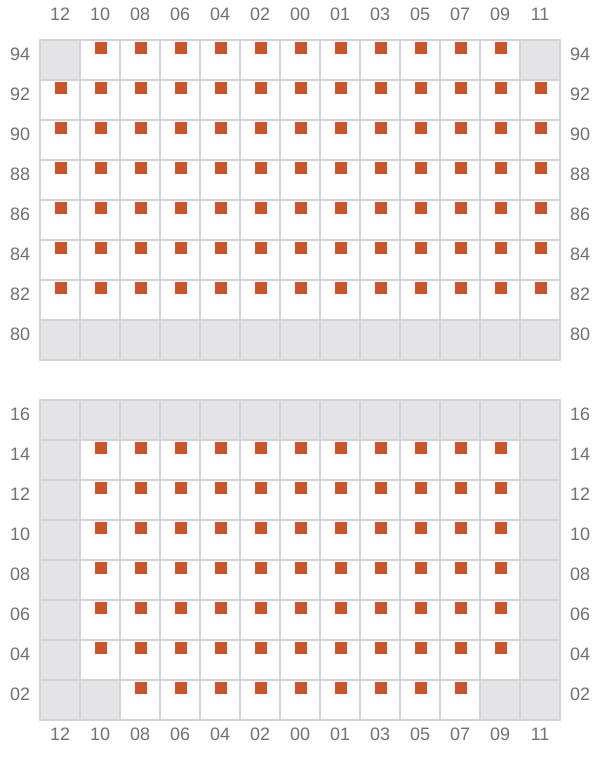

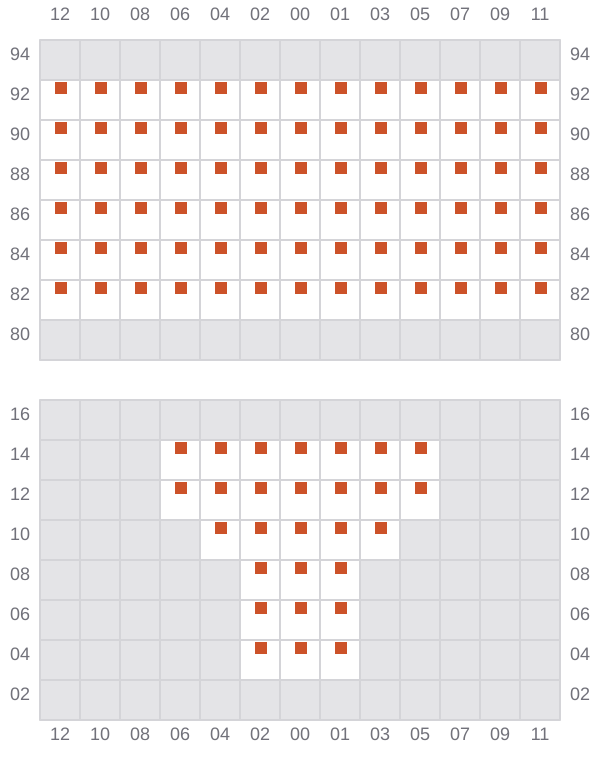

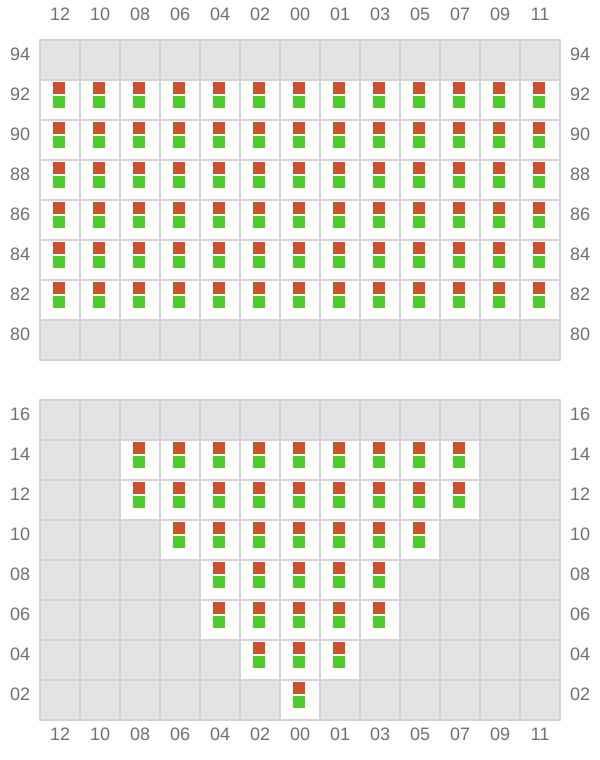

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

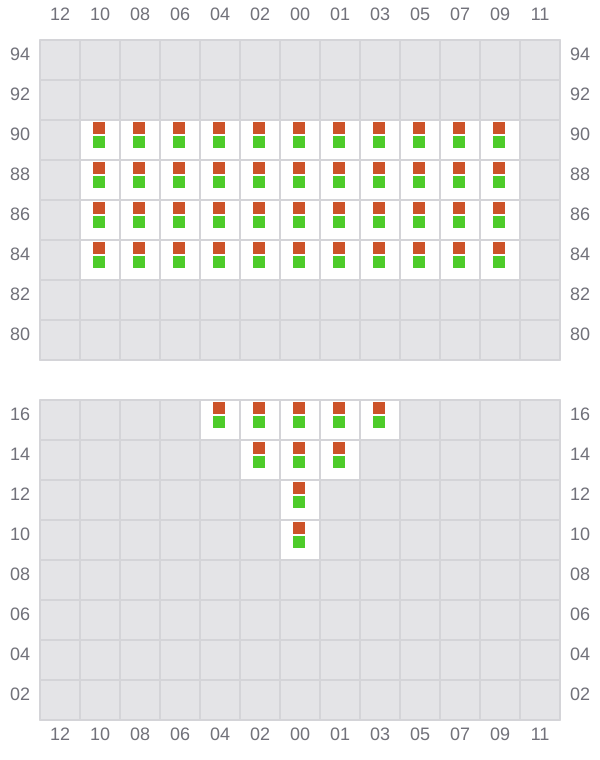

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →

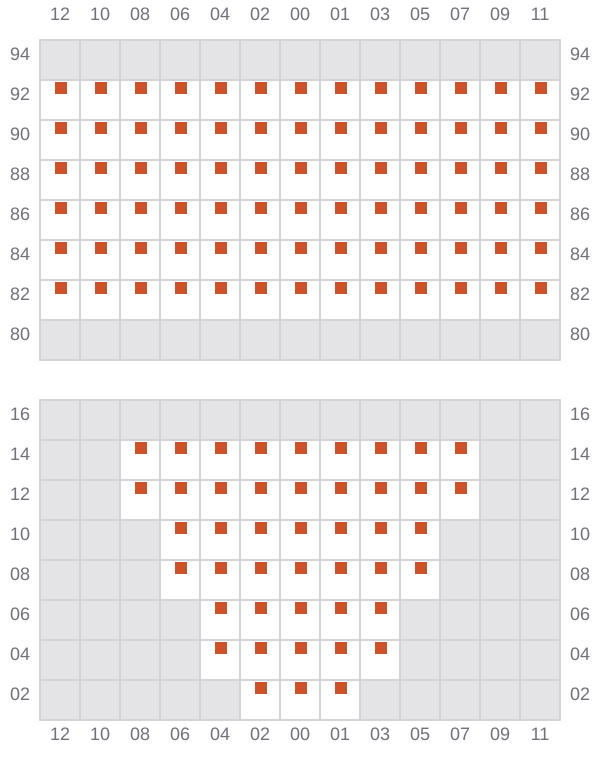

011
- ←

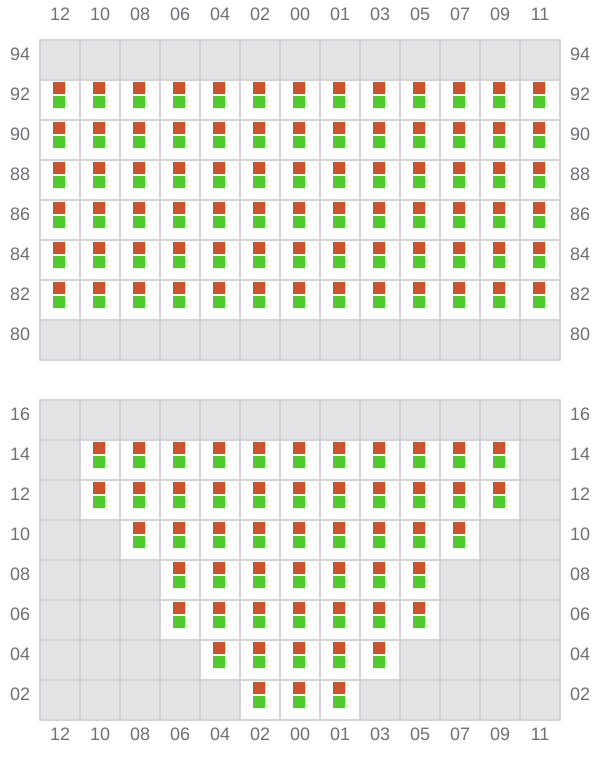

013 (014)
- →

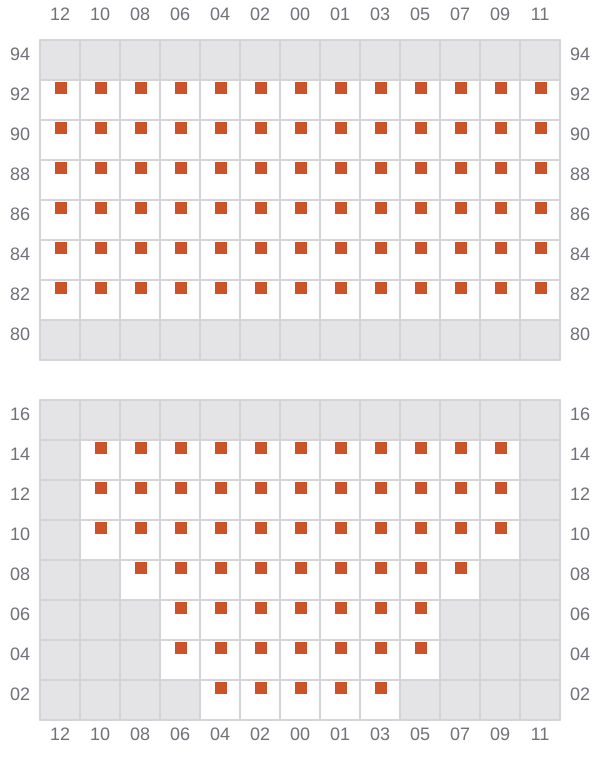

015
- ←

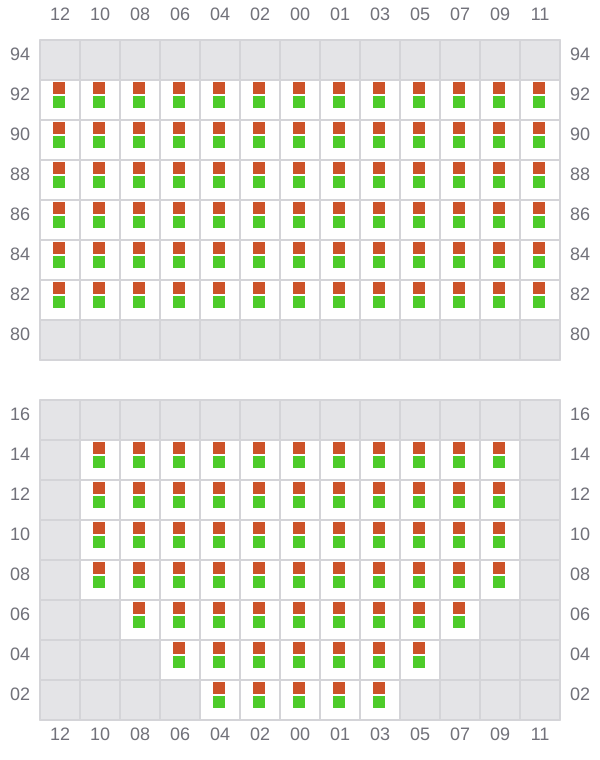

017 (018)
- →
019
- ←

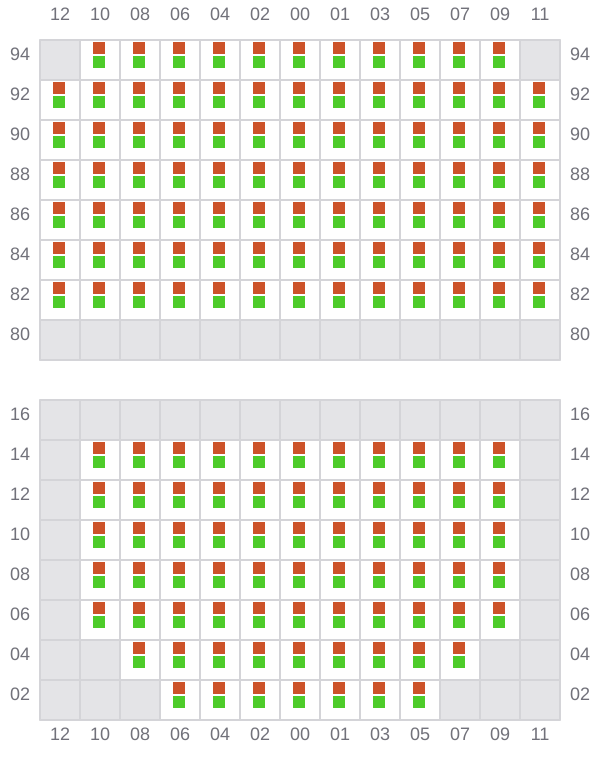

021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

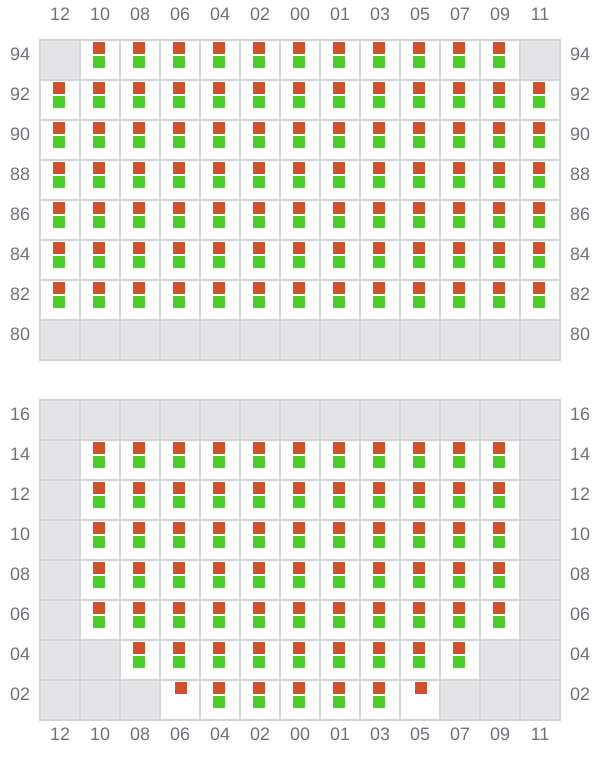

045 (046)
- →

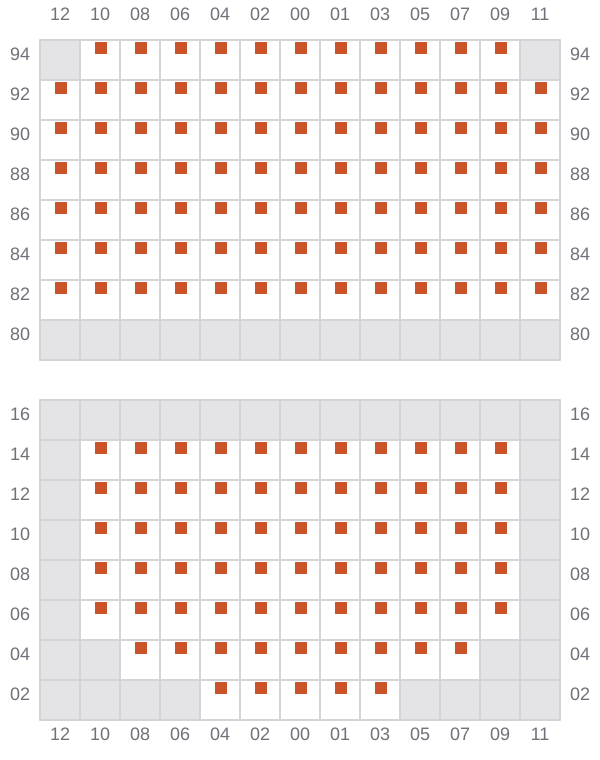

047
- ←

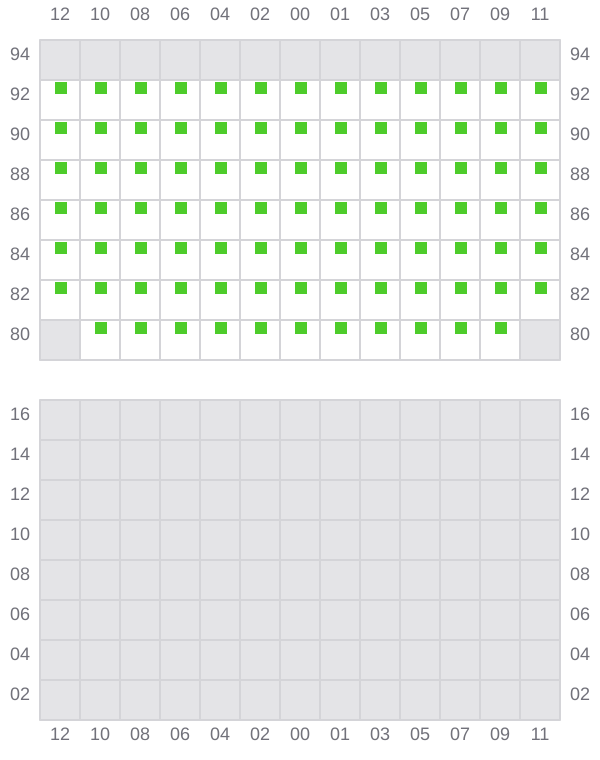

049 (050)
- → / ?
051

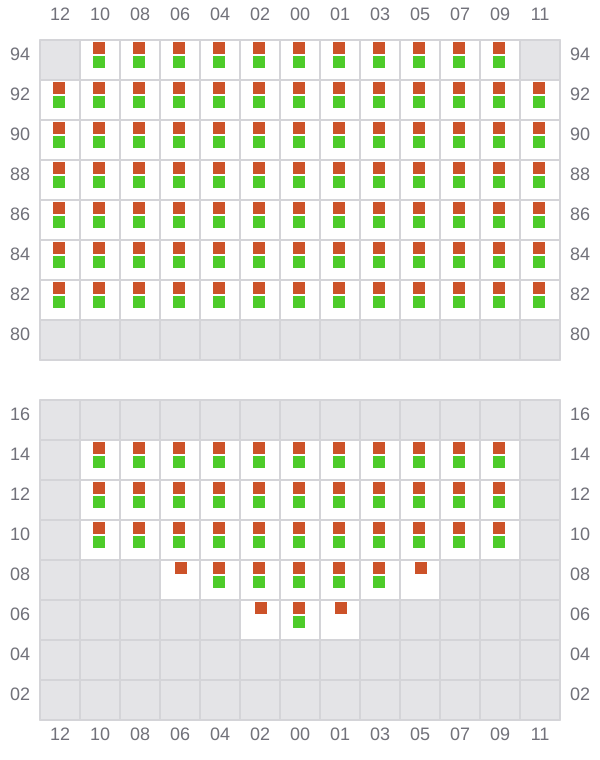

053 (054)
- →

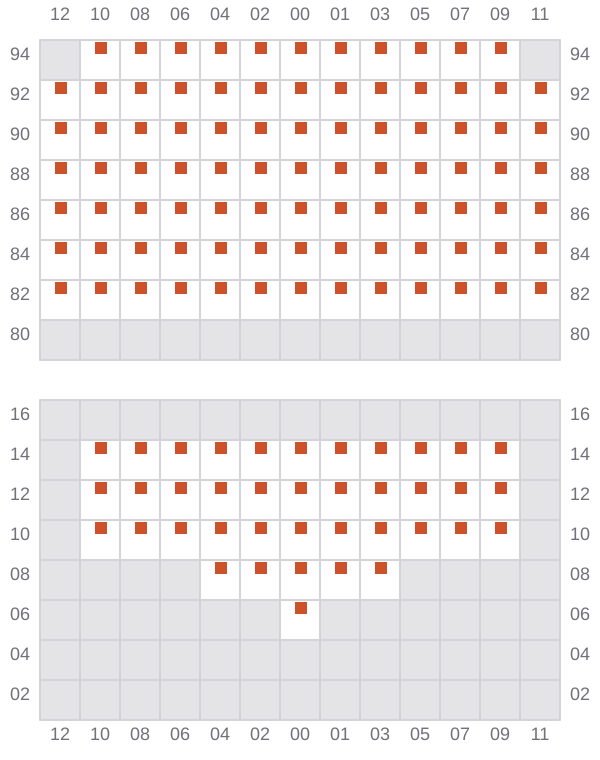

055
- ←

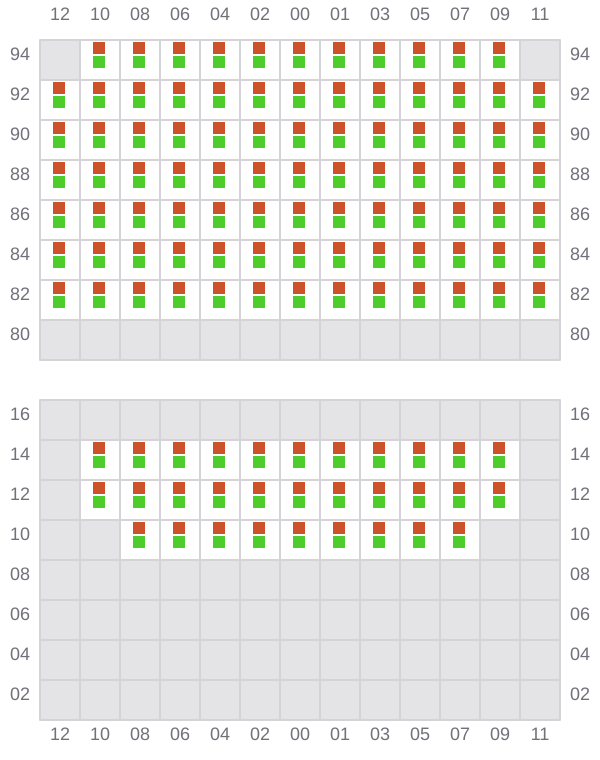

057 (058)
- →

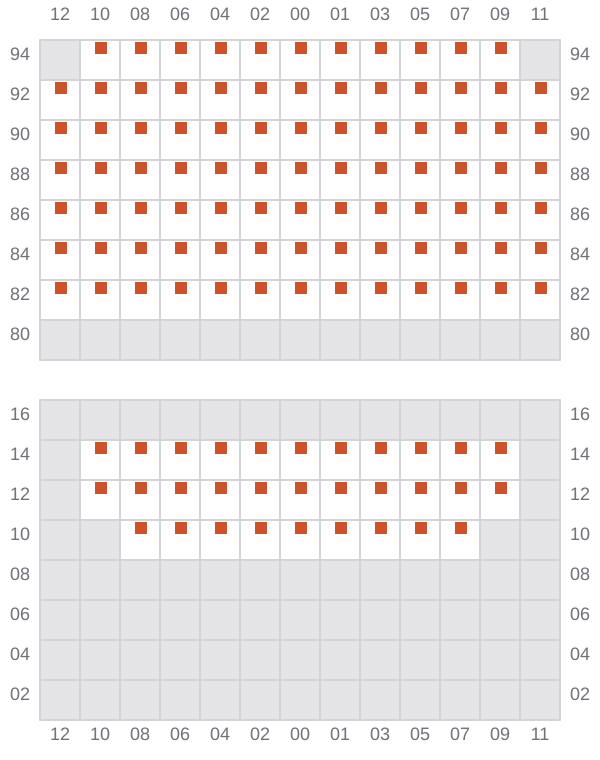

059
- ←

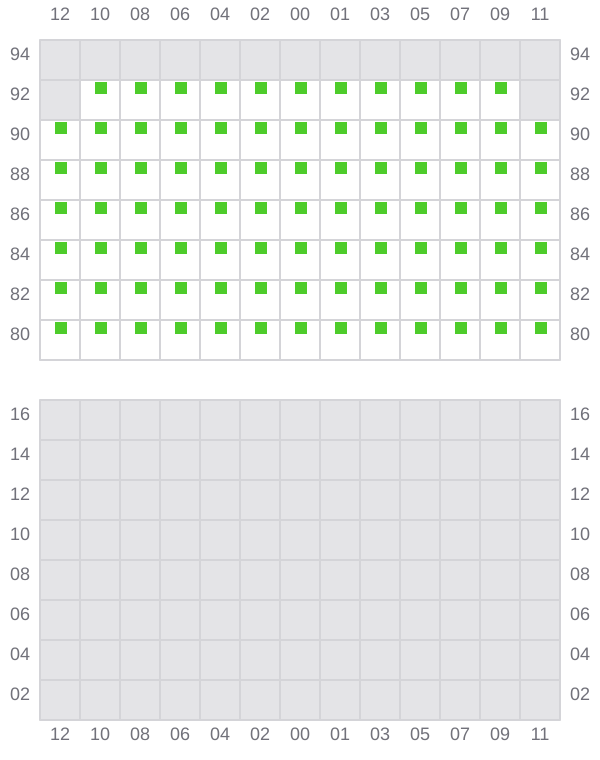

061 (062)
- → / ?
