KOTA NAZIM
9390240 | 9VEY4 | 9390240 by ********* Last update: Wed Jul 03 2024

General Info

Ship Name:KOTA NAZIM
IMO Code:9390240
Call Sign:9VEY4
Line Operator:9390240
Class Name for Sister Ships:PIL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,813

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

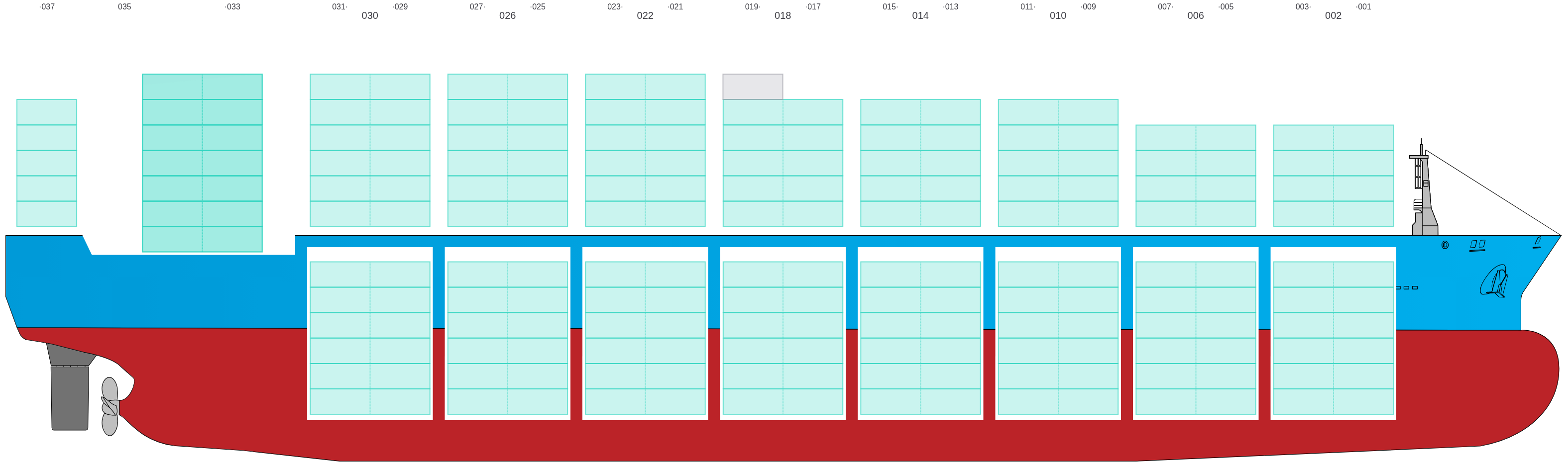

Side view of KOTA NAZIM

Hatch-Covers View

Deck view of KOTA NAZIM

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

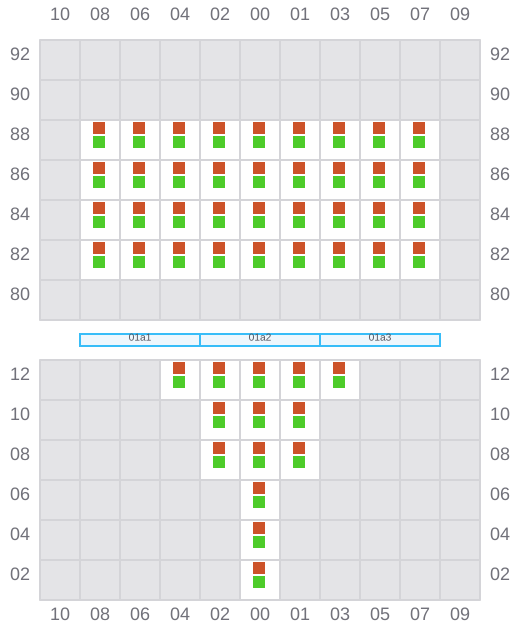

Bay 001 view and slots of KOTA NAZIM

003

  • ←
Bay 003 view and slots of KOTA NAZIM

005 (006)

  • →
Bay 005 view and slots of KOTA NAZIM

007

  • ←
Bay 007 view and slots of KOTA NAZIM

009 (010)

  • →
Bay 009 view and slots of KOTA NAZIM

011

  • ←
Bay 011 view and slots of KOTA NAZIM

013 (014)

  • →
Bay 013 view and slots of KOTA NAZIM

015

  • ←
Bay 015 view and slots of KOTA NAZIM

017 (018)

  • →
Bay 017 view and slots of KOTA NAZIM

019

  • ←

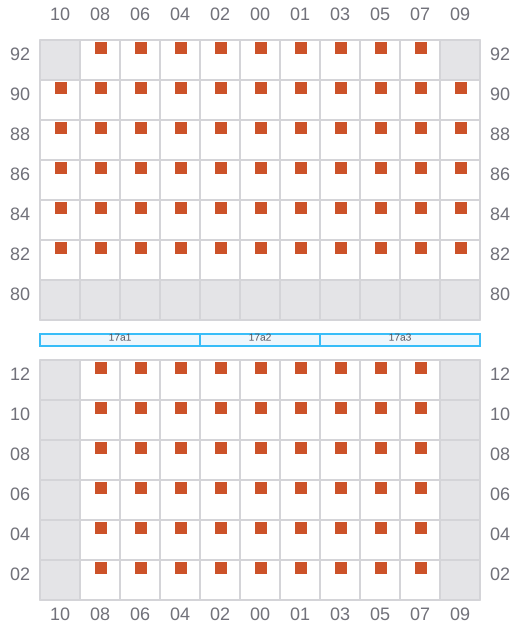

Bay 019 view and slots of KOTA NAZIM

021 (022)

  • →
Bay 021 view and slots of KOTA NAZIM

023

  • ←
Bay 023 view and slots of KOTA NAZIM

025 (026)

  • →
Bay 025 view and slots of KOTA NAZIM

027

  • ←
Bay 027 view and slots of KOTA NAZIM

029 (030)

  • →

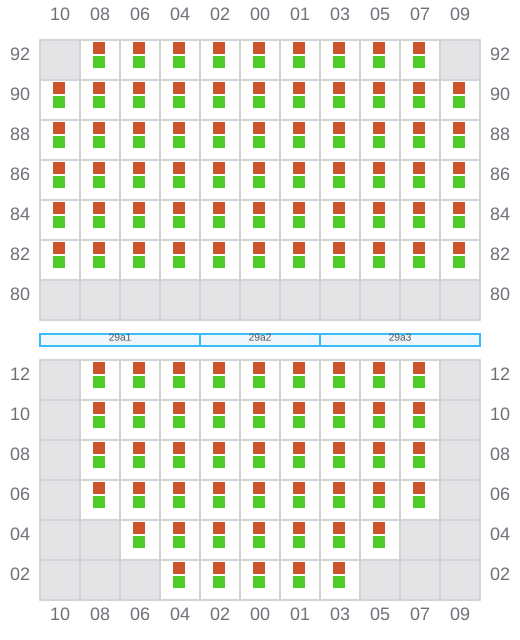

Bay 029 view and slots of KOTA NAZIM

031

  • ←
Bay 031 view and slots of KOTA NAZIM

033 (034)

  • → / ?
Bay 033 view and slots of KOTA NAZIM

035

Bay 035 view and slots of KOTA NAZIM

037

  • → / ?
Bay 037 view and slots of KOTA NAZIM
