KUBILAI KHAN
8913722 | 9PAKK06 | 8913722 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:KUBILAI KHAN
IMO Code:8913722
Call Sign:9PAKK06
Line Operator:8913722
Class Name for Sister Ships:39W
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:589
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

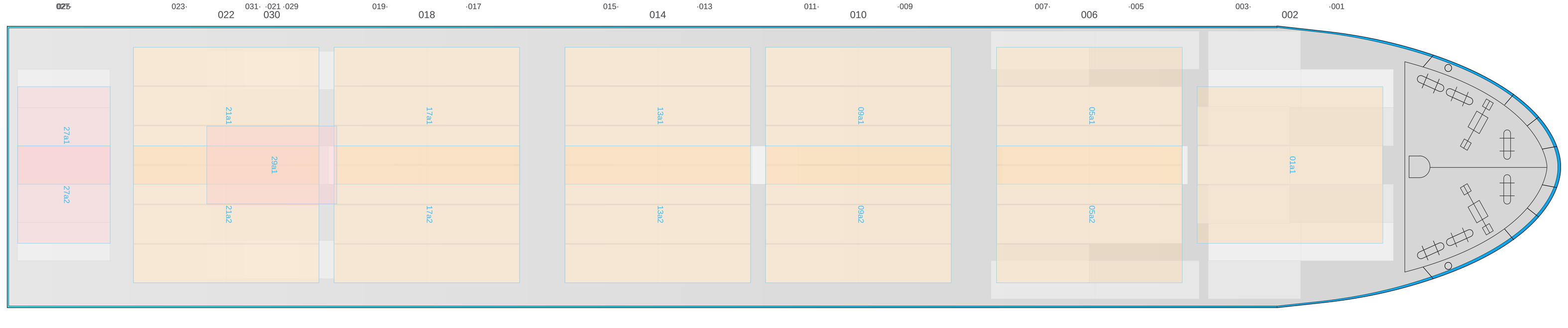

Hatch-Covers View

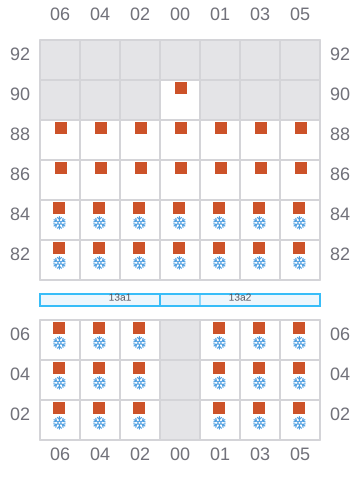

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- →
009 (010)
- →
- ←
011
- ←
013 (014)
- →
015
- ←
- →
017 (018)
- →
- ←
019
- ←
021 (022)
- →
023
- ←
- → / ?
025
027 (026)
- ← / ?
029 (030)
- → / ?
031
- ← / ?
