KUNASHIR
9142588 | UBSI9 | 9142588 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:KUNASHIR
IMO Code:9142588
Call Sign:UBSI9
Line Operator:9142588
Class Name for Sister Ships:36W
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:604
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

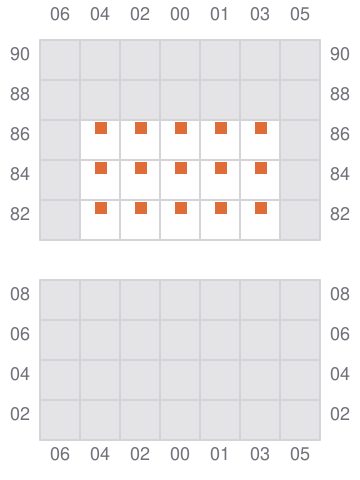

001

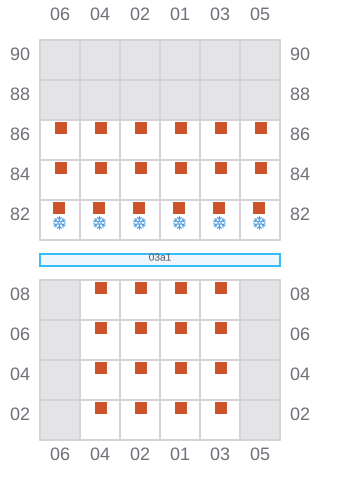

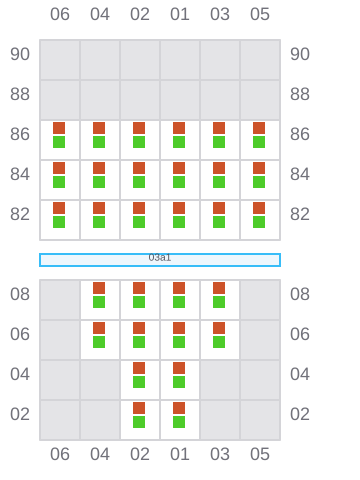

003 (004)
- →
005
- ←
- → / ?

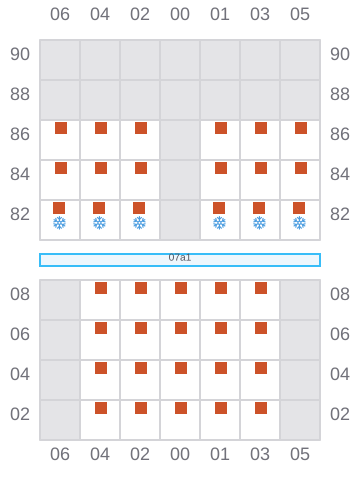

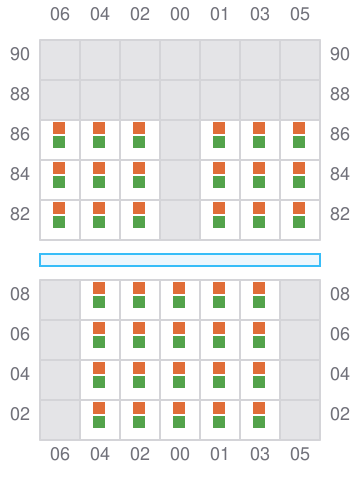

007 (008)
- →
009
- ←
- → / ?

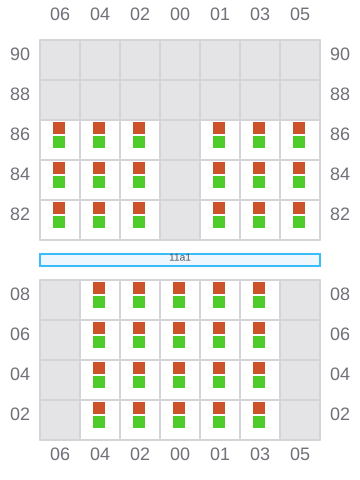

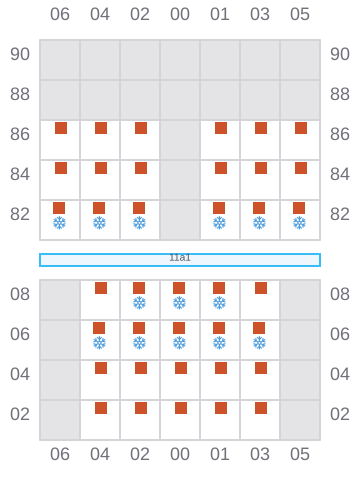

011 (012)
- →
013
- ←
- →

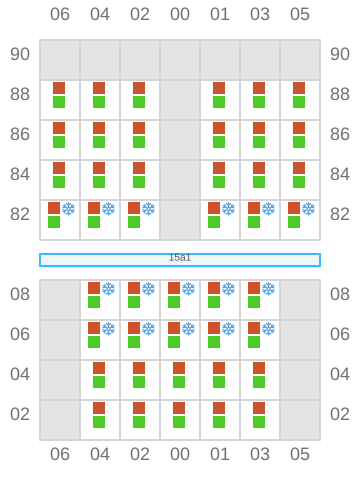

015 (016)
- →
- ←

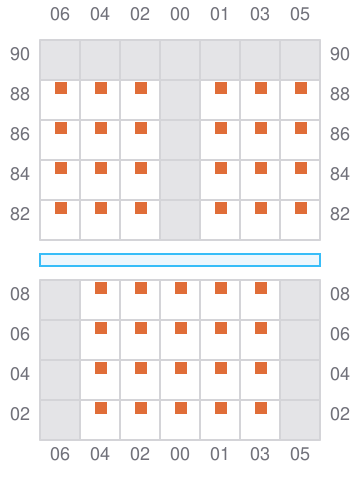

017
- ←

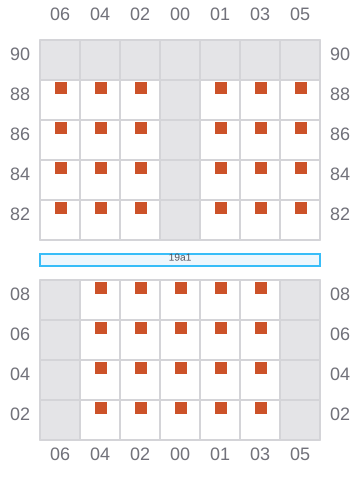

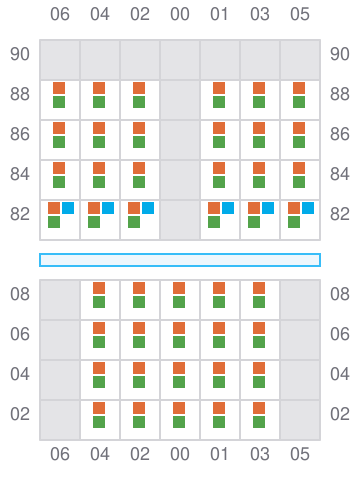

019 (020)
- →
- ← / ?
021
- ←

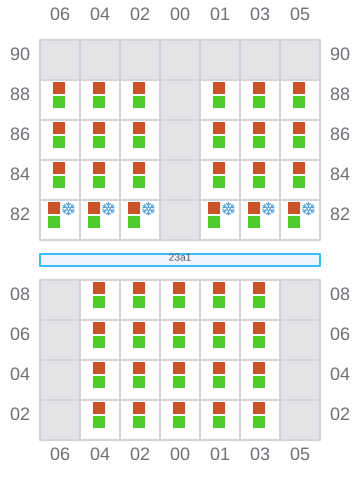

023 (024)
- →
- ← / ?
025
- ←
027 (028)
- →
- ← / ?

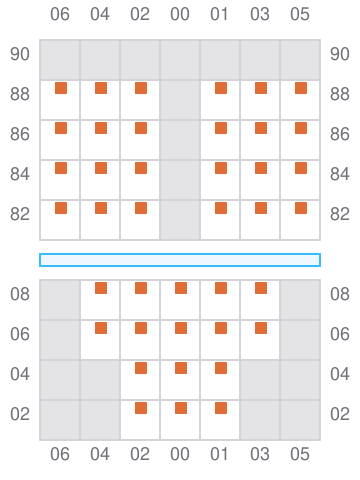

029
- ←

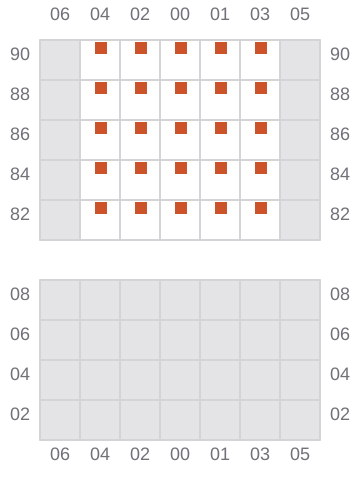

031
