KYOTO EXPRESS
9295256 | 5LJE7 | HLC by *********************** Last update: Tue Jan 21 2025

General Info

Ship Name:KYOTO EXPRESS
IMO Code:9295256
Call Sign:5LJE7
Line Operator:HLC
Class Name for Sister Ships:HKYX
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,600

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of KYOTO EXPRESS

Hatch-Covers View

Deck view of KYOTO EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of KYOTO EXPRESS

003 (004)

  • →
  • →
Bay 003 view and slots of KYOTO EXPRESS

005

  • ←
  • → / ?
  • →

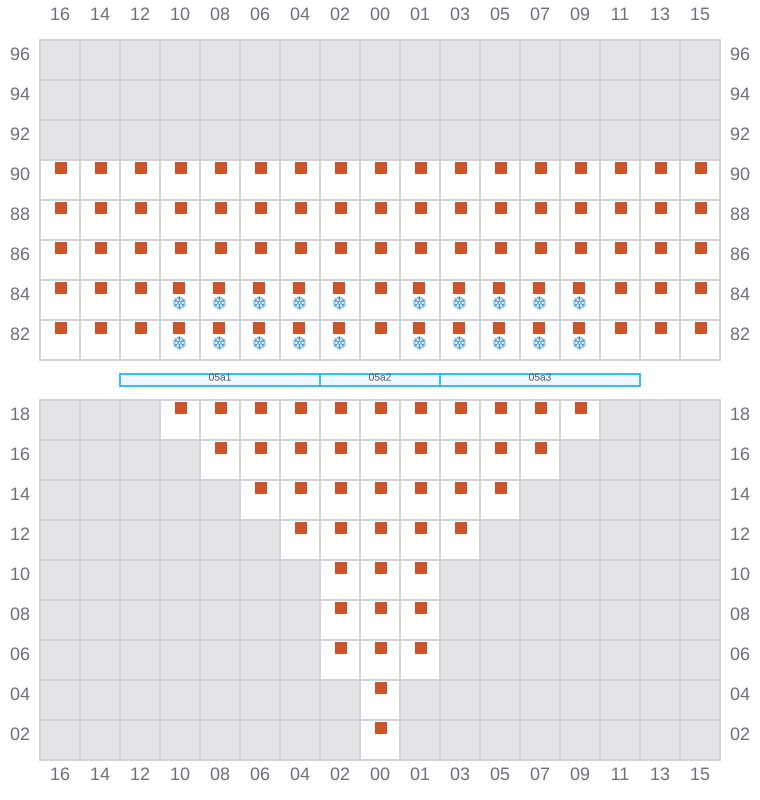

Bay 005 view and slots of KYOTO EXPRESS

007 (008)

  • →
  • →
Bay 007 view and slots of KYOTO EXPRESS

009

  • ←
  • → / ?
  • →
Bay 009 view and slots of KYOTO EXPRESS

011 (012)

  • →
  • →
Bay 011 view and slots of KYOTO EXPRESS

013

  • ←
  • → / ?
  • →
Bay 013 view and slots of KYOTO EXPRESS

015 (016)

  • →
  • →

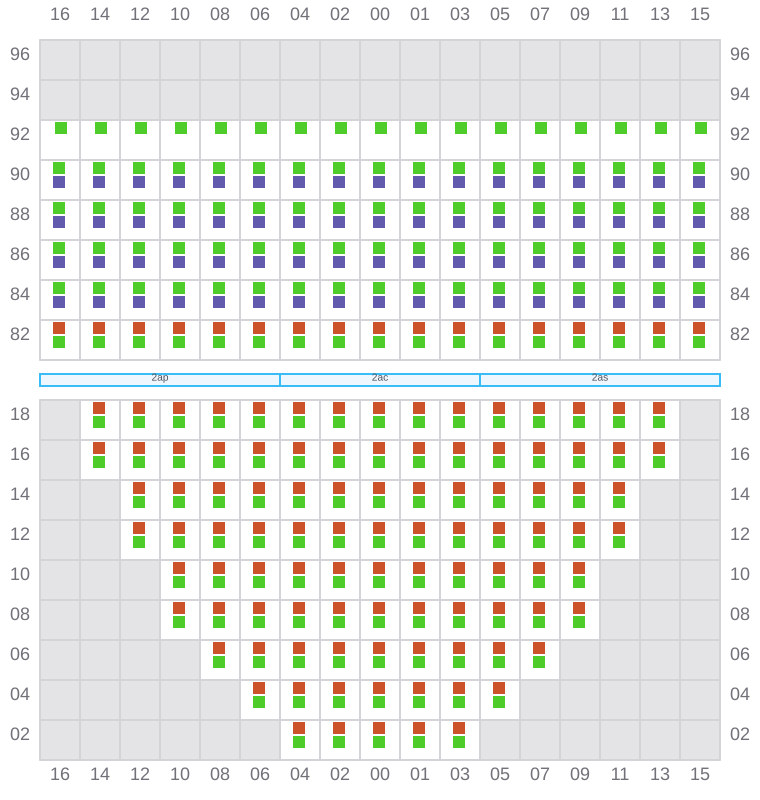

Bay 015 view and slots of KYOTO EXPRESS

017

  • ←
  • → / ?
  • →
Bay 017 view and slots of KYOTO EXPRESS

019 (020)

  • →
  • →
Bay 019 view and slots of KYOTO EXPRESS

021

  • ←
  • → / ?
  • →

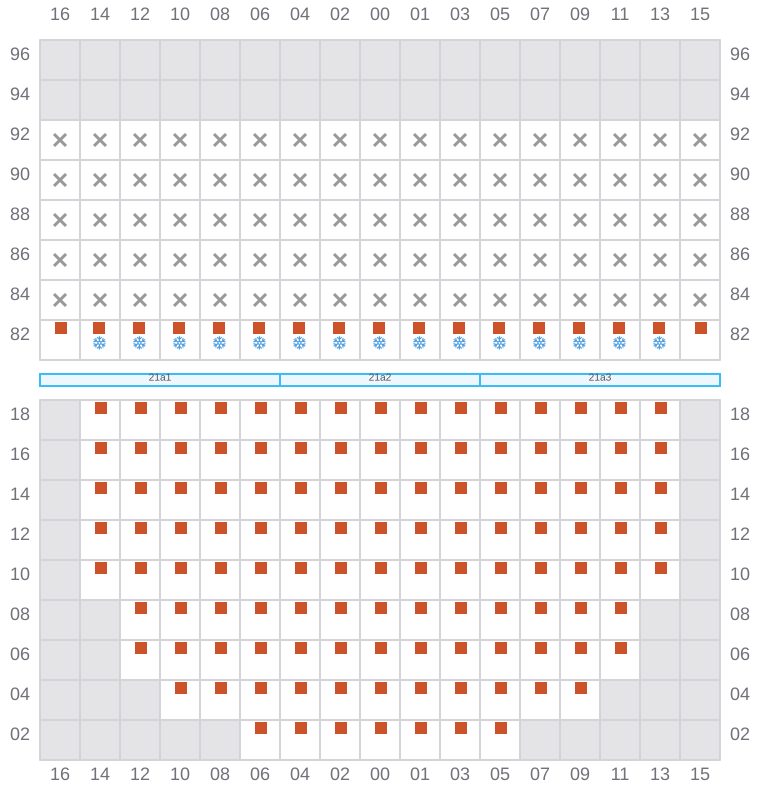

Bay 021 view and slots of KYOTO EXPRESS

023 (024)

  • →
  • →
Bay 023 view and slots of KYOTO EXPRESS

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of KYOTO EXPRESS

027 (028)

  • →
  • →
Bay 027 view and slots of KYOTO EXPRESS

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of KYOTO EXPRESS

031

  • → / ?
Bay 031 view and slots of KYOTO EXPRESS

033 (034)

  • →
  • →
Bay 033 view and slots of KYOTO EXPRESS

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of KYOTO EXPRESS

037 (038)

  • →
  • →
Bay 037 view and slots of KYOTO EXPRESS

039

  • ←
  • →
  • →
Bay 039 view and slots of KYOTO EXPRESS

041 (042)

  • →
  • →
Bay 041 view and slots of KYOTO EXPRESS

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of KYOTO EXPRESS

045 (046)

  • →
  • →
Bay 045 view and slots of KYOTO EXPRESS

047

  • ←
  • →
  • →
Bay 047 view and slots of KYOTO EXPRESS

049 (050)

  • →
  • →

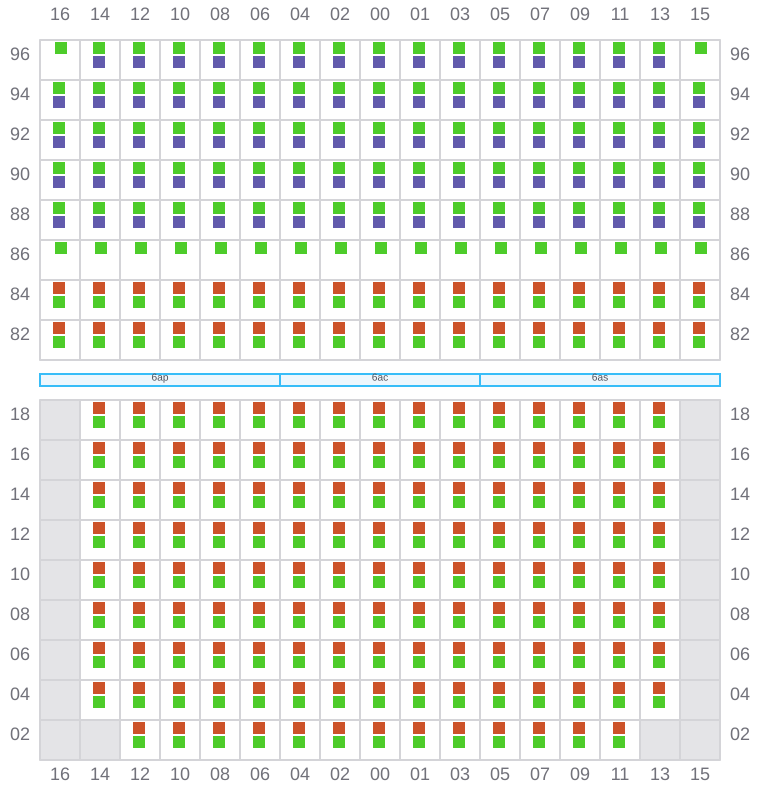

Bay 049 view and slots of KYOTO EXPRESS

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of KYOTO EXPRESS

053 (054)

  • →
  • →

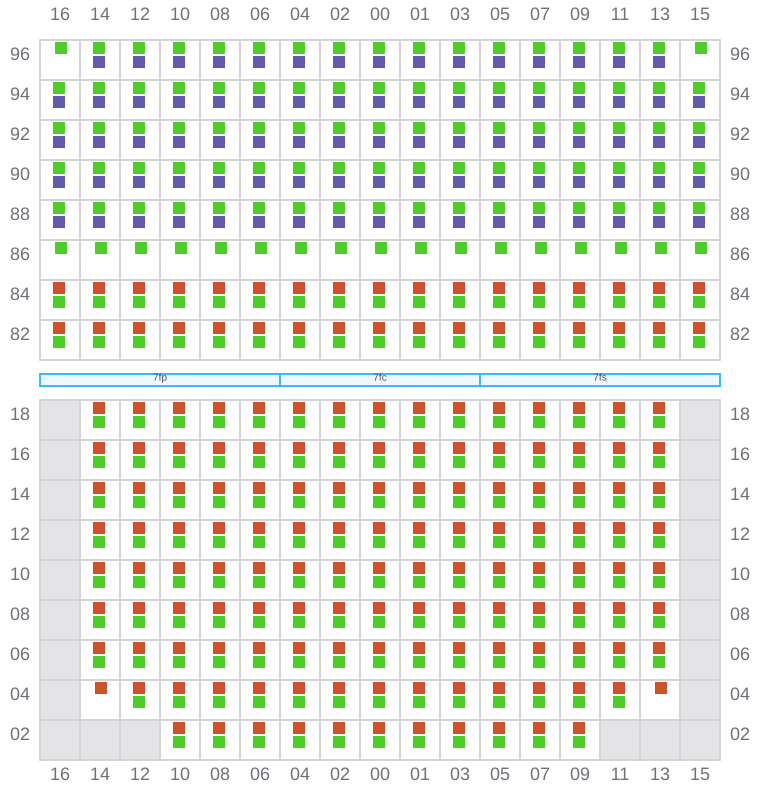

Bay 053 view and slots of KYOTO EXPRESS

055

  • ←
  • →
  • →
Bay 055 view and slots of KYOTO EXPRESS

057 (058)

  • →
  • →

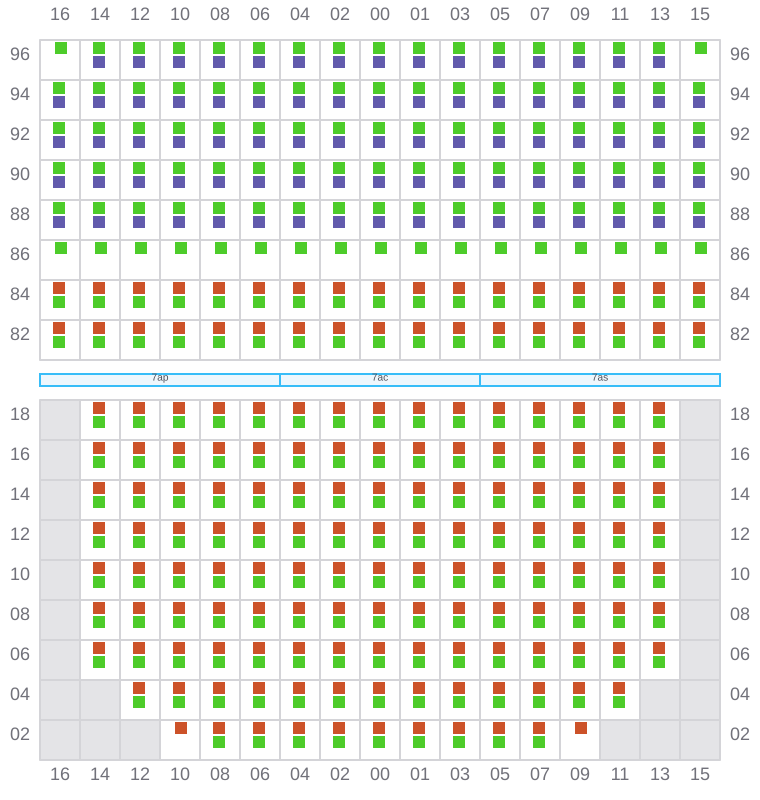

Bay 057 view and slots of KYOTO EXPRESS

059

  • ←
  • → / ?
  • →

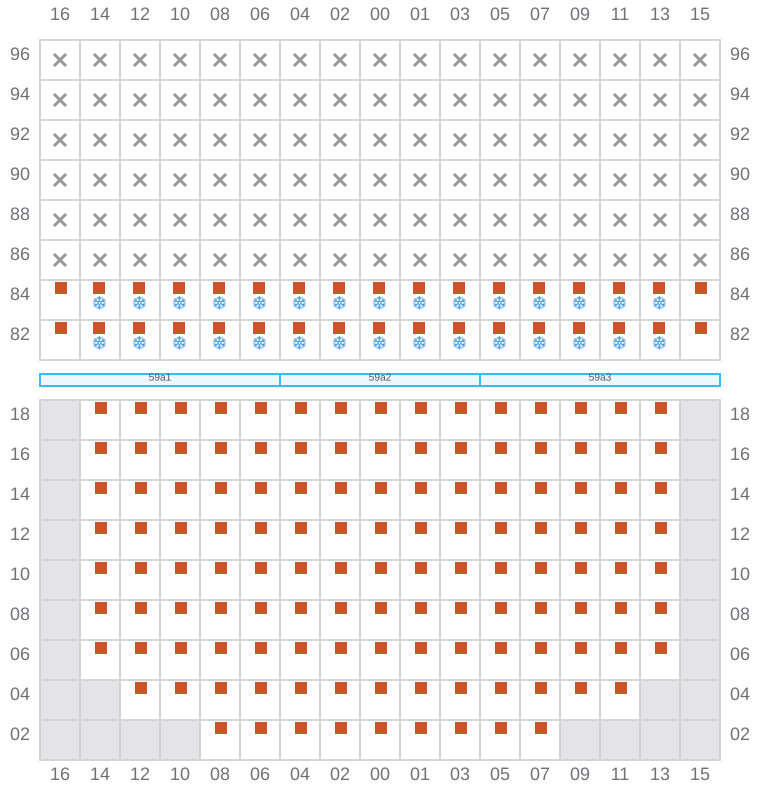

Bay 059 view and slots of KYOTO EXPRESS

061 (062)

  • →
  • →
Bay 061 view and slots of KYOTO EXPRESS

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of KYOTO EXPRESS

065 (066)

  • →
  • →
Bay 065 view and slots of KYOTO EXPRESS

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of KYOTO EXPRESS

069 (070)

  • →
  • →

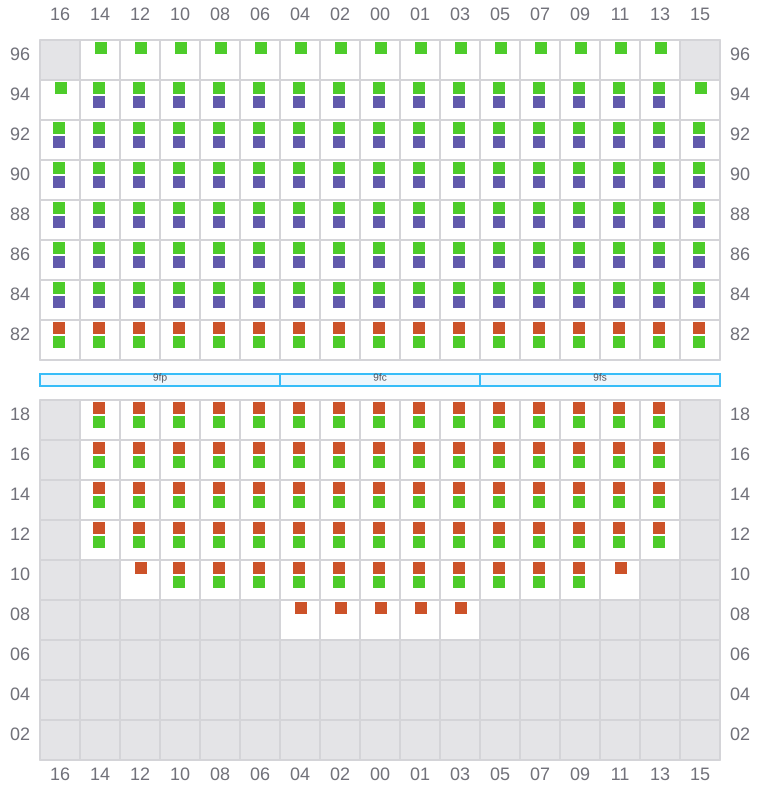

Bay 069 view and slots of KYOTO EXPRESS

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of KYOTO EXPRESS

073 (074)

  • →
  • →
Bay 073 view and slots of KYOTO EXPRESS

075

  • ←
  • → / ?
  • →
Bay 075 view and slots of KYOTO EXPRESS

077 (078)

  • → / ?
  • →
Bay 077 view and slots of KYOTO EXPRESS

079

  • ← / ?
  • → / ?
Bay 079 view and slots of KYOTO EXPRESS
