LADY ESRA
9118276 | 9LU2088 | 9118276 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:LADY ESRA
IMO Code:9118276
Call Sign:9LU2088
Line Operator:9118276
Class Name for Sister Ships:67W
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:557
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

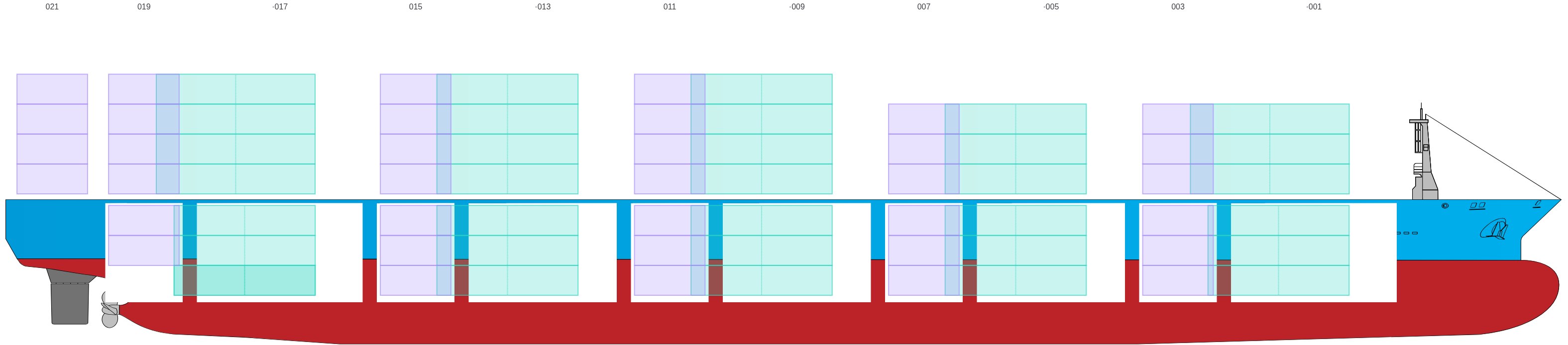

Side View
![Side view of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-sideView.png?v=1709837842039)

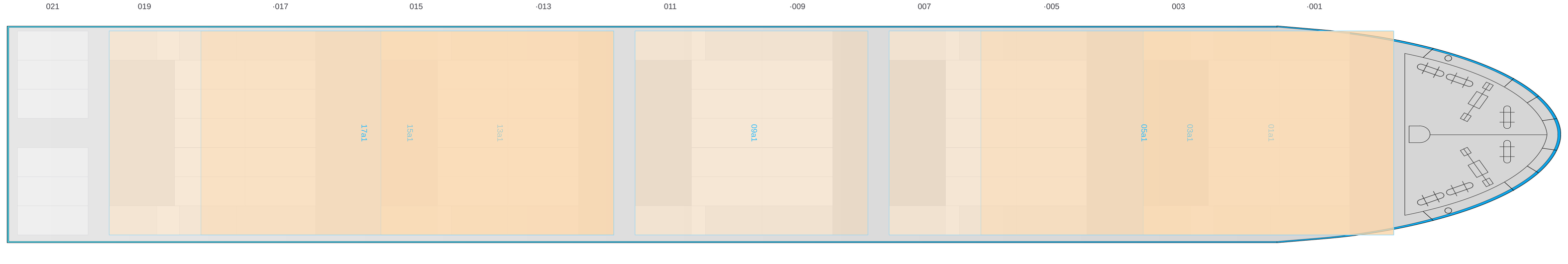

Hatch-Covers View
![Deck view of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-deckView.png?v=1709837842039)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

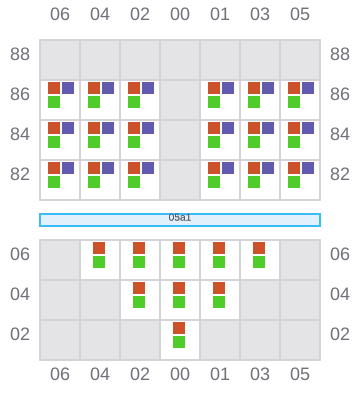

001 (002)
- →
![Bay 001 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b001.png?v=1709837842039)

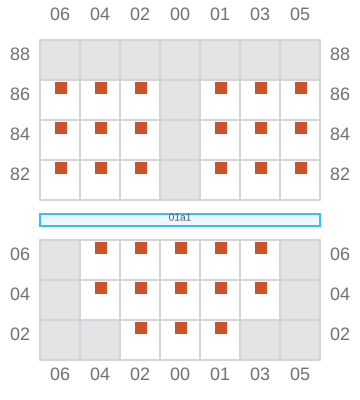

003
![Bay 003 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b003.png?v=1709837842039)

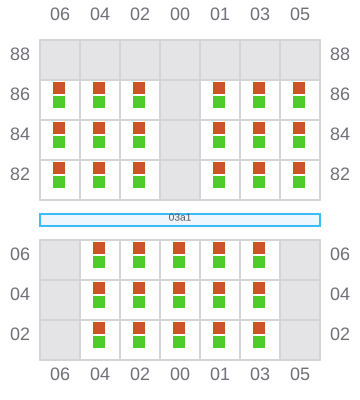

005 (006)
- →
![Bay 005 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b005.png?v=1709837842039)

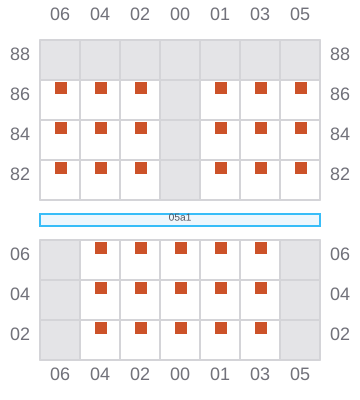

007
![Bay 007 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b007.png?v=1709837842039)

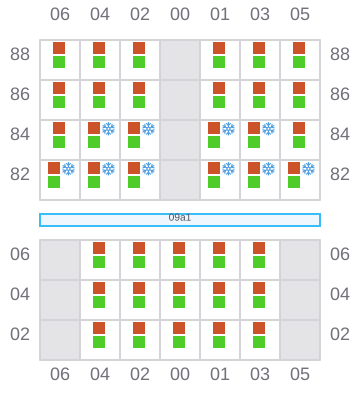

009 (010)
- →
- → / ?
![Bay 009 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b009.png?v=1709837842039)

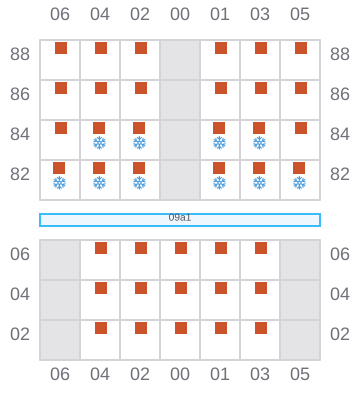

011
![Bay 011 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b011.png?v=1709837842039)
013 (014)
- →
- → / ?
![Bay 013 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b013.png?v=1709837842039)

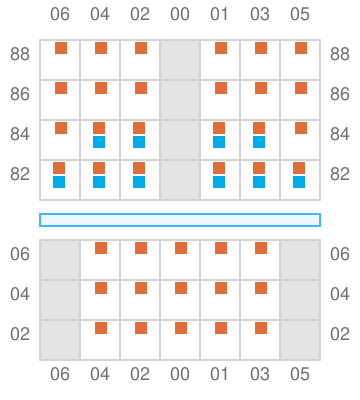

015
![Bay 015 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b015.png?v=1709837842039)

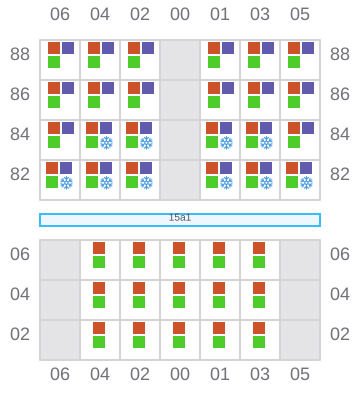

017 (018)
- →
- ← / ?
![Bay 017 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b017.png?v=1709837842039)
019
![Bay 019 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b019.png?v=1709837842039)

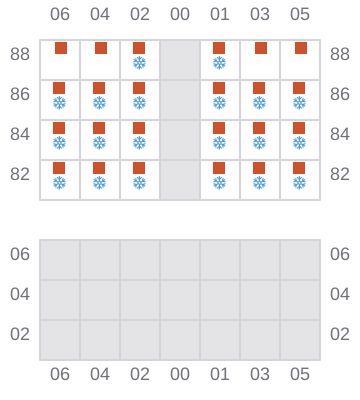

021
- → / ?
![Bay 021 view and slots of LADY ESRA](/vessel-images/fc3c2631-c8f6-46ad-8c27-e249fd50bb22-b021.png?v=1709837842039)
