LANA
9484522 | D5BD7 | CMA by *********************** Last update: Mon Feb 03 2025
General Info
Ship Name:LANA
IMO Code:9484522
Call Sign:D5BD7
Line Operator:CMA
Class Name for Sister Ships:CGLA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,313
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

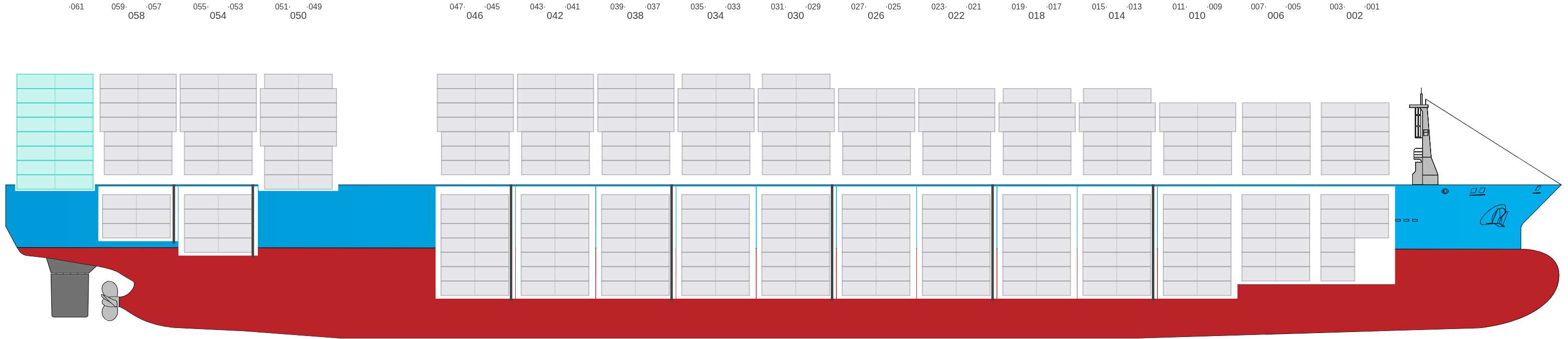

Side View

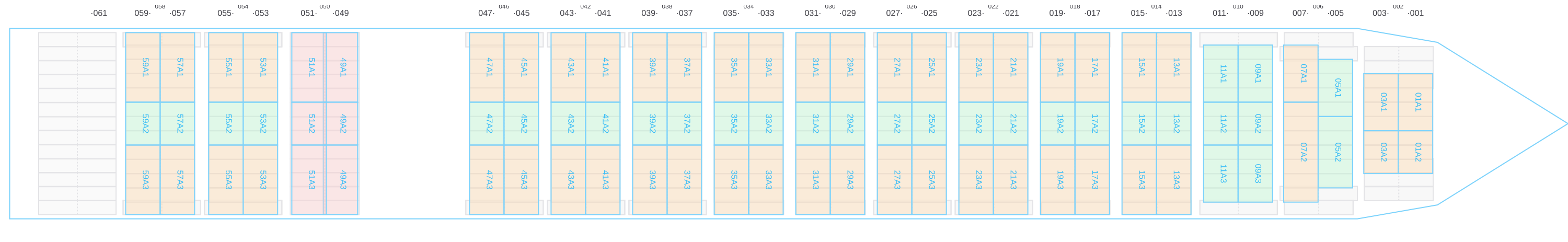

Hatch-Covers View

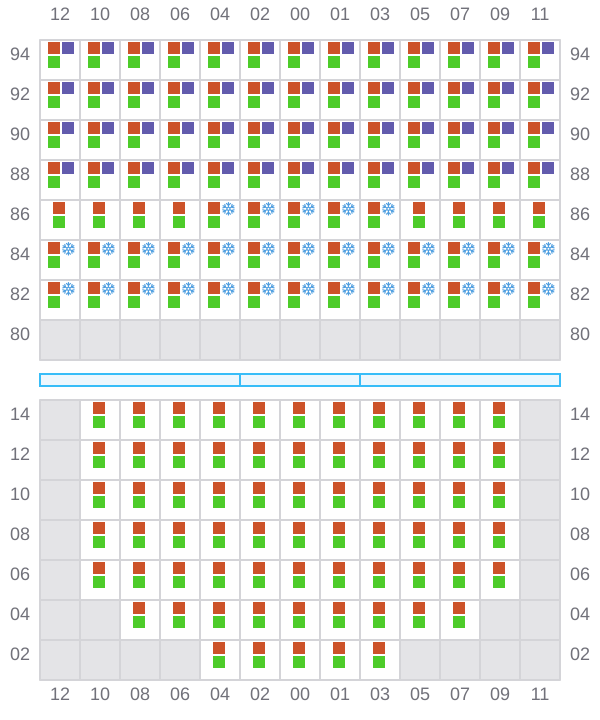

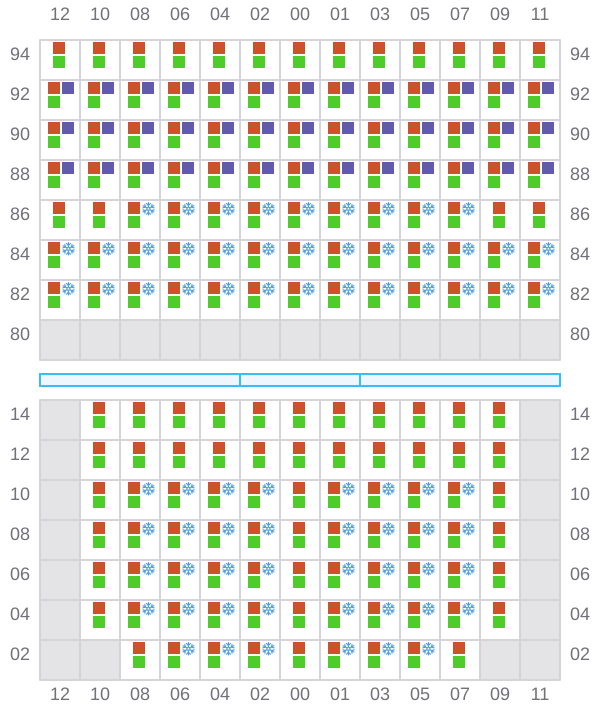

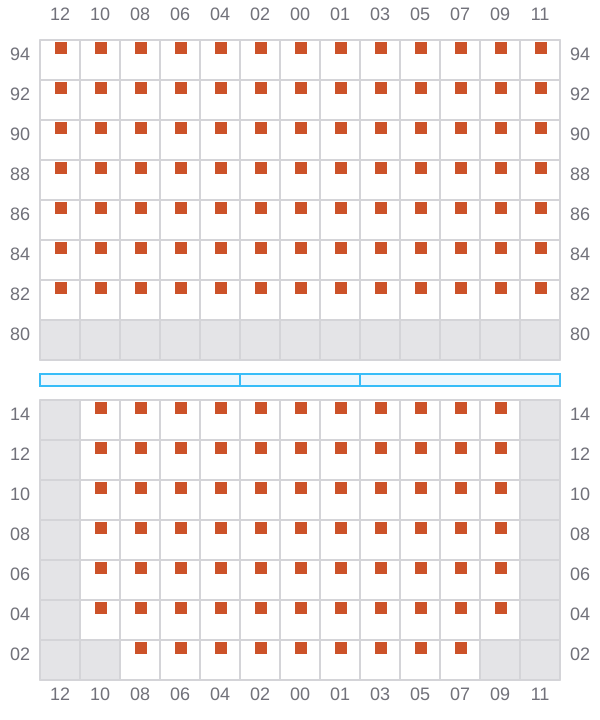

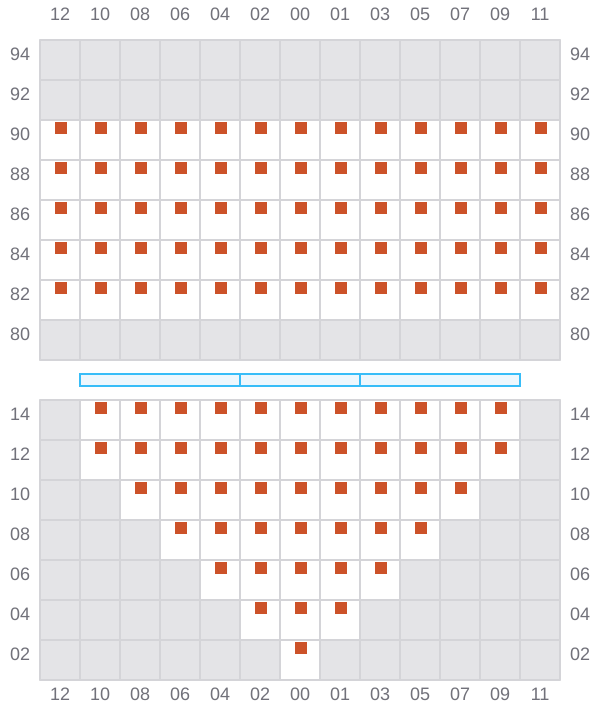

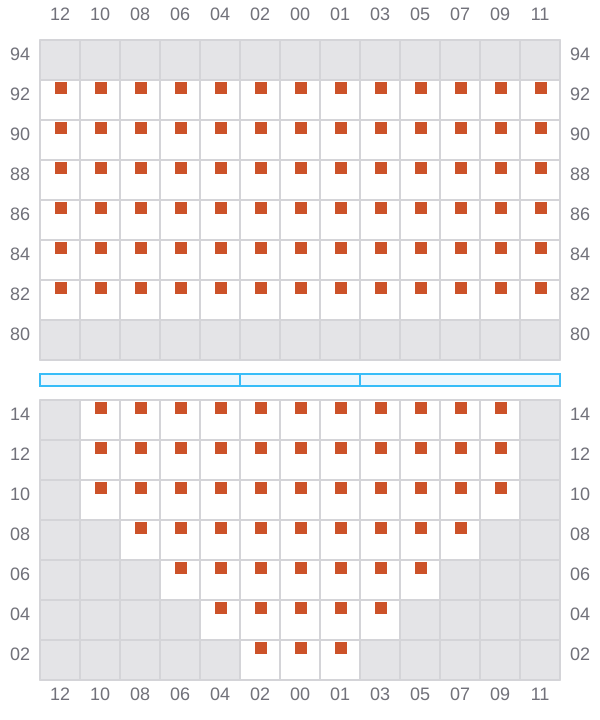

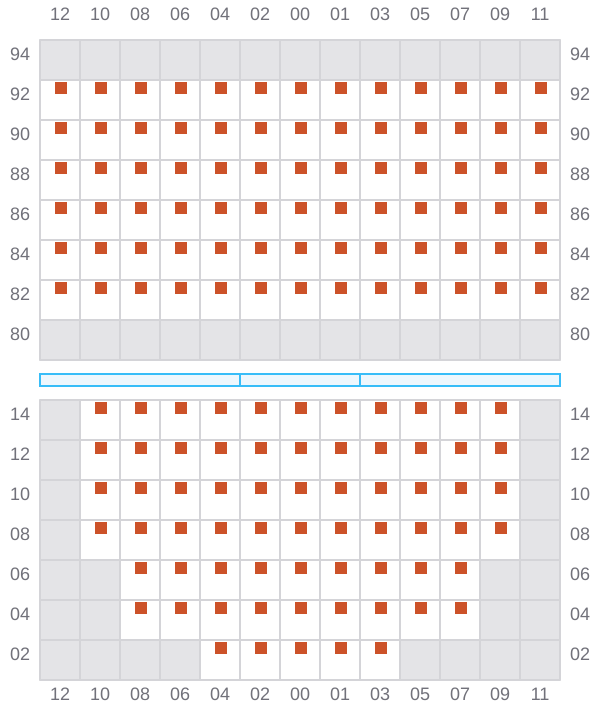

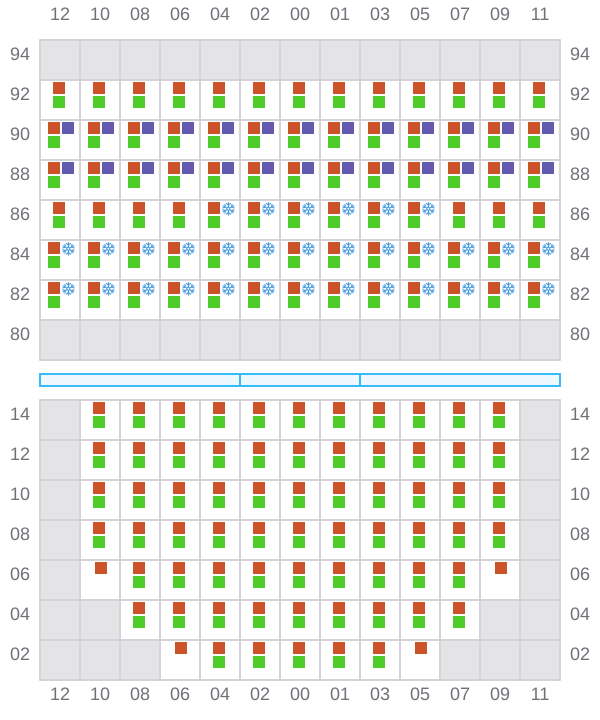

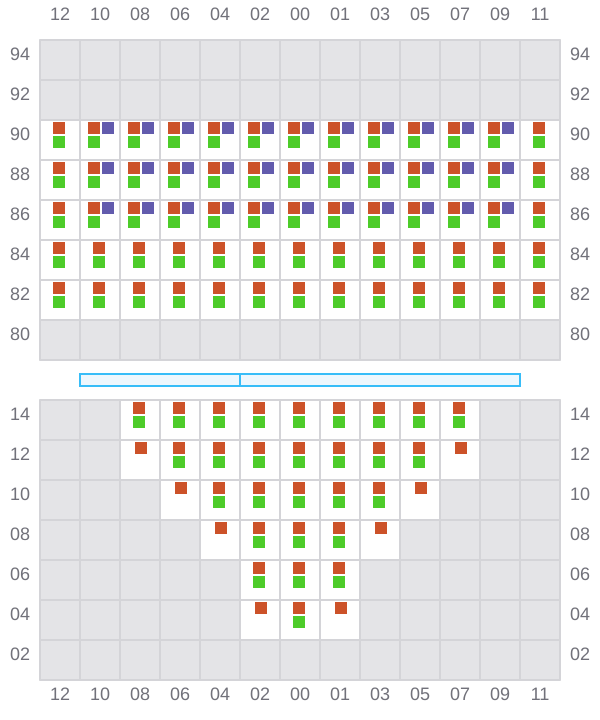

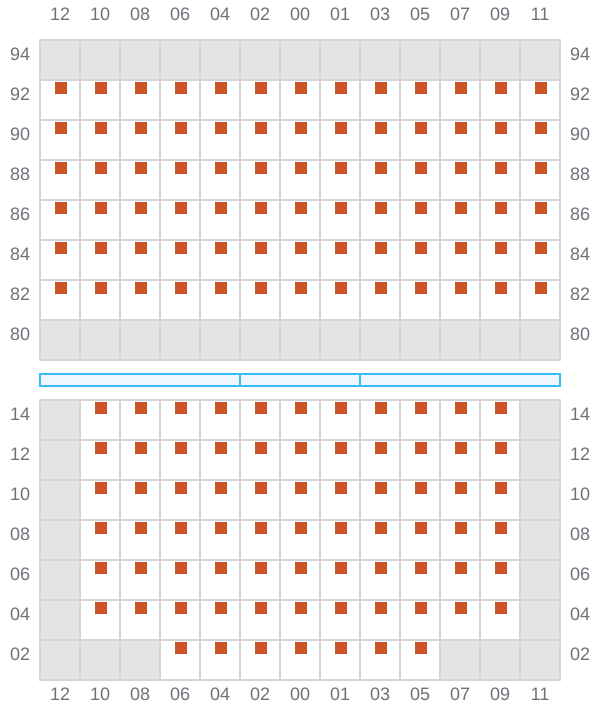

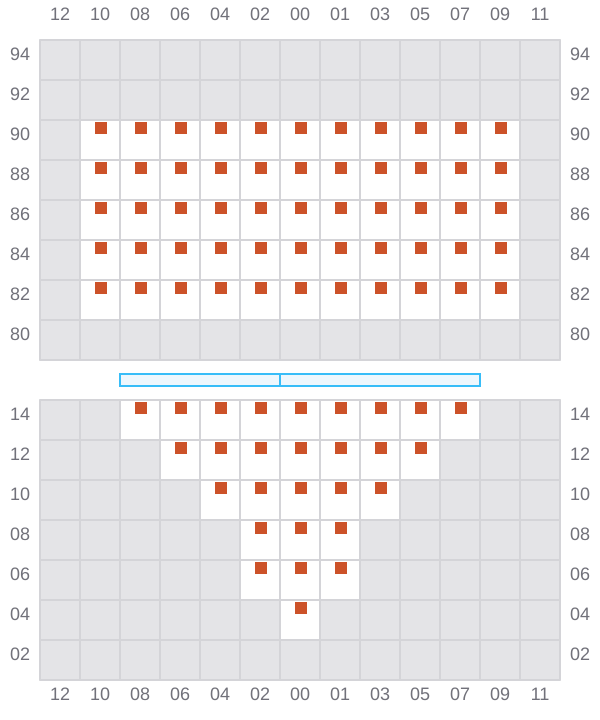

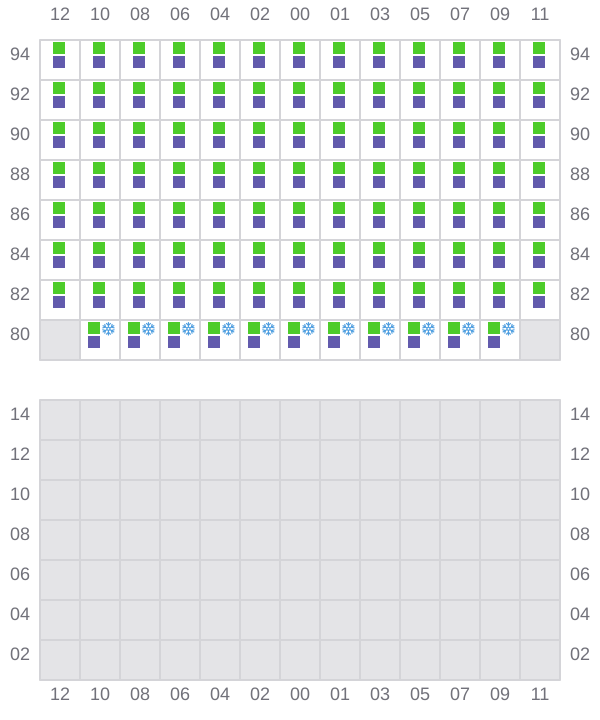

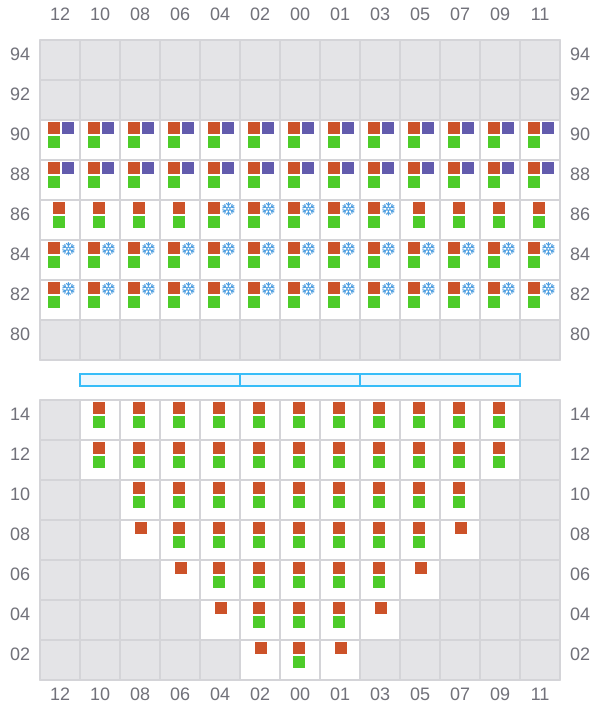

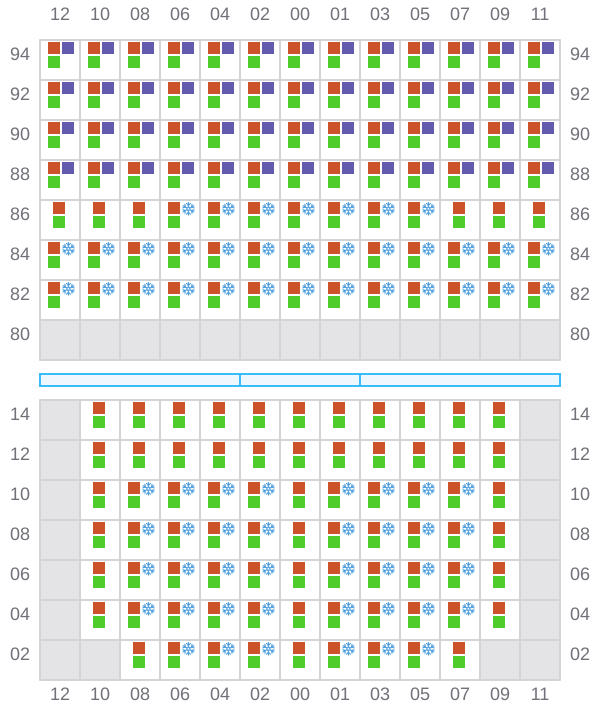

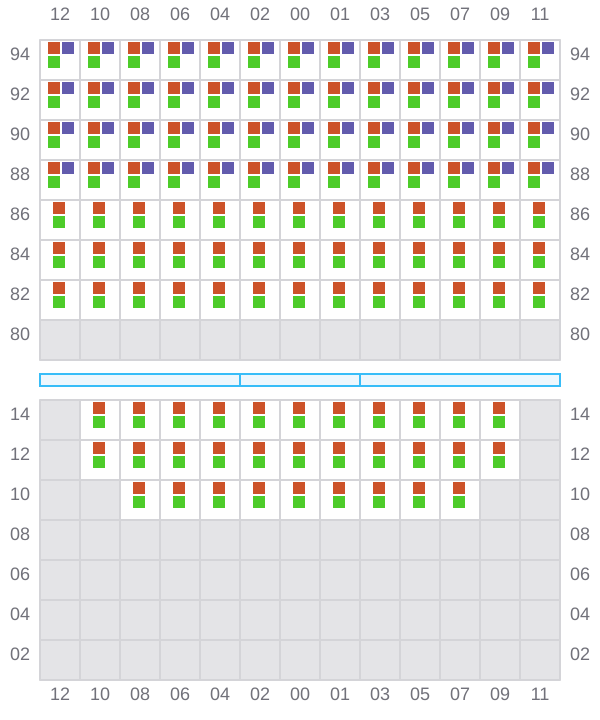

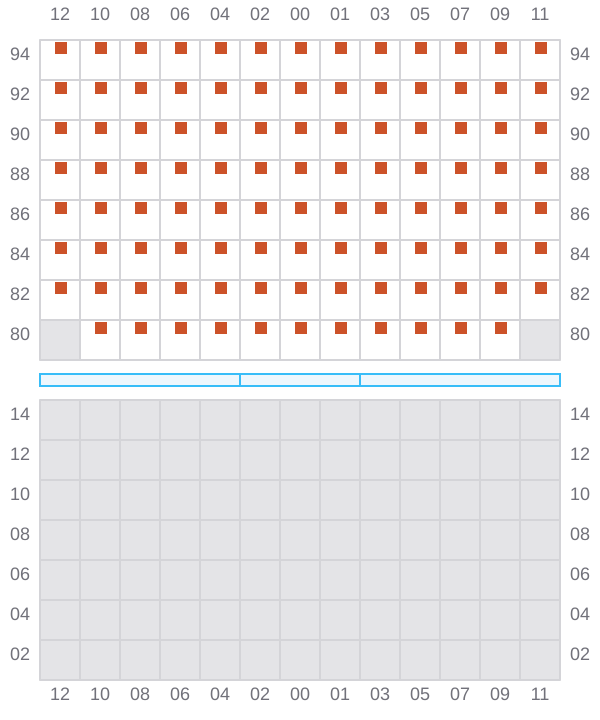

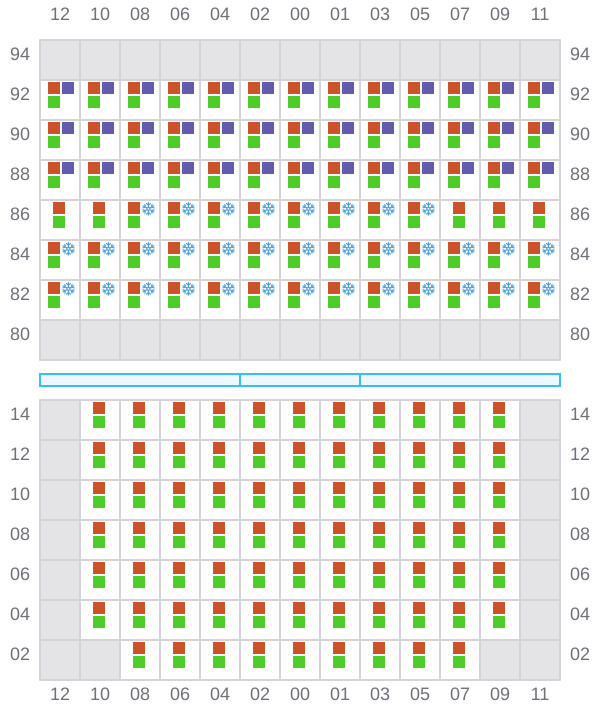

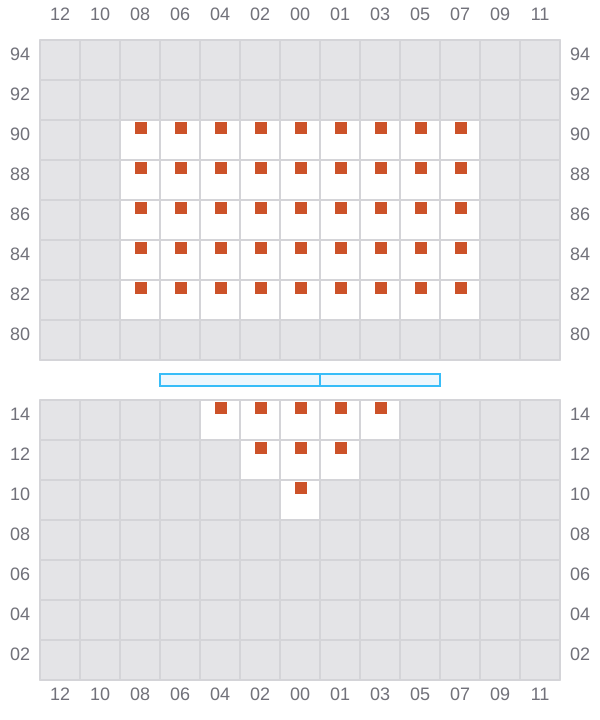

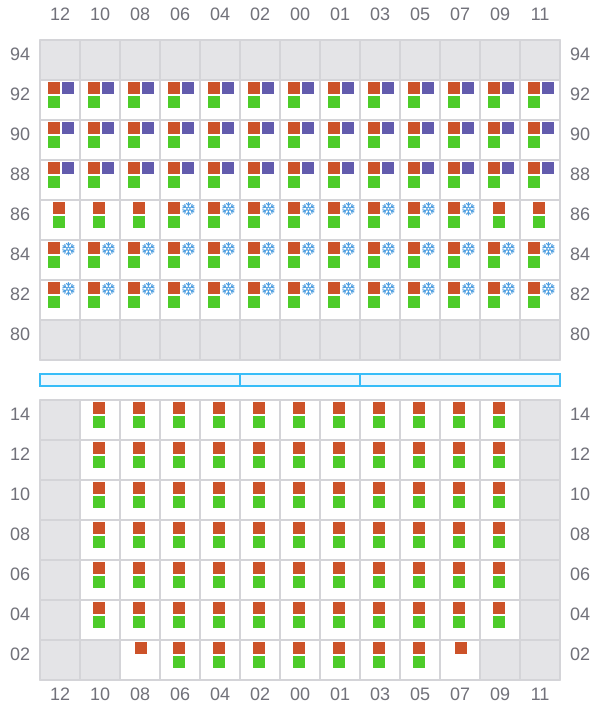

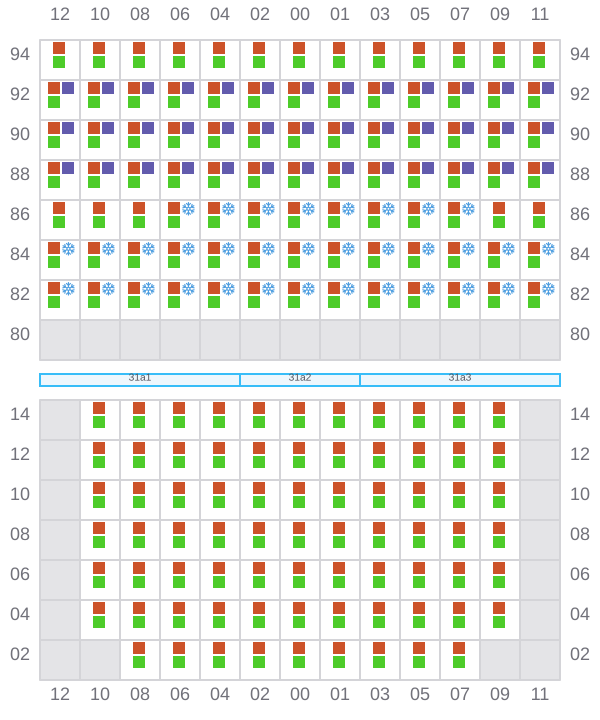

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
- →
003 (002)
- ←
- →
005
- →
- →
007 (006)
- ←
- →
009
- →
- →
011 (010)
- ←
- → / ?
- →
013
- →
- →
015 (014)
- ←
- → / ?
- →
017
- →
- →
019 (018)
- ←
- → / ?
- →
021
- →
- →
023 (022)
- ←
- → / ?
- →
025
- →
- →
027 (026)
- ←
- → / ?
- →
029
- →
- →
031 (030)
- ←
- → / ?
- →
033
- →
- →
035 (034)
- ←
- →
- →
037
- →
- →
039 (038)
- ←
- →
- →
041
- →
- →
043 (042)
- ←
- → / ?
- →
045
- →
- →
047 (046)
- ←
- → / ?
- →
049
- → / ?
- → / ?
051 (050)
- ← / ?
- → / ?
- → / ?
053
- →
- ← / ?
- →
055 (054)
- ←
- →
057
- →
- ← / ?
- →
059 (058)
- ←
- →
061 (062)
- → / ?
- ← / ?
- → / ?
