LANA
9484522 | D5BD7 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:LANA
IMO Code:9484522
Call Sign:D5BD7
Line Operator:MSK
Class Name for Sister Ships:LAN
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,395
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

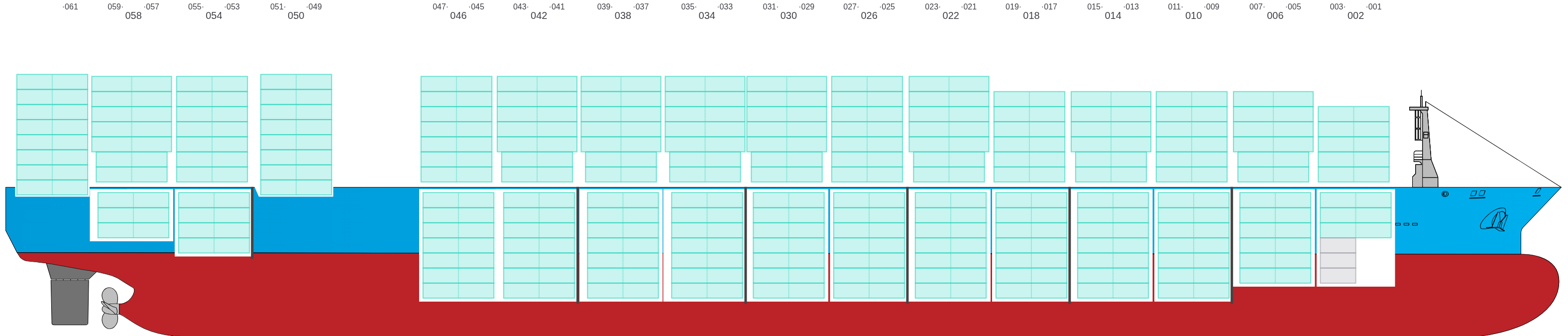

Side View
![Side view of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-sideView.png?v=1687543779647)
Hatch-Covers View
![Deck view of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-deckView.png?v=1687543779647)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

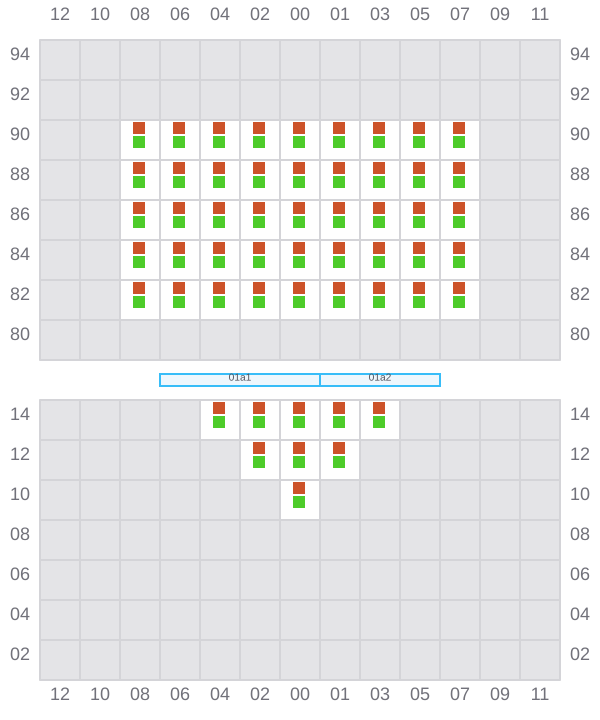

001 (002)
- →
![Bay 001 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b001.png?v=1687543779647)

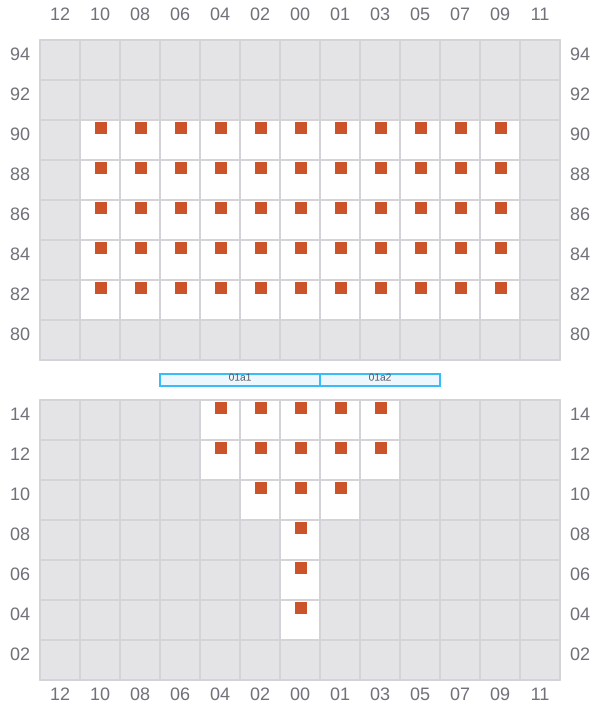

003
- ←
![Bay 003 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b003.png?v=1687543779647)

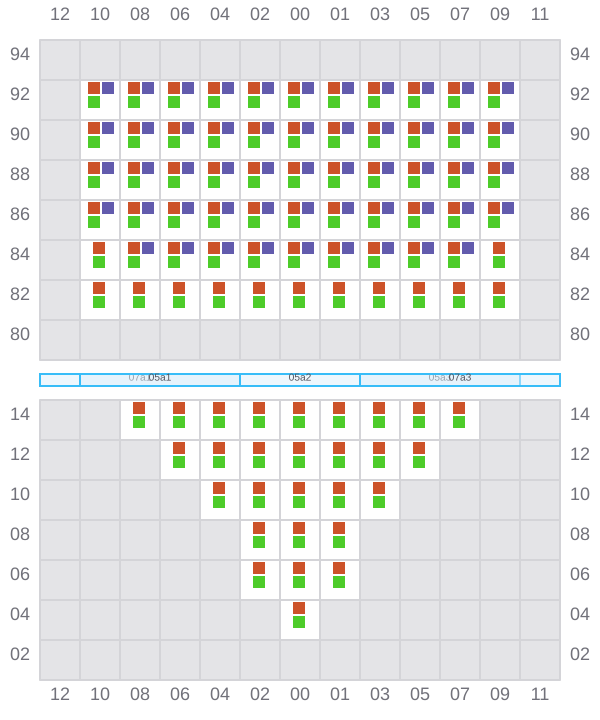

005 (006)
- →
![Bay 005 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b005.png?v=1687543779647)

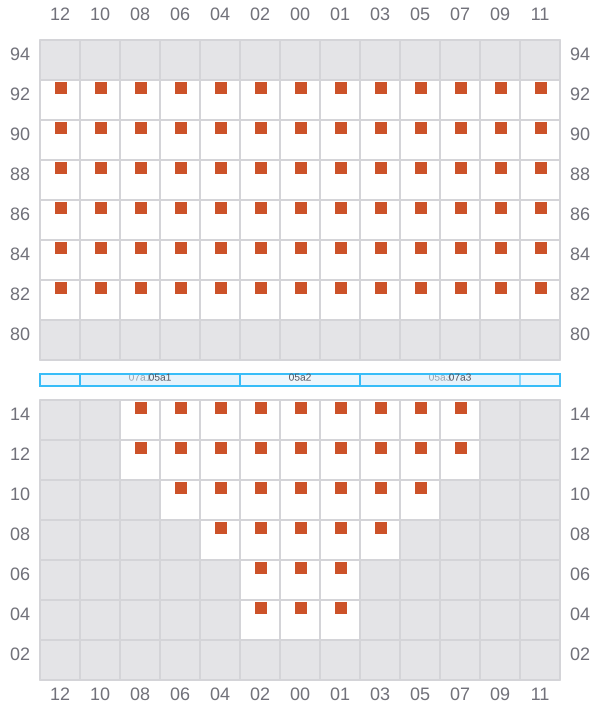

007
- ←
![Bay 007 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b007.png?v=1687543779647)

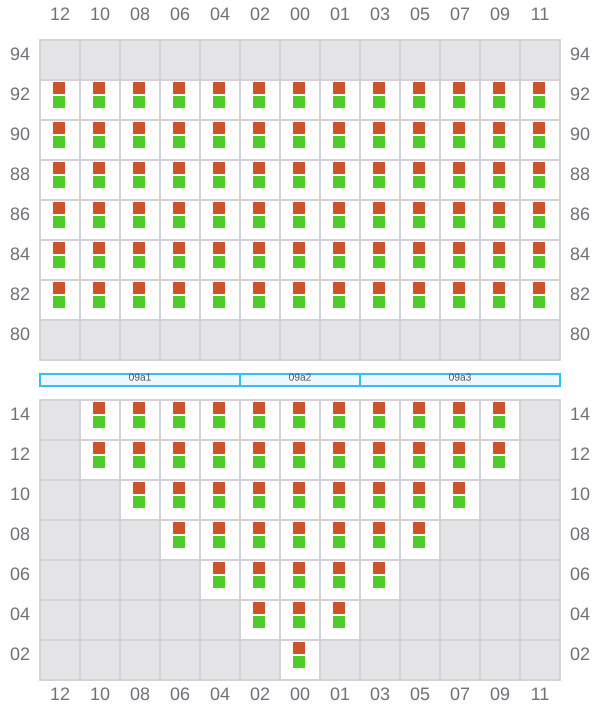

009 (010)
- →
![Bay 009 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b009.png?v=1687543779647)

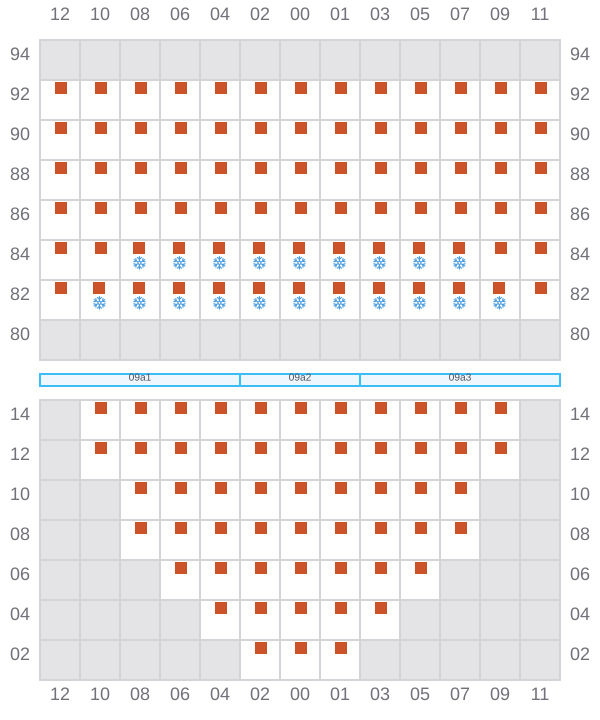

011
- ←
- → / ?
![Bay 011 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b011.png?v=1687543779647)

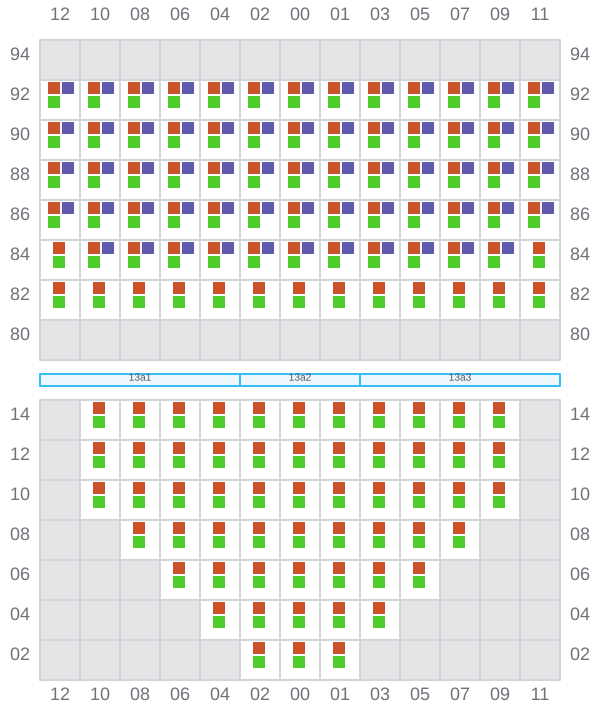

013 (014)
- →
![Bay 013 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b013.png?v=1687543779647)

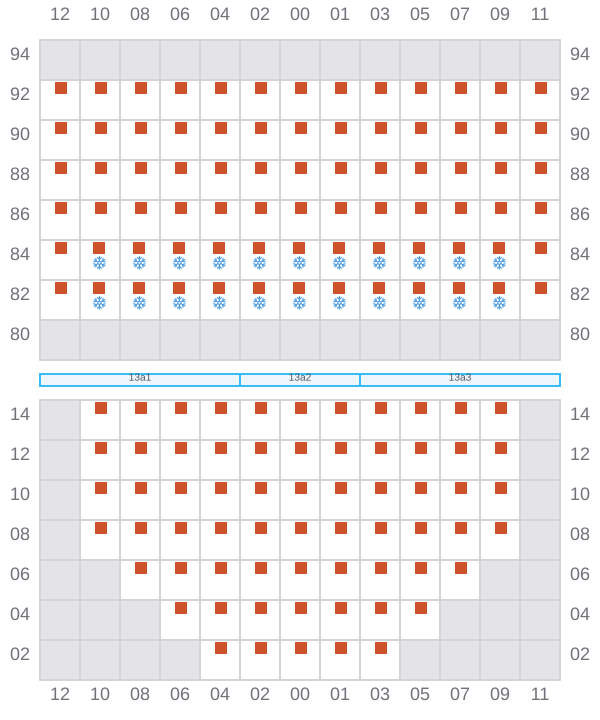

015
- ←
![Bay 015 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b015.png?v=1687543779647)

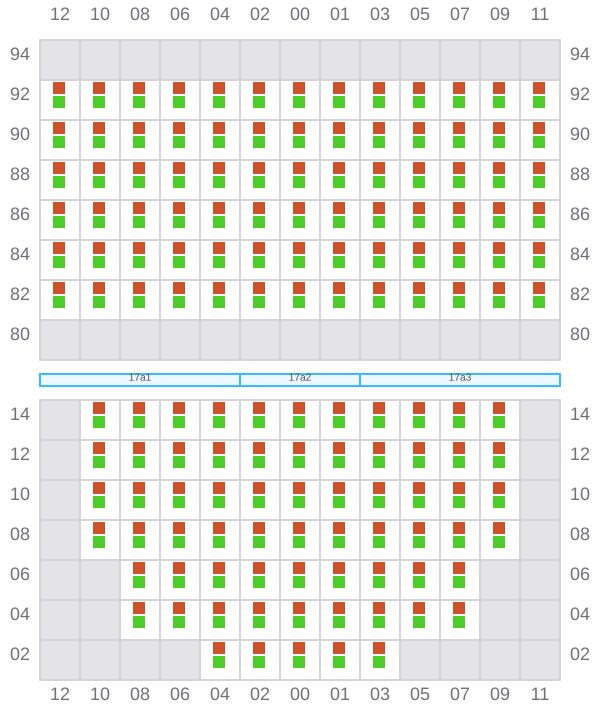

017 (018)
- →
![Bay 017 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b017.png?v=1687543779647)

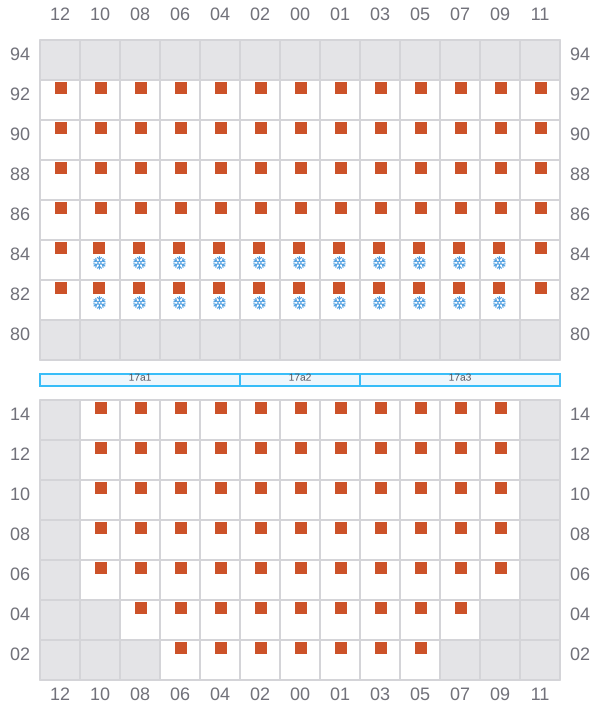

019
- ←
![Bay 019 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b019.png?v=1687543779647)

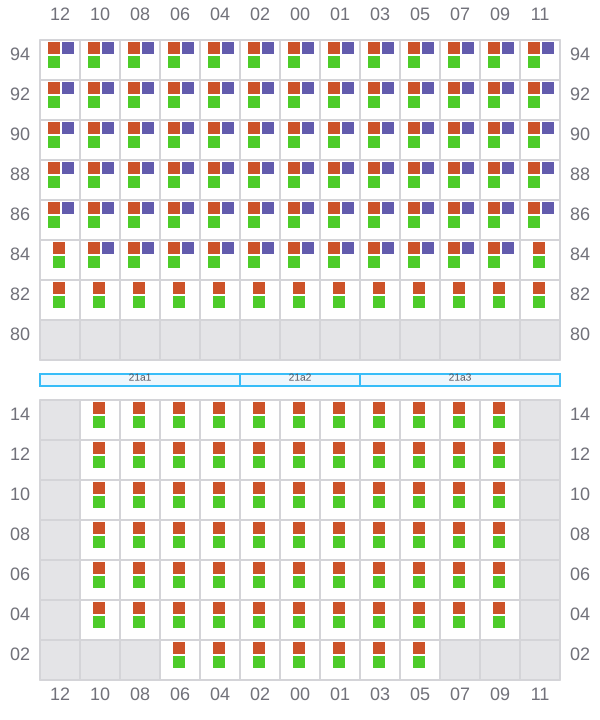

021 (022)
- →
![Bay 021 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b021.png?v=1687543779647)

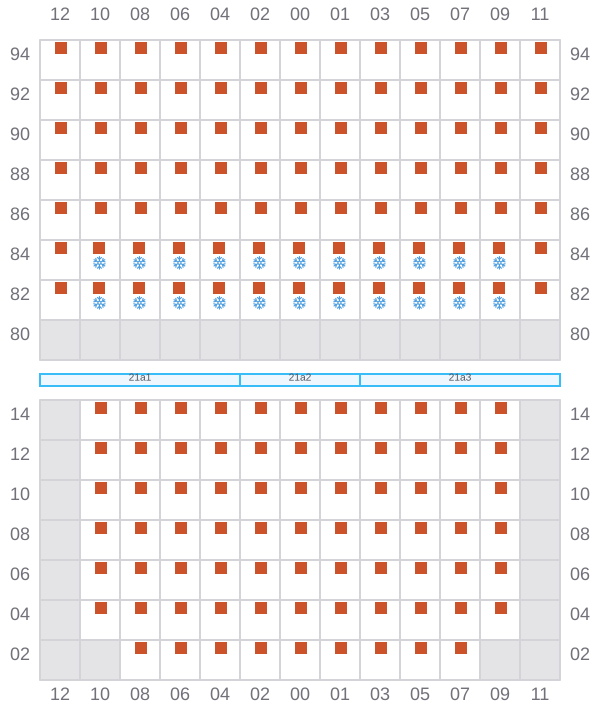

023
- ←
![Bay 023 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b023.png?v=1687543779647)

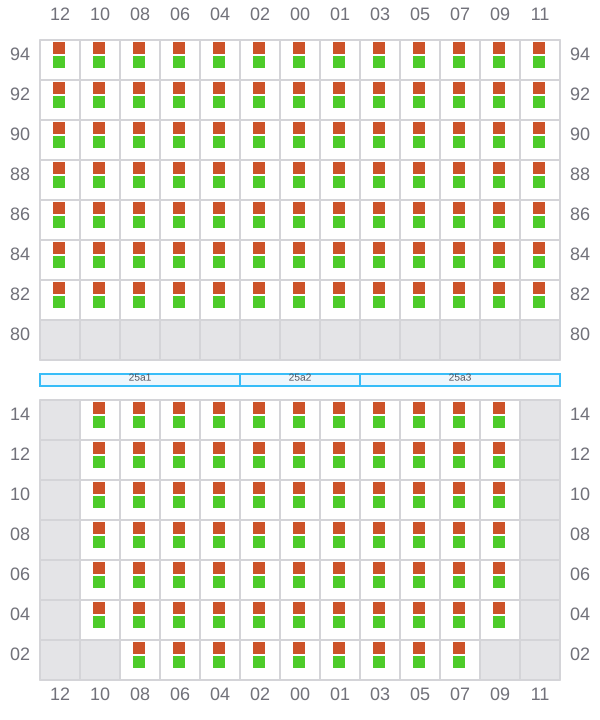

025 (026)
- →
![Bay 025 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b025.png?v=1687543779647)
027
- ←
- → / ?
![Bay 027 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b027.png?v=1687543779647)
029 (030)
- →
![Bay 029 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b029.png?v=1687543779647)
031
- ←
- → / ?
![Bay 031 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b031.png?v=1687543779647)

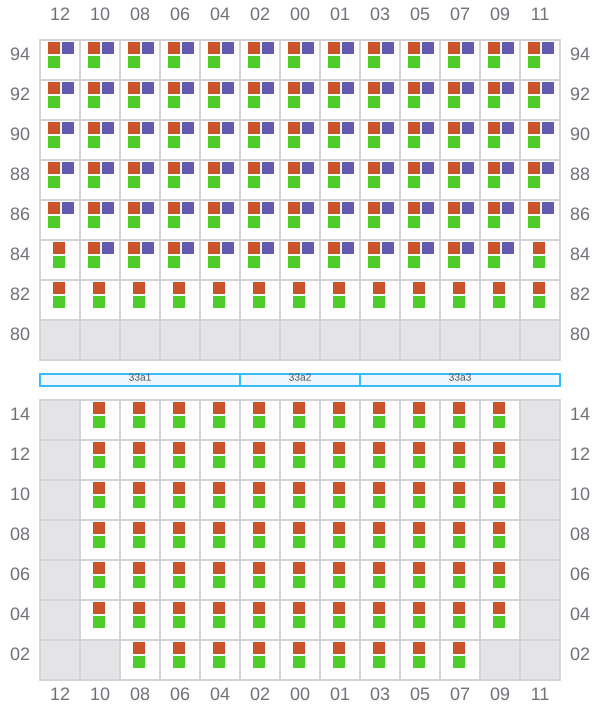

033 (034)
- →
![Bay 033 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b033.png?v=1687543779647)
035
- ←
- →
![Bay 035 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b035.png?v=1687543779647)
037 (038)
- →
![Bay 037 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b037.png?v=1687543779647)

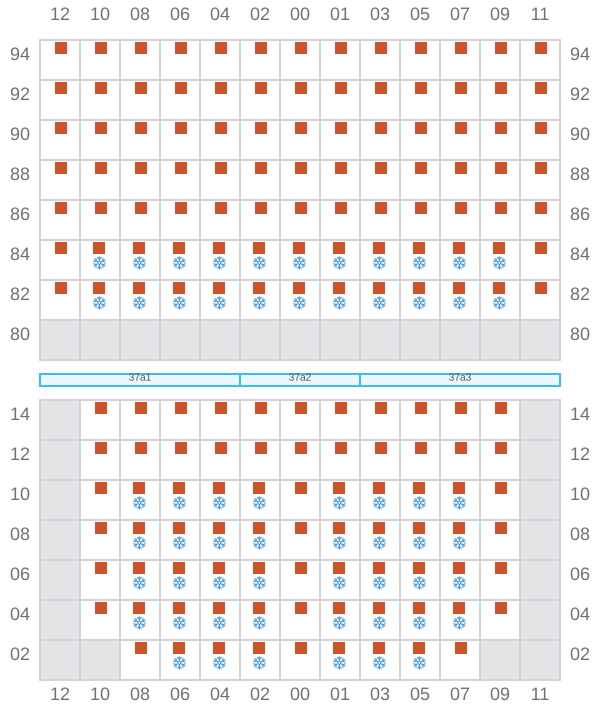

039
- ←
- →
![Bay 039 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b039.png?v=1687543779647)
041 (042)
- →
![Bay 041 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b041.png?v=1687543779647)

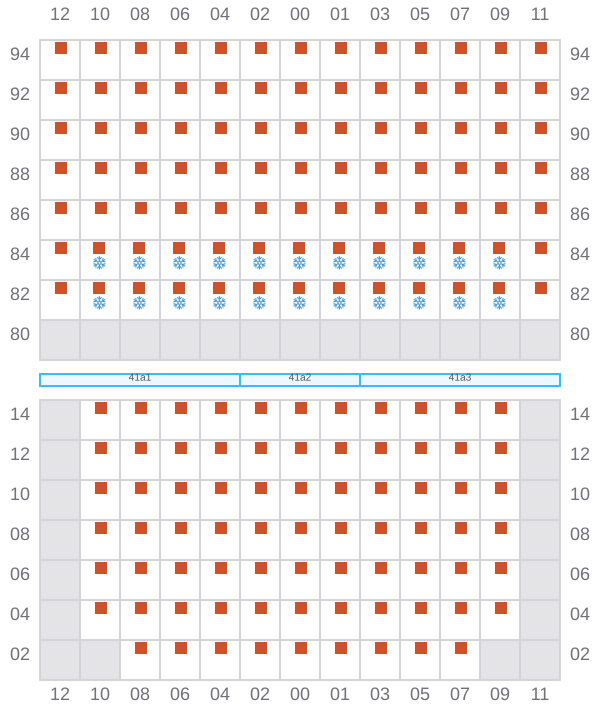

043
- ←
- → / ?
![Bay 043 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b043.png?v=1687543779647)

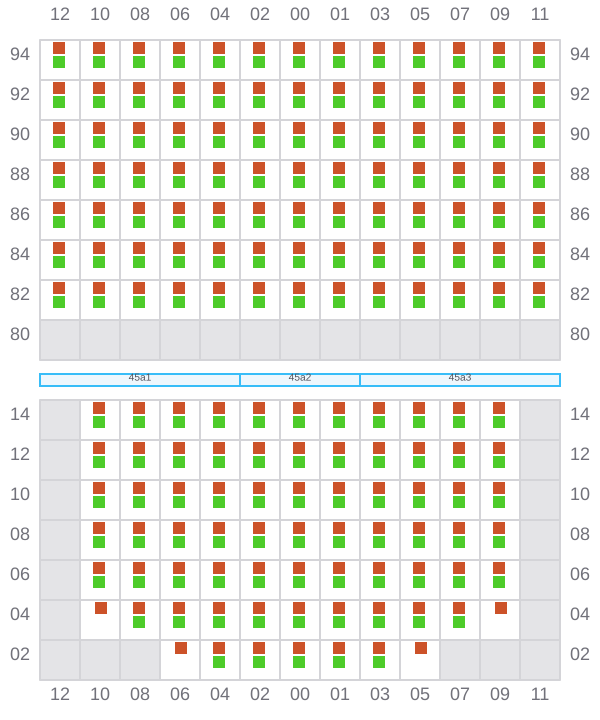

045 (046)
- →
![Bay 045 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b045.png?v=1687543779647)

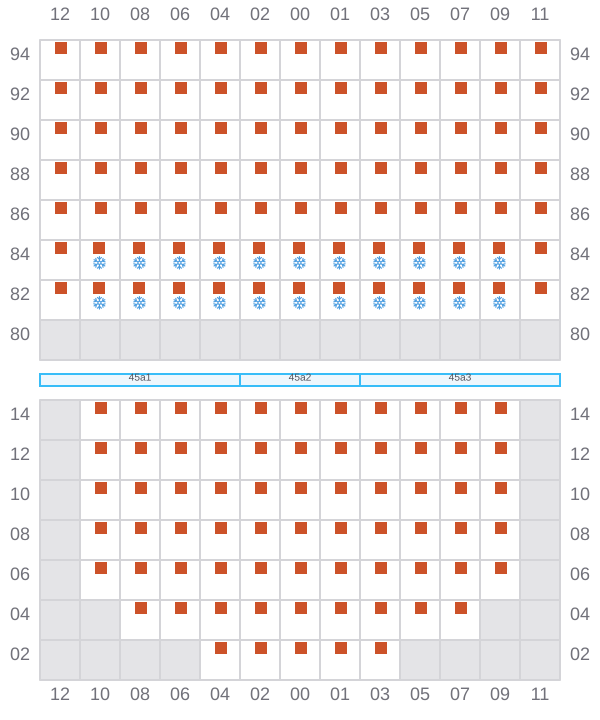

047
- ←
- → / ?
![Bay 047 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b047.png?v=1687543779647)

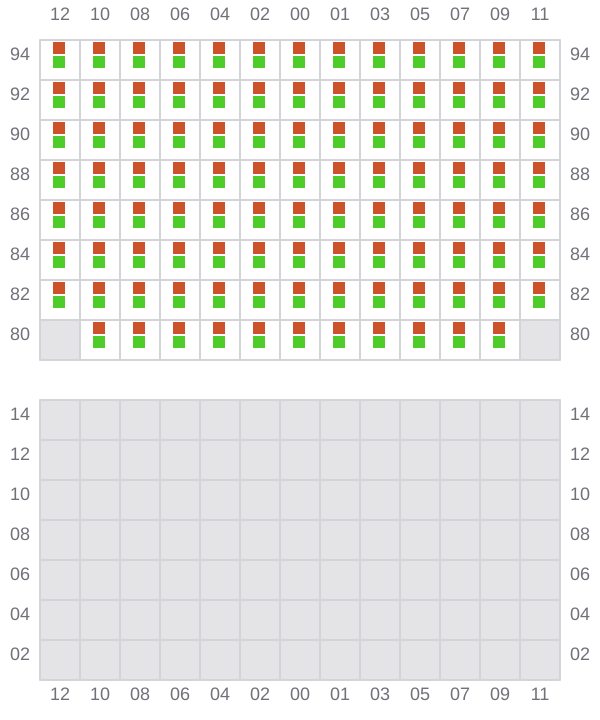

049 (050)
- → / ?
![Bay 049 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b049.png?v=1687543779647)

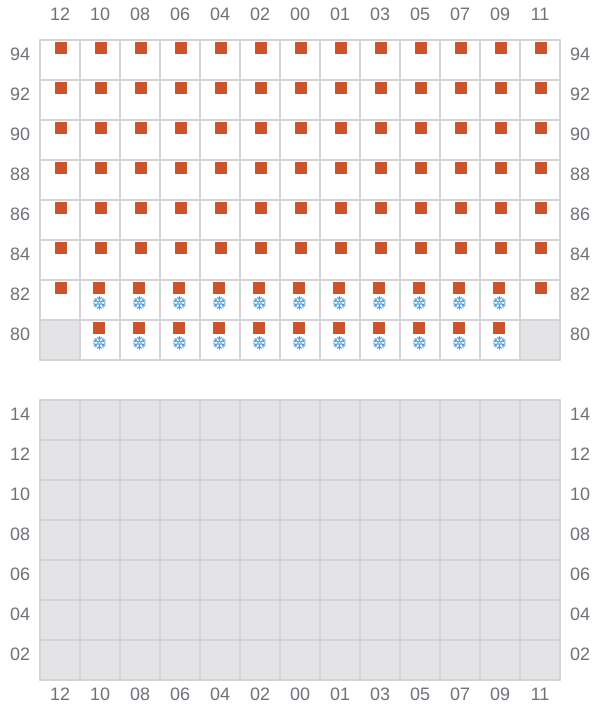

051
- ← / ?
- → / ?
![Bay 051 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b051.png?v=1687543779647)

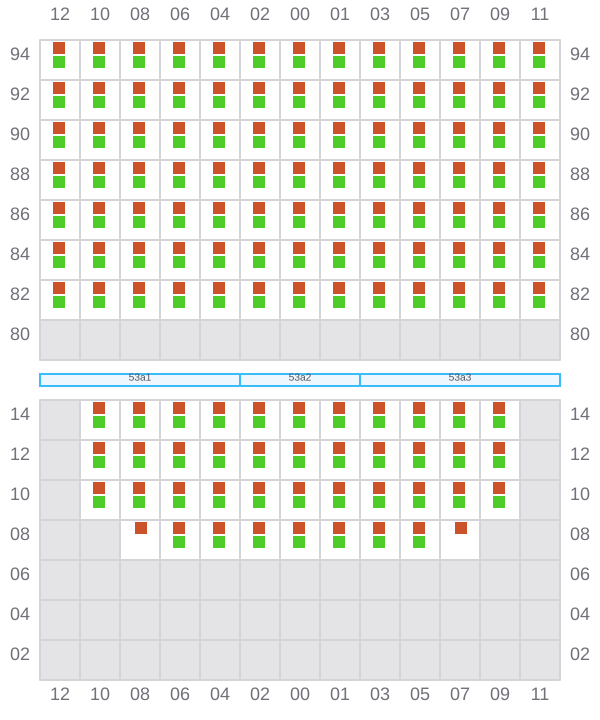

053 (054)
- →
![Bay 053 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b053.png?v=1687543779647)

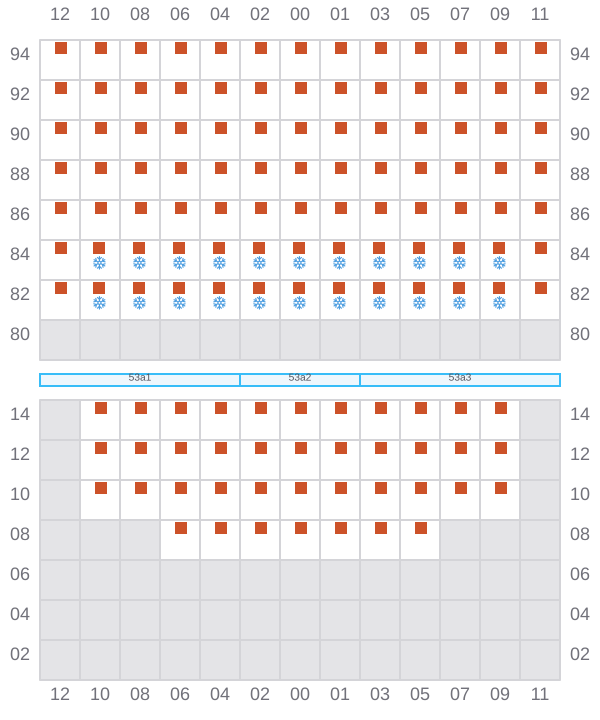

055
- ←
- → / ?
![Bay 055 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b055.png?v=1687543779647)

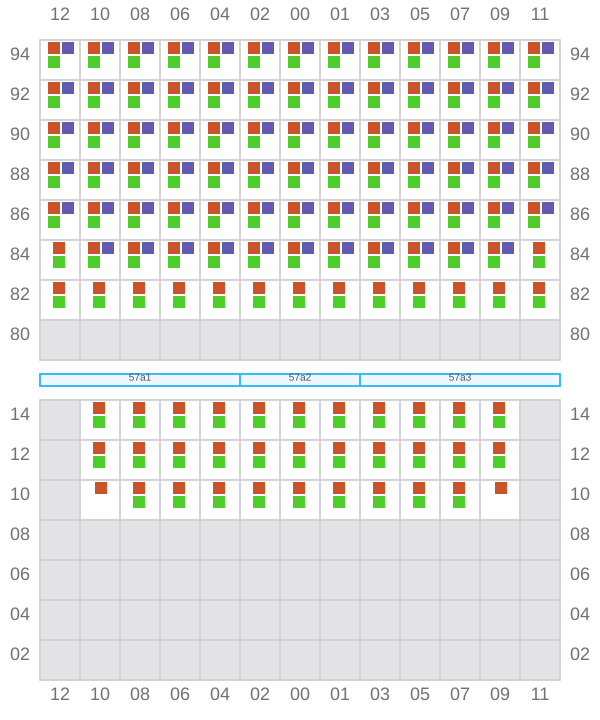

057 (058)
- →
![Bay 057 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b057.png?v=1687543779647)

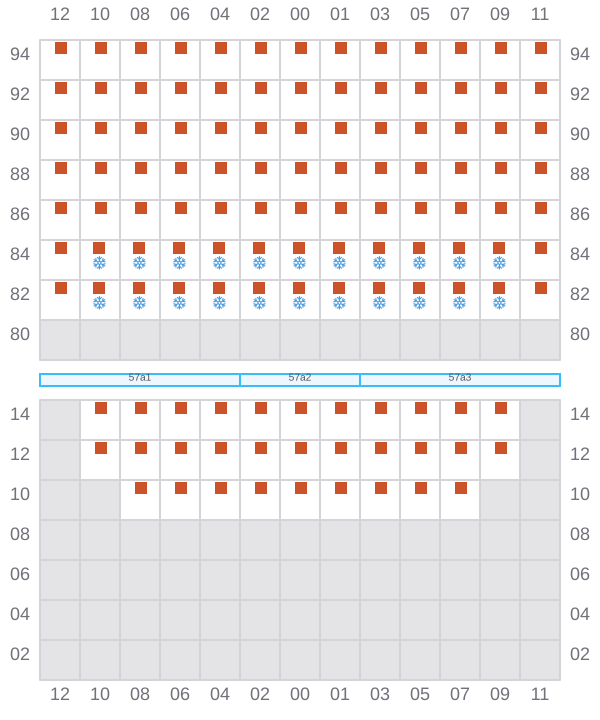

059
- ←
- → / ?
![Bay 059 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b059.png?v=1687543779647)

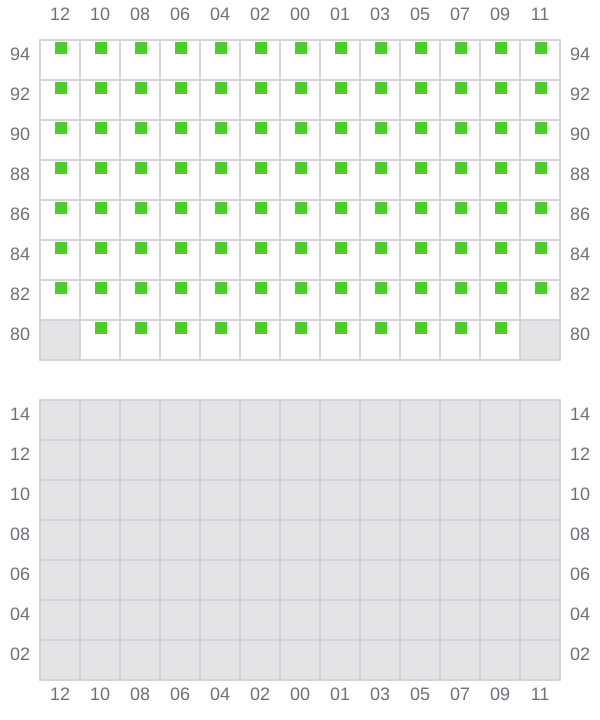

061 (062)
- → / ?
![Bay 061 view and slots of LANA](/vessel-images/a5d69e9d-66a4-414d-b98a-5ae1faaec577-b061.png?v=1687543779647)
