LANGENESS
9944778 | V2HR6 | ONE by *********************** Last update: Thu Feb 13 2025
General Info
Ship Name:LANGENESS
IMO Code:9944778
Call Sign:V2HR6
Line Operator:ONE
Class Name for Sister Ships:FLAS
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,792
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

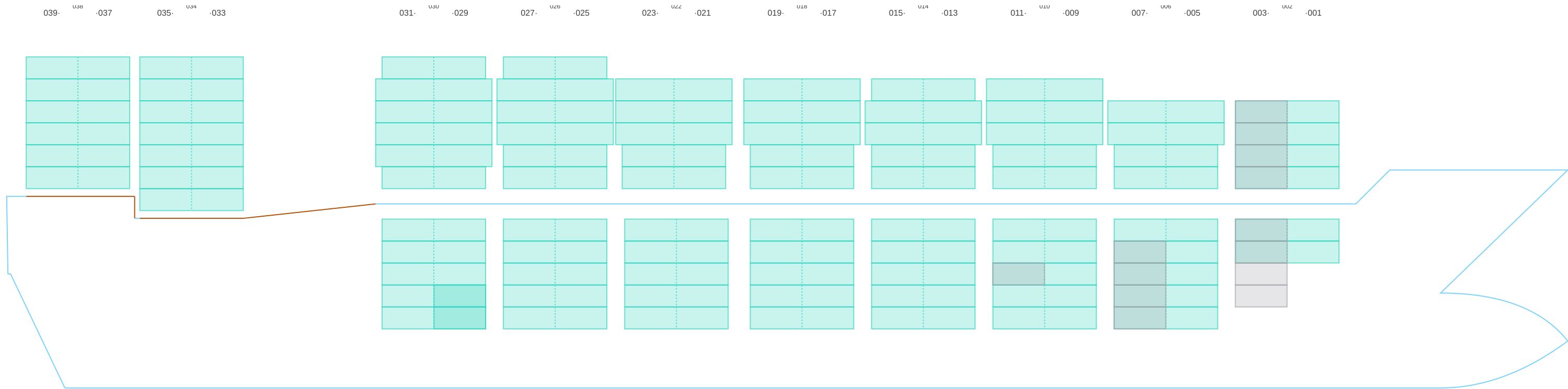

Side View

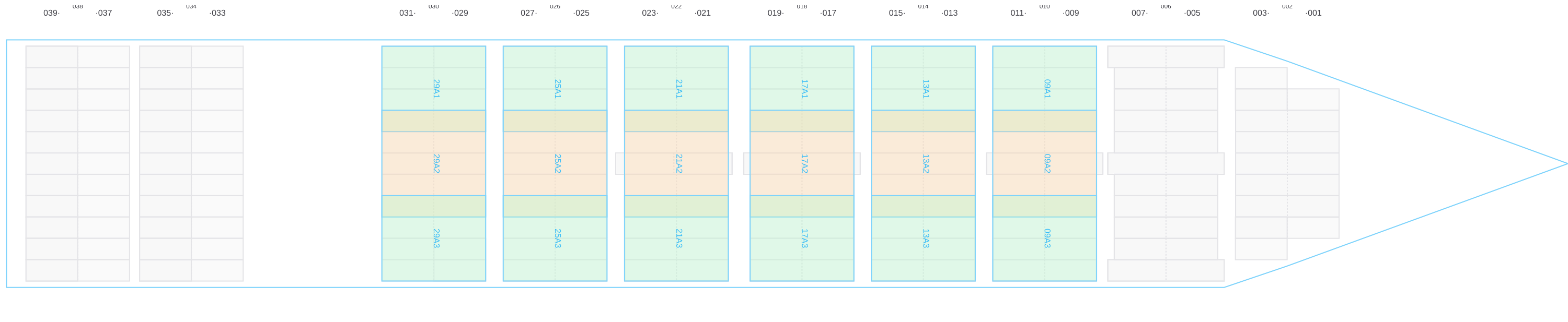

Hatch-Covers View

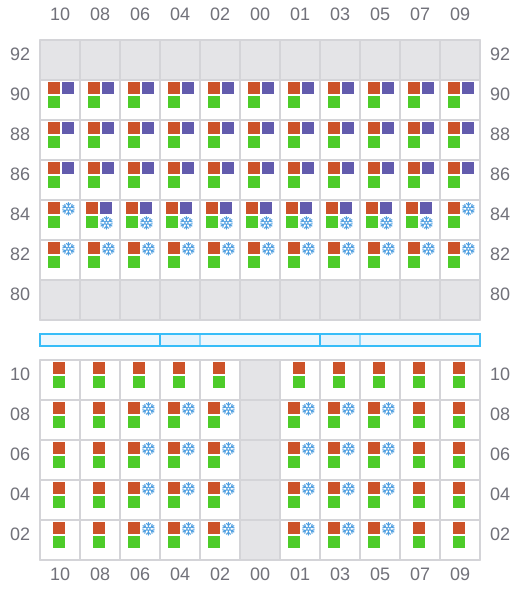

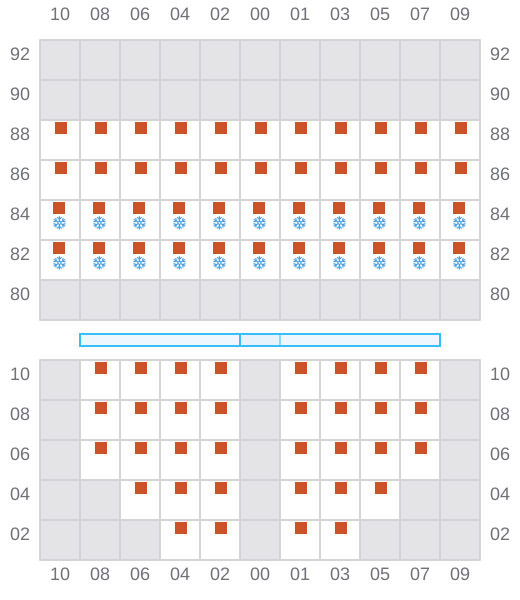

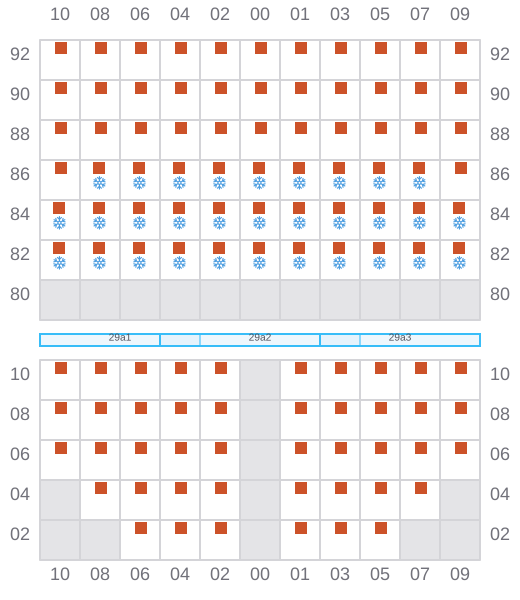

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

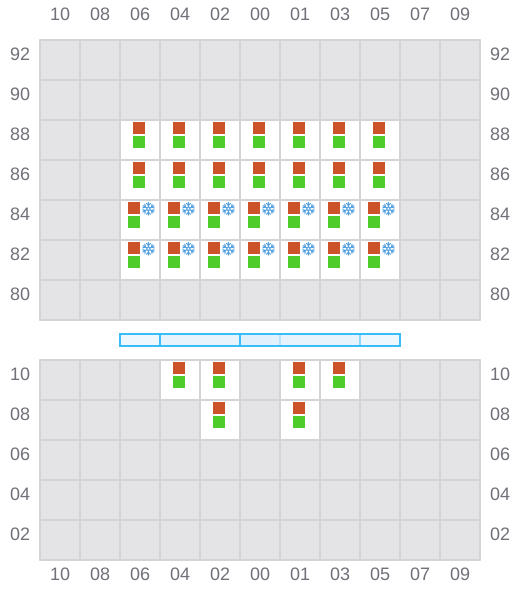

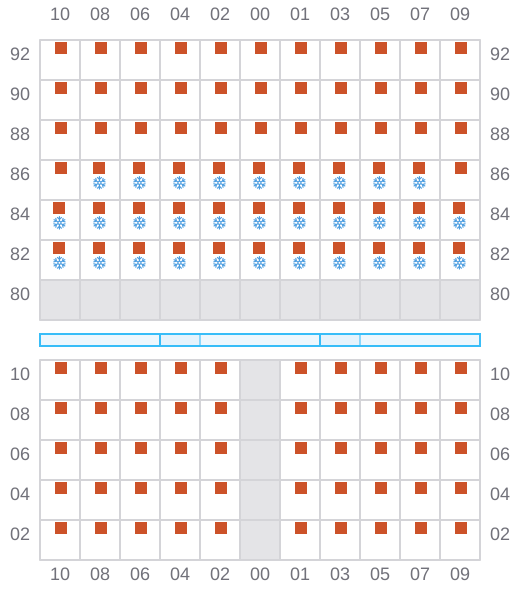

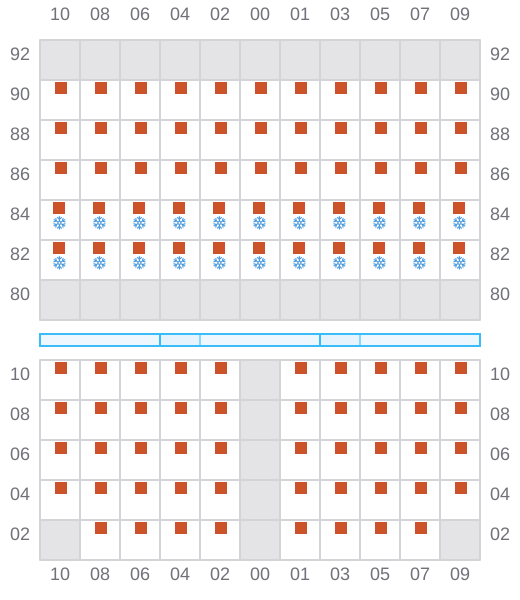

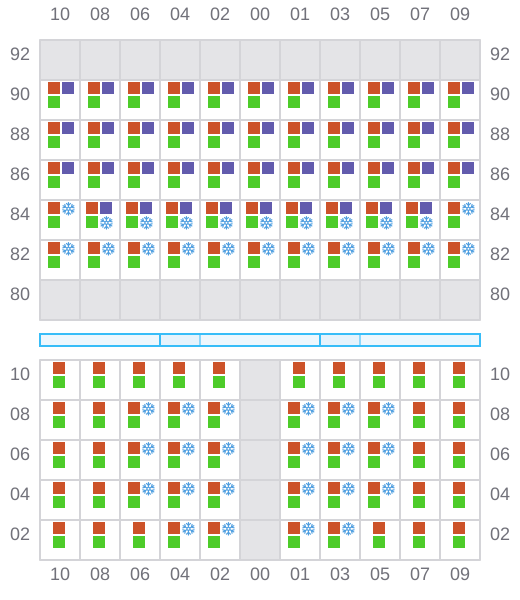

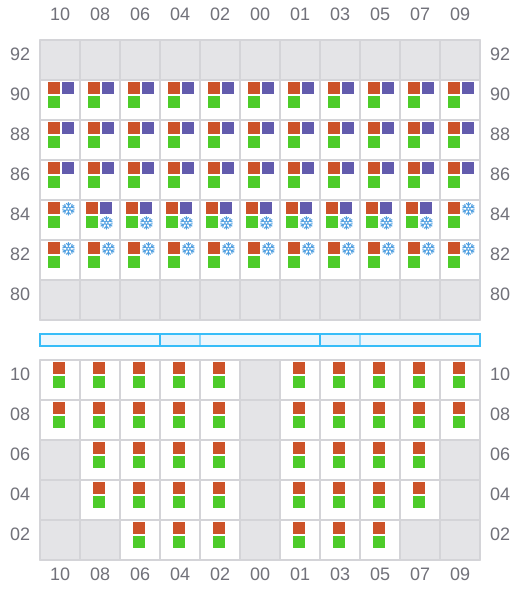

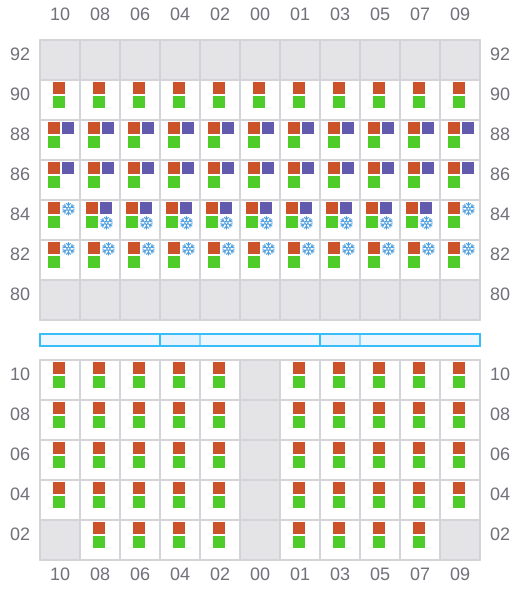

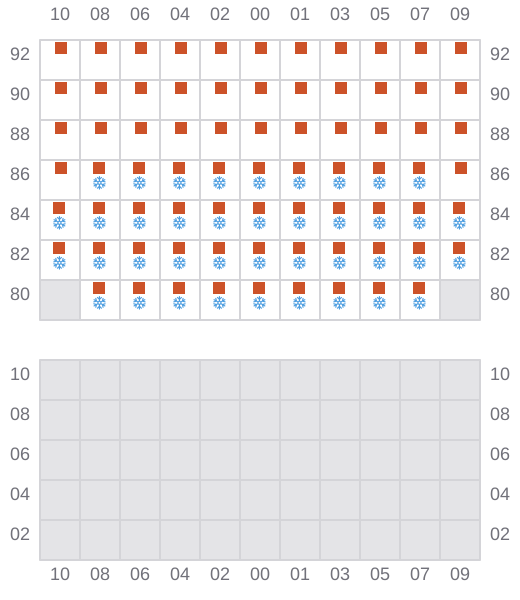

001 (002)
- →
- → / ?
- →

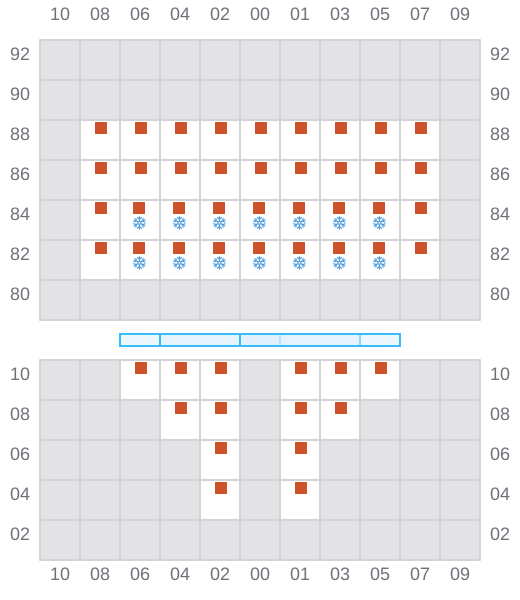

003
- ←
- → / ?
- →

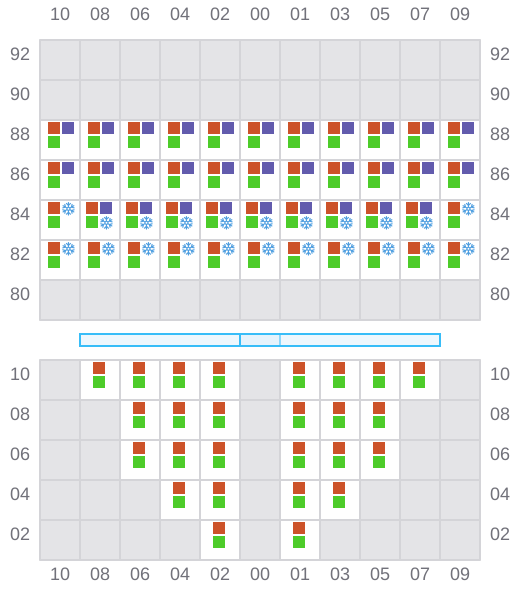

005 (006)
- →
- → / ?
- →
007
- ←
- → / ?
- →
009 (010)
- →
- → / ?
- →

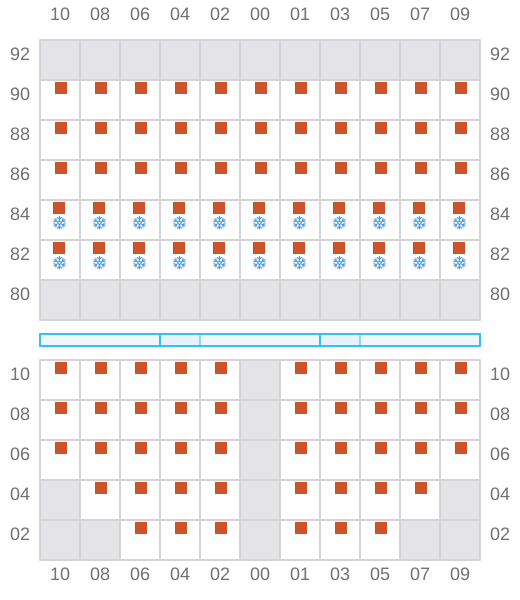

011
- ←
- → / ?
- →
013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →

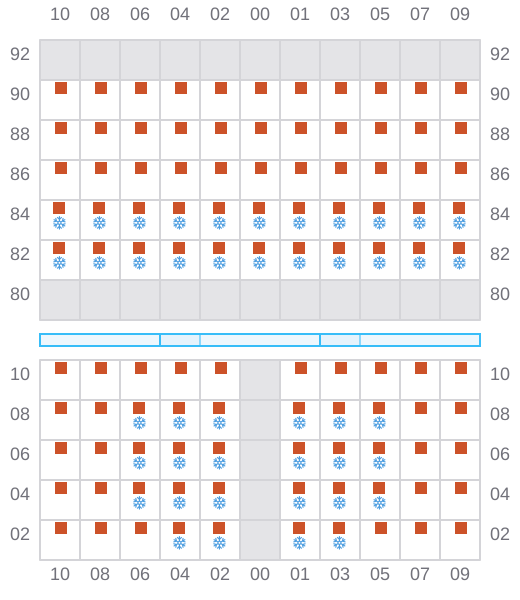

017 (018)
- →
- →
- →
019
- ←
- →
- →
021 (022)
- →
- → / ←
- →
023
- ←
- → / ?
- →

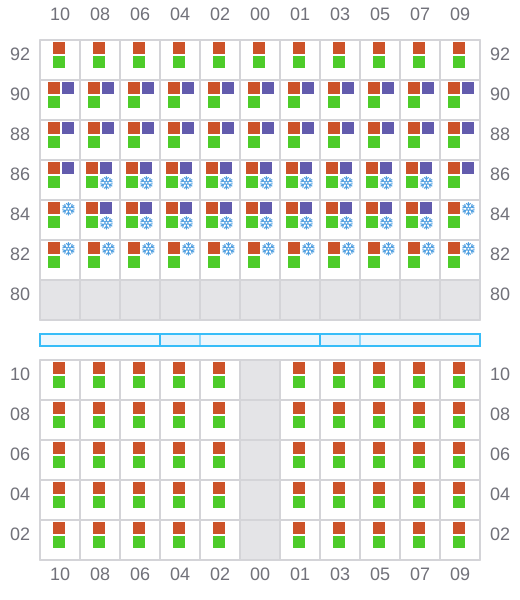

025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →
029 (030)
- →
- → / ?
- →
031
- ←
- → / ?
- →

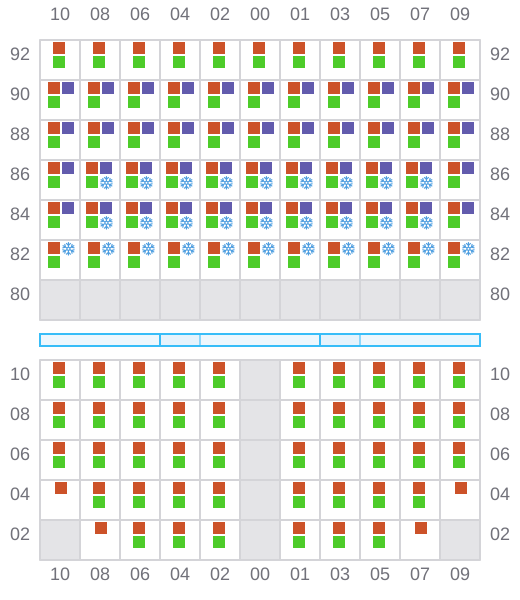

033 (034)
- → / ?
- → / ?
- → / ?
035
- ← / ?
- → / ?
- → / ?

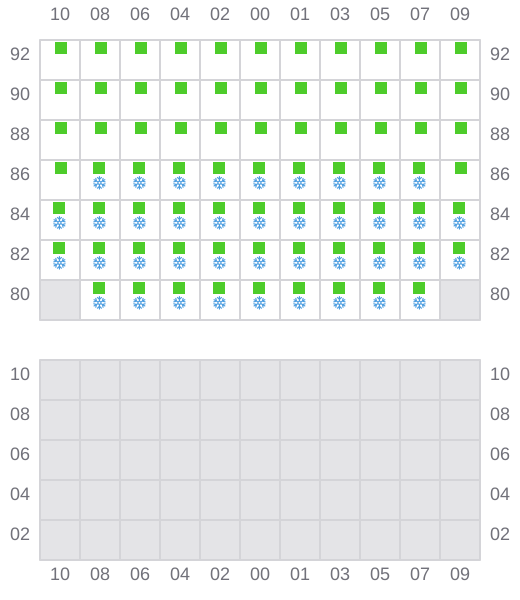

037 (038)
- → / ?
- → / ?
- → / ?

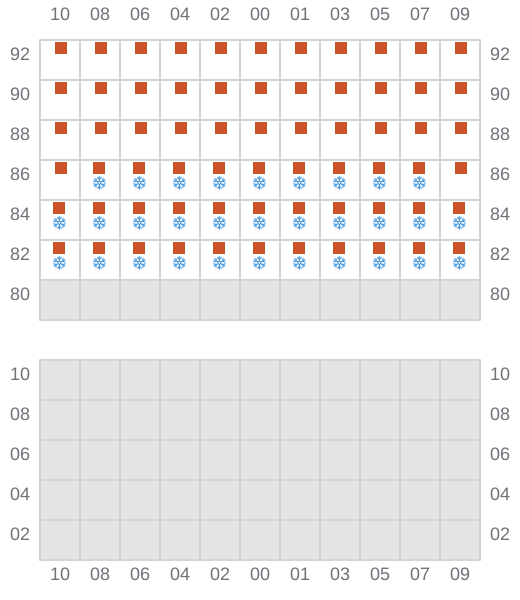

039
- ← / ?
