LARS MAERSK
9294379 | OVSB2 | 9294379 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:LARS MAERSK
IMO Code:9294379
Call Sign:OVSB2
Line Operator:9294379
Class Name for Sister Ships:731
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:059
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:5,933
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

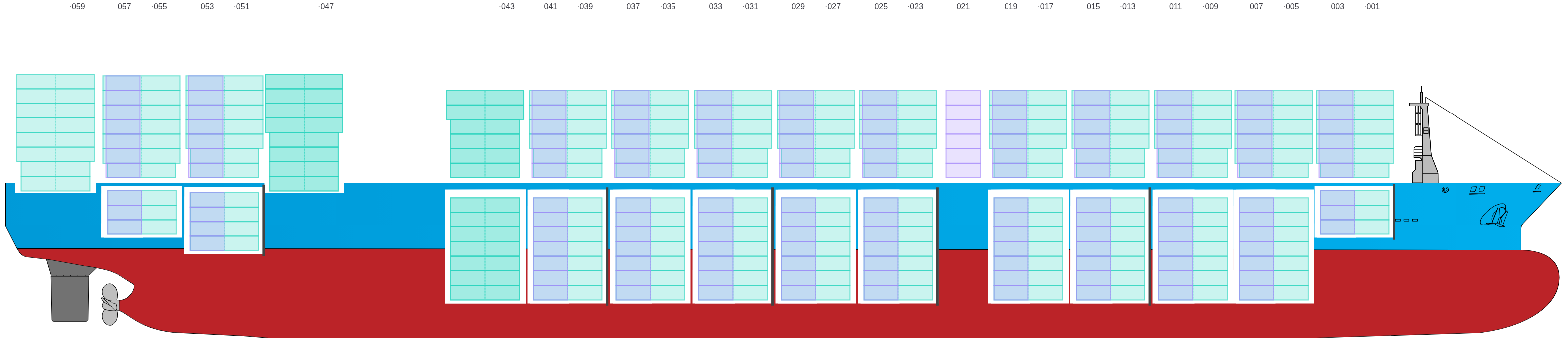

Side View
![Side view of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-sideView.png?v=1710696488206)
Hatch-Covers View
![Deck view of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-deckView.png?v=1710696488206)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

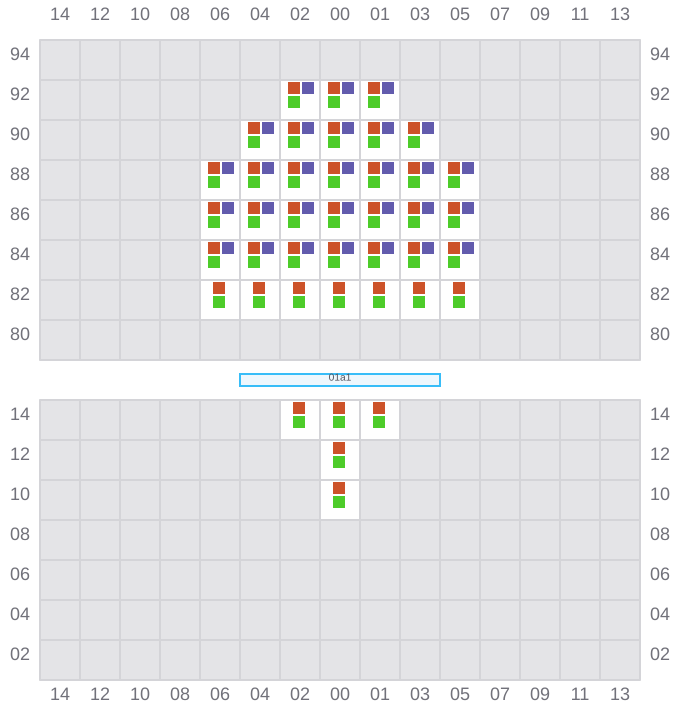

001 (002)
- →
![Bay 001 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b001.png?v=1710696488206)

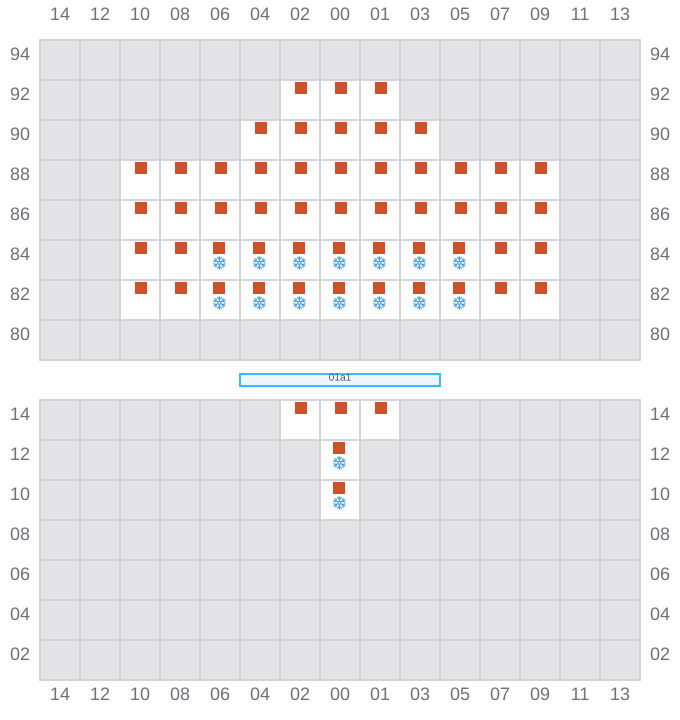

003
- →
![Bay 003 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b003.png?v=1710696488206)

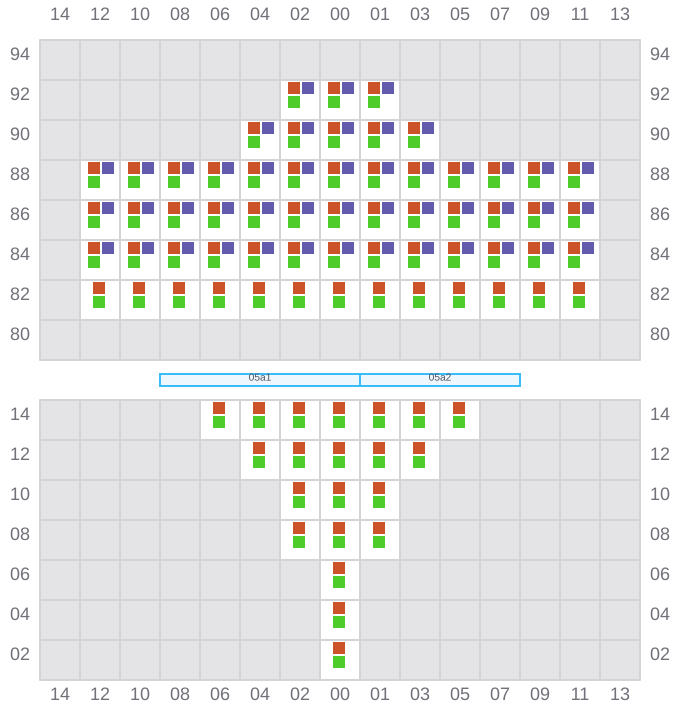

005 (006)
- →
- ? / →
![Bay 005 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b005.png?v=1710696488206)

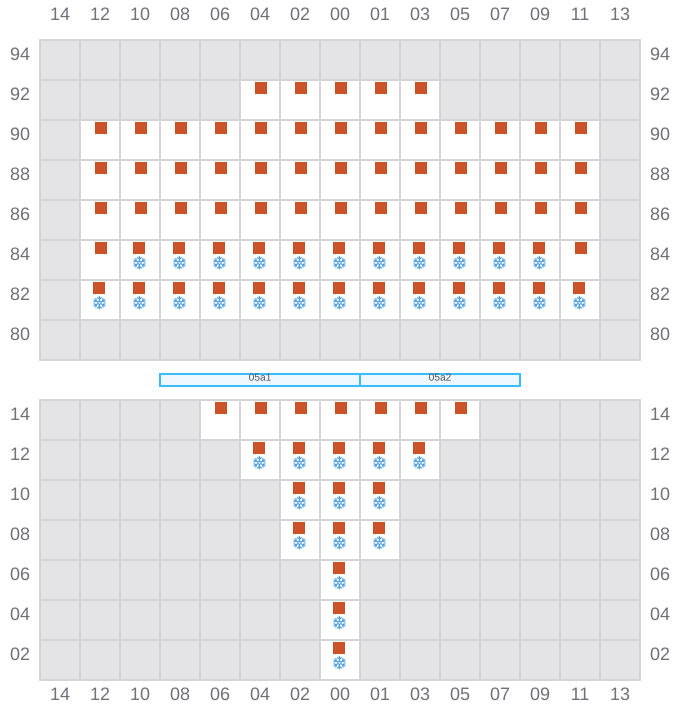

007
- →
![Bay 007 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b007.png?v=1710696488206)

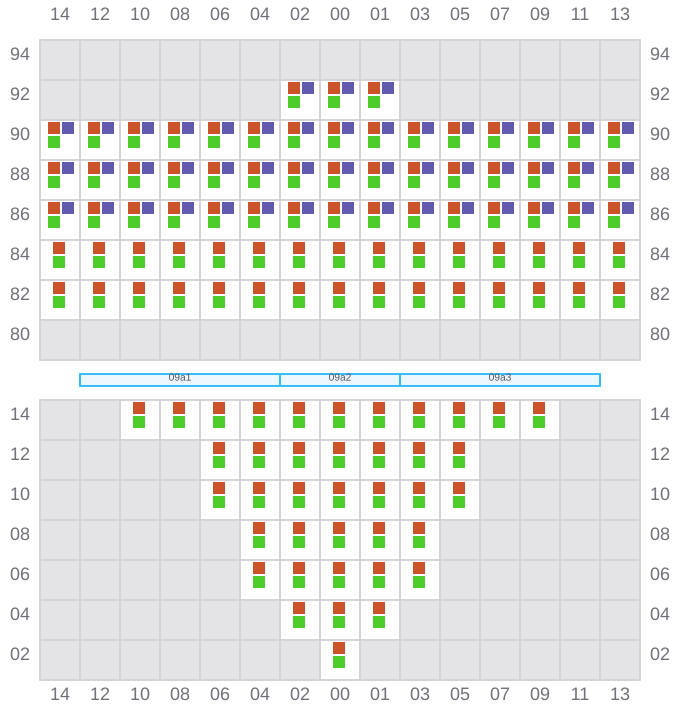

009 (010)
- →
- ? / →
![Bay 009 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b009.png?v=1710696488206)

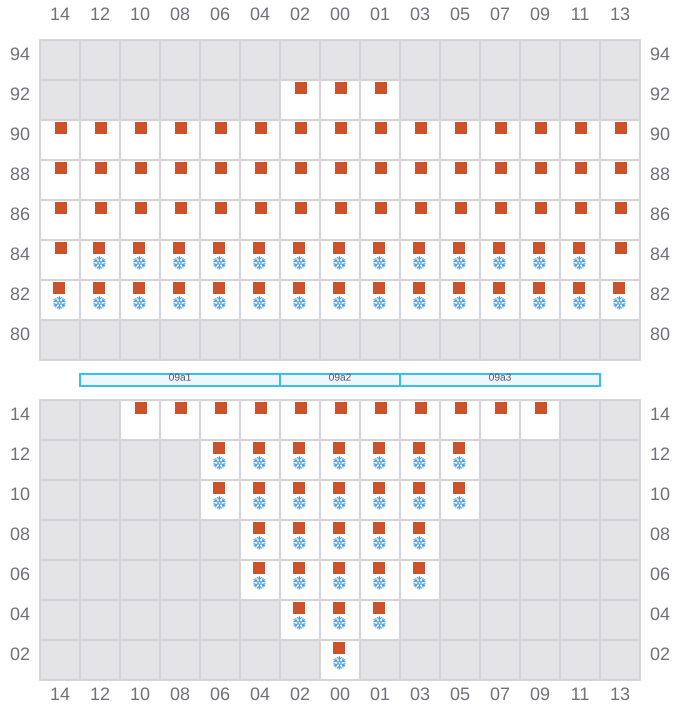

011
- →
![Bay 011 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b011.png?v=1710696488206)

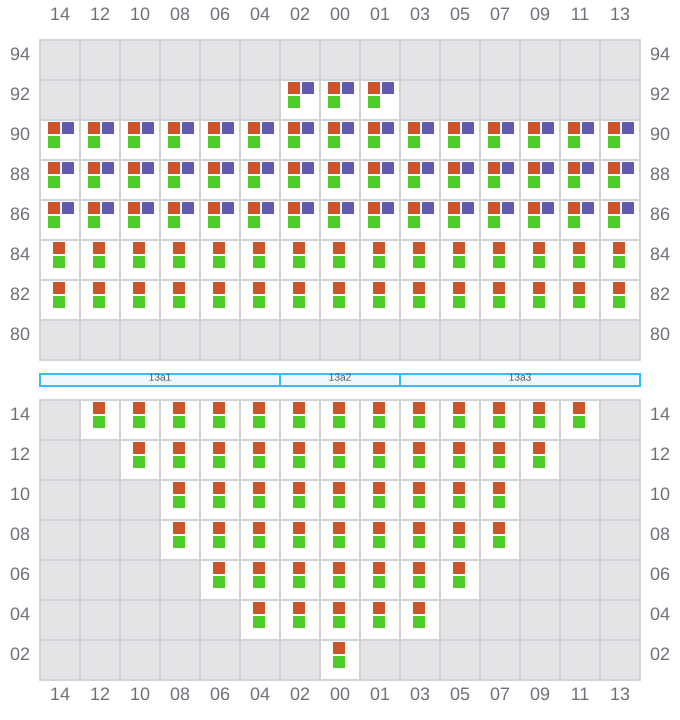

013 (014)
- →
- ? / →
![Bay 013 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b013.png?v=1710696488206)
015
- →
![Bay 015 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b015.png?v=1710696488206)

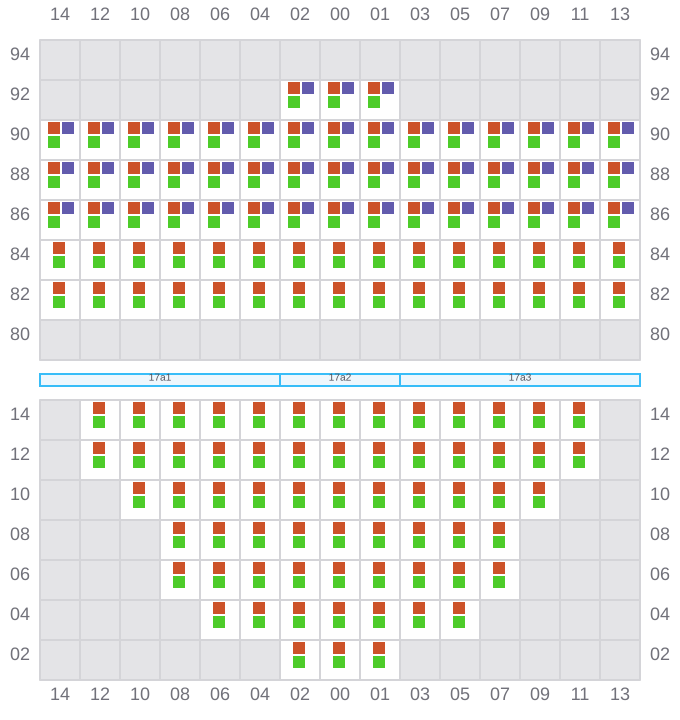

017 (018)
- →
- ? / →
![Bay 017 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b017.png?v=1710696488206)

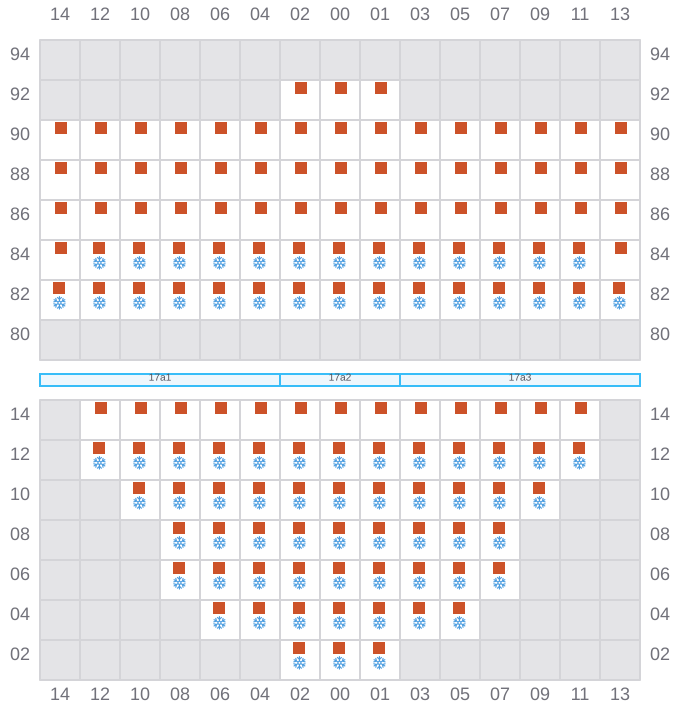

019
- →
![Bay 019 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b019.png?v=1710696488206)

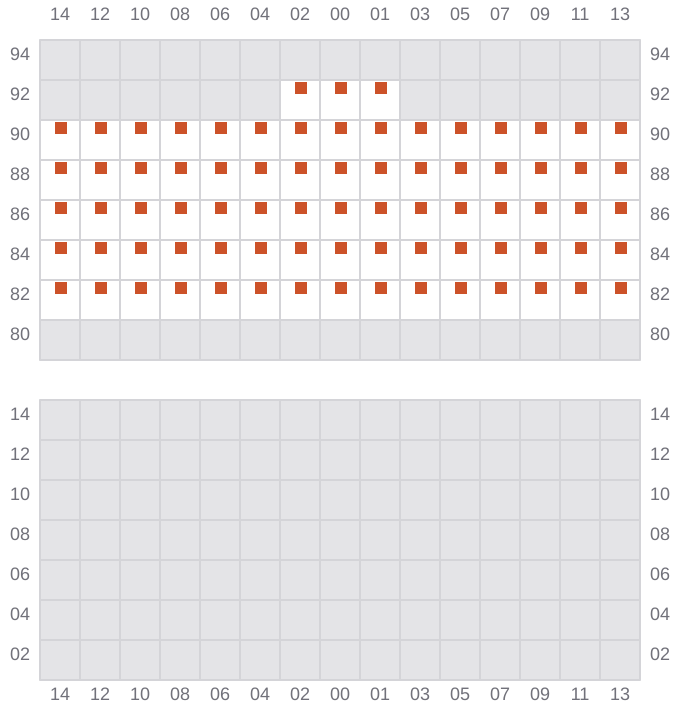

021
- ← / ?
![Bay 021 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b021.png?v=1710696488206)

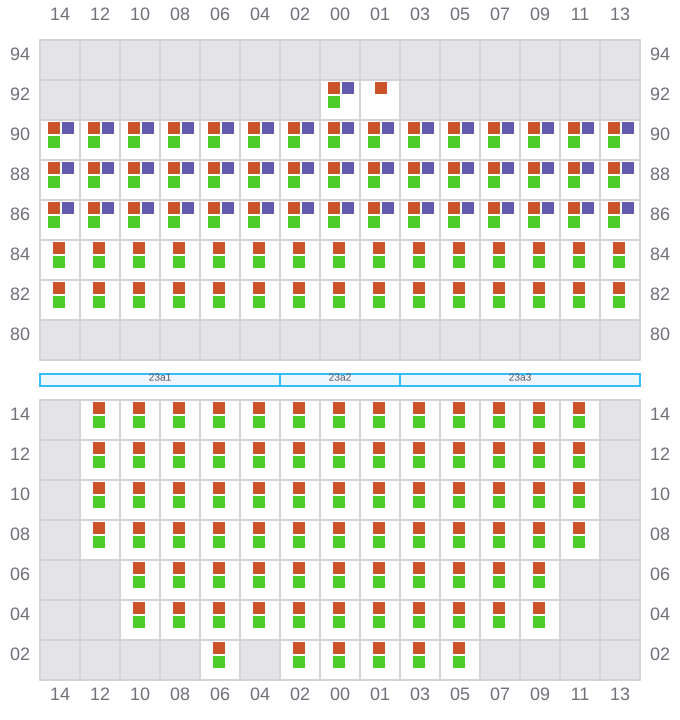

023 (024)
- →
- ? / →
![Bay 023 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b023.png?v=1710696488206)

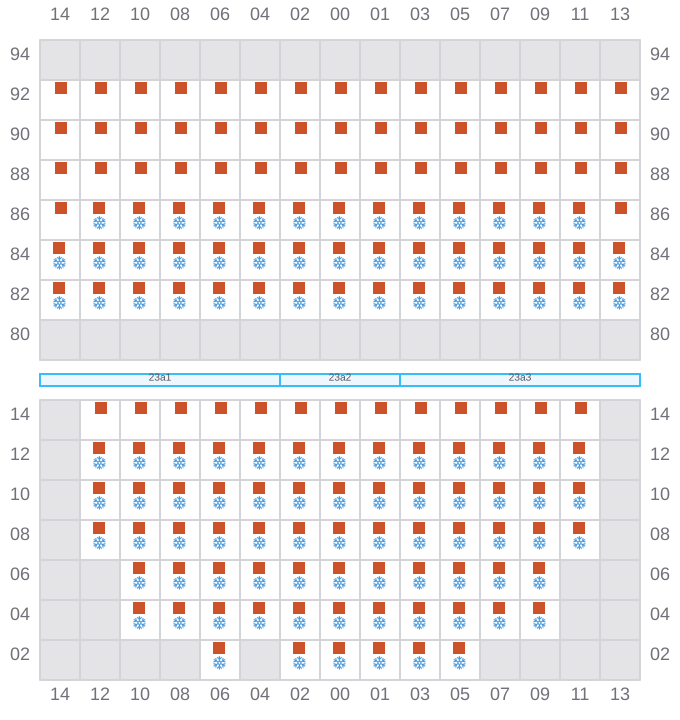

025
- →
![Bay 025 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b025.png?v=1710696488206)
027 (028)
- →
- ? / →
![Bay 027 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b027.png?v=1710696488206)

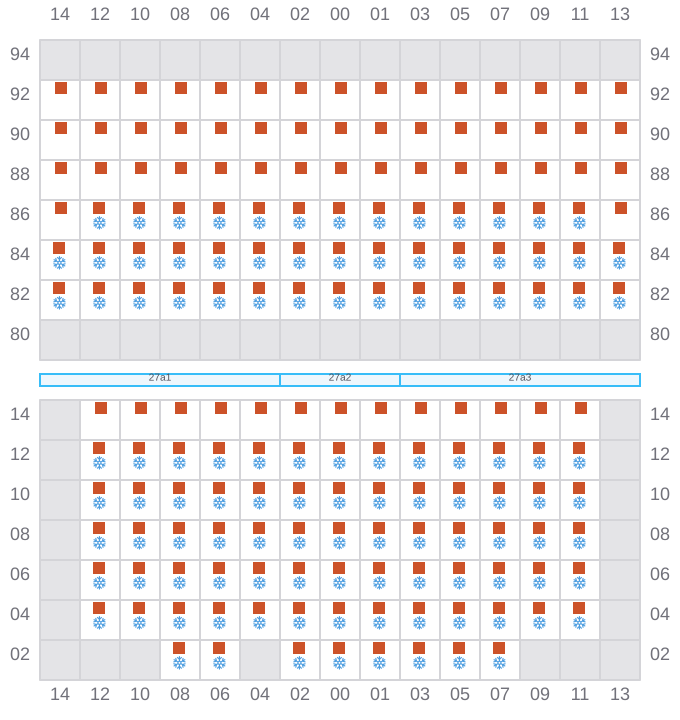

029
- →
![Bay 029 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b029.png?v=1710696488206)

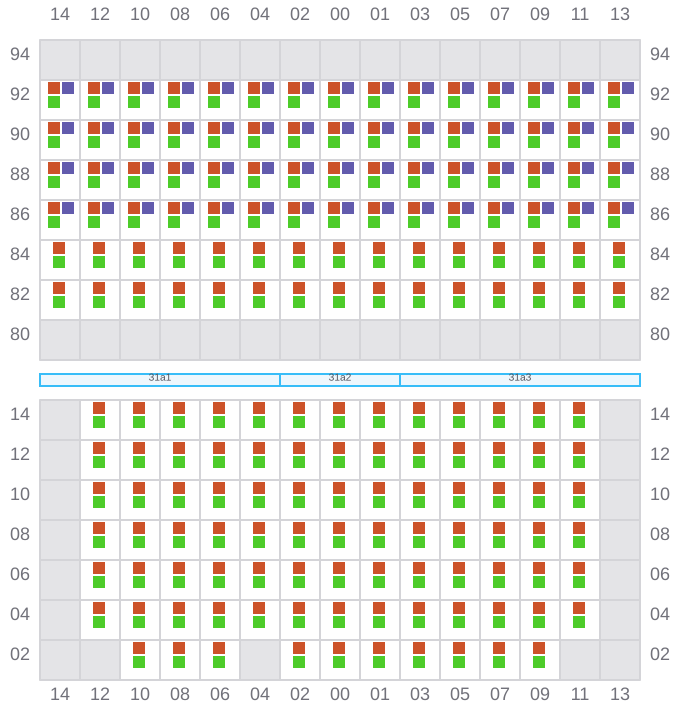

031 (032)
- →
- ? / →
![Bay 031 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b031.png?v=1710696488206)

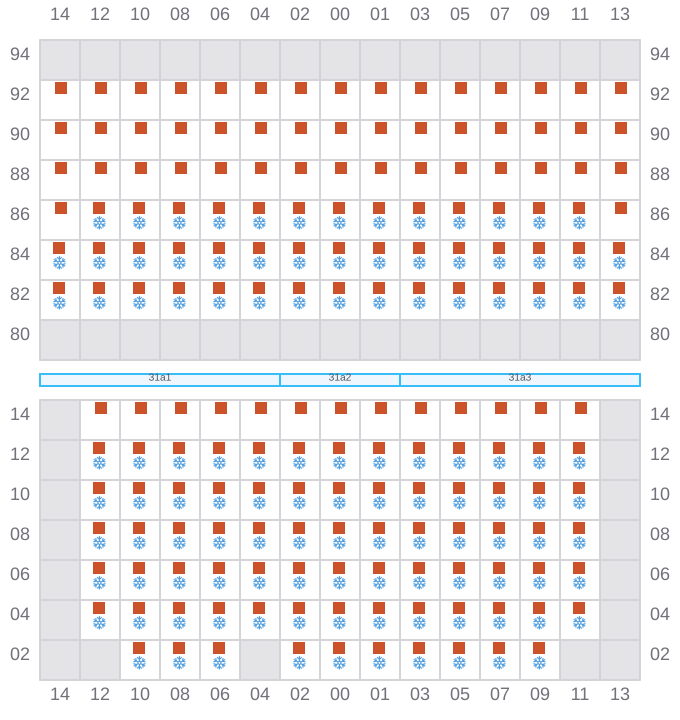

033
- →
![Bay 033 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b033.png?v=1710696488206)
035 (036)
- →
- ? / →
![Bay 035 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b035.png?v=1710696488206)

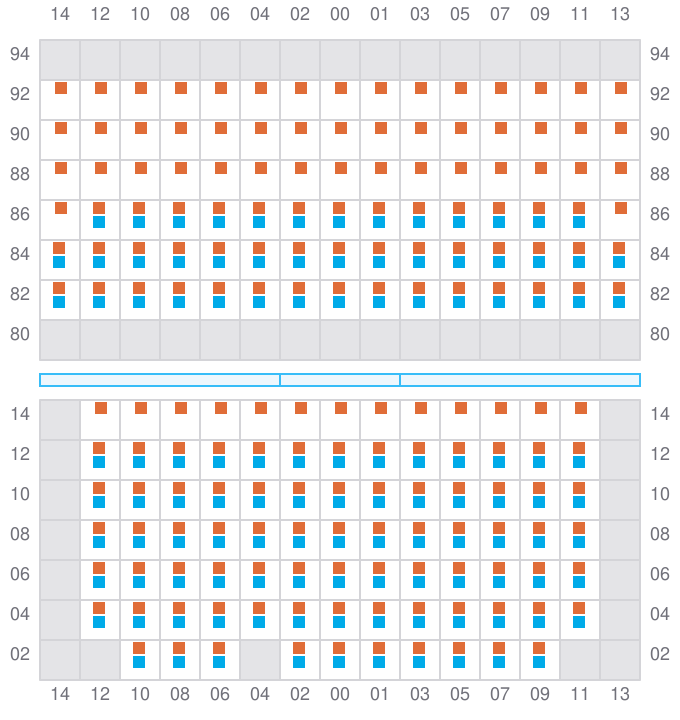

037
- →
![Bay 037 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b037.png?v=1710696488206)

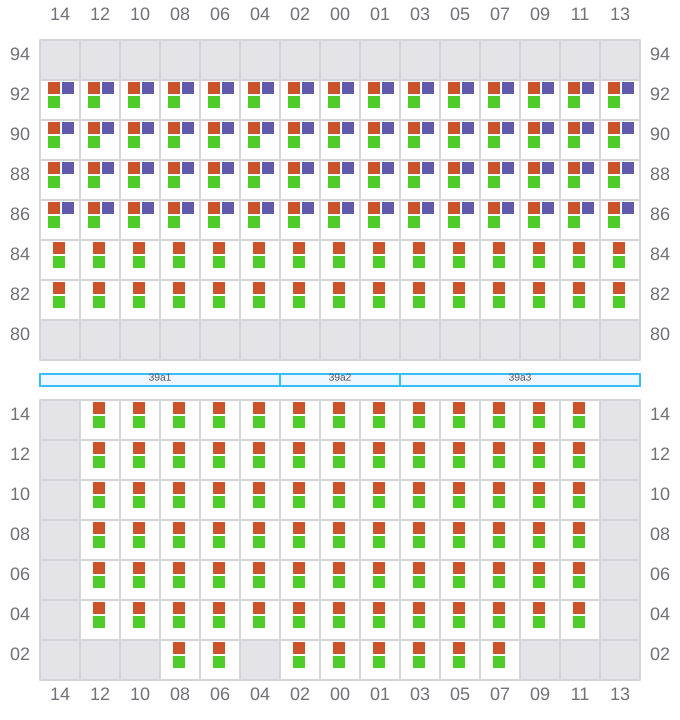

039 (040)
- →
- ? / →
![Bay 039 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b039.png?v=1710696488206)

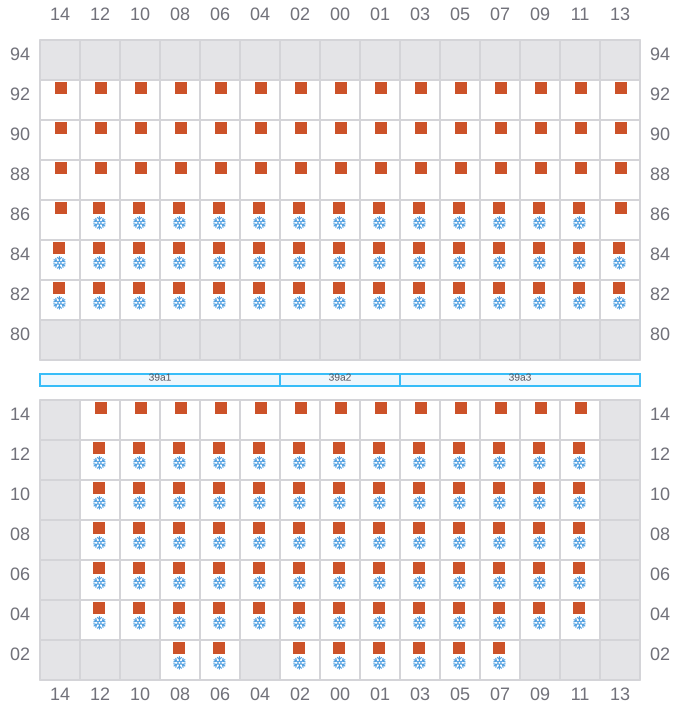

041
- →
![Bay 041 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b041.png?v=1710696488206)
043 (044)
- →
- →
![Bay 043 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b043.png?v=1710696488206)
045
![Bay 045 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b045.png?v=1710696488206)

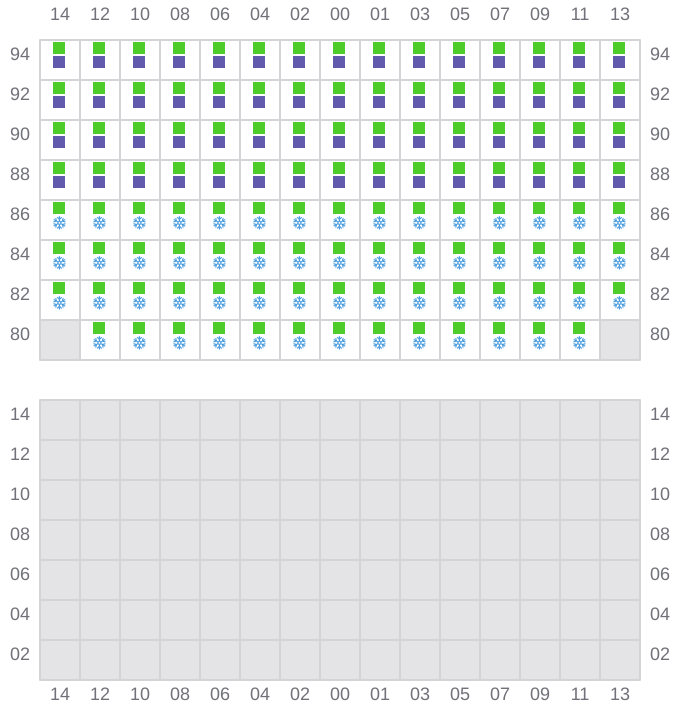

047 (048)
- → / ?
- ← / ?
![Bay 047 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b047.png?v=1710696488206)

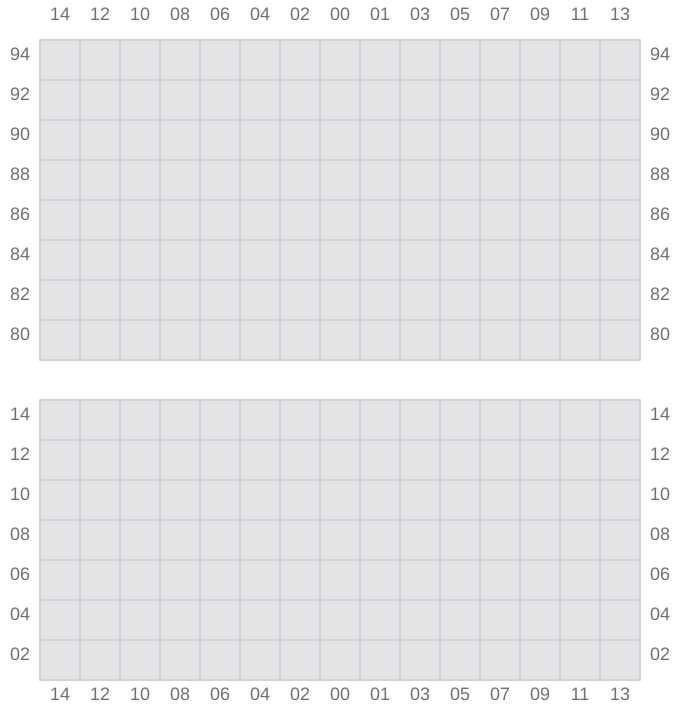

049
![Bay 049 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b049.png?v=1710696488206)

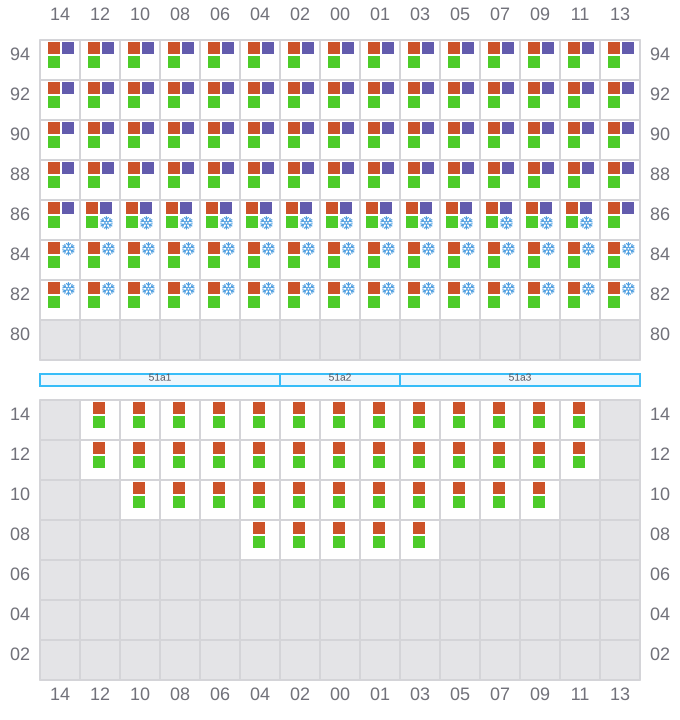

051 (052)
- →
- ← / ?
![Bay 051 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b051.png?v=1710696488206)

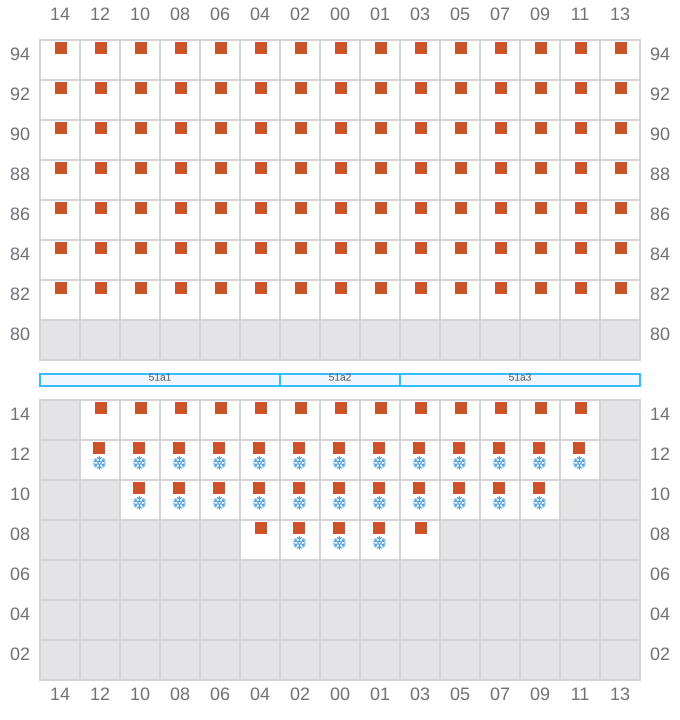

053
- ? / →
![Bay 053 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b053.png?v=1710696488206)

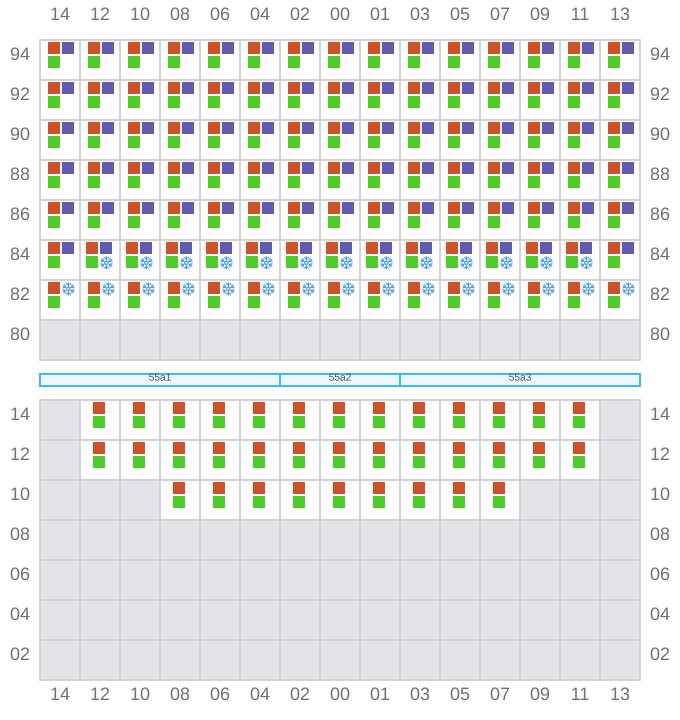

055 (056)
- →
- ← / ?
![Bay 055 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b055.png?v=1710696488206)

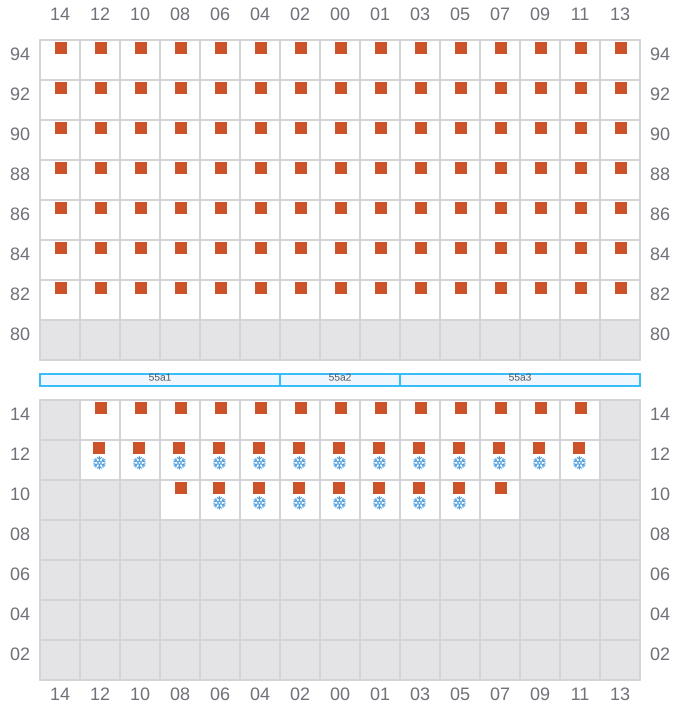

057
- ? / →
![Bay 057 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b057.png?v=1710696488206)
059 (060)
- → / ?
- ← / ?
![Bay 059 view and slots of LARS MAERSK](/vessel-images/4813b171-6ec4-41fa-a53f-267eef89ec9c-b059.png?v=1710696488206)
