LASALLE
9349368 | D5TQ9 | 9349368 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:LASALLE
IMO Code:9349368
Call Sign:D5TQ9
Line Operator:9349368
Class Name for Sister Ships:36E
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):200.00
LOA (Length Overall):200.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,433
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

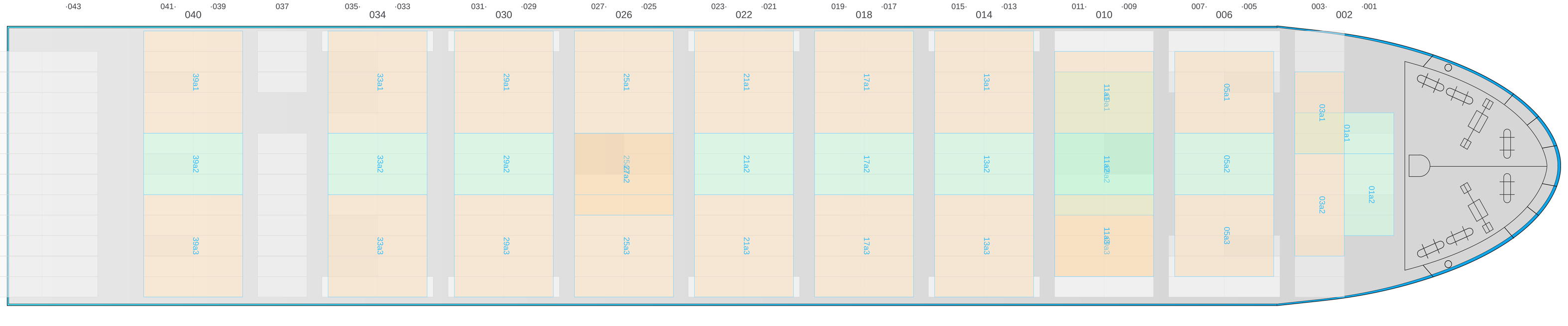

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

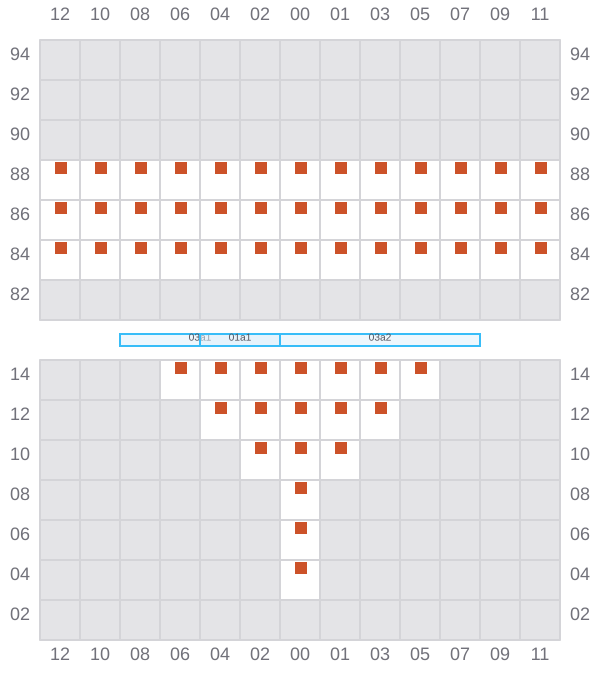

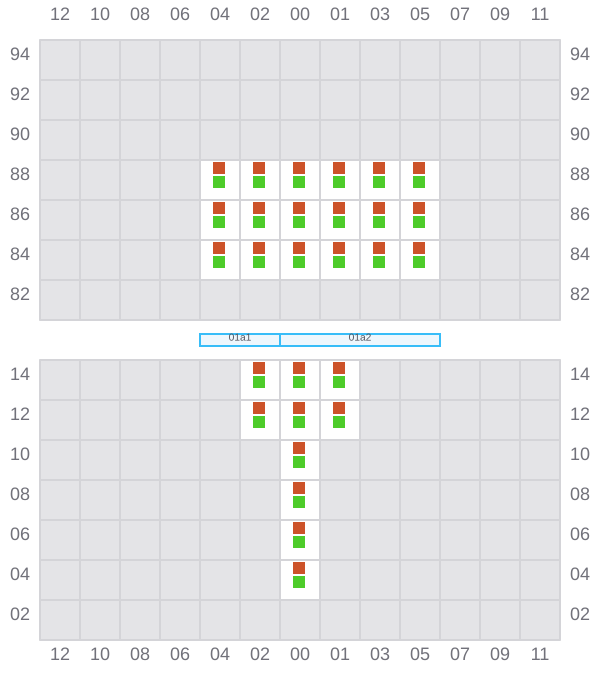

001 (002)
- →
003
- ←

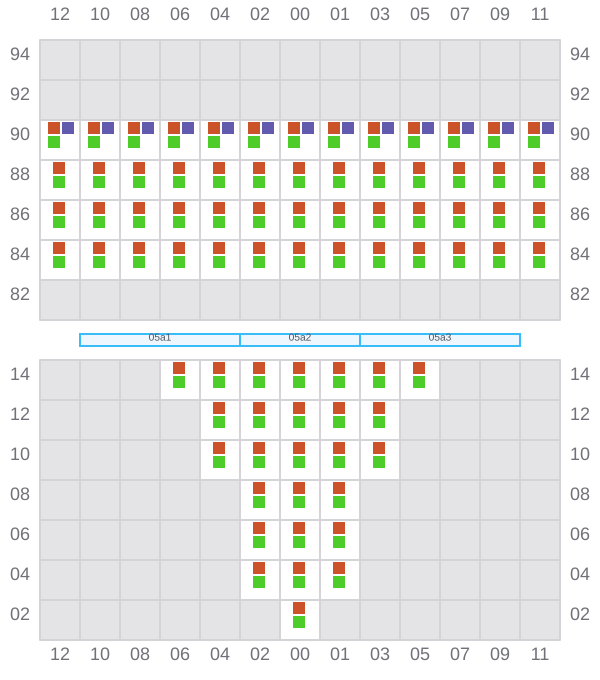

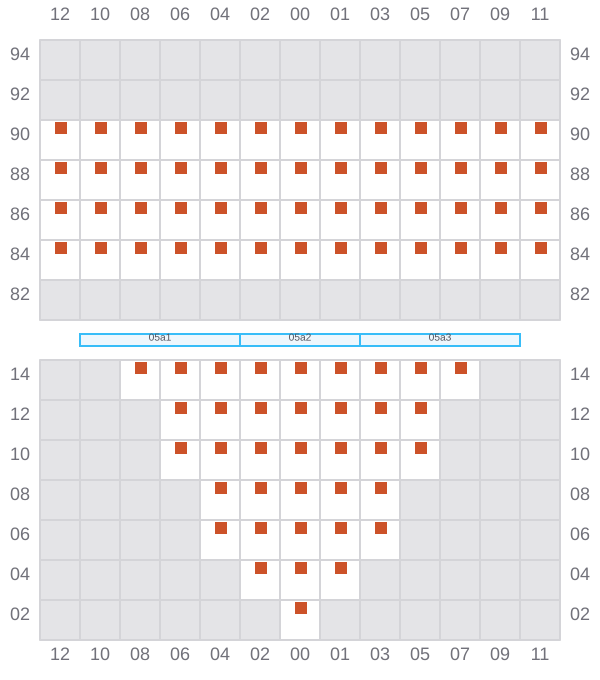

005 (006)
- →
007
- ←
009 (010)
- →

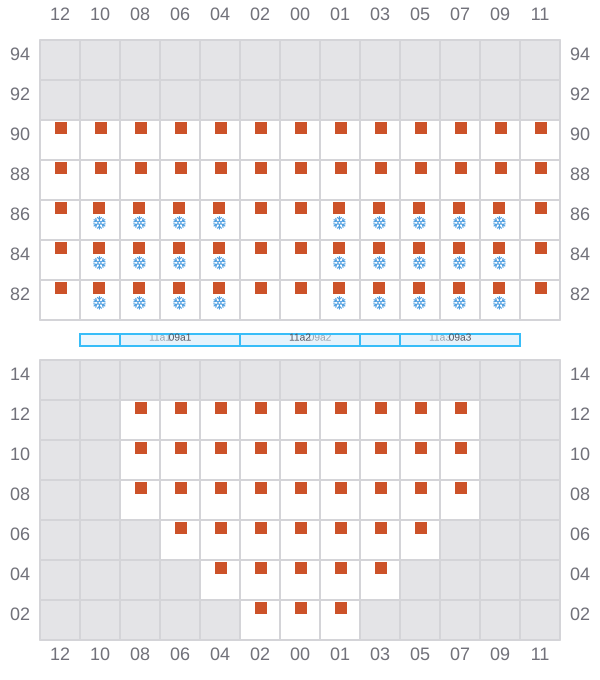

011
- ←
- → / ?

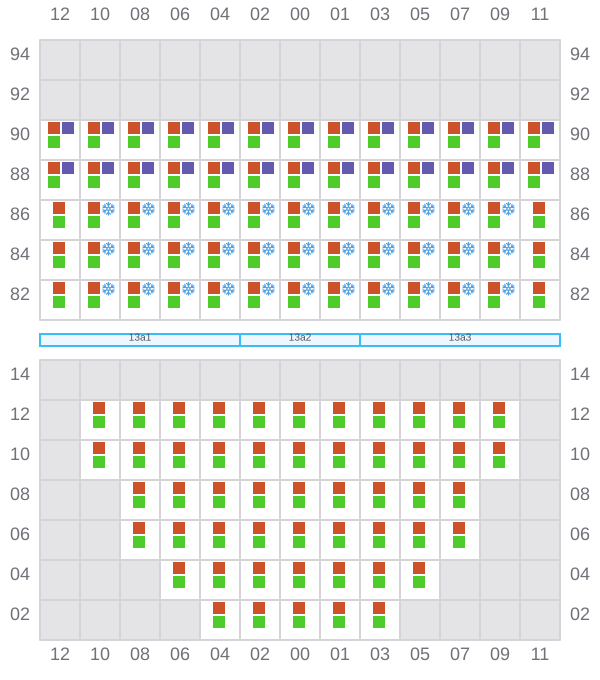

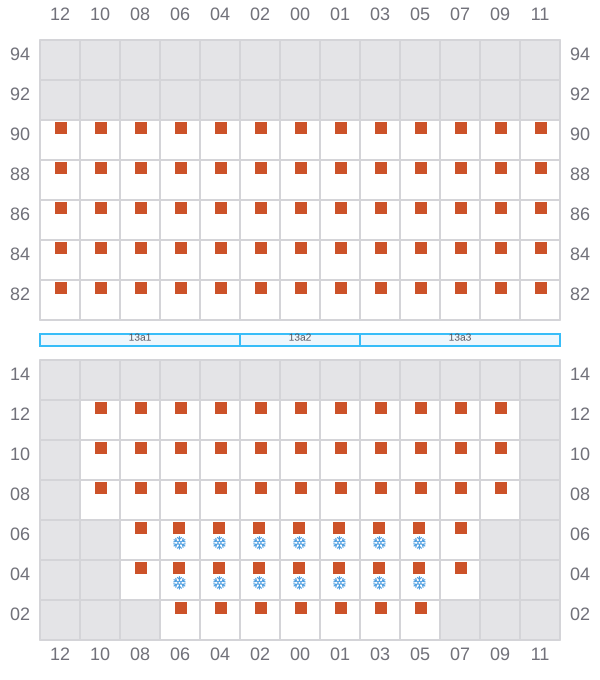

013 (014)
- →
- ← / ?
015
- ←
- ? / →

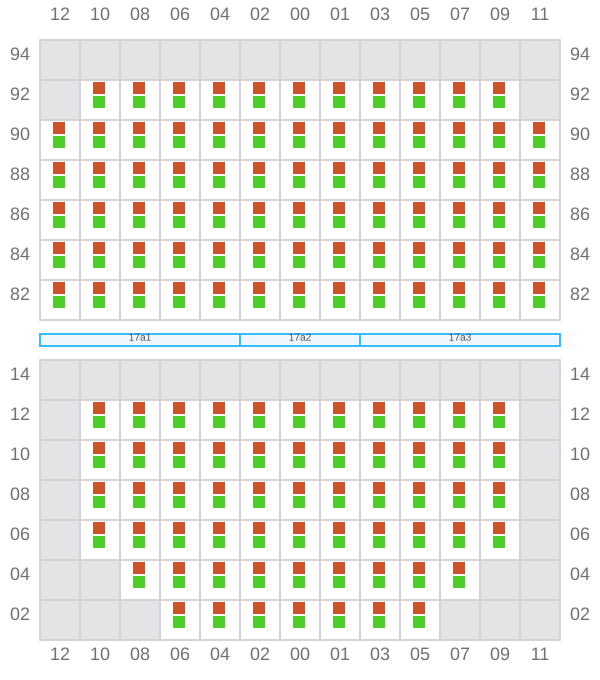

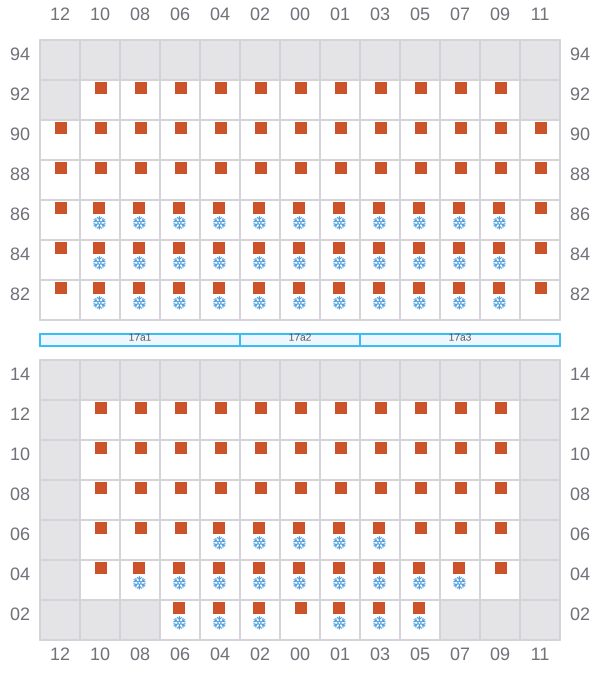

017 (018)
- →
019
- ←
- →

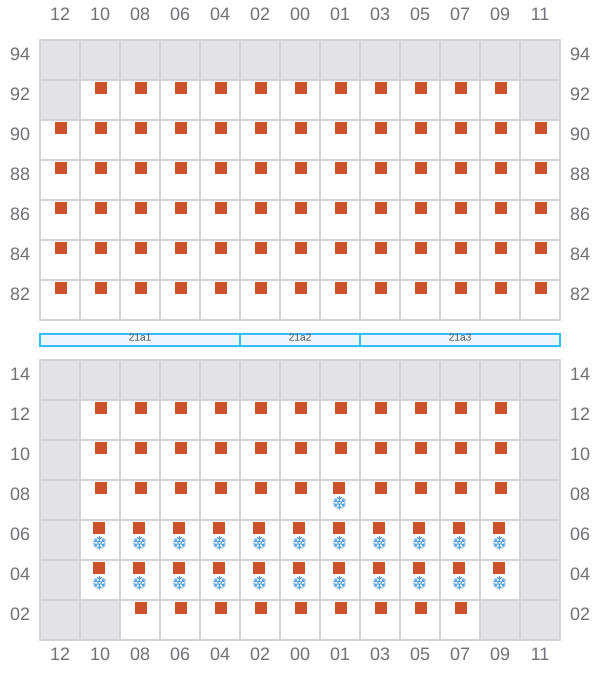

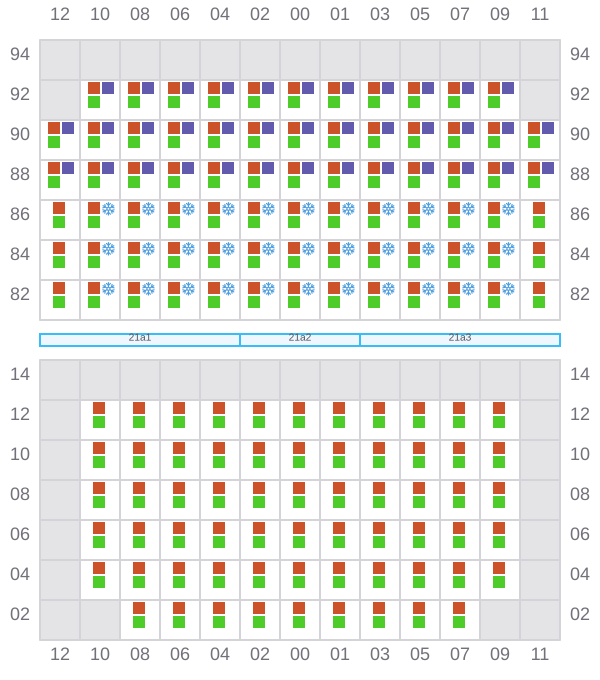

021 (022)
- →
- ← / ?
023
- ←
- ? / →

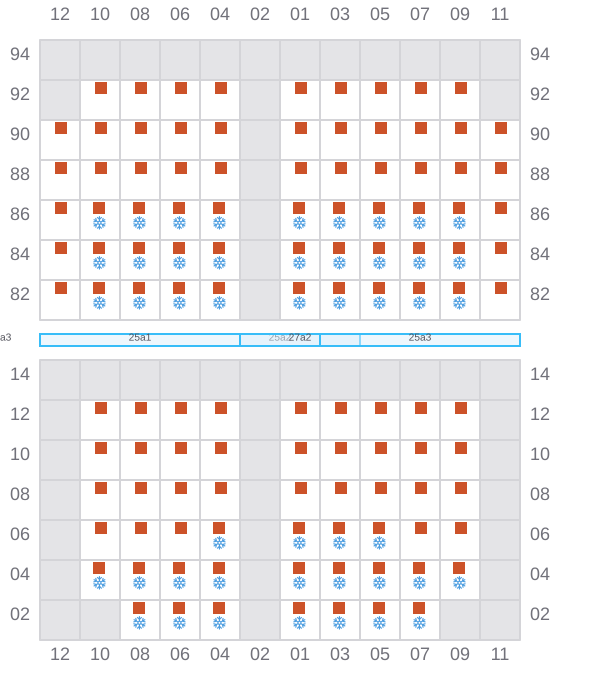

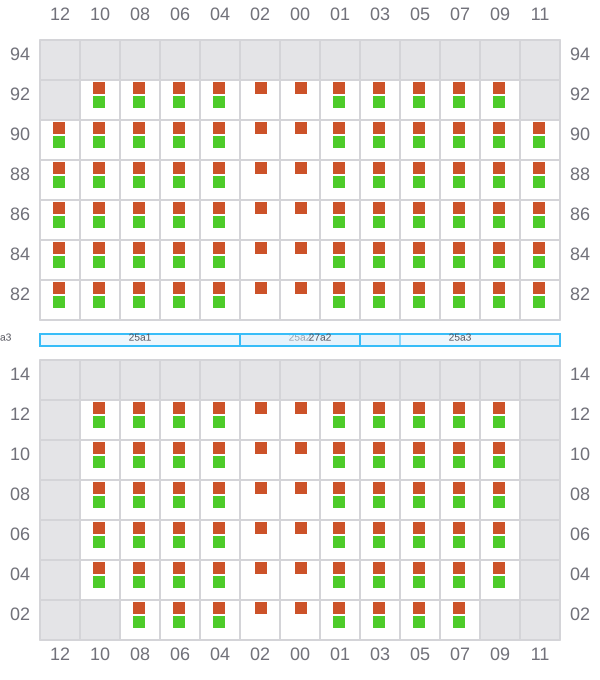

025 (026)
- →
027
- ←
- →

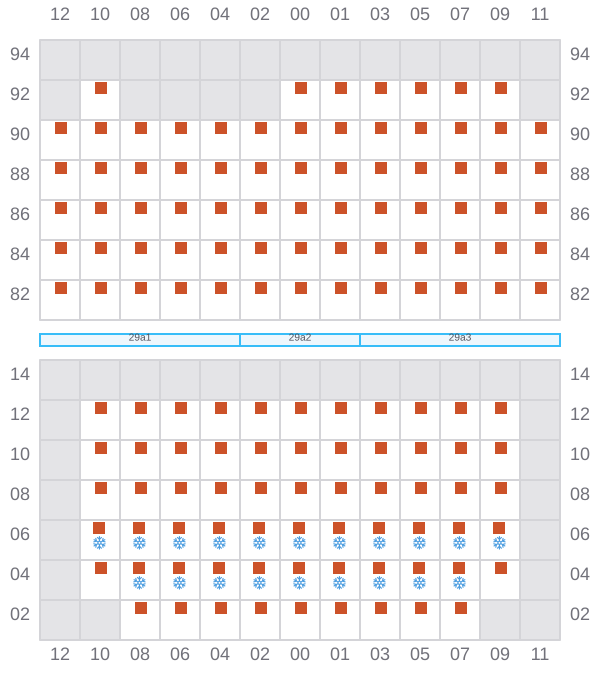

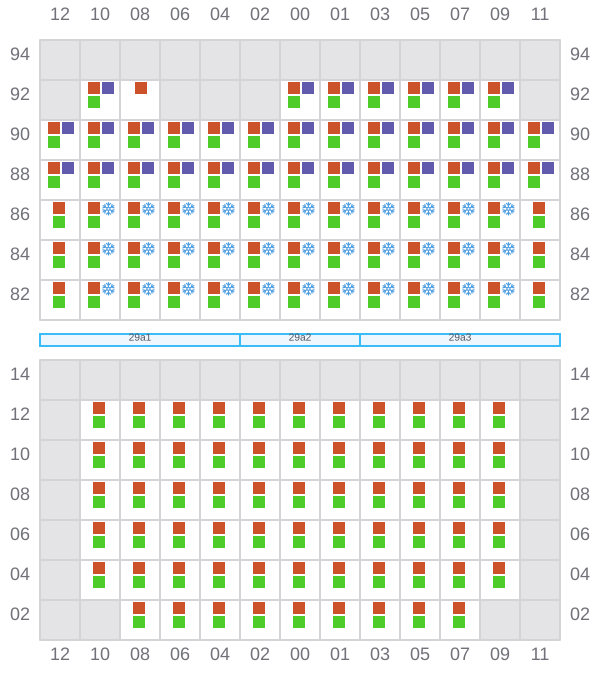

029 (030)
- →
- ← / ?
031
- ←
- ? / →

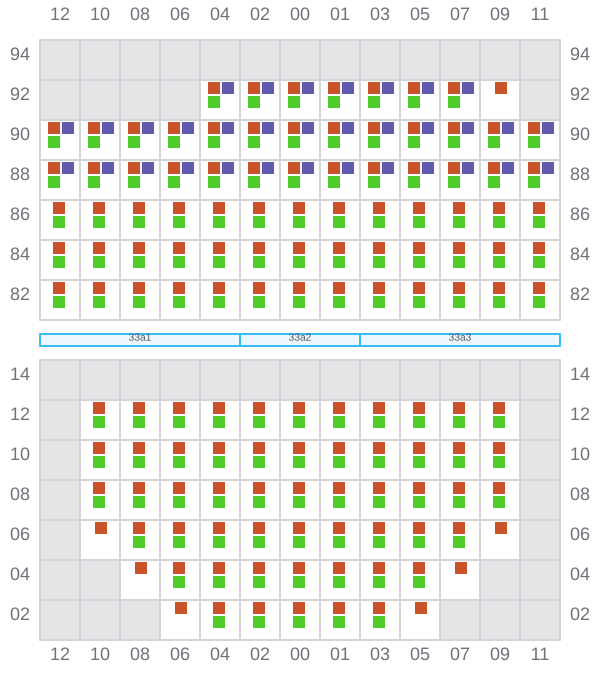

033 (034)
- →

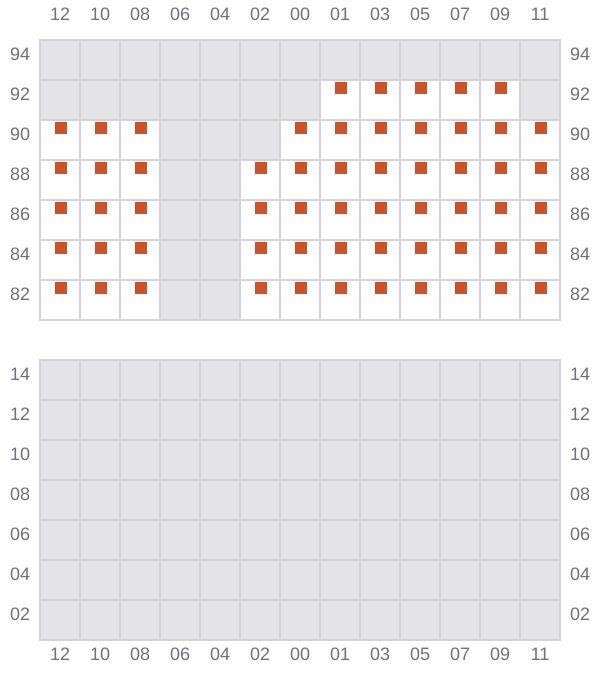

035
- ←
037

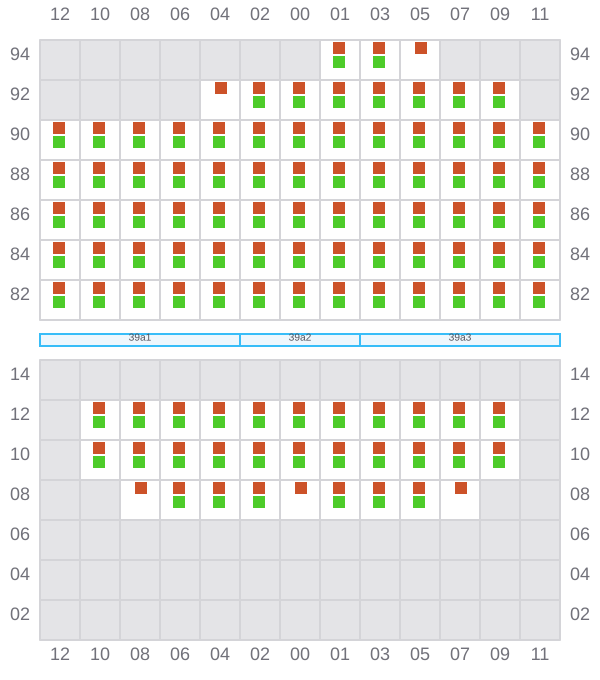

039 (040)
- →

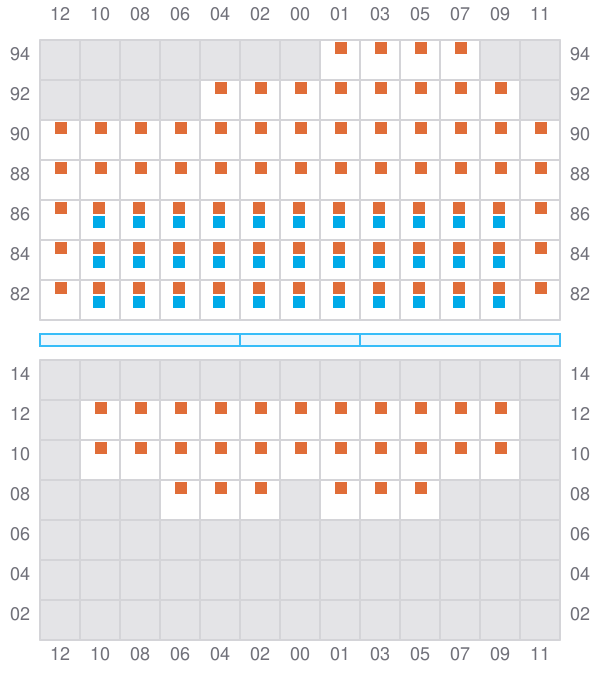

041
- ←
- → / ?

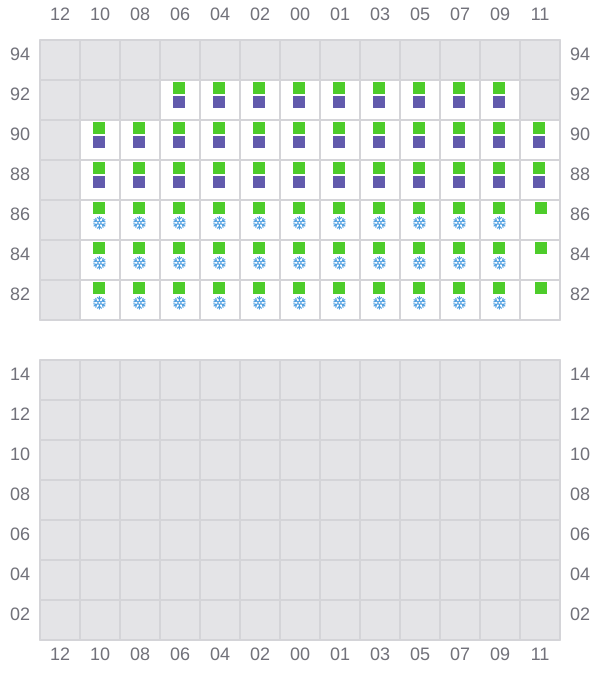

043 (044)
- → / ?
- ← / ?
