LEDA MAERSK
9190755 | VRTU8 | 9190755 by ********* Last update: Sun Mar 10 2024
General Info
Ship Name:LEDA MAERSK
IMO Code:9190755
Call Sign:VRTU8
Line Operator:9190755
Class Name for Sister Ships:270
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:059
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,354
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-sideView.png?v=1710096055093)
Hatch-Covers View
![Deck view of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-deckView.png?v=1710096055093)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

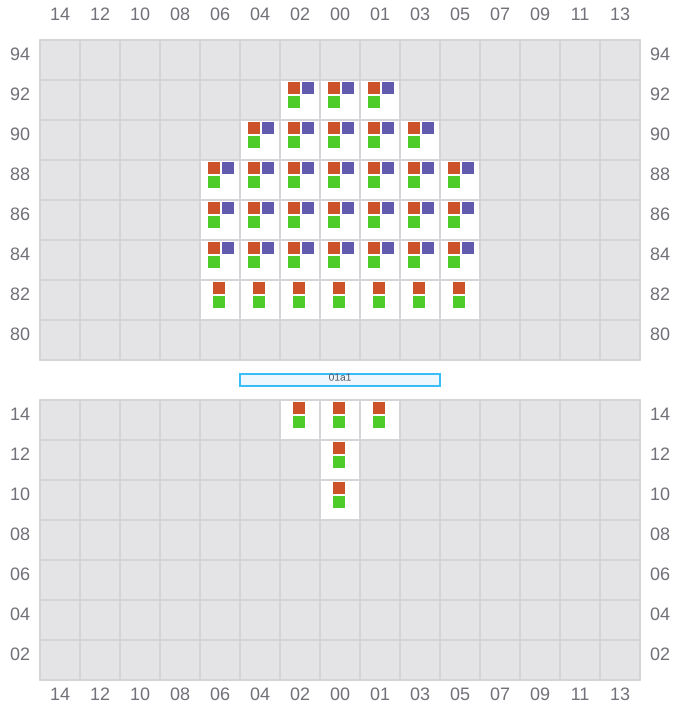

001 (002)
- →
- → / ?
![Bay 001 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b001.png?v=1710096055093)

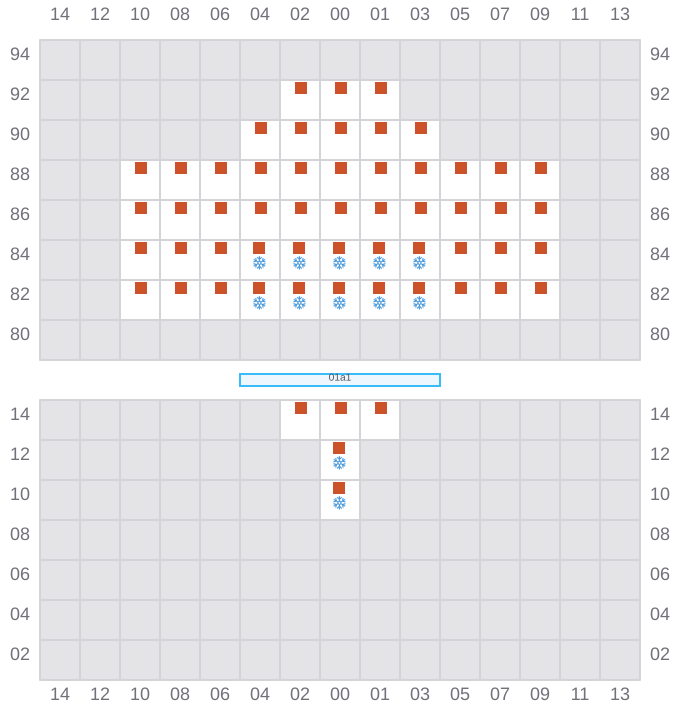

003
- ←
- →
![Bay 003 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b003.png?v=1710096055093)

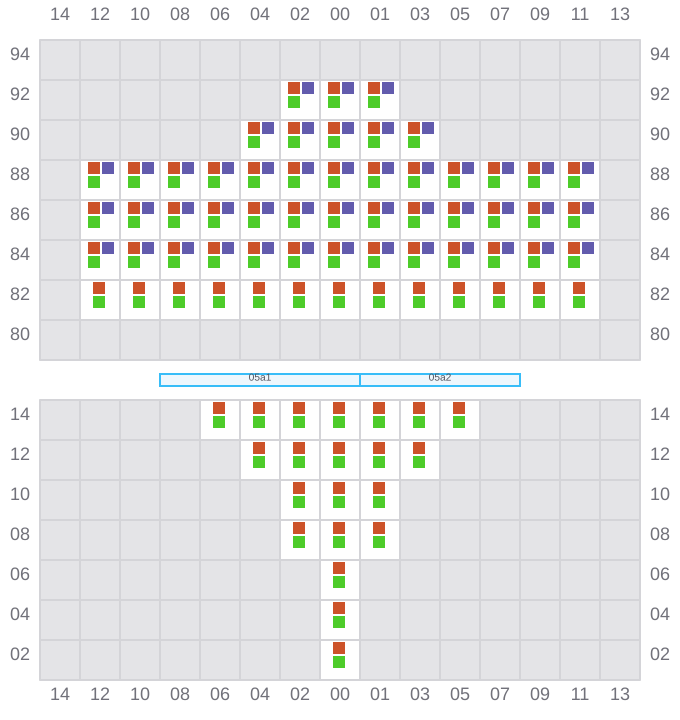

005 (006)
- →
- ? / →
![Bay 005 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b005.png?v=1710096055093)

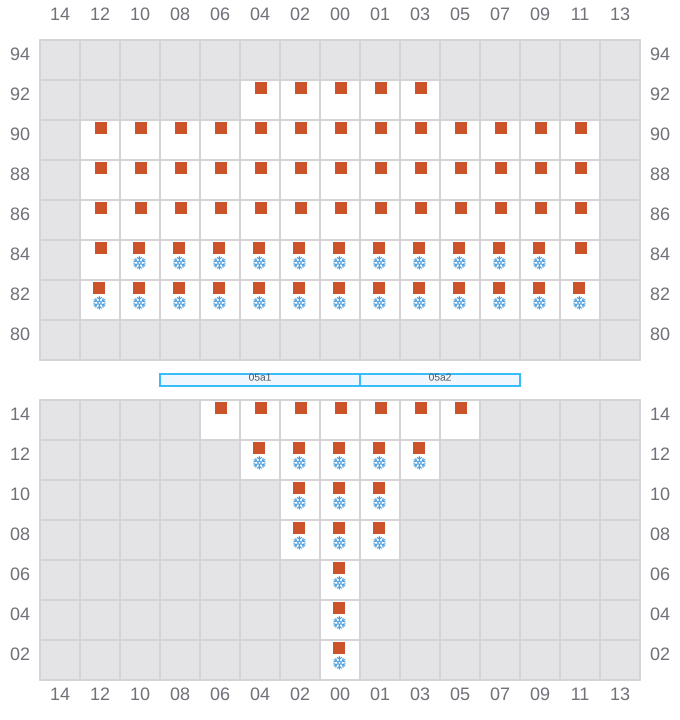

007
- ←
- →
![Bay 007 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b007.png?v=1710096055093)

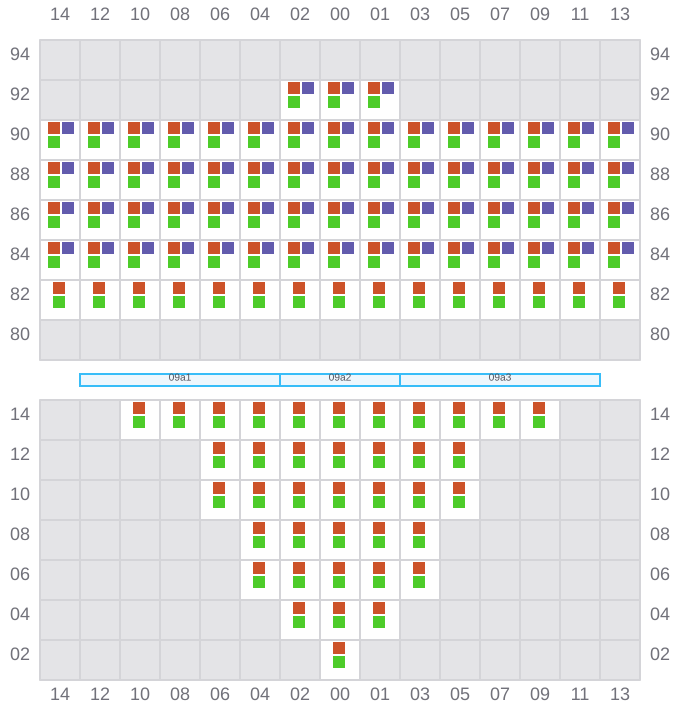

009 (010)
- →
- ? / →
![Bay 009 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b009.png?v=1710096055093)

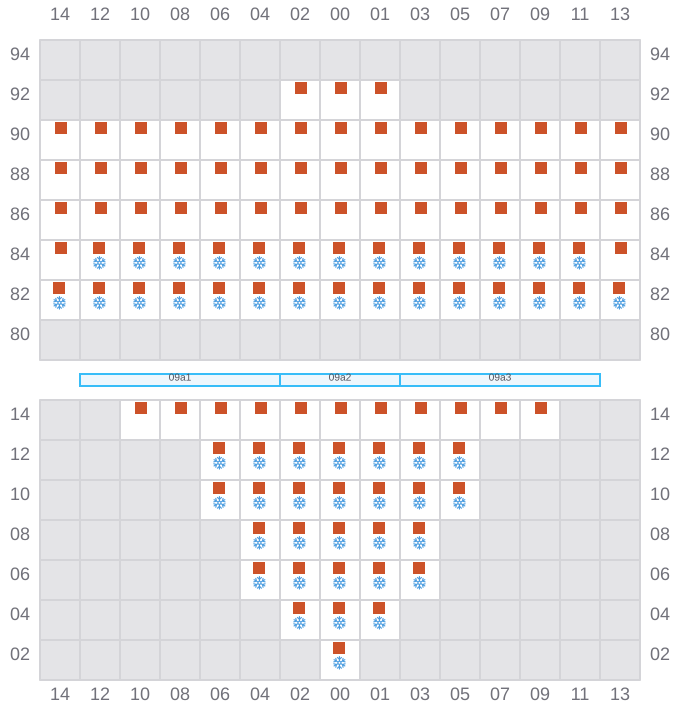

011
- ←
- →
![Bay 011 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b011.png?v=1710096055093)

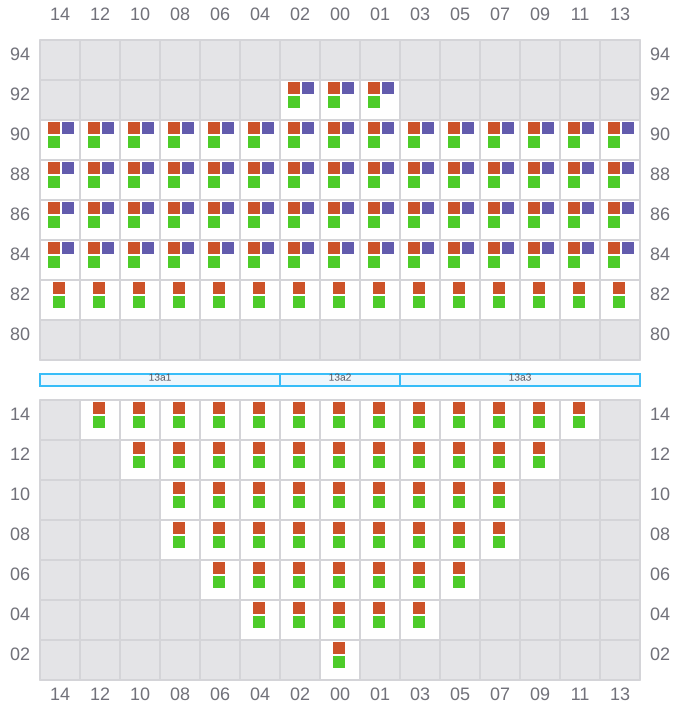

013 (014)
- →
- ? / →
![Bay 013 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b013.png?v=1710096055093)

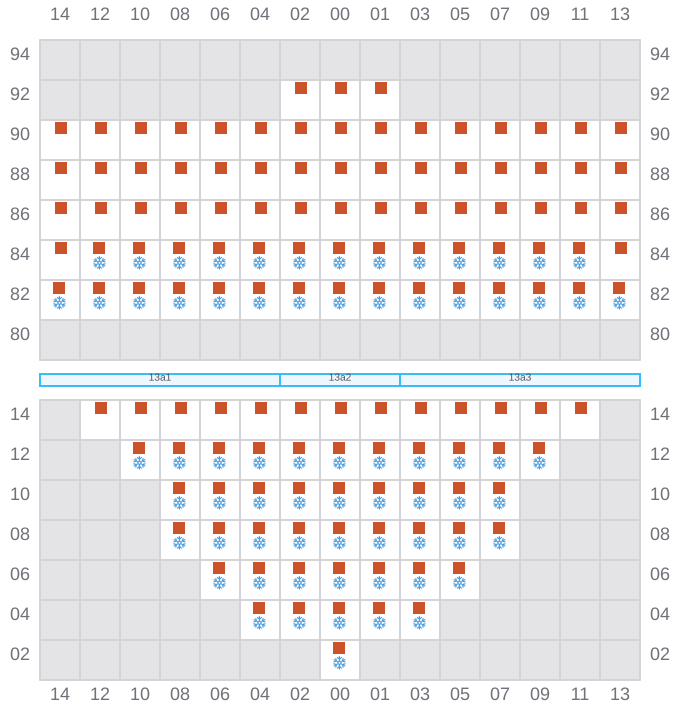

015
- ←
- →
![Bay 015 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b015.png?v=1710096055093)

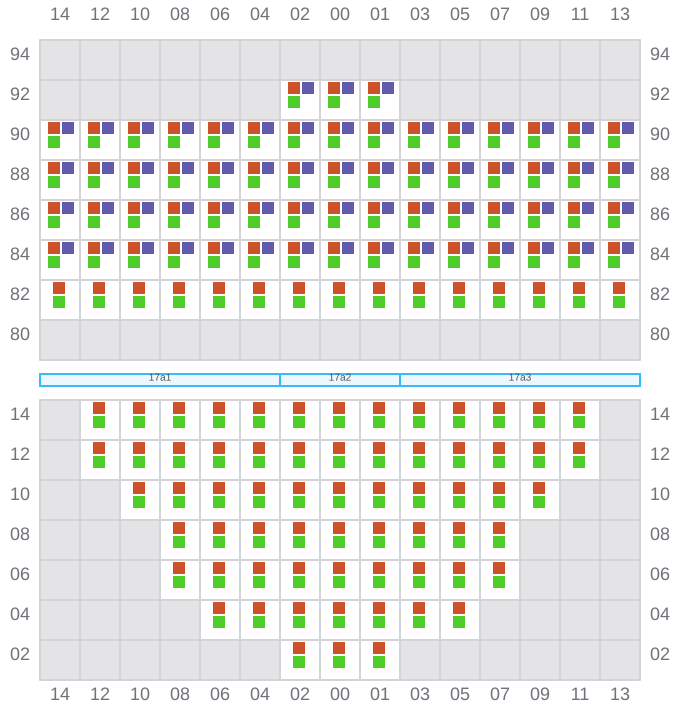

017 (018)
- →
- ? / →
![Bay 017 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b017.png?v=1710096055093)
019
- ←
- →
![Bay 019 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b019.png?v=1710096055093)

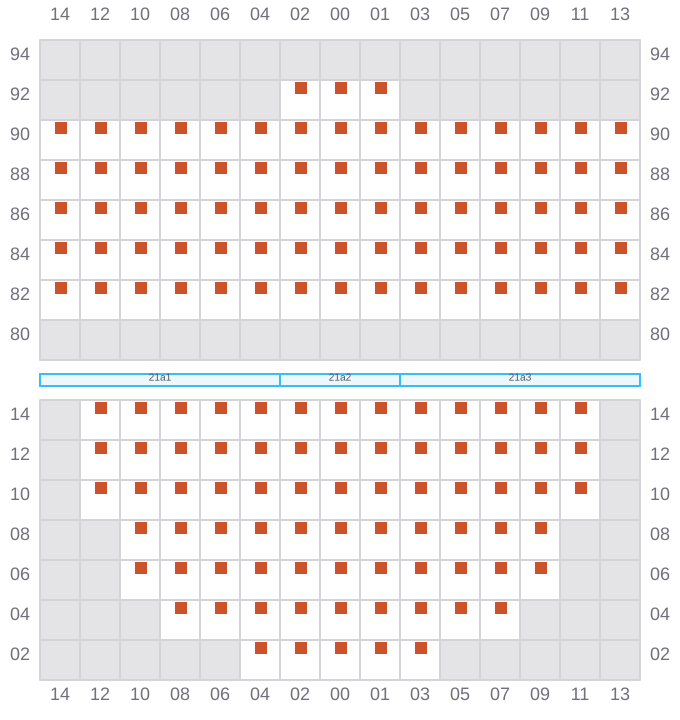

021
![Bay 021 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b021.png?v=1710096055093)

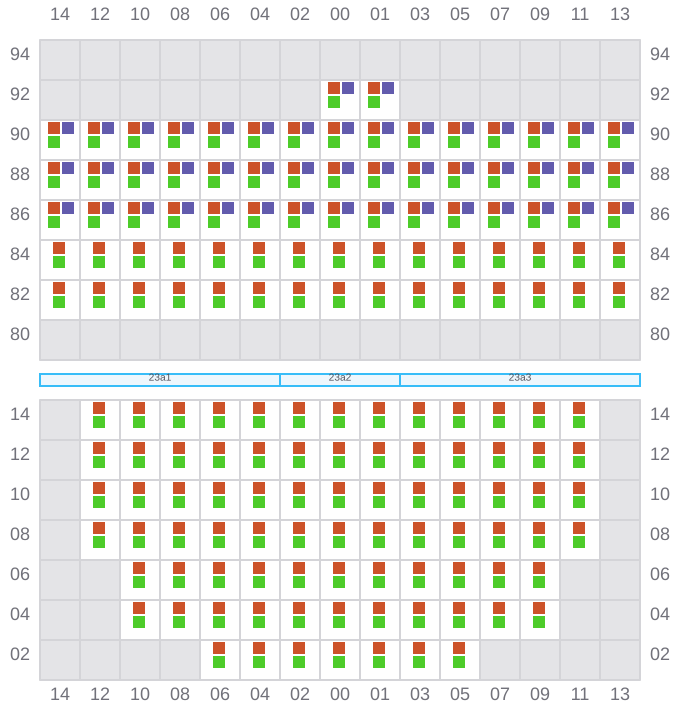

023 (024)
- →
- ? / →
![Bay 023 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b023.png?v=1710096055093)

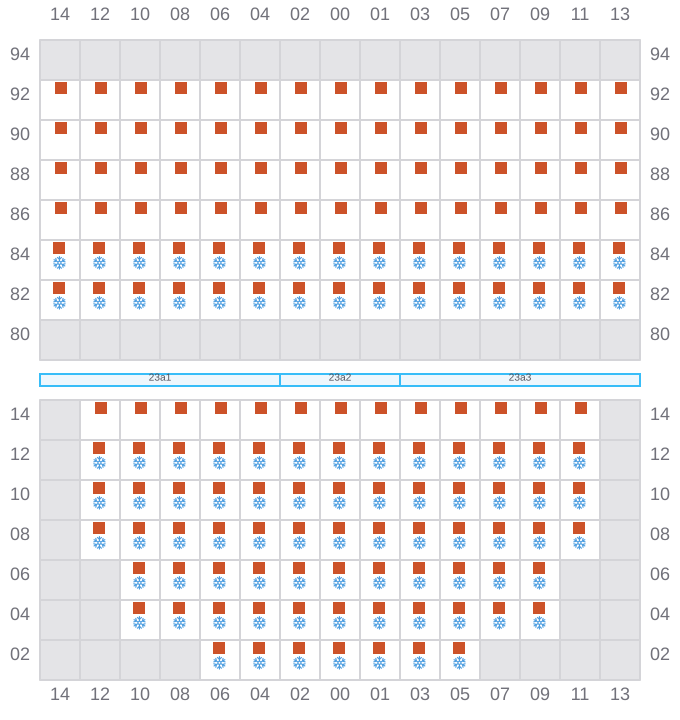

025
- ←
- →
![Bay 025 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b025.png?v=1710096055093)

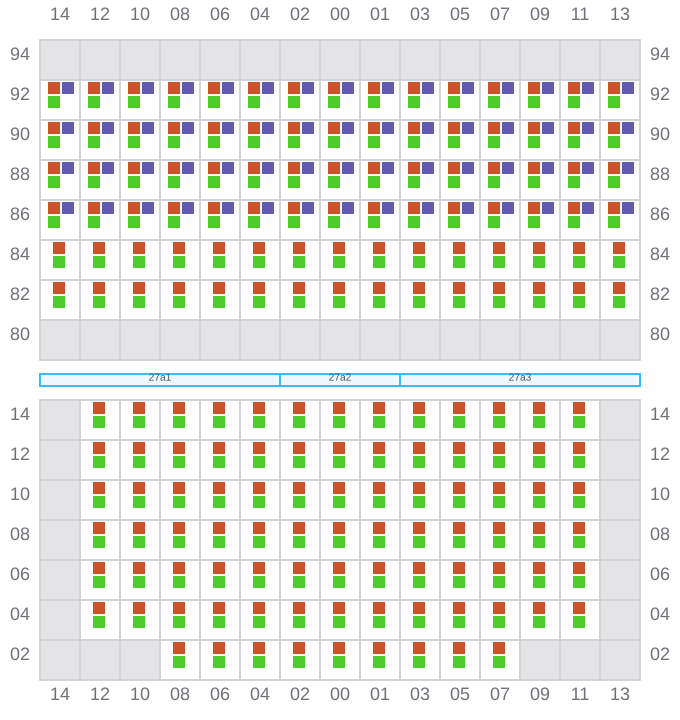

027 (028)
- →
- ? / →
![Bay 027 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b027.png?v=1710096055093)

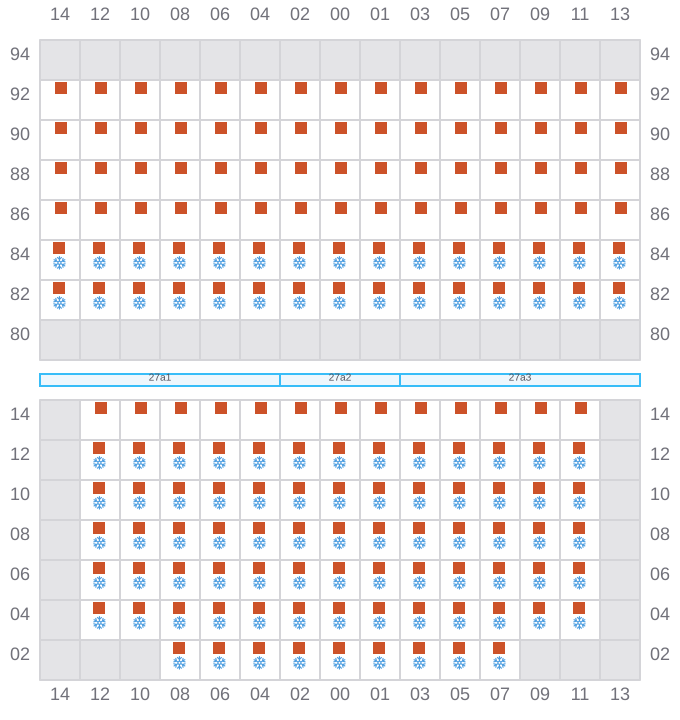

029
- ←
- →
![Bay 029 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b029.png?v=1710096055093)
031 (032)
- →
- ? / →
![Bay 031 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b031.png?v=1710096055093)
033
- ←
- →
![Bay 033 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b033.png?v=1710096055093)
035 (036)
- →
- ? / →
![Bay 035 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b035.png?v=1710096055093)

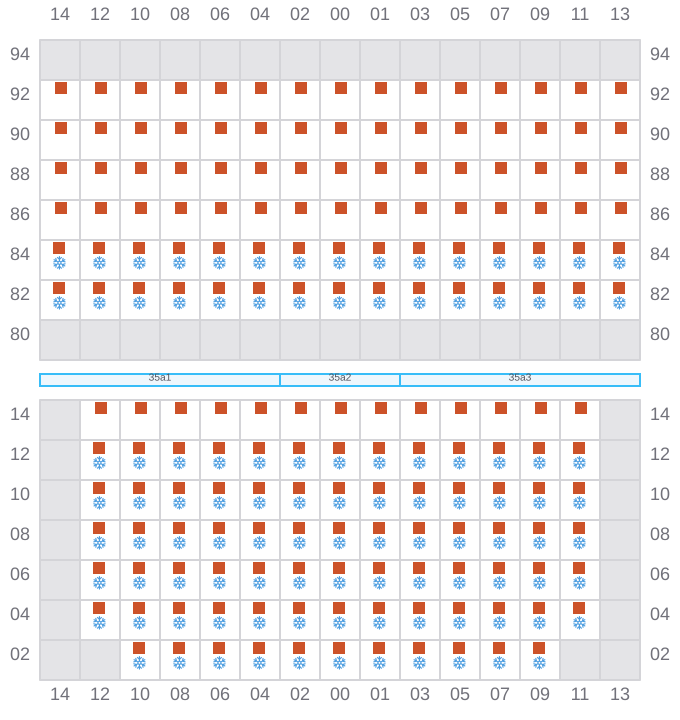

037
- ←
- →
![Bay 037 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b037.png?v=1710096055093)
039 (040)
- →
- ? / →
![Bay 039 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b039.png?v=1710096055093)

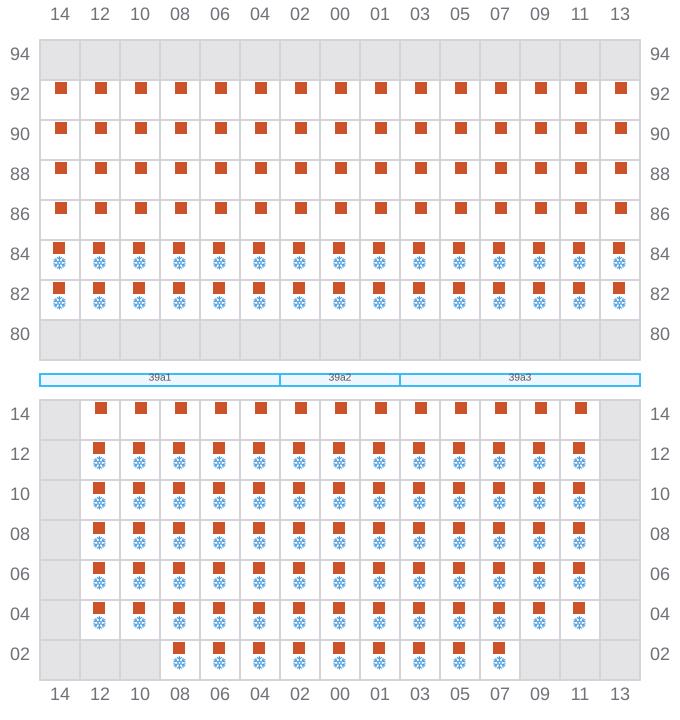

041
- ←
- →
![Bay 041 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b041.png?v=1710096055093)

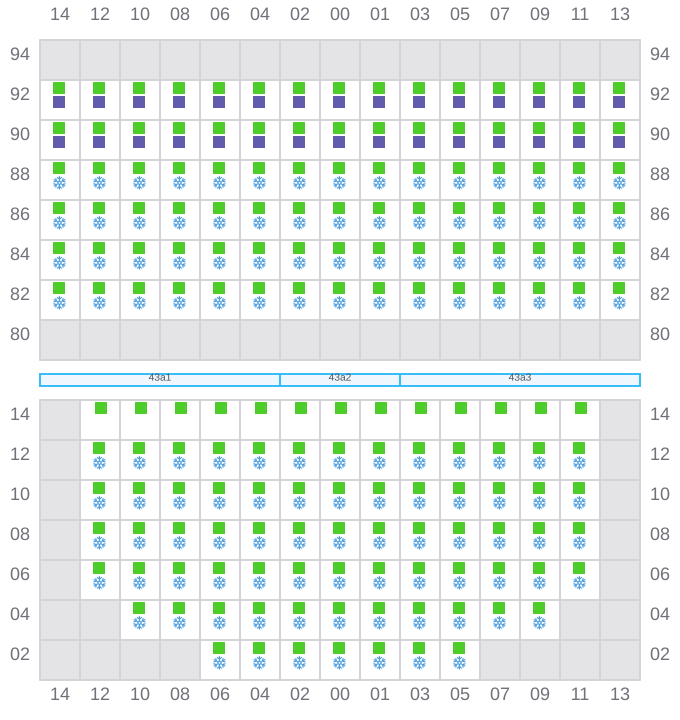

043 (044)
- →
- →
![Bay 043 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b043.png?v=1710096055093)

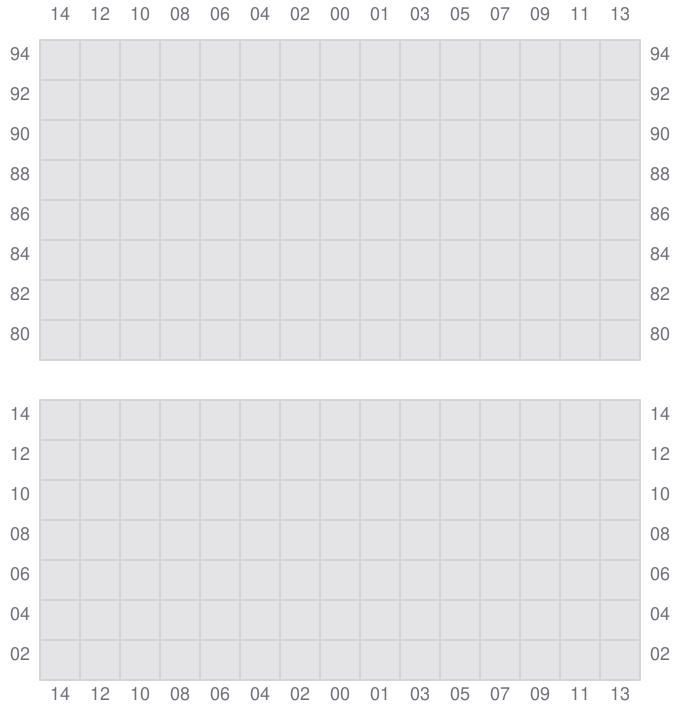

045
![Bay 045 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b045.png?v=1710096055093)

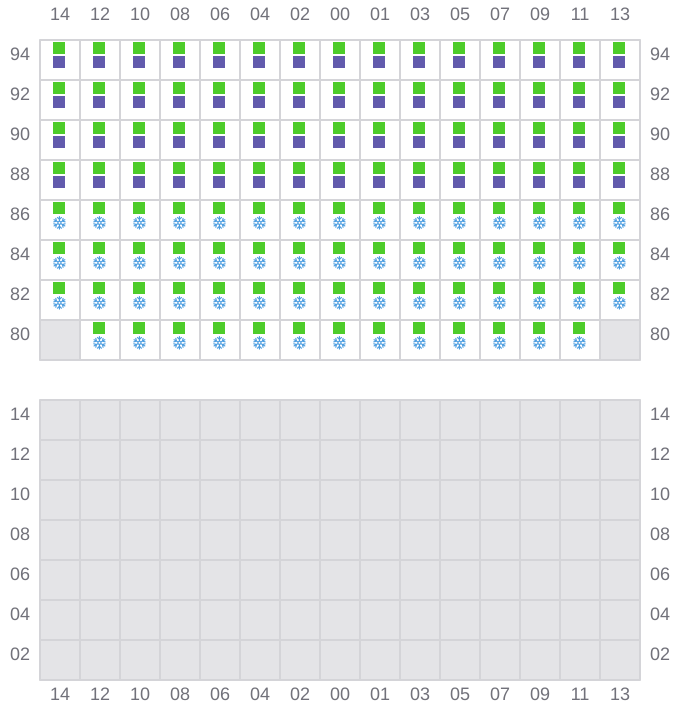

047 (048)
- → / ?
- ← / ?
![Bay 047 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b047.png?v=1710096055093)

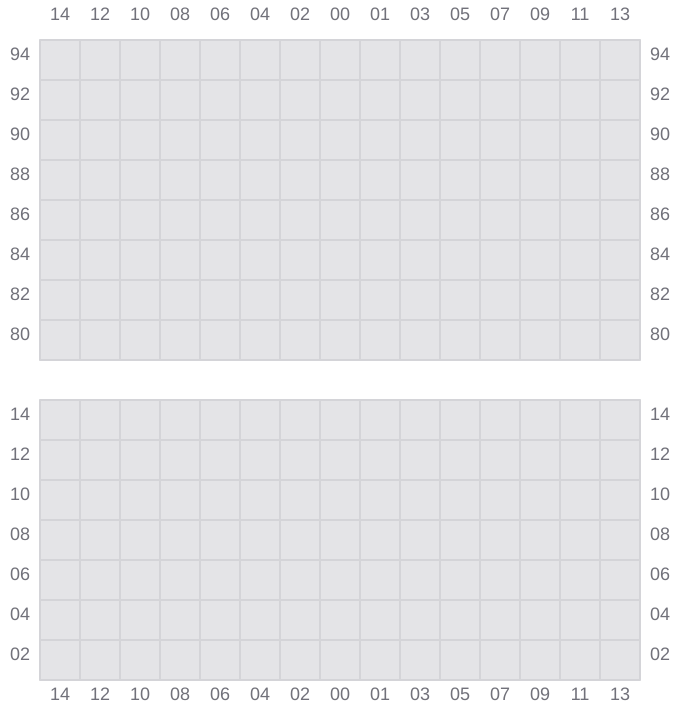

049
![Bay 049 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b049.png?v=1710096055093)

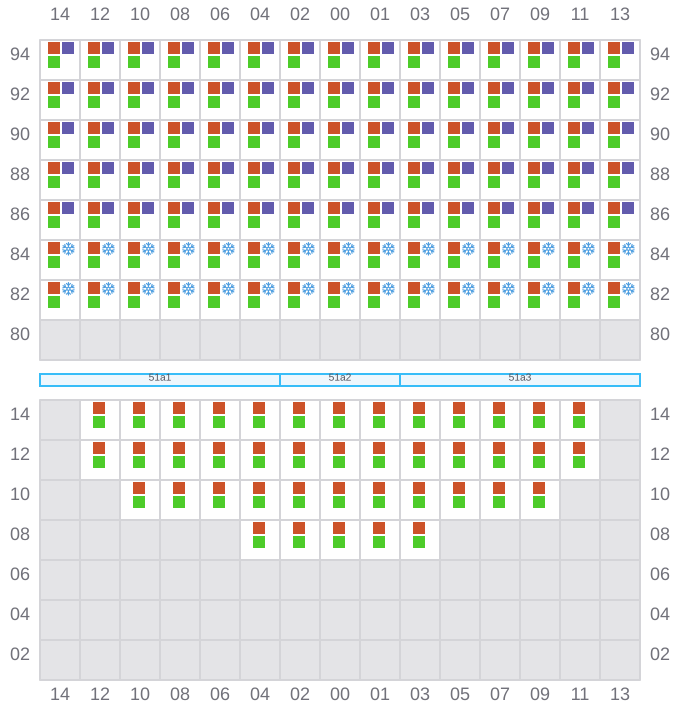

051 (052)
- →
- ← / →
![Bay 051 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b051.png?v=1710096055093)
053
- ←
- ? / →
![Bay 053 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b053.png?v=1710096055093)

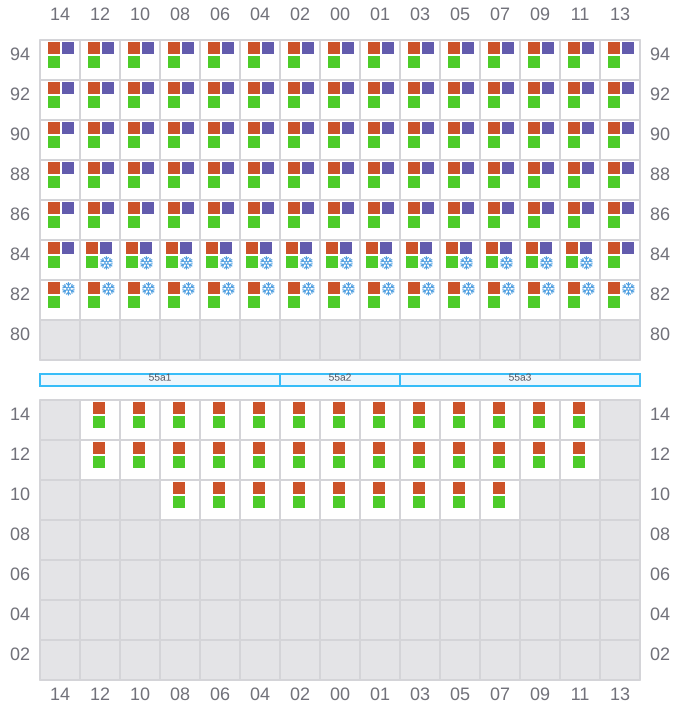

055 (056)
- →
- ← / →
![Bay 055 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b055.png?v=1710096055093)

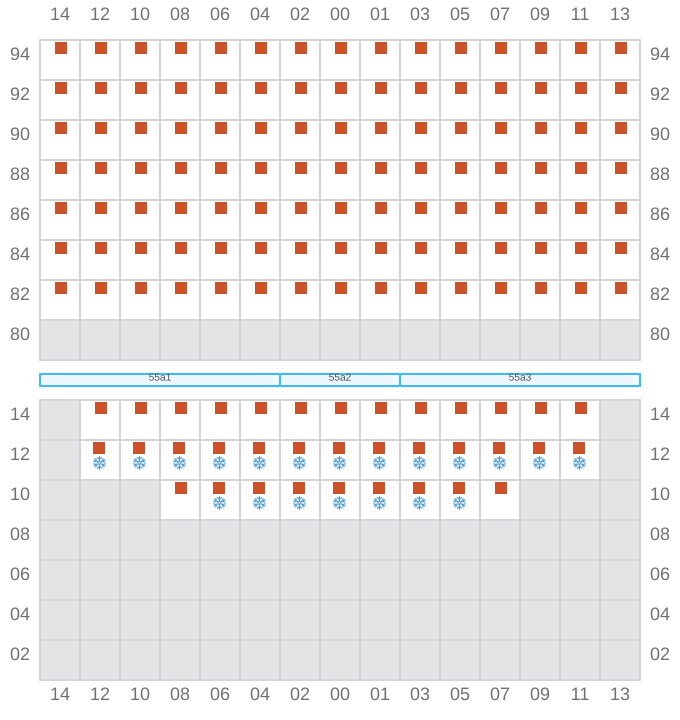

057
- ←
- ? / →
![Bay 057 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b057.png?v=1710096055093)

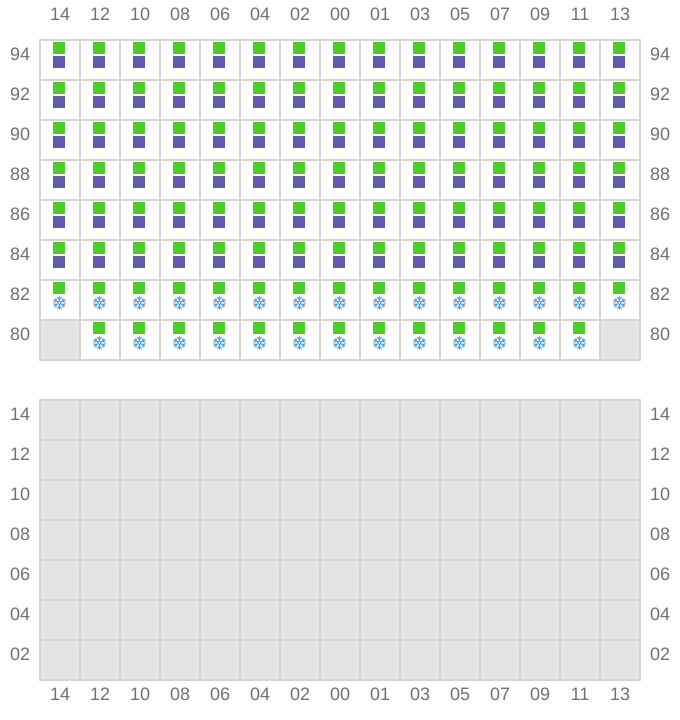

059 (060)
- → / ?
- ← / ?
![Bay 059 view and slots of LEDA MAERSK](/vessel-images/7b565f0a-07c8-4afb-86e3-d4cfca99bb0a-b059.png?v=1710096055093)
