LEONIDIO
9618587 | 9HA3483 | 9618587 by ********* Last update: Thu Jun 20 2024
General Info
Ship Name:LEONIDIO
IMO Code:9618587
Call Sign:9HA3483
Line Operator:9618587
Class Name for Sister Ships:MAE
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,970
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-sideView.png?v=1718916840021)
Hatch-Covers View
![Deck view of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-deckView.png?v=1718916840021)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

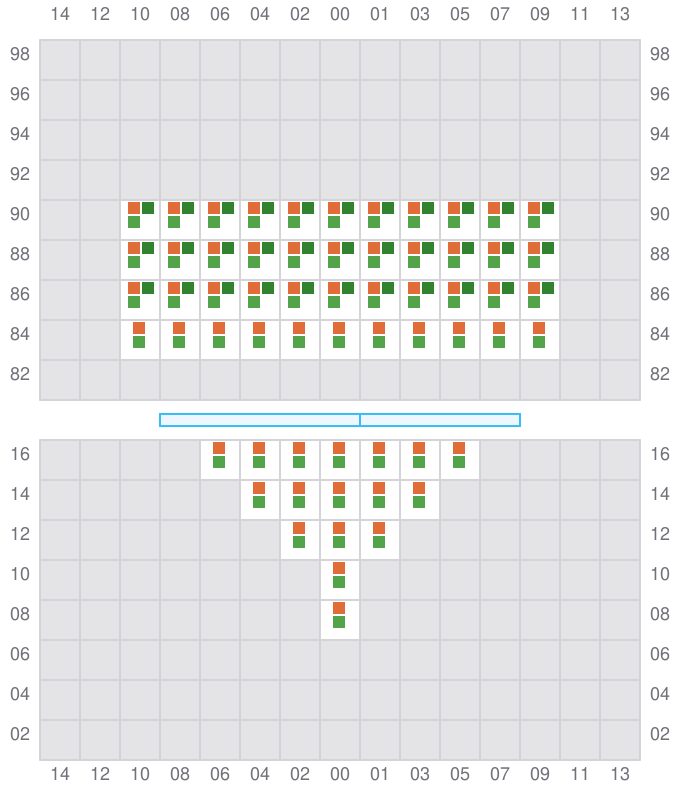

001 (002)
- →
- → / ?
![Bay 001 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b001.png?v=1718916840021)

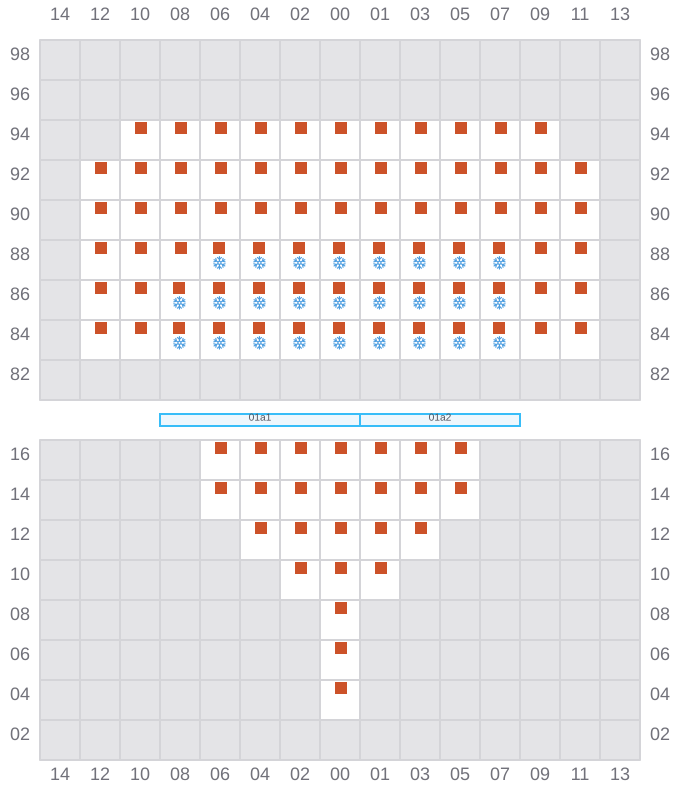

003
- ←
- → / ?
![Bay 003 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b003.png?v=1718916840021)

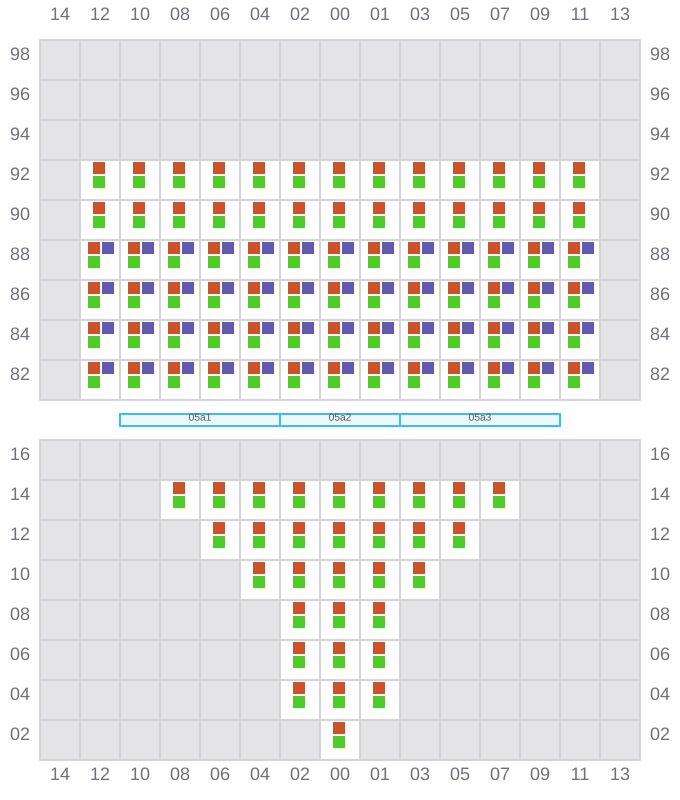

005 (006)
- →
![Bay 005 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b005.png?v=1718916840021)

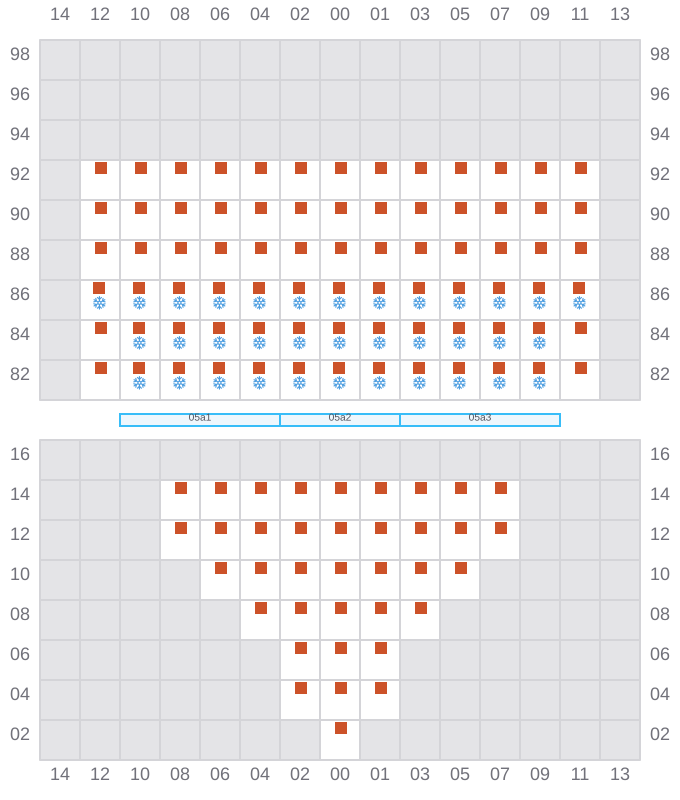

007
- ←
- → / ?
![Bay 007 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b007.png?v=1718916840021)

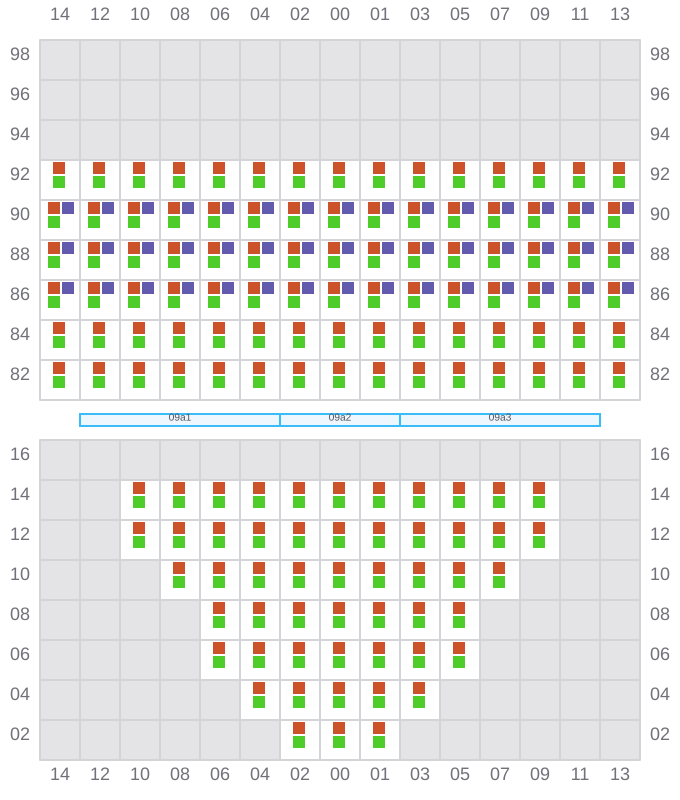

009 (010)
- →
![Bay 009 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b009.png?v=1718916840021)

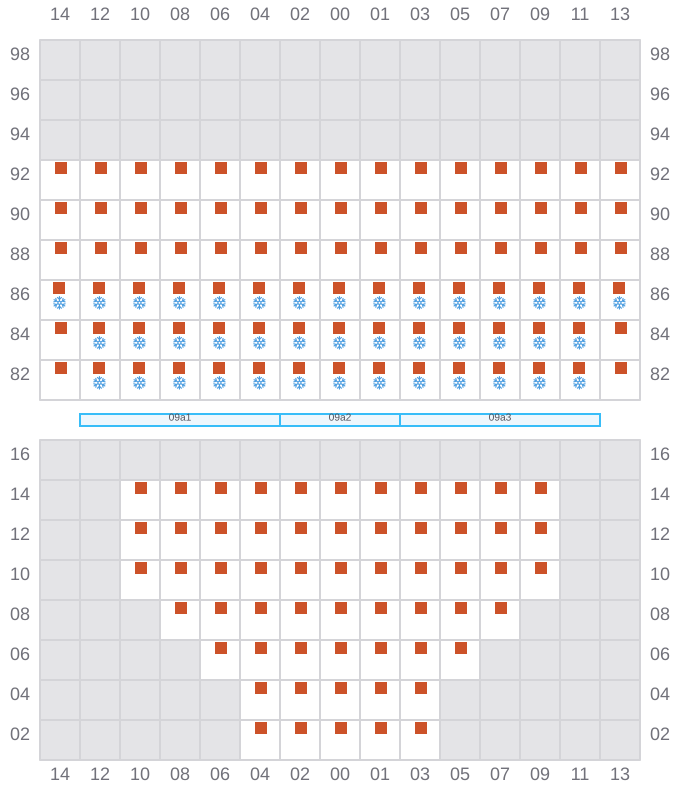

011
- ←
- → / ?
![Bay 011 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b011.png?v=1718916840021)

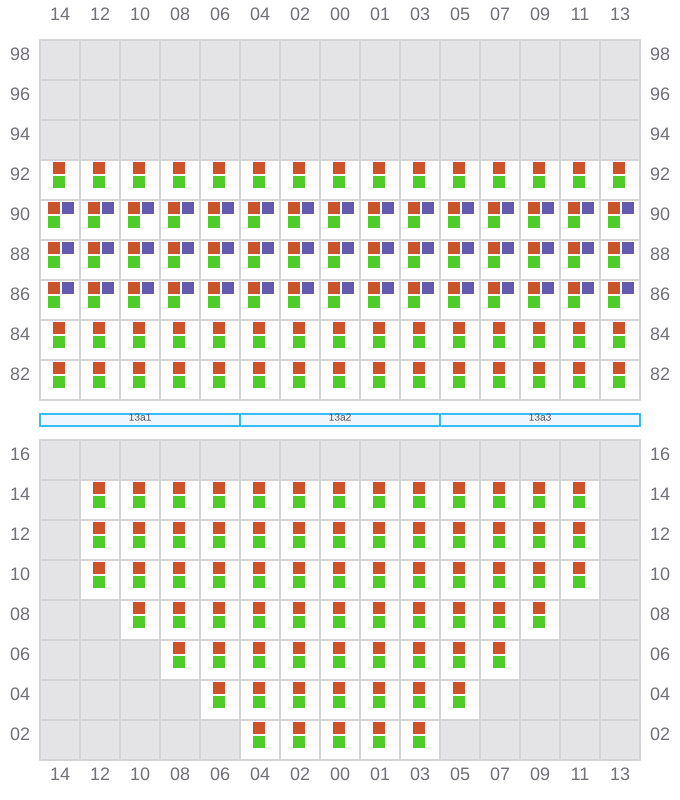

013 (014)
- →
![Bay 013 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b013.png?v=1718916840021)

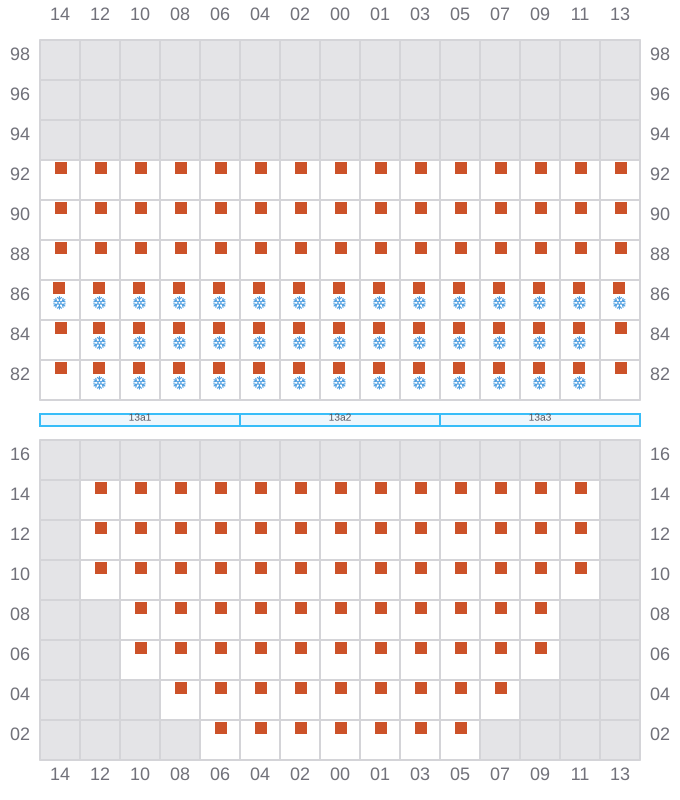

015
- ←
- → / ?
![Bay 015 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b015.png?v=1718916840021)
017 (018)
- →
![Bay 017 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b017.png?v=1718916840021)
019
- ←
- → / ?
![Bay 019 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b019.png?v=1718916840021)

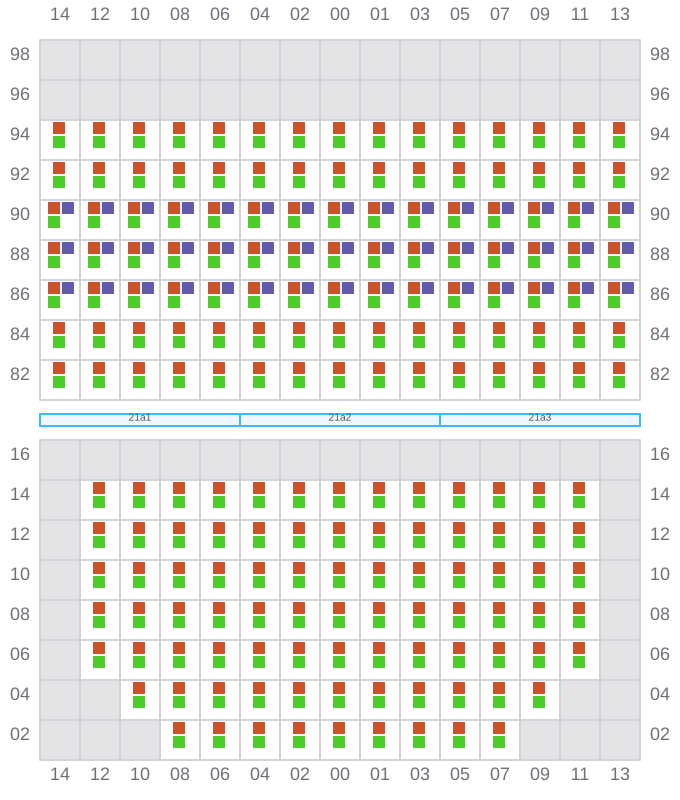

021 (022)
- →
![Bay 021 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b021.png?v=1718916840021)
023
- ←
- → / ?
![Bay 023 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b023.png?v=1718916840021)
025 (026)
- →
![Bay 025 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b025.png?v=1718916840021)

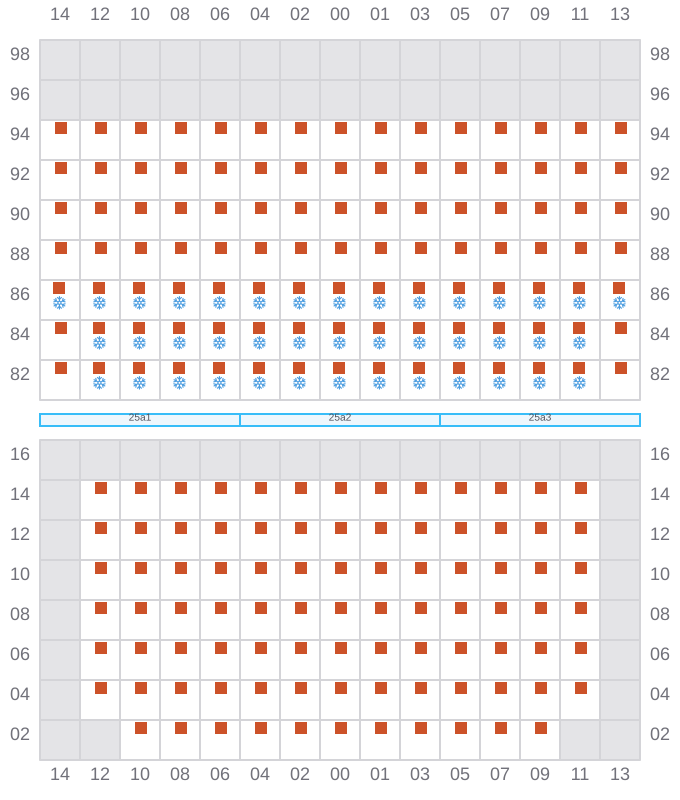

027
- ←
- → / ?
![Bay 027 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b027.png?v=1718916840021)

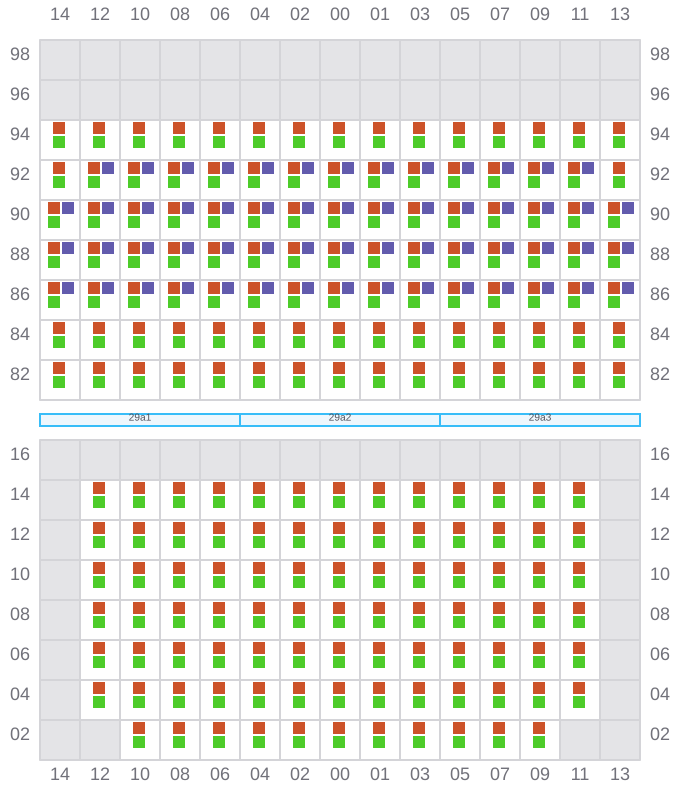

029 (030)
- →
![Bay 029 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b029.png?v=1718916840021)
031
- ←
- → / ?
![Bay 031 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b031.png?v=1718916840021)
033 (034)
- →
![Bay 033 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b033.png?v=1718916840021)

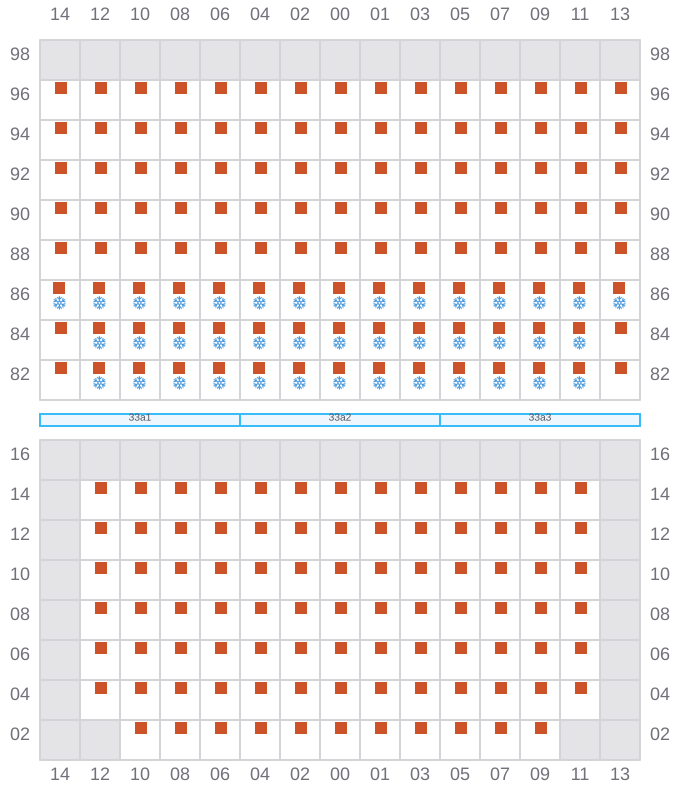

035
- ←
- → / ?
![Bay 035 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b035.png?v=1718916840021)

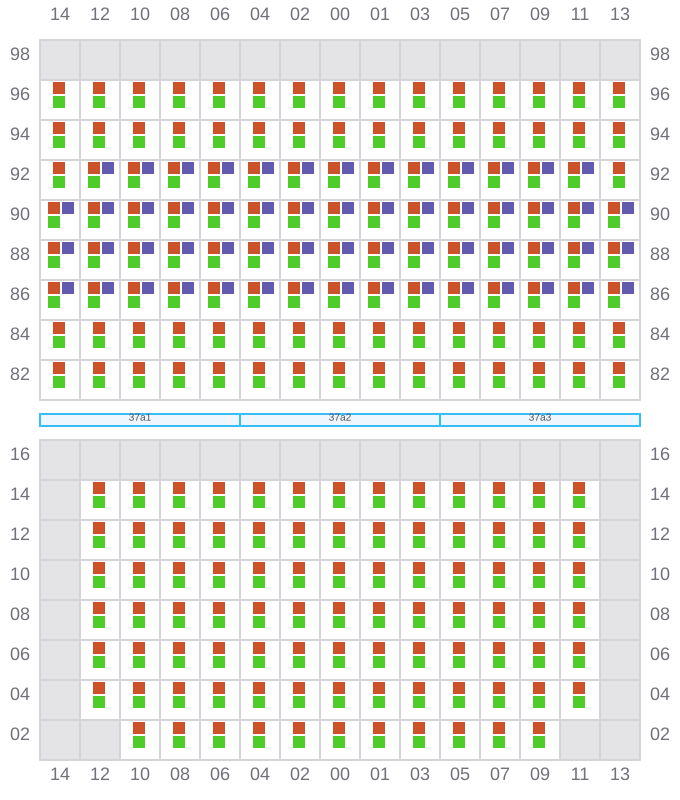

037 (038)
- →
![Bay 037 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b037.png?v=1718916840021)
039
- ←
- → / ?
![Bay 039 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b039.png?v=1718916840021)
041 (042)
- →
![Bay 041 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b041.png?v=1718916840021)

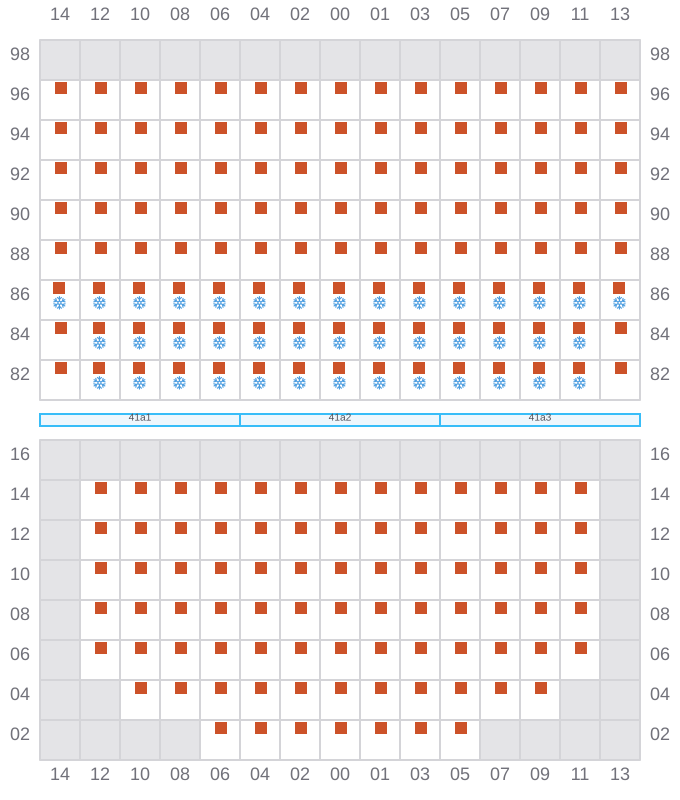

043
- ←
- → / ?
![Bay 043 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b043.png?v=1718916840021)

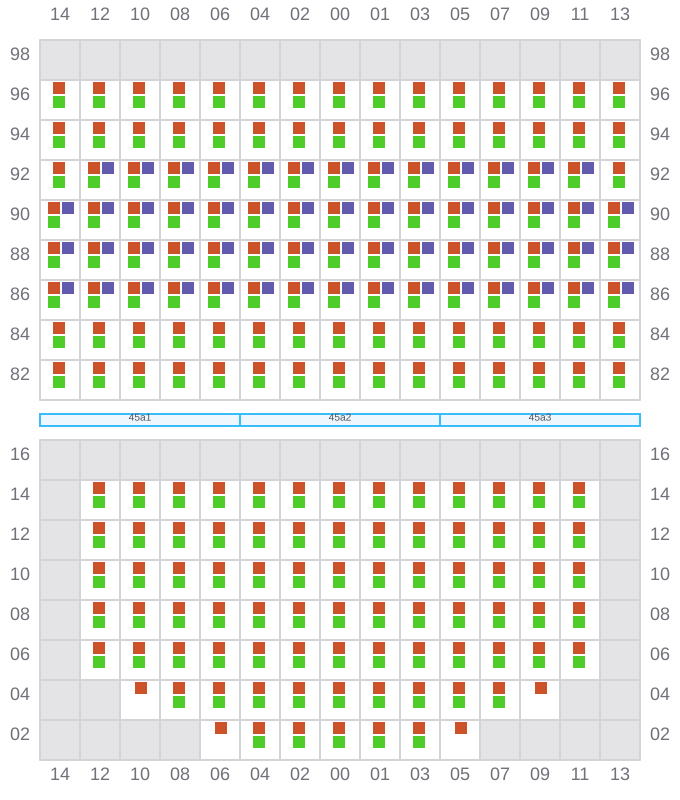

045 (046)
- →
![Bay 045 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b045.png?v=1718916840021)
047
- ←
- → / ?
![Bay 047 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b047.png?v=1718916840021)
049 (050)
- → / ?
![Bay 049 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b049.png?v=1718916840021)

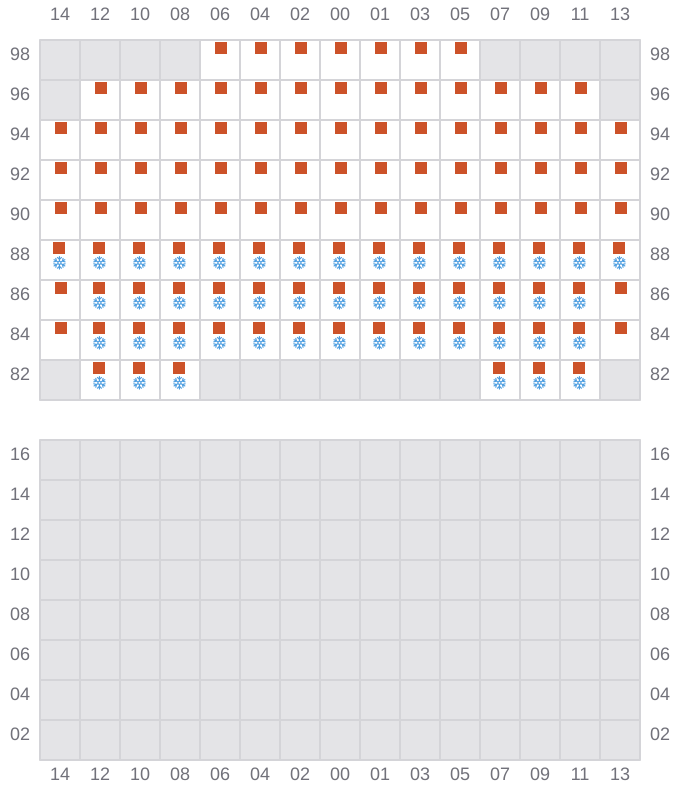

051
- ← / ?
- → / ?
![Bay 051 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b051.png?v=1718916840021)

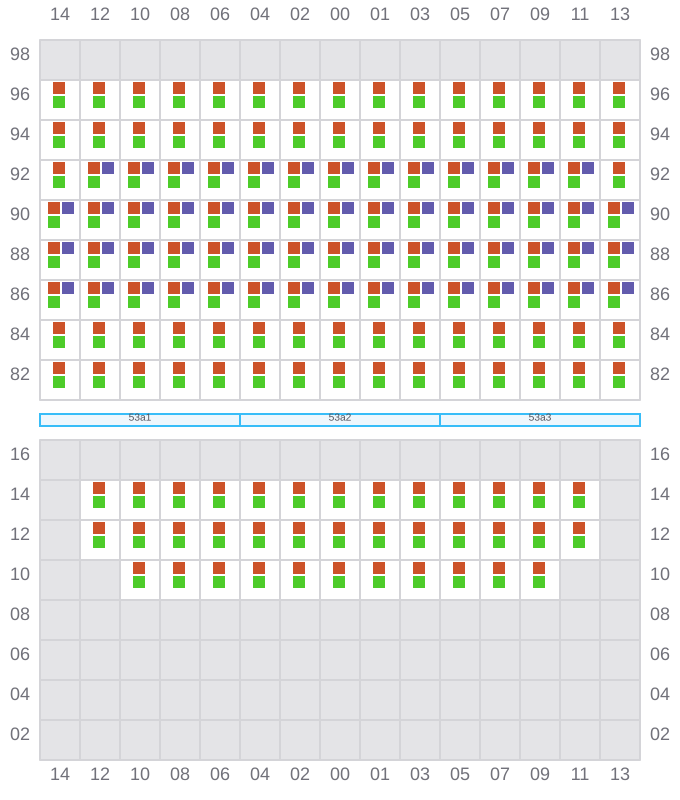

053 (054)
- →
![Bay 053 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b053.png?v=1718916840021)
055
- ←
- → / ?
![Bay 055 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b055.png?v=1718916840021)
057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of LEONIDIO](/vessel-images/6c932602-ac00-4ee4-82de-2549be0a7223-b057.png?v=1718916840021)
