LIBERTAS H
9388388 | CQJB | 9388388 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:LIBERTAS H
IMO Code:9388388
Call Sign:CQJB
Line Operator:9388388
Class Name for Sister Ships:91A
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:709
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

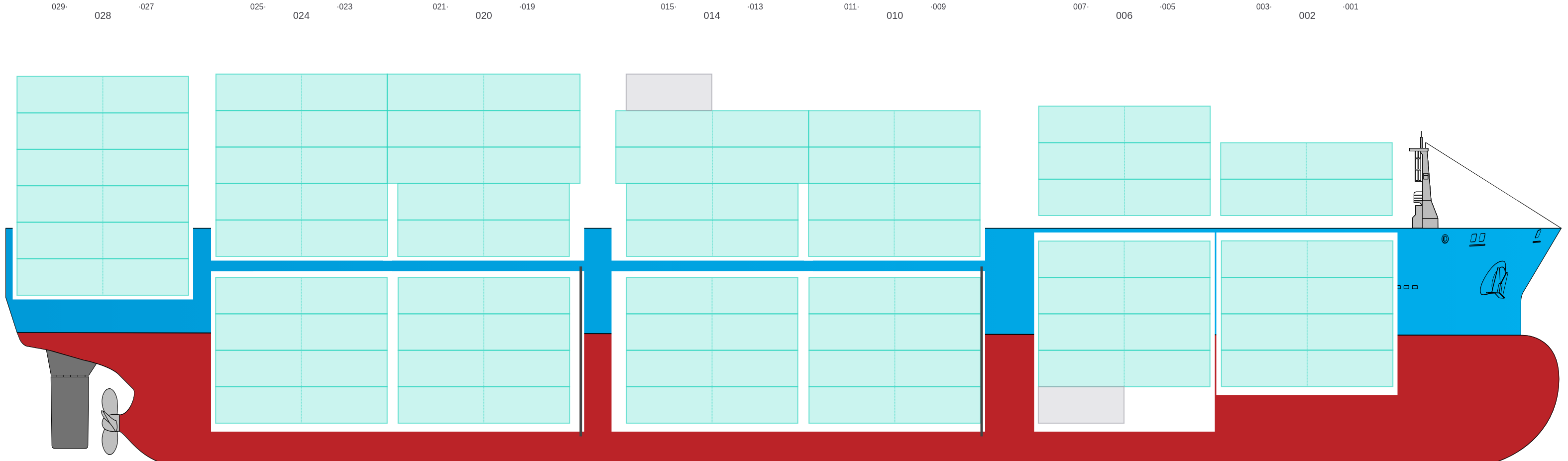

Side View

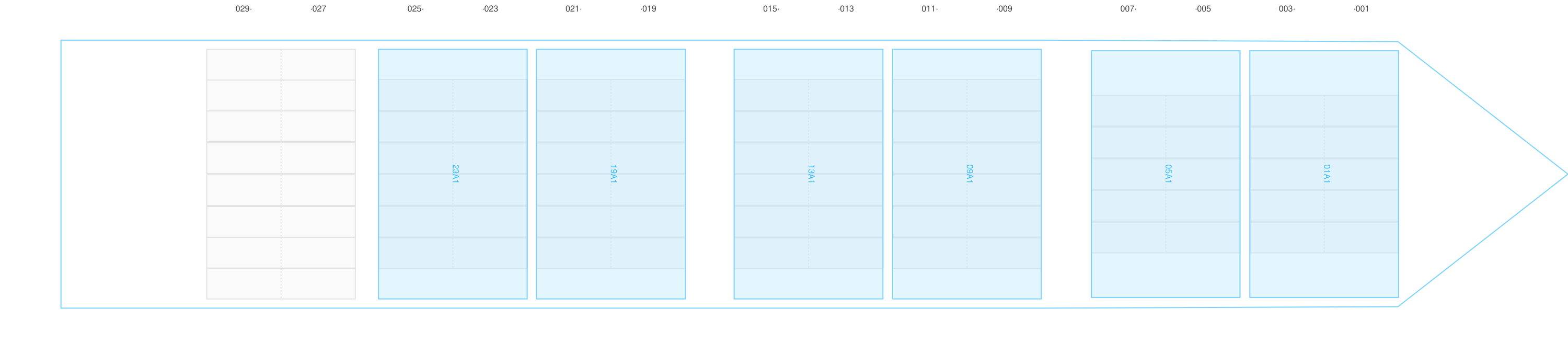

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

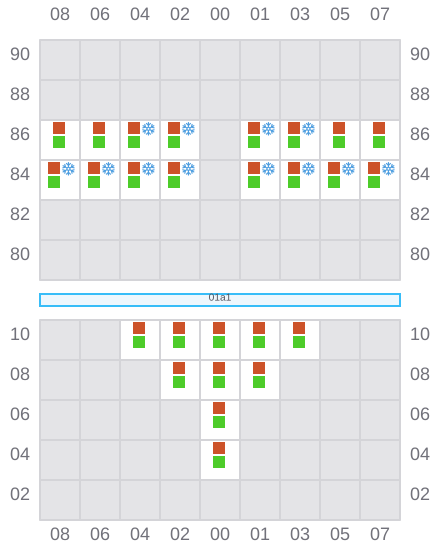

001 (002)
- →
- ← / ?

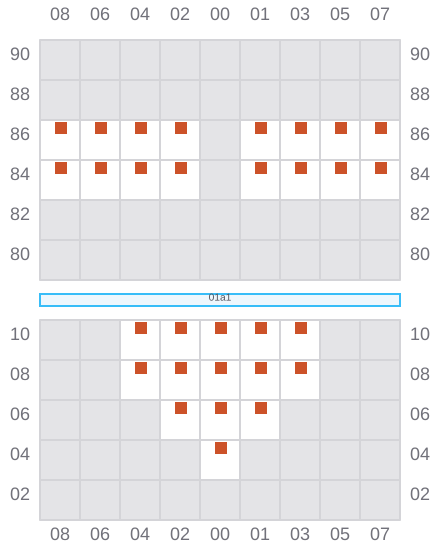

003
- ←

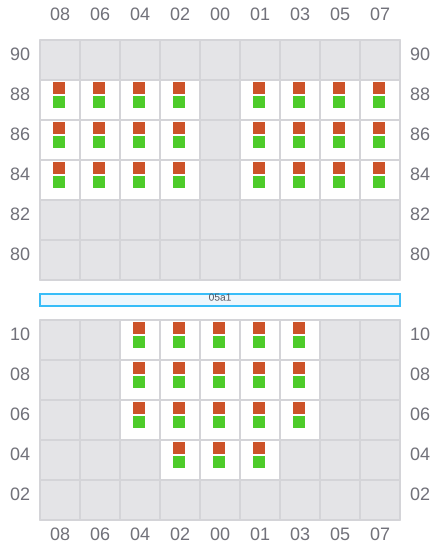

005 (006)
- →

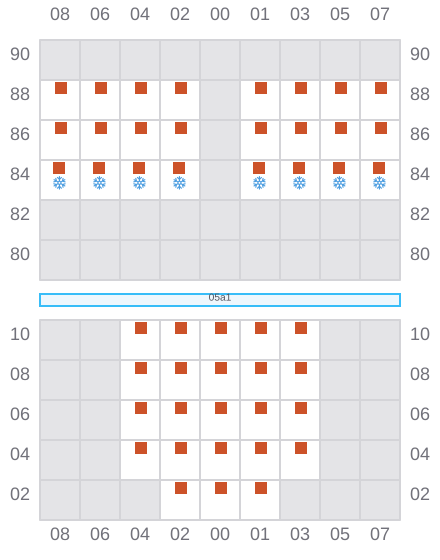

007
- ←
- → / ?

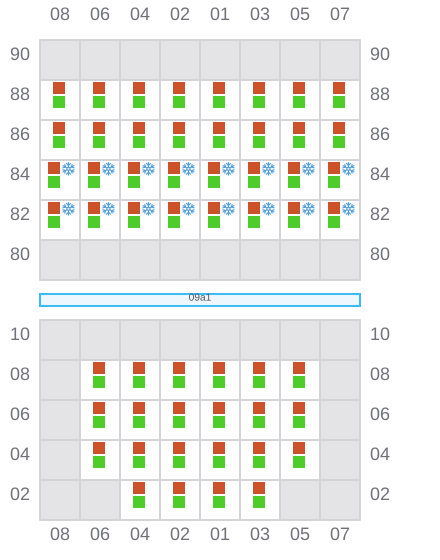

009 (010)
- →
- ← / ?

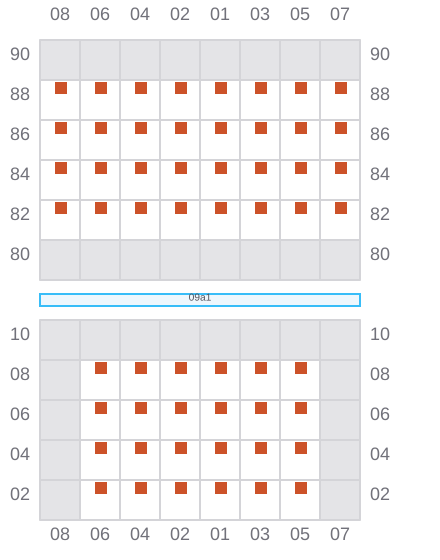

011
- ←

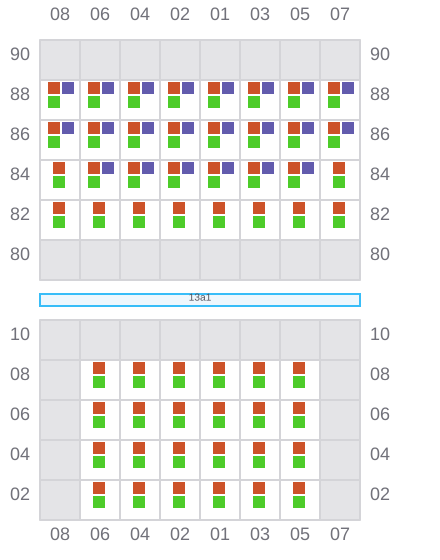

013 (014)
- →

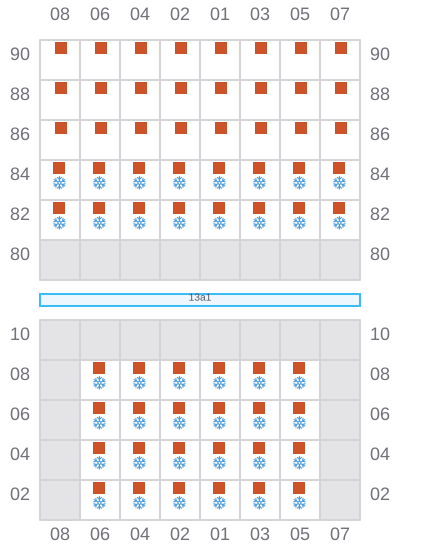

015
- ←
- → / ←

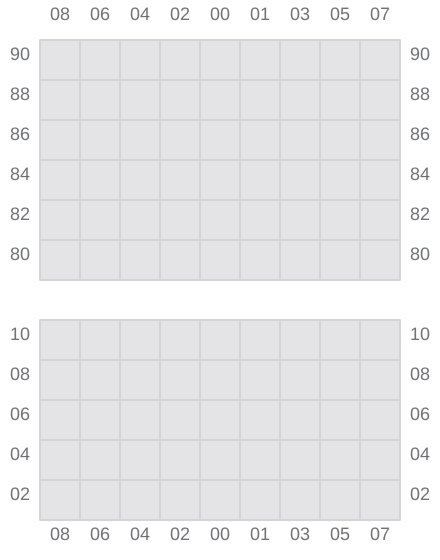

017

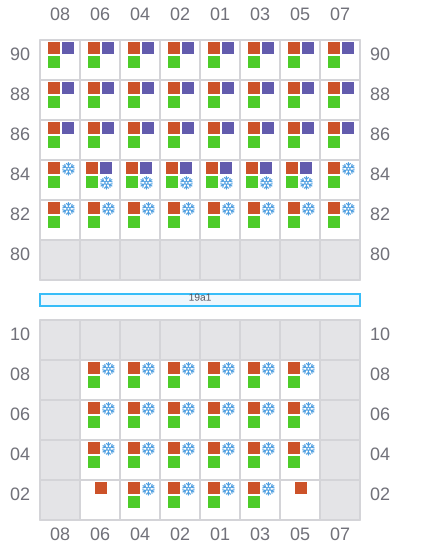

019 (020)
- →
- ← / →

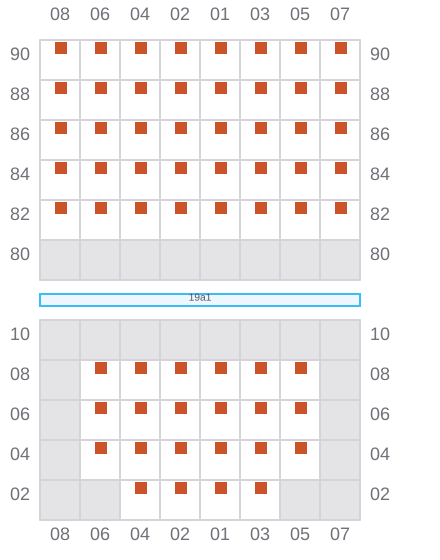

021
- ←

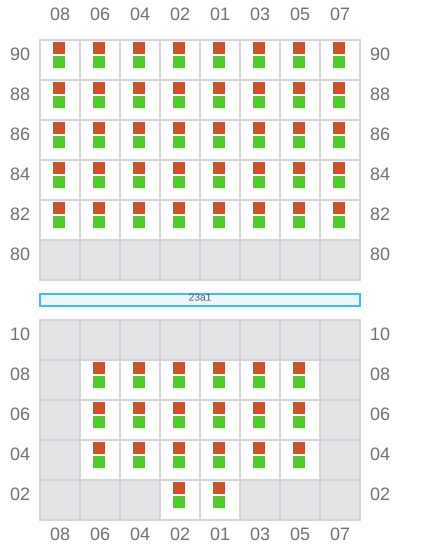

023 (024)
- →
025
- ←
- → / ?
027 (028)
- → / ?
- ← / ?

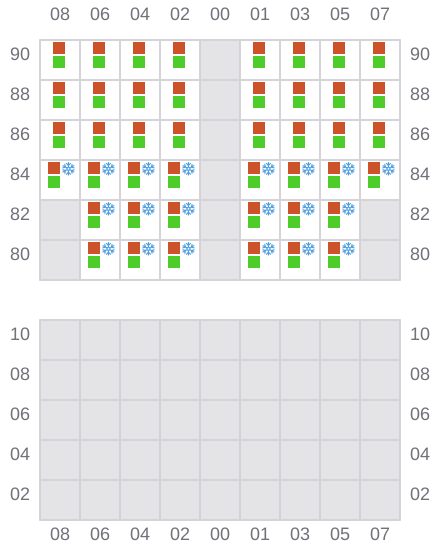

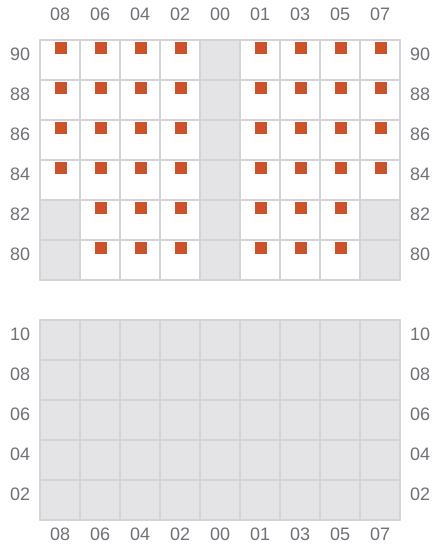

029
- ← / ?
