LINAH
9708801 | DCOD2 | HLC by *********************** Last update: Fri Feb 07 2025
General Info
Ship Name:LINAH
IMO Code:9708801
Call Sign:DCOD2
Line Operator:HLC
Class Name for Sister Ships:HLNH
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.00
LOA (Length Overall):368.52
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,996
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

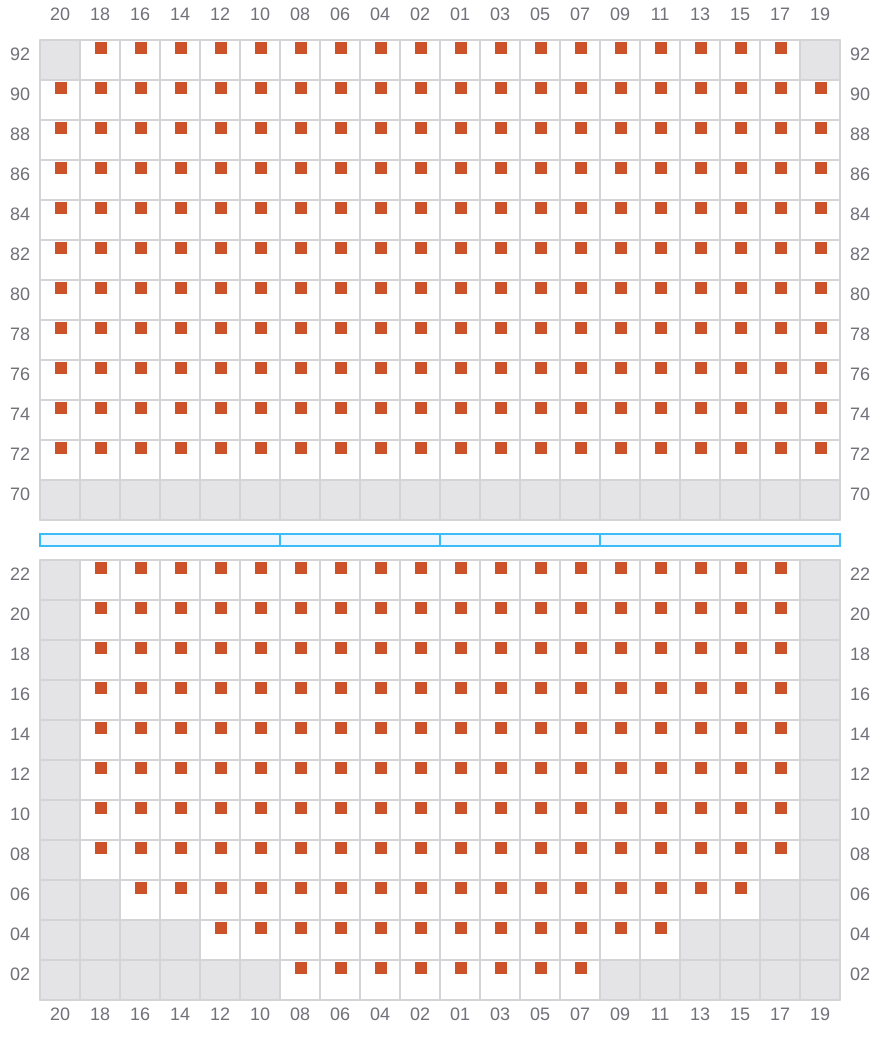

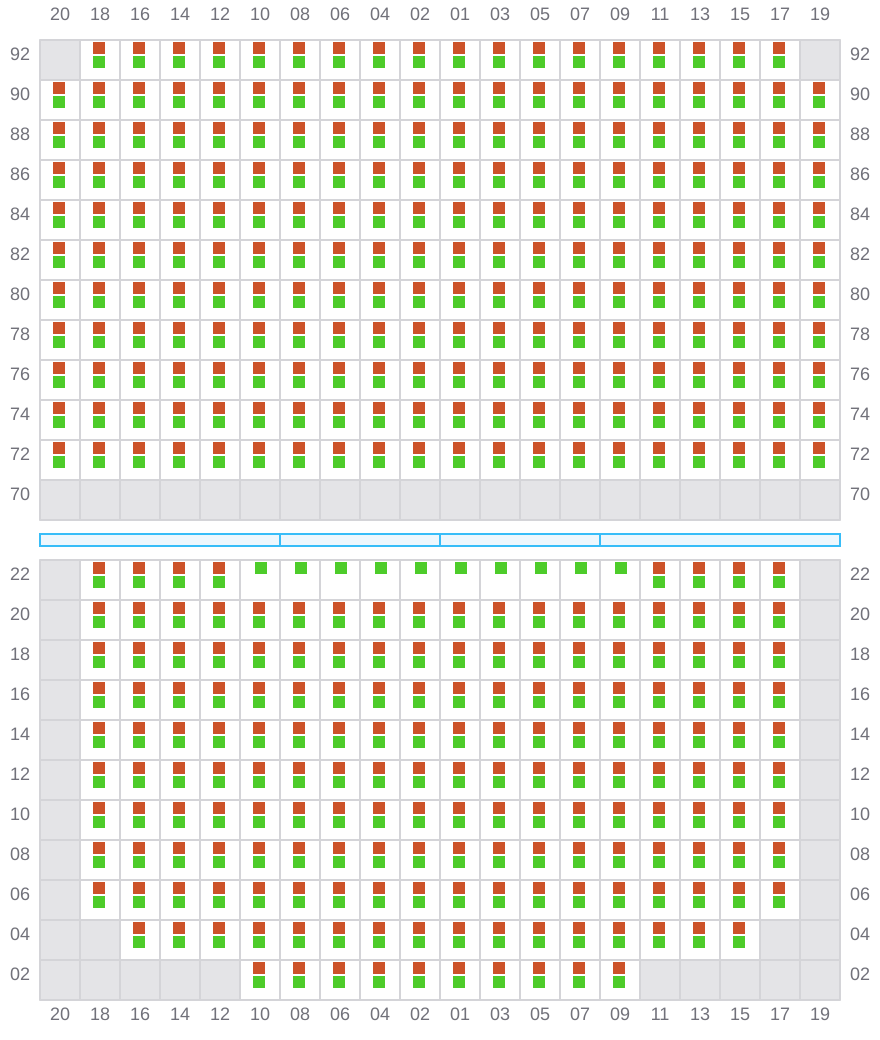

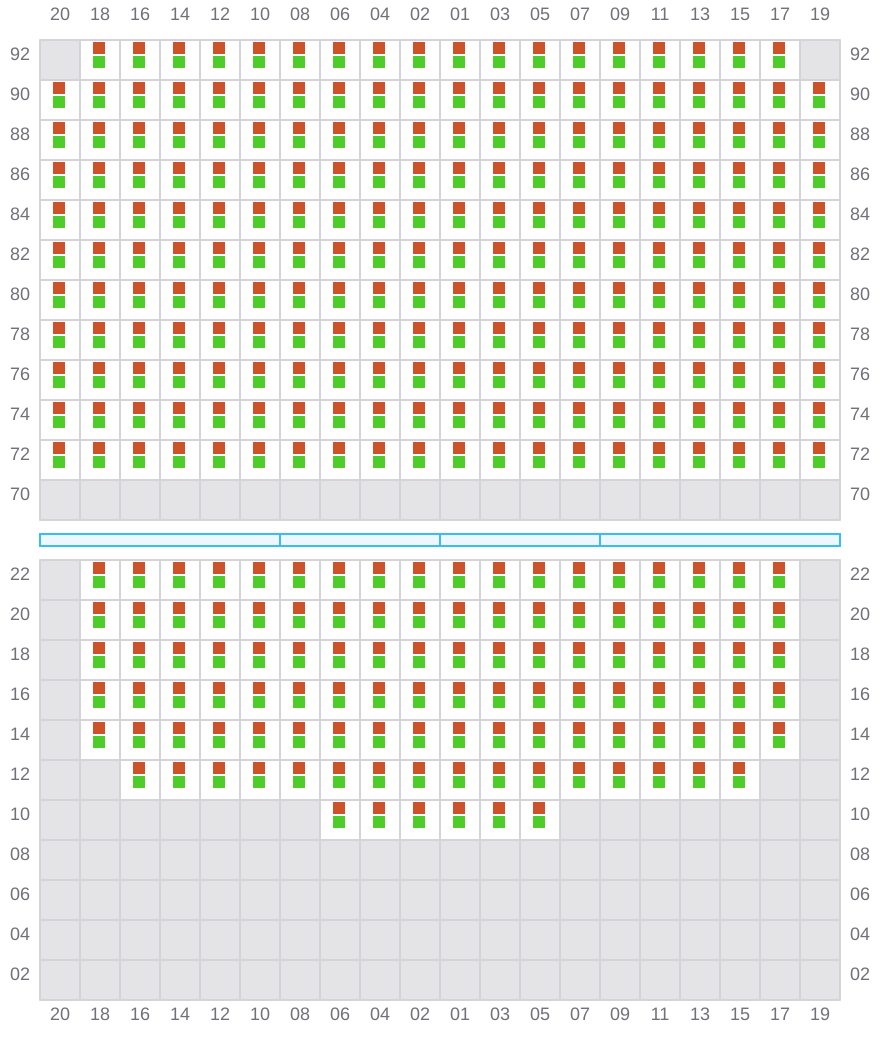

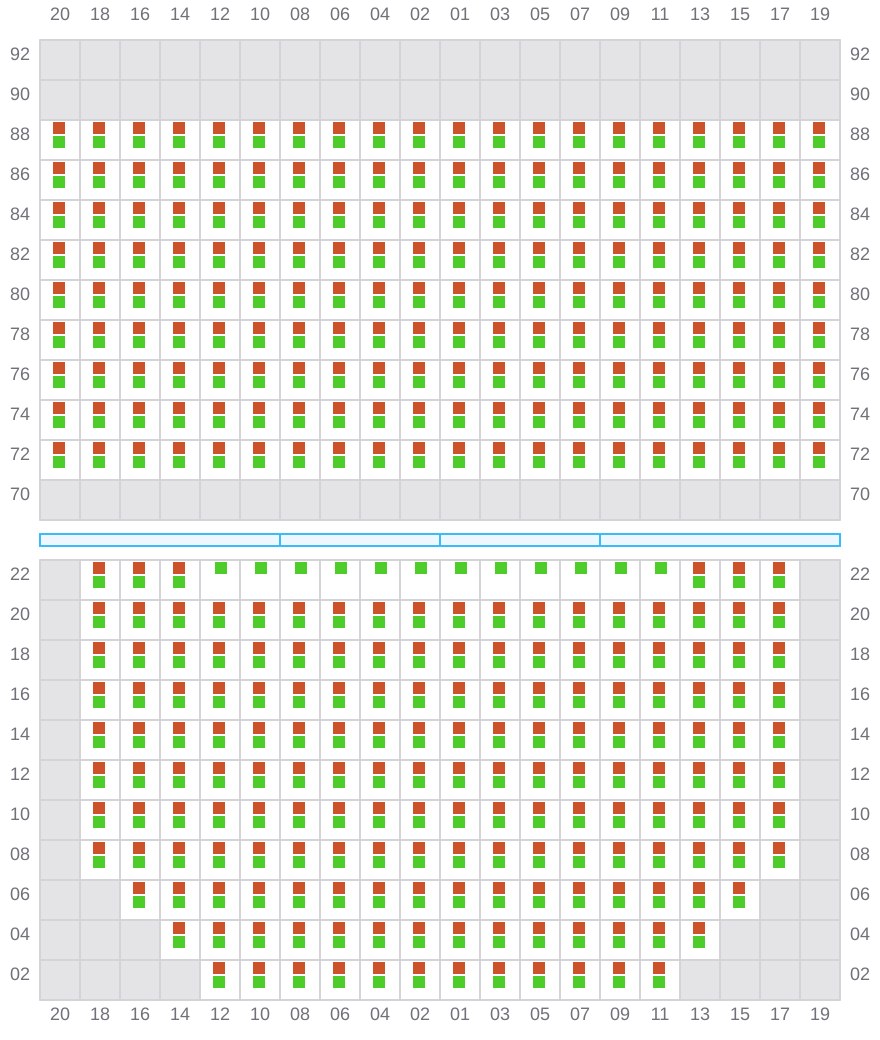

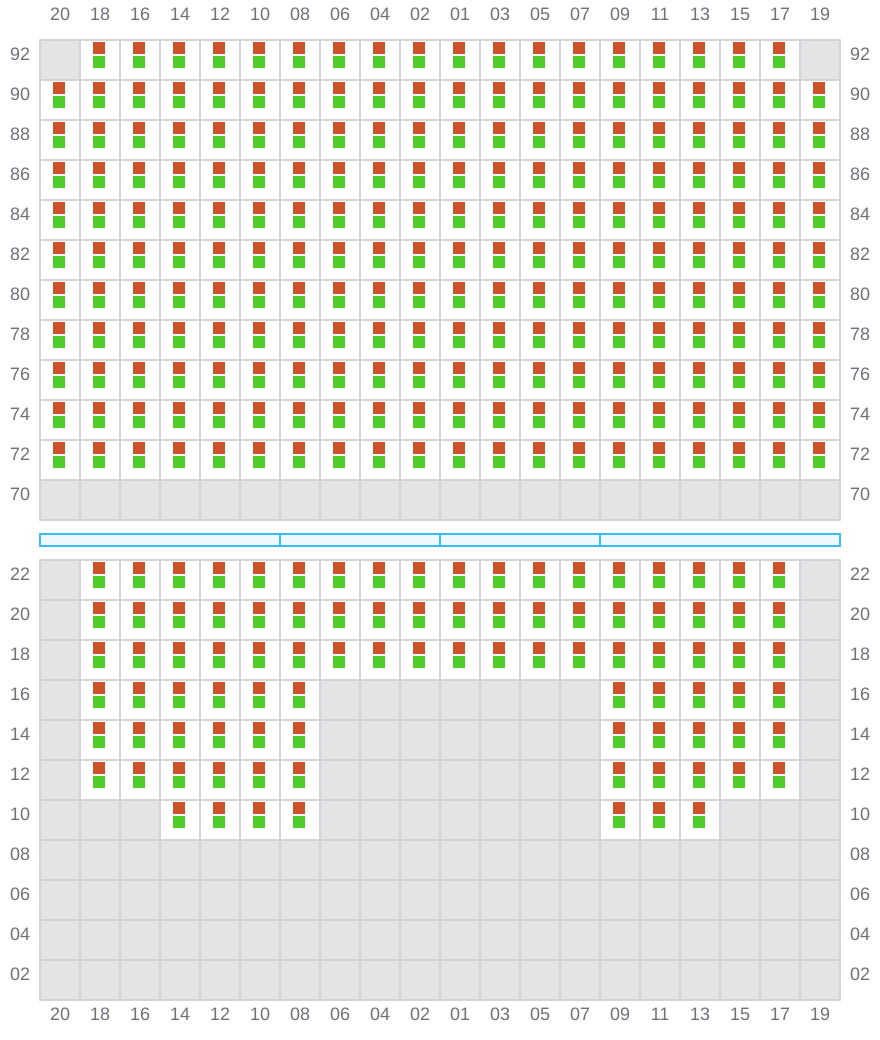

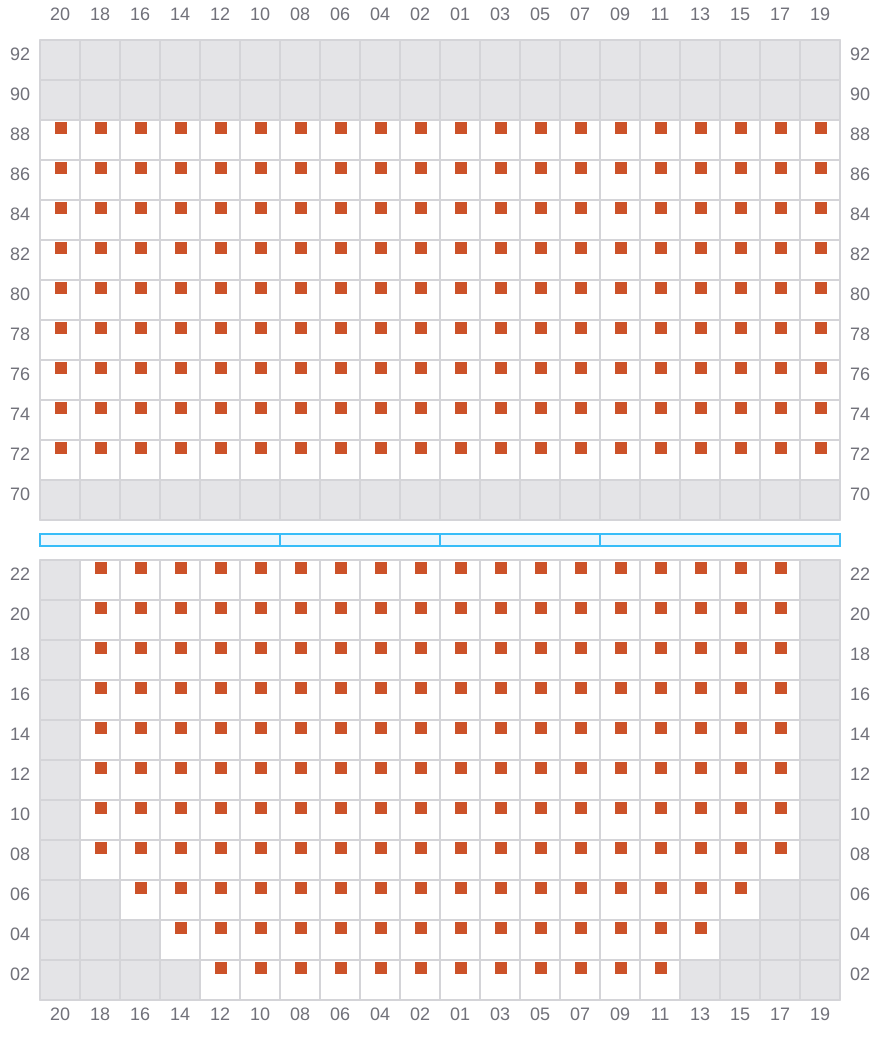

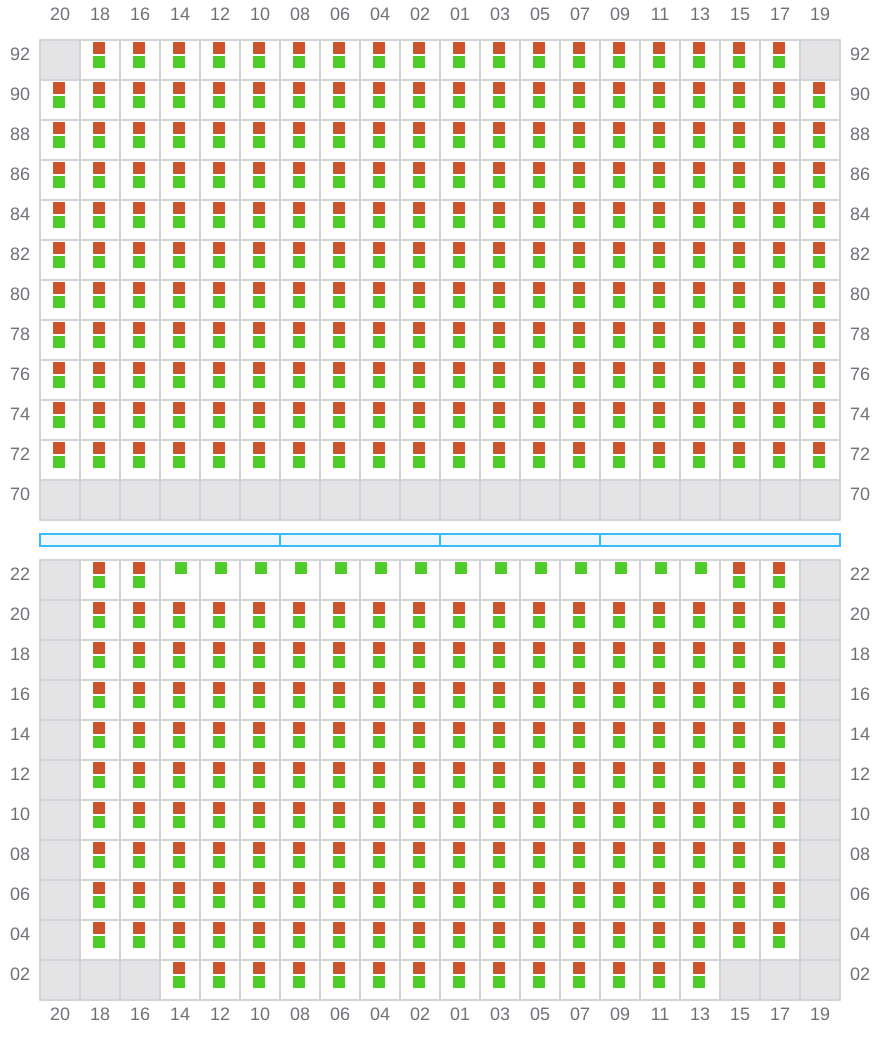

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

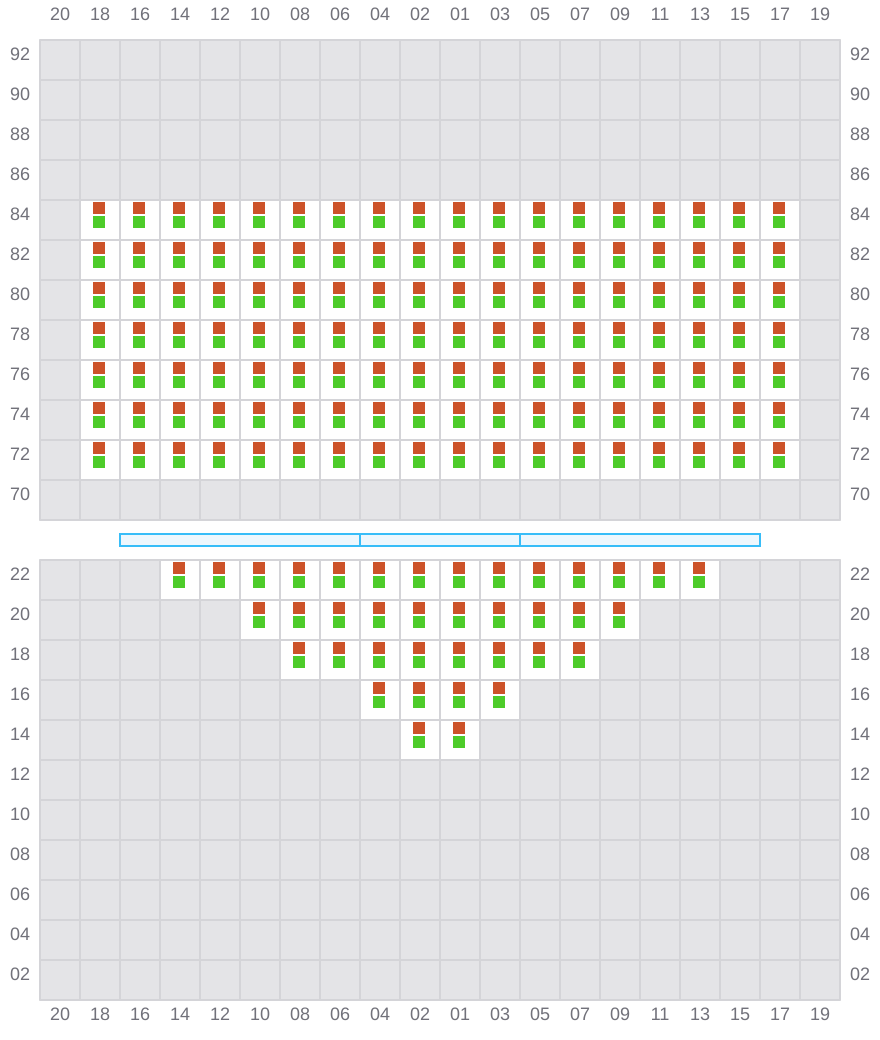

001 (002)
- →
- →

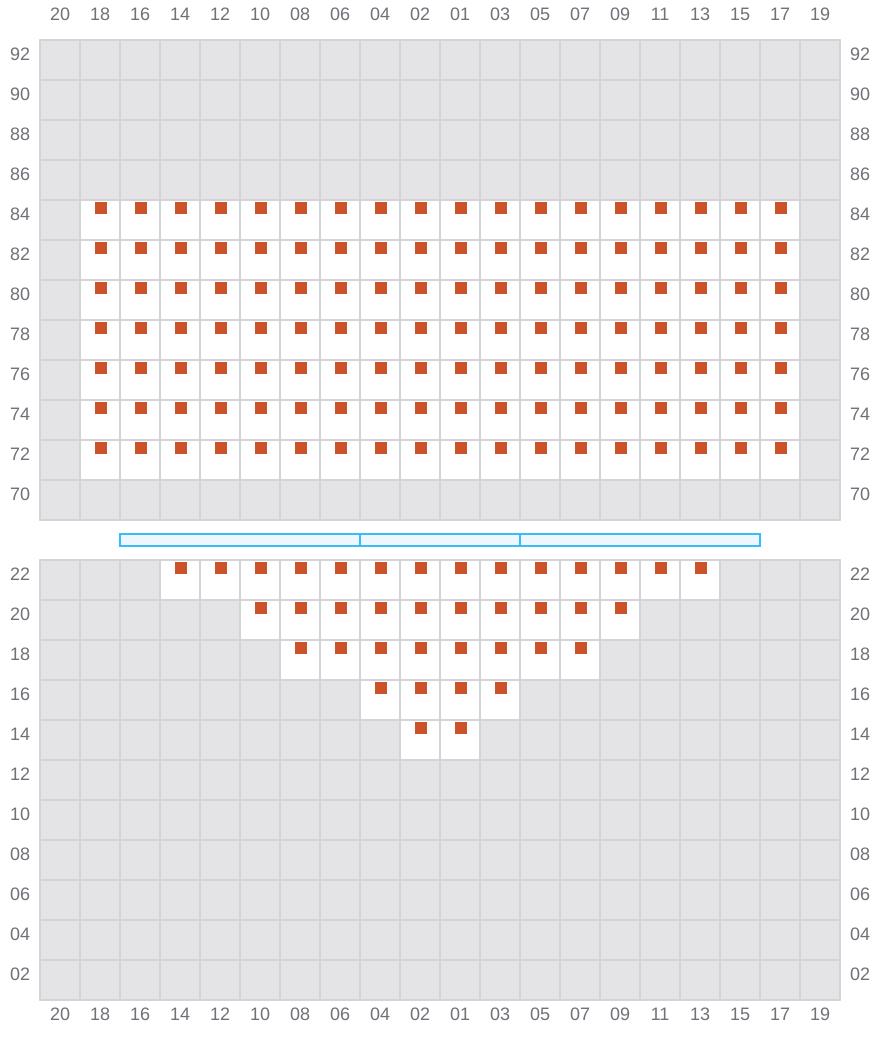

003
- ←
- → / ?

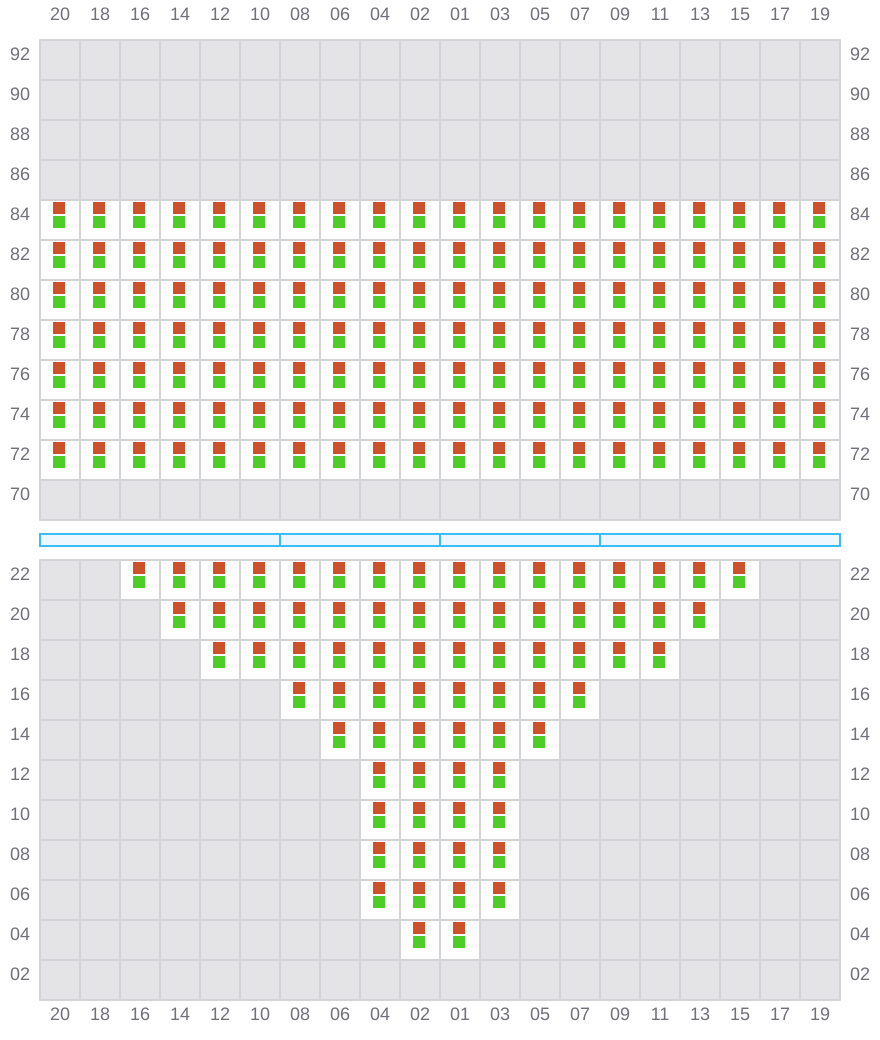

005 (006)
- →
- → / ?
- →

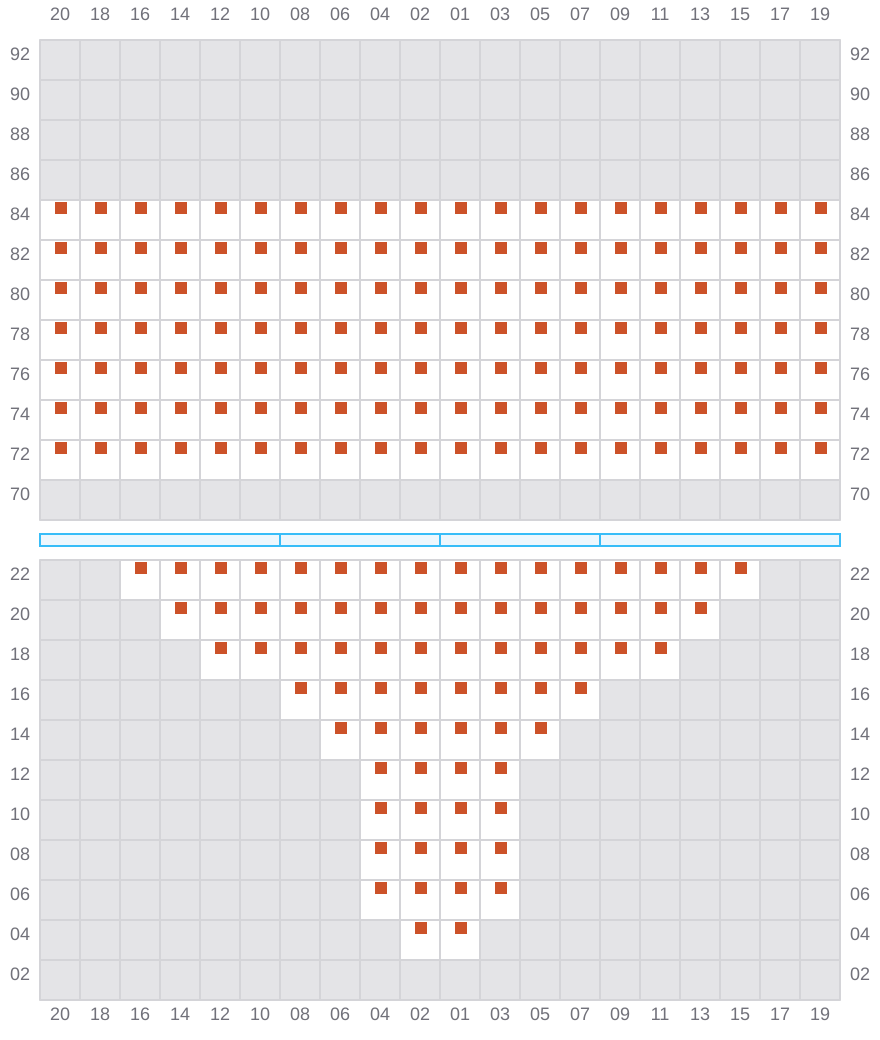

007
- ←
- → / ?
- →

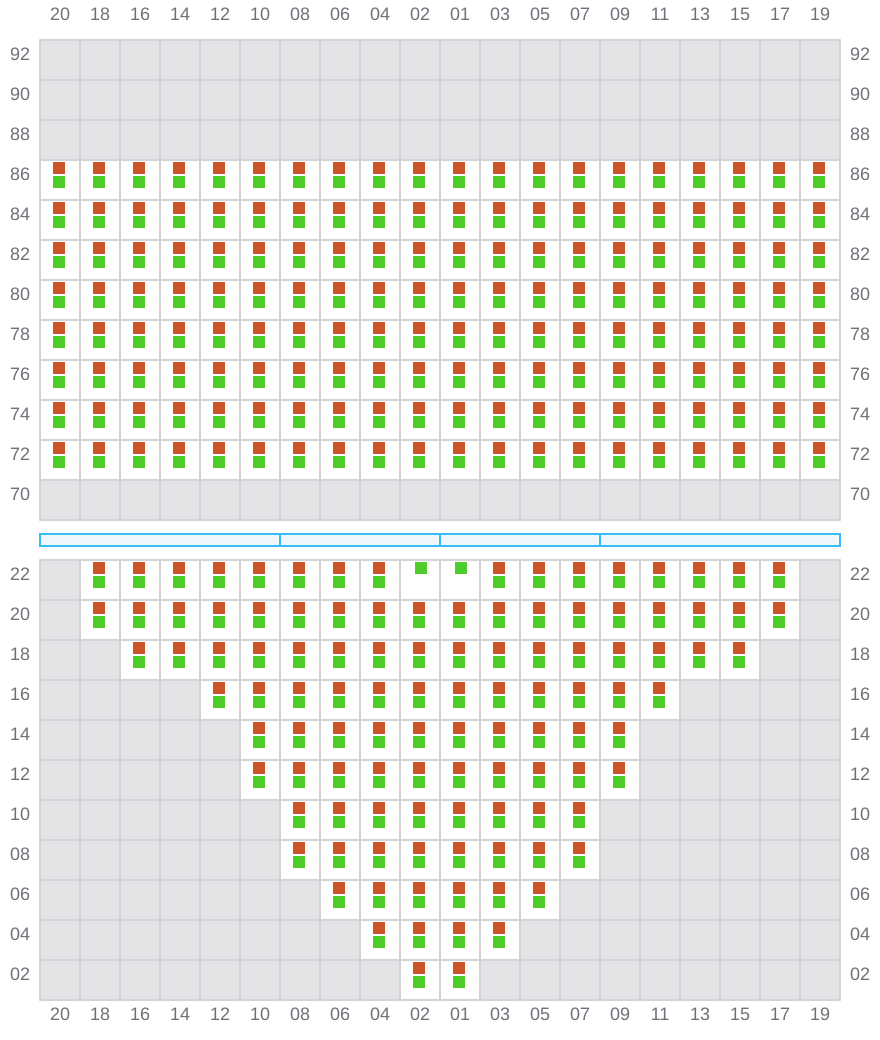

009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →

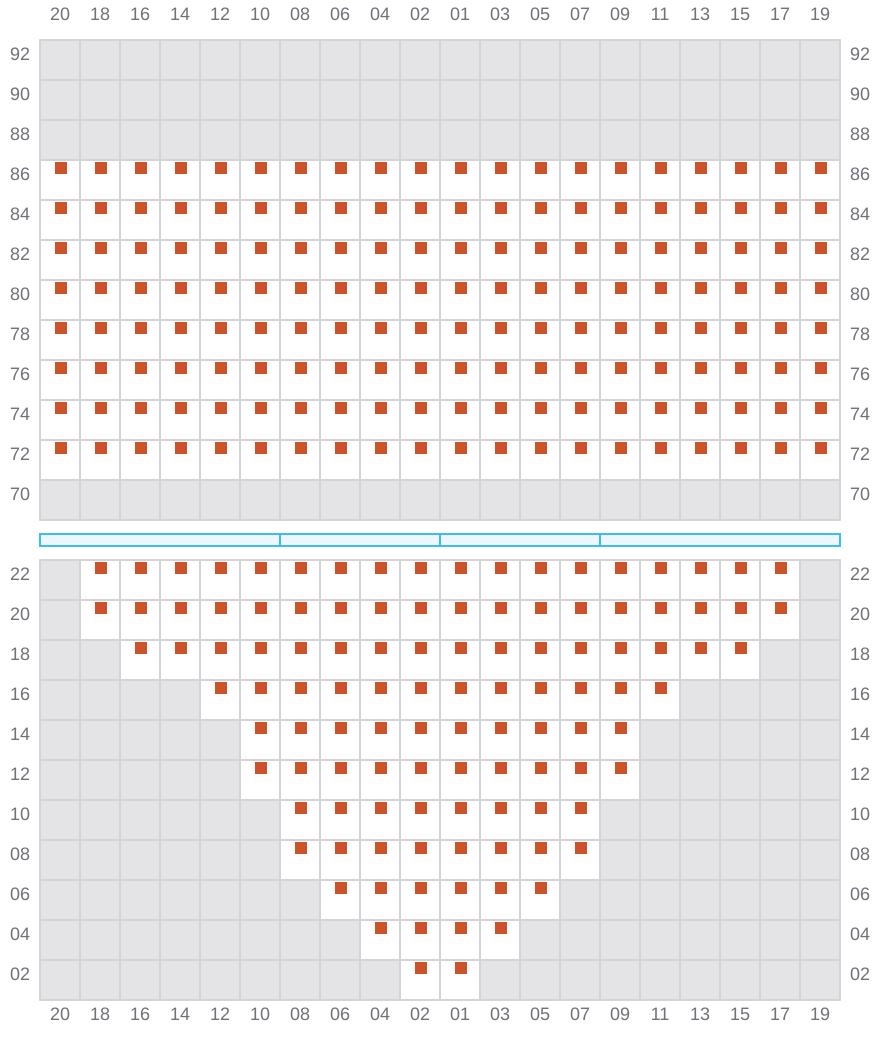

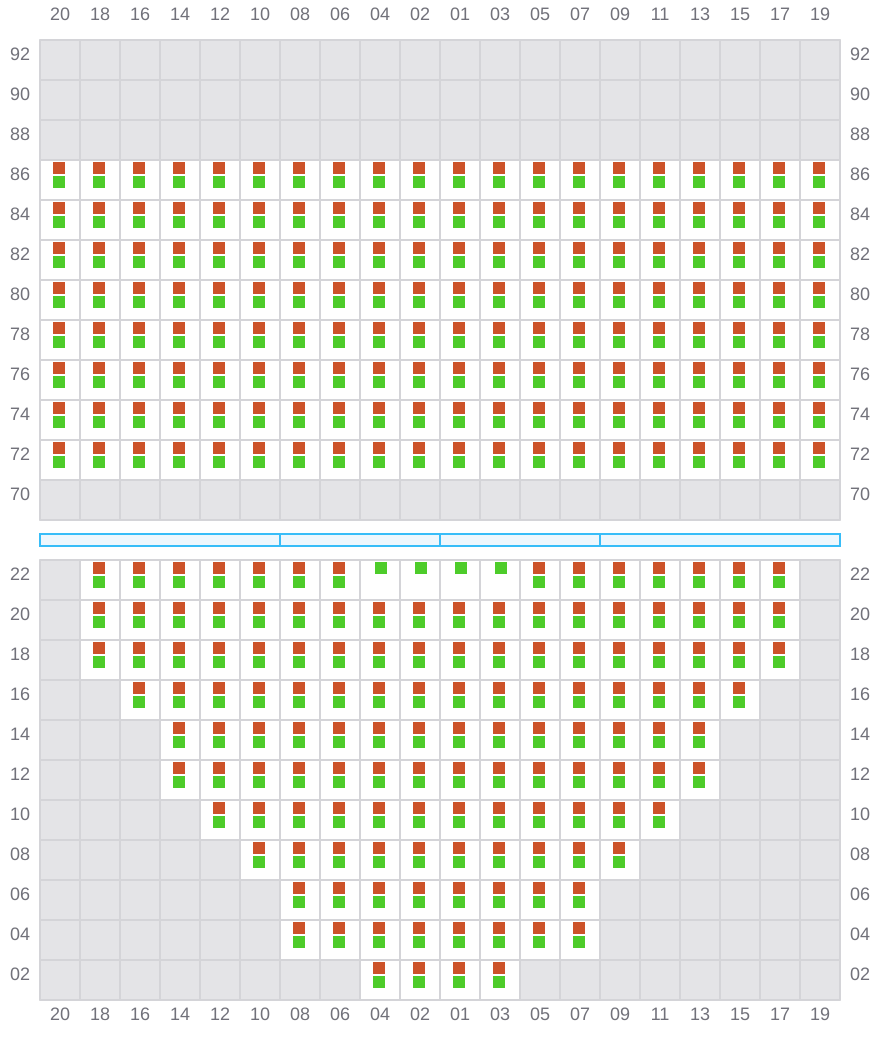

013 (014)
- →
- → / ?
- →

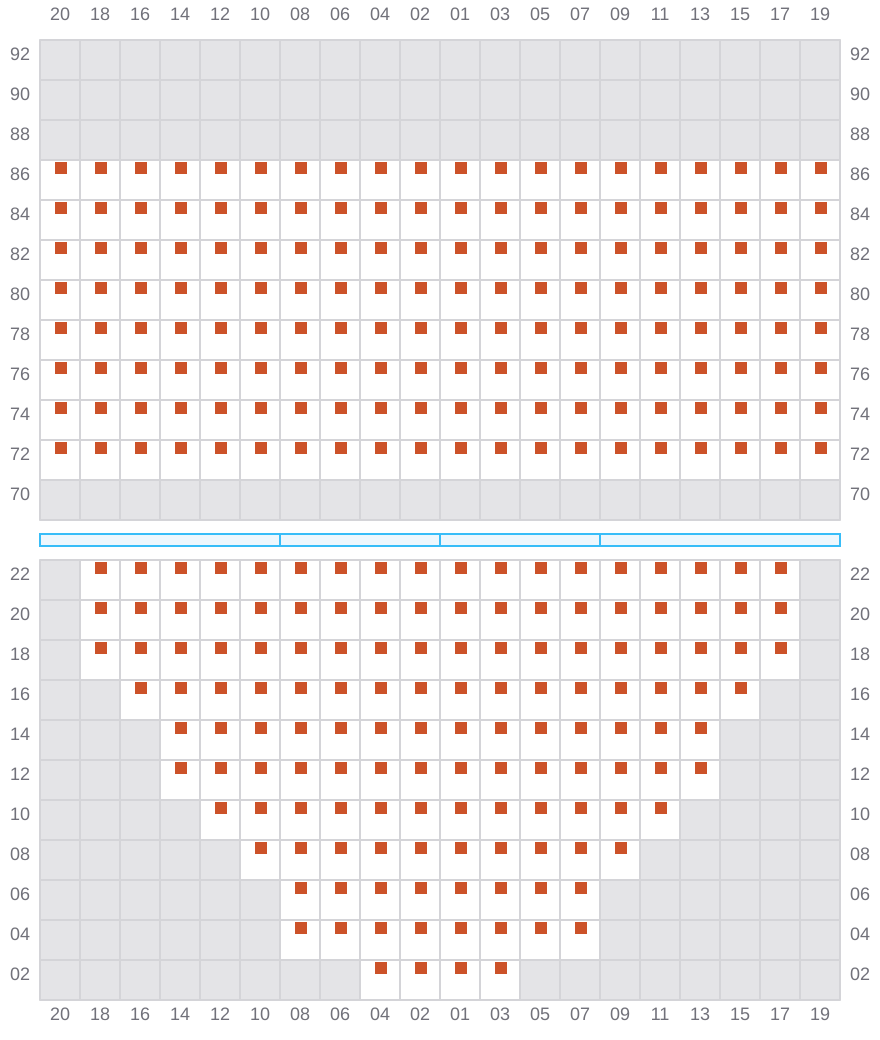

015
- ←
- → / ?
- →

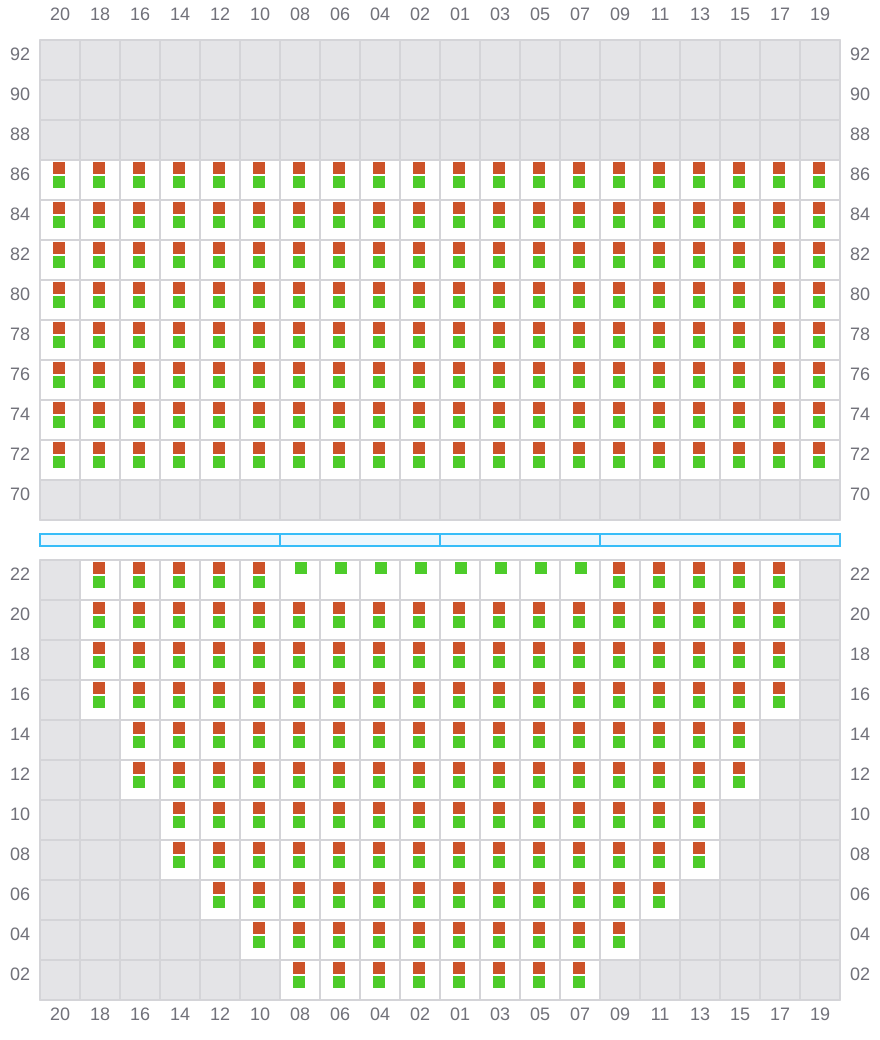

017 (018)
- →
- → / ?
- →

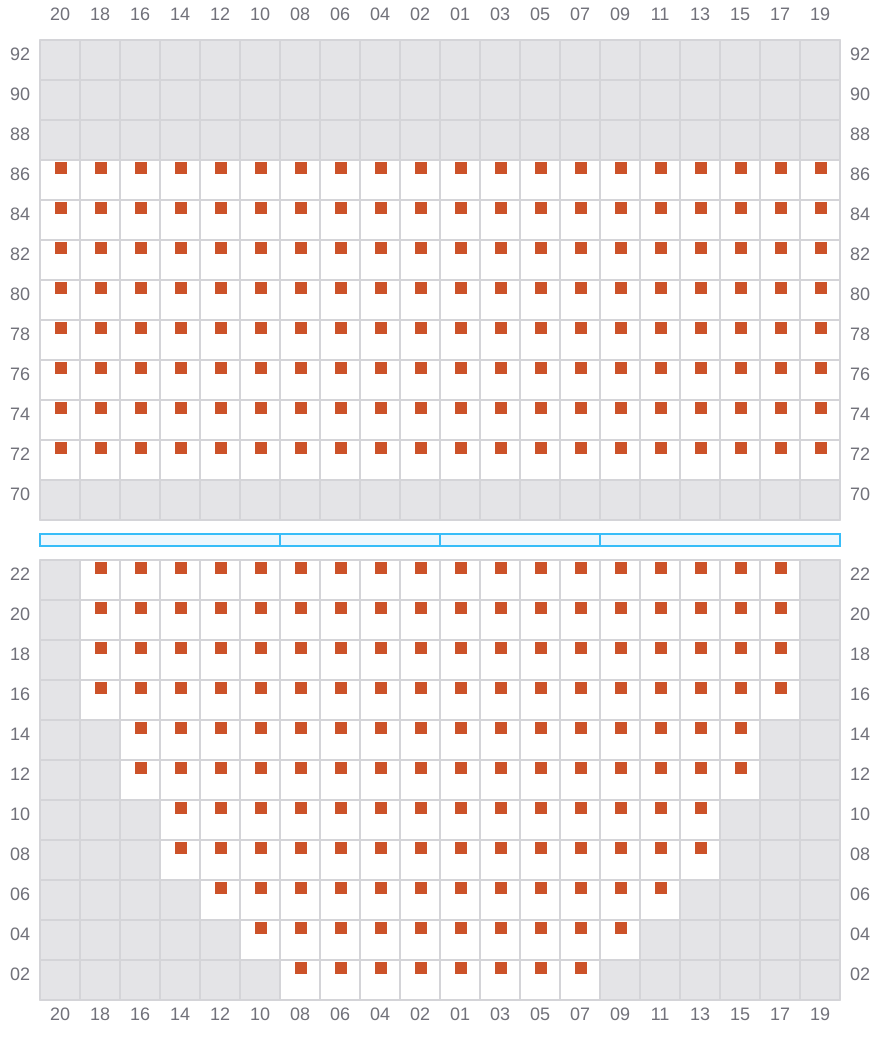

019
- ←
- → / ?
- →

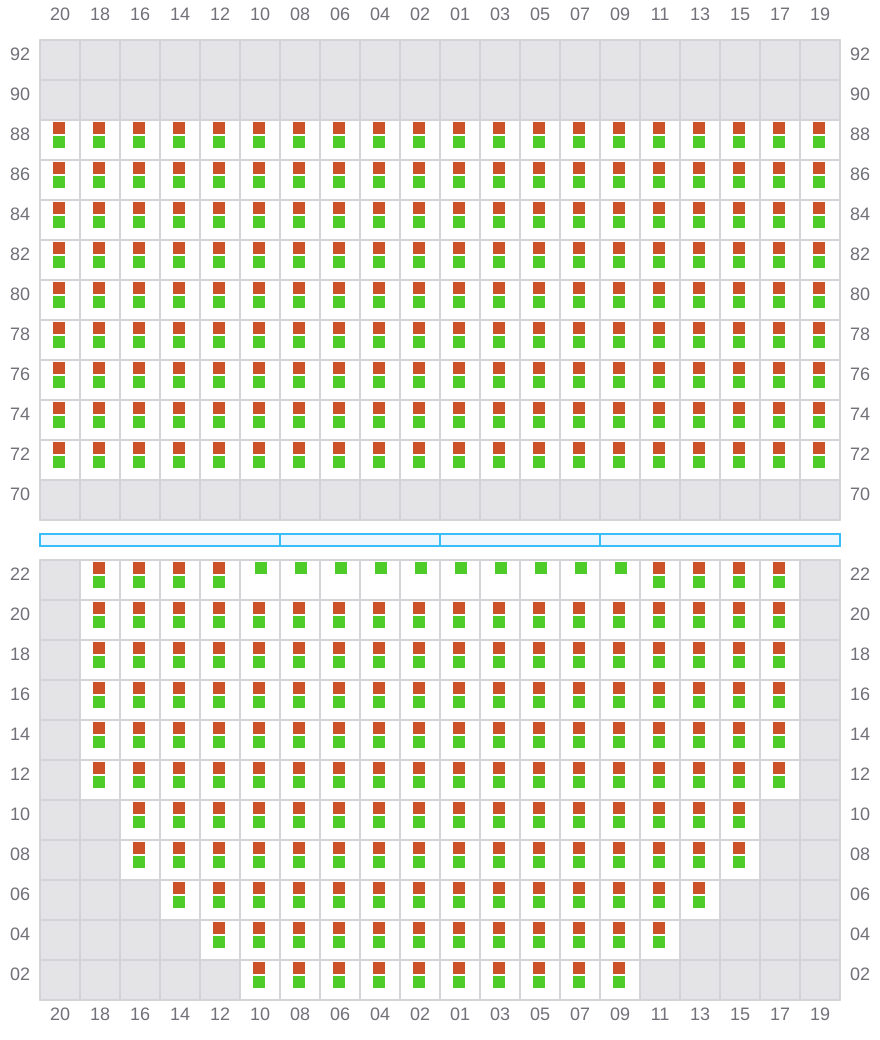

021 (022)
- →
- → / ?
- →

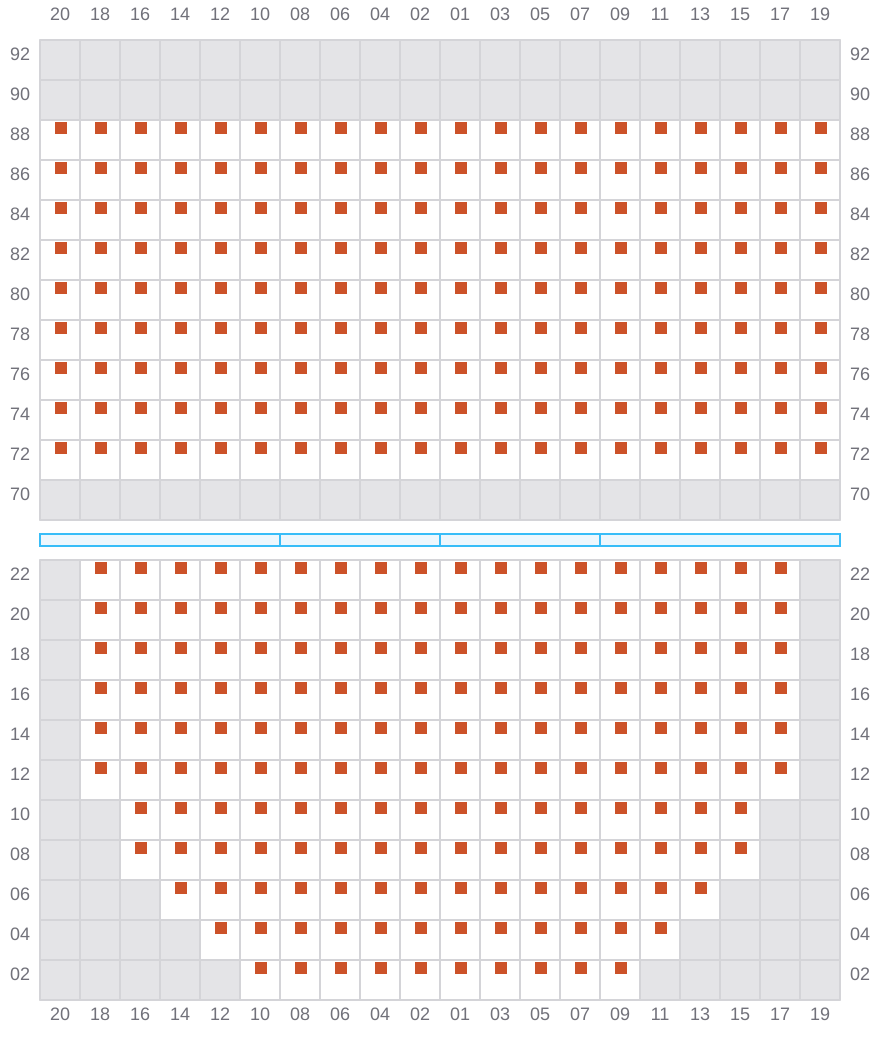

023
- ←
- → / ?
- →
025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →

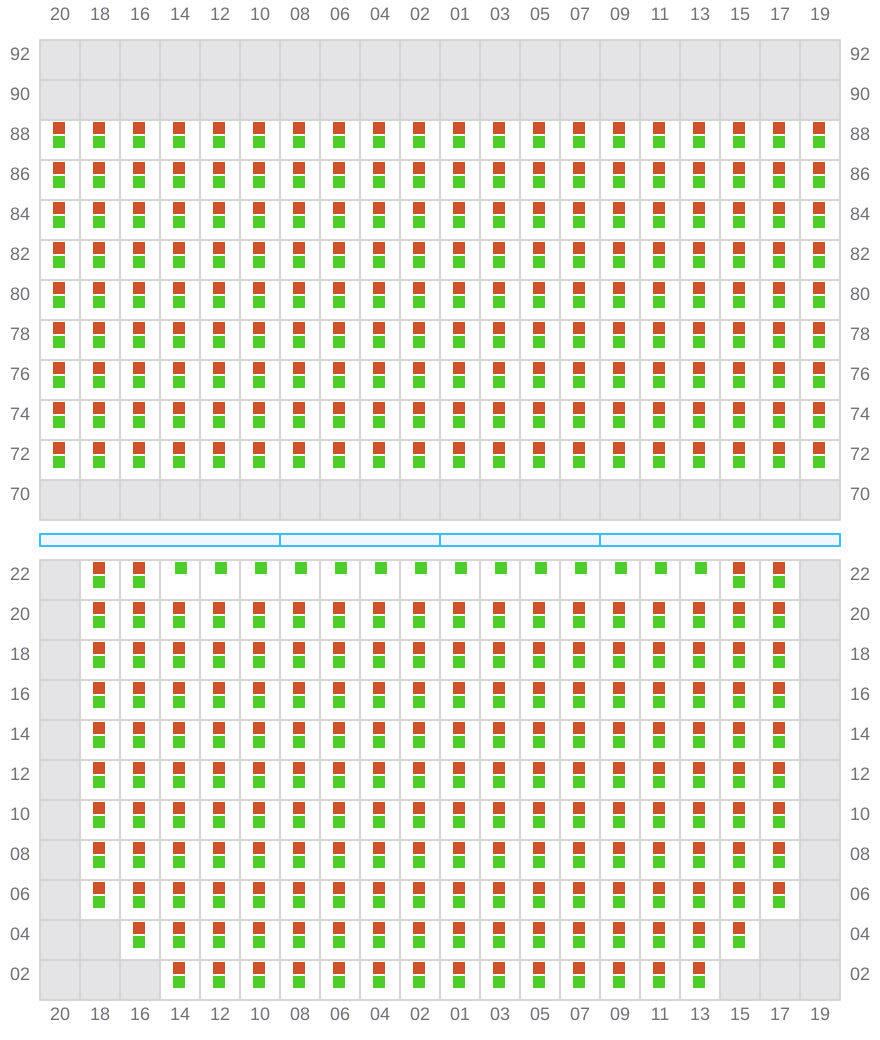

029 (030)
- →
- → / ?
- →

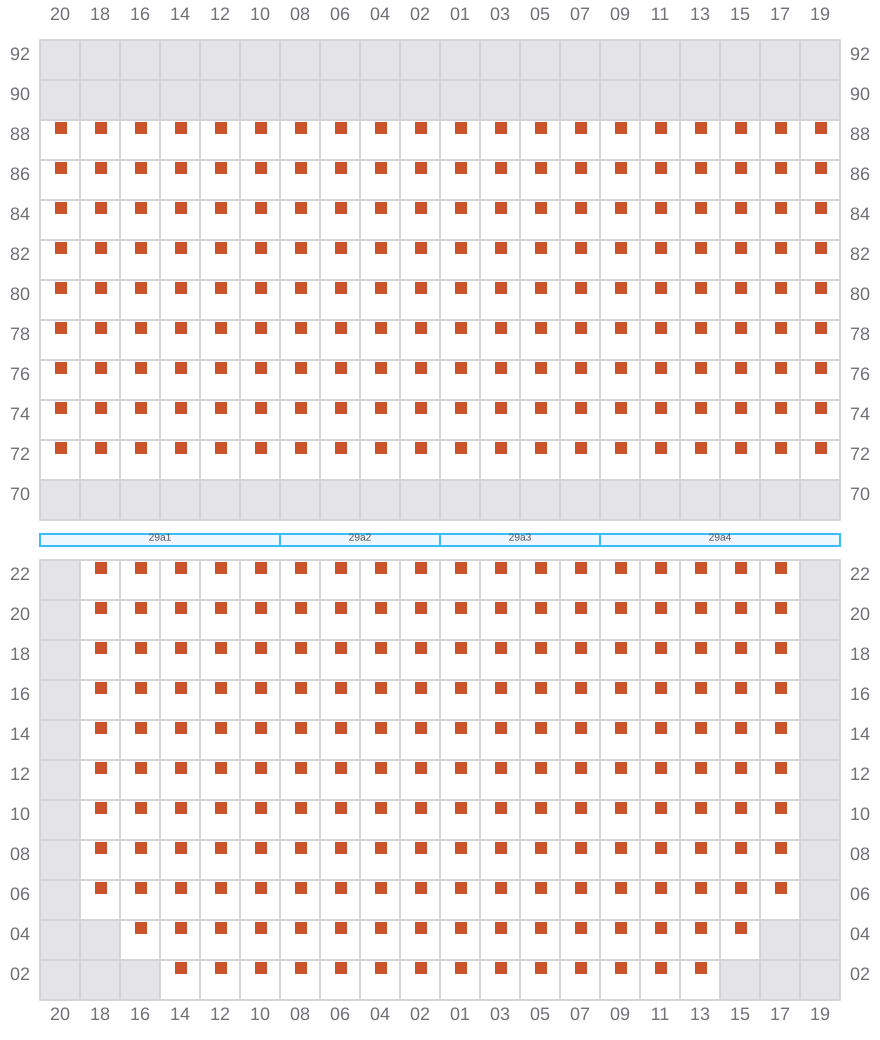

031
- ←
- → / ?
- →
033 (034)
- →
- → / ?
- →
035
- ←
- → / ?
- →
037 (038)
- →
- → / ?
- →
039
- ←
- → / ?
- →
041 (042)
- →
- → / ?
- →
043
- ←
- → / ?
- →
045 (046)
- →
- → / ?
- →
047
- ←
- → / ?
- →

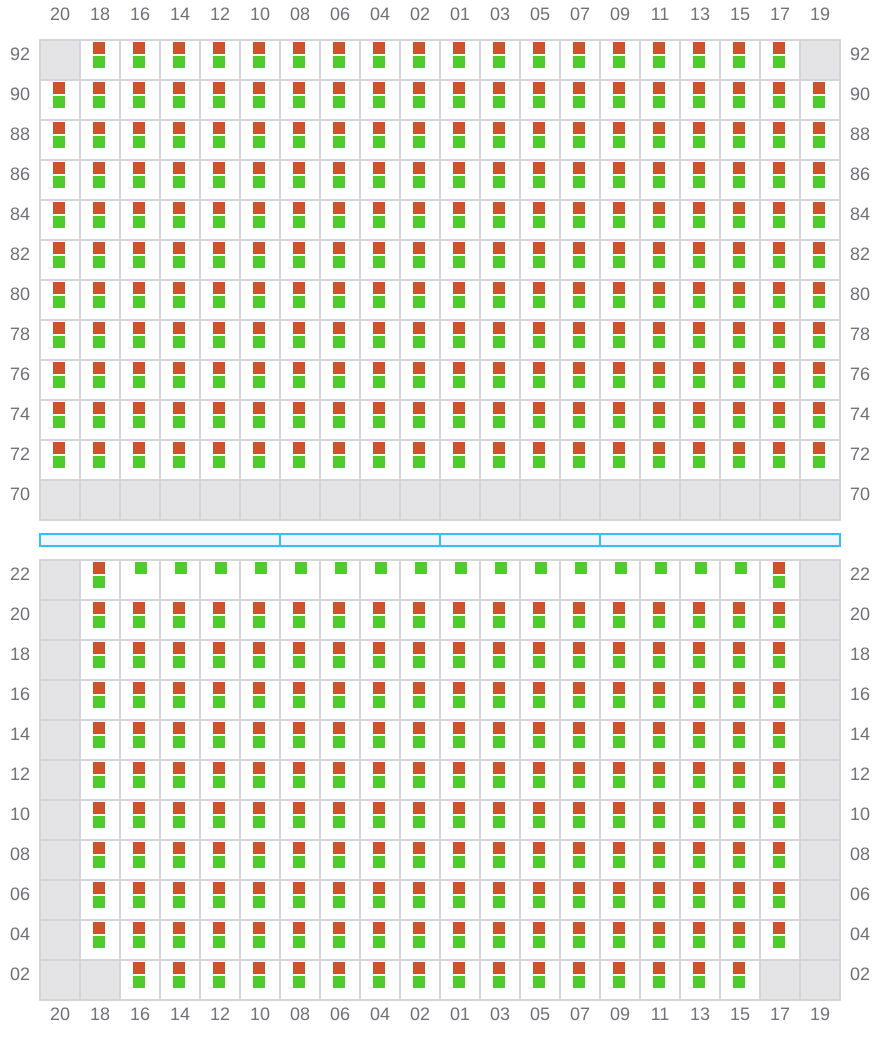

049 (050)
- →
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →

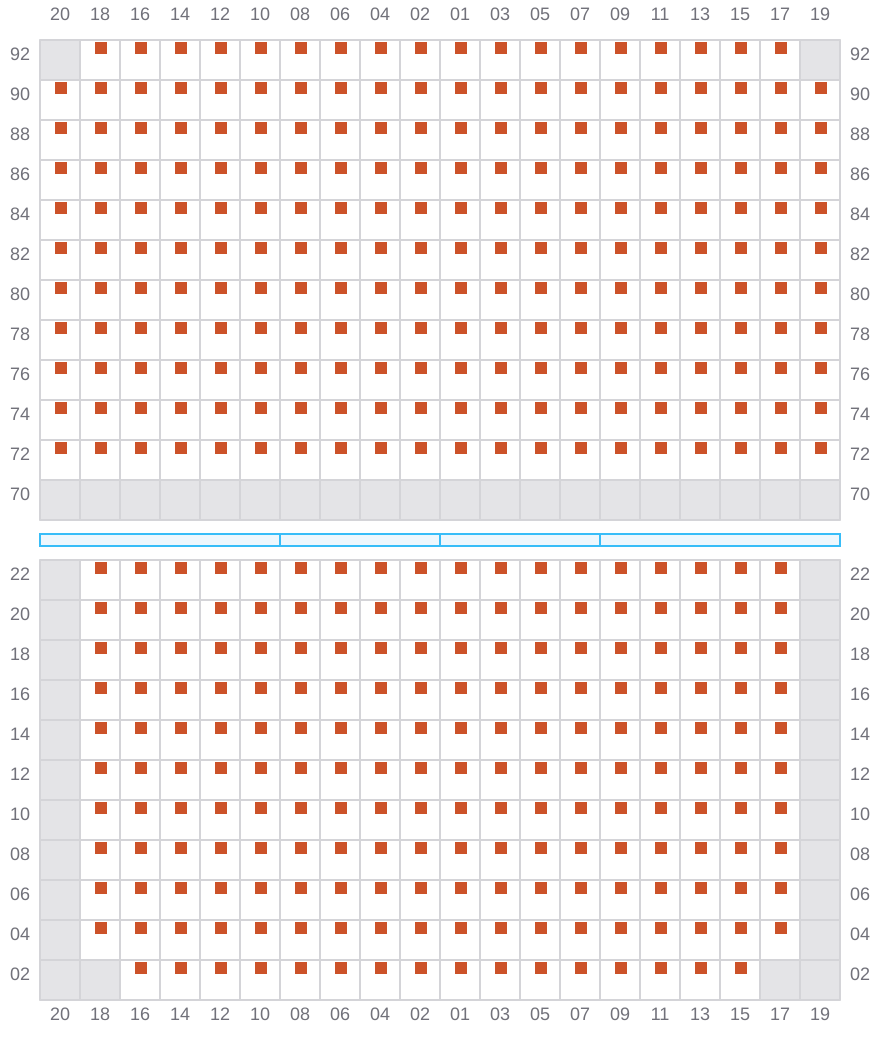

055
- ←
- → / ?
- →
057 (058)
- →
- → / ?
- →
059
- ←
- → / ?
- →
061 (062)
- →
- → / ?
- →

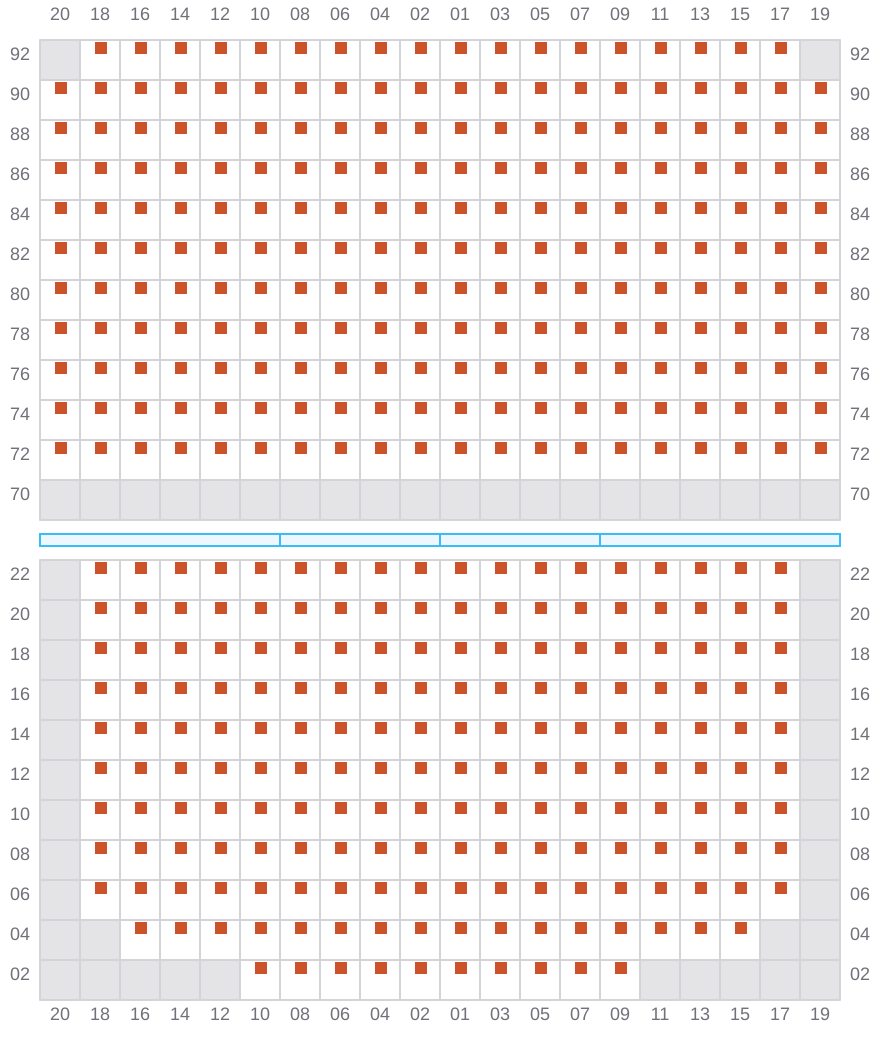

063
- ←
- → / ?
- →

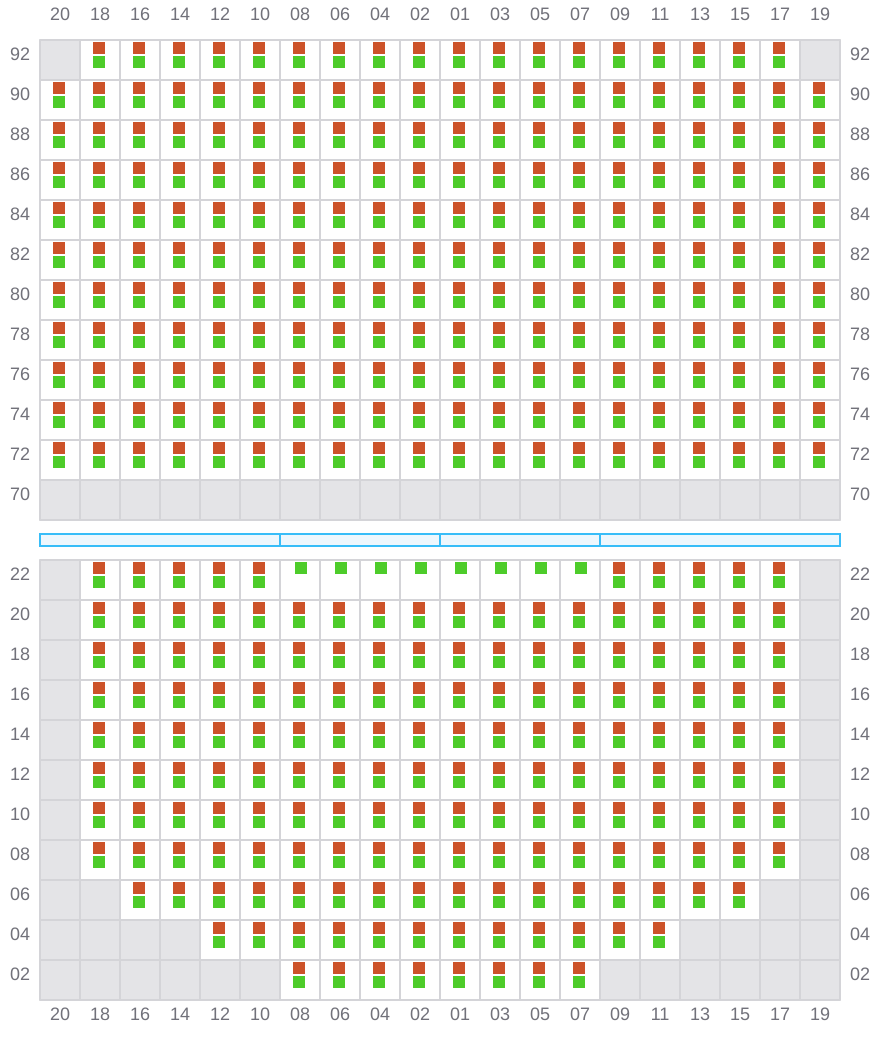

065 (066)
- →
- → / ?
- →
067
- ←
- → / ?
- →

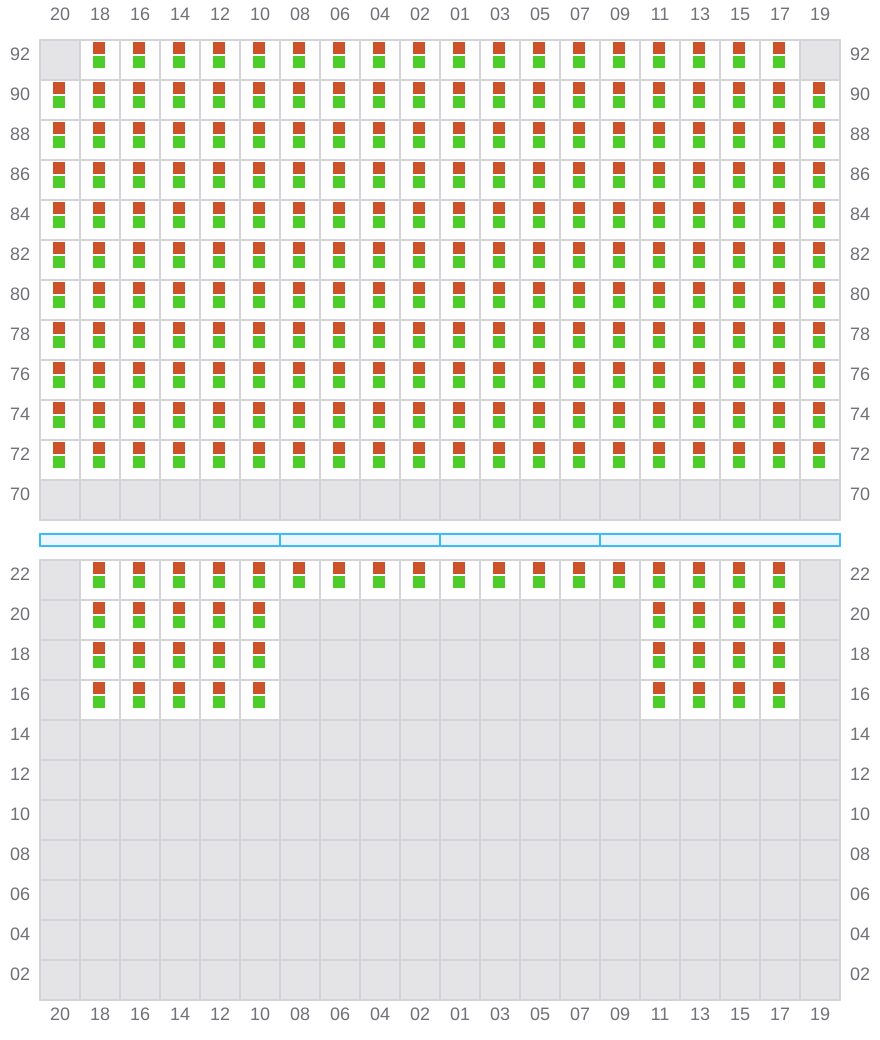

069 (070)
- →
- → / ?
- →

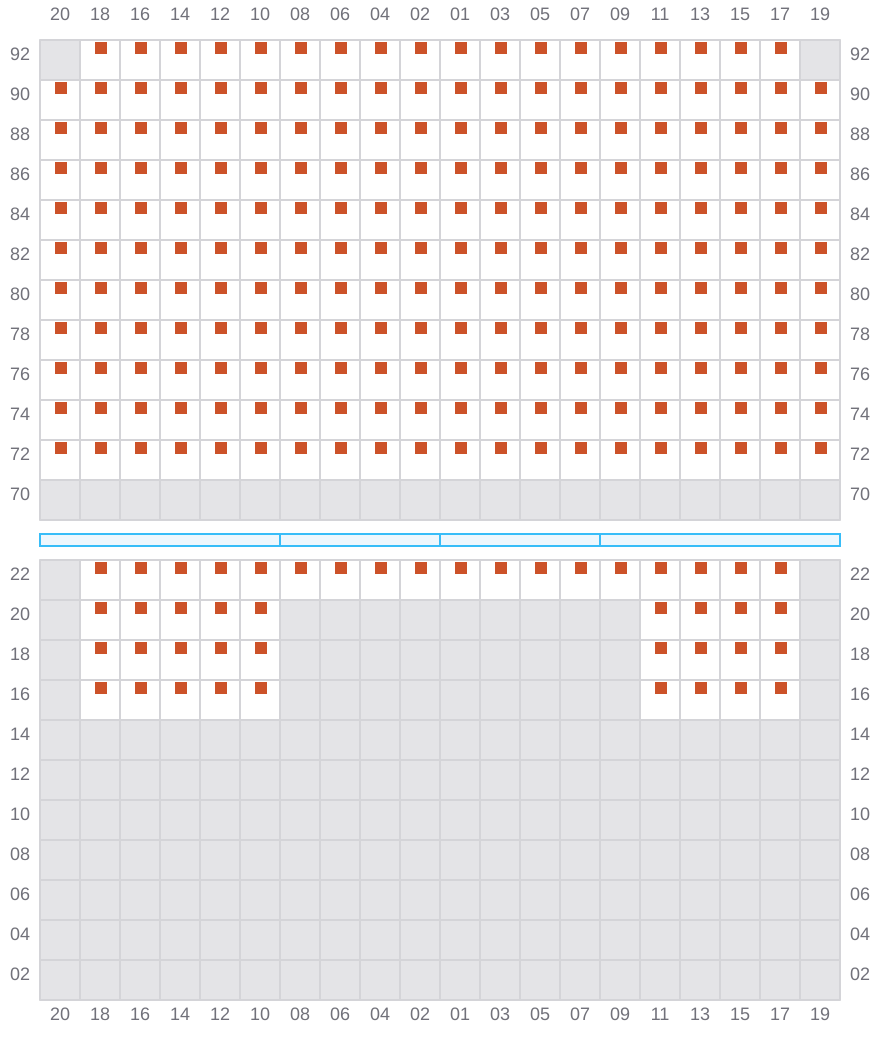

071
- ←
- → / ?
- →
073 (074)
- →
- → / ?
- →

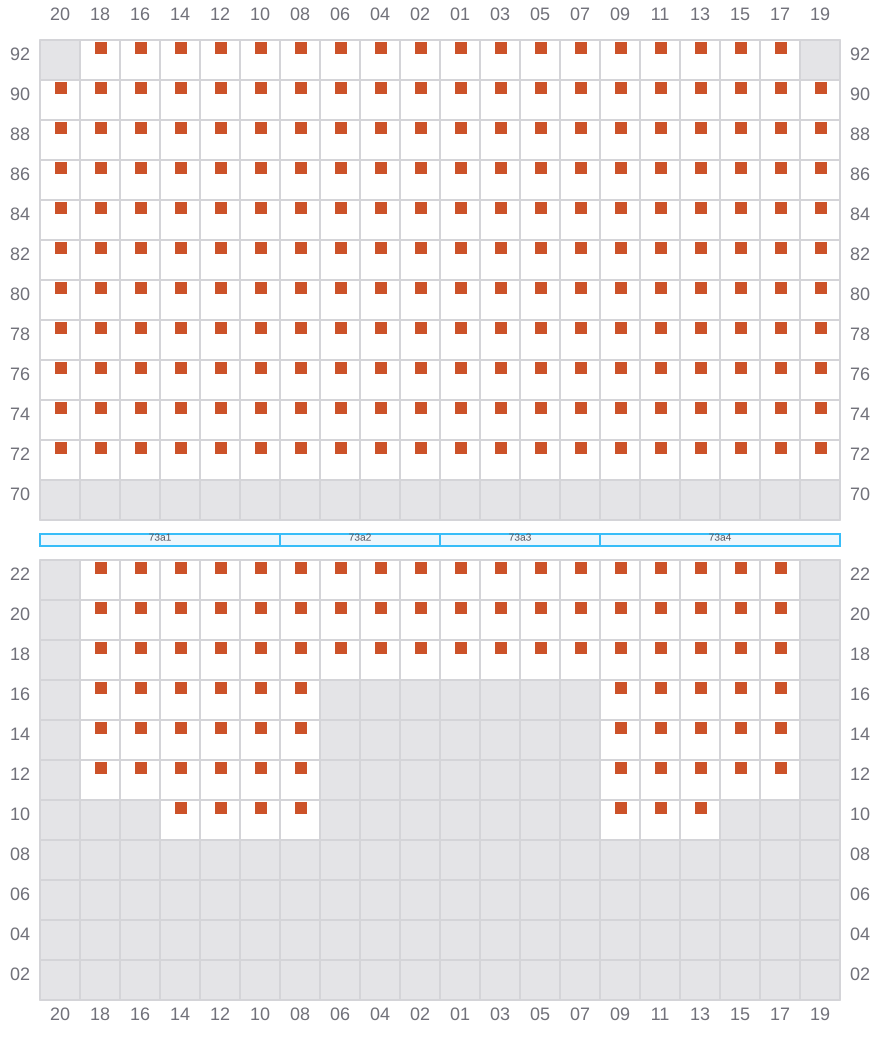

075
- ←
- → / ?
- →
077 (078)
- →
- → / ?
- →

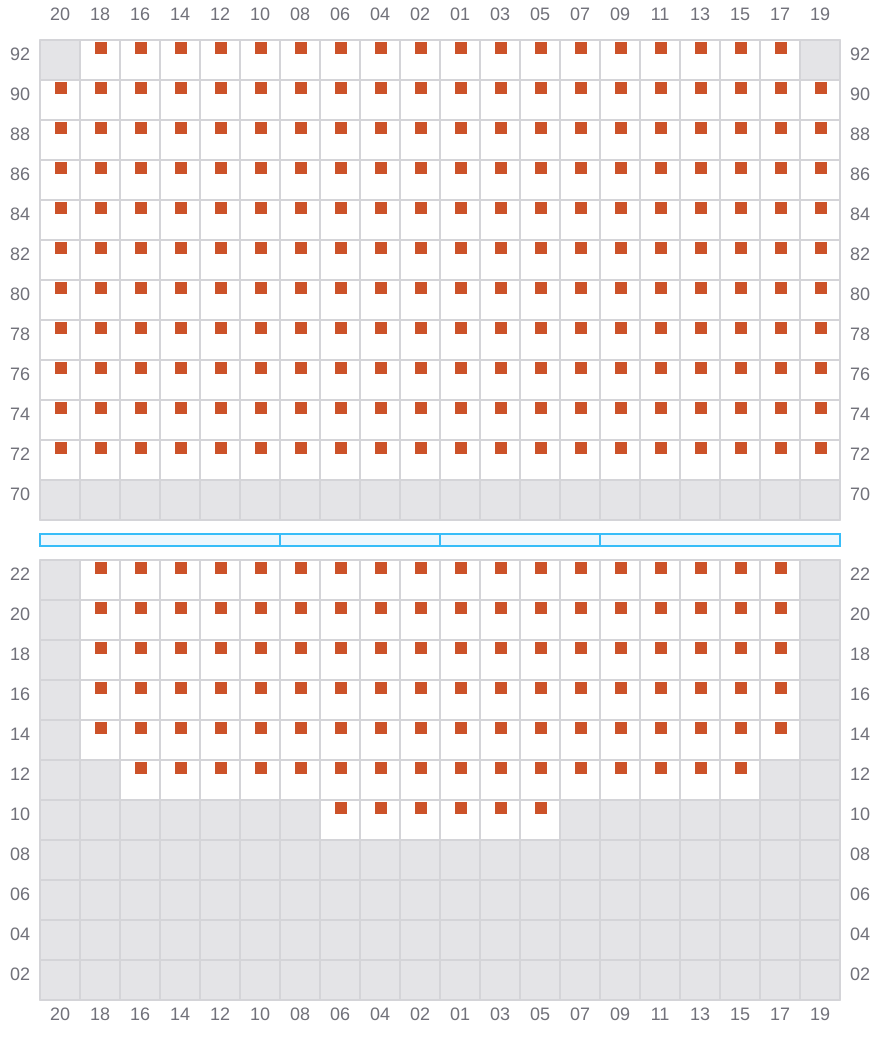

079
- ←
- → / ?
- →

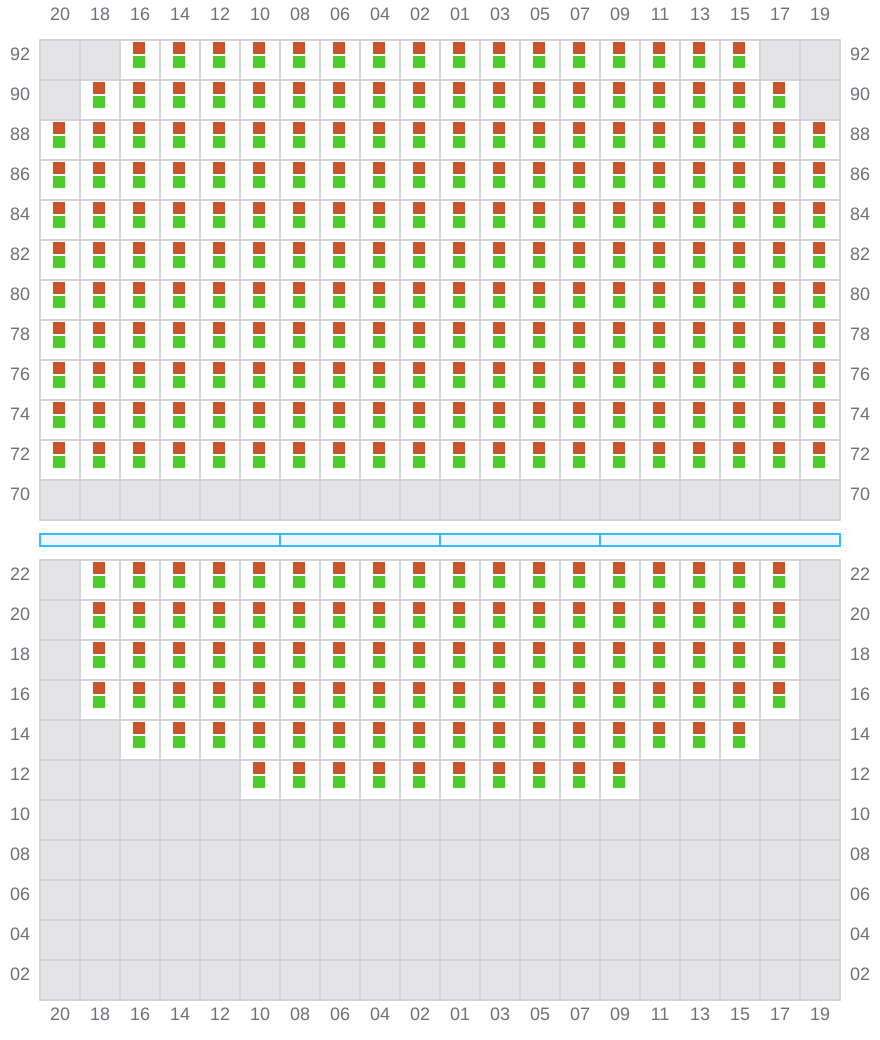

081 (082)
- →
- → / ?
- →
083
- ←
- → / ?
- →

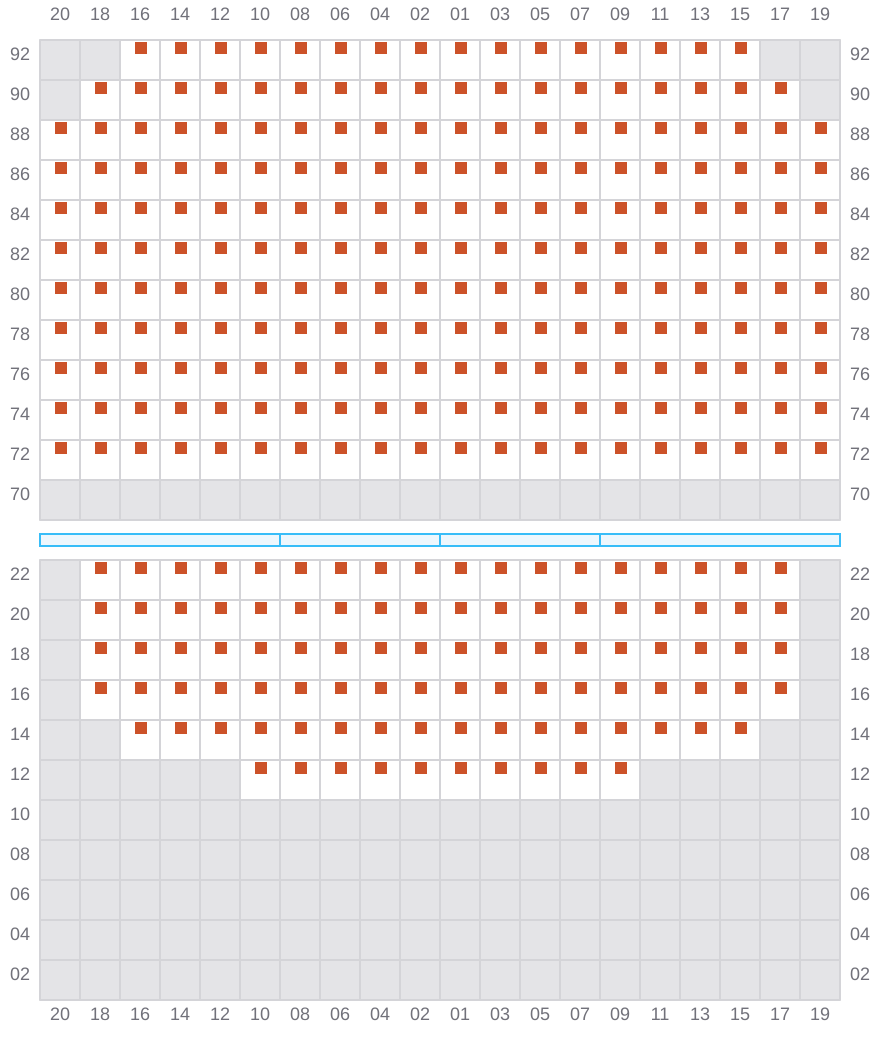

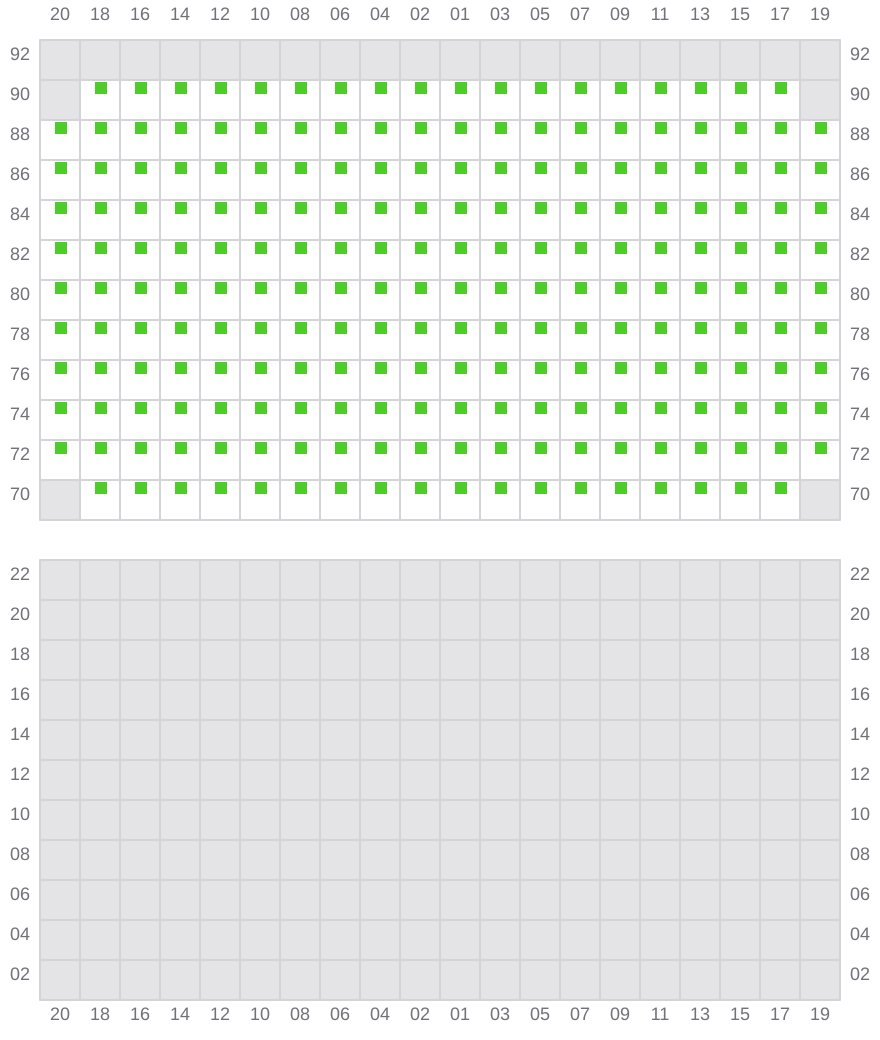

085 (086)
- → / ?
- → / ?
- → / ?
