LINDA
9354325 | OJML | SAMSKIP by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:LINDA
IMO Code:9354325
Call Sign:OJML
Line Operator:SAMSKIP
Class Name for Sister Ships:SIETA'S TYPE 174
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):127.20
LOA (Length Overall):137.53
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:911
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

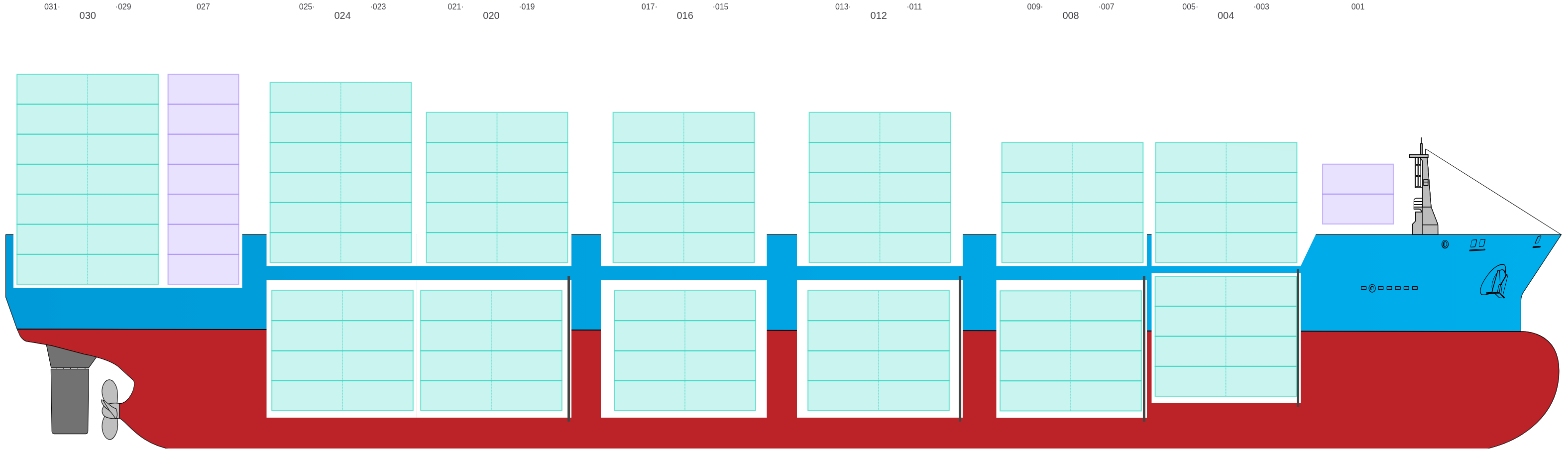

Side View
![Side view of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-sideView.png?v=1711147523410)

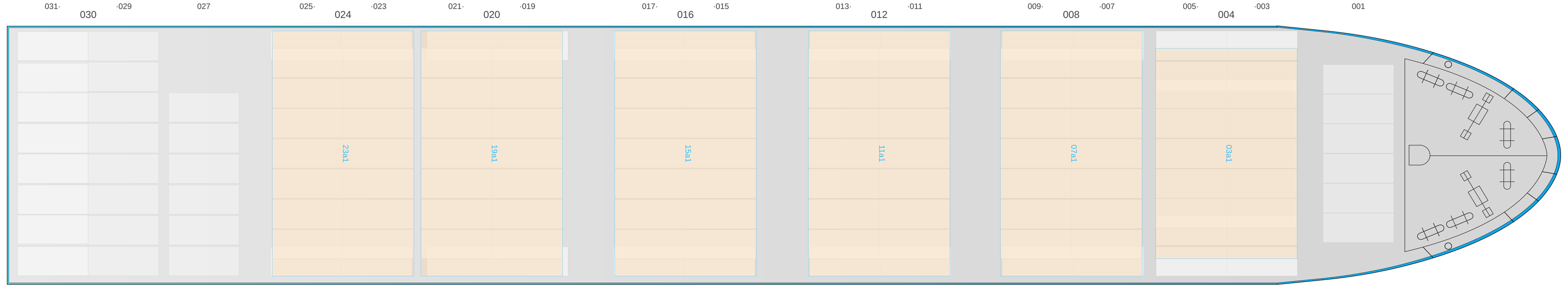

Hatch-Covers View
![Deck view of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-deckView.png?v=1711147523410)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

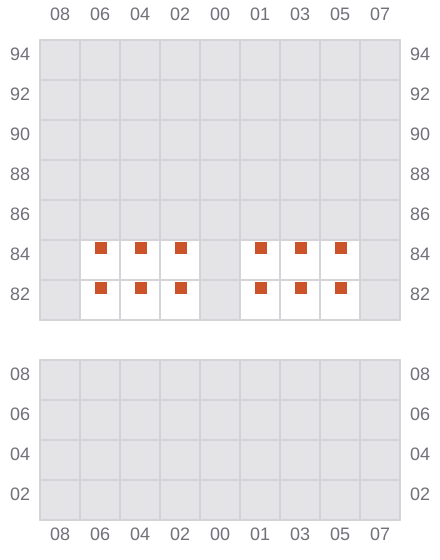

001
- → / ?
![Bay 001 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b001.png?v=1711147523410)

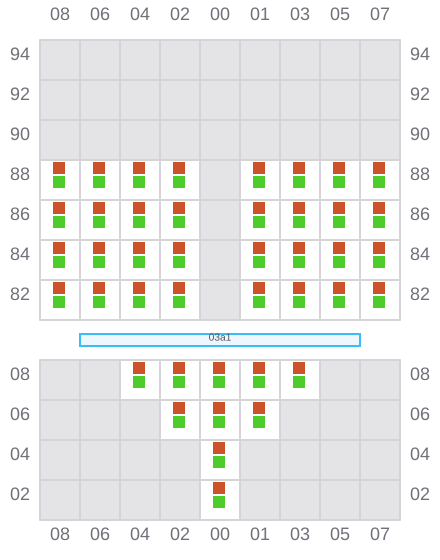

003 (004)
- →
- → / ?
![Bay 003 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b003.png?v=1711147523410)

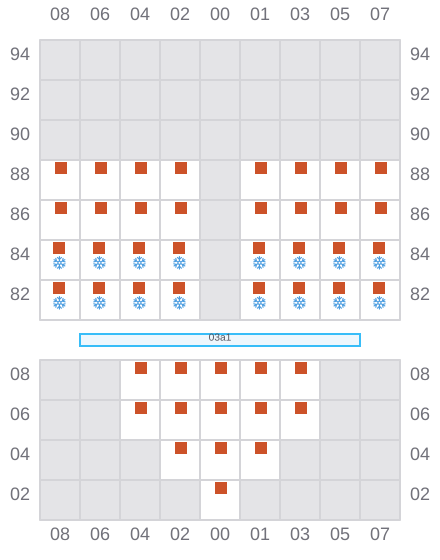

005
- ←
- → / ?
![Bay 005 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b005.png?v=1711147523410)

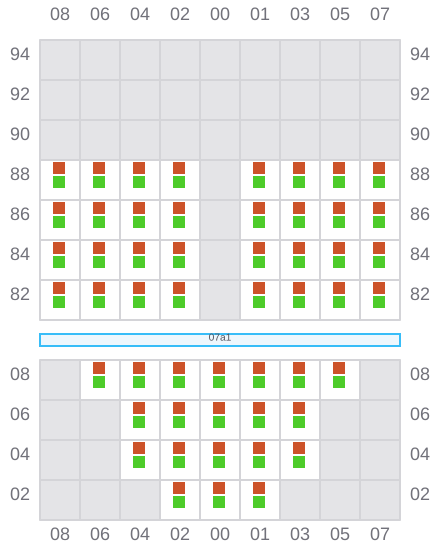

007 (008)
- →
- → / ?
![Bay 007 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b007.png?v=1711147523410)

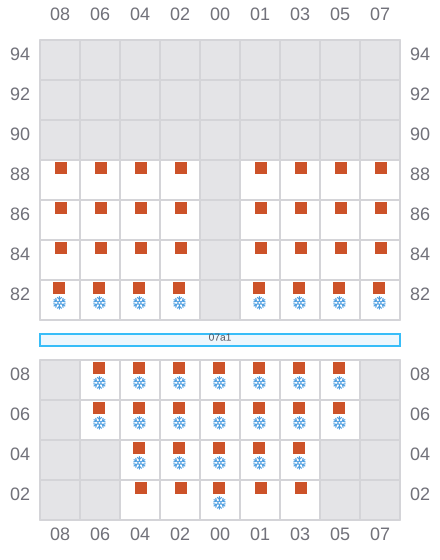

009
- ←
- →
![Bay 009 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b009.png?v=1711147523410)

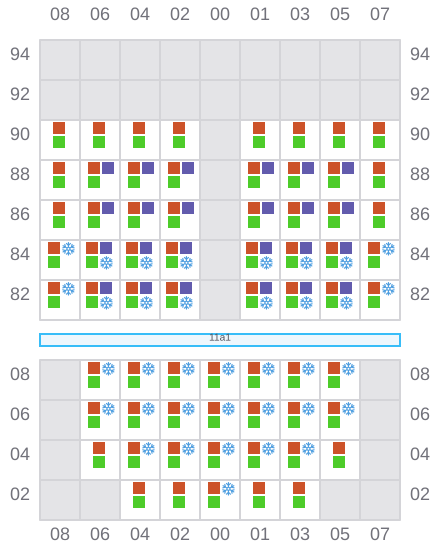

011 (012)
- →
- ←
![Bay 011 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b011.png?v=1711147523410)

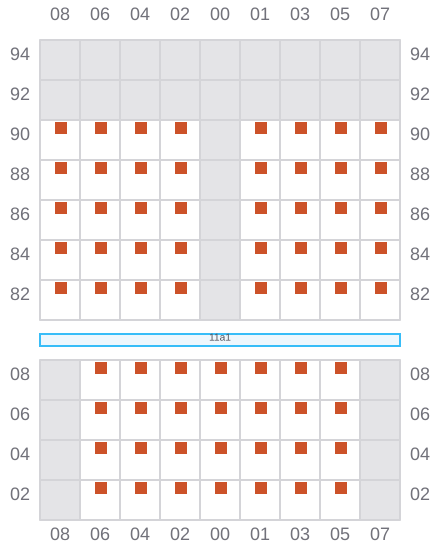

013
- ←
![Bay 013 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b013.png?v=1711147523410)

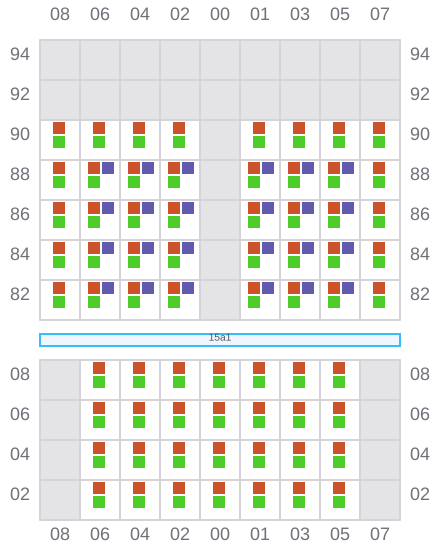

015 (016)
- →
![Bay 015 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b015.png?v=1711147523410)

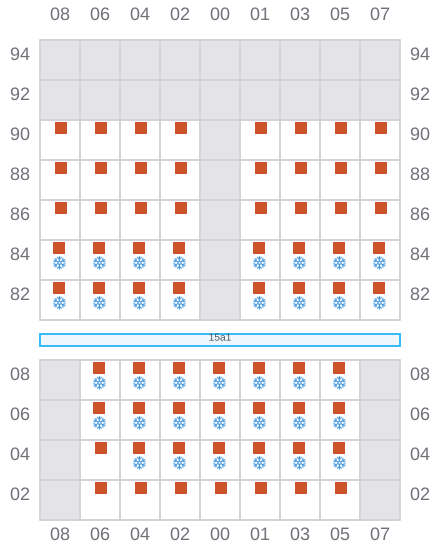

017
- ←
- →
![Bay 017 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b017.png?v=1711147523410)

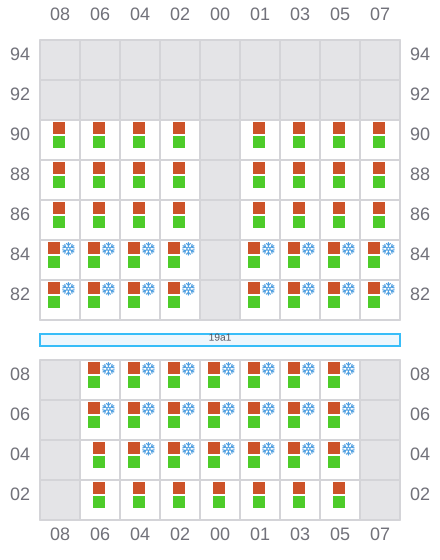

019 (020)
- →
- ←
![Bay 019 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b019.png?v=1711147523410)
021
- ←
![Bay 021 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b021.png?v=1711147523410)

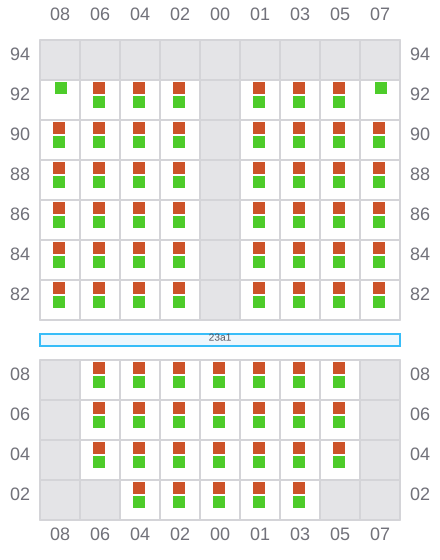

023 (024)
- →
![Bay 023 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b023.png?v=1711147523410)

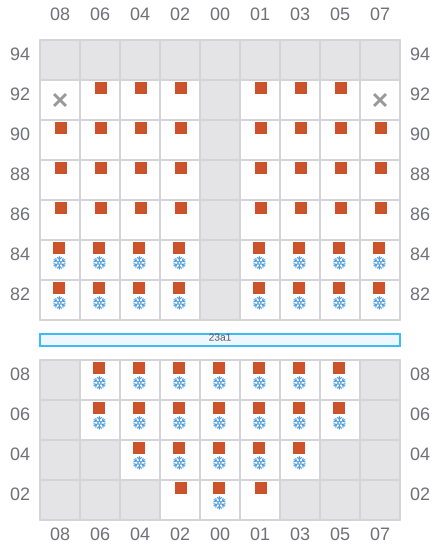

025
- ←
- →
![Bay 025 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b025.png?v=1711147523410)

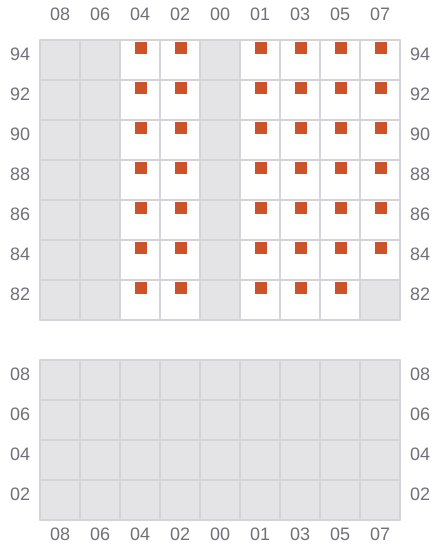

027
![Bay 027 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b027.png?v=1711147523410)

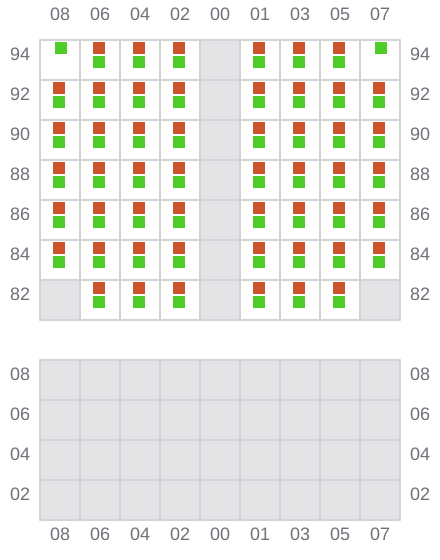

029 (030)
- → / ?
![Bay 029 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b029.png?v=1711147523410)

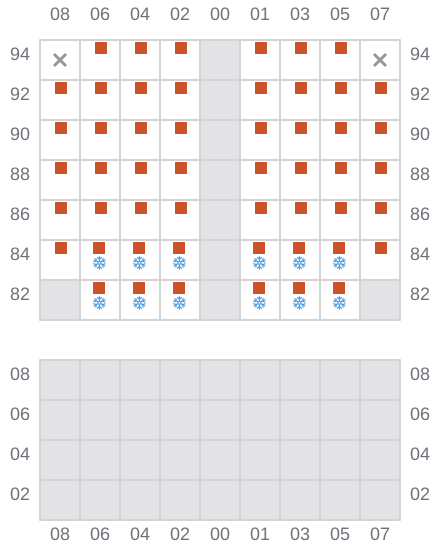

031
- ← / ?
- → / ?
![Bay 031 view and slots of LINDA](/vessel-images/9bc8f1a7-3493-4da2-8c5e-3eae0c7dc06c-b031.png?v=1711147523410)
