LIONFISH
9162667 | TCA7558 | 9162667 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:LIONFISH
IMO Code:9162667
Call Sign:TCA7558
Line Operator:9162667
Class Name for Sister Ships:33K
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:977
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

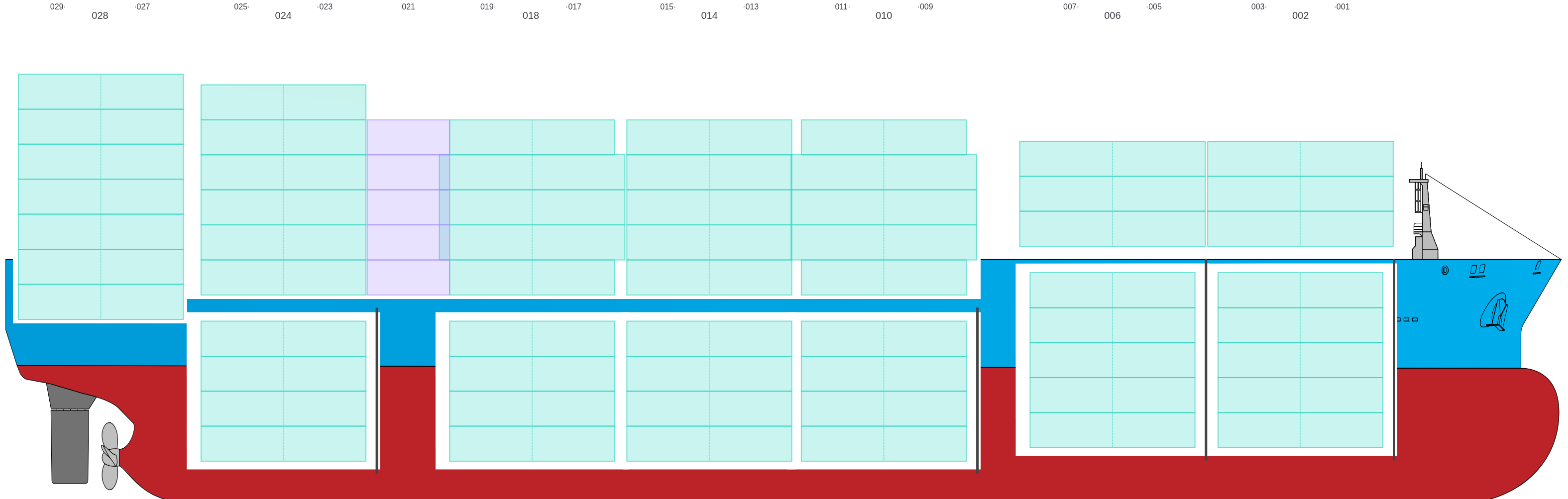

Side View
![Side view of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-sideView.png?v=1709936452380)

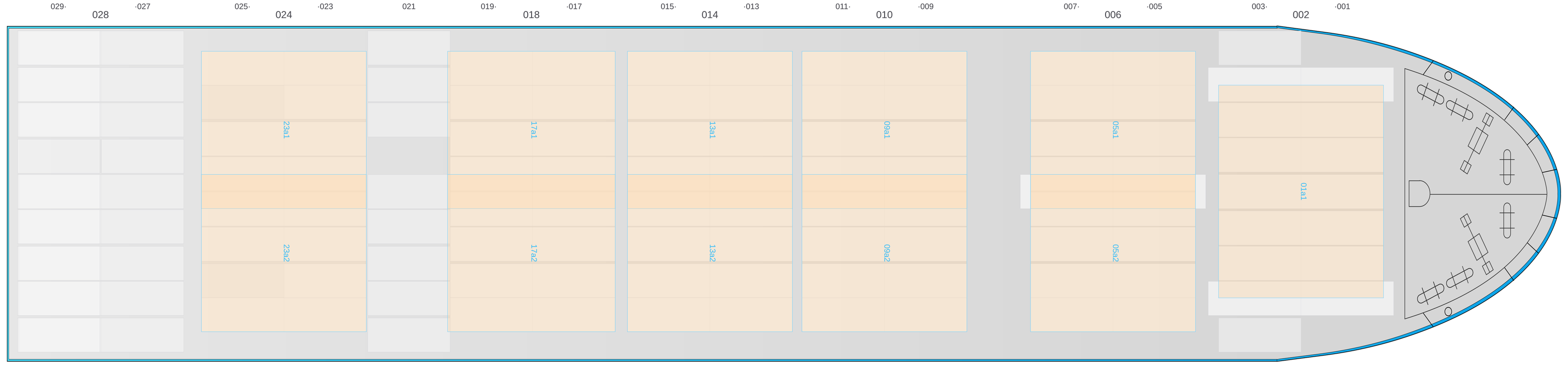

Hatch-Covers View
![Deck view of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-deckView.png?v=1709936452380)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ? / ←
![Bay 001 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b001.png?v=1709936452380)

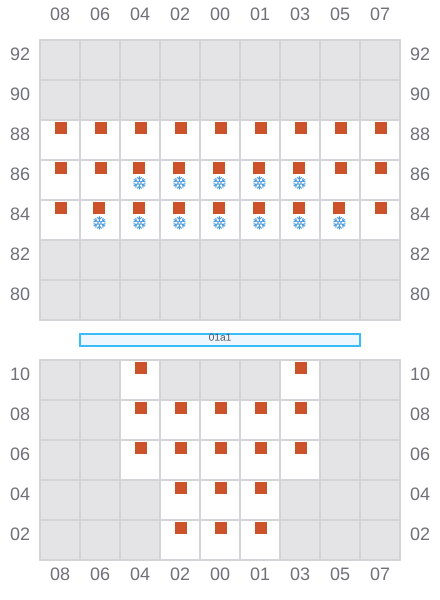

003
- ←
- → / ?
![Bay 003 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b003.png?v=1709936452380)

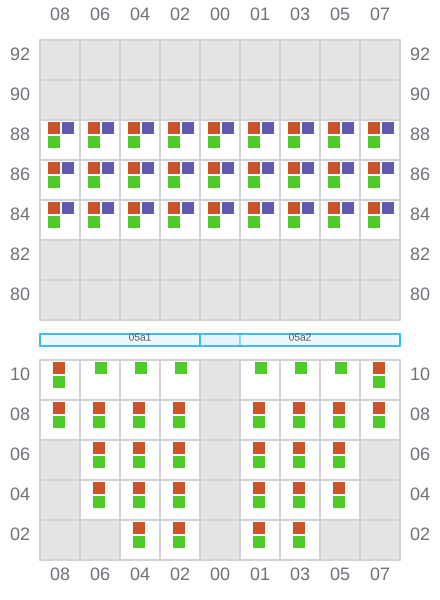

005 (006)
- →
![Bay 005 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b005.png?v=1709936452380)

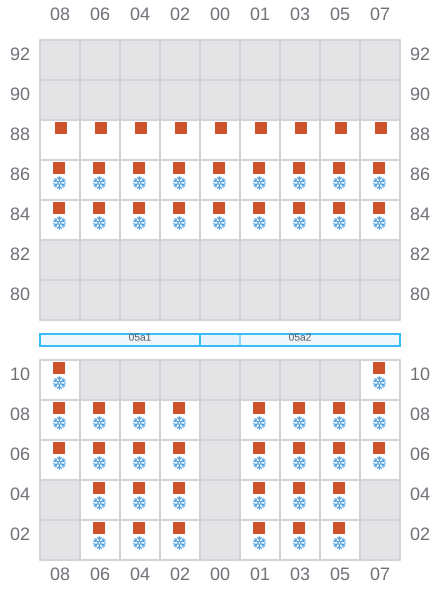

007
- ←
- →
![Bay 007 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b007.png?v=1709936452380)

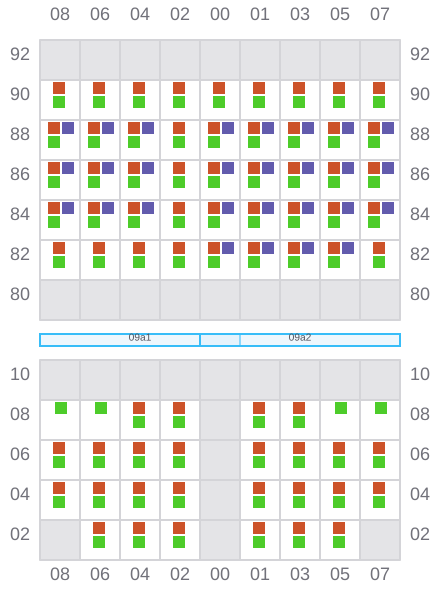

009 (010)
- →
![Bay 009 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b009.png?v=1709936452380)
011
- ←
- → / ?
![Bay 011 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b011.png?v=1709936452380)
013 (014)
- →
- ← / ?
![Bay 013 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b013.png?v=1709936452380)

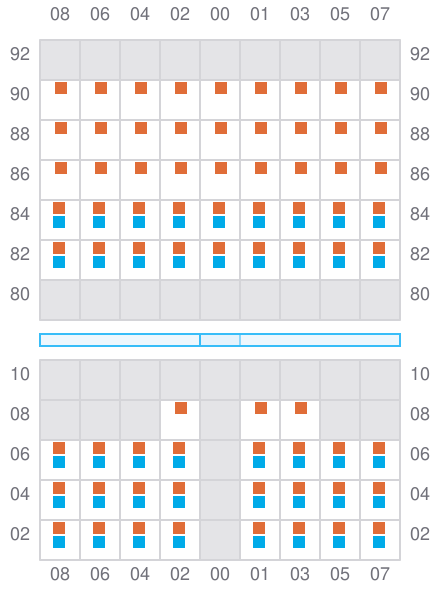

015
- ←
- →
![Bay 015 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b015.png?v=1709936452380)

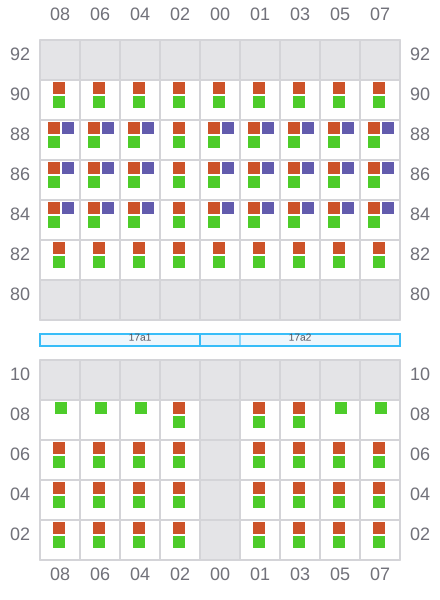

017 (018)
- →
![Bay 017 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b017.png?v=1709936452380)

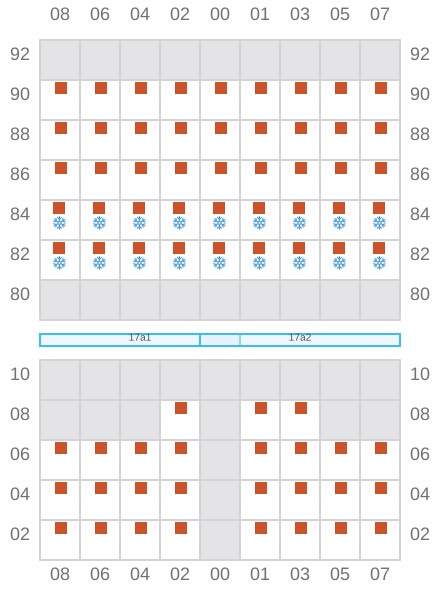

019
- ←
- → / ?
![Bay 019 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b019.png?v=1709936452380)

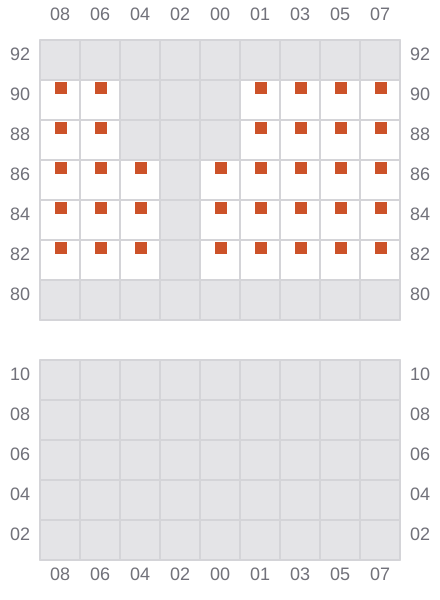

021
![Bay 021 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b021.png?v=1709936452380)
023 (024)
- →
- ? / →
![Bay 023 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b023.png?v=1709936452380)

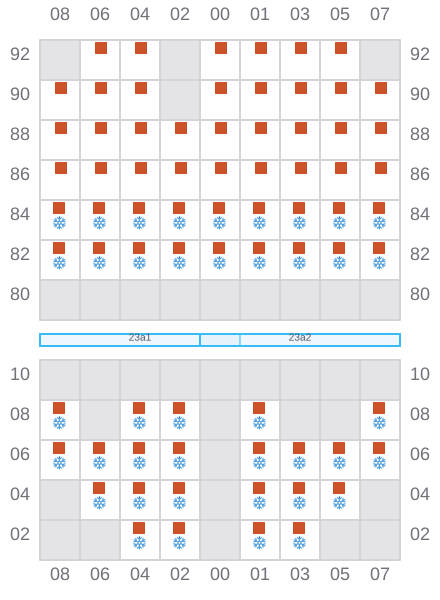

025
- ←
- →
![Bay 025 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b025.png?v=1709936452380)
027 (028)
- → / ?
![Bay 027 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b027.png?v=1709936452380)
029
- ← / ?
- → / ?
![Bay 029 view and slots of LIONFISH](/vessel-images/e2fc1e38-a215-46ec-808e-15f8d2cd7dd6-b029.png?v=1709936452380)
