LOBIVIA
9228564 | 9V8676 | 9228564 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:LOBIVIA
IMO Code:9228564
Call Sign:9V8676
Line Operator:9228564
Class Name for Sister Ships:43Q
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,024
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

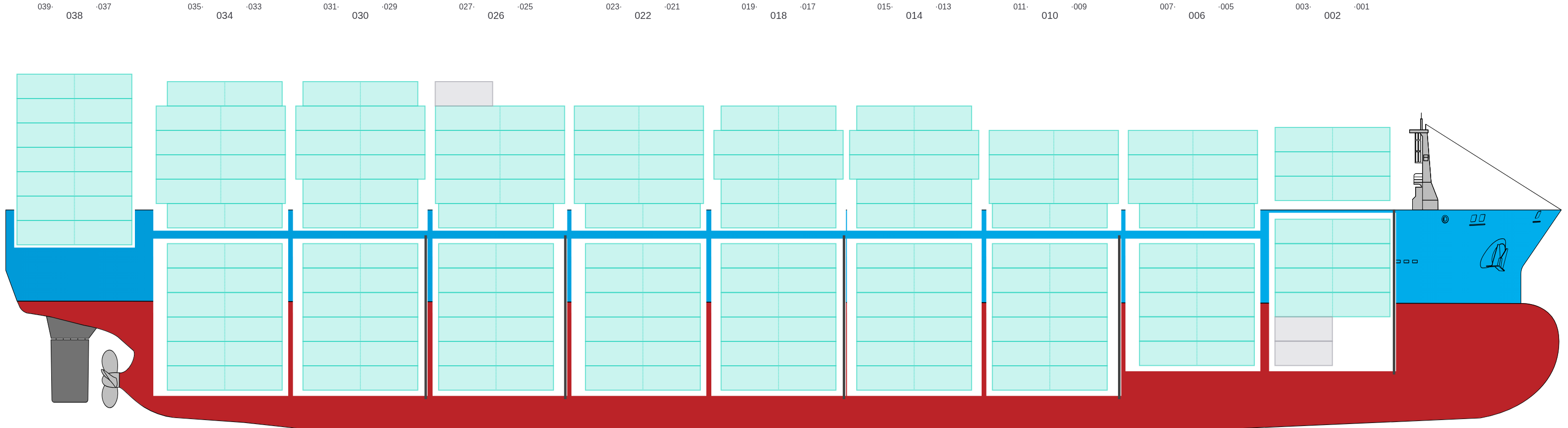

Side View
![Side view of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-sideView.png?v=1710525348573)
Hatch-Covers View
![Deck view of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-deckView.png?v=1710525348573)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

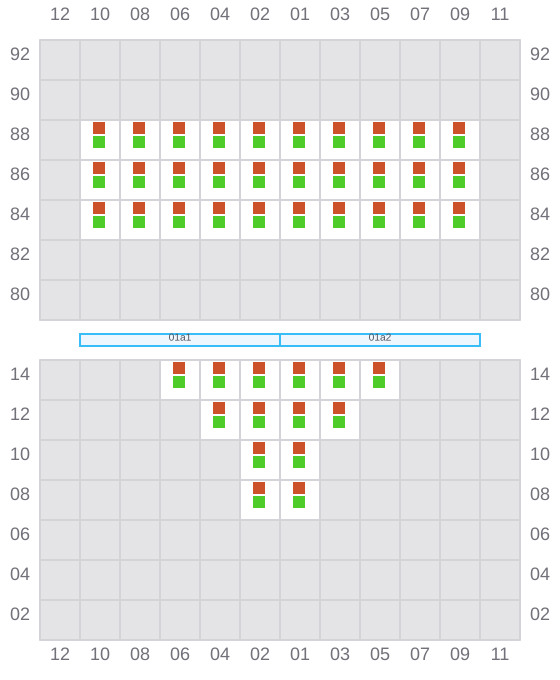

001 (002)
- →
![Bay 001 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b001.png?v=1710525348573)

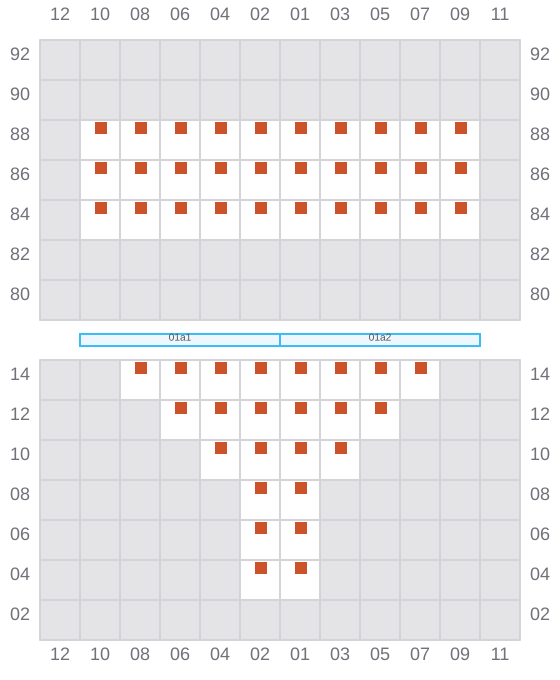

003
- ←
![Bay 003 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b003.png?v=1710525348573)

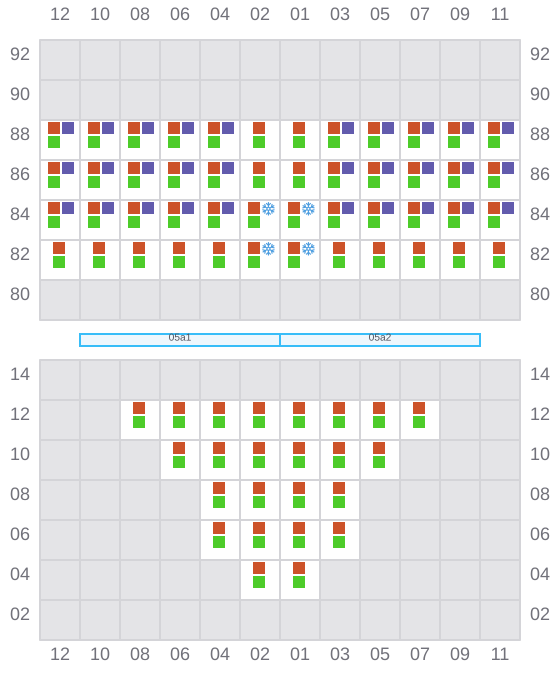

005 (006)
- →
- ← / ?
![Bay 005 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b005.png?v=1710525348573)

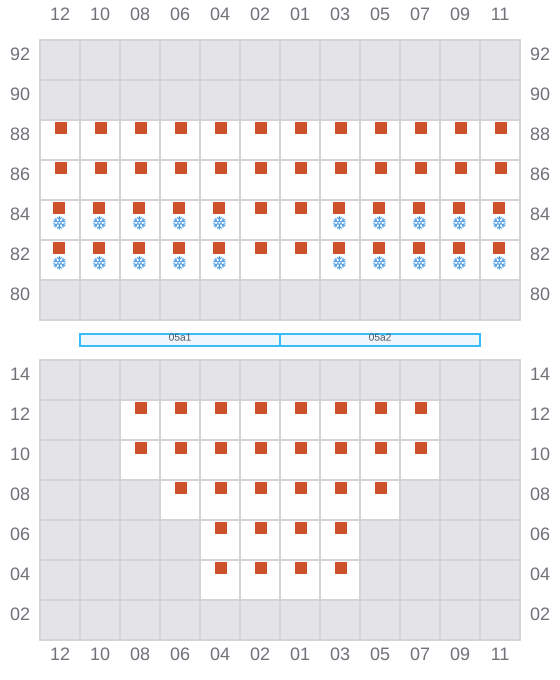

007
- ←
- → / ?
![Bay 007 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b007.png?v=1710525348573)

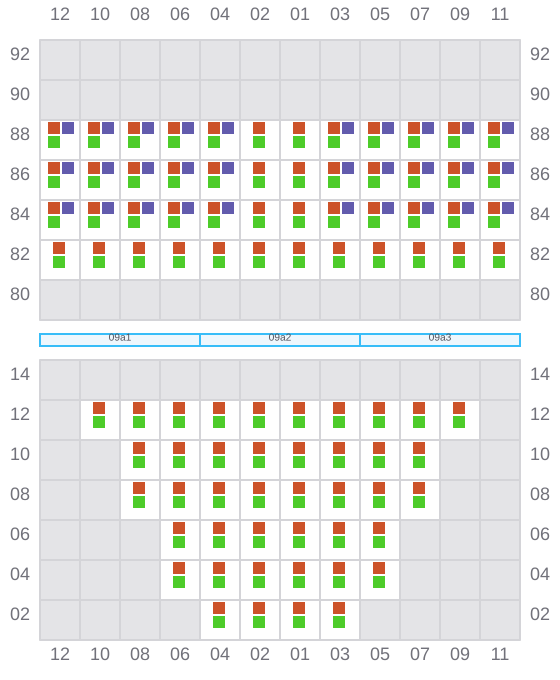

009 (010)
- →
- ← / ?
![Bay 009 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b009.png?v=1710525348573)

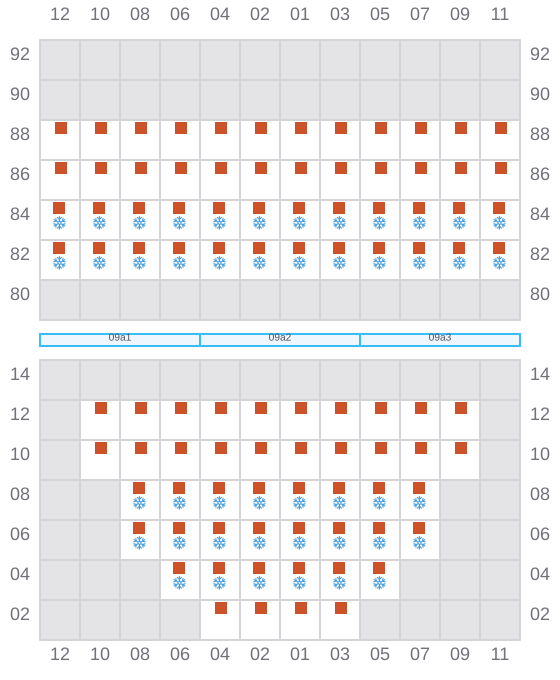

011
- ←
- →
![Bay 011 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b011.png?v=1710525348573)

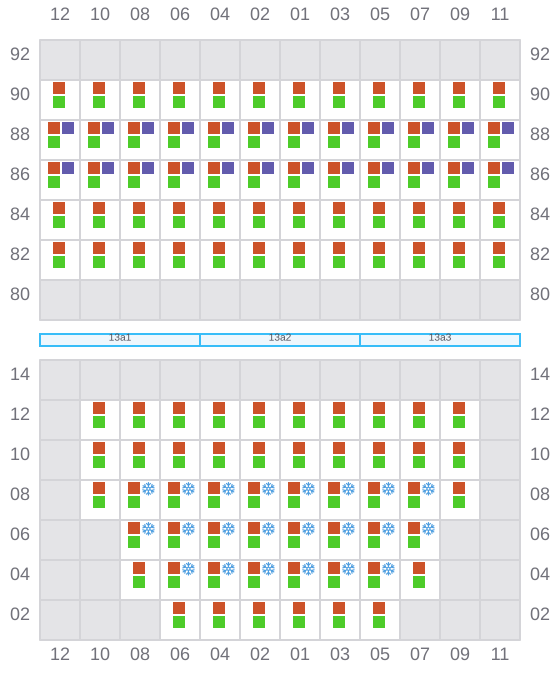

013 (014)
- →
- ←
![Bay 013 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b013.png?v=1710525348573)

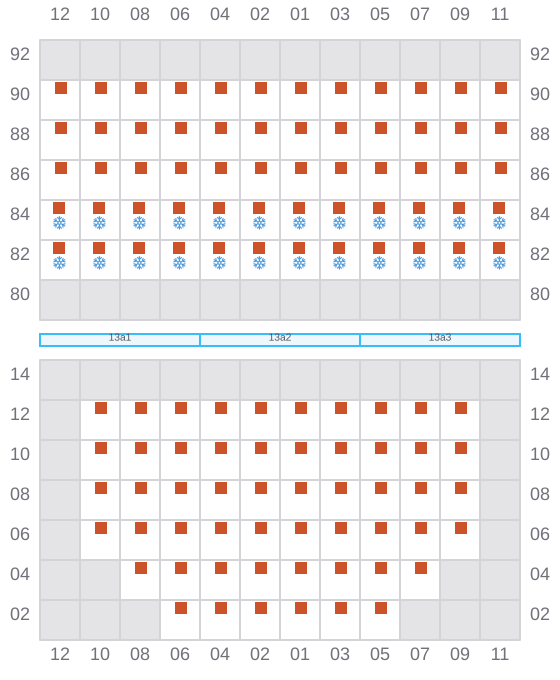

015
- ←
- → / ?
![Bay 015 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b015.png?v=1710525348573)

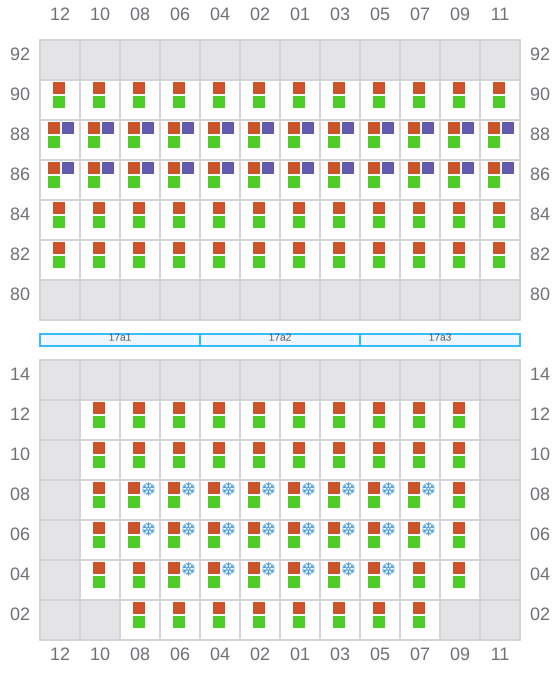

017 (018)
- →
- ←
![Bay 017 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b017.png?v=1710525348573)

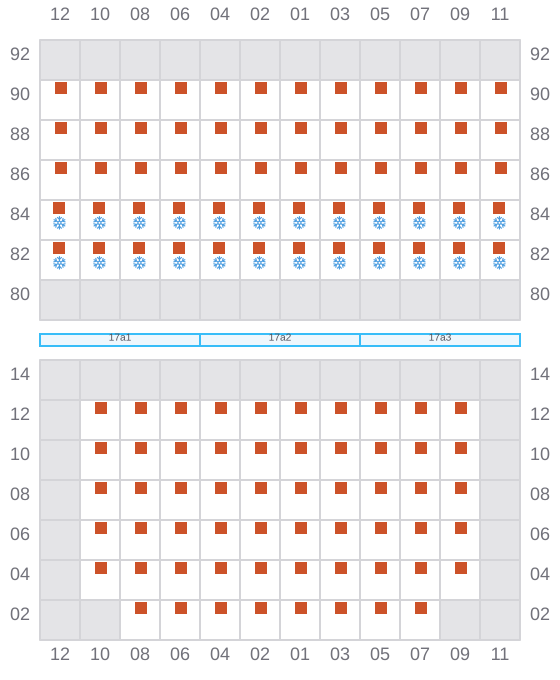

019
- ←
- → / ?
![Bay 019 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b019.png?v=1710525348573)

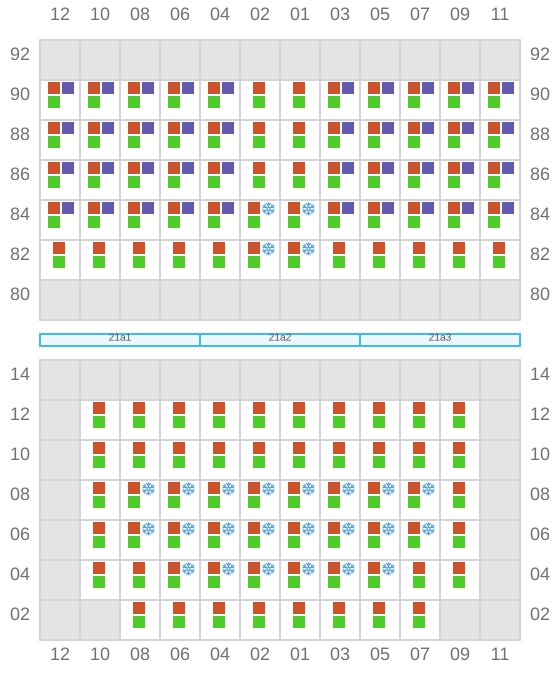

021 (022)
- →
- ←
![Bay 021 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b021.png?v=1710525348573)

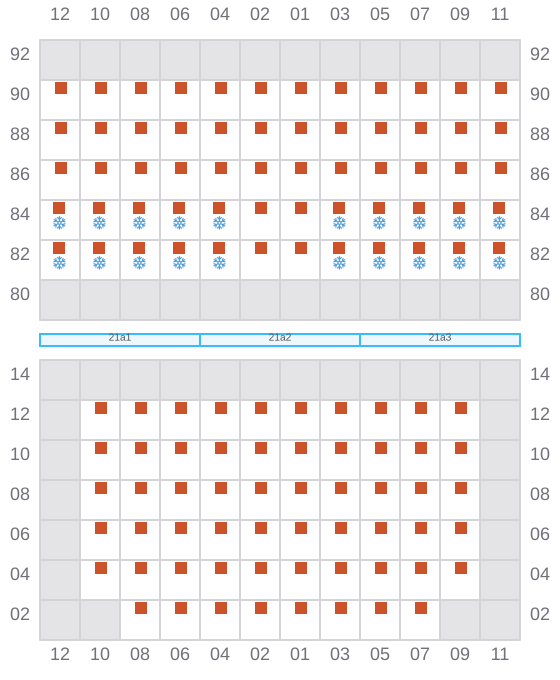

023
- ←
- → / ?
![Bay 023 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b023.png?v=1710525348573)

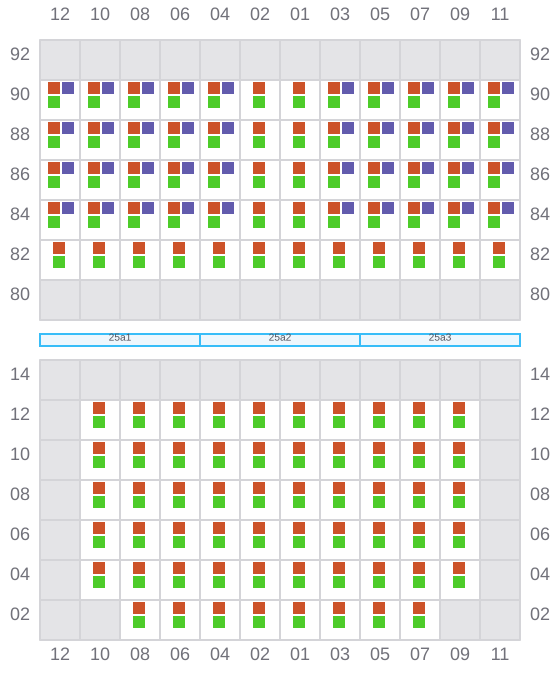

025 (026)
- →
- ← / ?
![Bay 025 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b025.png?v=1710525348573)

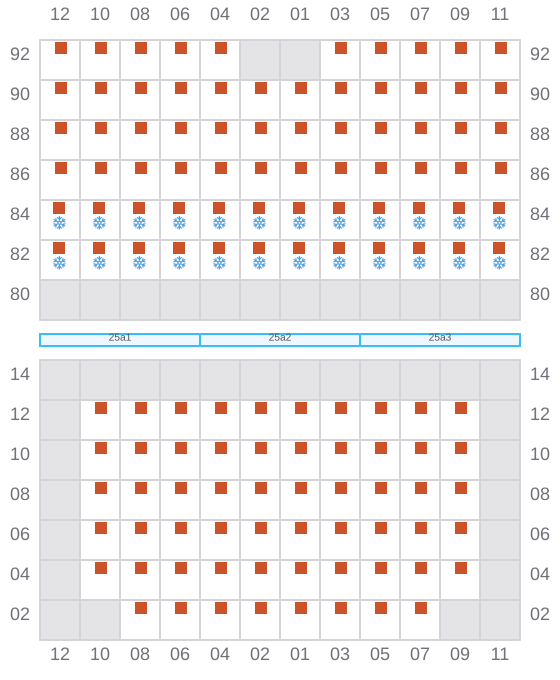

027
- ←
- → / ?
![Bay 027 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b027.png?v=1710525348573)

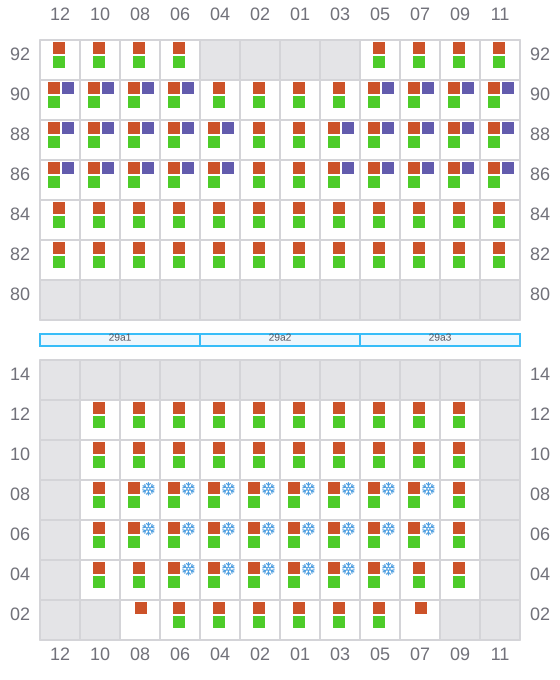

029 (030)
- →
- ←
![Bay 029 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b029.png?v=1710525348573)

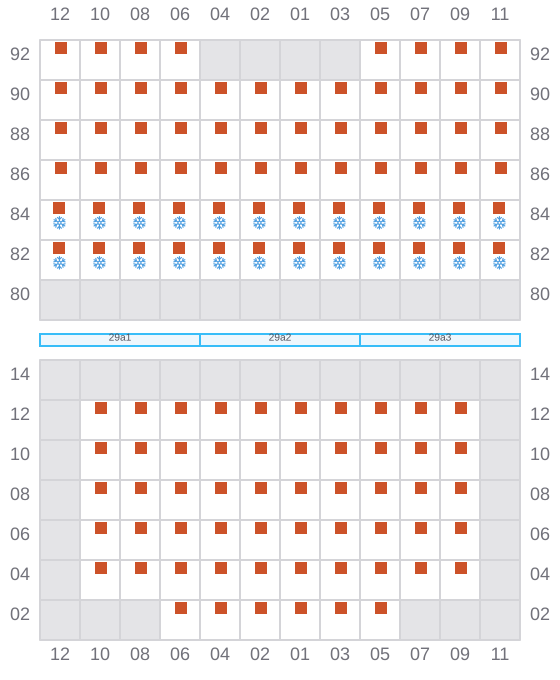

031
- ←
- → / ?
![Bay 031 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b031.png?v=1710525348573)

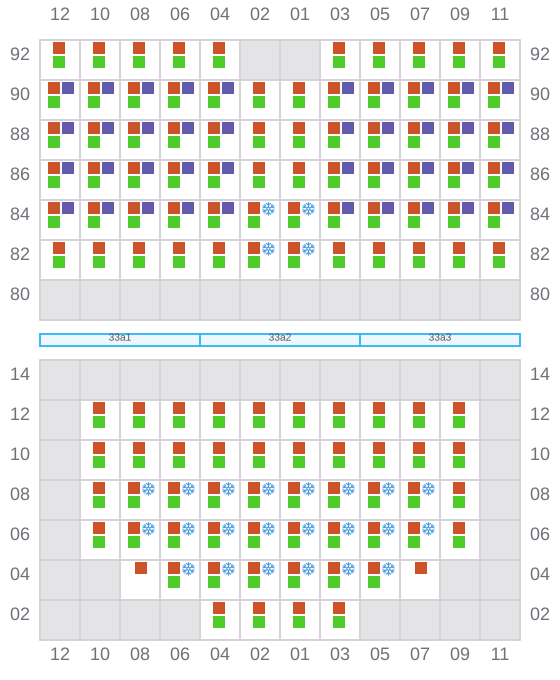

033 (034)
- →
- ←
![Bay 033 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b033.png?v=1710525348573)

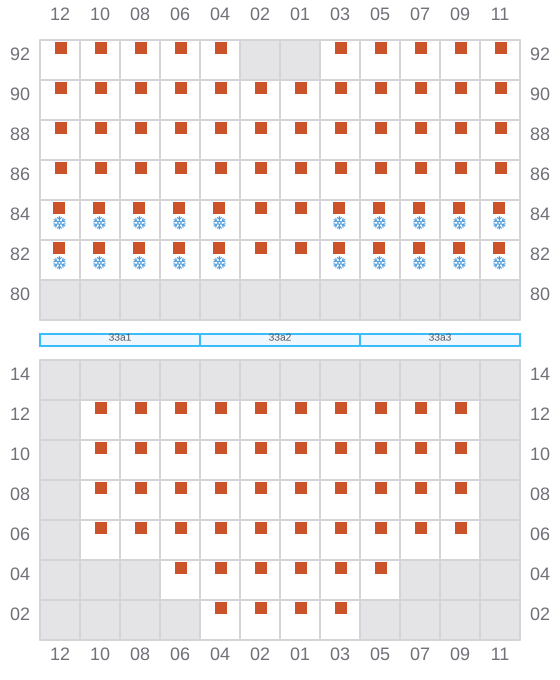

035
- ←
- → / ?
![Bay 035 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b035.png?v=1710525348573)

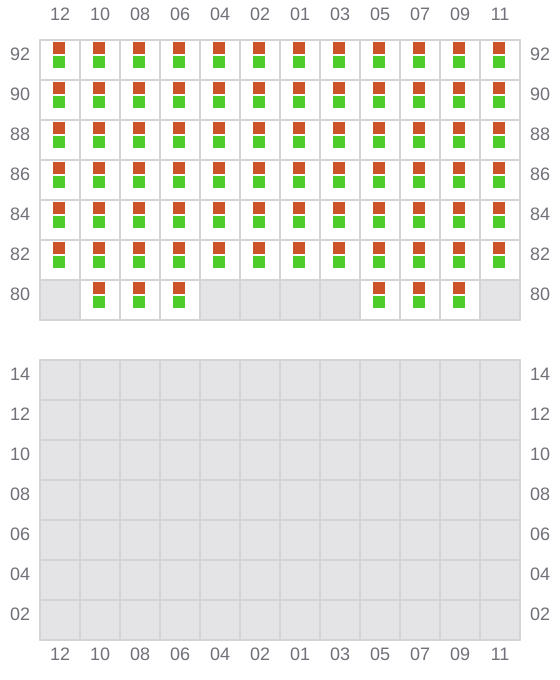

037 (038)
- → / ?
![Bay 037 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b037.png?v=1710525348573)

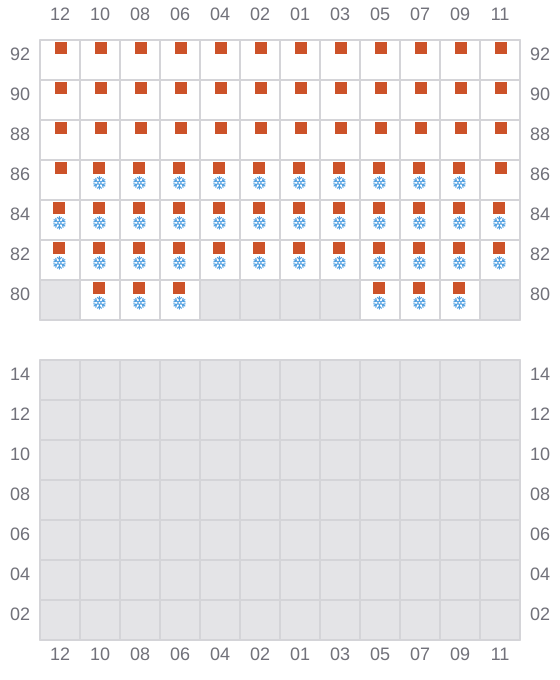

039
- ← / ?
- → / ?
![Bay 039 view and slots of LOBIVIA](/vessel-images/5c90da88-3180-4848-b87d-214043dce642-b039.png?v=1710525348573)
