LOG IN PANTANAL
9351799 | PPVQ | 9351799 by ********* Last update: Wed May 08 2024
General Info
Ship Name:LOG IN PANTANAL
IMO Code:9351799
Call Sign:PPVQ
Line Operator:9351799
Class Name for Sister Ships:LOG-IN PANTANAL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,686
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

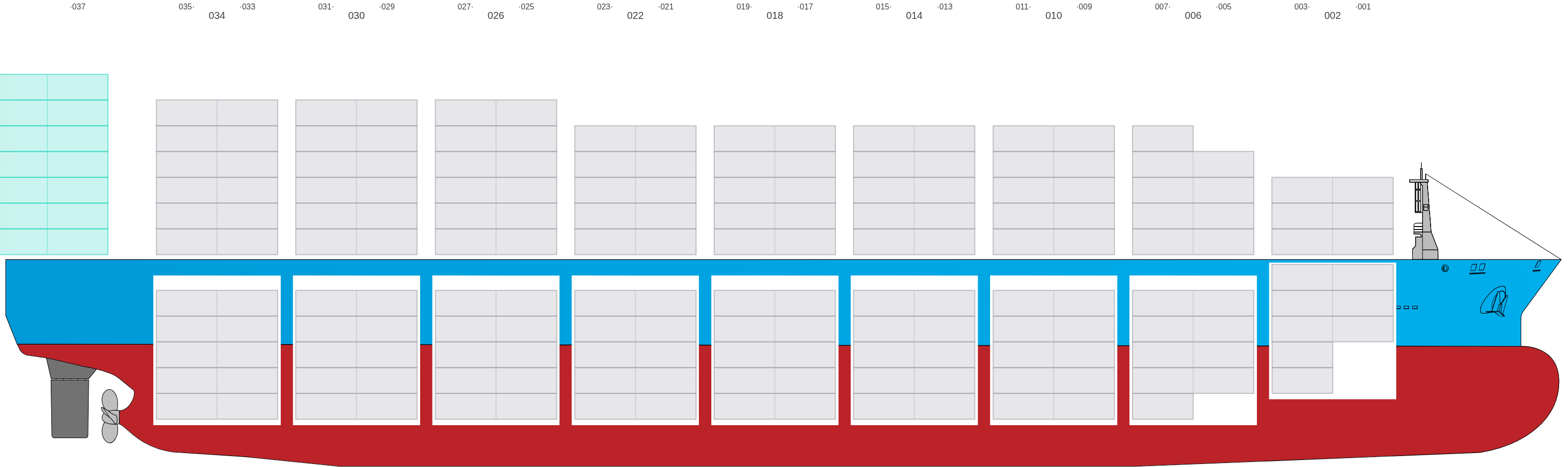

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

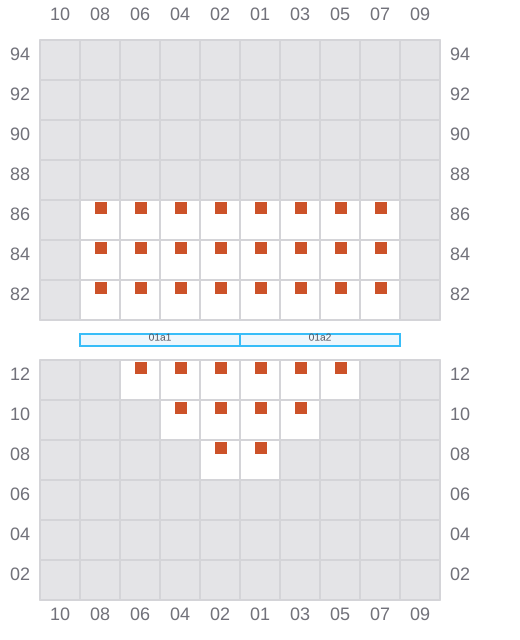

001
- →

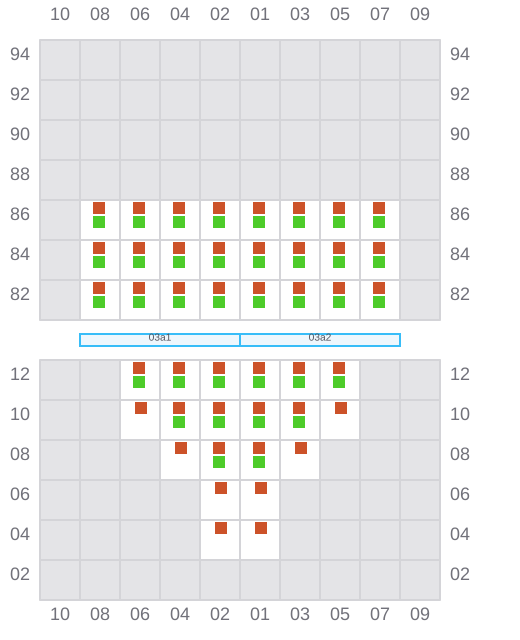

003 (002)
- ←
005
- →

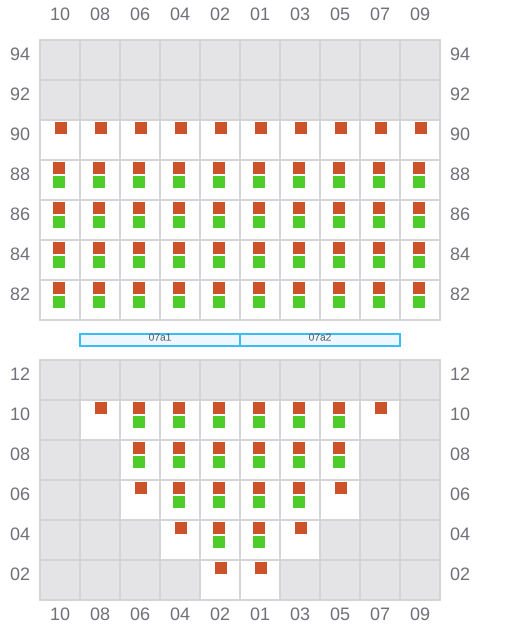

007 (006)
- ←

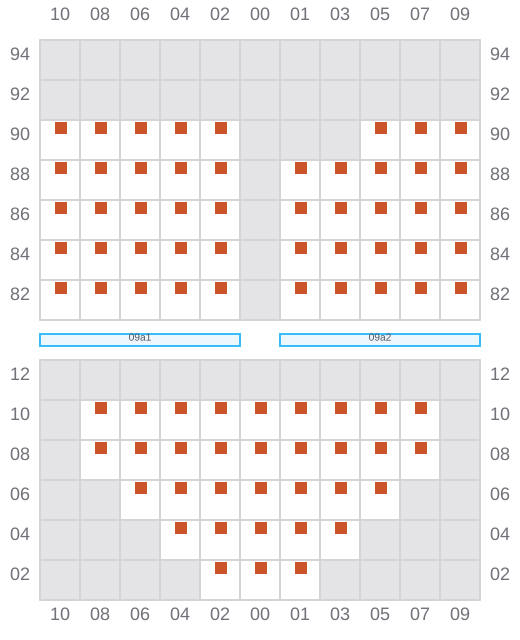

009
- →

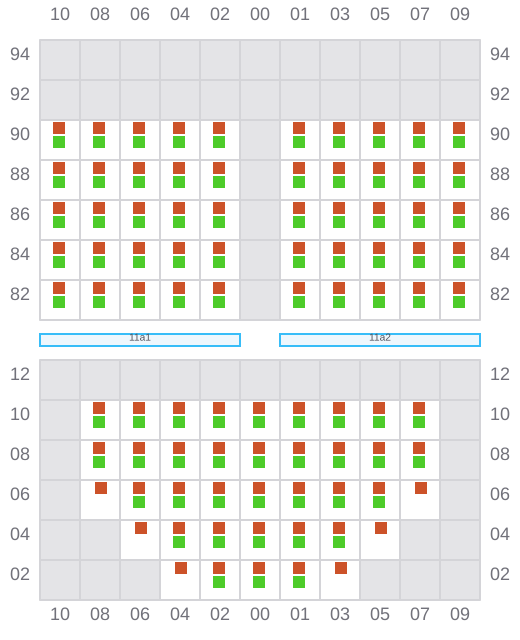

011 (010)
- ←

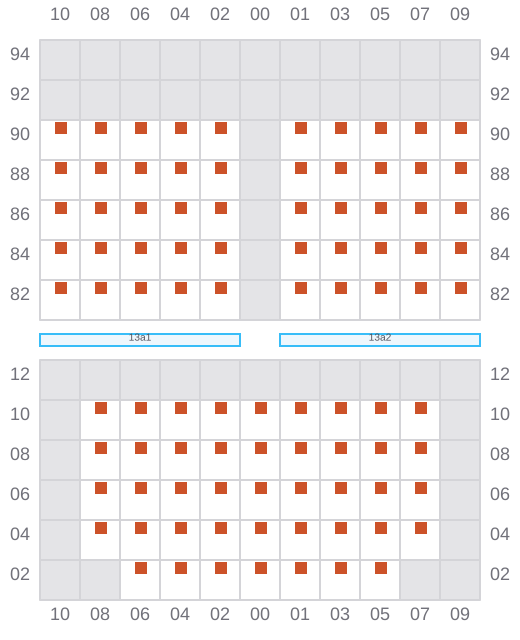

013
- →
015 (014)
- ←
017
- →

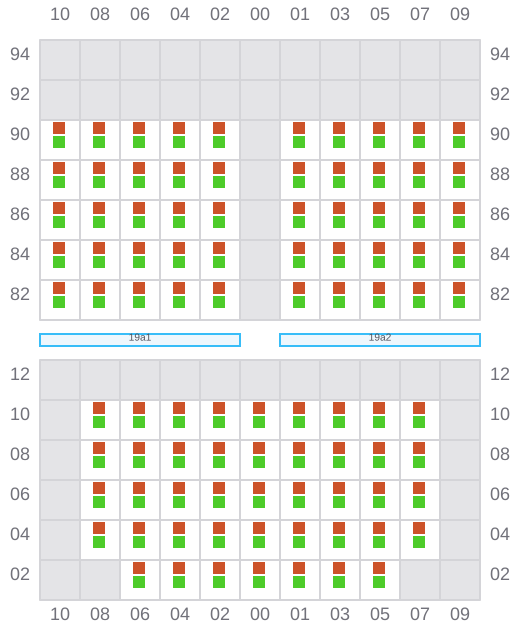

019 (018)
- ←
021
- →

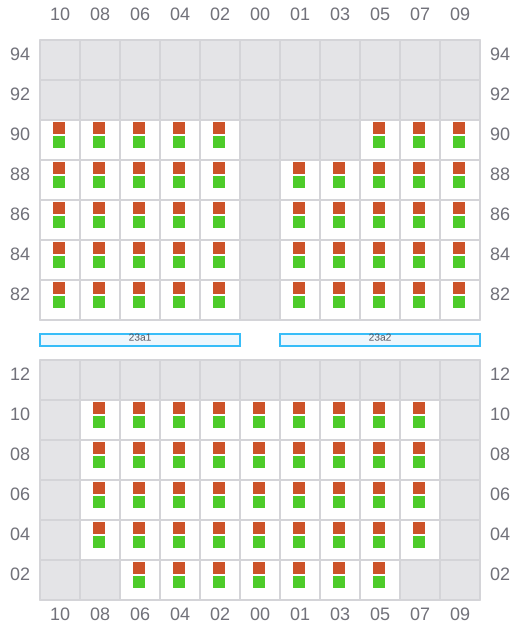

023 (022)
- ←

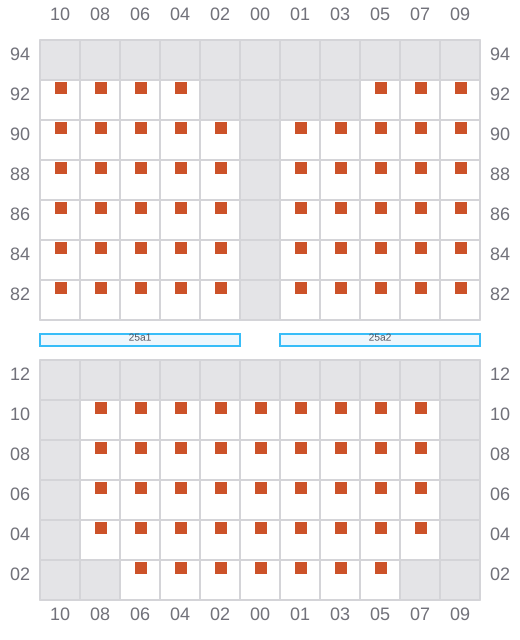

025
- →

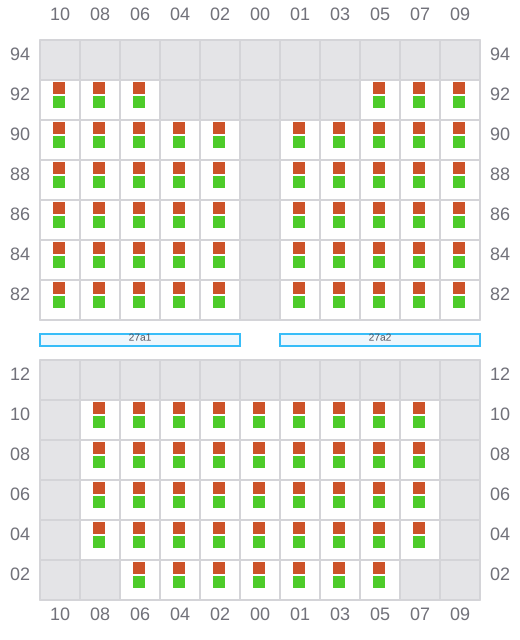

027 (026)
- ←

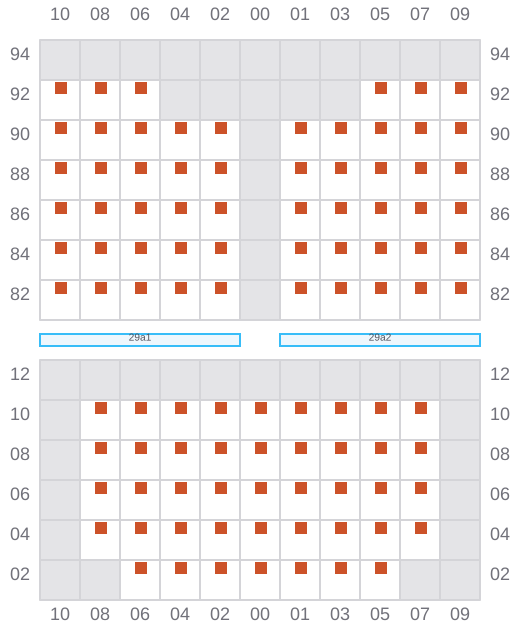

029
- →

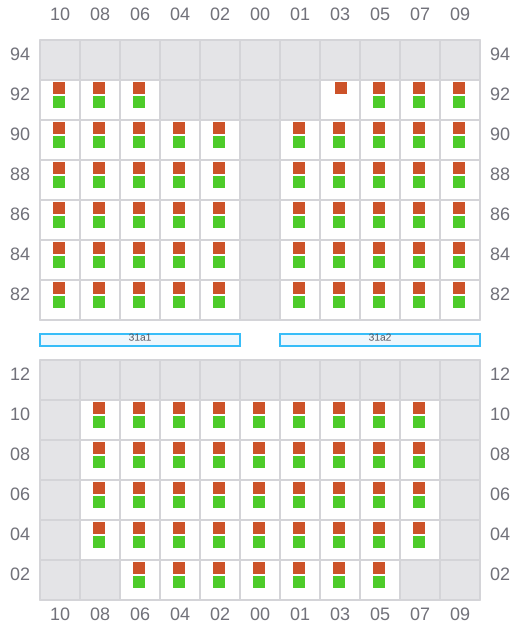

031 (030)
- ←

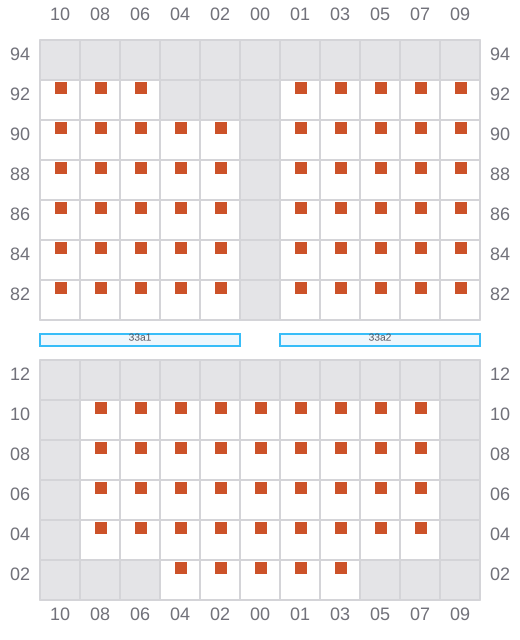

033
- →

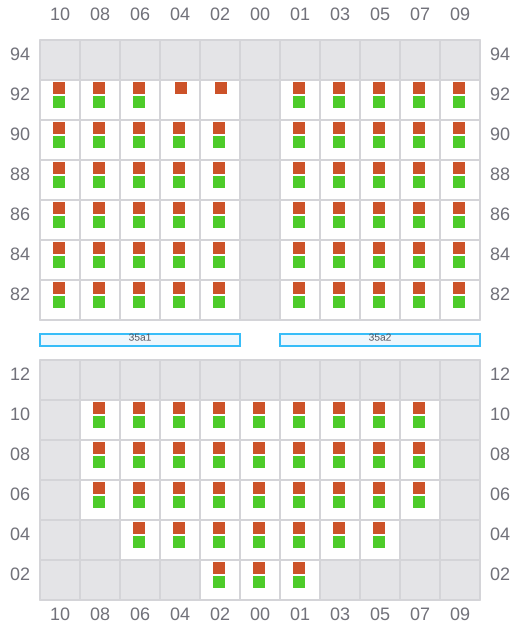

035 (034)
- ←

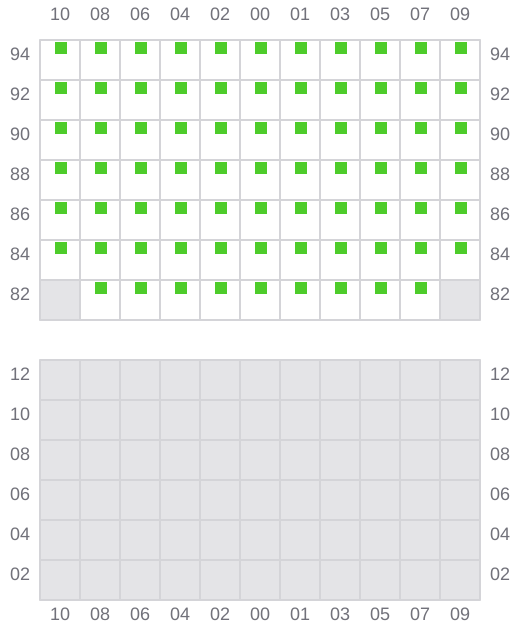

037 (038)
- → / ?
