LONG BEACH EXPRESS
9348675 | A8OU4 | 9348675 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:LONG BEACH EXPRESS
IMO Code:9348675
Call Sign:A8OU4
Line Operator:9348675
Class Name for Sister Ships:10A
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):294.00
LOA (Length Overall):294.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,089
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

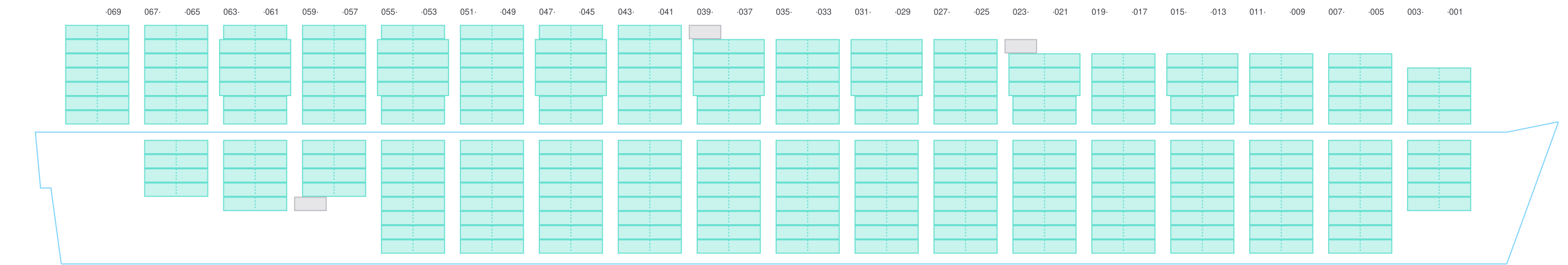

Side View
![Side view of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-sideView.png?v=1711143391424)

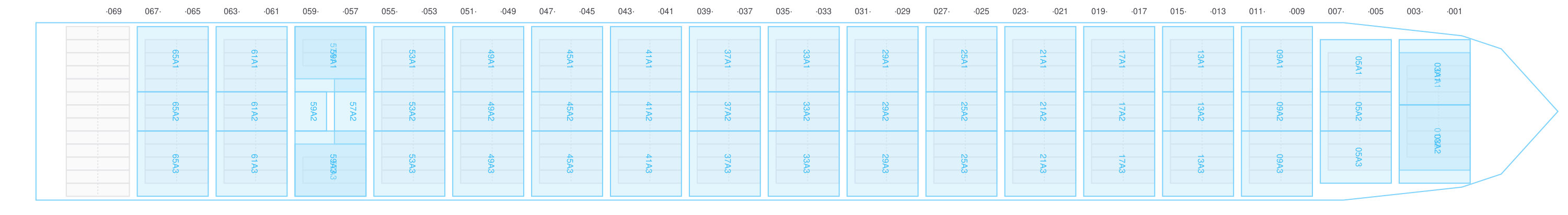

Hatch-Covers View
![Deck view of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-deckView.png?v=1711143391424)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

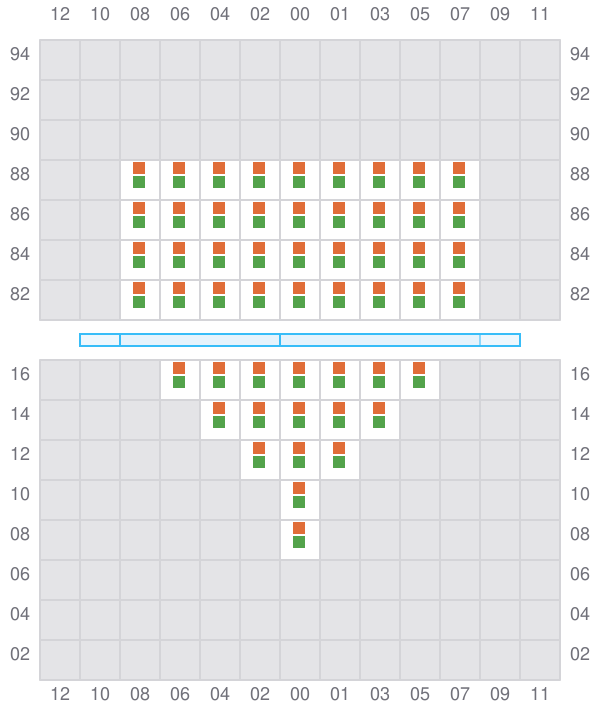

001 (002)
- →
![Bay 001 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b001.png?v=1711143391424)

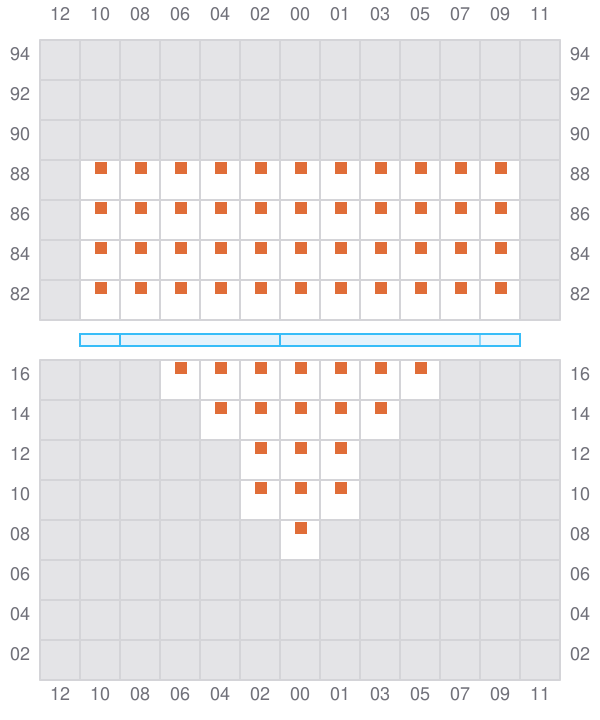

003
- ←
![Bay 003 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b003.png?v=1711143391424)

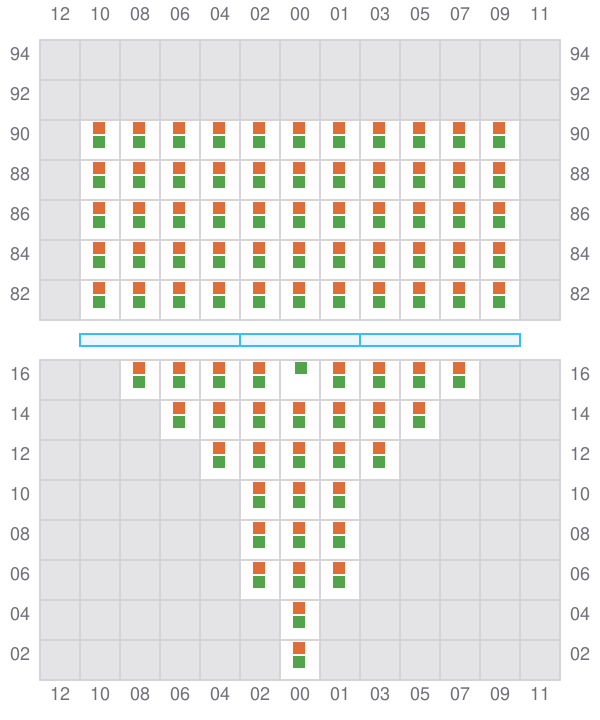

005 (006)
- →
![Bay 005 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b005.png?v=1711143391424)

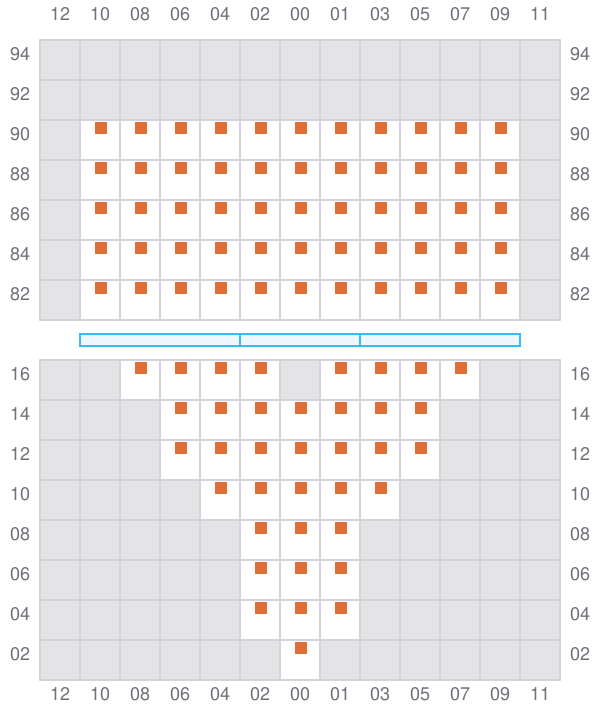

007
- ←
![Bay 007 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b007.png?v=1711143391424)

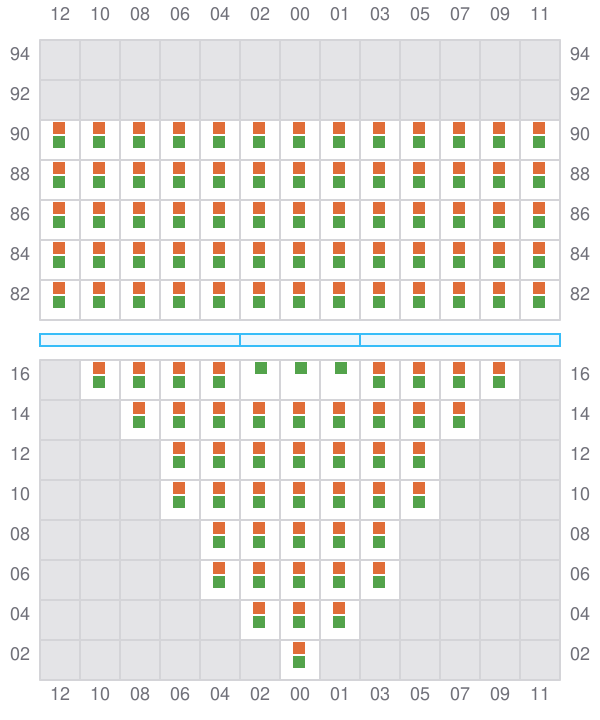

009 (010)
- →
![Bay 009 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b009.png?v=1711143391424)

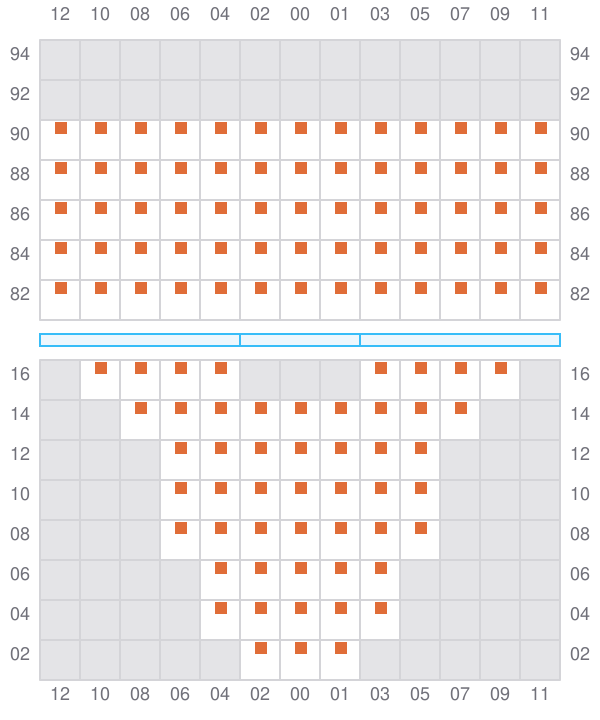

011
- ←
![Bay 011 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b011.png?v=1711143391424)

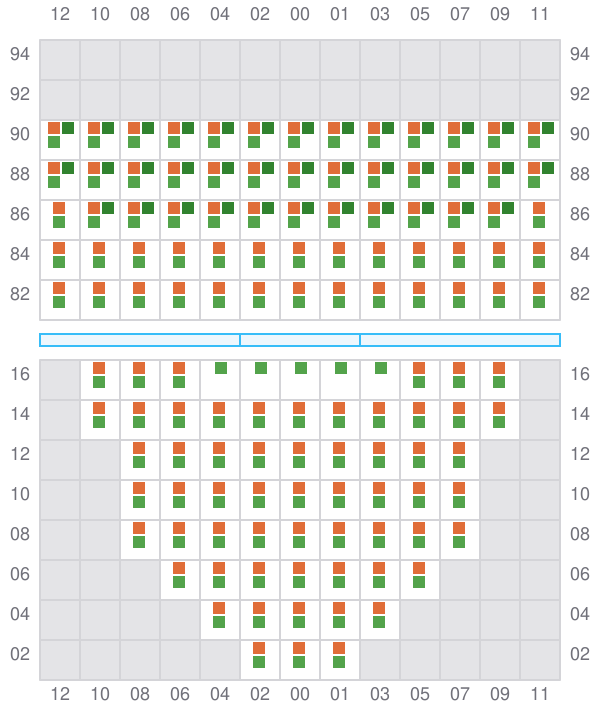

013 (014)
- →
![Bay 013 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b013.png?v=1711143391424)

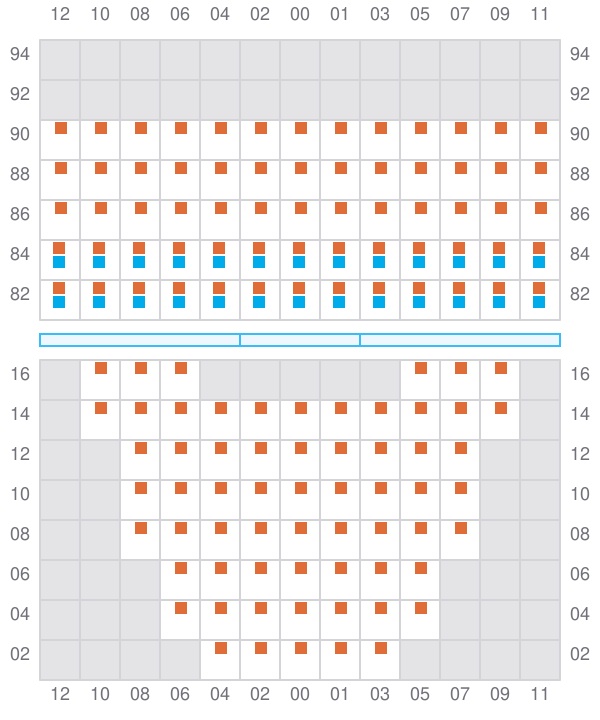

015
- ←
- → / ?
![Bay 015 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b015.png?v=1711143391424)

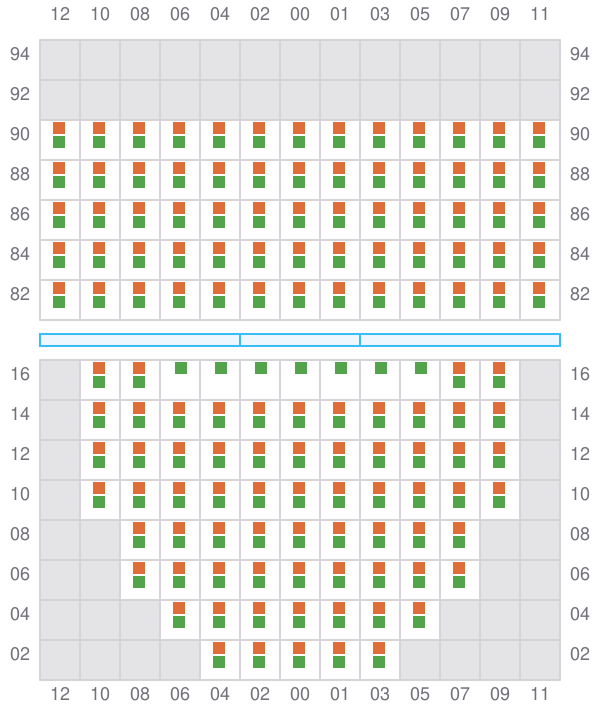

017 (018)
- →
- →
![Bay 017 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b017.png?v=1711143391424)
019
- ←
- → / ?
![Bay 019 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b019.png?v=1711143391424)

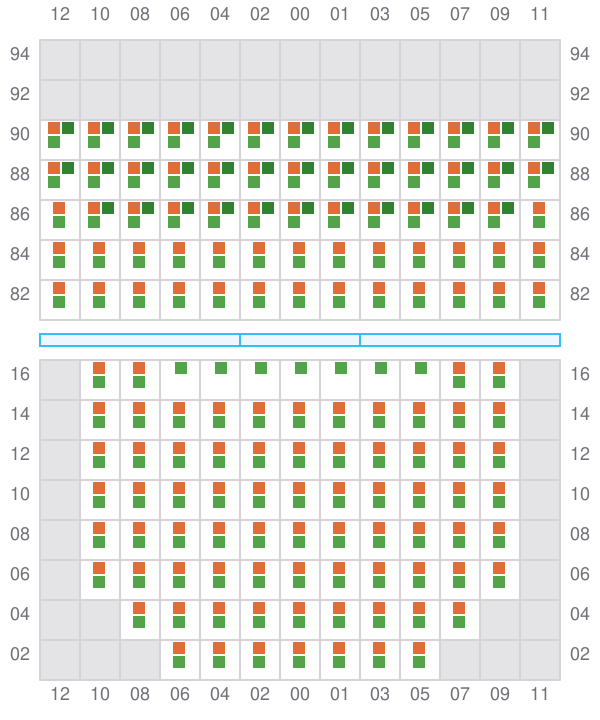

021 (022)
- →
- → / ?
![Bay 021 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b021.png?v=1711143391424)

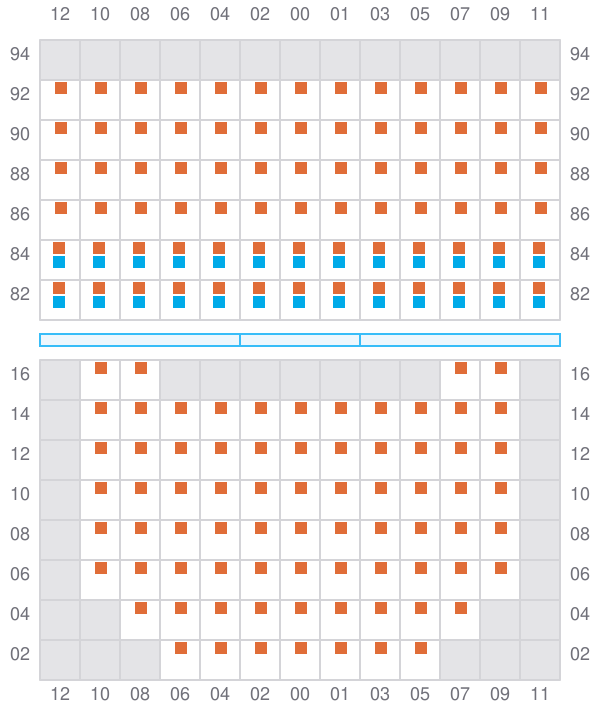

023
- ←
- → / ?
![Bay 023 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b023.png?v=1711143391424)
025 (026)
- →
- →
![Bay 025 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b025.png?v=1711143391424)

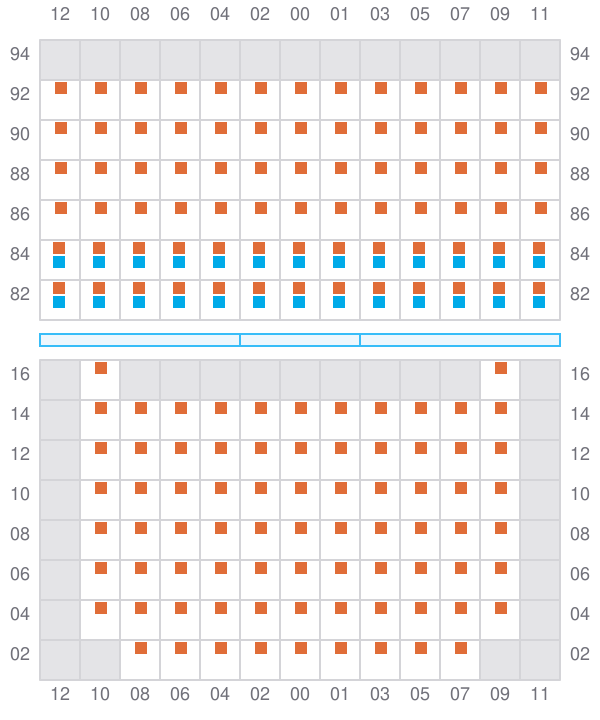

027
- ←
- → / ?
![Bay 027 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b027.png?v=1711143391424)

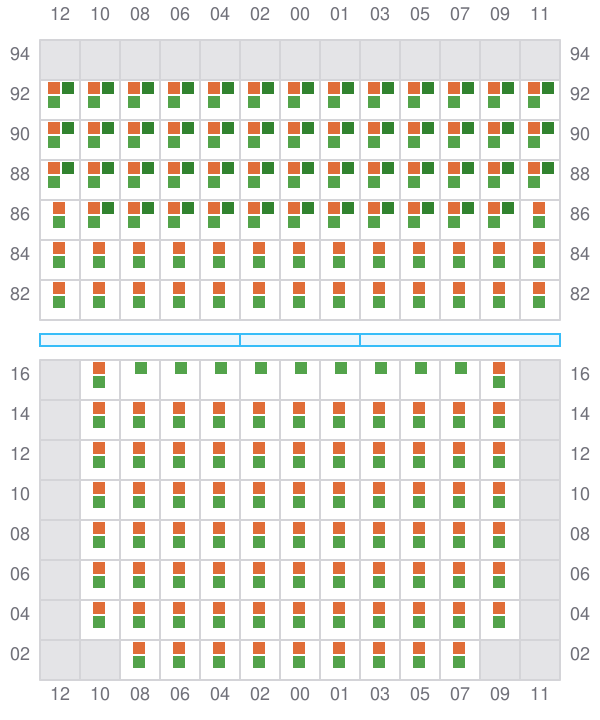

029 (030)
- →
- → / ?
![Bay 029 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b029.png?v=1711143391424)
031
- ←
- → / ?
![Bay 031 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b031.png?v=1711143391424)
033 (034)
- →
- →
![Bay 033 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b033.png?v=1711143391424)
035
- ←
- → / ?
![Bay 035 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b035.png?v=1711143391424)
037 (038)
- →
- → / ?
![Bay 037 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b037.png?v=1711143391424)

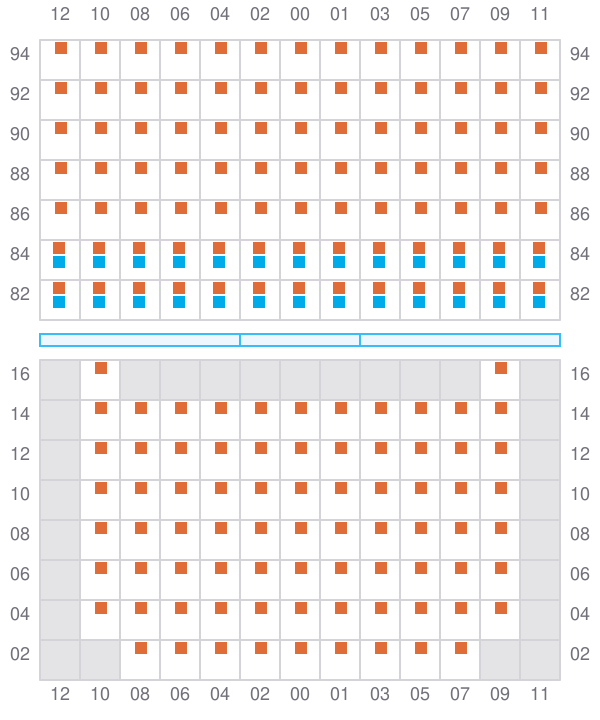

039
- ←
- → / ?
![Bay 039 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b039.png?v=1711143391424)

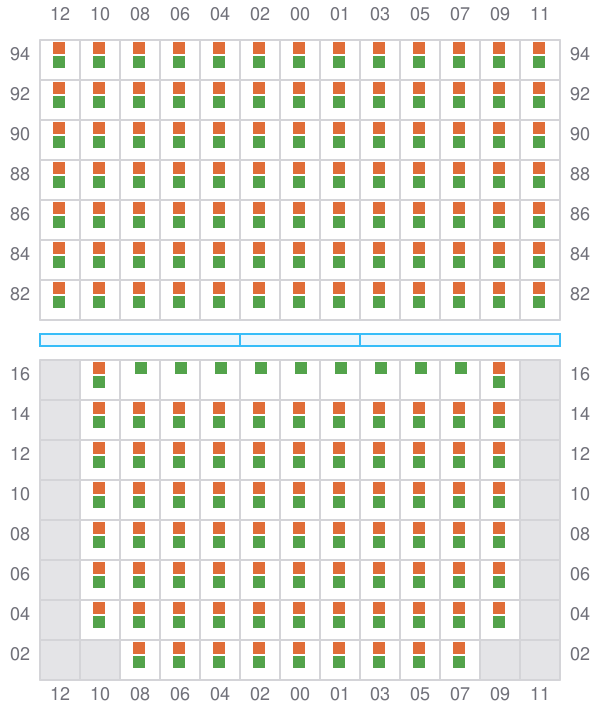

041 (042)
- →
- → / ?
![Bay 041 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b041.png?v=1711143391424)

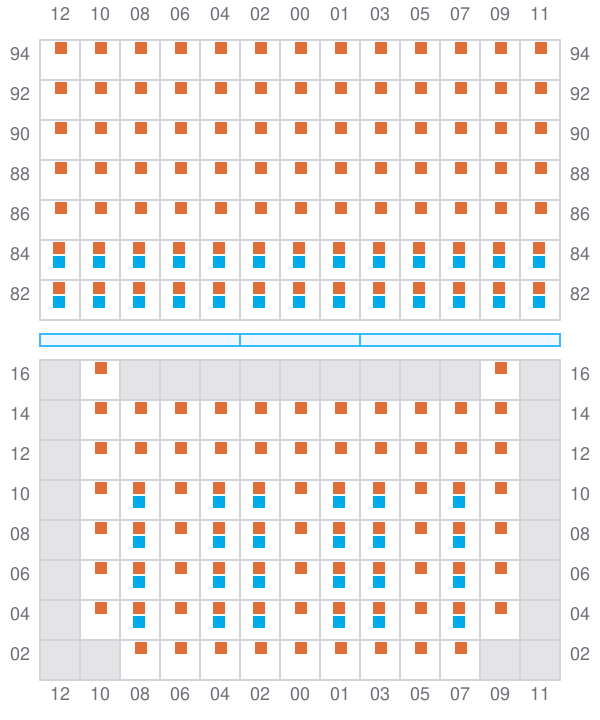

043
- ←
- →
![Bay 043 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b043.png?v=1711143391424)
045 (046)
- →
- →
![Bay 045 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b045.png?v=1711143391424)
047
- ←
- ? / →
![Bay 047 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b047.png?v=1711143391424)
049 (050)
- →
- → / ?
![Bay 049 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b049.png?v=1711143391424)

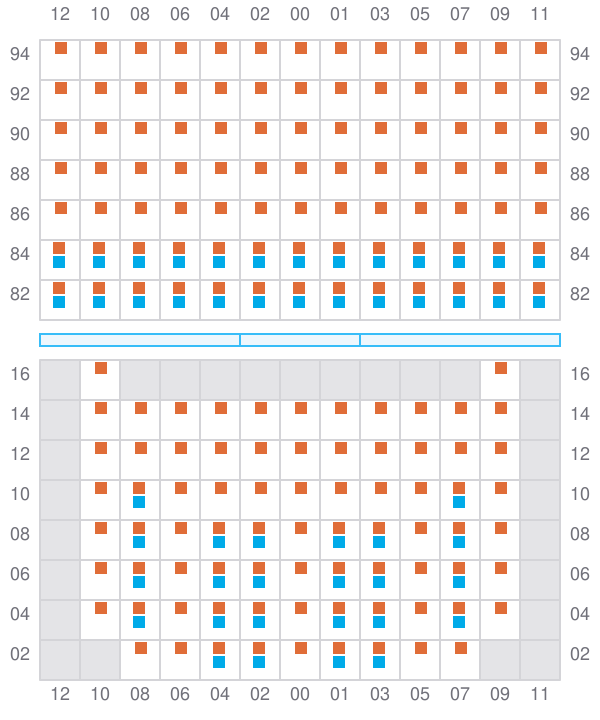

051
- ←
- ? / →
![Bay 051 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b051.png?v=1711143391424)
053 (054)
- →
- → / ?
![Bay 053 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b053.png?v=1711143391424)

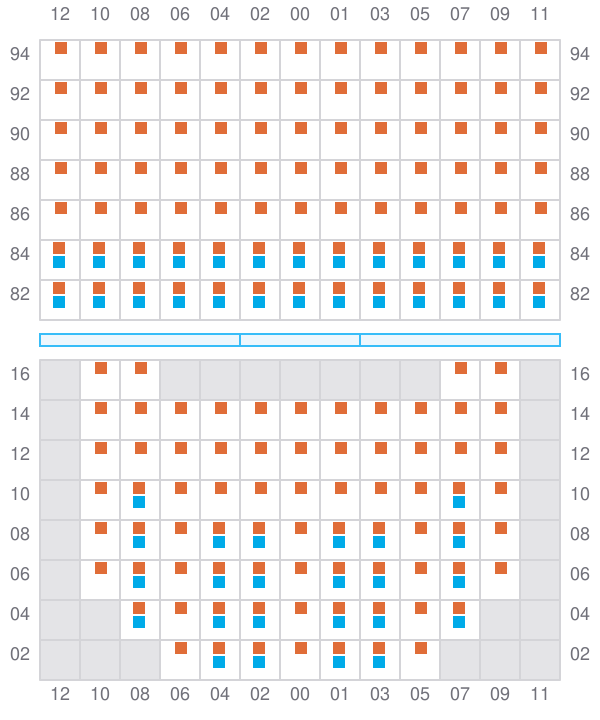

055
- ←
- ? / →
![Bay 055 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b055.png?v=1711143391424)

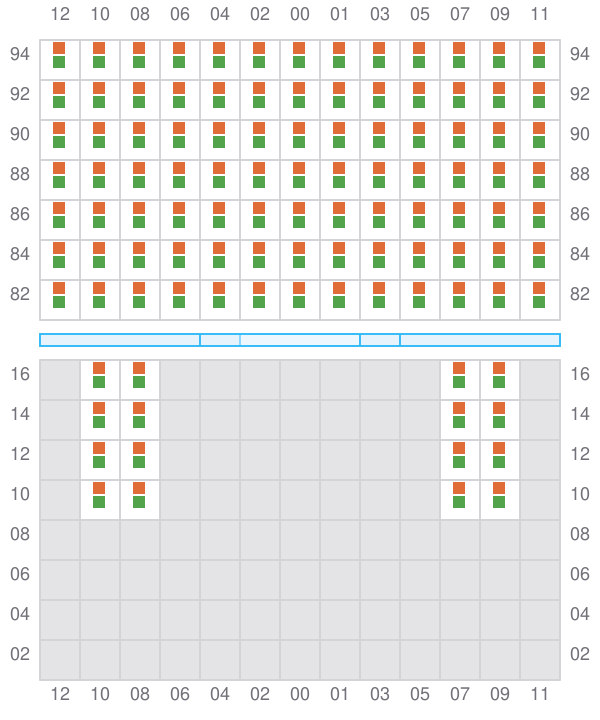

057 (058)
- →
- → / ?
![Bay 057 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b057.png?v=1711143391424)
059
- ←
![Bay 059 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b059.png?v=1711143391424)

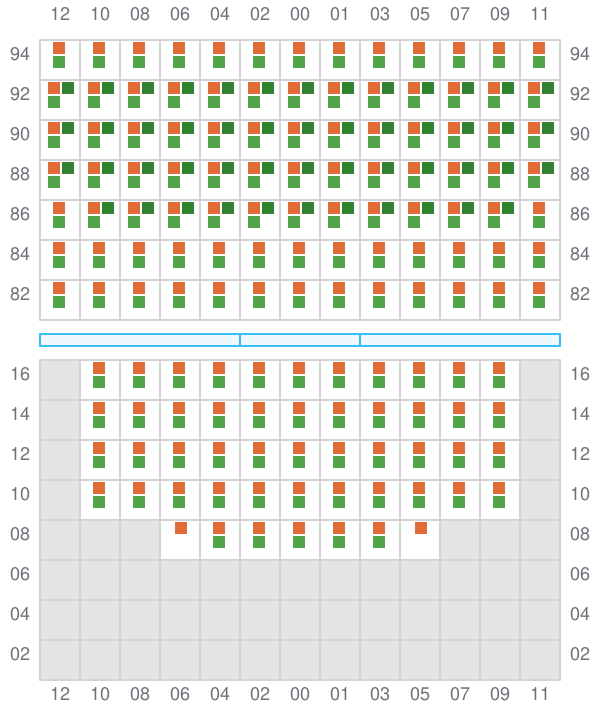

061 (062)
- →
- → / ?
![Bay 061 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b061.png?v=1711143391424)
063
- ←
![Bay 063 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b063.png?v=1711143391424)

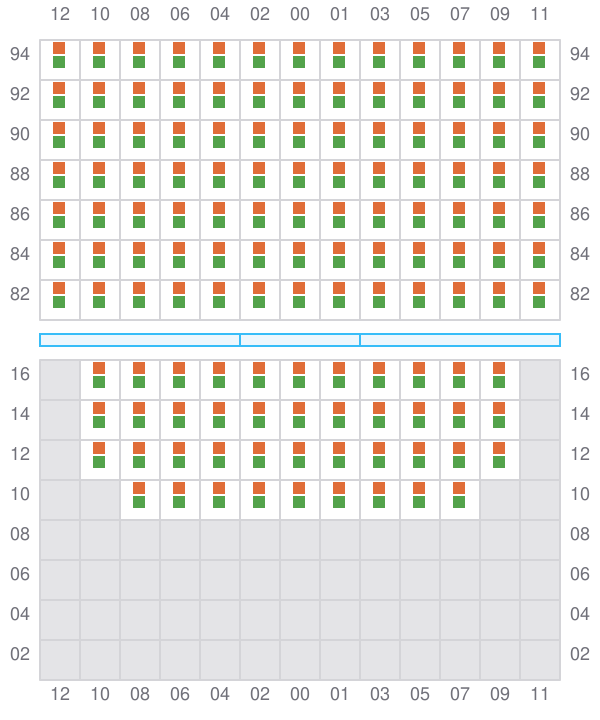

065 (066)
- →
- → / ?
![Bay 065 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b065.png?v=1711143391424)

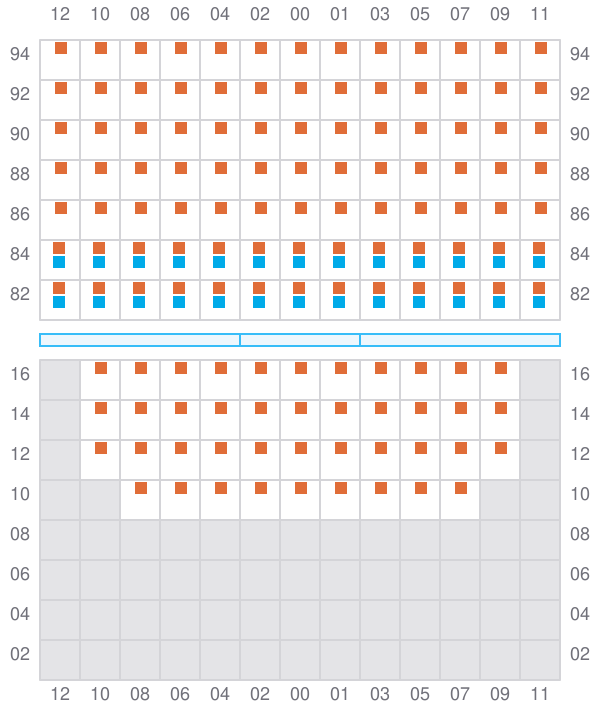

067
- ←
- ← / ?
![Bay 067 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b067.png?v=1711143391424)

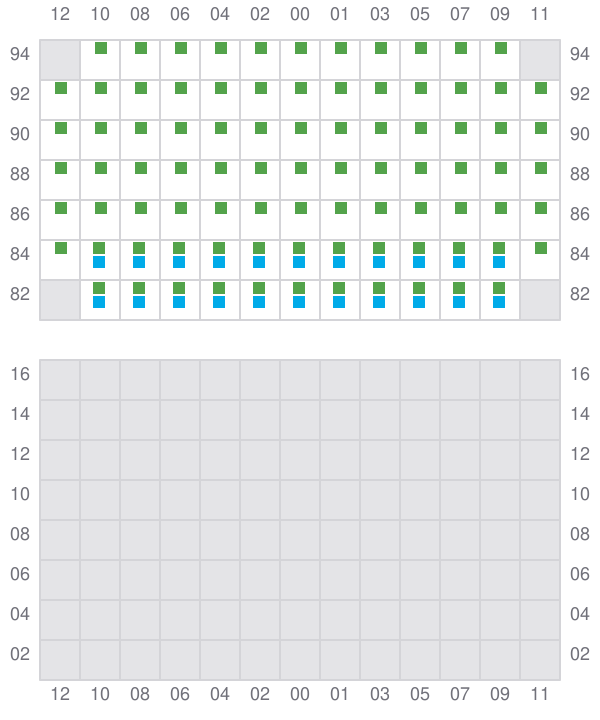

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of LONG BEACH EXPRESS](/vessel-images/2d4baa16-f4b2-4a62-82b7-39704fd2ee4b-b069.png?v=1711143391424)
