LOTUS A
9461465 | D5NZ2 | CMA by *********************** Last update: Thu Jan 30 2025

General Info

Ship Name:LOTUS A
IMO Code:9461465
Call Sign:D5NZ2
Line Operator:CMA
Class Name for Sister Ships:CGLT
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):320.90
LOA (Length Overall):335.63
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,586

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

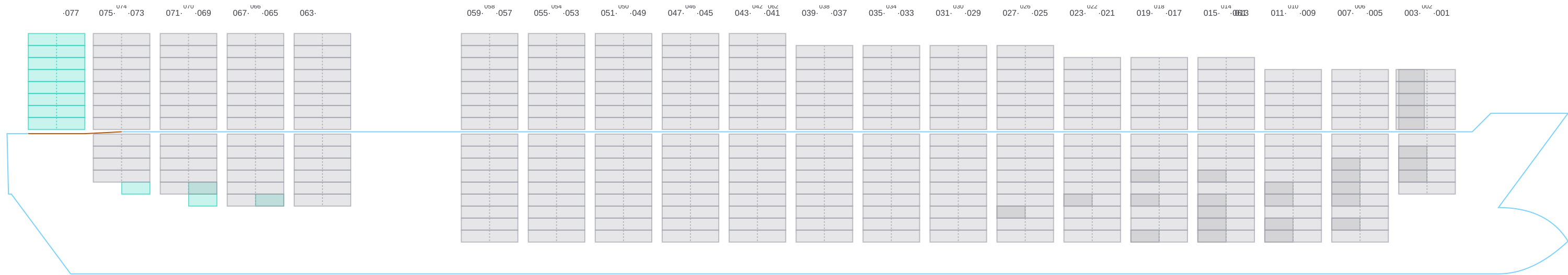

Side View

Side view of LOTUS A

Hatch-Covers View

Deck view of LOTUS A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • → / ?
  • →

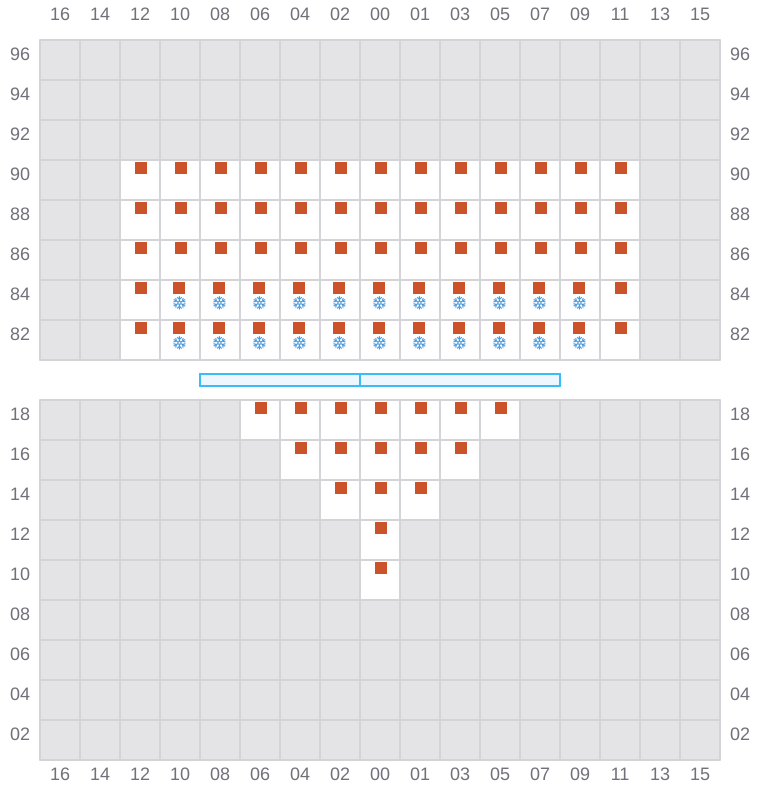

Bay 001 view and slots of LOTUS A

003 (002)

  • ←
  • → / ?
  • →

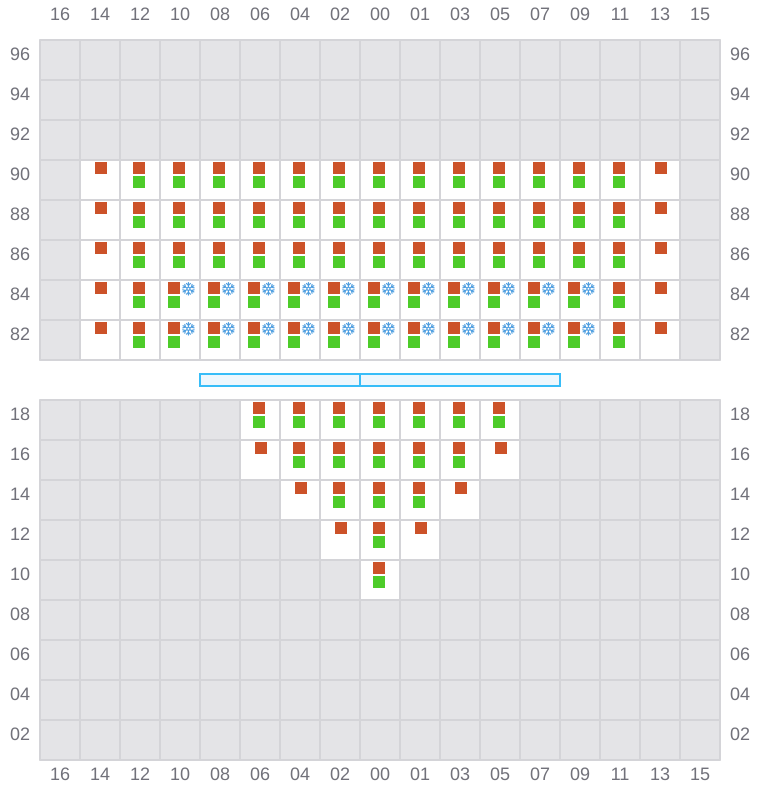

Bay 003 view and slots of LOTUS A

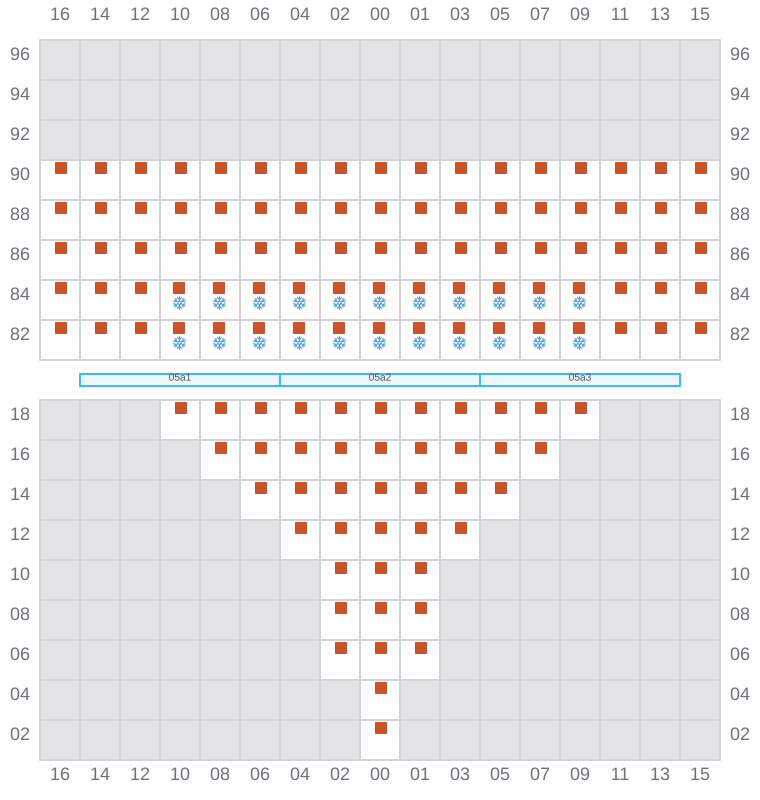

005

  • →
  • → / ?
  • →
Bay 005 view and slots of LOTUS A

007 (006)

  • ←
  • → / ?
  • →

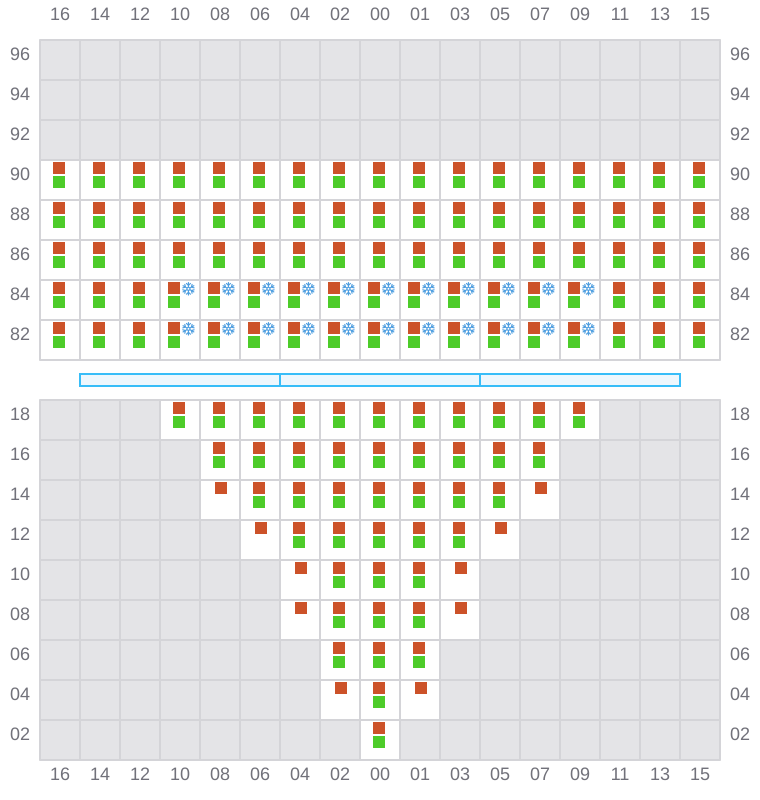

Bay 007 view and slots of LOTUS A

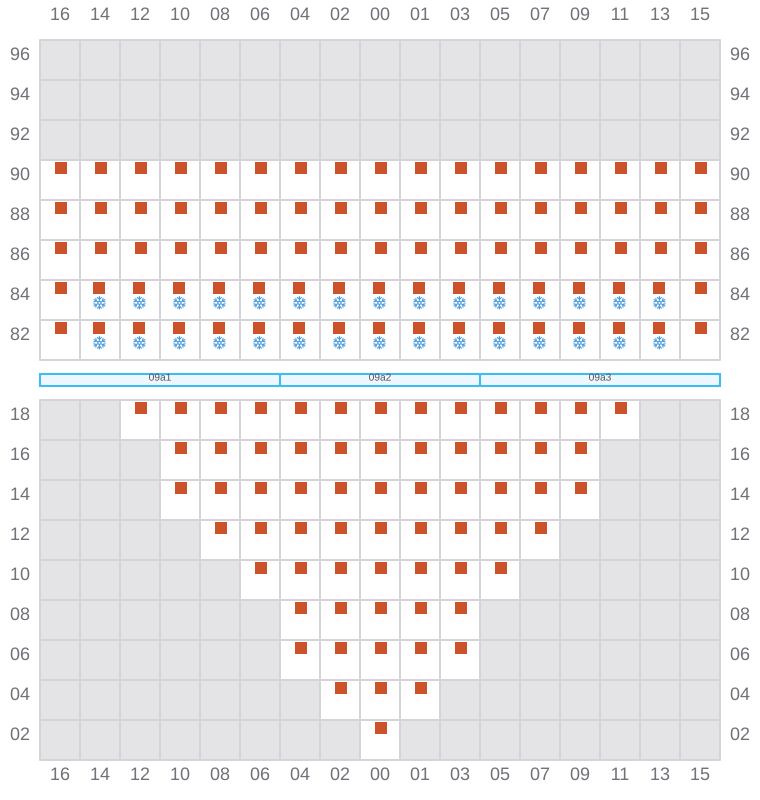

009

  • →
  • → / ?
  • →
Bay 009 view and slots of LOTUS A

011 (010)

  • ←
  • → / ?
  • →

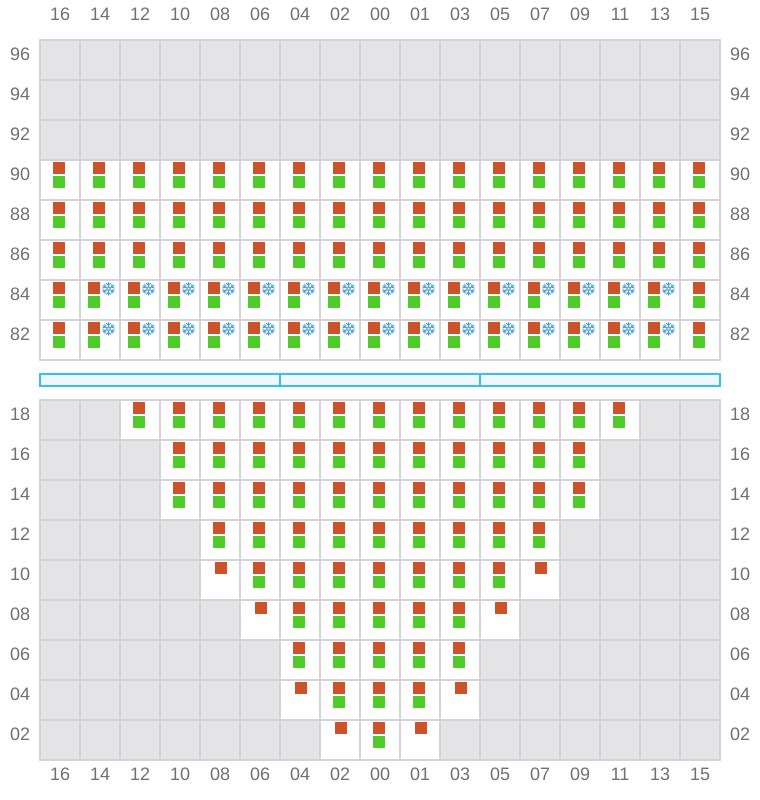

Bay 011 view and slots of LOTUS A

013

  • →
  • → / ?
  • →

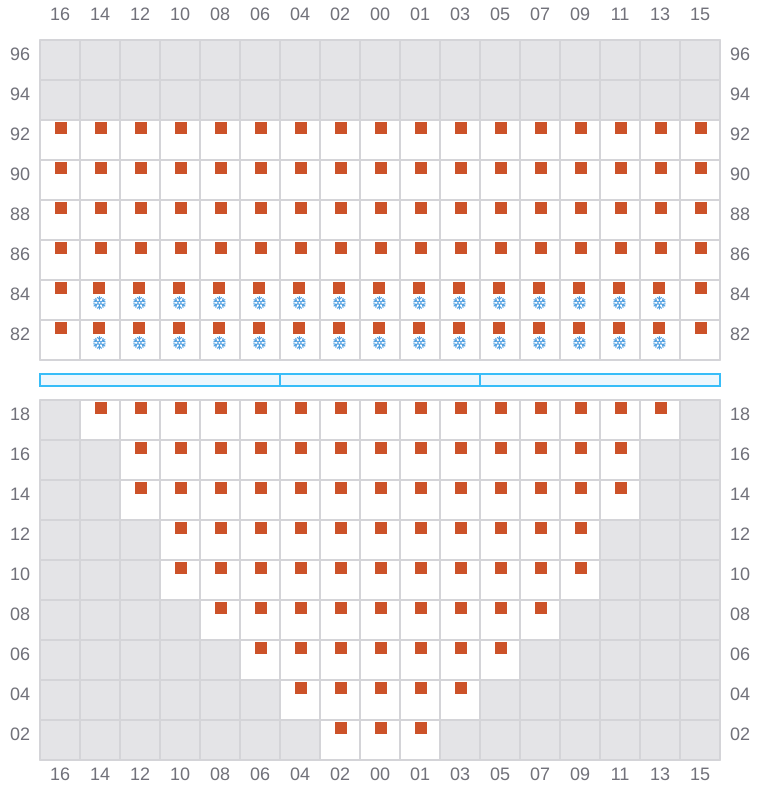

Bay 013 view and slots of LOTUS A

015 (014)

  • ←
  • → / ?
  • →

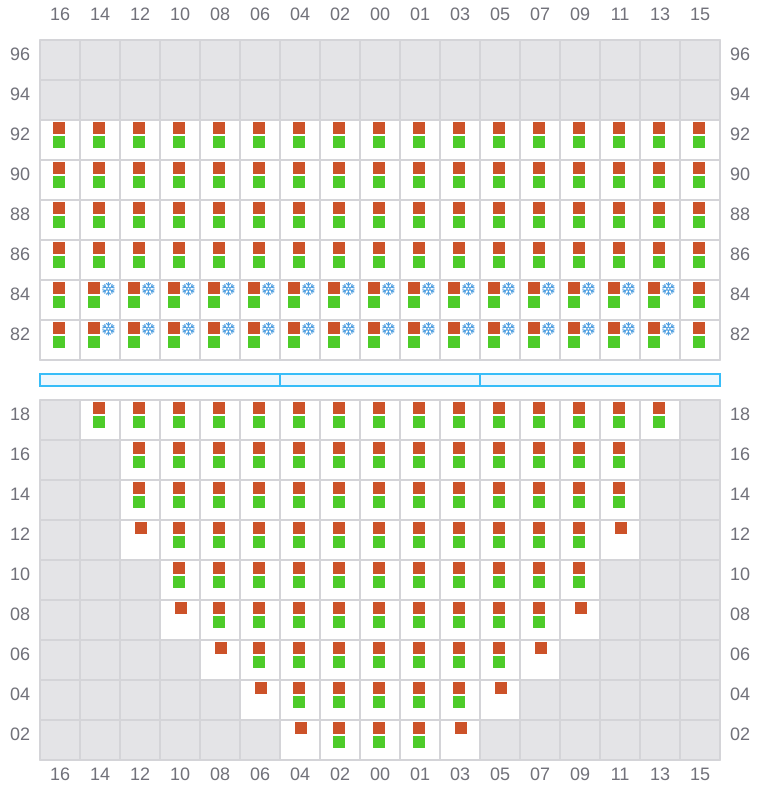

Bay 015 view and slots of LOTUS A

017

  • →
  • → / ?
  • →

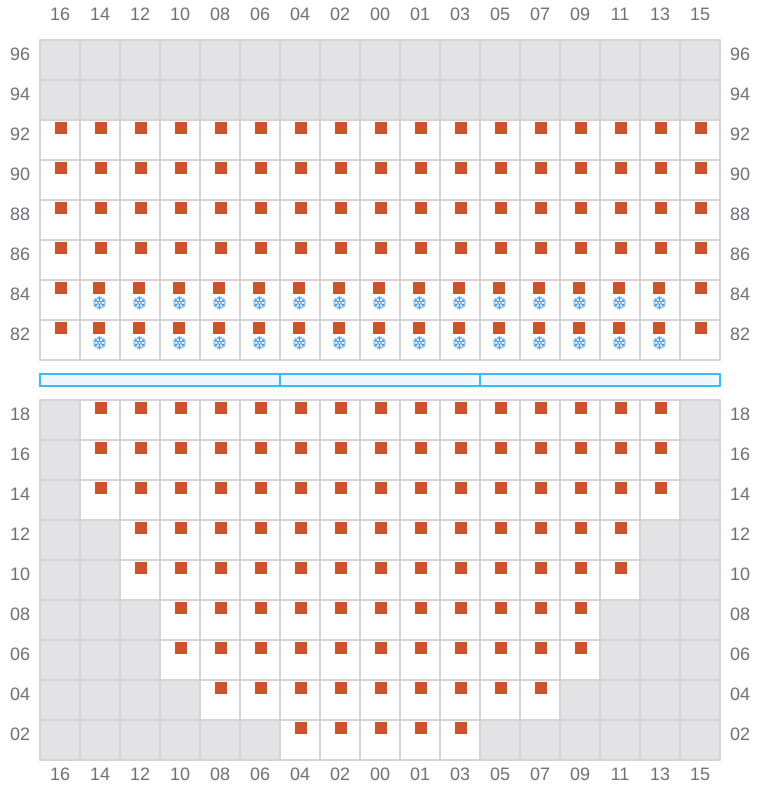

Bay 017 view and slots of LOTUS A

019 (018)

  • ←
  • → / ?
  • →

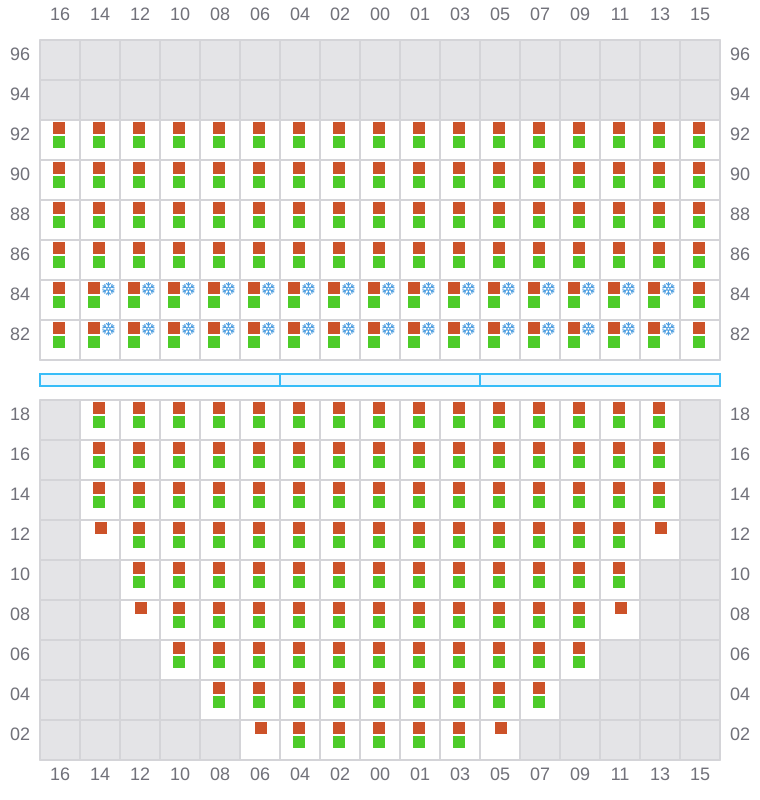

Bay 019 view and slots of LOTUS A

021

  • →
  • → / ?
  • →

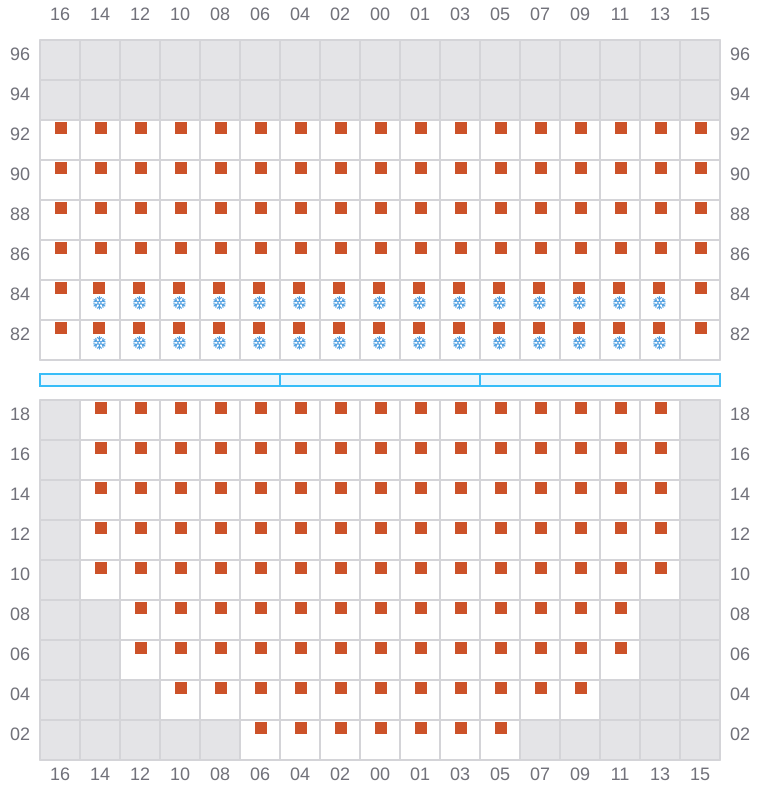

Bay 021 view and slots of LOTUS A

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of LOTUS A

025

  • →
  • → / ?
  • →

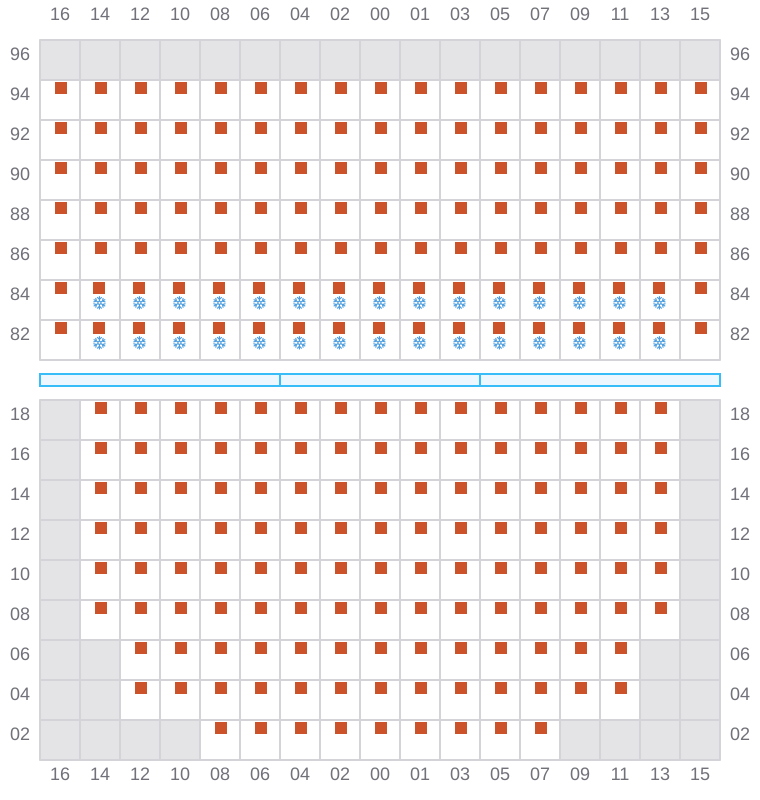

Bay 025 view and slots of LOTUS A

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of LOTUS A

029

  • →
  • → / ?
  • →

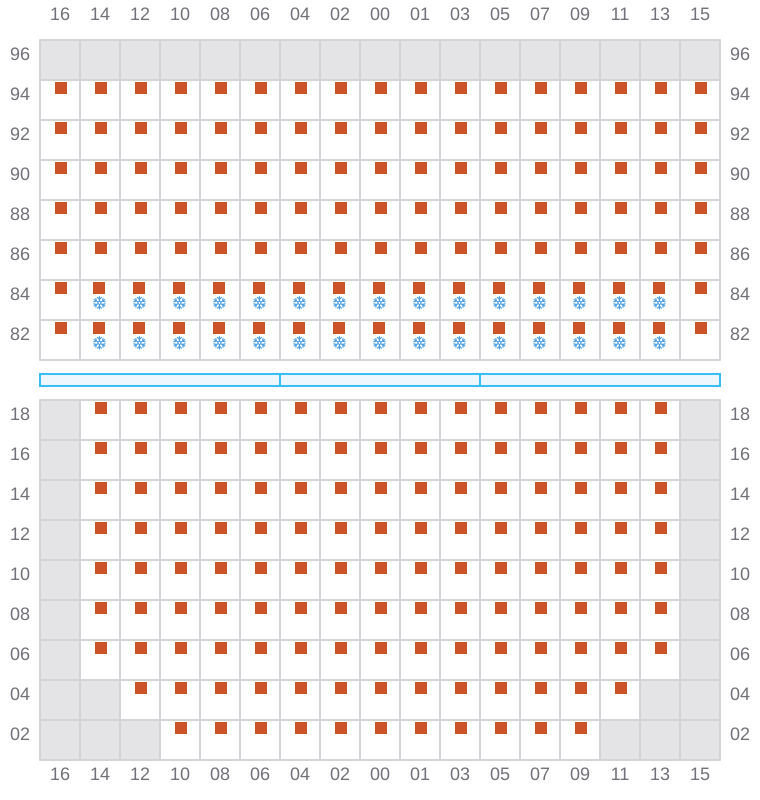

Bay 029 view and slots of LOTUS A

031 (030)

  • ←
  • → / ?
  • →

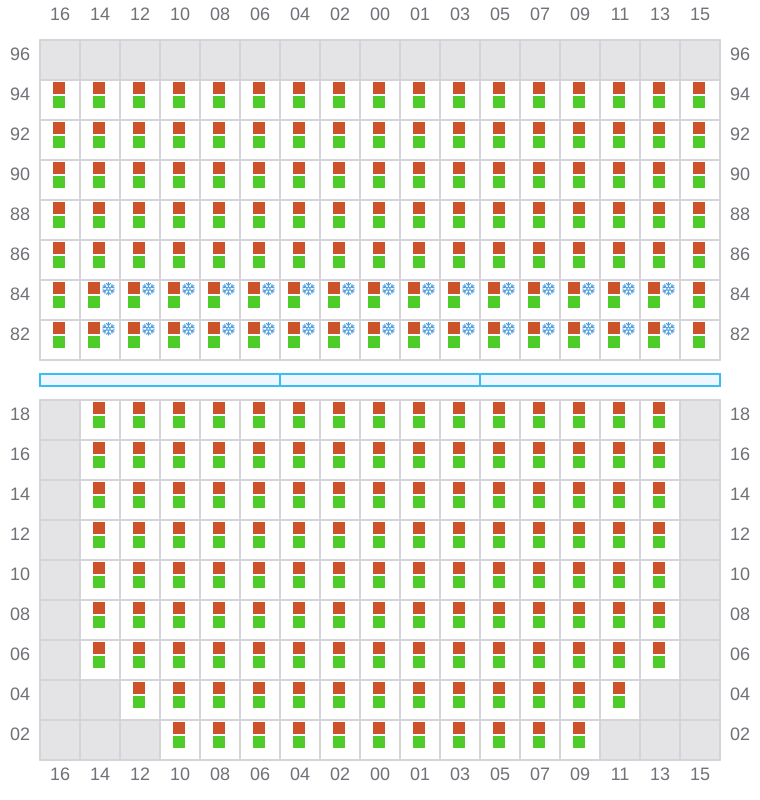

Bay 031 view and slots of LOTUS A

033

  • →
  • → / ?
  • →

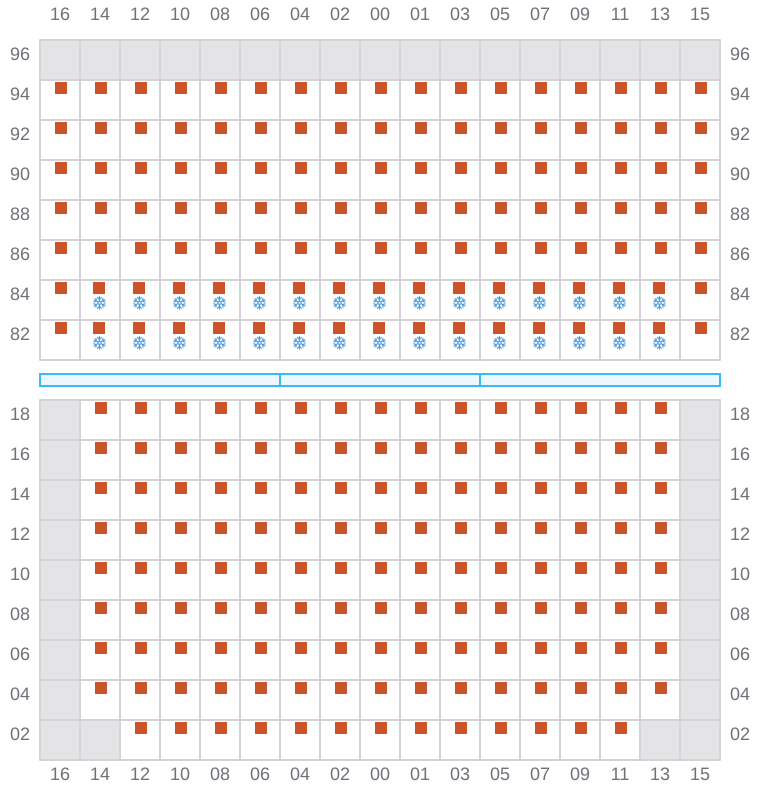

Bay 033 view and slots of LOTUS A

035 (034)

  • ←
  • → / ?
  • →

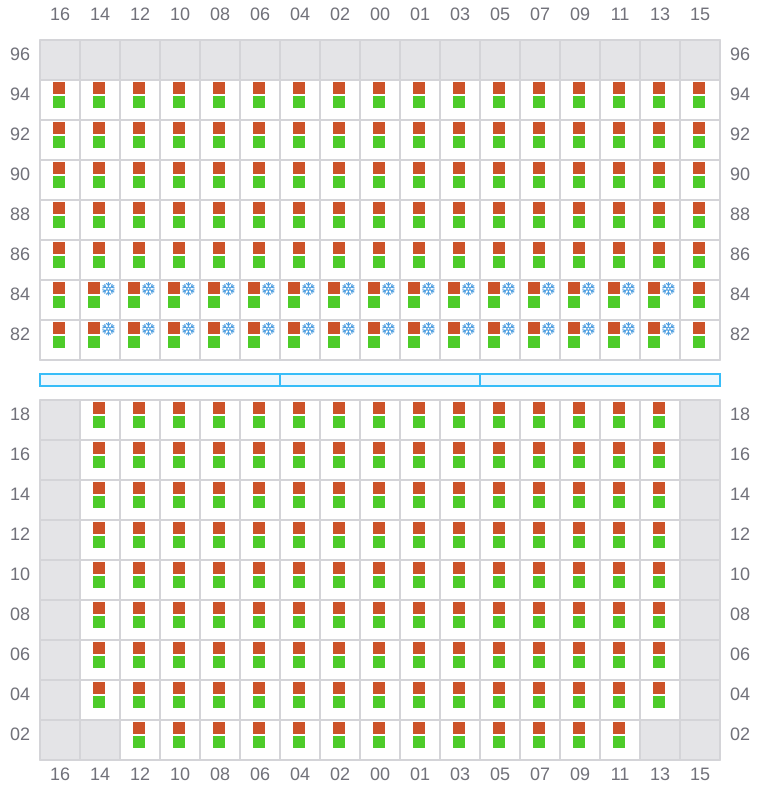

Bay 035 view and slots of LOTUS A

037

  • →
  • → / ?
  • →

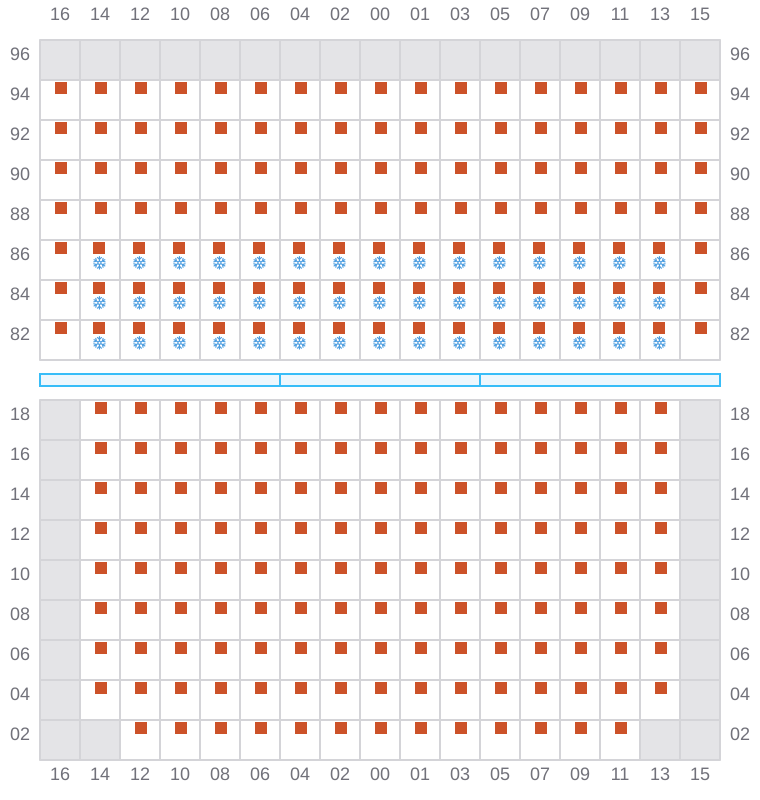

Bay 037 view and slots of LOTUS A

039 (038)

  • ←
  • → / ?
  • →

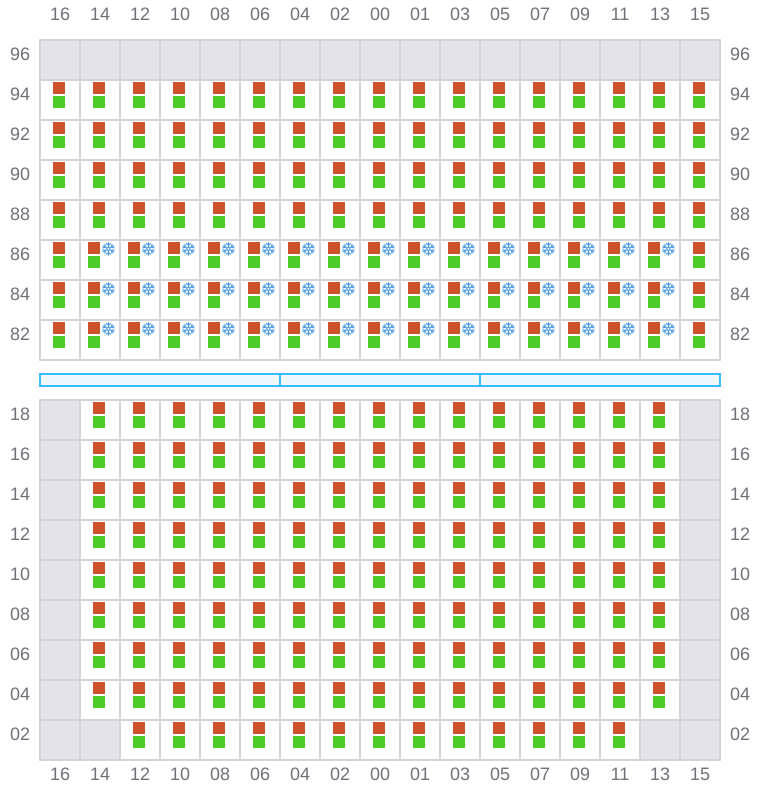

Bay 039 view and slots of LOTUS A

041

  • →
  • → / ?
  • →
Bay 041 view and slots of LOTUS A

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of LOTUS A

045

  • →
  • → / ?
  • →

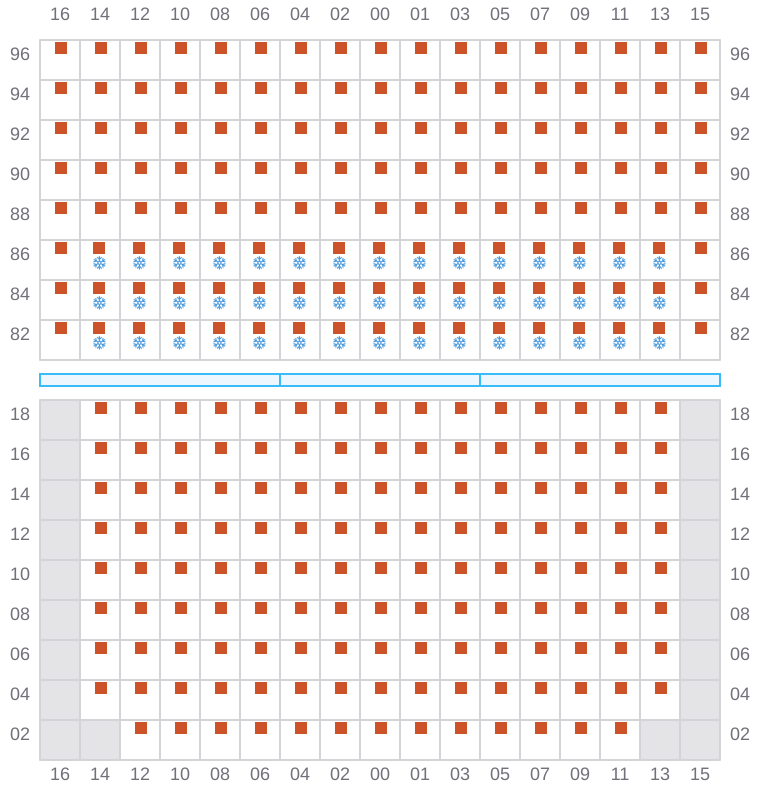

Bay 045 view and slots of LOTUS A

047 (046)

  • ←
  • → / ?
  • →

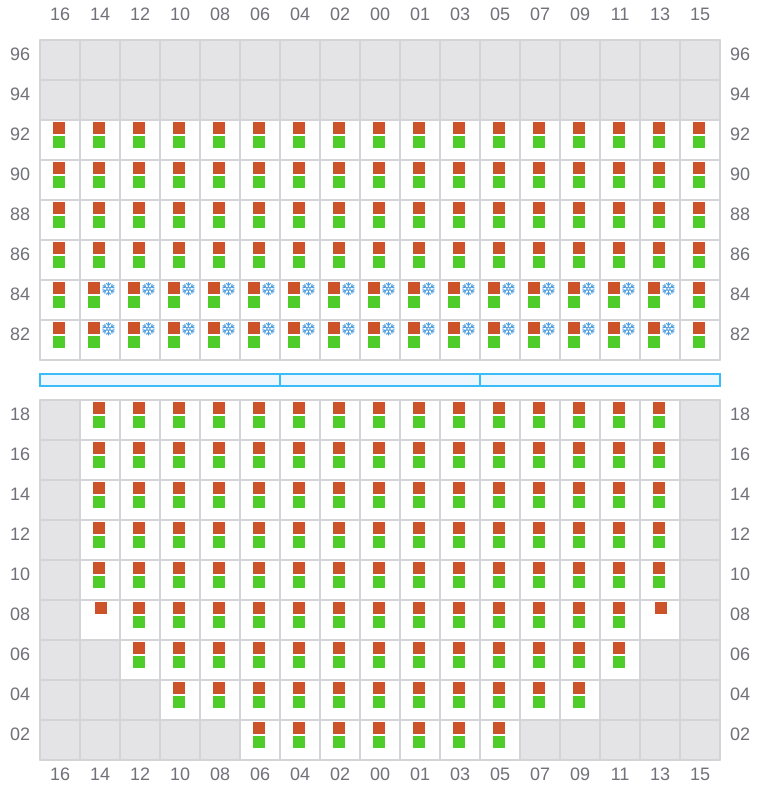

Bay 047 view and slots of LOTUS A

049

  • →
  • → / ?
  • →
Bay 049 view and slots of LOTUS A

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of LOTUS A

053

  • →
  • → / ?
  • →
Bay 053 view and slots of LOTUS A

055 (054)

  • ←
  • → / ?
  • →

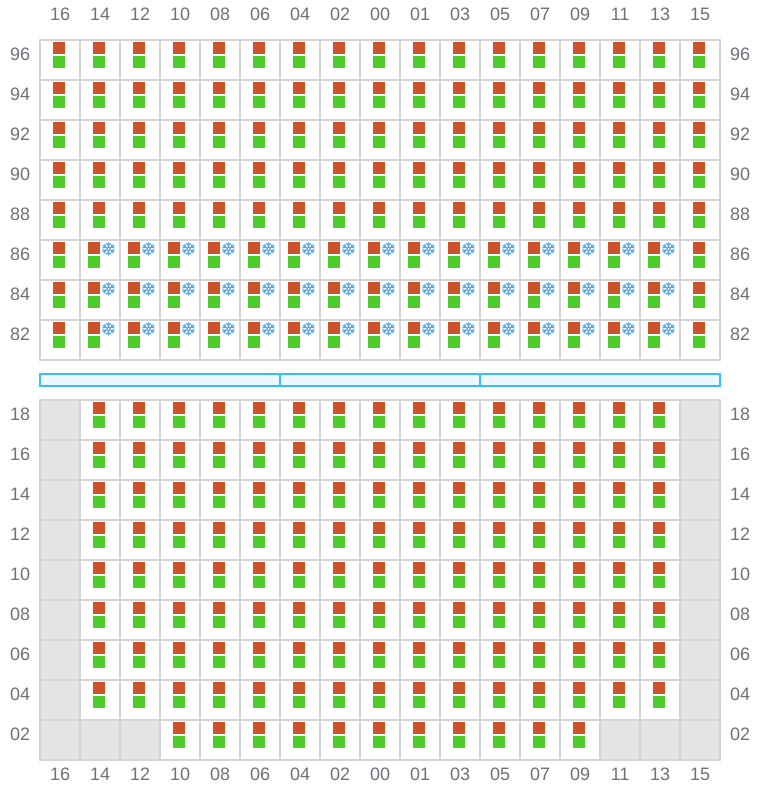

Bay 055 view and slots of LOTUS A

057

  • →
  • → / ?
  • →

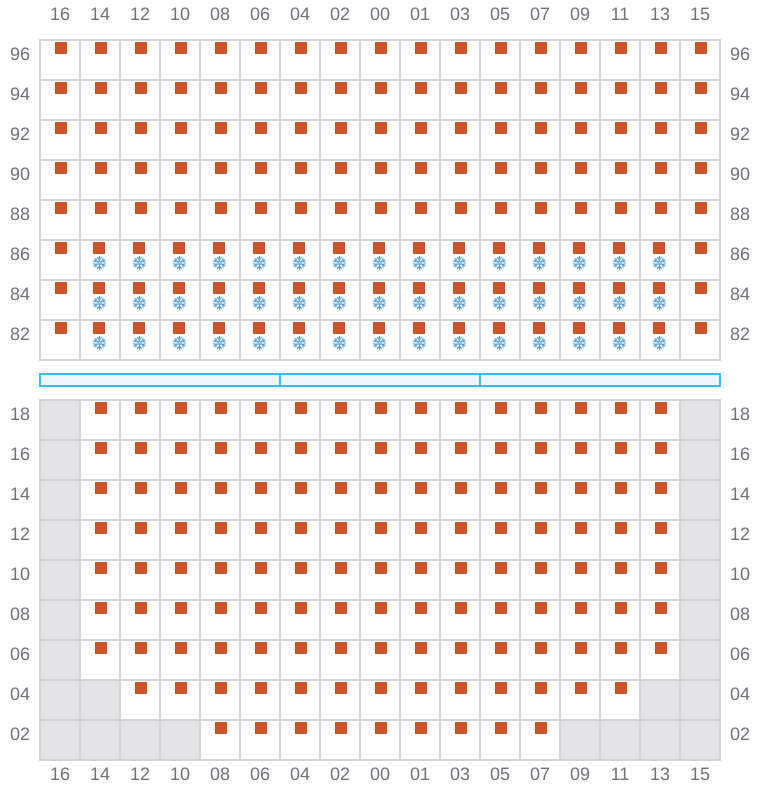

Bay 057 view and slots of LOTUS A

059 (058)

  • ←
  • → / ?
  • →

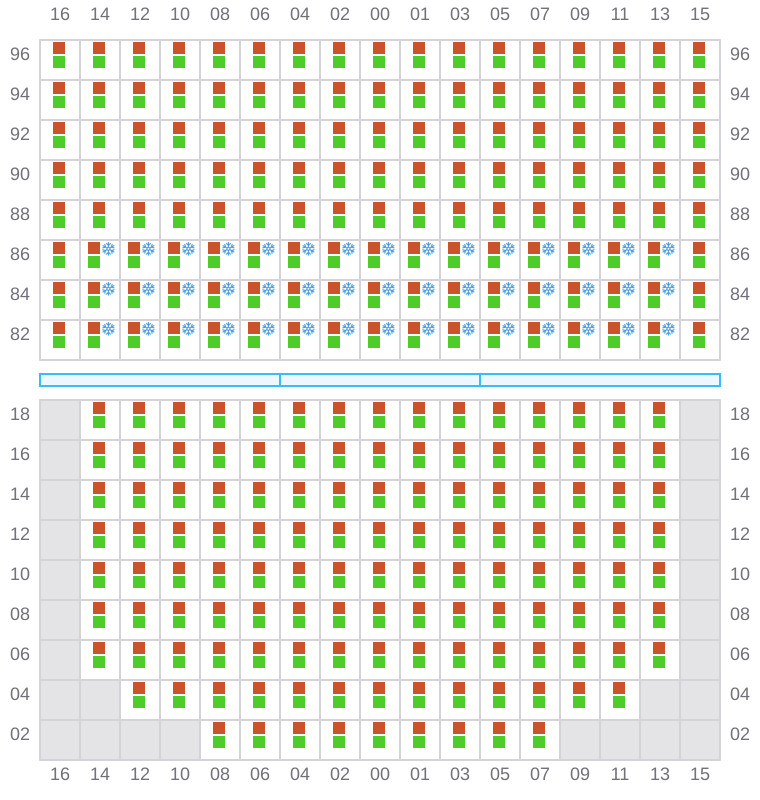

Bay 059 view and slots of LOTUS A

061

  • →
  • → / ?
  • →

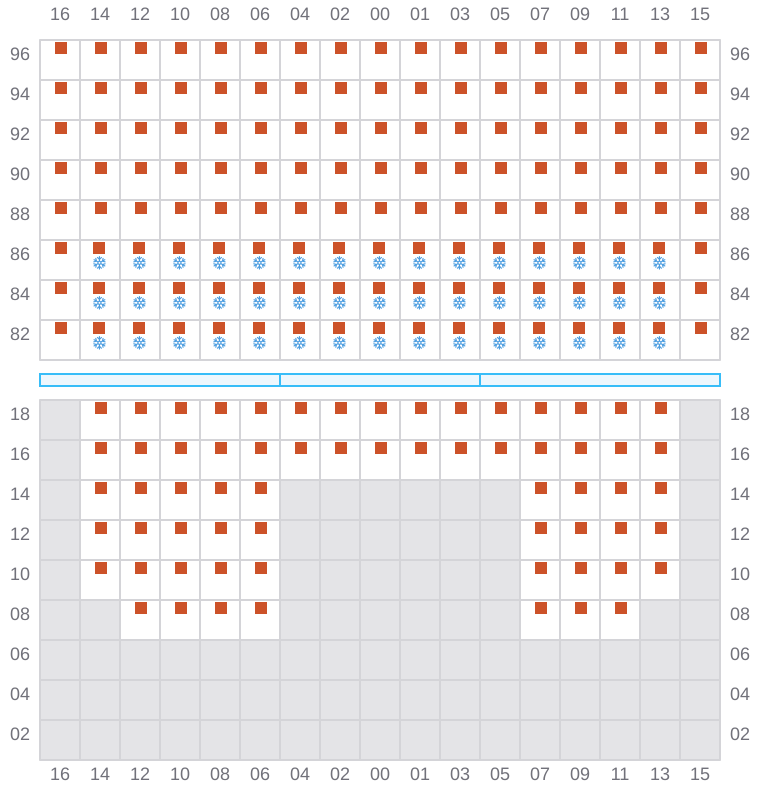

Bay 061 view and slots of LOTUS A

063 (062)

  • ←
  • → / ?
  • →

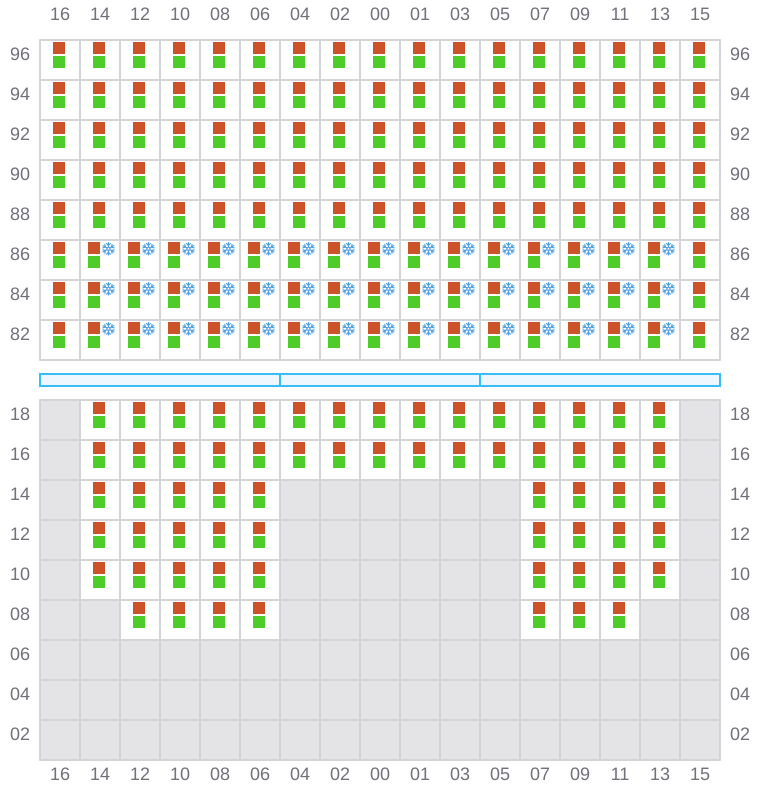

Bay 063 view and slots of LOTUS A

065

  • →
  • → / ?
  • →

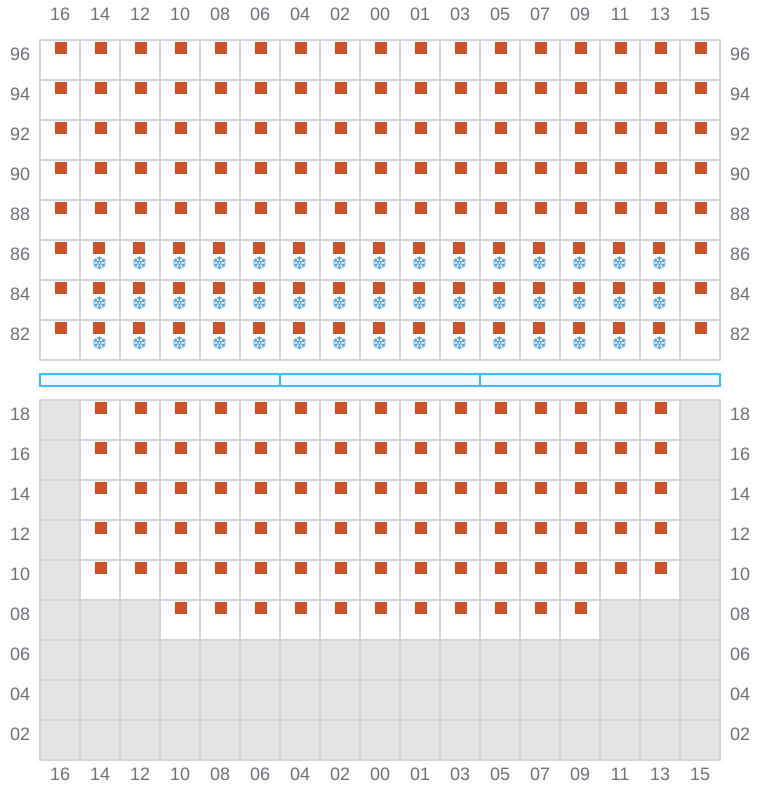

Bay 065 view and slots of LOTUS A

067 (066)

  • ←
  • → / ?
  • →

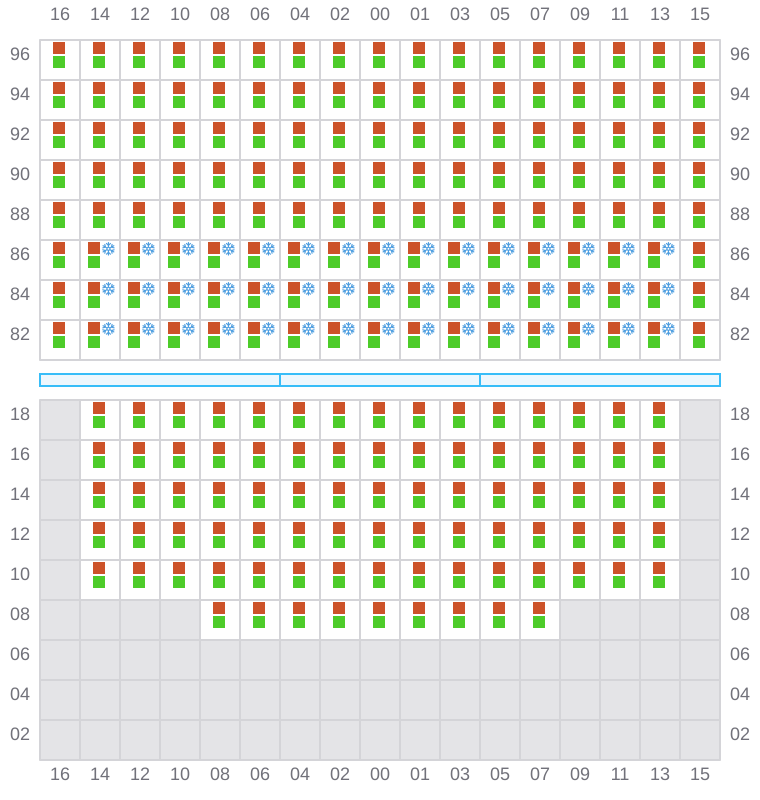

Bay 067 view and slots of LOTUS A

069

  • →
  • → / ?
  • →

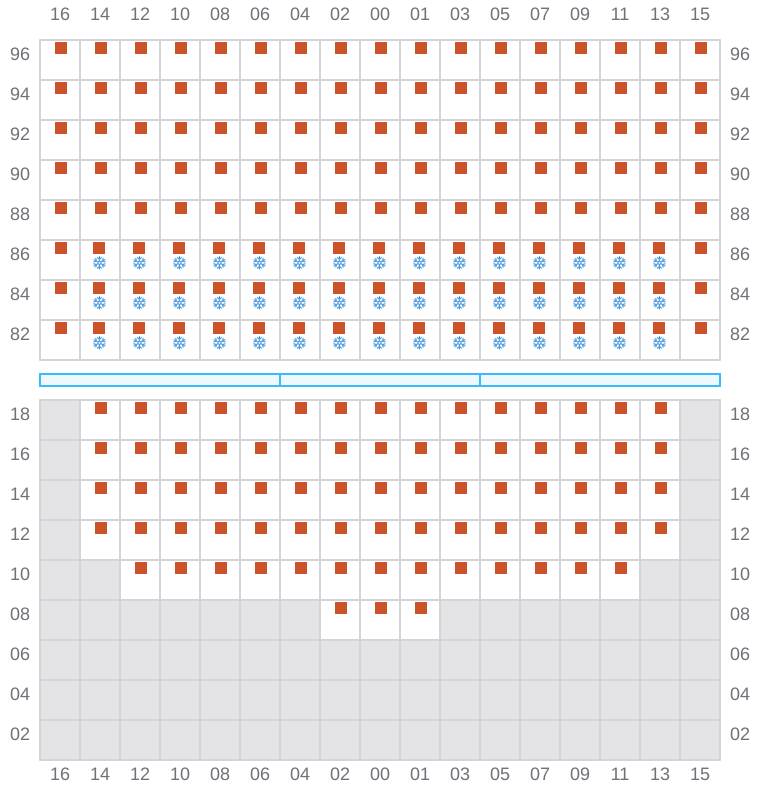

Bay 069 view and slots of LOTUS A

071 (070)

  • ←
  • → / ?
  • →

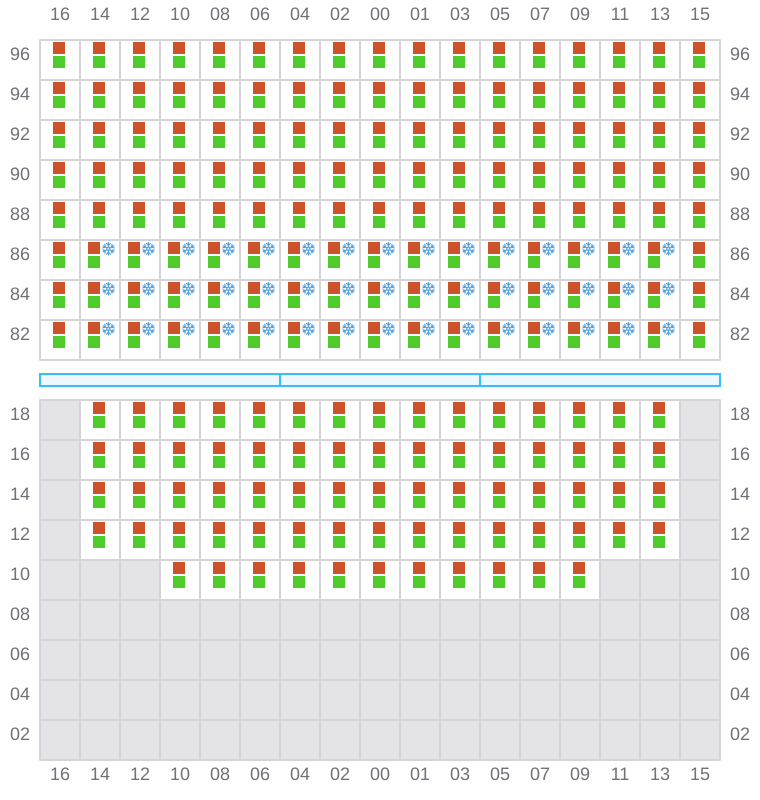

Bay 071 view and slots of LOTUS A

073

  • →
  • → / ?
  • →

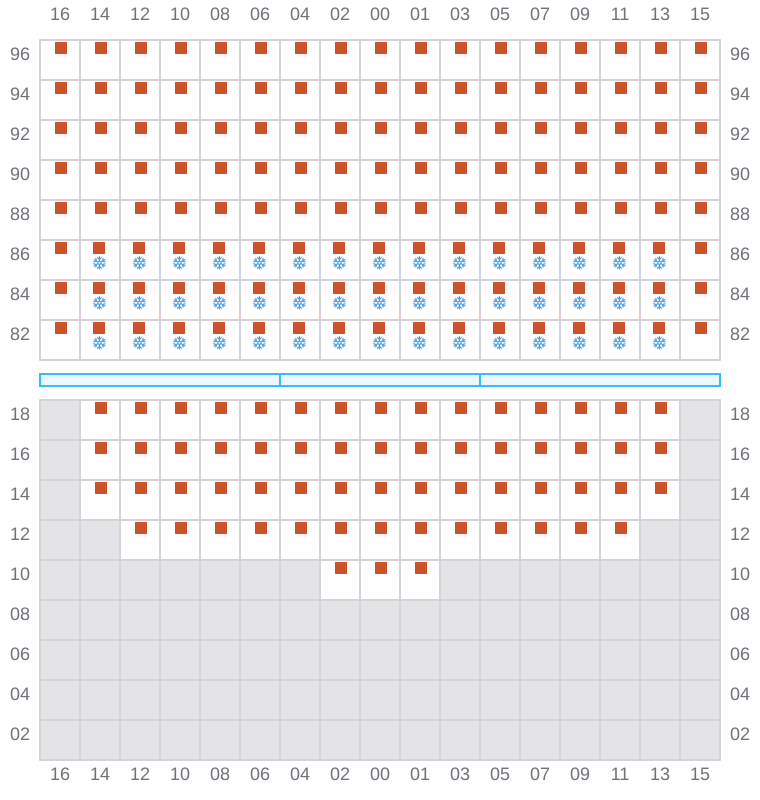

Bay 073 view and slots of LOTUS A

075 (074)

  • ←
  • → / ?
  • →

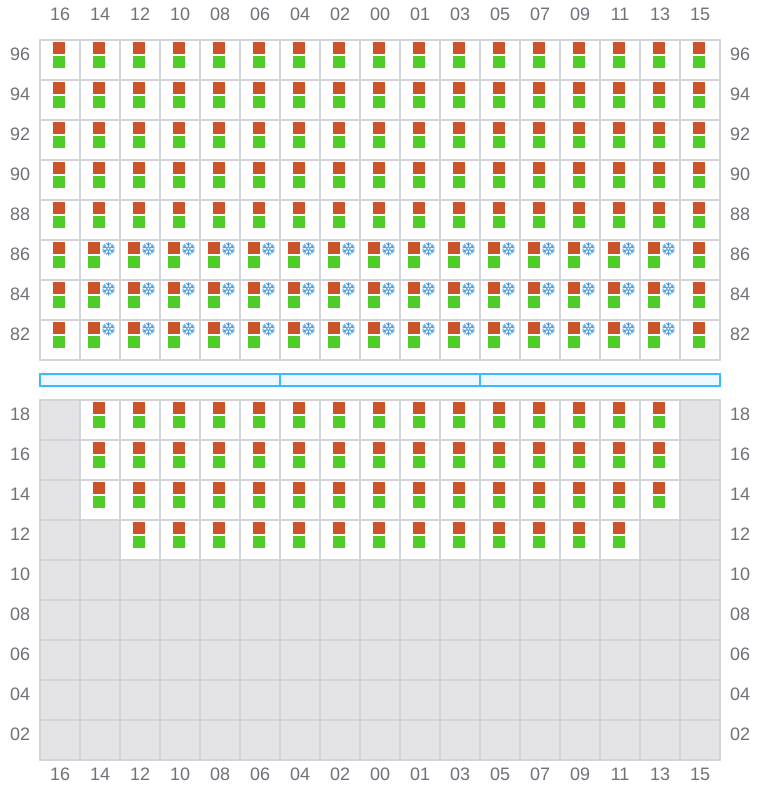

Bay 075 view and slots of LOTUS A

077 (078)

  • → / ?
  • ← / ?
  • → / ?

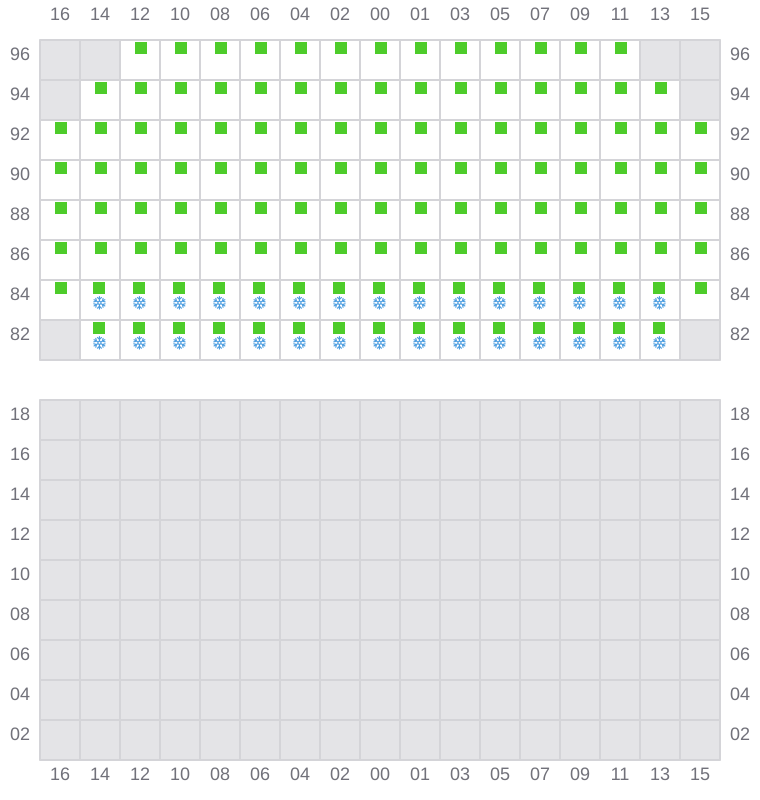

Bay 077 view and slots of LOTUS A
