LOTUS
9193525 | 6AJJ | 9193525 by ********* Last update: Sun Mar 10 2024
General Info
Ship Name:LOTUS
IMO Code:9193525
Call Sign:6AJJ
Line Operator:9193525
Class Name for Sister Ships:27N
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,290
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

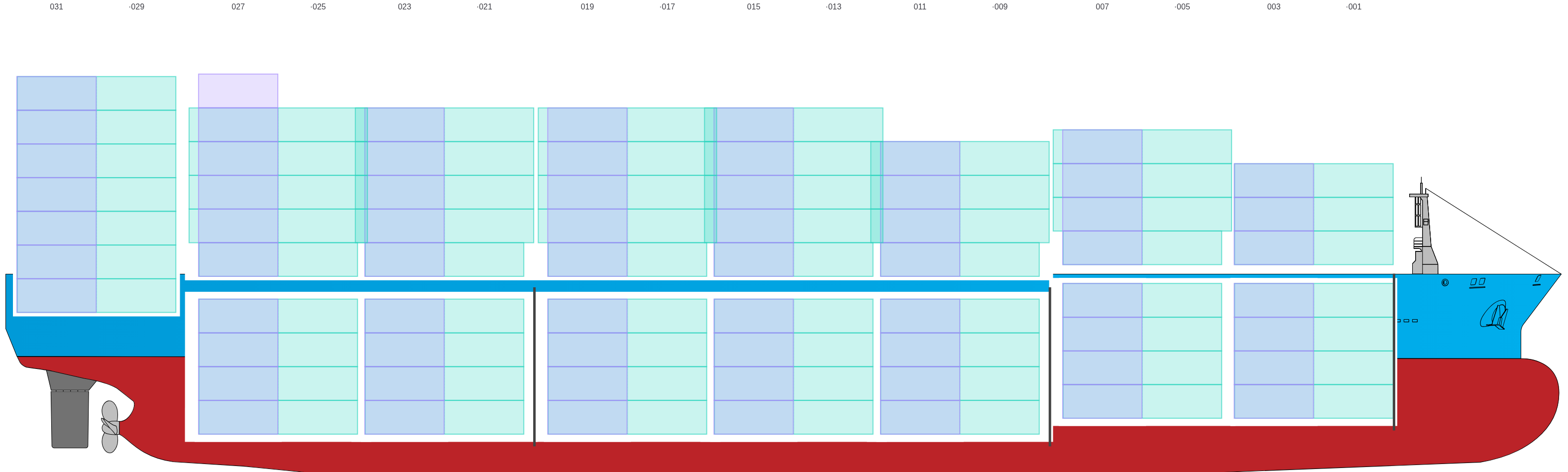

Side View
![Side view of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-sideView.png?v=1710094203024)

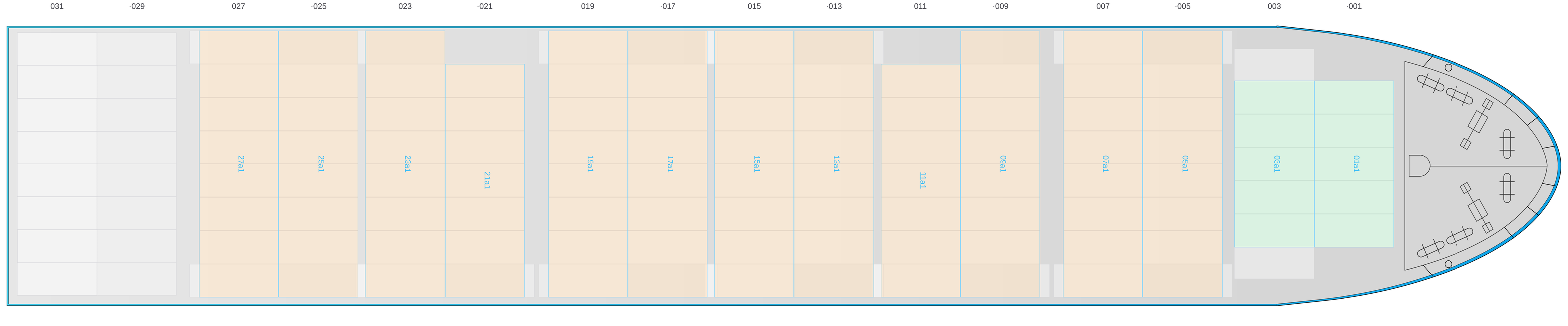

Hatch-Covers View
![Deck view of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-deckView.png?v=1710094203024)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

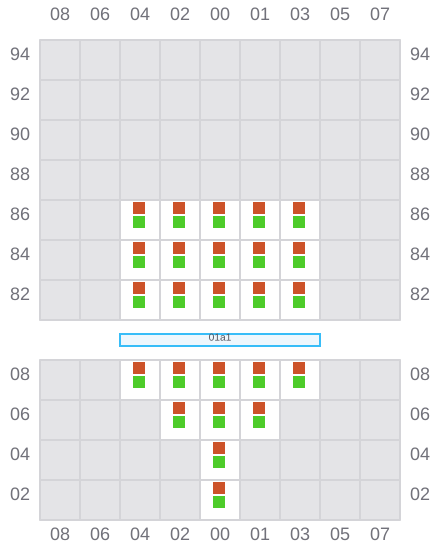

001 (002)
- →
![Bay 001 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b001.png?v=1710094203024)

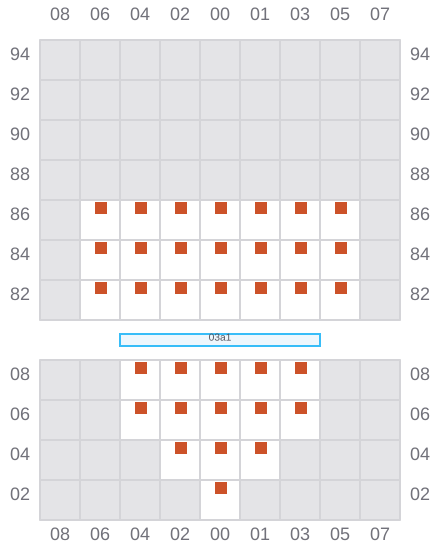

003
![Bay 003 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b003.png?v=1710094203024)
005 (006)
- →
![Bay 005 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b005.png?v=1710094203024)
007
![Bay 007 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b007.png?v=1710094203024)
009 (010)
- →
![Bay 009 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b009.png?v=1710094203024)

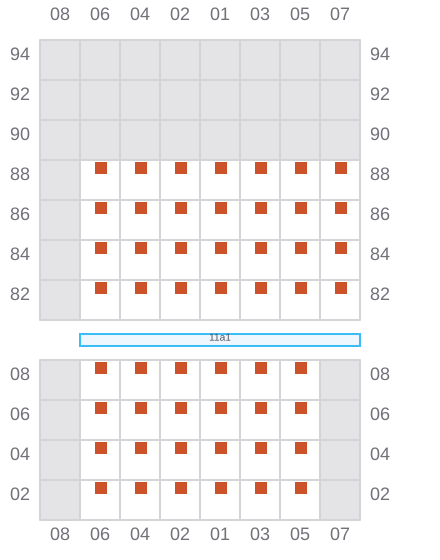

011
![Bay 011 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b011.png?v=1710094203024)
013 (014)
- →
![Bay 013 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b013.png?v=1710094203024)
015
- → / ?
![Bay 015 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b015.png?v=1710094203024)
017 (018)
- →
![Bay 017 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b017.png?v=1710094203024)
019
- →
![Bay 019 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b019.png?v=1710094203024)

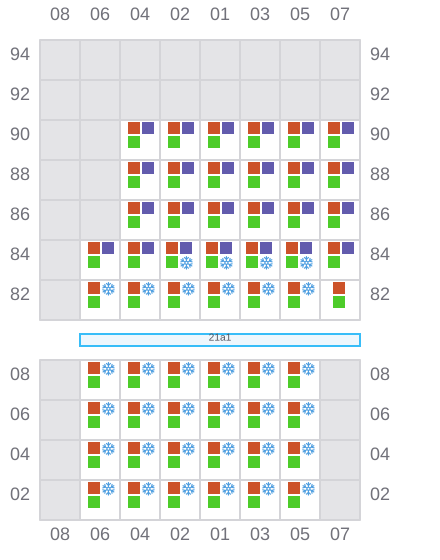

021 (022)
- →
- ←
![Bay 021 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b021.png?v=1710094203024)

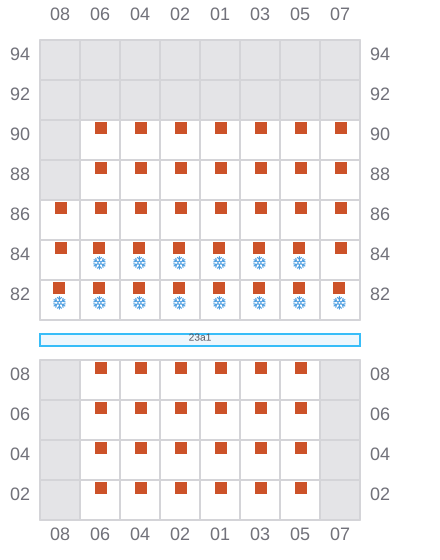

023
- → / ?
![Bay 023 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b023.png?v=1710094203024)
025 (026)
- →
- ← / ?
![Bay 025 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b025.png?v=1710094203024)
027
- → / ?
![Bay 027 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b027.png?v=1710094203024)

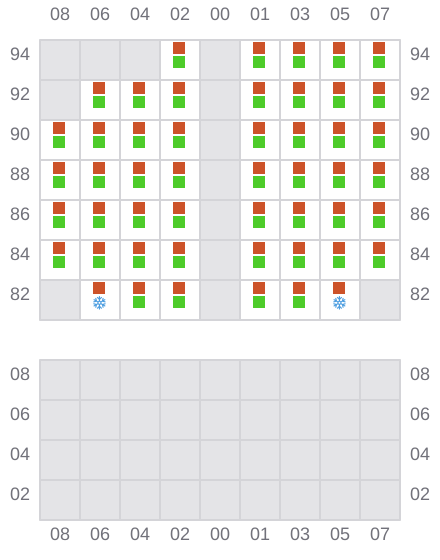

029 (030)
- → / ?
- ← / ?
![Bay 029 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b029.png?v=1710094203024)

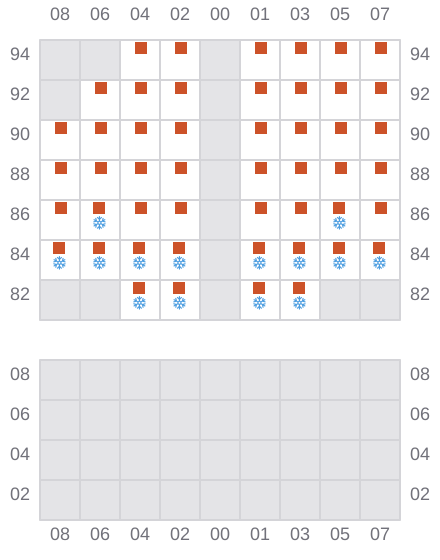

031
- → / ?
![Bay 031 view and slots of LOTUS](/vessel-images/fe52d494-5408-473c-8bfd-c6db5fbcdfca-b031.png?v=1710094203024)
