LUCIE SCHULTE
9301926 | 9VEK9 | HYUNDAI by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:LUCIE SCHULTE
IMO Code:9301926
Call Sign:9VEK9
Line Operator:HYUNDAI
Class Name for Sister Ships:2530
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,584
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

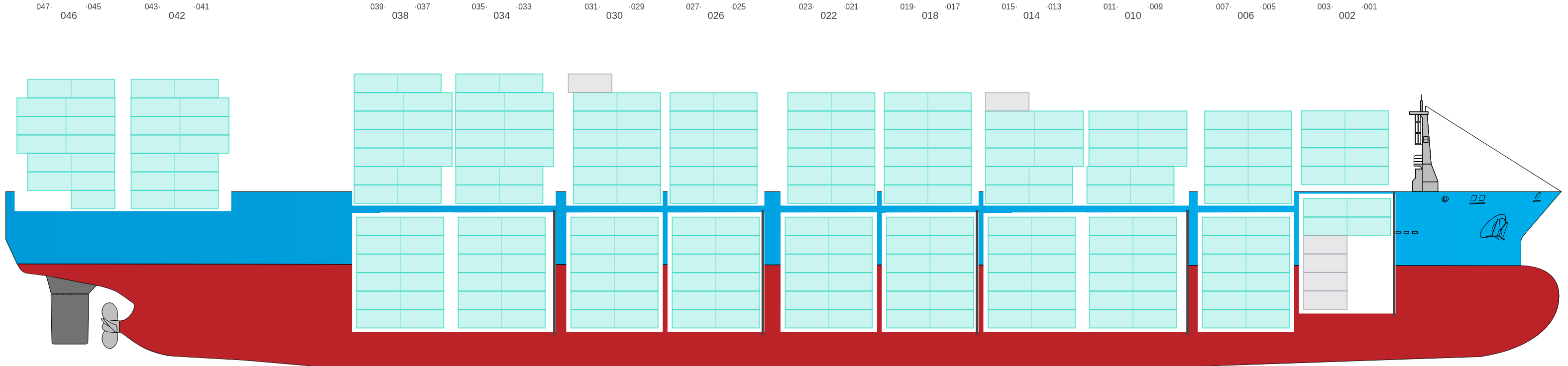

Side View
![Side view of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-sideView.png?v=1710702059318)

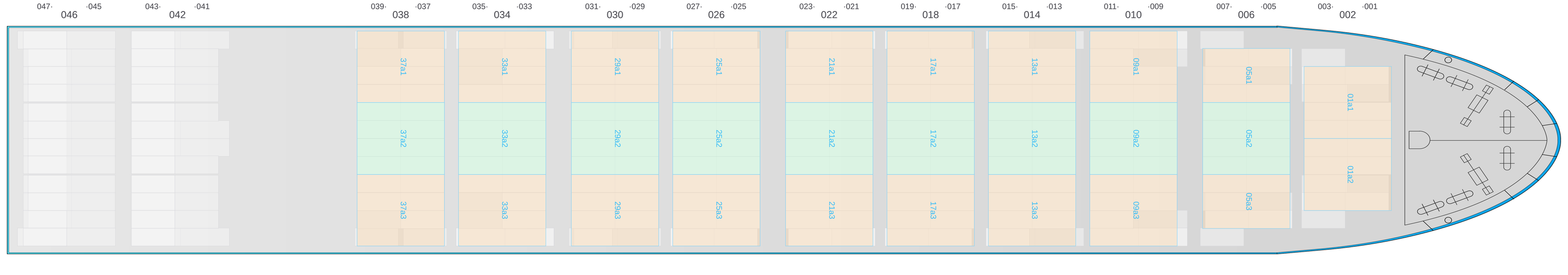

Hatch-Covers View
![Deck view of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-deckView.png?v=1710702059318)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

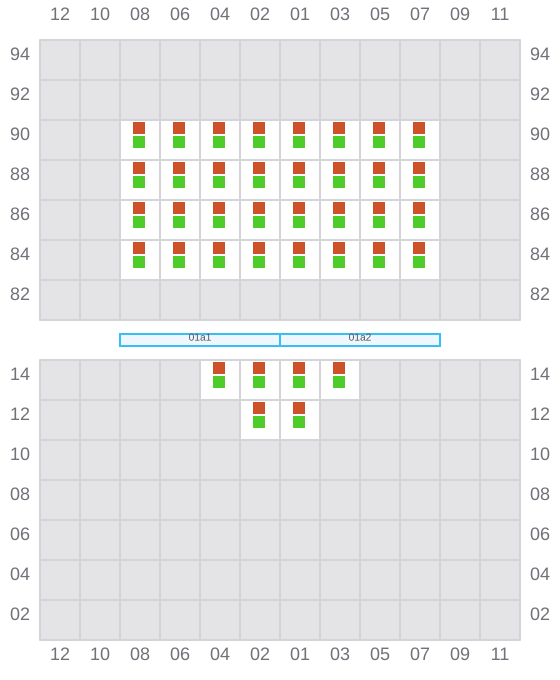

001 (002)
- →
![Bay 001 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b001.png?v=1710702059318)

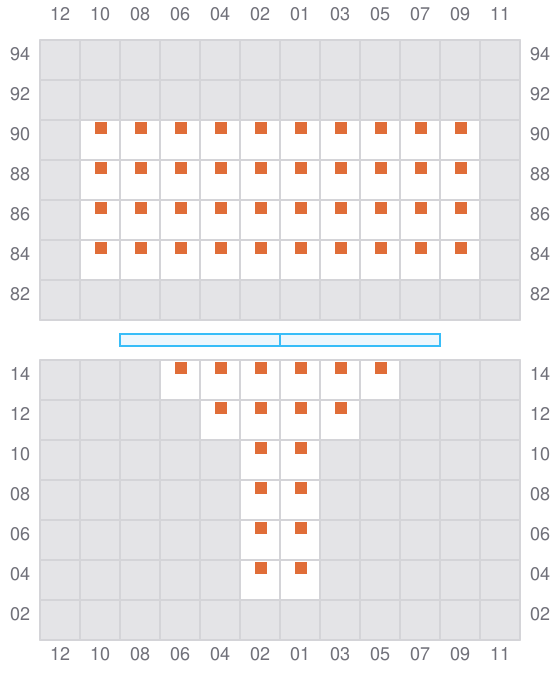

003
- ←
![Bay 003 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b003.png?v=1710702059318)

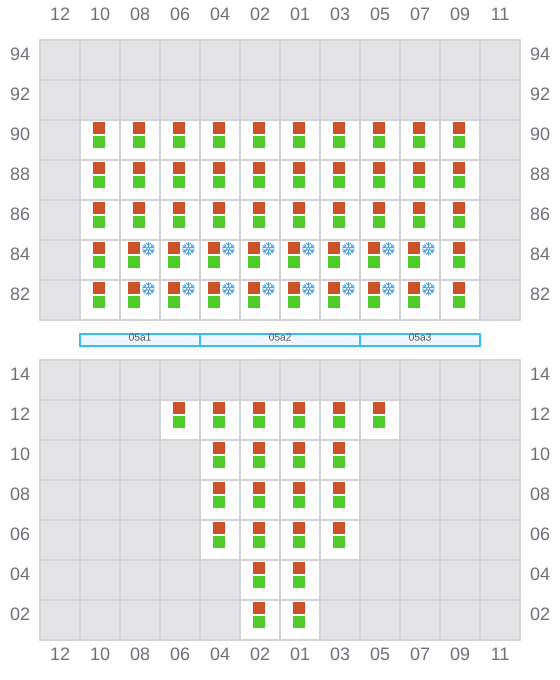

005 (006)
- →
- ← / ?
![Bay 005 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b005.png?v=1710702059318)

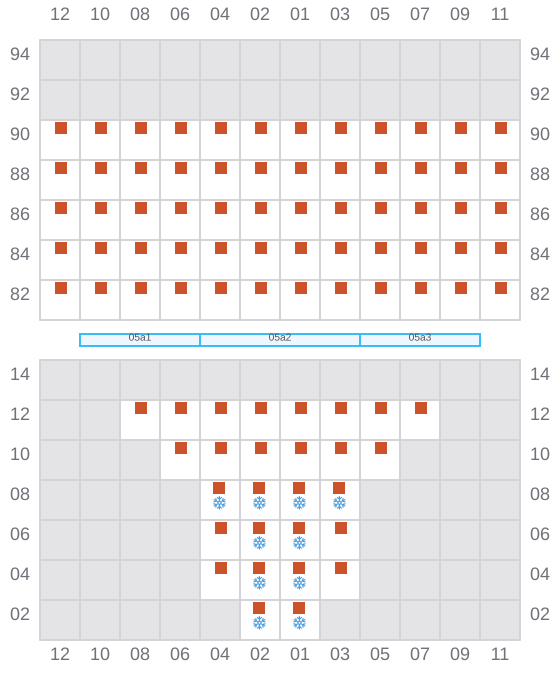

007
- ←
- ? / →
![Bay 007 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b007.png?v=1710702059318)

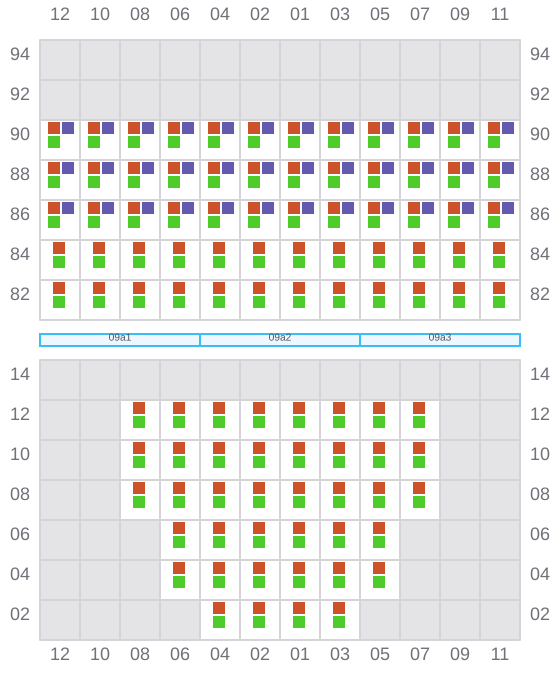

009 (010)
- →
![Bay 009 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b009.png?v=1710702059318)

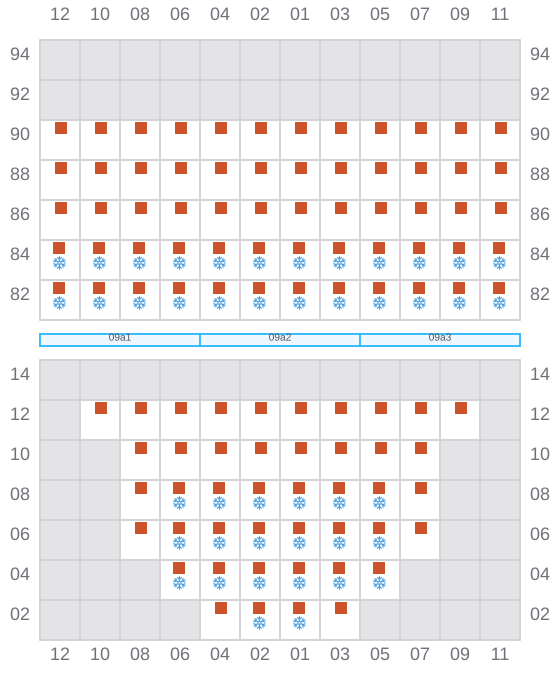

011
- ←
- →
![Bay 011 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b011.png?v=1710702059318)

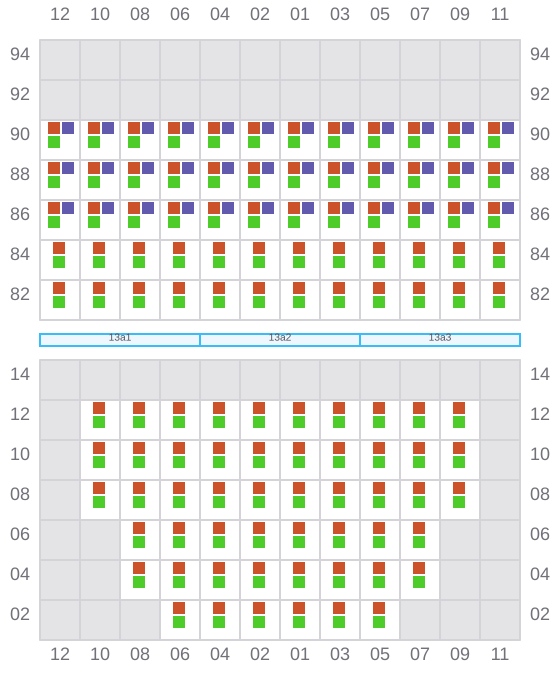

013 (014)
- →
![Bay 013 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b013.png?v=1710702059318)

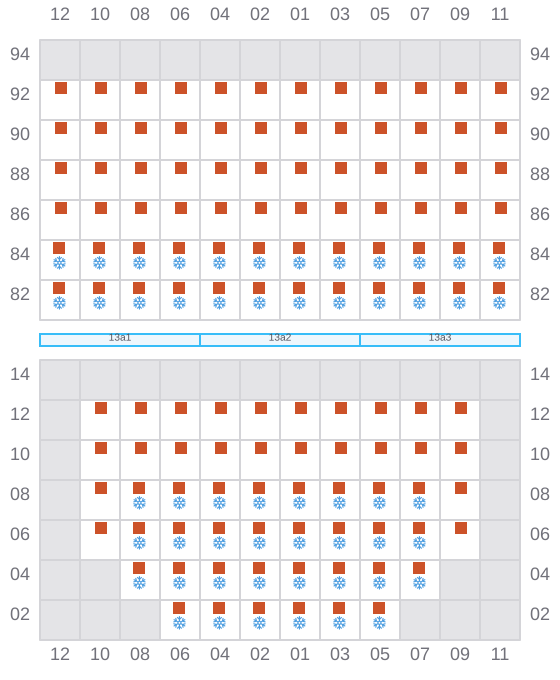

015
- ←
- →
![Bay 015 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b015.png?v=1710702059318)

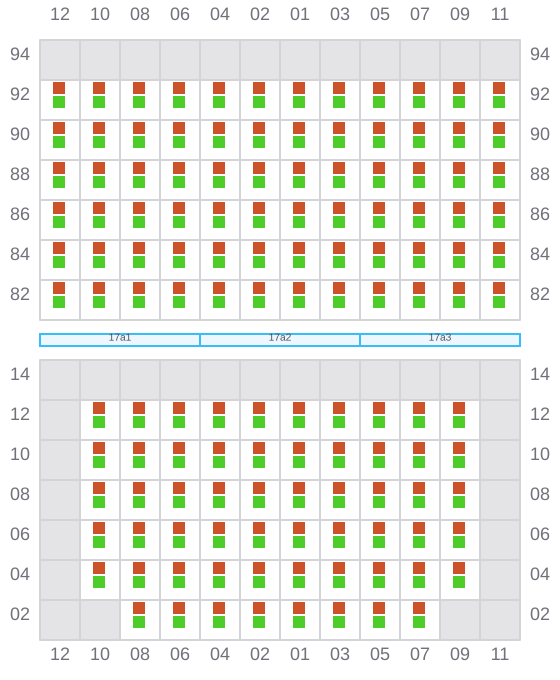

017 (018)
- →
![Bay 017 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b017.png?v=1710702059318)
019
- ←
- →
![Bay 019 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b019.png?v=1710702059318)

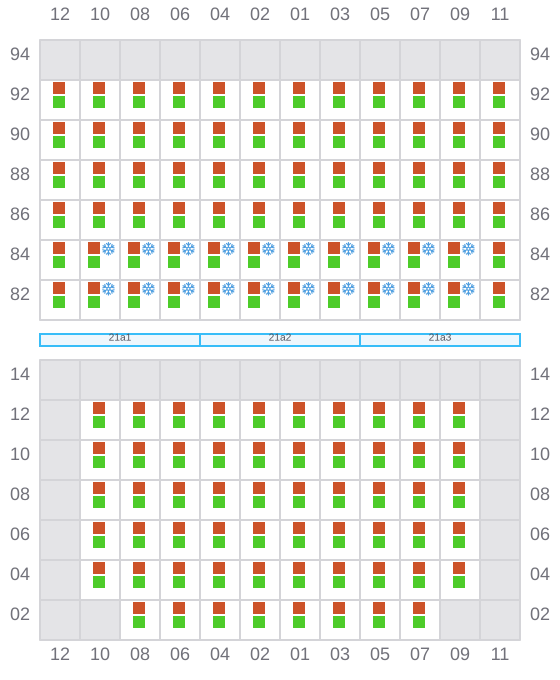

021 (022)
- →
- ← / ?
![Bay 021 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b021.png?v=1710702059318)

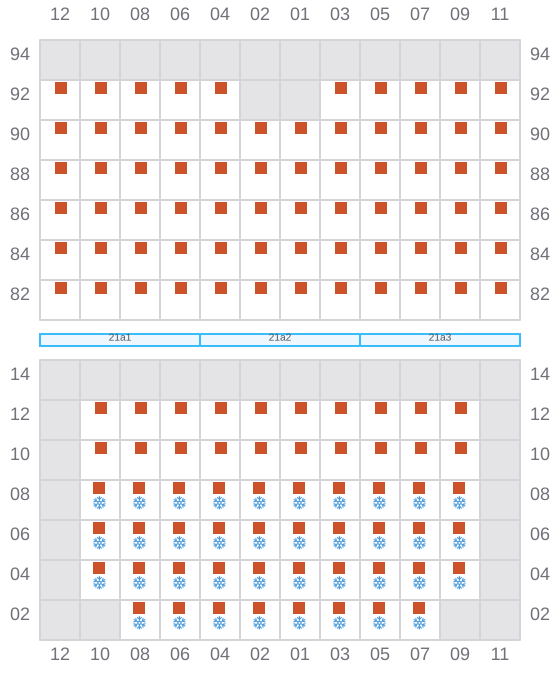

023
- ←
- ? / →
![Bay 023 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b023.png?v=1710702059318)

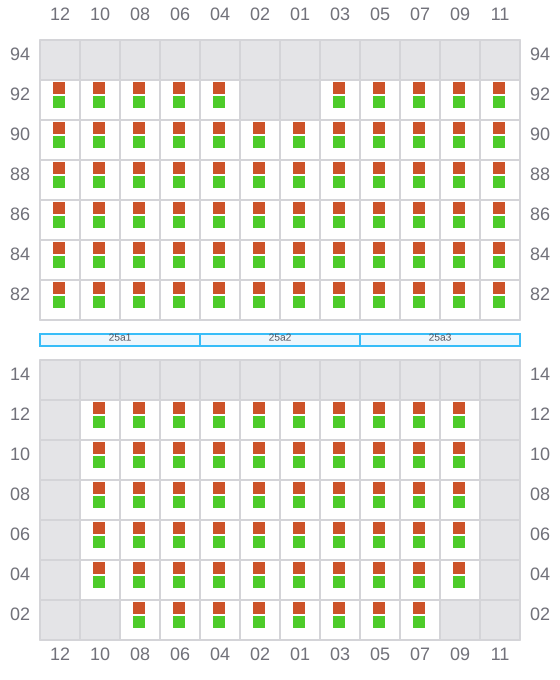

025 (026)
- →
![Bay 025 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b025.png?v=1710702059318)

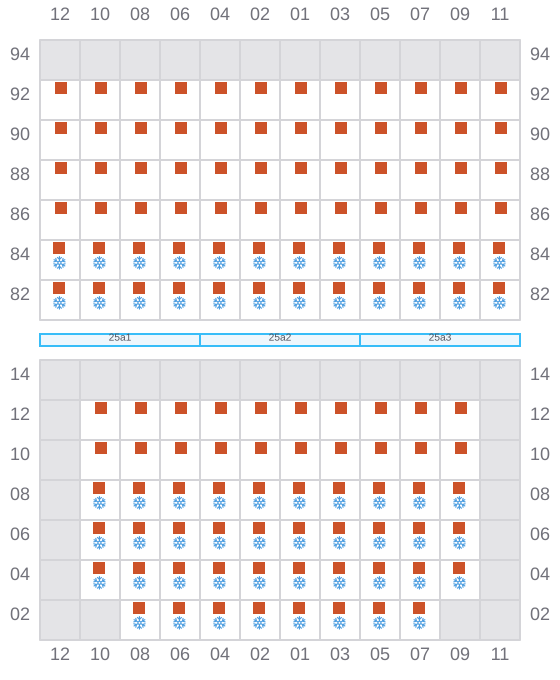

027
- ←
- →
![Bay 027 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b027.png?v=1710702059318)

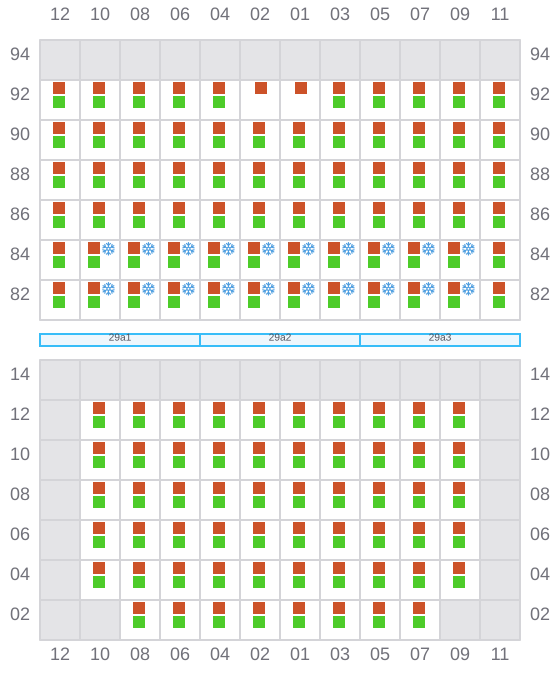

029 (030)
- →
- ← / ?
![Bay 029 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b029.png?v=1710702059318)

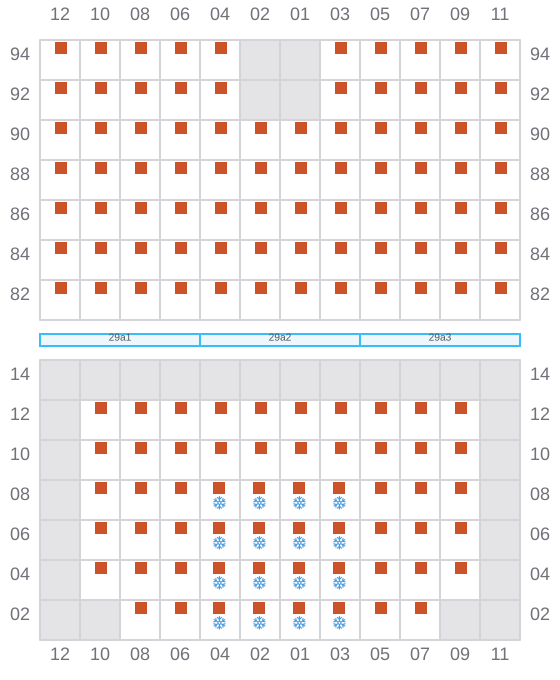

031
- ←
- ? / →
![Bay 031 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b031.png?v=1710702059318)

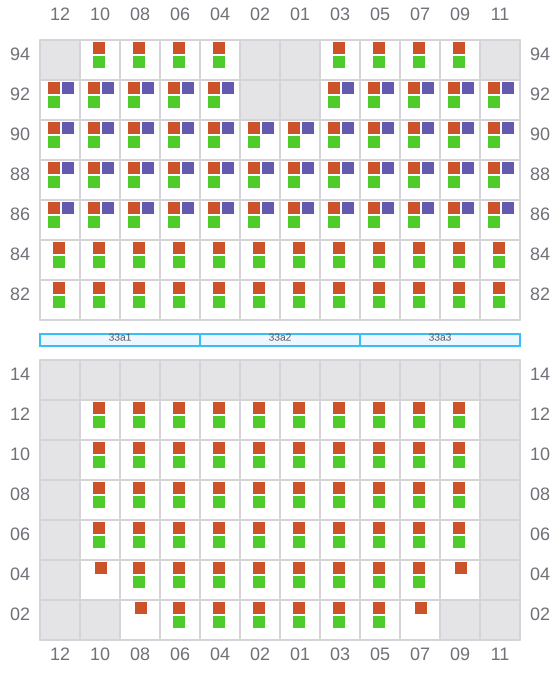

033 (034)
- →
![Bay 033 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b033.png?v=1710702059318)
035
- ←
- →
![Bay 035 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b035.png?v=1710702059318)

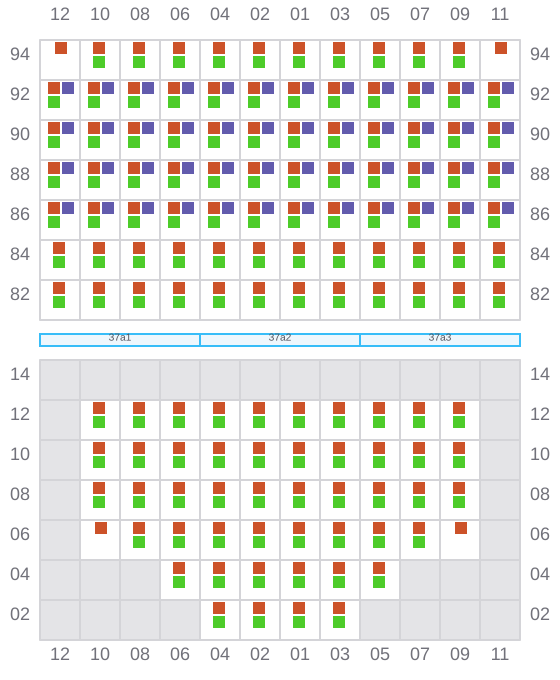

037 (038)
- →
![Bay 037 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b037.png?v=1710702059318)

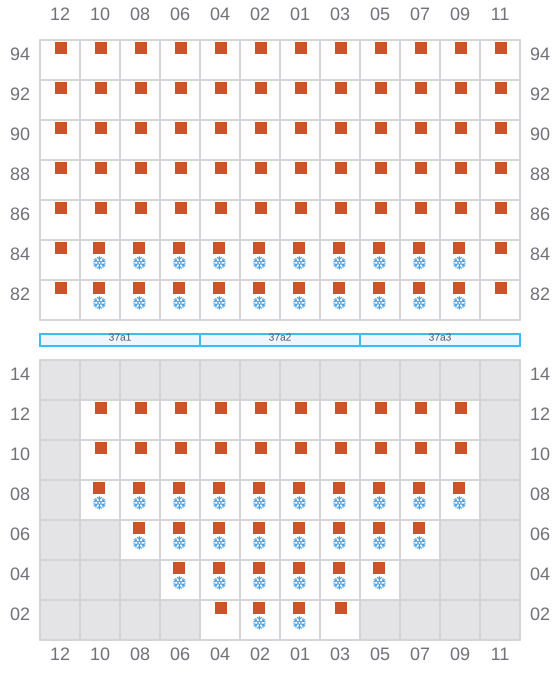

039
- ←
- →
![Bay 039 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b039.png?v=1710702059318)

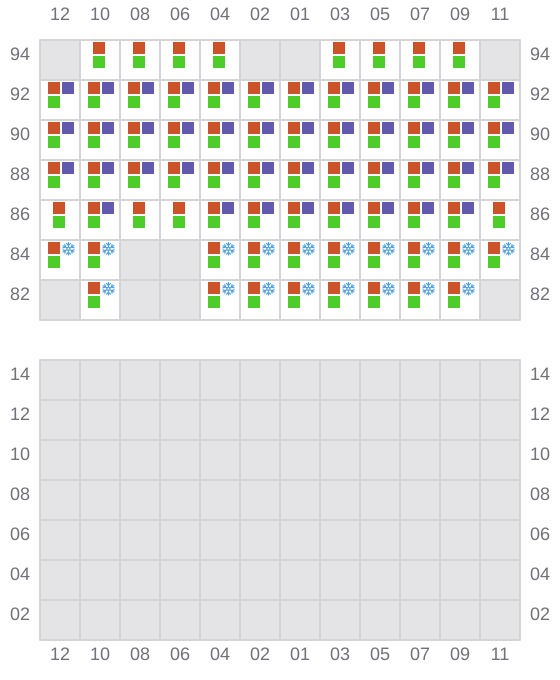

041 (042)
- → / ?
- ← / ?
![Bay 041 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b041.png?v=1710702059318)

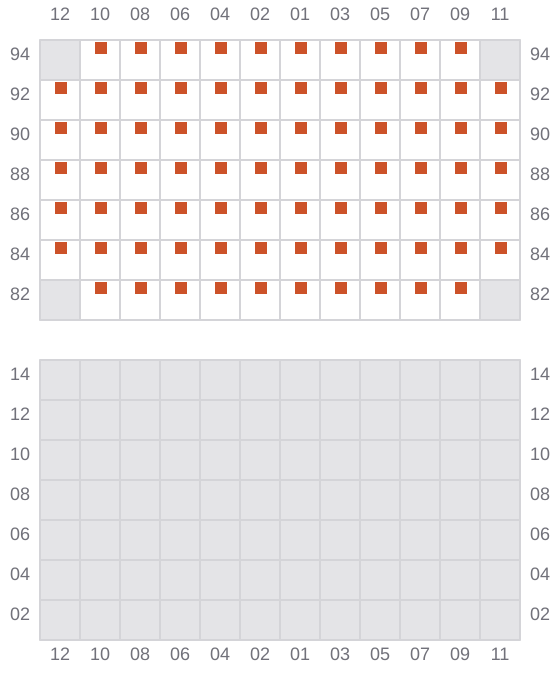

043
- ← / ?
![Bay 043 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b043.png?v=1710702059318)

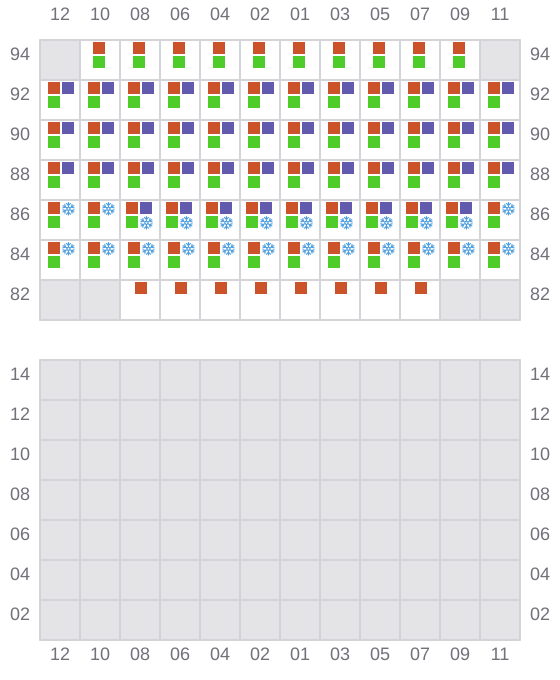

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b045.png?v=1710702059318)

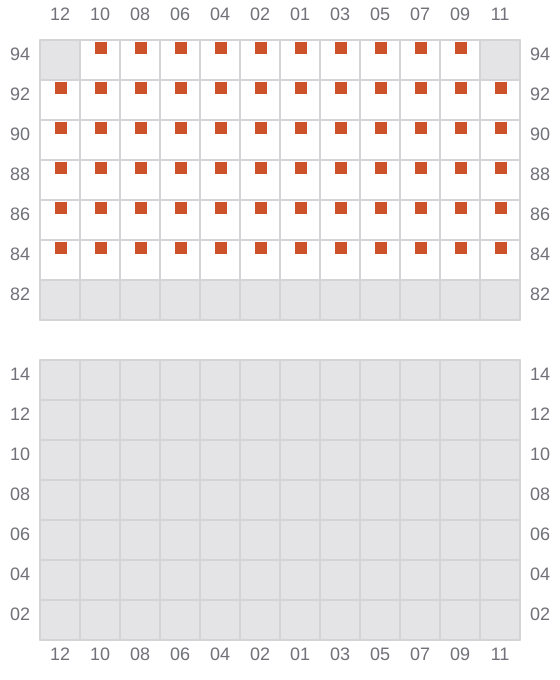

047
- ← / ?
![Bay 047 view and slots of LUCIE SCHULTE](/vessel-images/85602696-97c5-404f-8194-187bb9d4ef61-b047.png?v=1710702059318)
