LUCKY
9123506 | V4RY4 | 9123506 by ********* Last update: Thu Mar 07 2024

General Info

Ship Name:LUCKY
IMO Code:9123506
Call Sign:V4RY4
Line Operator:9123506
Class Name for Sister Ships:10D
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:025
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:448

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of LUCKY

Hatch-Covers View

Deck view of LUCKY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

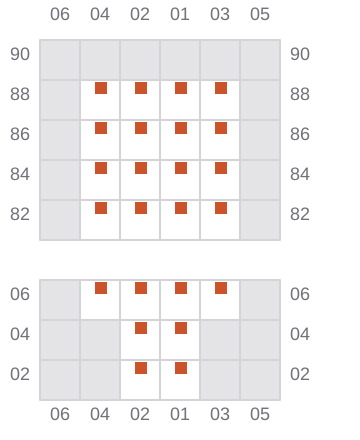

Bay 001 view and slots of LUCKY

003 (004)

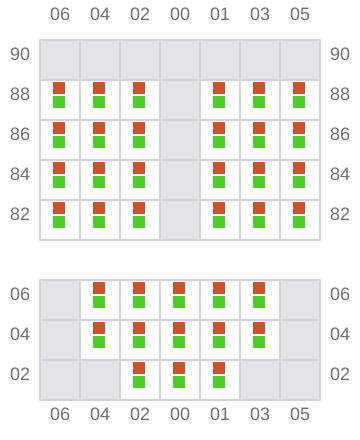

Bay 003 view and slots of LUCKY

005

Bay 005 view and slots of LUCKY

007 (008)

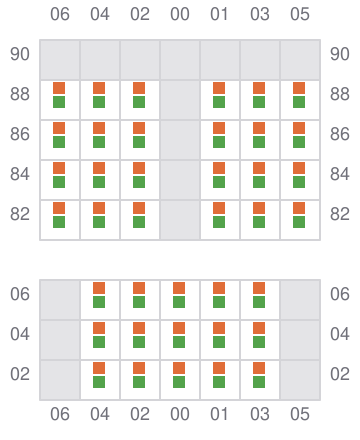

Bay 007 view and slots of LUCKY

009

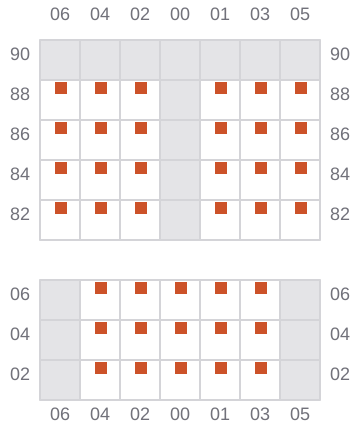

Bay 009 view and slots of LUCKY

011

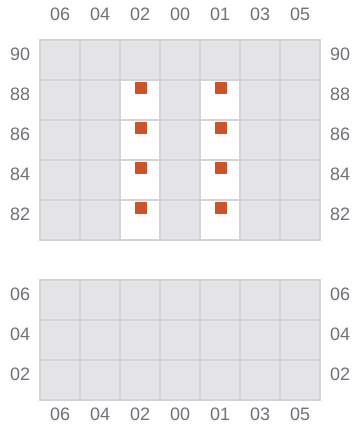

Bay 011 view and slots of LUCKY

013 (014)

Bay 013 view and slots of LUCKY

015

Bay 015 view and slots of LUCKY

017 (018)

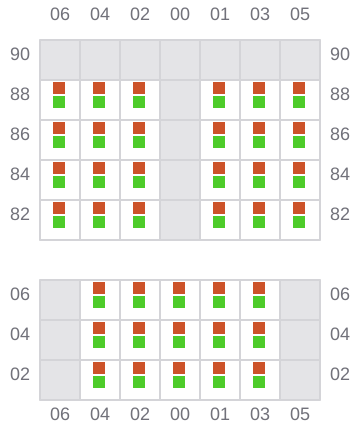

Bay 017 view and slots of LUCKY

019

Bay 019 view and slots of LUCKY

021 (022)

Bay 021 view and slots of LUCKY

023

Bay 023 view and slots of LUCKY

025

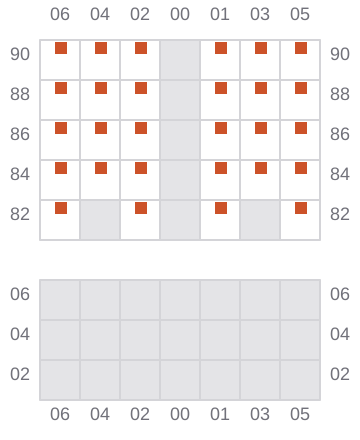

Bay 025 view and slots of LUCKY
