LUZON
9126962 | POMP | 9126962 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:LUZON
IMO Code:9126962
Call Sign:POMP
Line Operator:9126962
Class Name for Sister Ships:57B
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):147.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,102
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

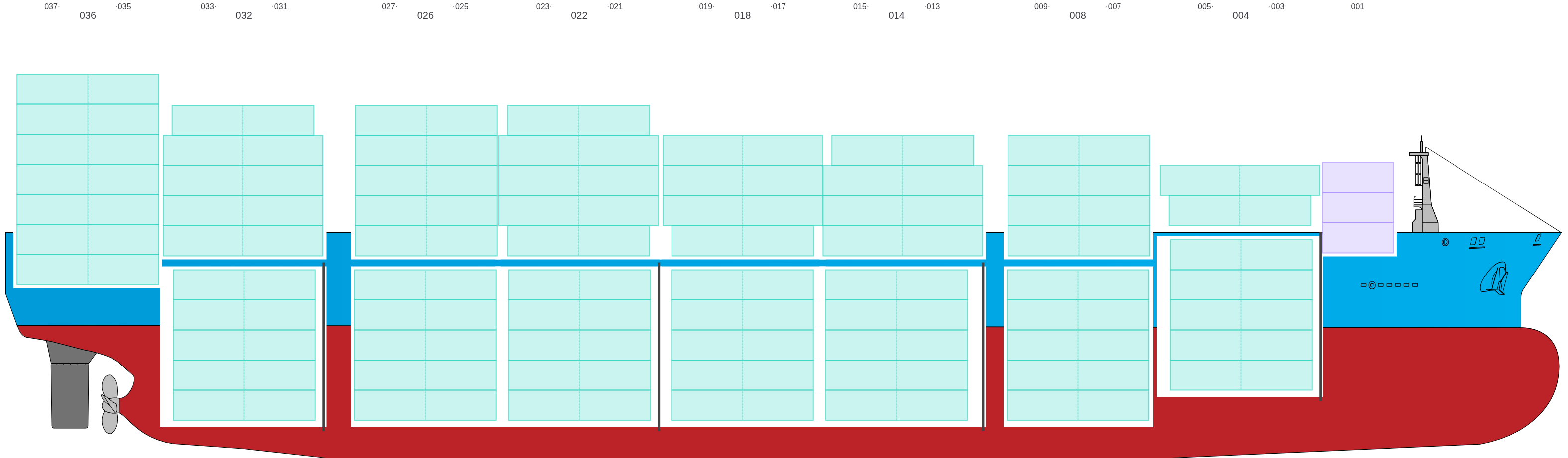

Side View
![Side view of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-sideView.png?v=1709842529936)
Hatch-Covers View
![Deck view of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-deckView.png?v=1709842529936)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

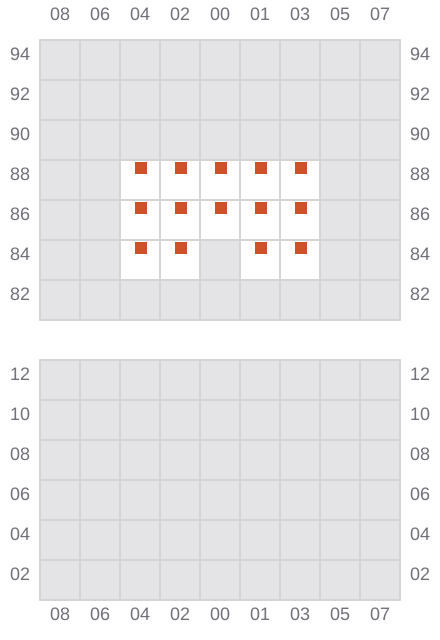

001
- → / ?
![Bay 001 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b001.png?v=1709842529936)

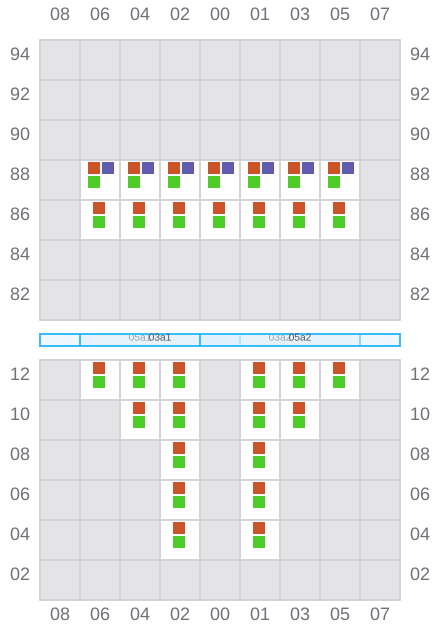

003 (004)
- →
- → / ?
- ? / →
![Bay 003 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b003.png?v=1709842529936)

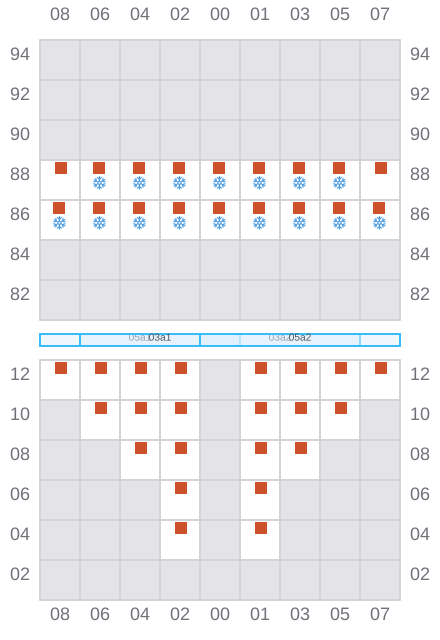

005
- ←
- → / ?
- →
![Bay 005 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b005.png?v=1709842529936)

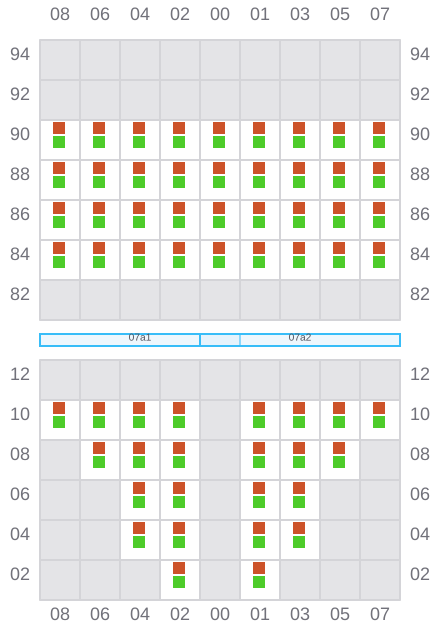

007 (008)
- →
- → / ?
- ? / →
![Bay 007 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b007.png?v=1709842529936)

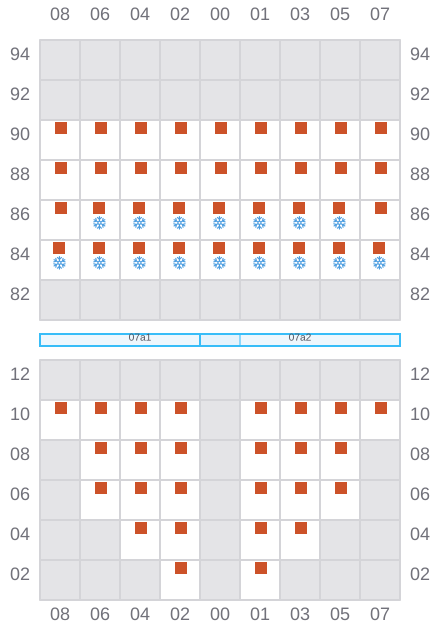

009
- ←
- → / ?
- →
![Bay 009 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b009.png?v=1709842529936)
011
![Bay 011 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b011.png?v=1709842529936)

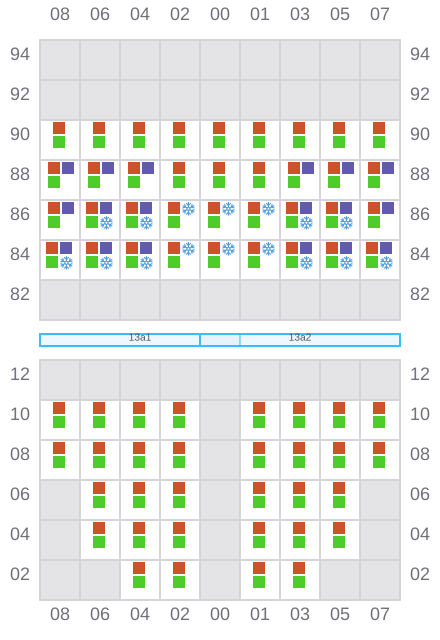

013 (014)
- →
- ← / ?
- →
![Bay 013 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b013.png?v=1709842529936)

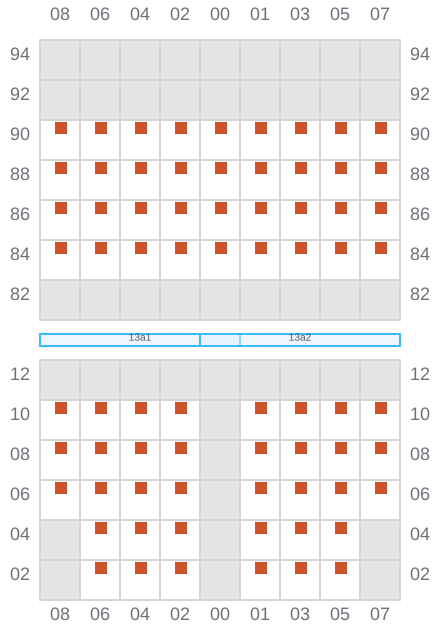

015
- ←
- →
![Bay 015 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b015.png?v=1709842529936)

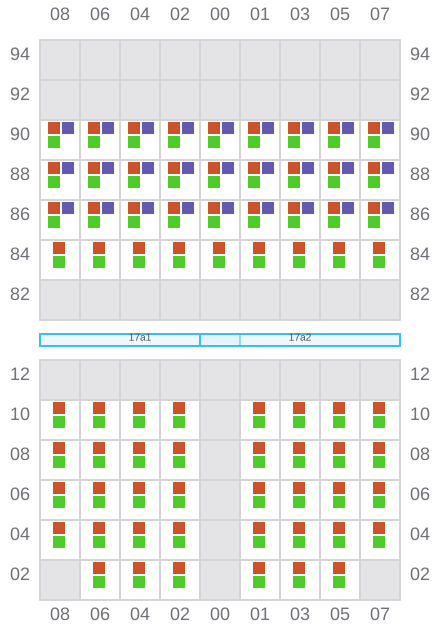

017 (018)
- →
- → / ?
- ? / →
![Bay 017 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b017.png?v=1709842529936)

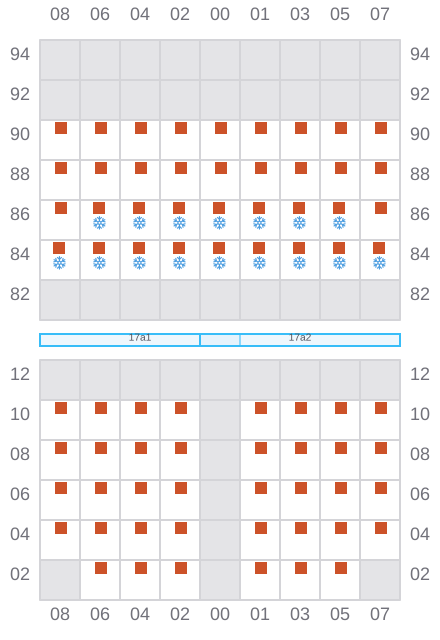

019
- ←
- → / ?
- →
![Bay 019 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b019.png?v=1709842529936)

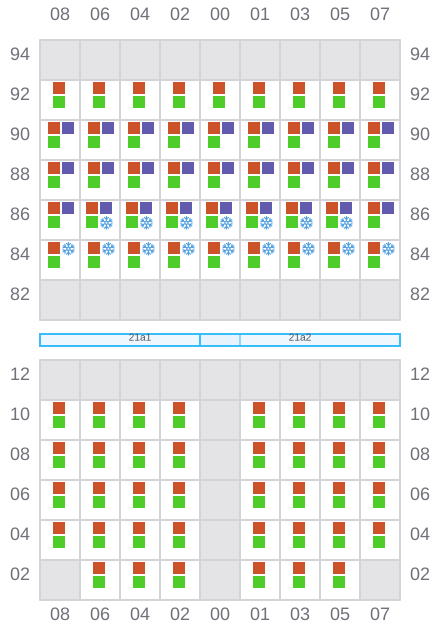

021 (022)
- →
- ← / ?
- →
![Bay 021 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b021.png?v=1709842529936)

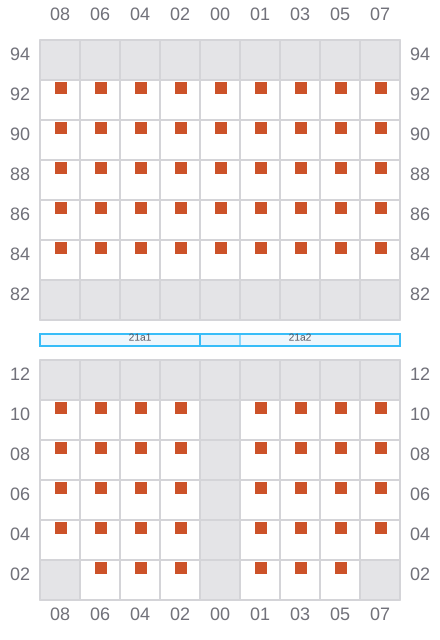

023
- ←
- →
![Bay 023 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b023.png?v=1709842529936)

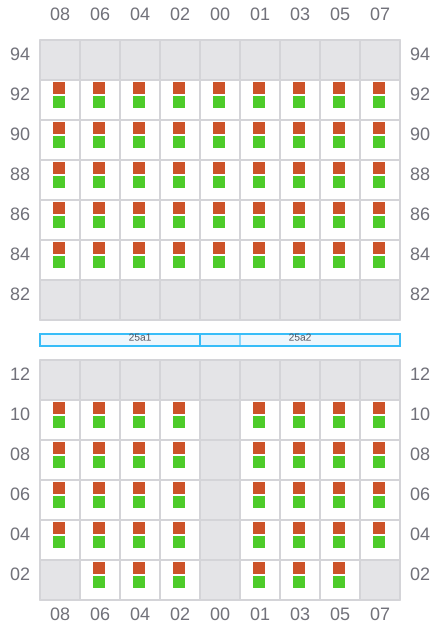

025 (026)
- →
- → / ?
- ? / →
![Bay 025 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b025.png?v=1709842529936)

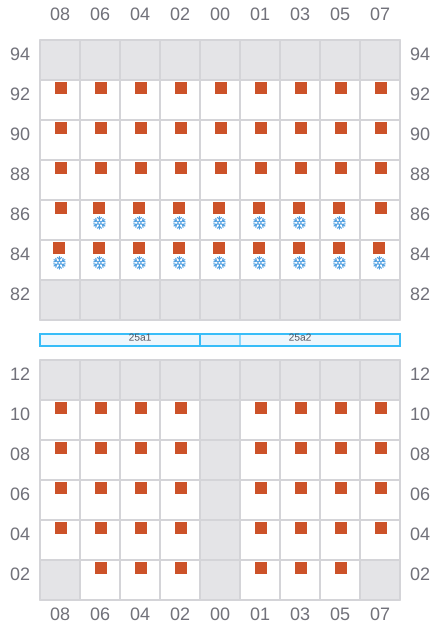

027
- ←
- → / ?
- →
![Bay 027 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b027.png?v=1709842529936)

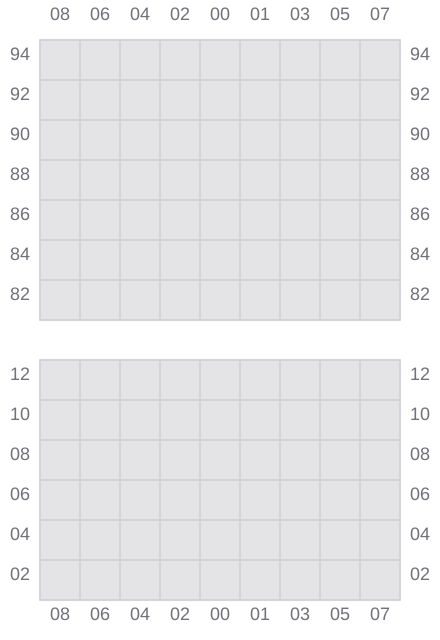

029
![Bay 029 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b029.png?v=1709842529936)

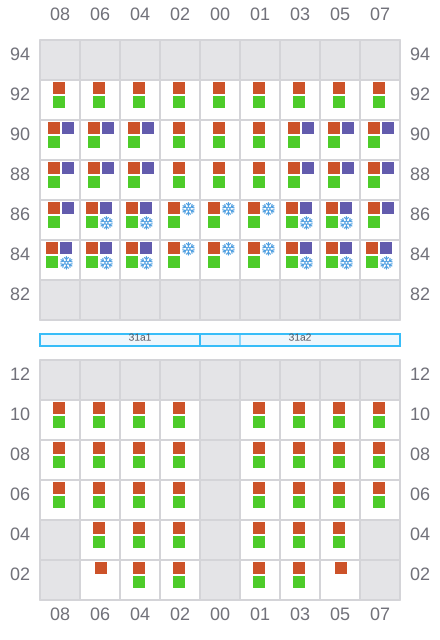

031 (032)
- →
- ← / ?
- →
![Bay 031 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b031.png?v=1709842529936)

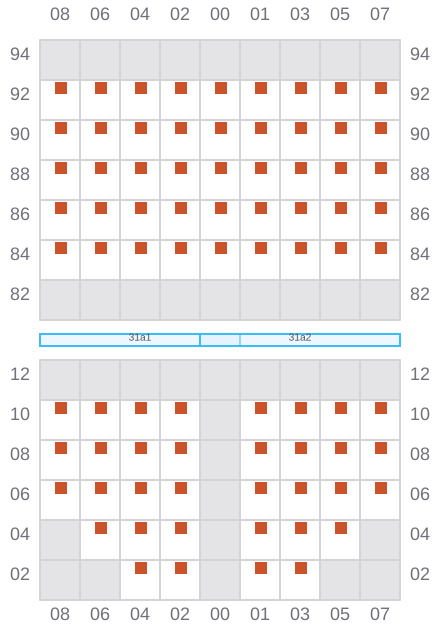

033
- ←
- →
![Bay 033 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b033.png?v=1709842529936)

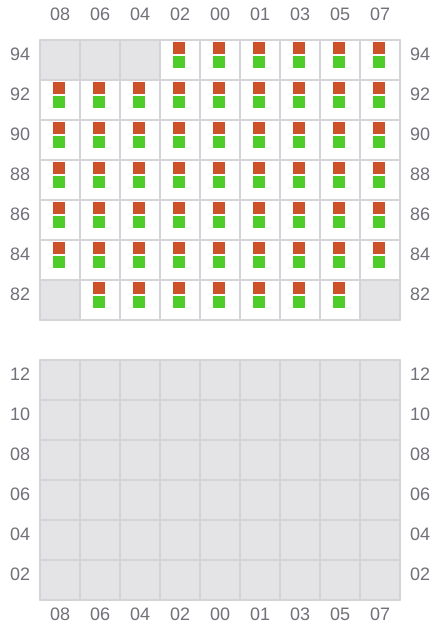

035 (036)
- → / ?
- → / ?
![Bay 035 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b035.png?v=1709842529936)

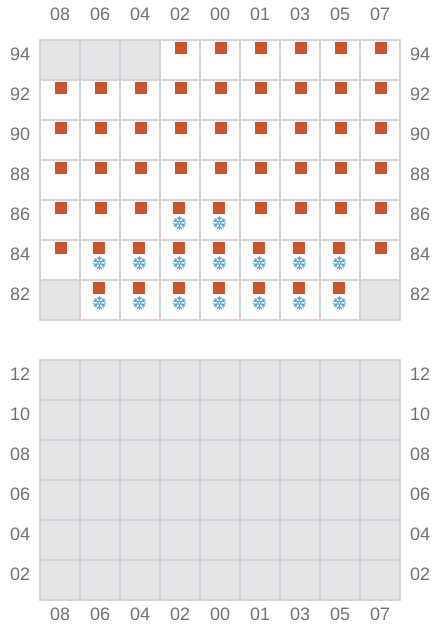

037
- ← / ?
- → / ?
- → / ?
![Bay 037 view and slots of LUZON](/vessel-images/a1652424-fb87-486d-96f8-d71e249cd7d2-b037.png?v=1709842529936)
