M WILMINGTON
9550319 | 3EXT3 | 955031 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:M WILMINGTON
IMO Code:9550319
Call Sign:3EXT3
Line Operator:955031
Class Name for Sister Ships:43A
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

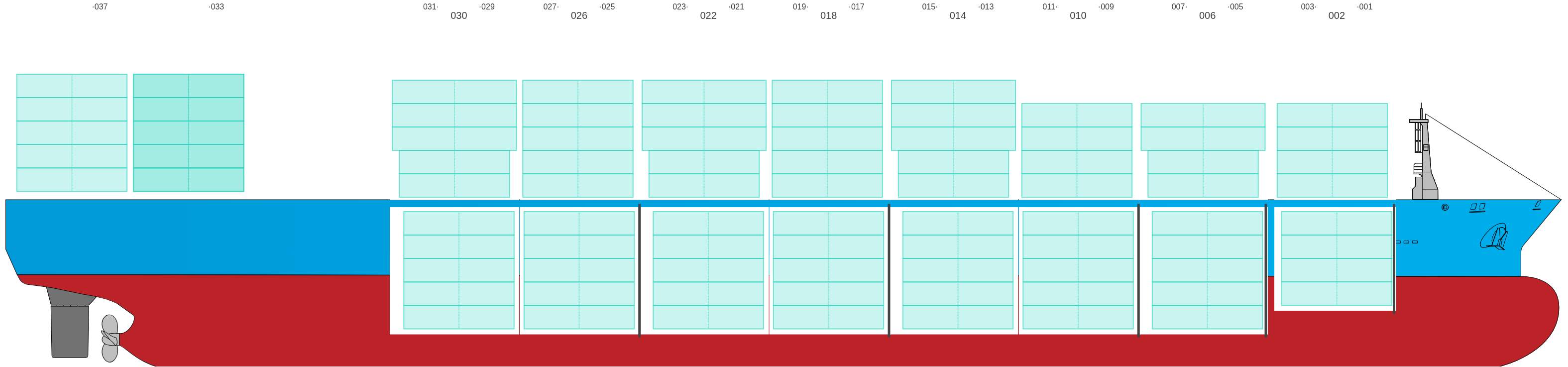

Side View
![Side view of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-sideView.png?v=1711659503453)
Hatch-Covers View
![Deck view of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-deckView.png?v=1711659503453)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

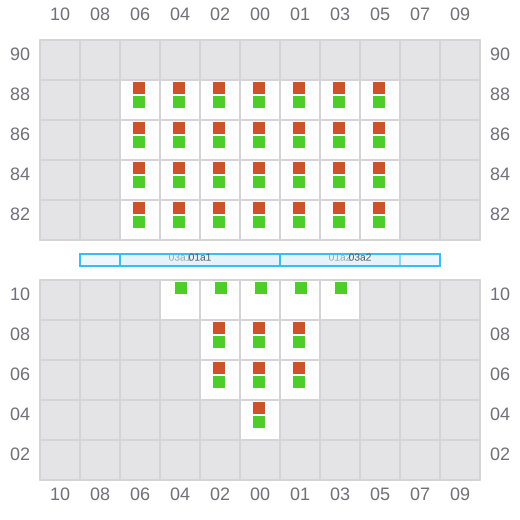

001 (002)
- →
![Bay 001 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b001.png?v=1711659503453)

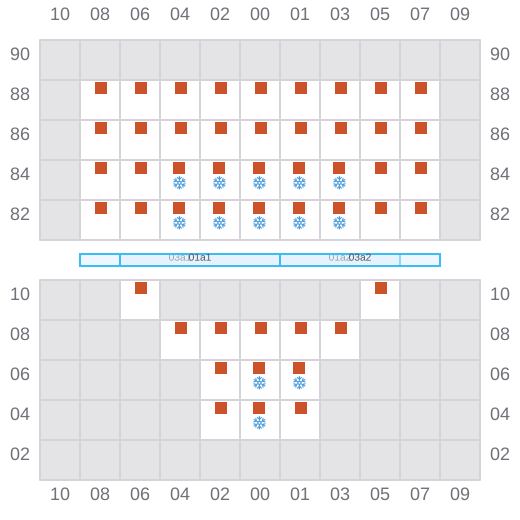

003
- ←
- →
![Bay 003 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b003.png?v=1711659503453)

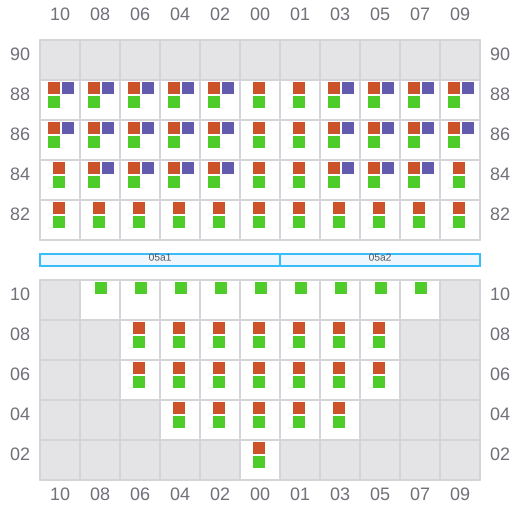

005 (006)
- →
- ← / ?
![Bay 005 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b005.png?v=1711659503453)

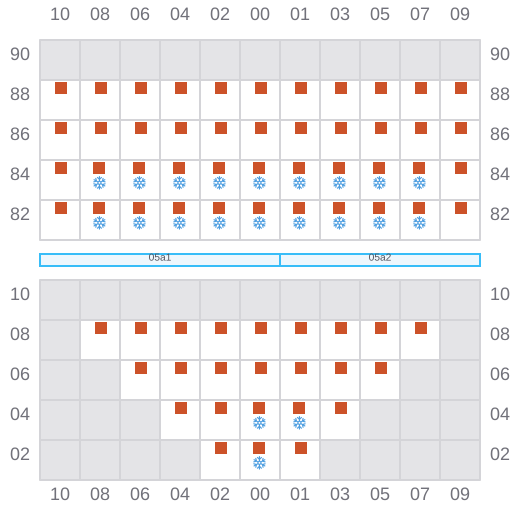

007
- ←
- →
![Bay 007 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b007.png?v=1711659503453)

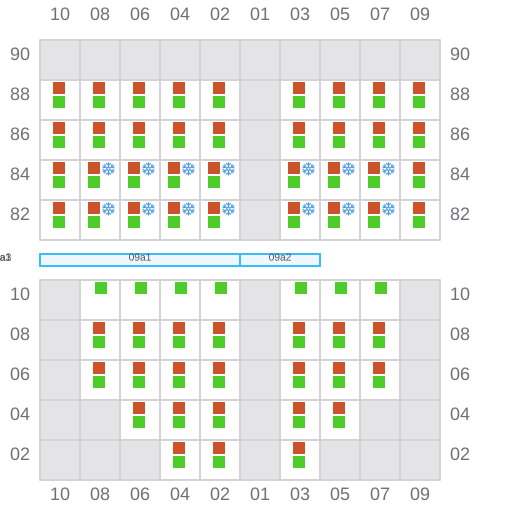

009 (010)
- →
- ← / ?
![Bay 009 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b009.png?v=1711659503453)

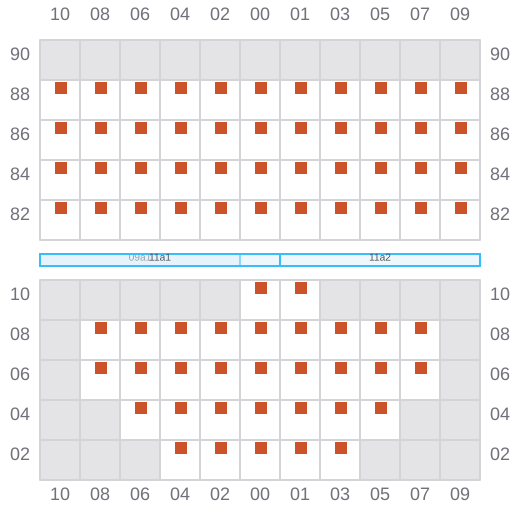

011
- ←
- → / ?
![Bay 011 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b011.png?v=1711659503453)
013 (014)
- →
- ← / ?
![Bay 013 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b013.png?v=1711659503453)

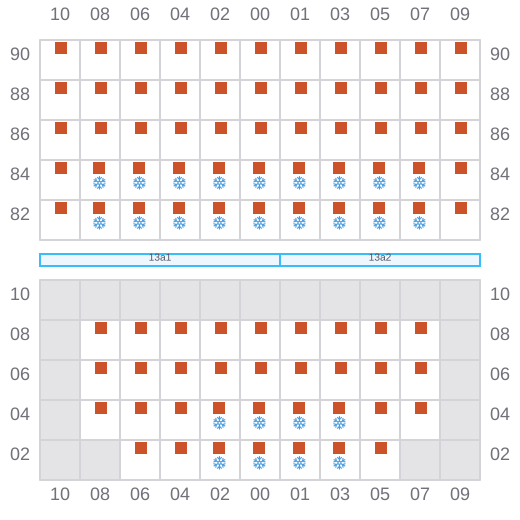

015
- ←
- →
![Bay 015 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b015.png?v=1711659503453)

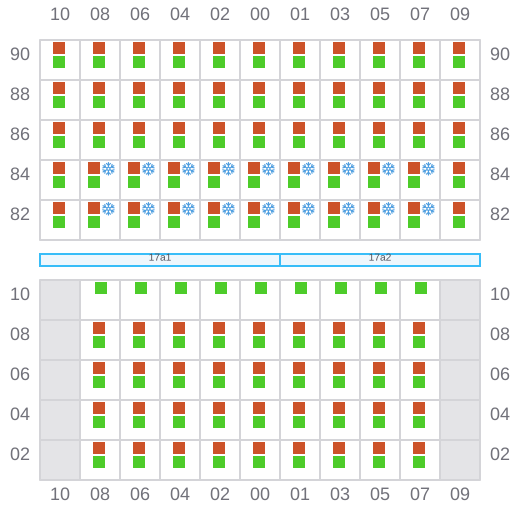

017 (018)
- →
- ← / ?
![Bay 017 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b017.png?v=1711659503453)

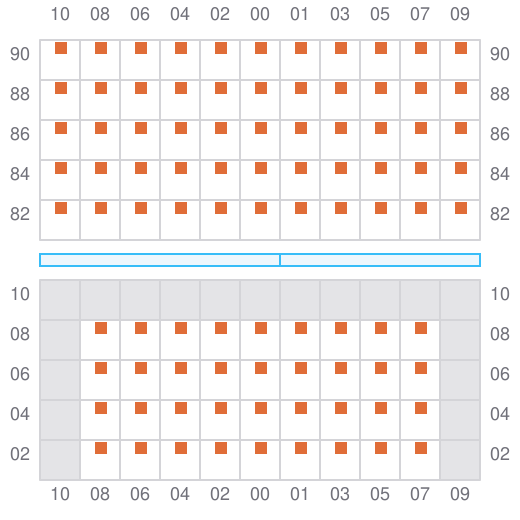

019
- ←
- → / ?
![Bay 019 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b019.png?v=1711659503453)

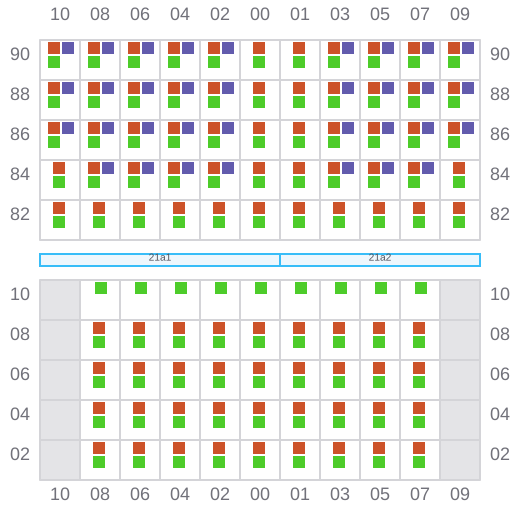

021 (022)
- →
- ← / ?
![Bay 021 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b021.png?v=1711659503453)

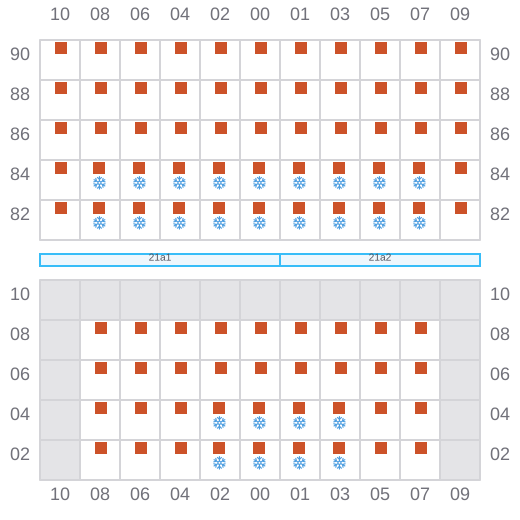

023
- ←
- →
![Bay 023 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b023.png?v=1711659503453)
025 (026)
- →
- ← / ?
![Bay 025 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b025.png?v=1711659503453)

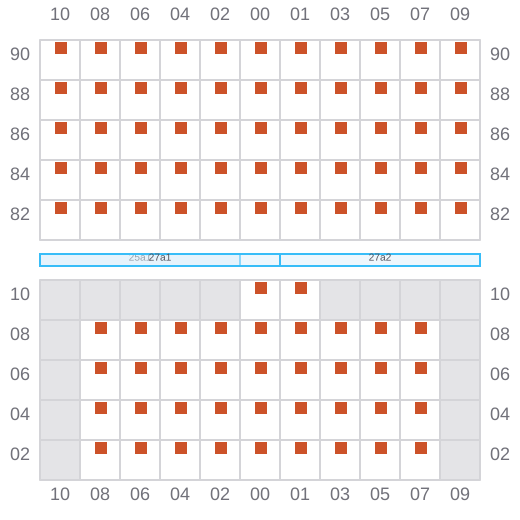

027
- ←
- → / ?
![Bay 027 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b027.png?v=1711659503453)

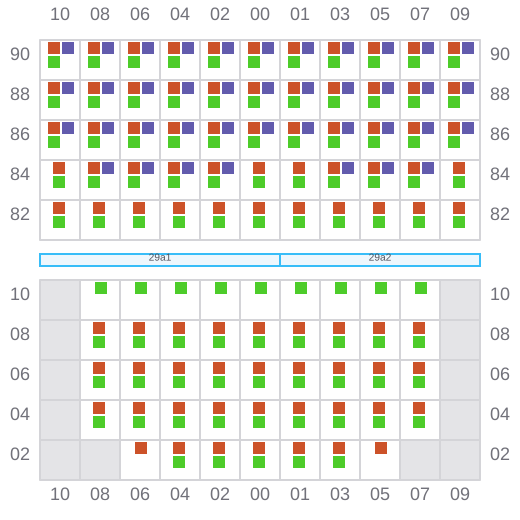

029 (030)
- →
- ← / ?
![Bay 029 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b029.png?v=1711659503453)

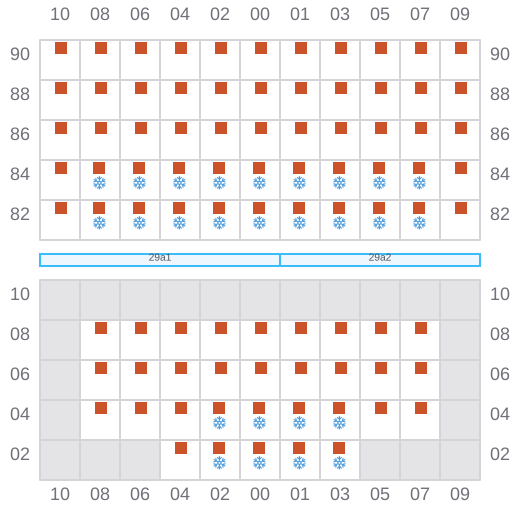

031
- ←
- →
![Bay 031 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b031.png?v=1711659503453)

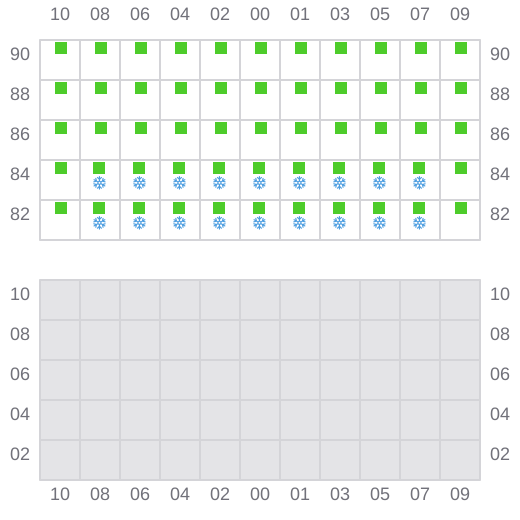

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b033.png?v=1711659503453)

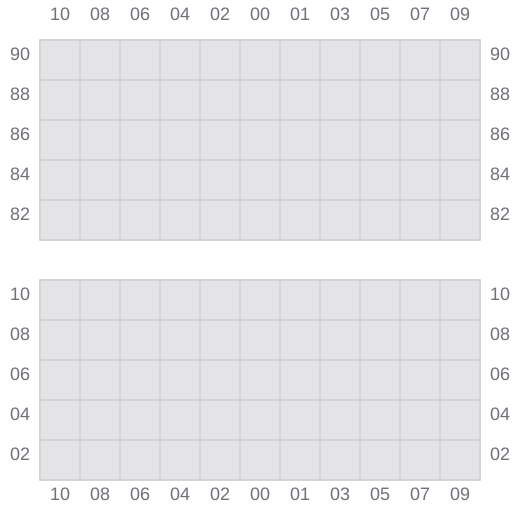

035
![Bay 035 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b035.png?v=1711659503453)

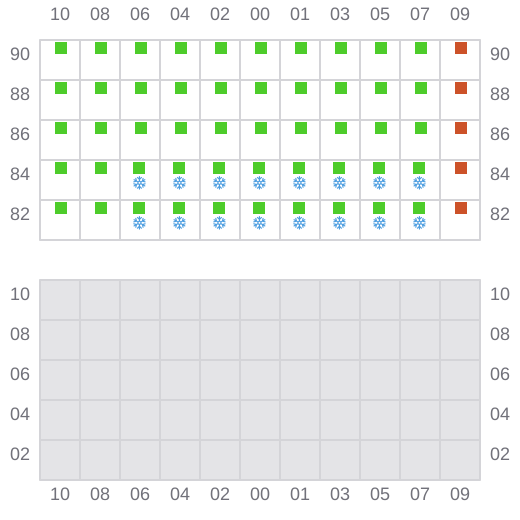

037 (038)
- → / ?
- ← / ?
![Bay 037 view and slots of M WILMINGTON](/vessel-images/c850bdda-fc59-48f6-9186-68a46813ef46-b037.png?v=1711659503453)
