MAERSK ALGOL
9342528 | 9VFV5 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MAERSK ALGOL
IMO Code:9342528
Call Sign:9VFV5
Line Operator:MSK
Class Name for Sister Ships:AGO
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,432

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

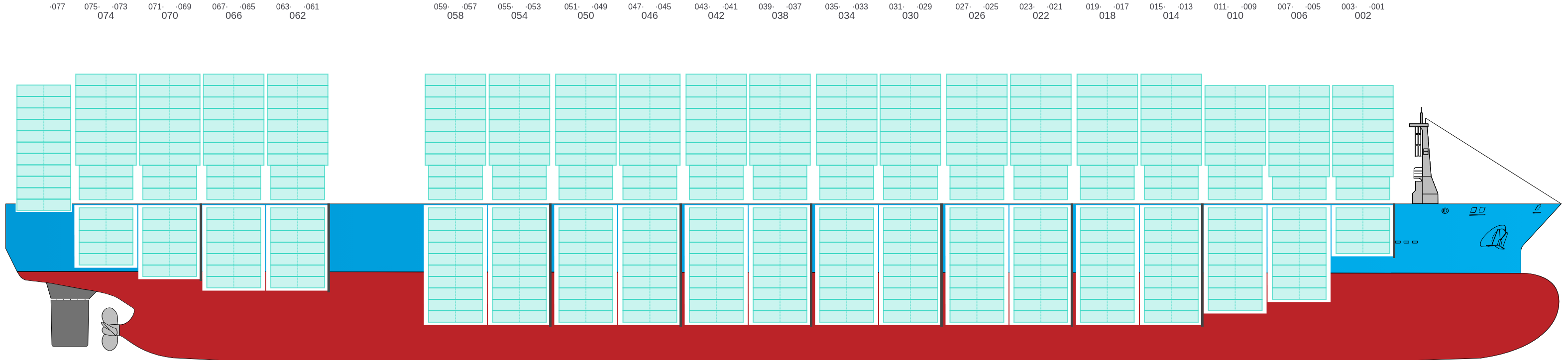

Side View

Side view of MAERSK ALGOL

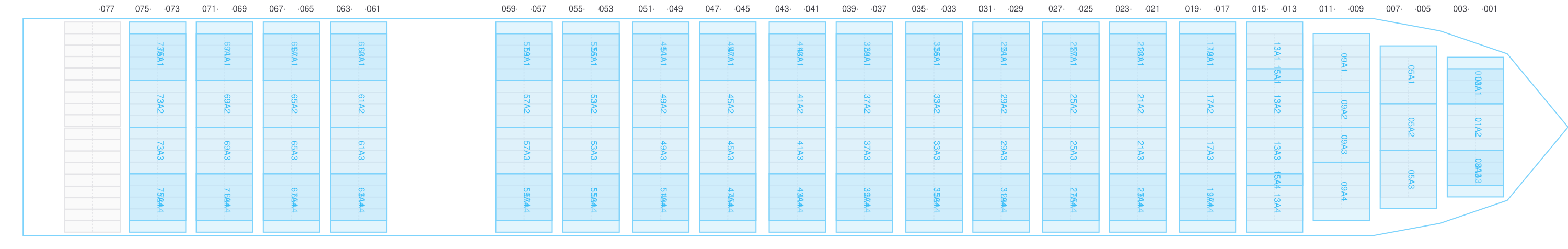

Hatch-Covers View

Deck view of MAERSK ALGOL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

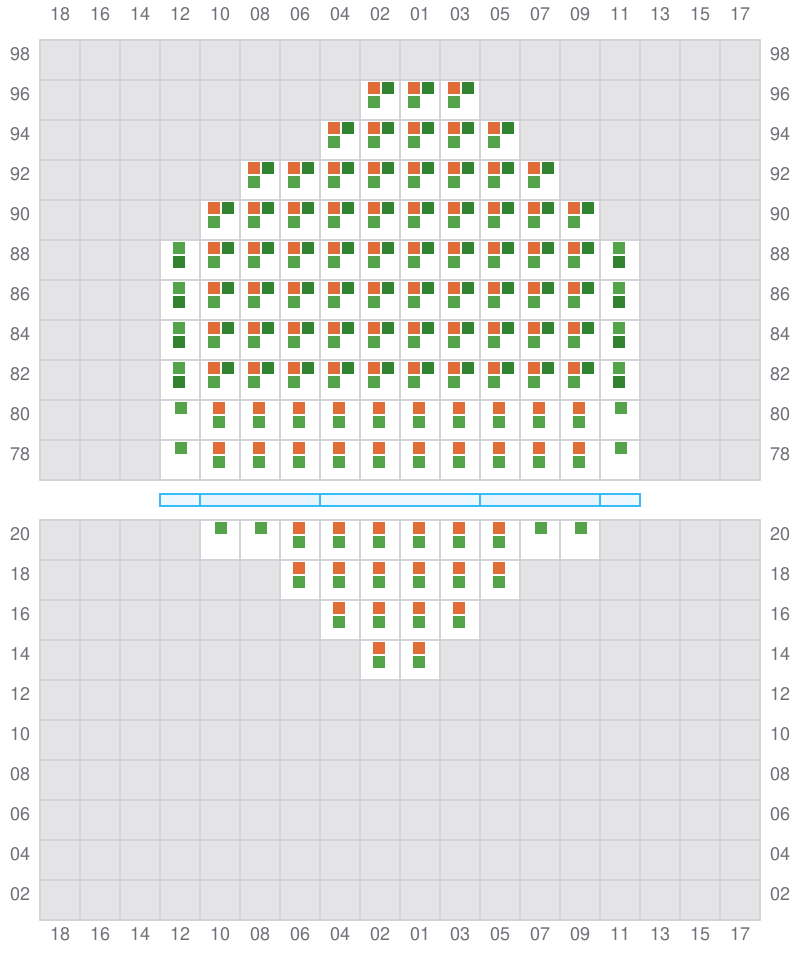

Bay 001 view and slots of MAERSK ALGOL

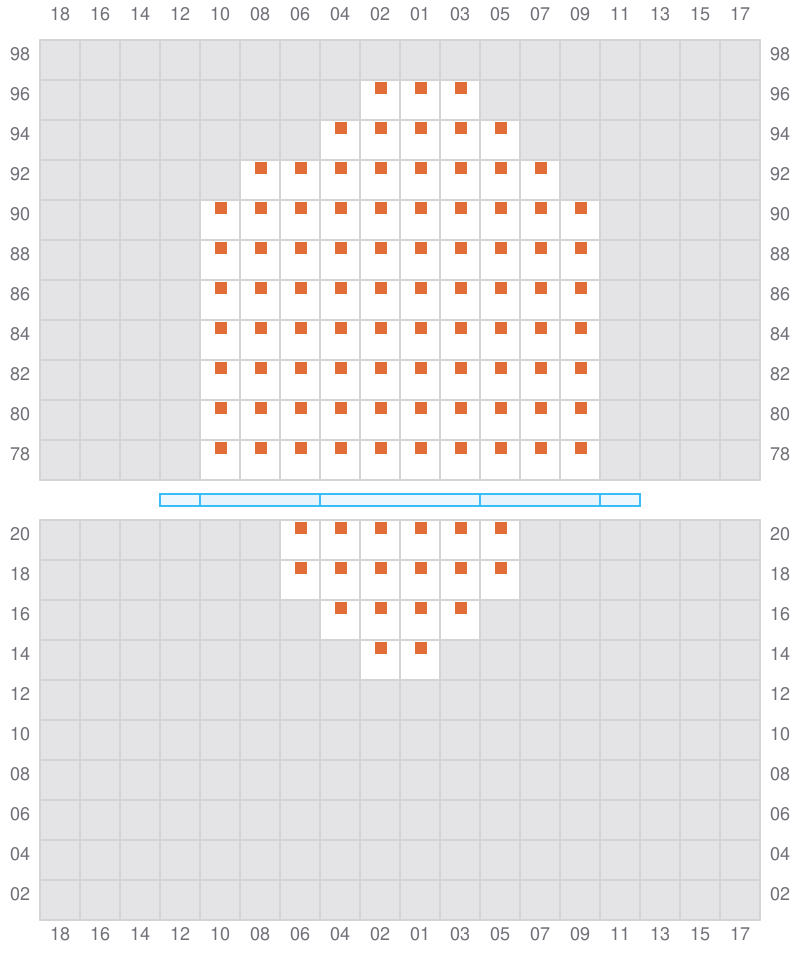

003

  • ←
Bay 003 view and slots of MAERSK ALGOL

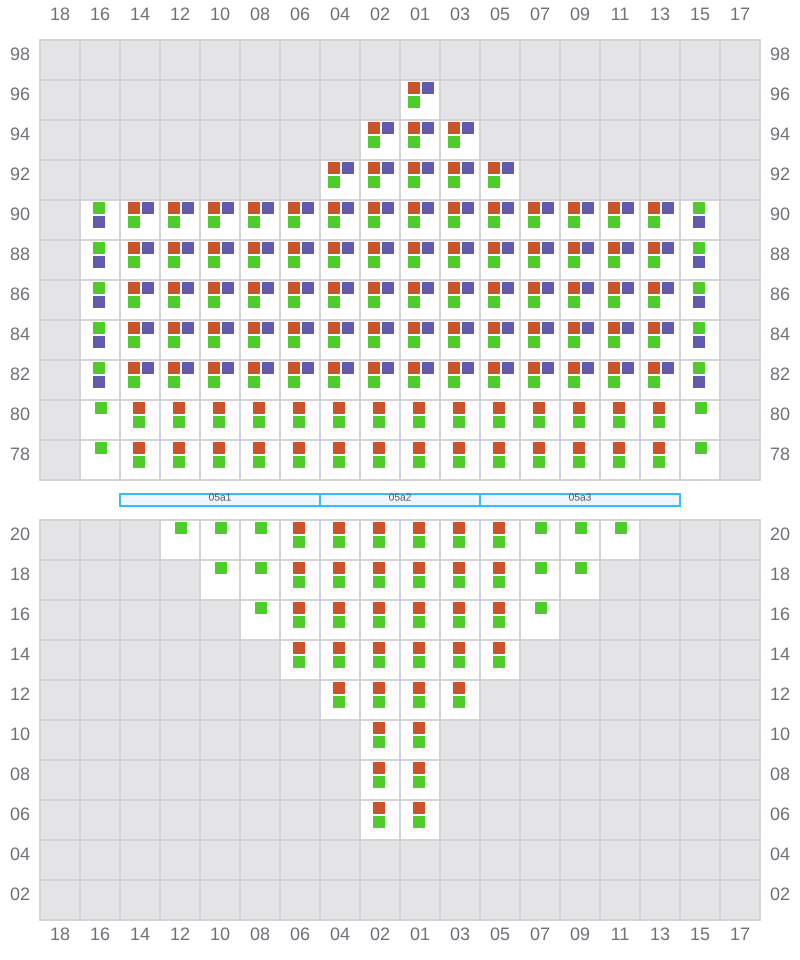

005 (006)

  • →
Bay 005 view and slots of MAERSK ALGOL

007

  • ←

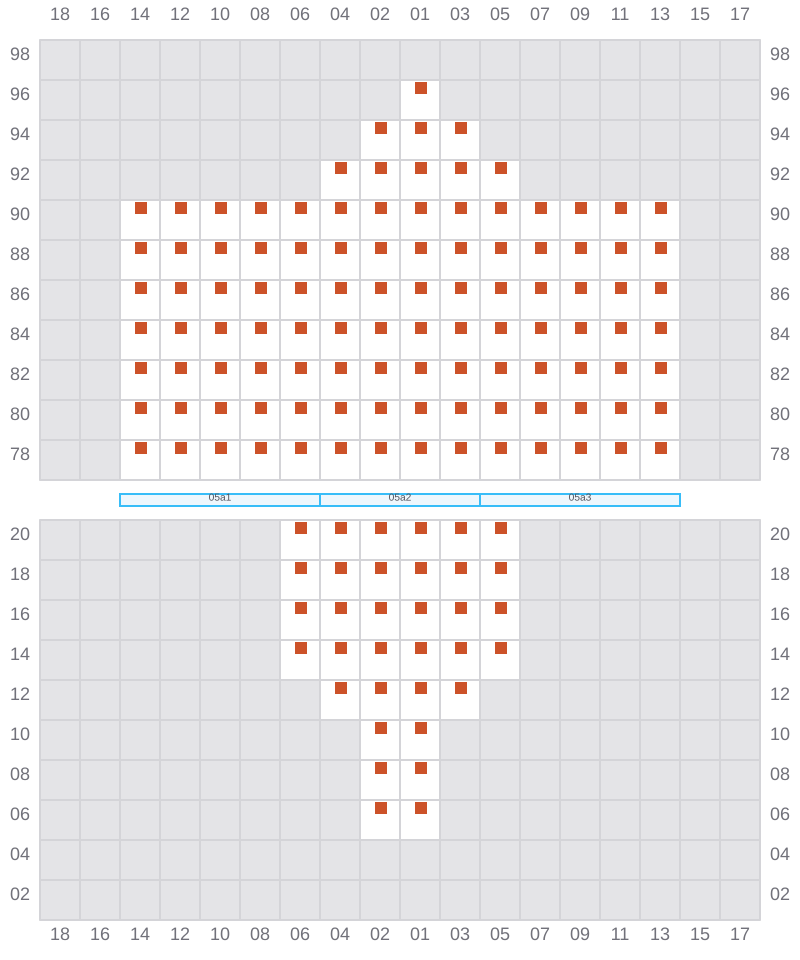

Bay 007 view and slots of MAERSK ALGOL

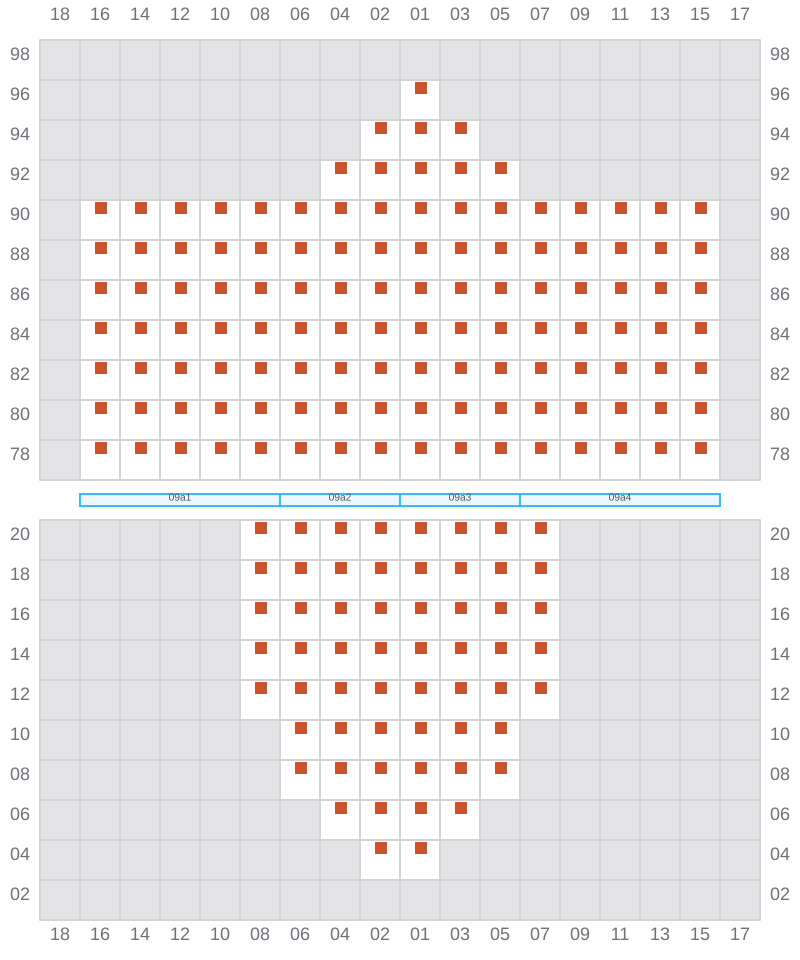

009 (010)

  • →
Bay 009 view and slots of MAERSK ALGOL

011

  • ←
Bay 011 view and slots of MAERSK ALGOL

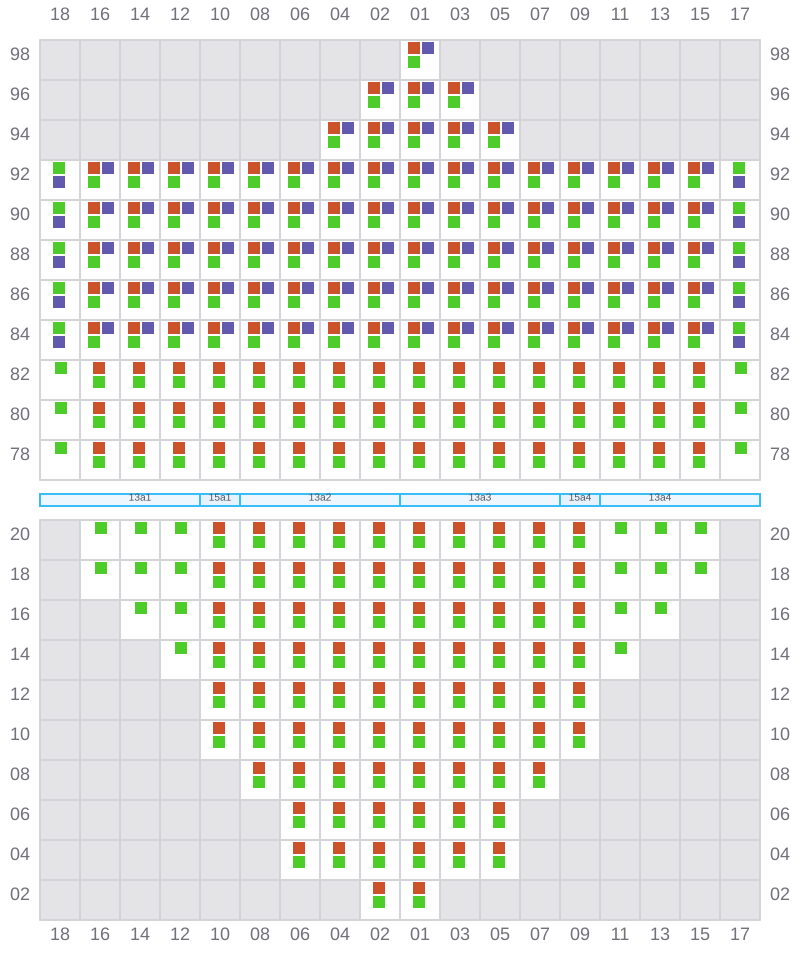

013 (014)

  • →
Bay 013 view and slots of MAERSK ALGOL

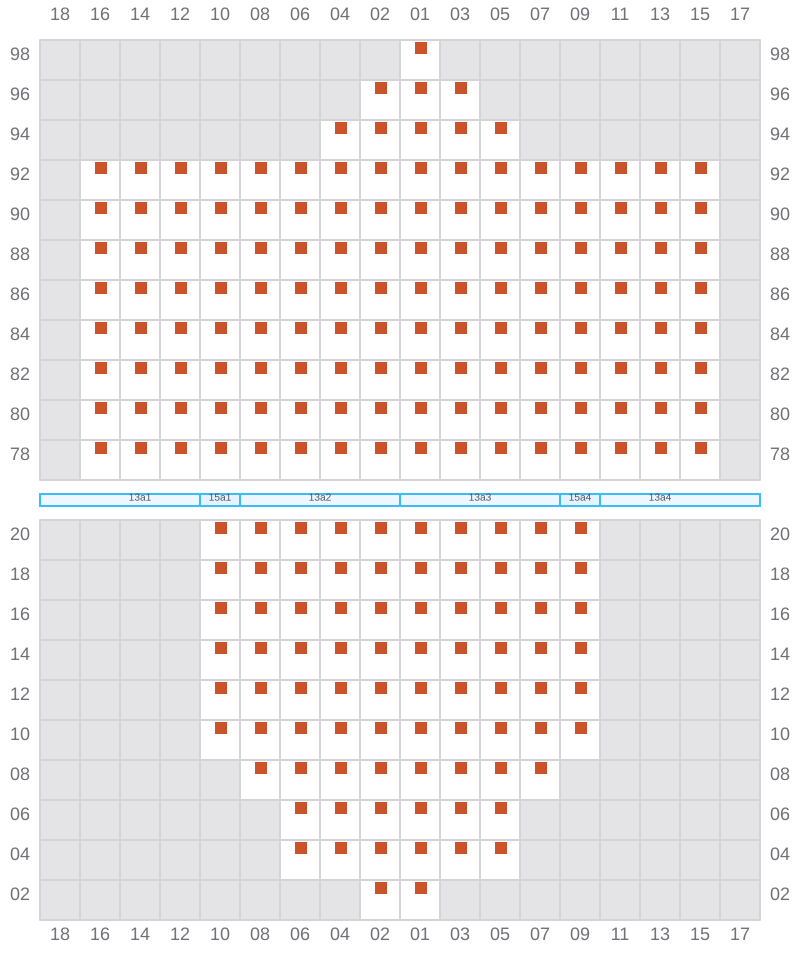

015

  • ←
Bay 015 view and slots of MAERSK ALGOL

017 (018)

  • →
Bay 017 view and slots of MAERSK ALGOL

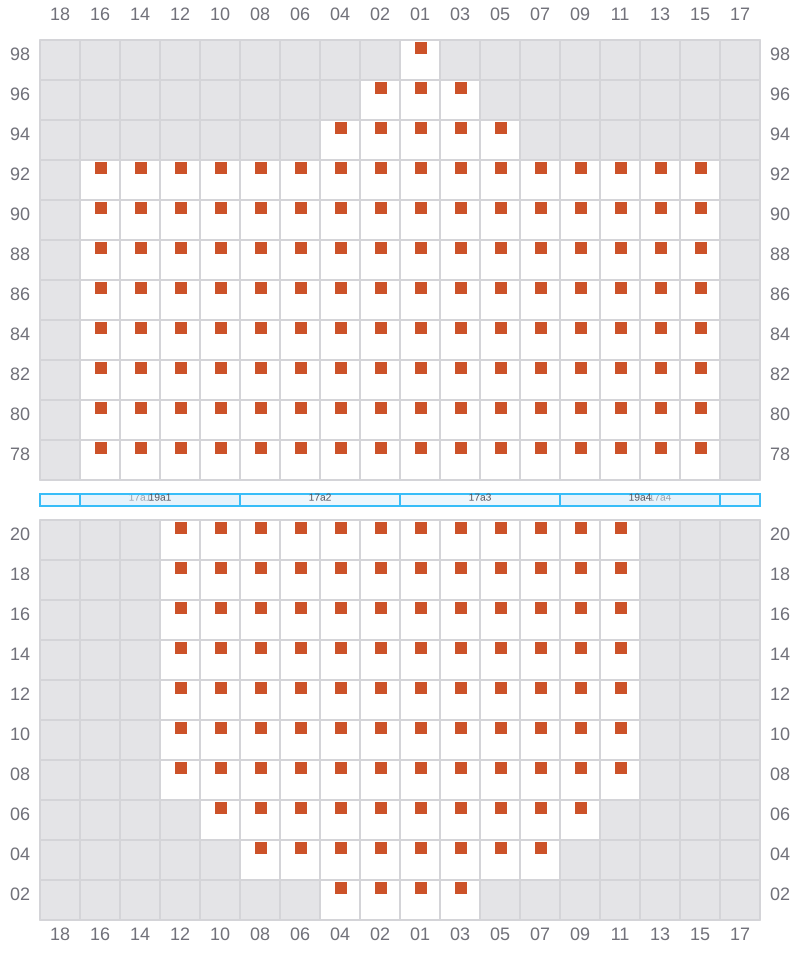

019

  • ←
Bay 019 view and slots of MAERSK ALGOL

021 (022)

  • →

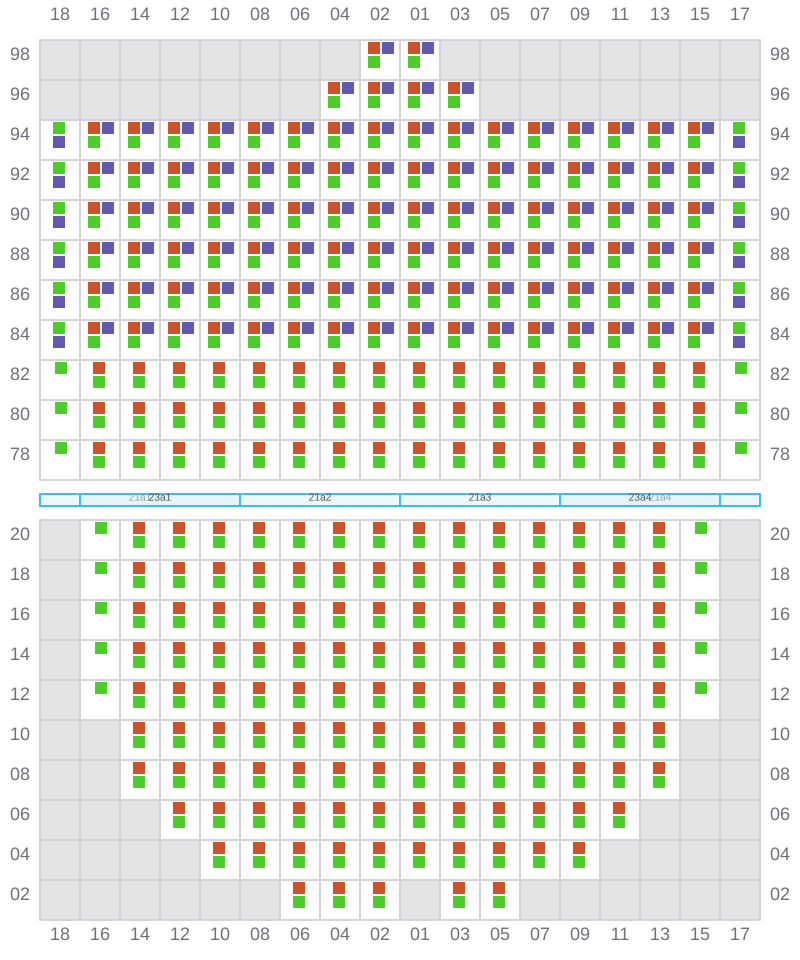

Bay 021 view and slots of MAERSK ALGOL

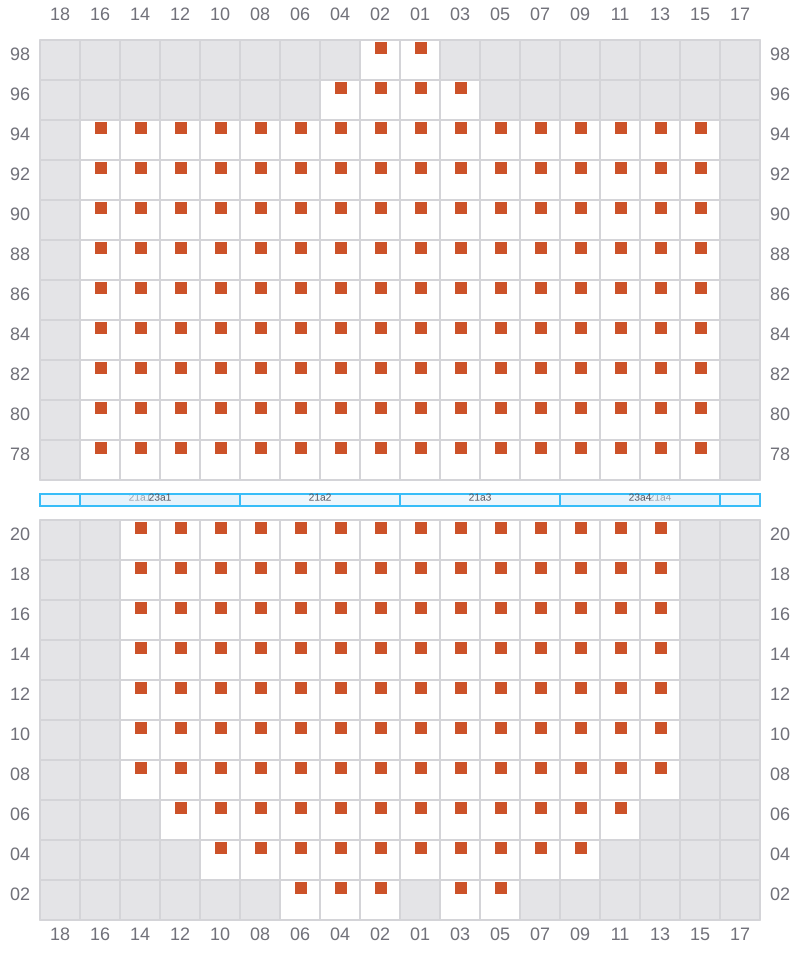

023

  • ←
Bay 023 view and slots of MAERSK ALGOL

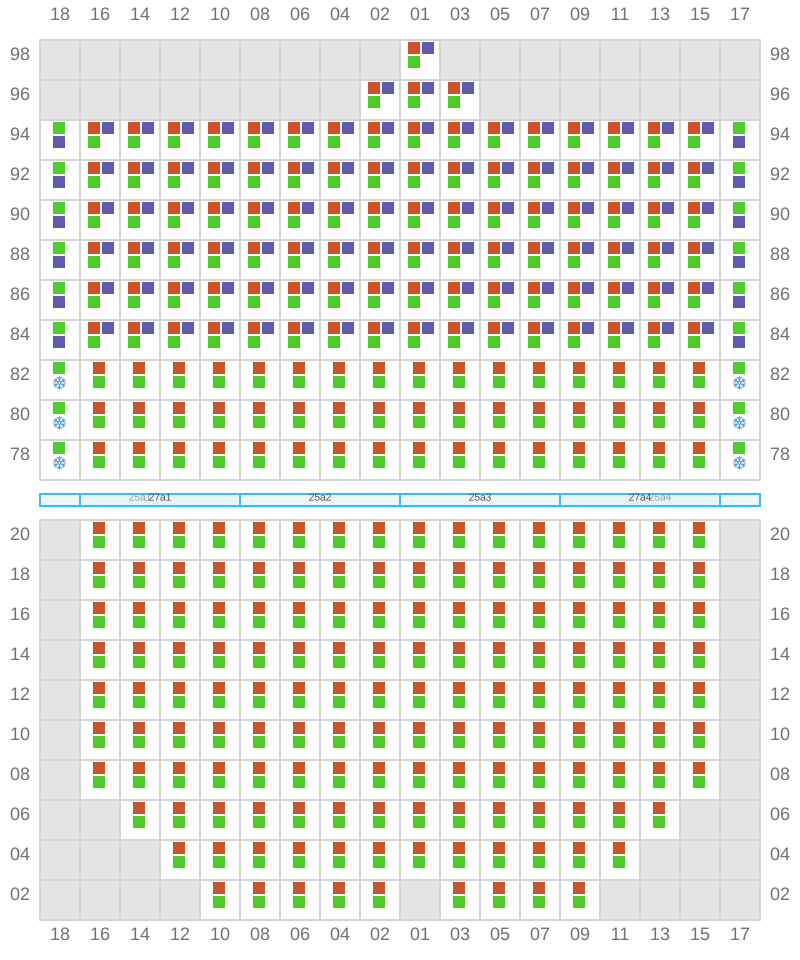

025 (026)

  • →
  • → / ←
Bay 025 view and slots of MAERSK ALGOL

027

  • ←
  • → / ?

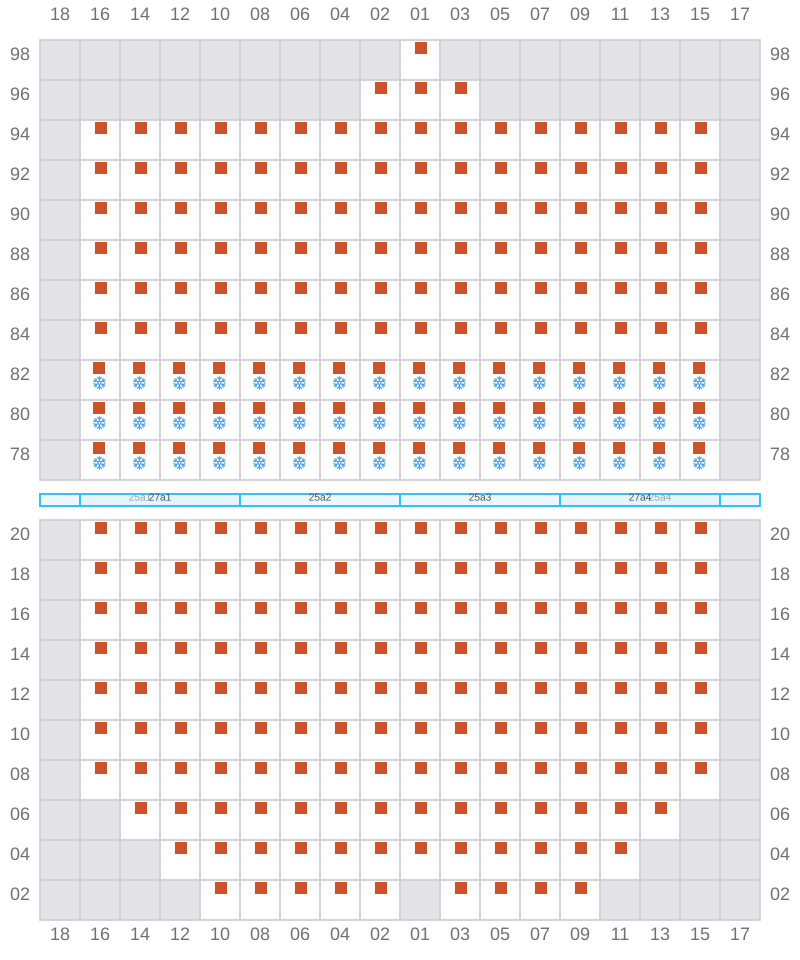

Bay 027 view and slots of MAERSK ALGOL

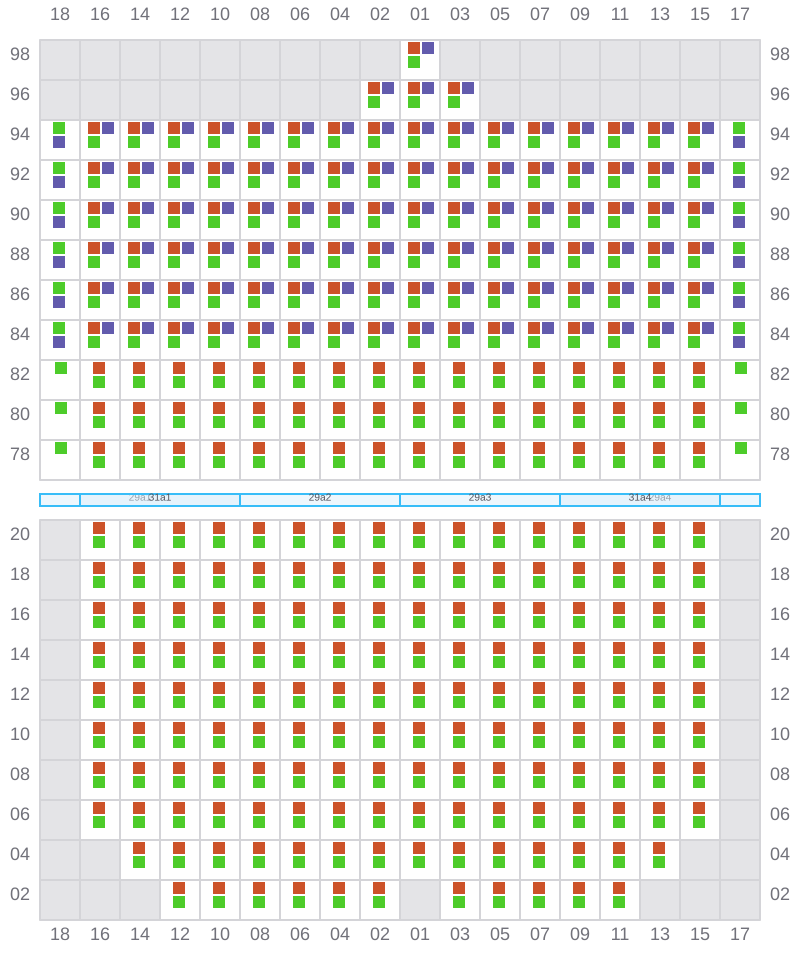

029 (030)

  • →
Bay 029 view and slots of MAERSK ALGOL

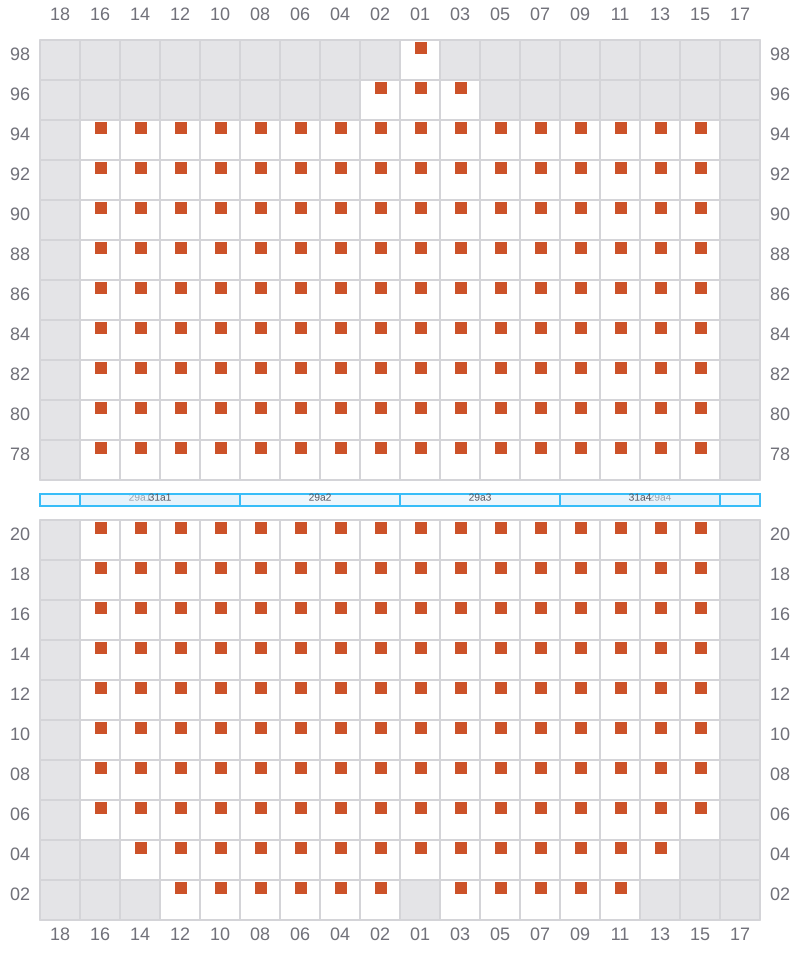

031

  • ←
Bay 031 view and slots of MAERSK ALGOL

033 (034)

  • →
  • → / ←
Bay 033 view and slots of MAERSK ALGOL

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK ALGOL

037 (038)

  • →

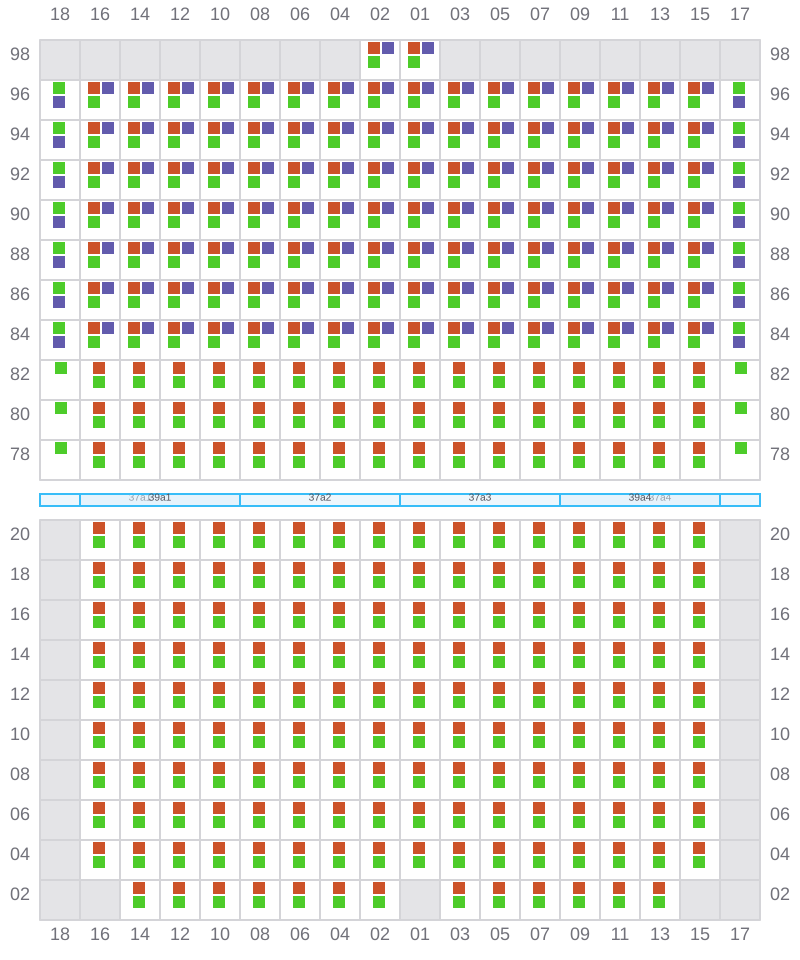

Bay 037 view and slots of MAERSK ALGOL

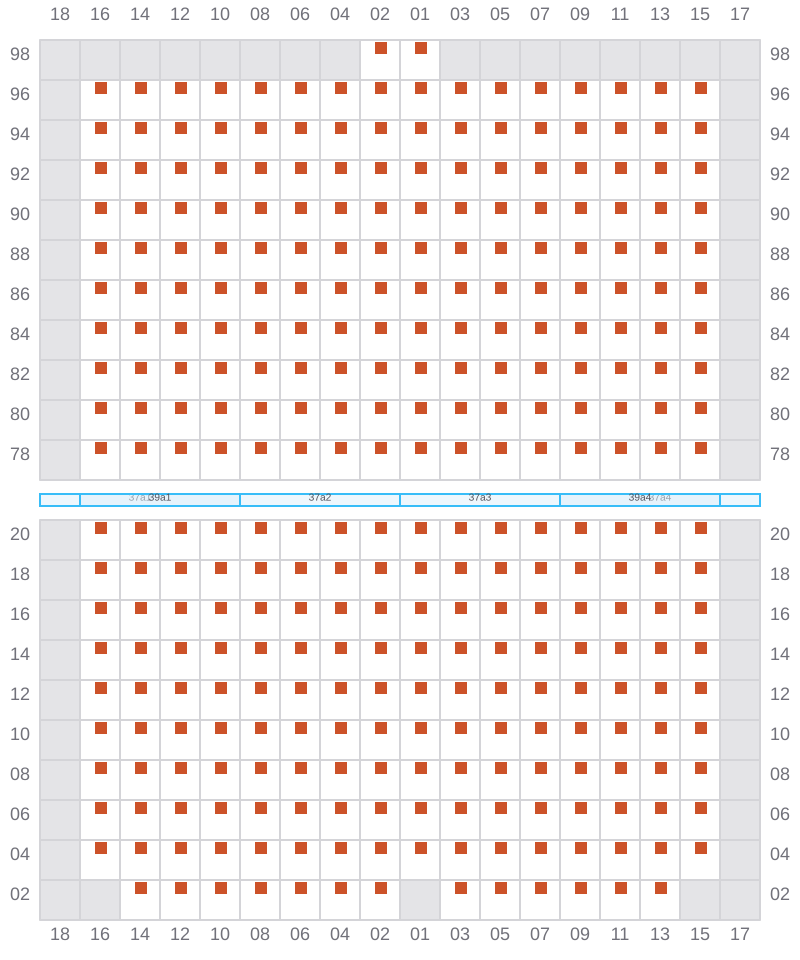

039

  • ←
Bay 039 view and slots of MAERSK ALGOL

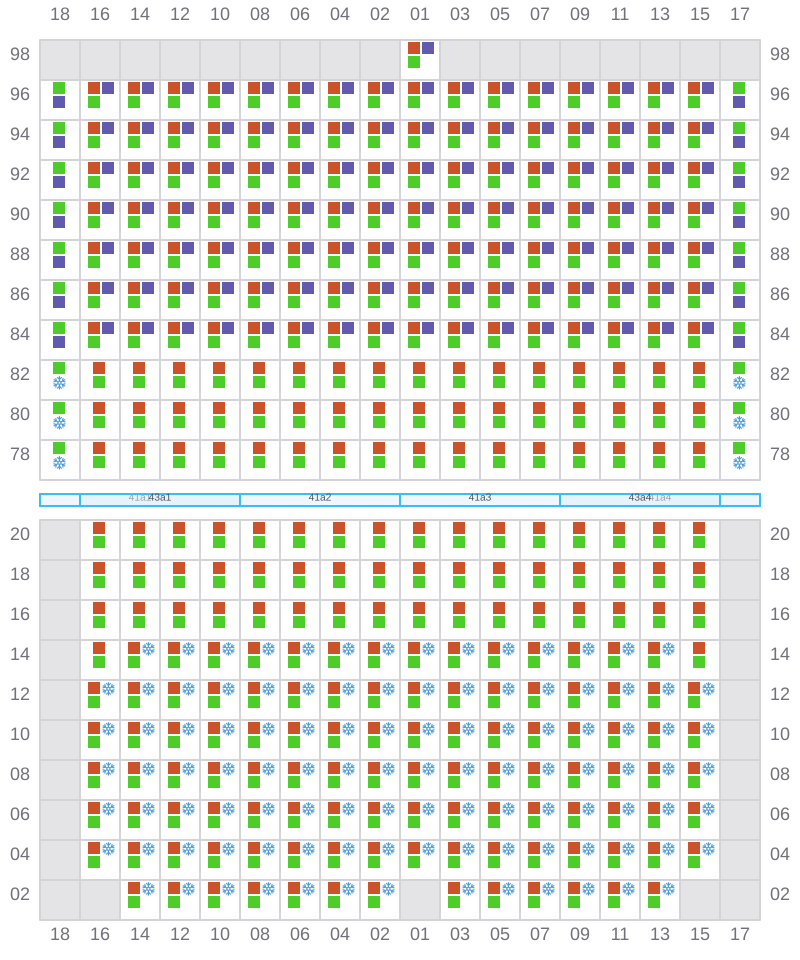

041 (042)

  • →
  • → / ←
Bay 041 view and slots of MAERSK ALGOL

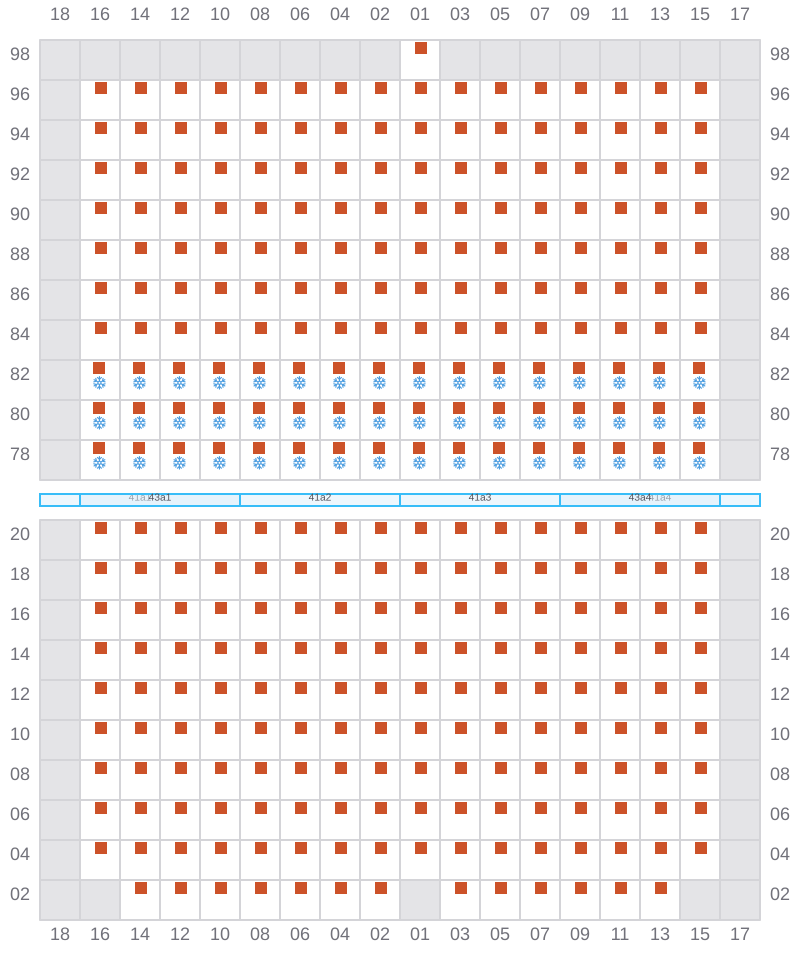

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK ALGOL

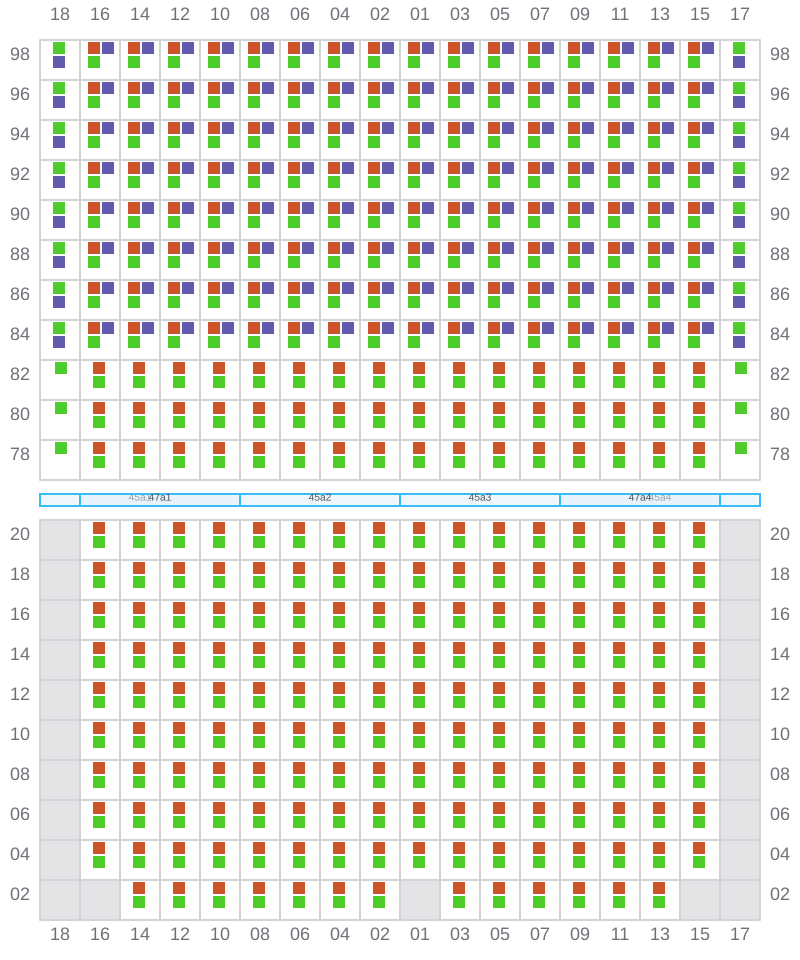

045 (046)

  • →
Bay 045 view and slots of MAERSK ALGOL

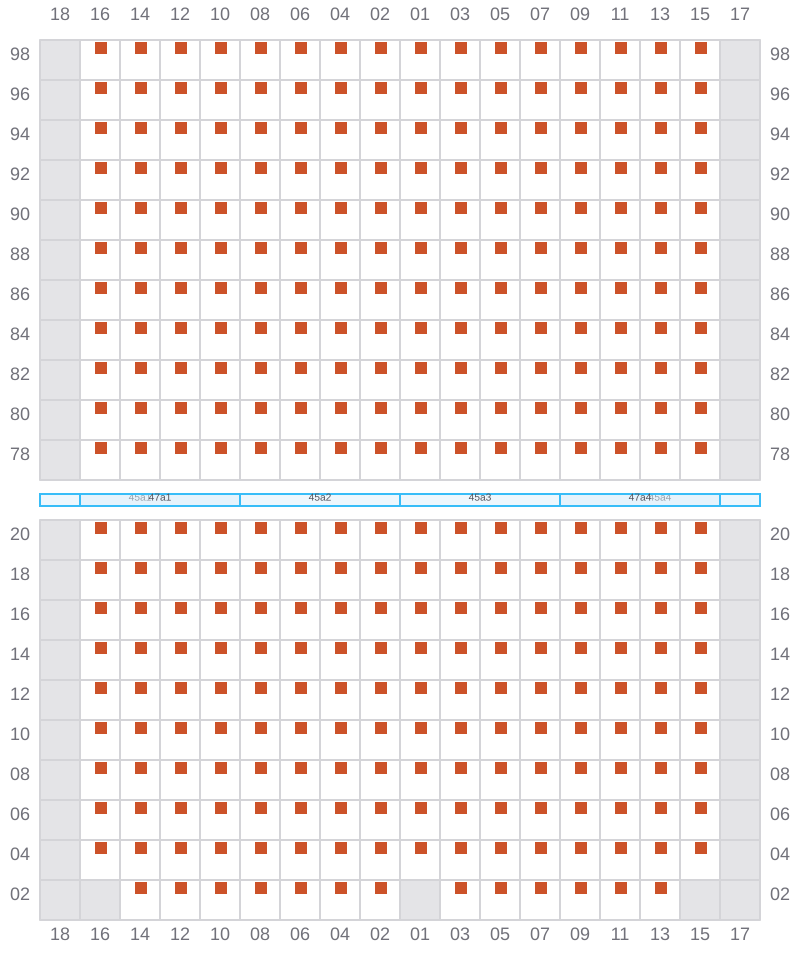

047

  • ←
Bay 047 view and slots of MAERSK ALGOL

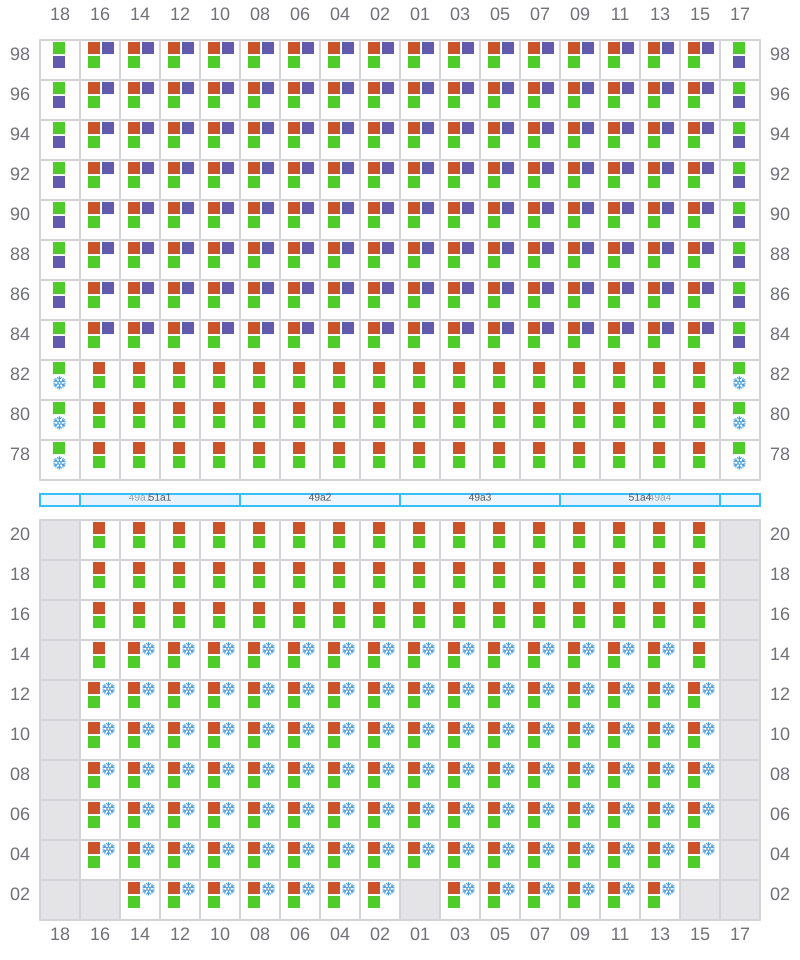

049 (050)

  • →
  • → / ←
Bay 049 view and slots of MAERSK ALGOL

051

  • ←
  • → / ?

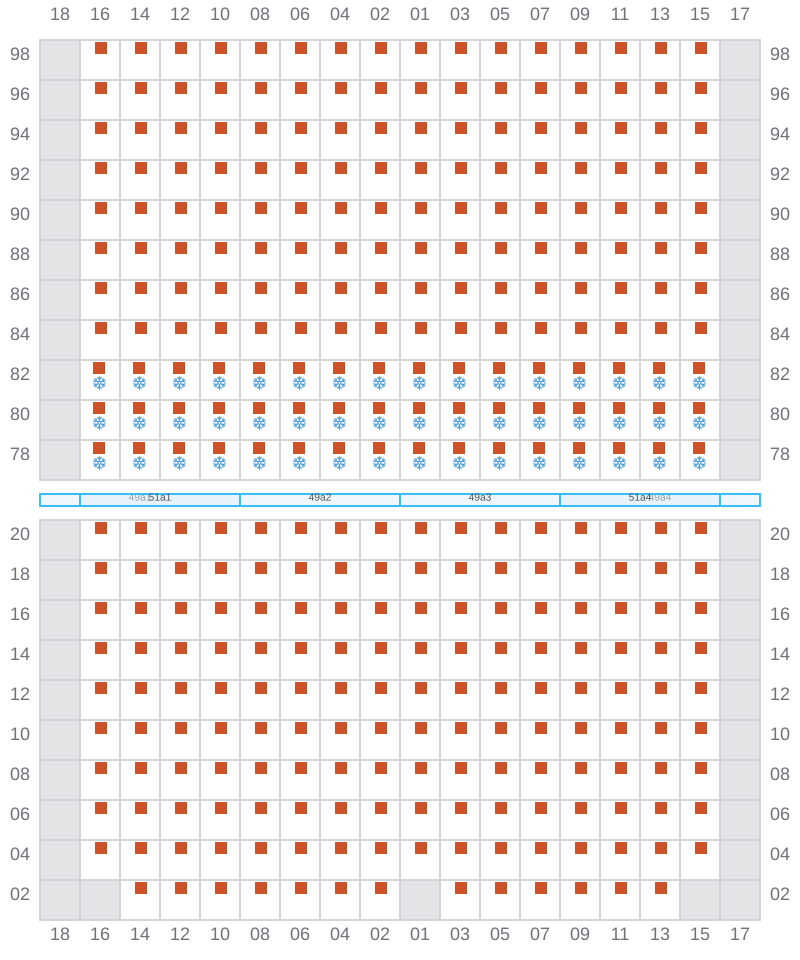

Bay 051 view and slots of MAERSK ALGOL

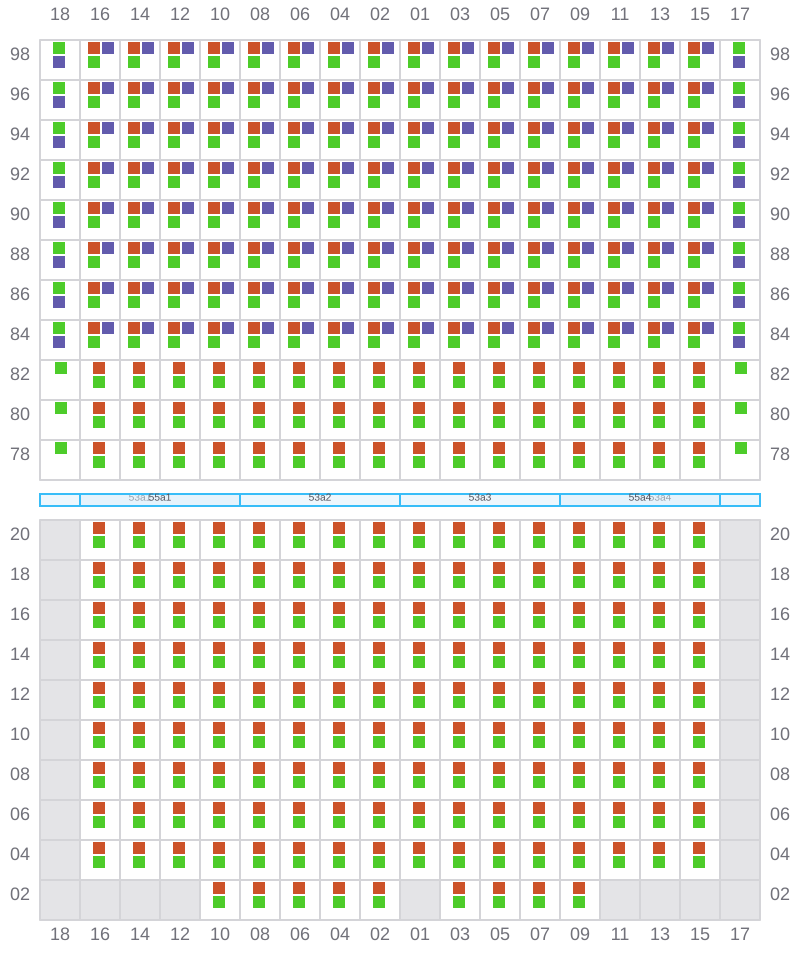

053 (054)

  • →
Bay 053 view and slots of MAERSK ALGOL

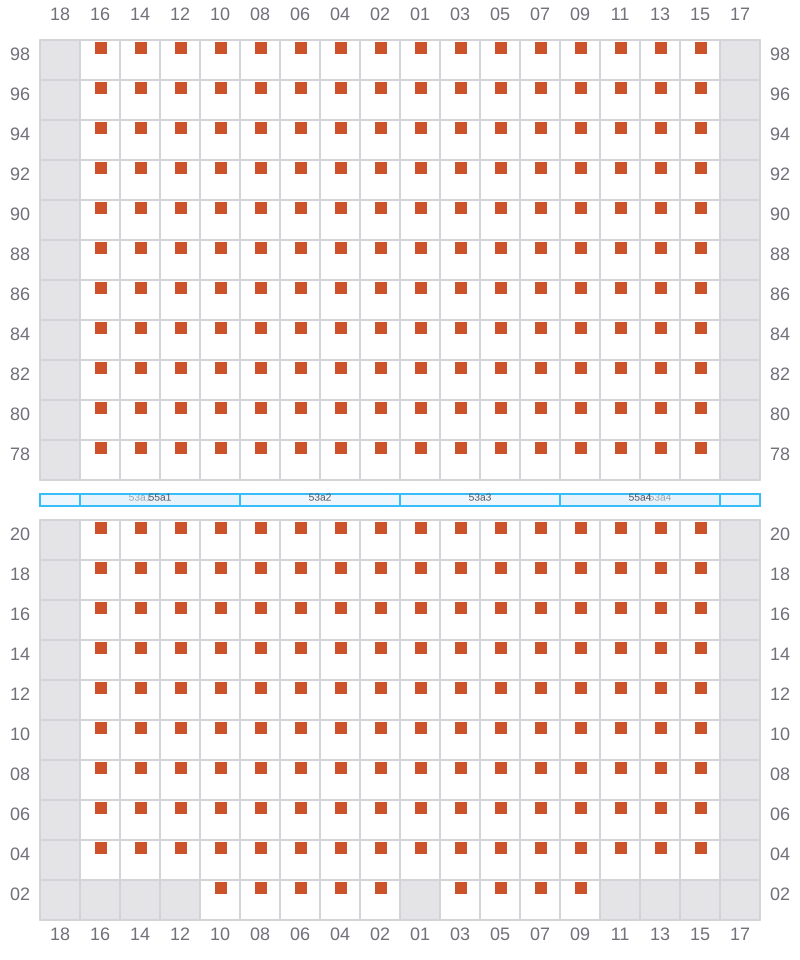

055

  • ←
Bay 055 view and slots of MAERSK ALGOL

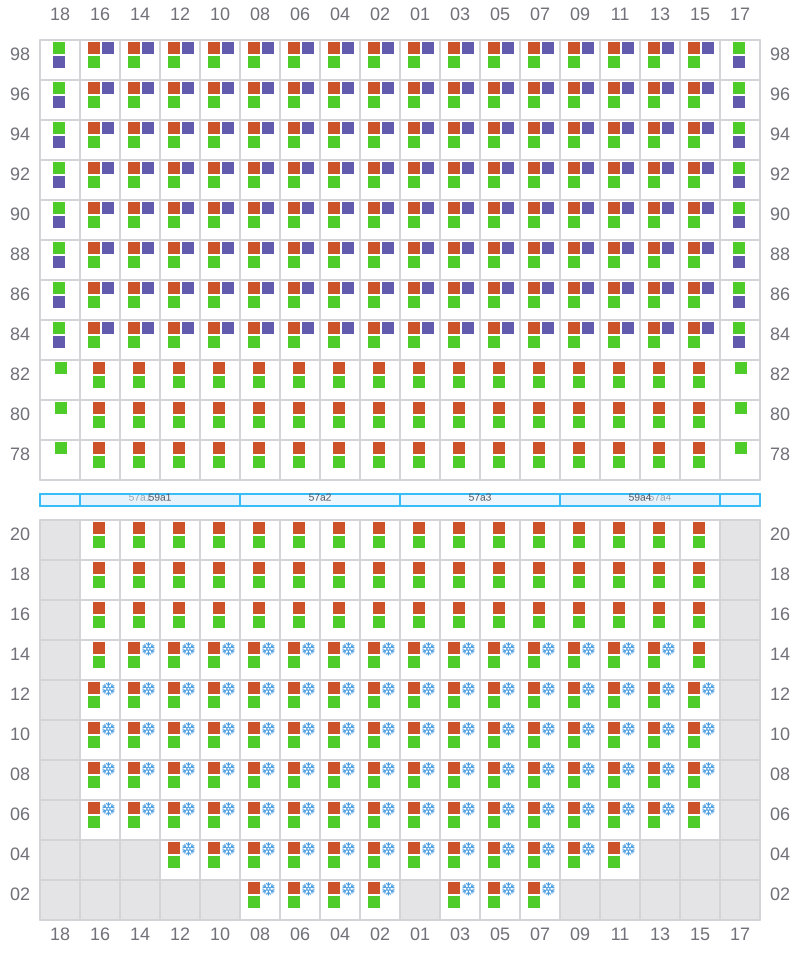

057 (058)

  • →
  • ? / ←
Bay 057 view and slots of MAERSK ALGOL

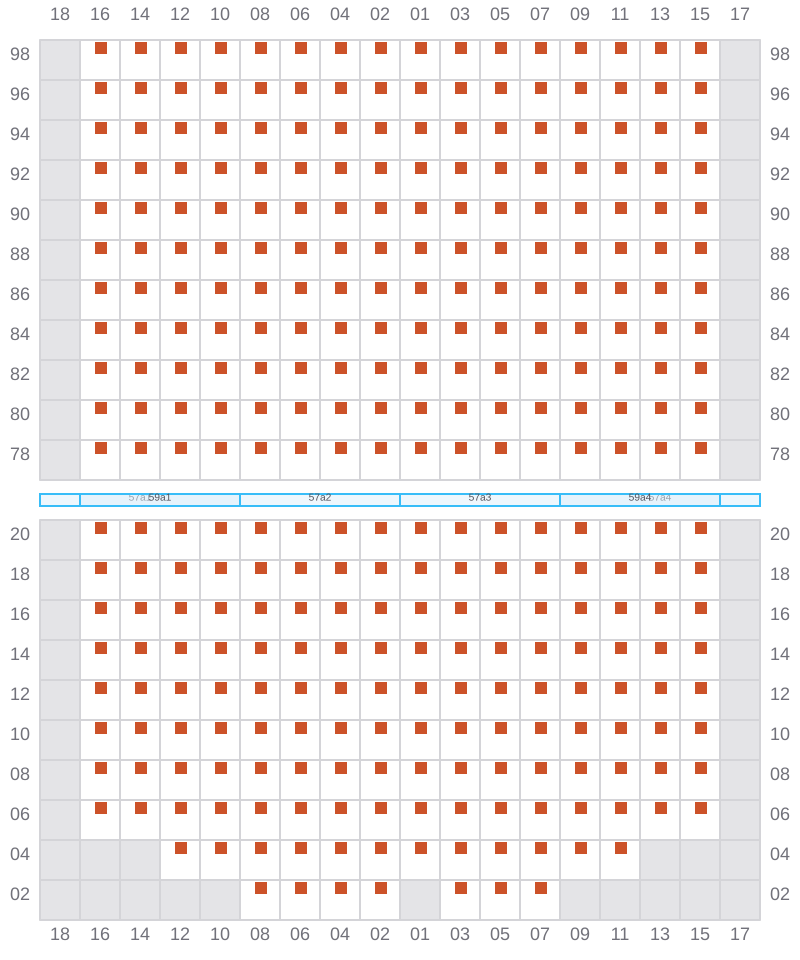

059

  • ←
Bay 059 view and slots of MAERSK ALGOL

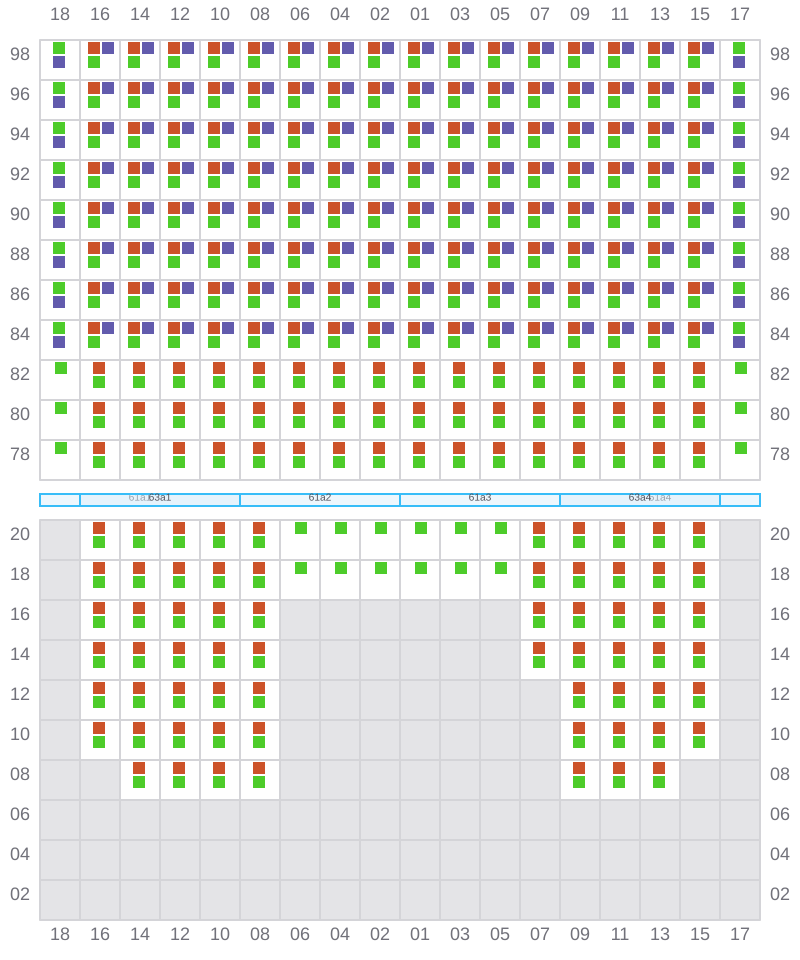

061 (062)

  • →
Bay 061 view and slots of MAERSK ALGOL

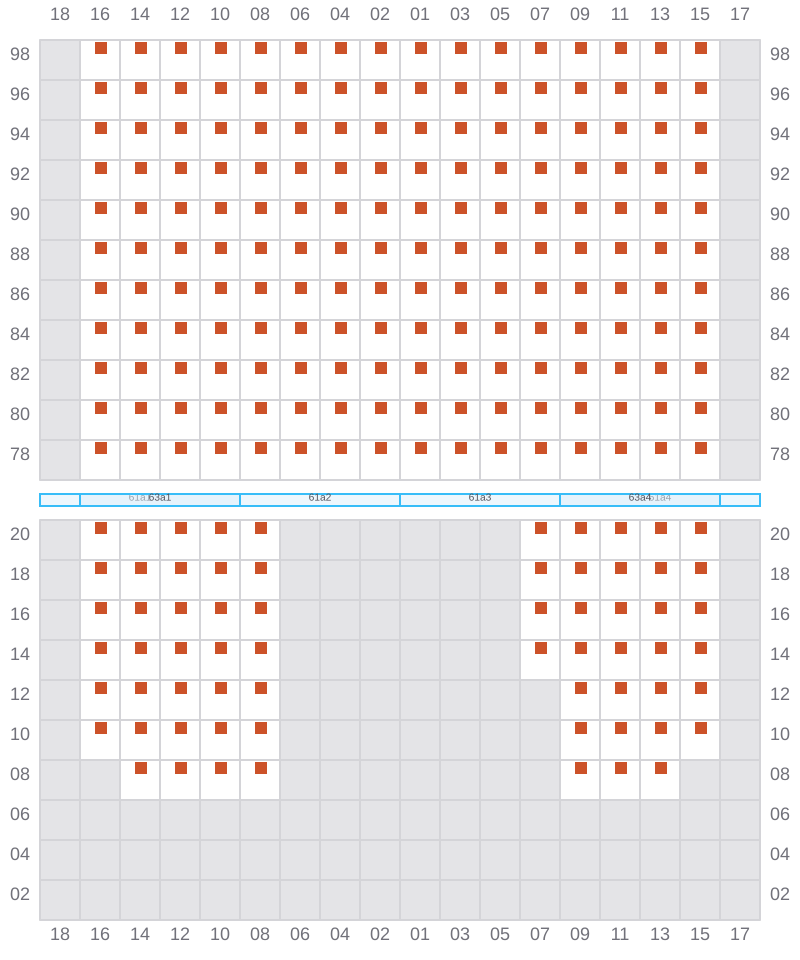

063

  • ←
Bay 063 view and slots of MAERSK ALGOL

065 (066)

  • →
Bay 065 view and slots of MAERSK ALGOL

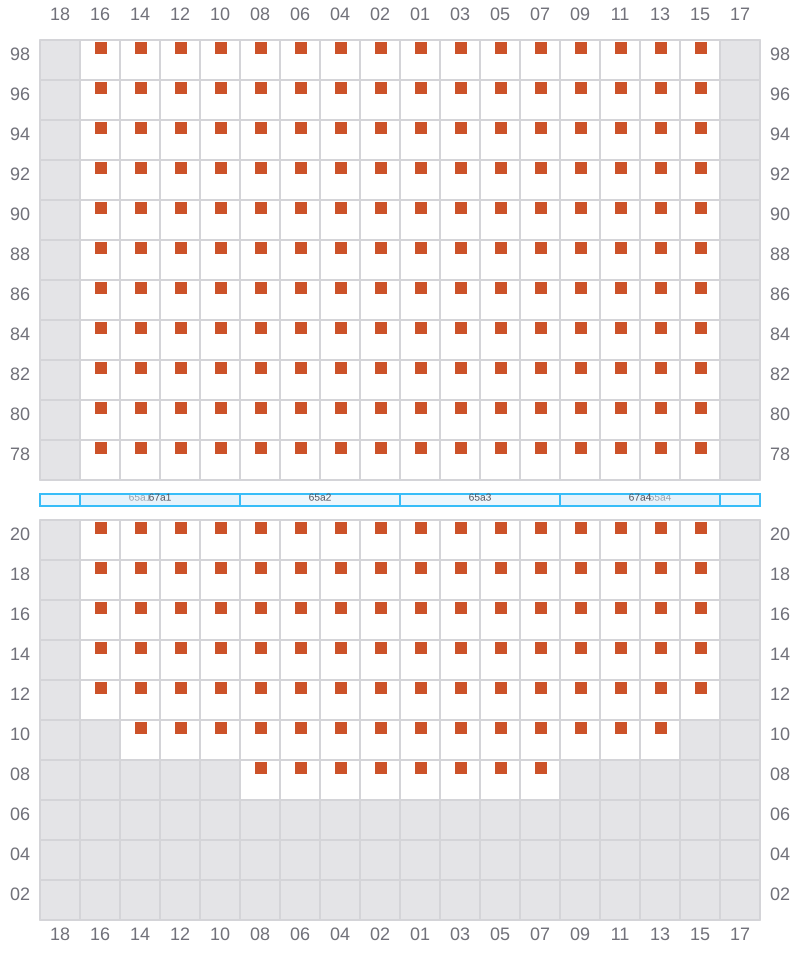

067

  • ←
Bay 067 view and slots of MAERSK ALGOL

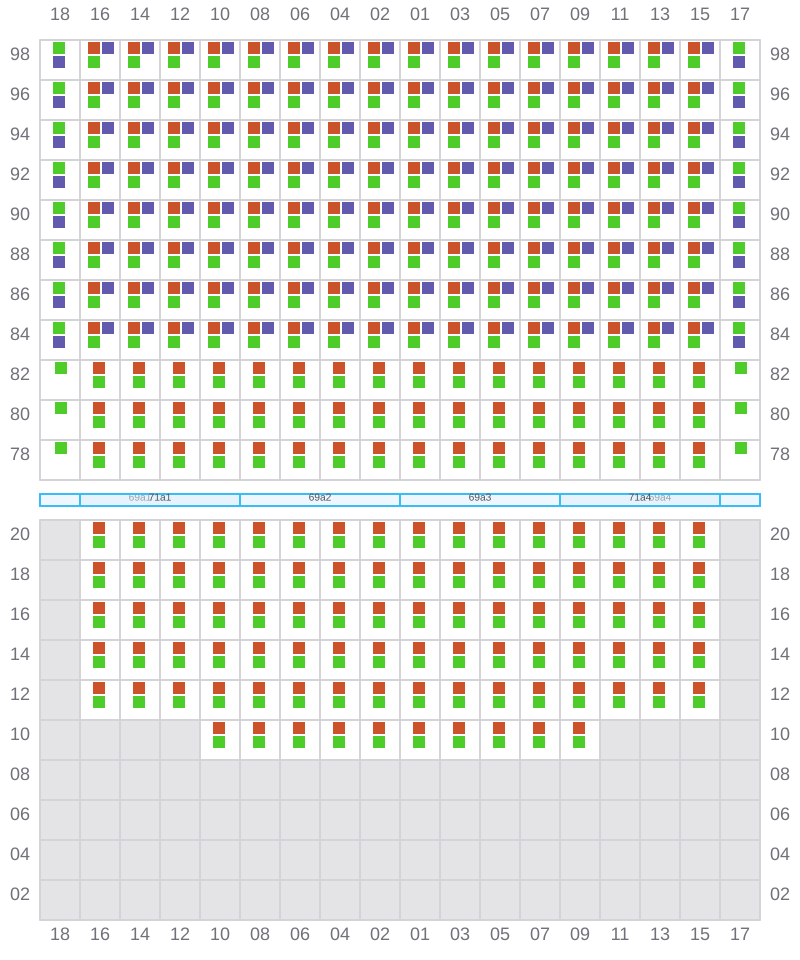

069 (070)

  • →
Bay 069 view and slots of MAERSK ALGOL

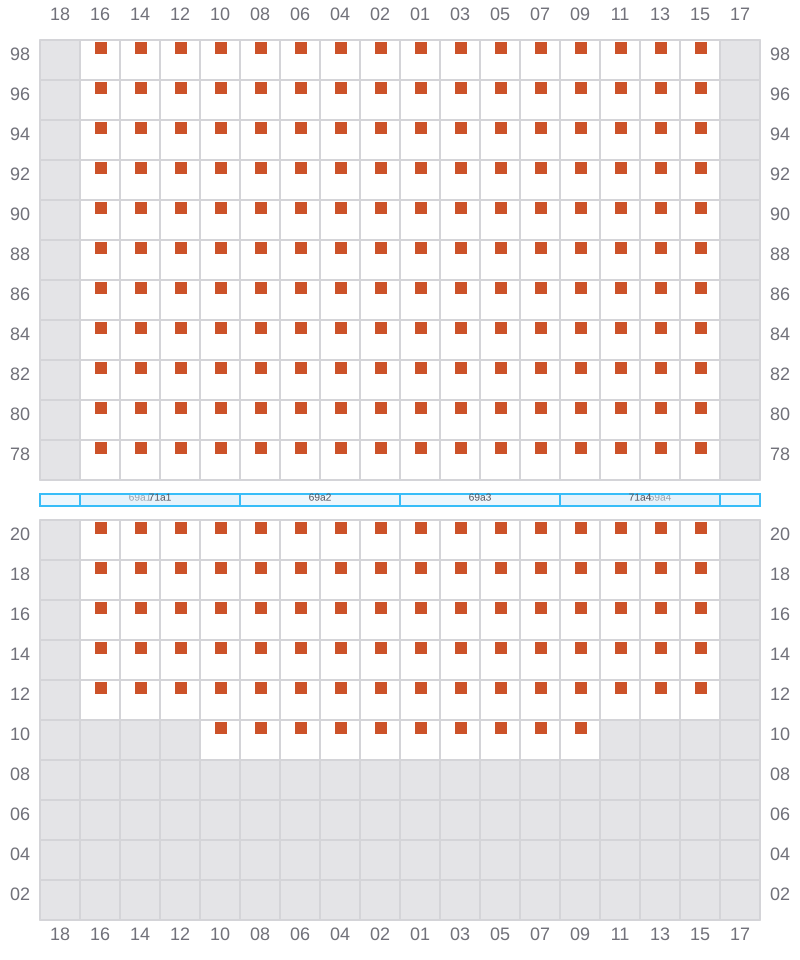

071

  • ←
Bay 071 view and slots of MAERSK ALGOL

073 (074)

  • →
Bay 073 view and slots of MAERSK ALGOL

075

  • ←

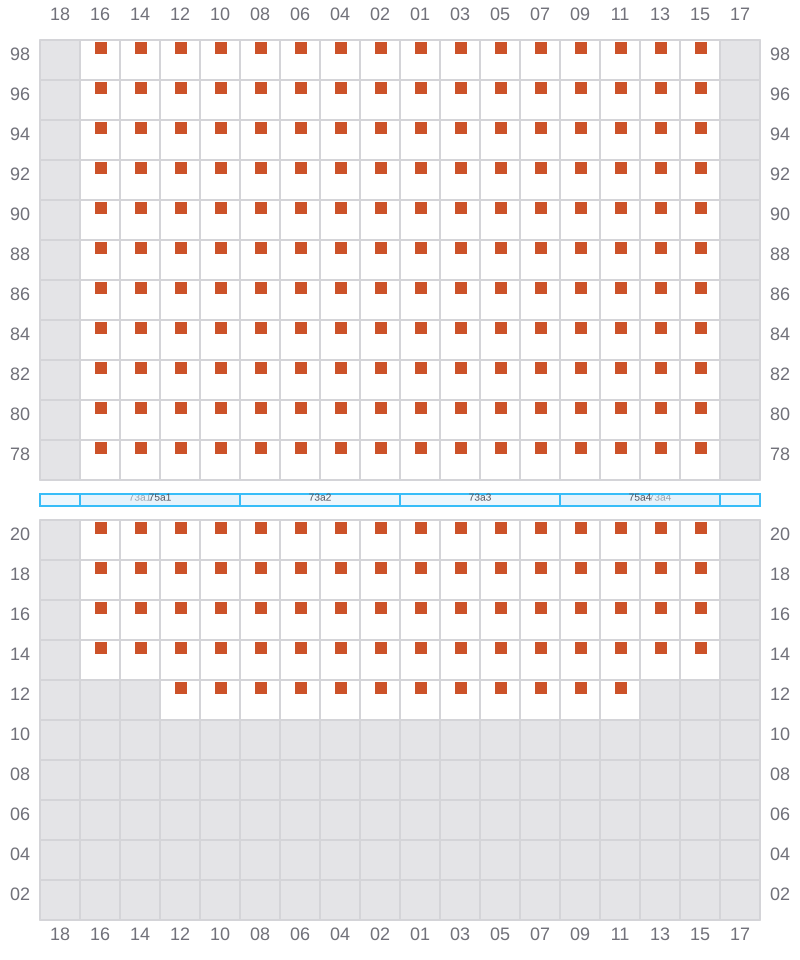

Bay 075 view and slots of MAERSK ALGOL

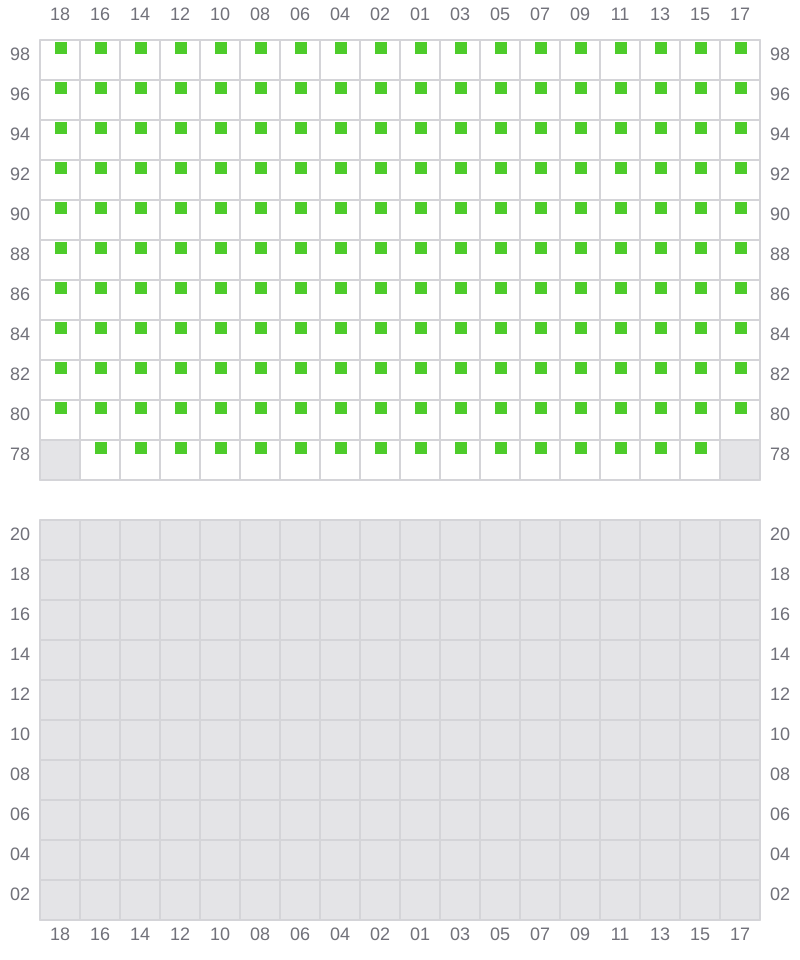

077 (078)

  • → / ?
Bay 077 view and slots of MAERSK ALGOL
